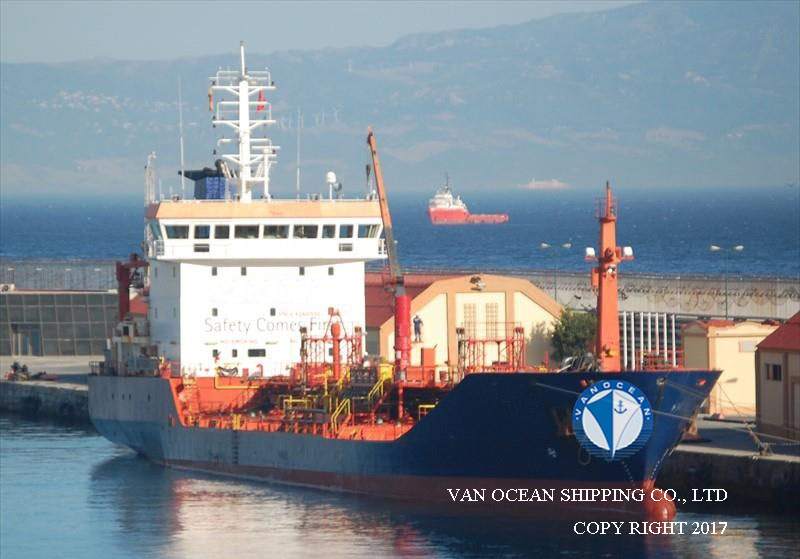

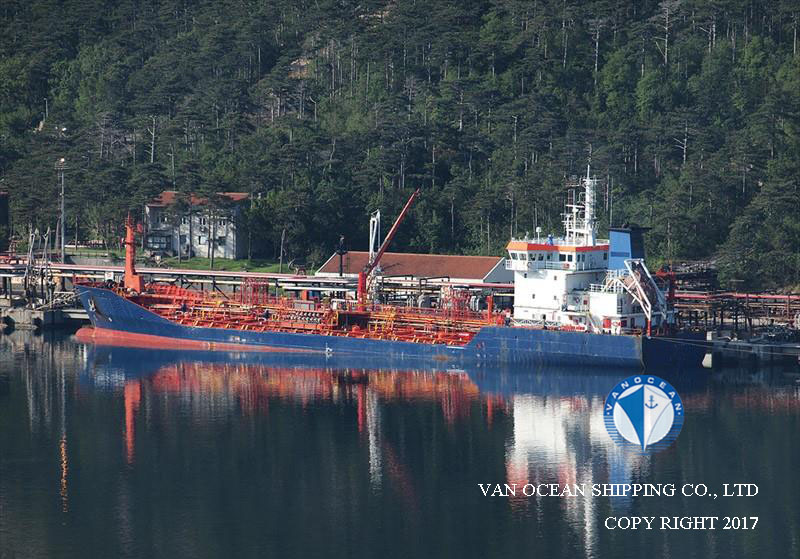

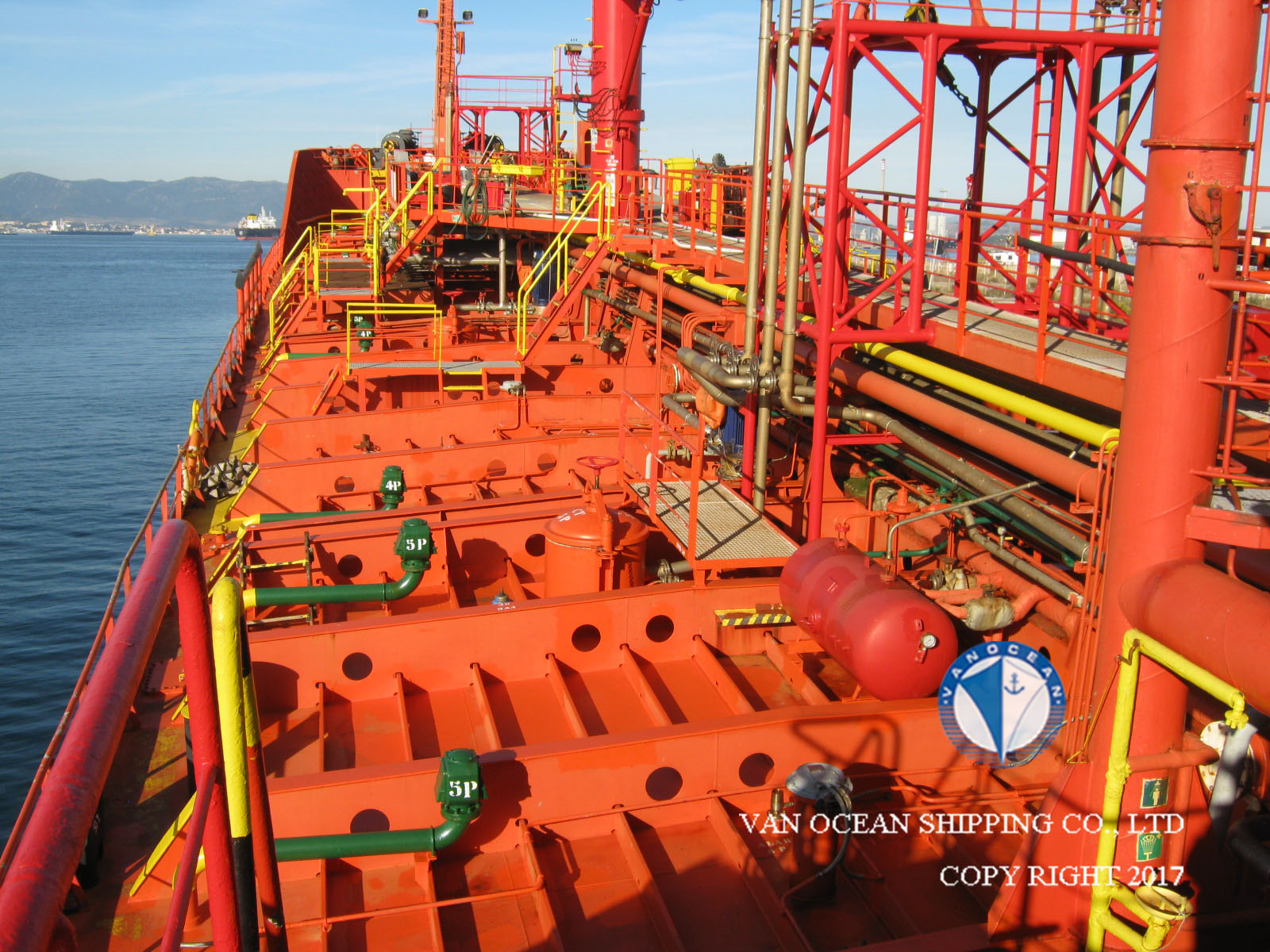

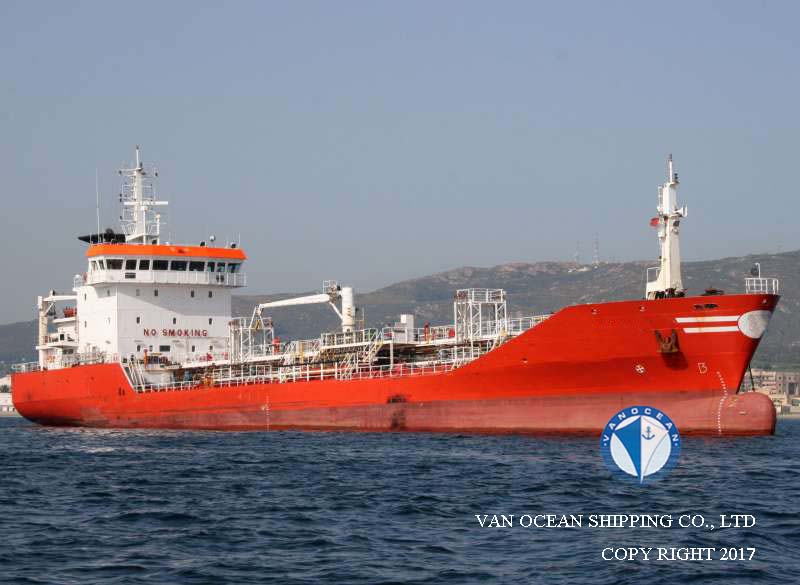

VESSEL NAME
TNK056
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MALTA
PORT OF REGISTRY
VALLETTA
BUILT YEAR
2003
BUILT PLACE
SELAH SHIPYARD, TUZLA, ISTANBUL, TURKEY
CLASSIFICATION
LR
CLASS NOTATION
IMO2 100A1 DOUBLE HULL, ESP, LL, LMC, UMS, IGS
SS
2017-06-09
DD
-
LOA (M)
102.90
LBP (M)
98.15
BEAM (M)
15.60
DEPTH (M)
7.60
SUMMER DRAFT (M)
6.00
WINTER DRAFT (M)
5.88
TROPICAL DRAFT (M)
6.12
GT (MT)
3408.00
PANAMA GT (MT)
2921.00
SUEZ GT (MT)
3672.61
NT (MT)
1527.00
PANAMA NT (MT)
-
SUEZ NT (MT)
2794.91
SUMMER DWT (MT)
4815.00
WINTER DWT (MT)
4649.30
TROPICAL DWT (MT)
4984.20
DISPLACEMENT (MT)
6911.30
LDT (MT)
2095
GEAR(S)
CRANE, 1 x 3MT
M/E(S)
M/E
M/E POWER (KW)
3360
A/E(S)
-
GENERATOR(S)
GENERATORS: 3 x 320KW
EMERGENCY: 1 x 99KW
SHAFT GENERATOR(S)
1 x 400KW
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
14.5
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
195.9
TANKS CAPACITY (CBM)
MGO: 59.74, FRESH WATER:211.57,SLOP TANK:140
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
196126.8
CARGO CAPACITY98% (CBM)
5556
COATING/MATERIAL OF HOLD(S)
EPOXY

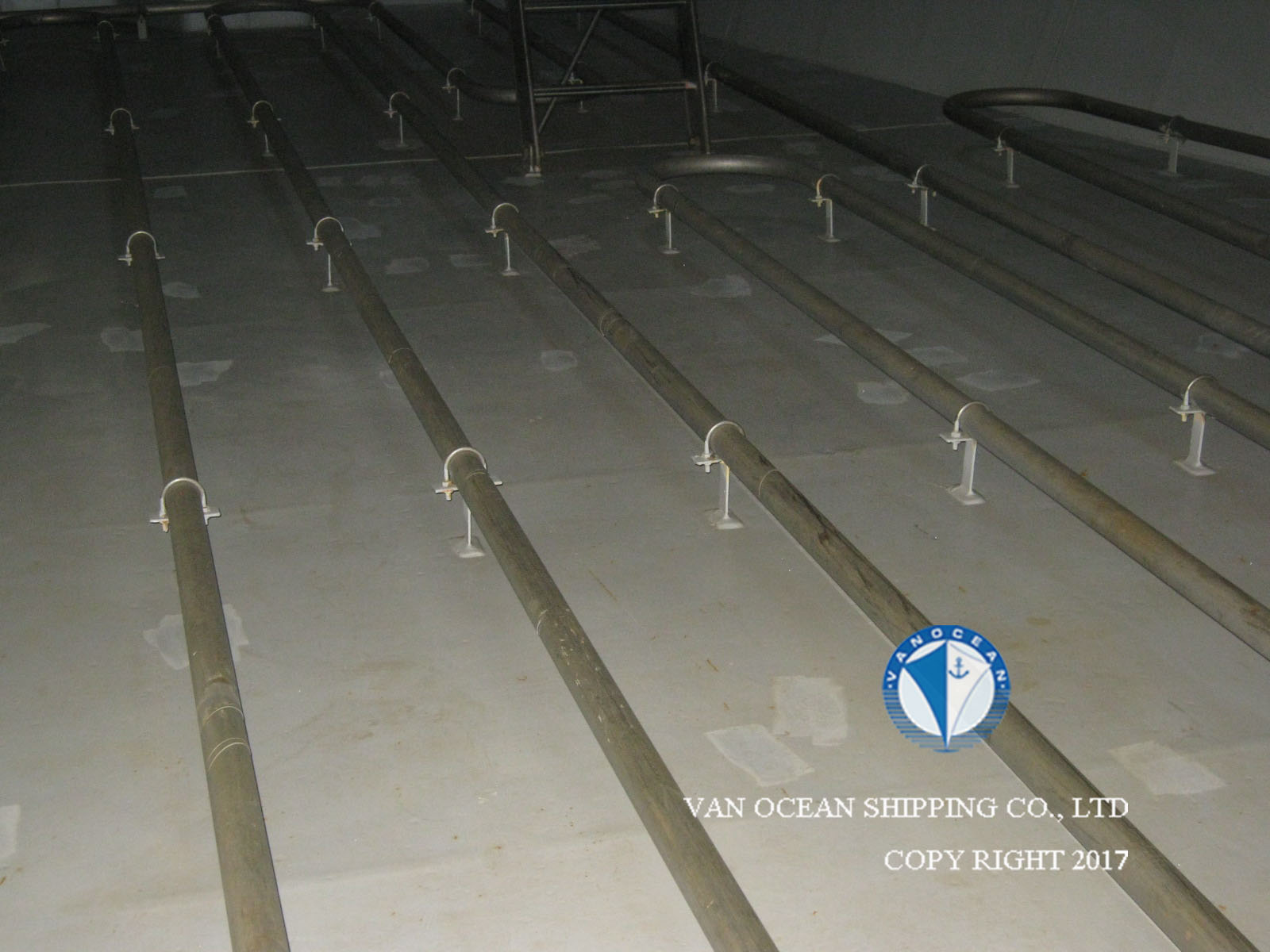

HEATING SYSTEM
STAINLESS STEEL HEATING COILS (HEATING OIL)
SACRIFICIAL ANODE
-
IGS
YES

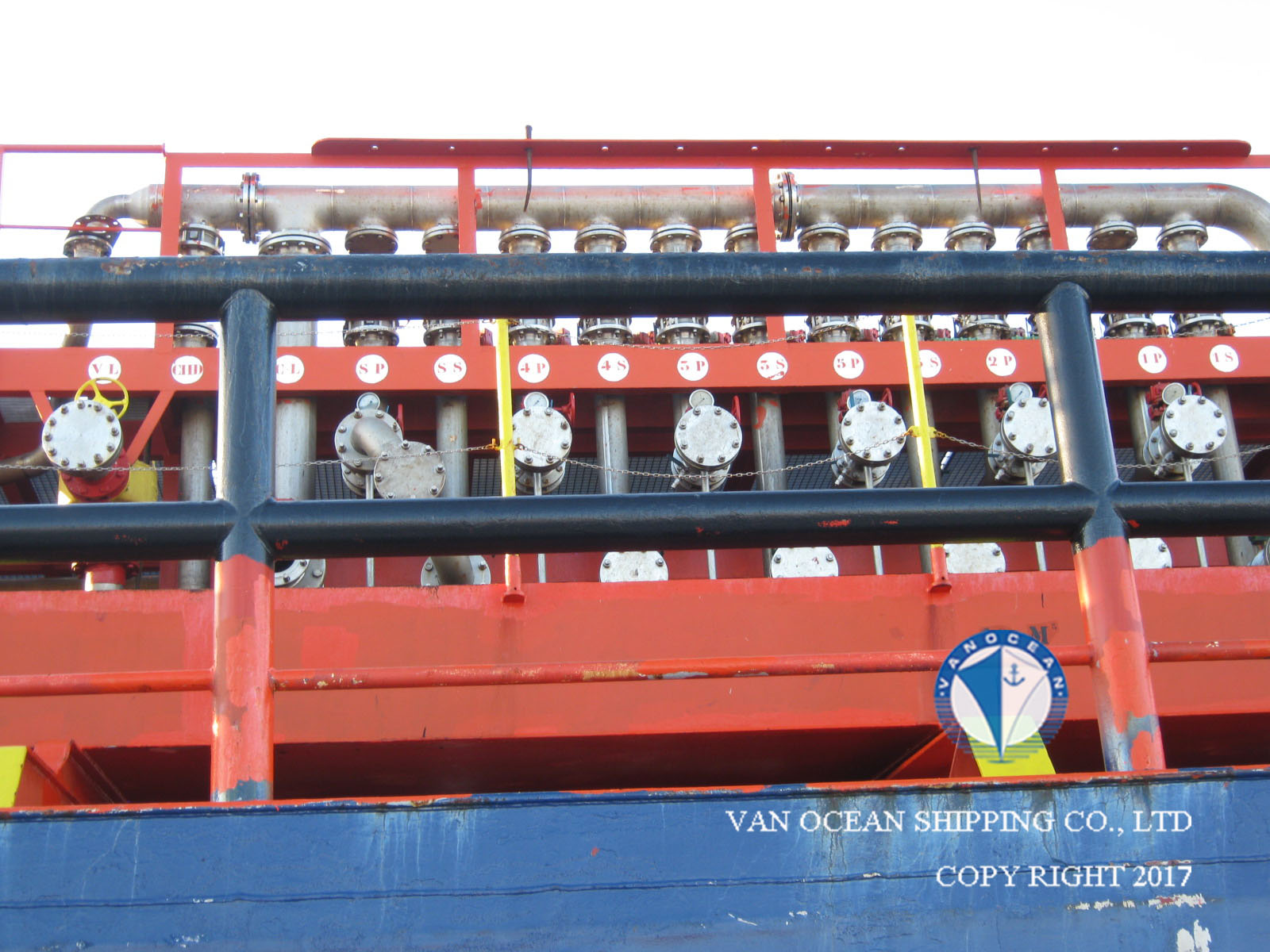

PUMP(S)
CARGO:
10 x 125CBM/HR
2 x 60CBM/HR
BALLAST:
2 x 200CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER:300KW
INSURANCE
POLLUTION LIABILITY: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 4.8 MILLION
REMARK(S)
SBT: 1949.78CBM
