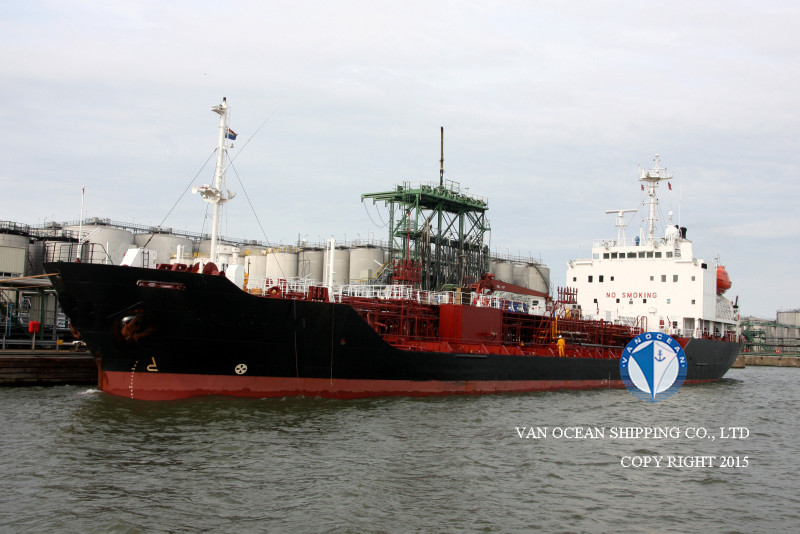

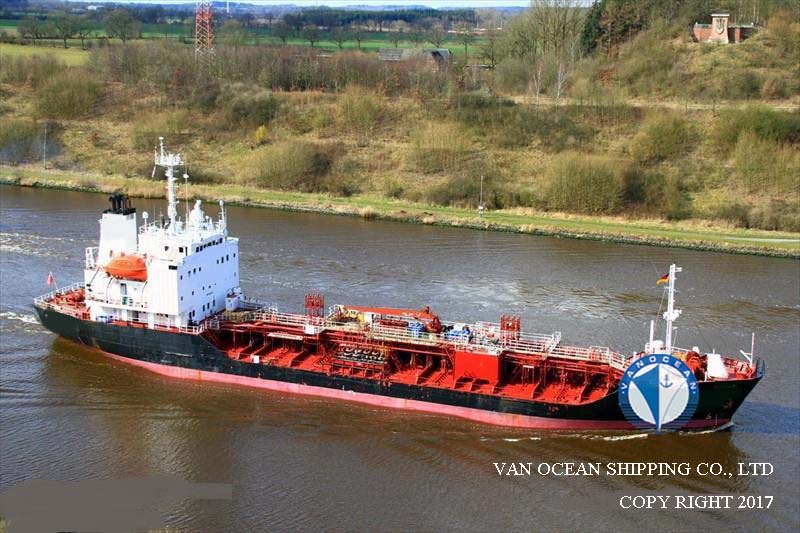

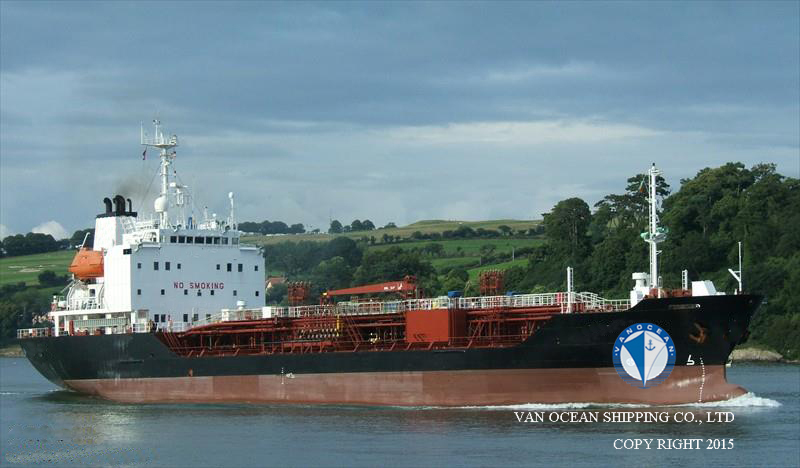

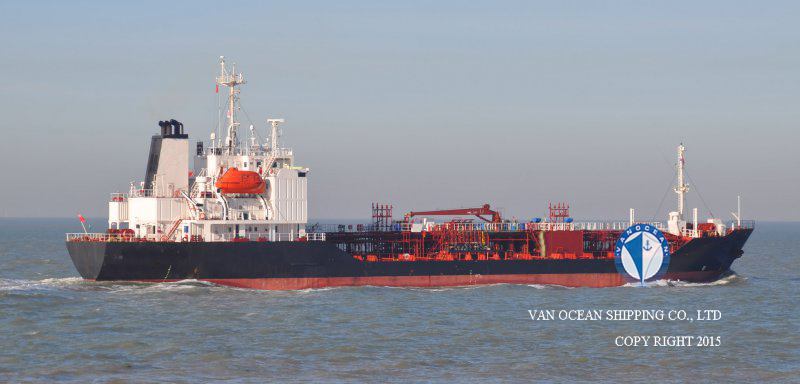

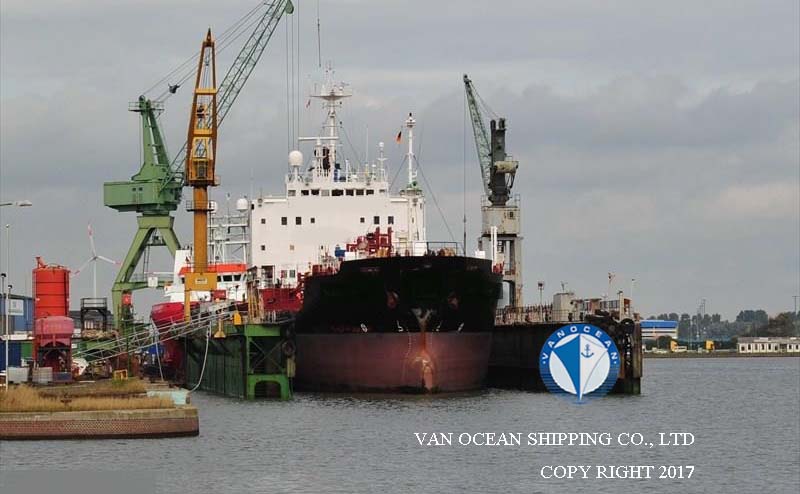

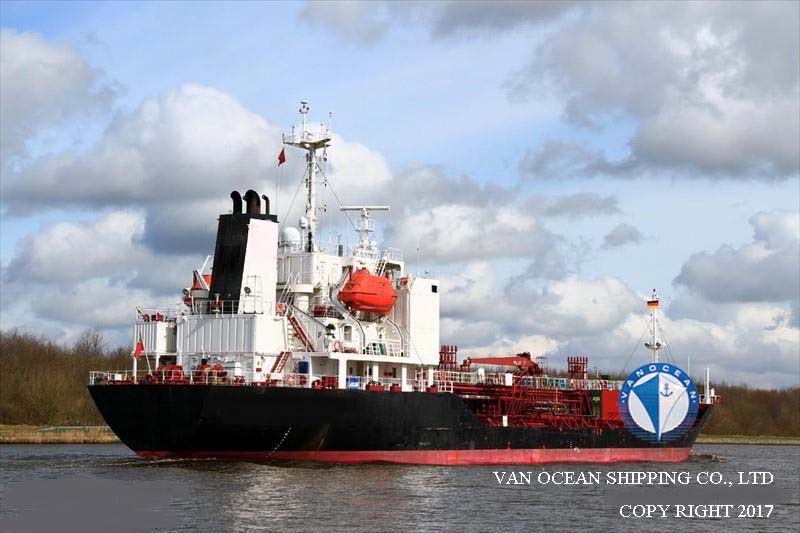

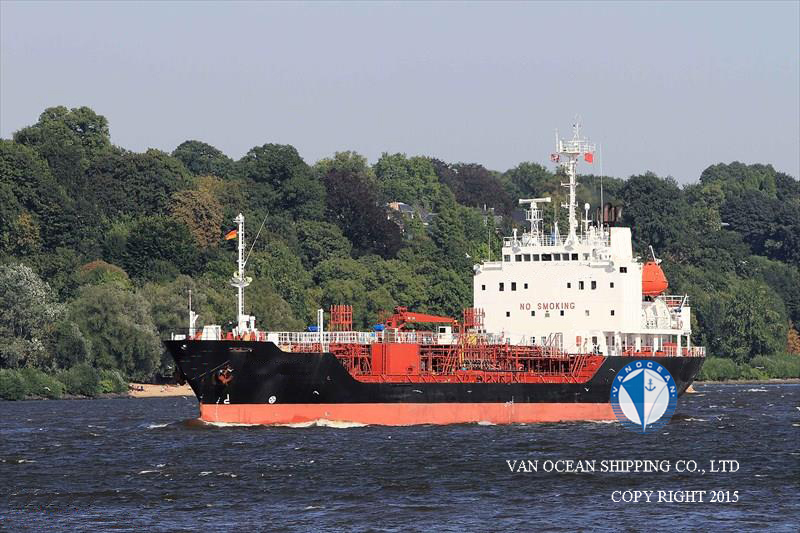

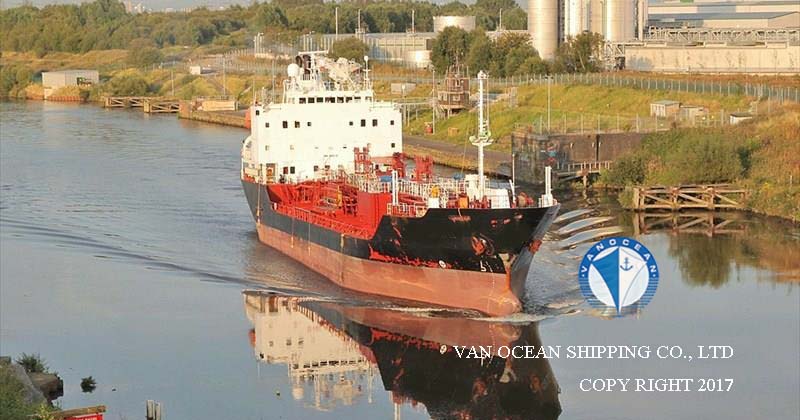

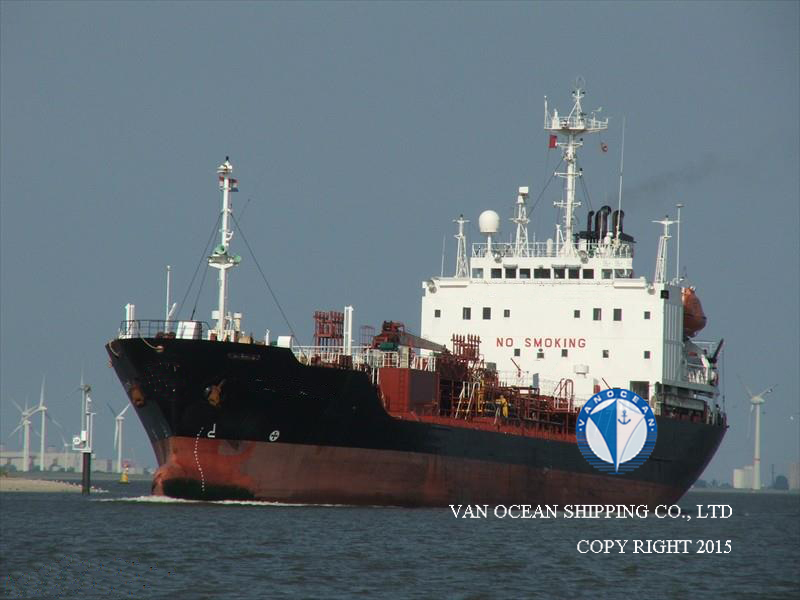

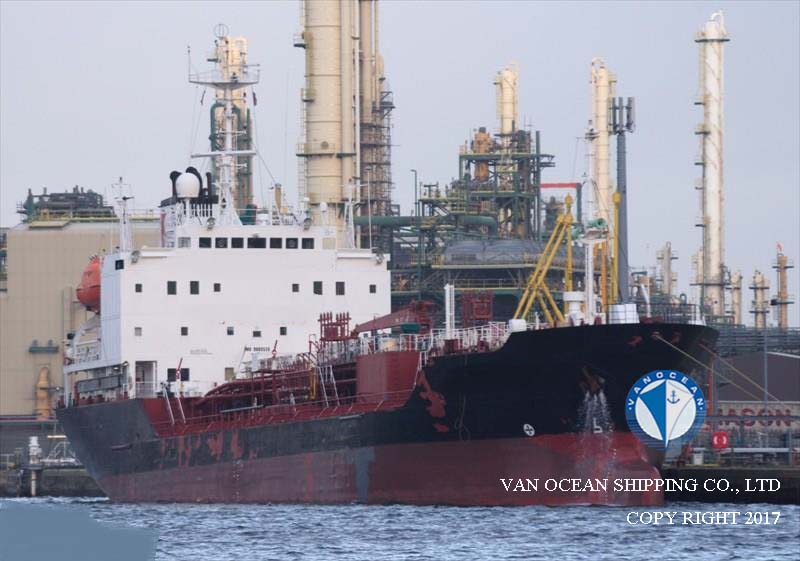

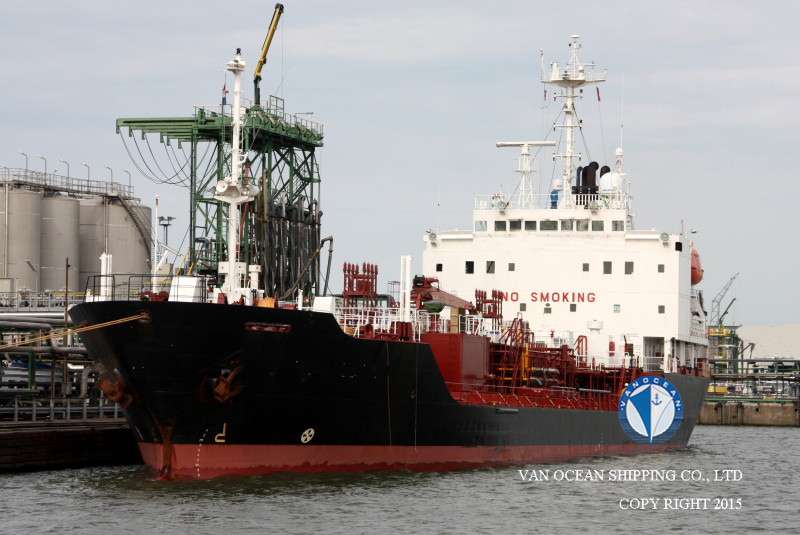

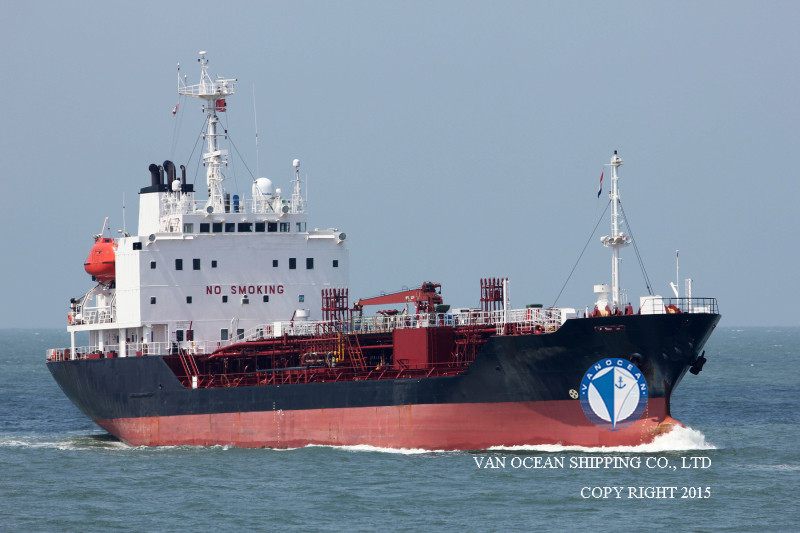

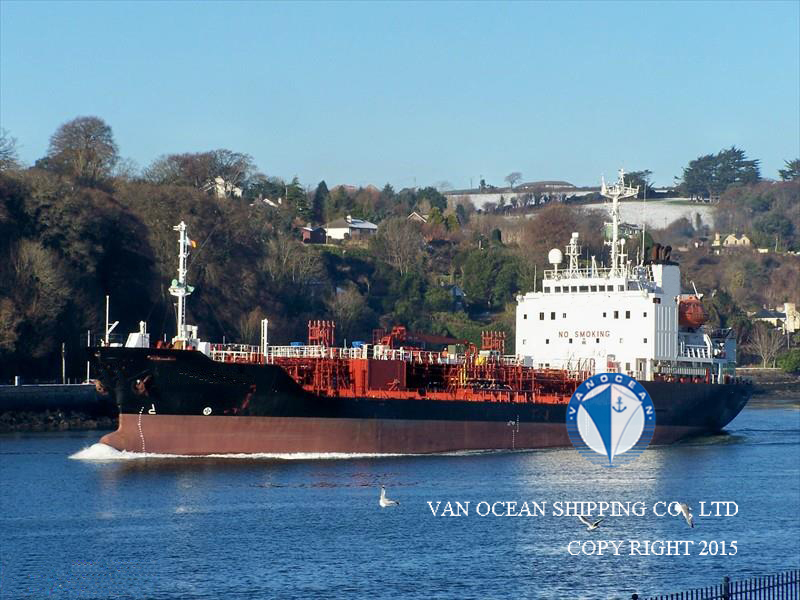

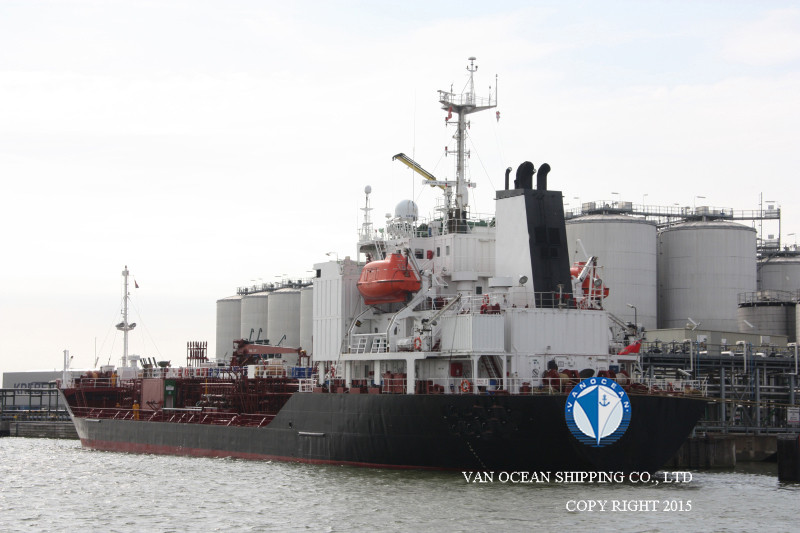

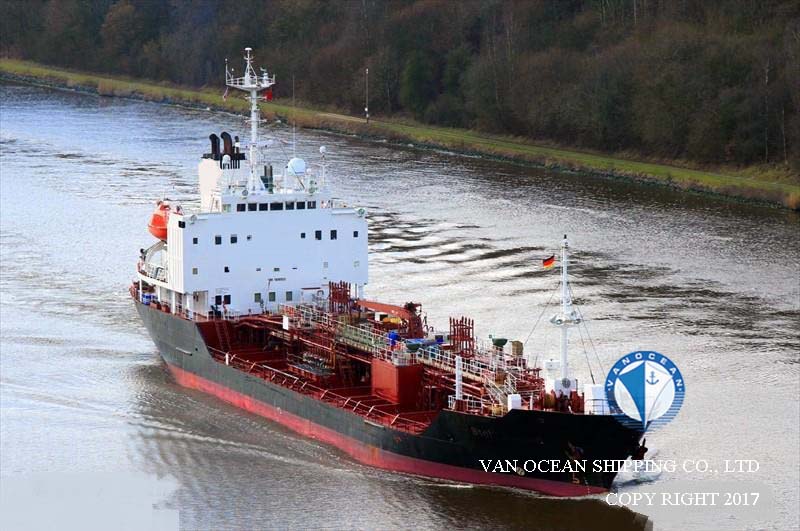

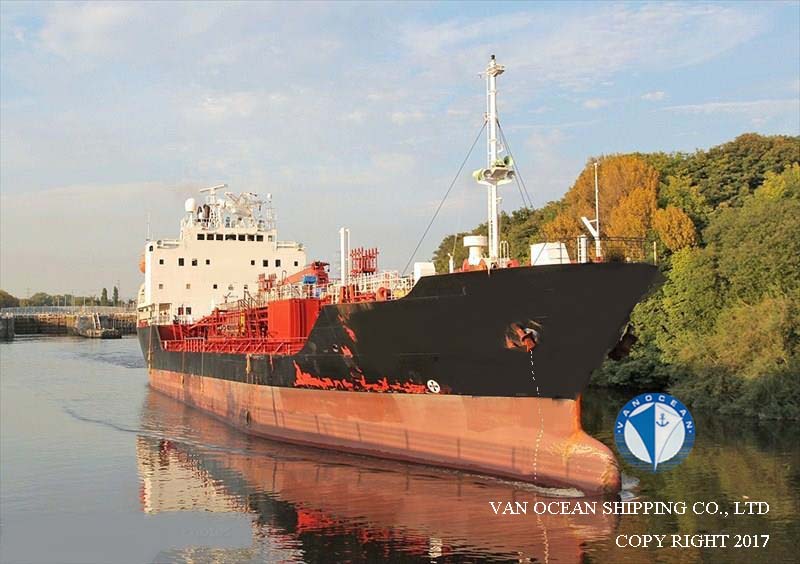

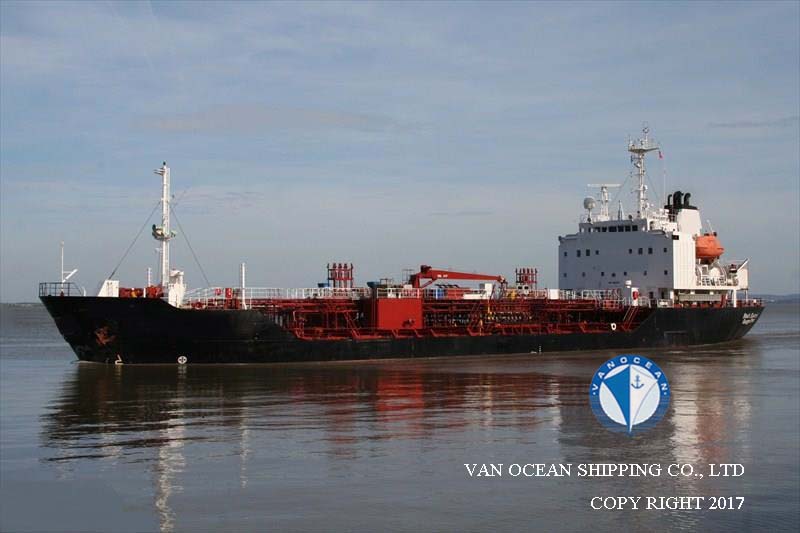

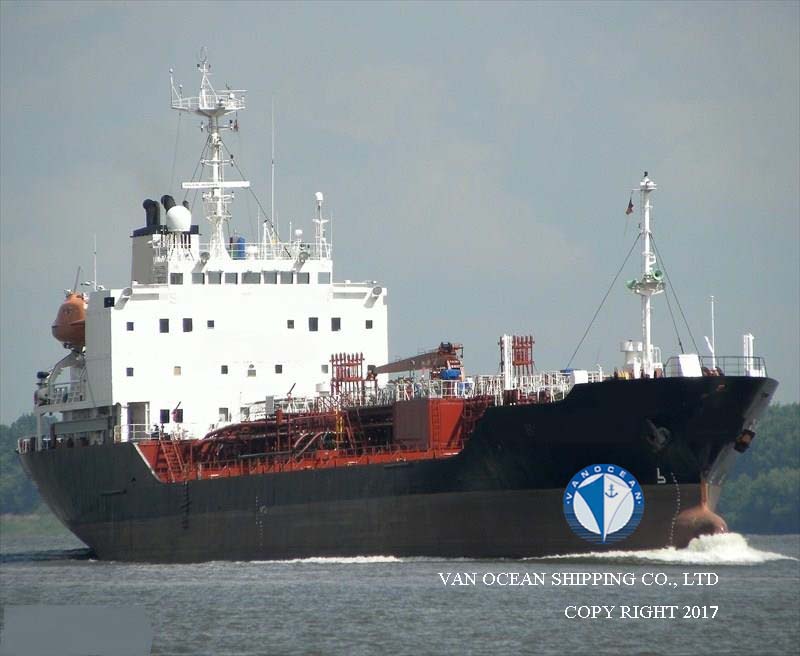

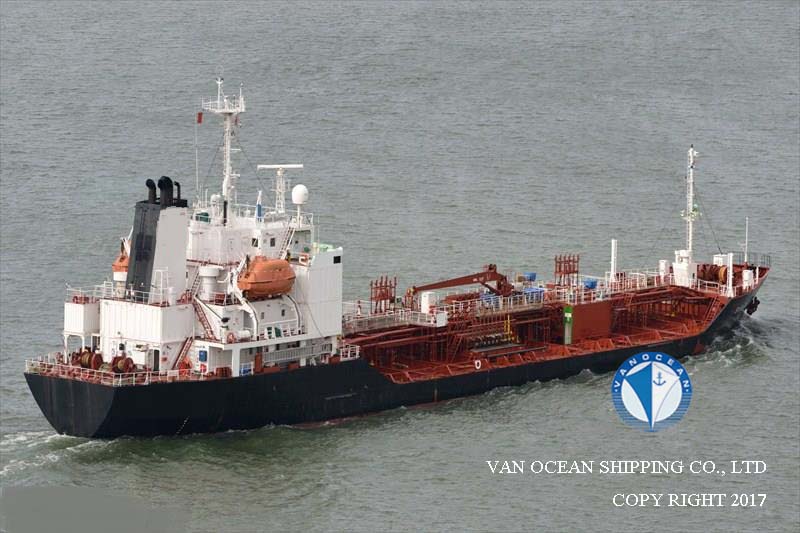

VESSEL NAME
TNK061
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
GRORGE TOWN
BUILT YEAR
1992
BUILT PLACE
FUKUOKA , JAPAN
CLASSIFICATION
LR
CLASS NOTATION
-
SS
-
DD
-
LOA (M)
99.90
LBP (M)
92.50
BEAM (M)
16.80
DEPTH (M)
8.60
SUMMER DRAFT (M)
6.76
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
3853.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
-
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
5749.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
CRANE, 1 x 3MT
M/E(S)
NITSUBISHI 6UEC37LA 3500BHP 210RPM
M/E POWER (KW)
2600
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
14+2 SLOP TANK
CARGO CAPACITY98% (CBFT)
198915.5
CARGO CAPACITY98% (CBM)
5635
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
STAINLESS STEEL HEATING COILS 80℃
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
8 x 200 CBM/HR
8 x 125 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 299.7KW
INSURANCE
-
CREW
16
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 3.2 MILLION
REMARK(S)
-
