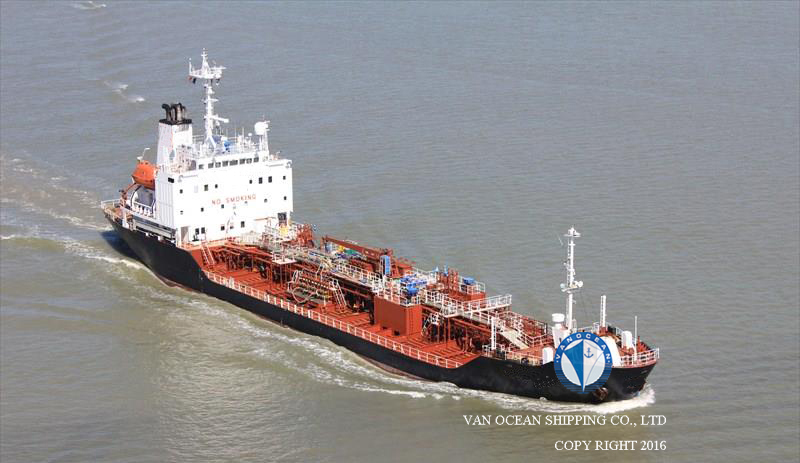

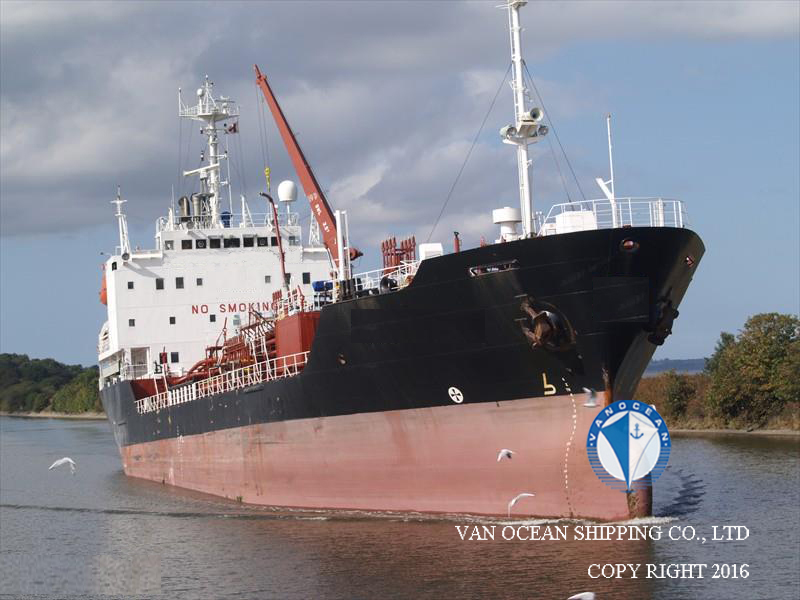

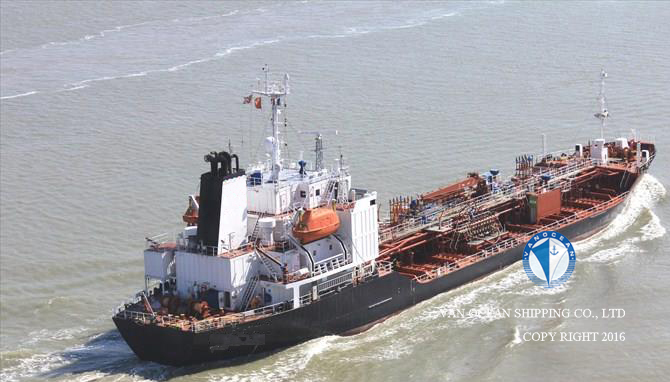

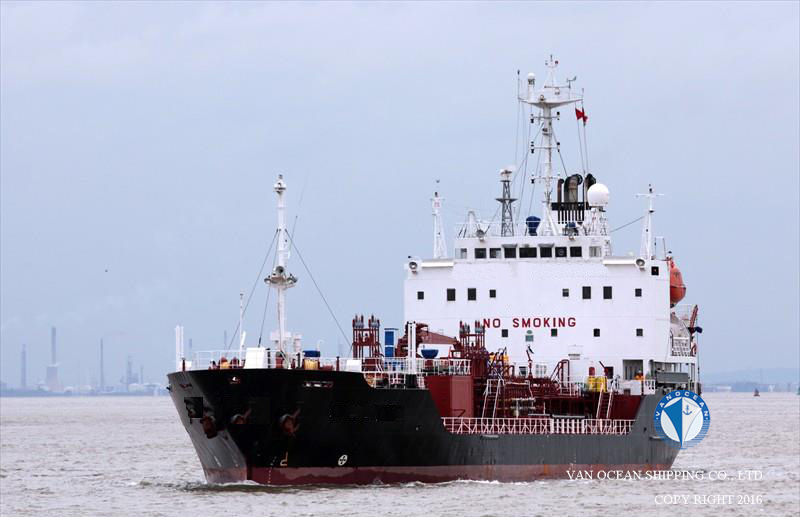

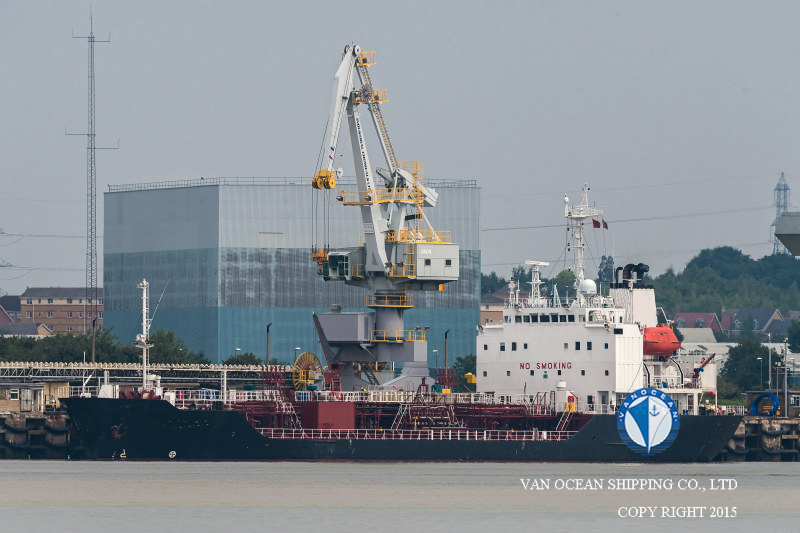

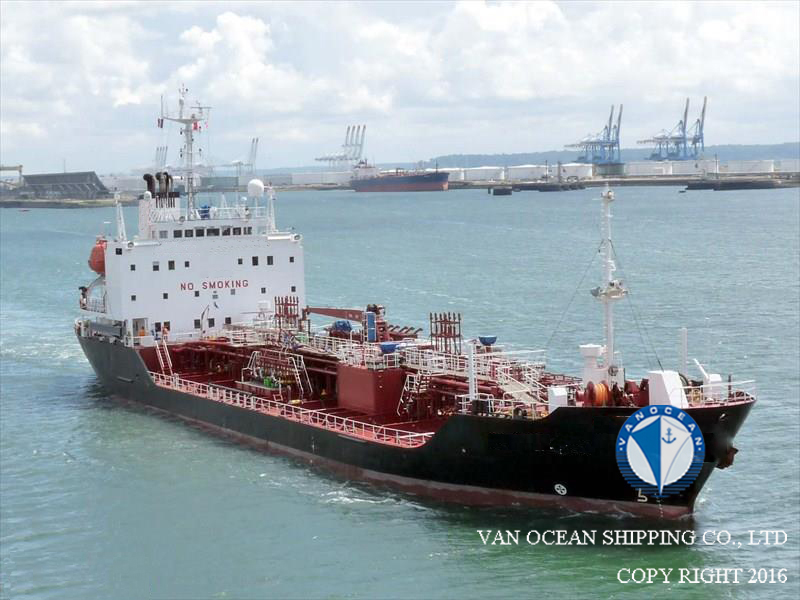

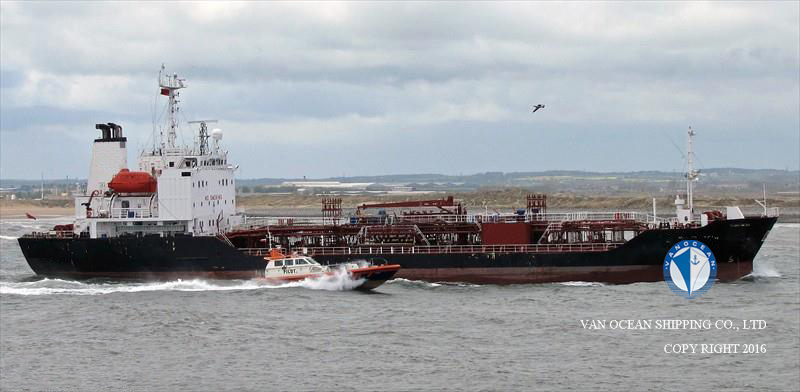

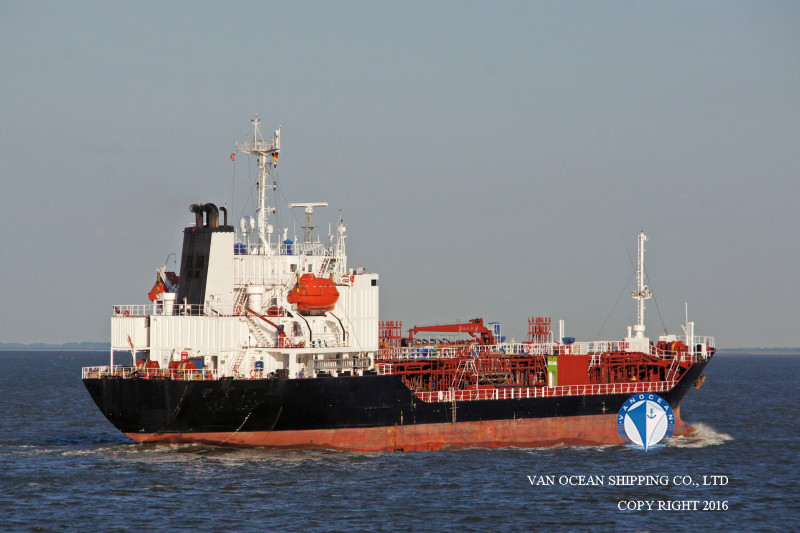

VESSEL NAME
TNK062
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
GEORGE CITY
BUILT YEAR
1993
BUILT PLACE
FUKUOKA, JAPAN
CLASSIFICATION
LR
CLASS NOTATION
100A1 DOUBLE HULL OIL AND CHEMICAL TANKER, SHIP TYPE 2, MARPOL 20.1.3 CR(ST.STL) SG 1.55 ESP LMC UMS SHIPRIGHT (BWMP(S+F) SCM MPMS)
SS
2018
DD
-
LOA (M)
99.90
LBP (M)
92.70
BEAM (M)
17.06
DEPTH (M)
8.60
SUMMER DRAFT (M)
6.76
WINTER DRAFT (M)
6.62
TROPICAL DRAFT (M)
6.76
GT (MT)
3853.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1557.00
PANAMA NT (MT)
3297.00
SUEZ NT (MT)
-
SUMMER DWT (MT)
5737.40
WINTER DWT (MT)
5544.75
TROPICAL DWT (MT)
5737.36
DISPLACEMENT (MT)
8106.46
LDT (MT)
-
GEAR(S)
CRANE: 1 x 3.5MT, OUTREACH: 4.5M
M/E(S)
NITSUBISHI 6UEC37LA 3500BHP 210RPM
M/E POWER (KW)
2600
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
327.25
TANKS CAPACITY (CBM)
MGO:78.06,SLOP TANK:302.08
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
14+2
CARGO CAPACITY98% (CBFT)
184296.71
CARGO CAPACITY98% (CBM)
5220.87
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
STAINLESS STEEL HEATING COILS, 80℃
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
CARGO:
8 x 200CBM/HR
8 x 125CBM/HR
1 x 80CBM/HR
BALLAST:
2 x 250CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 298.28KW
INSURANCE
POLLUTION LIABILITY: USD 1 BILLION
CREW
16
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 2.9MILLION
REMARK(S)
SBT: 2362.78CBM
