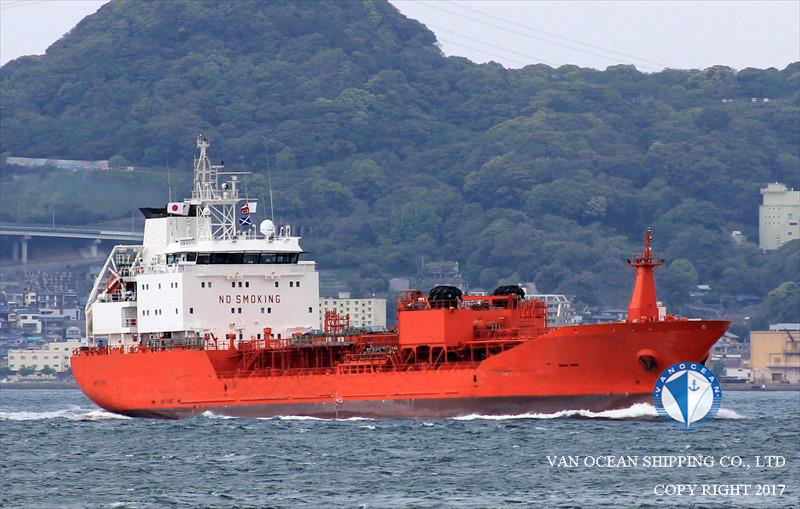

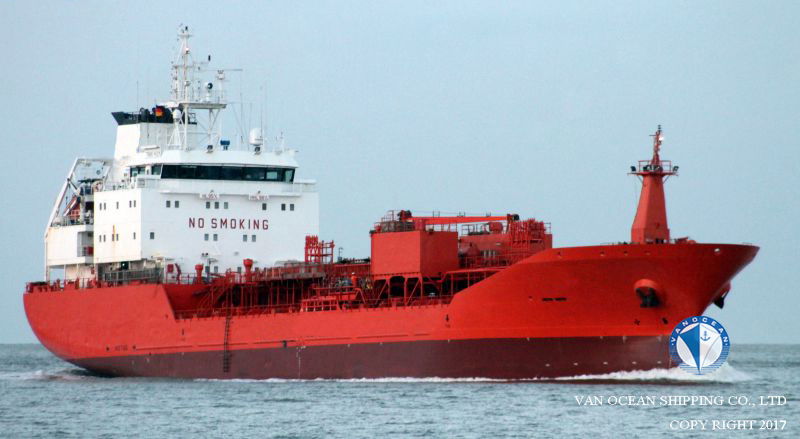

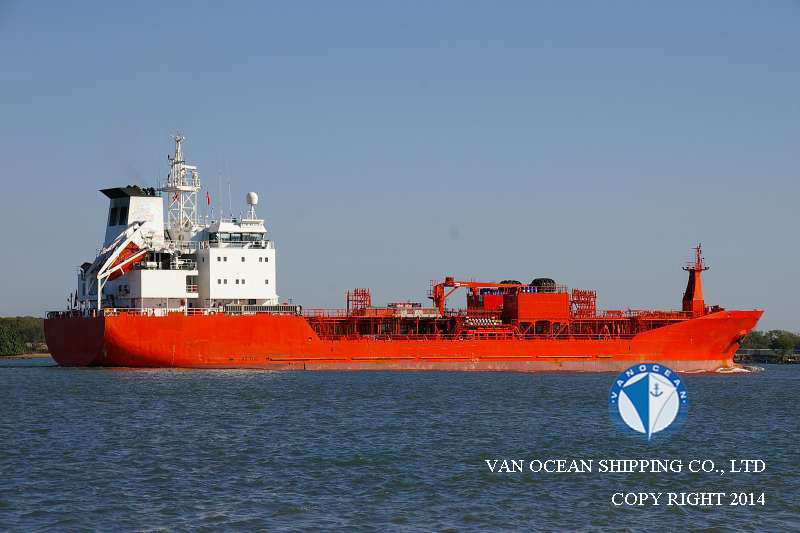

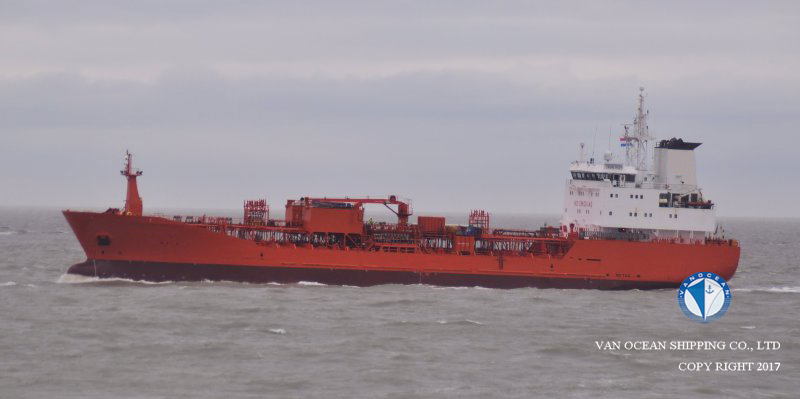

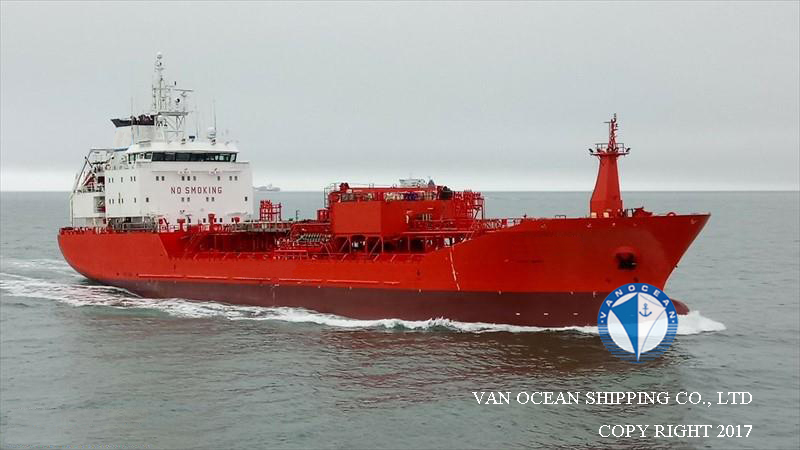

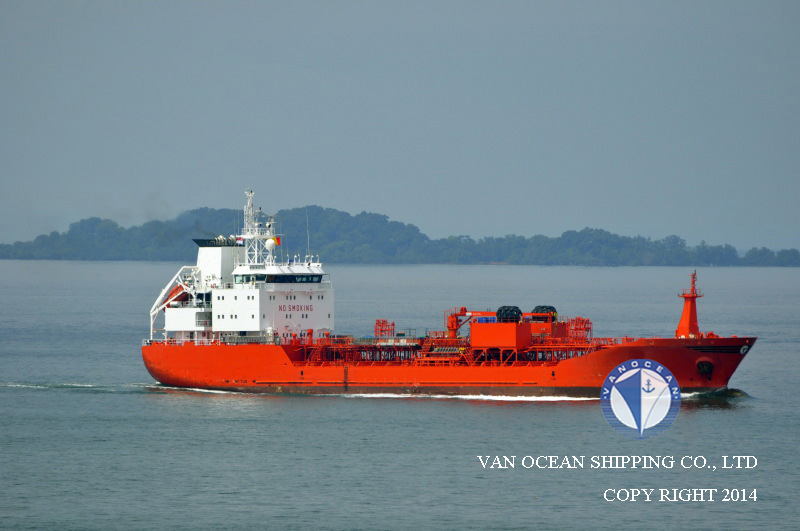

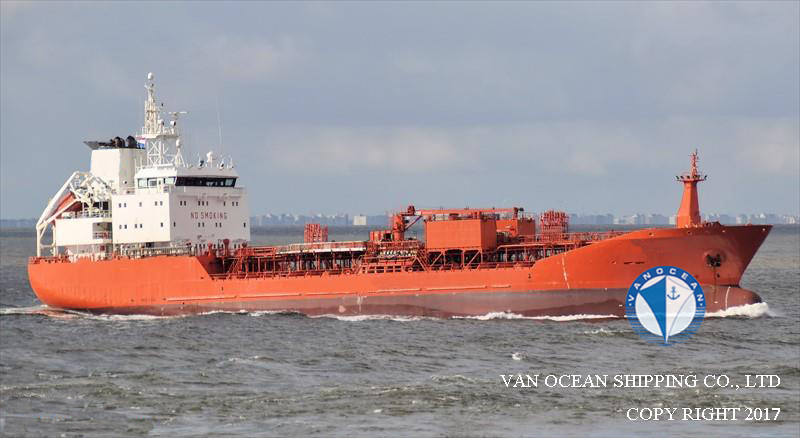

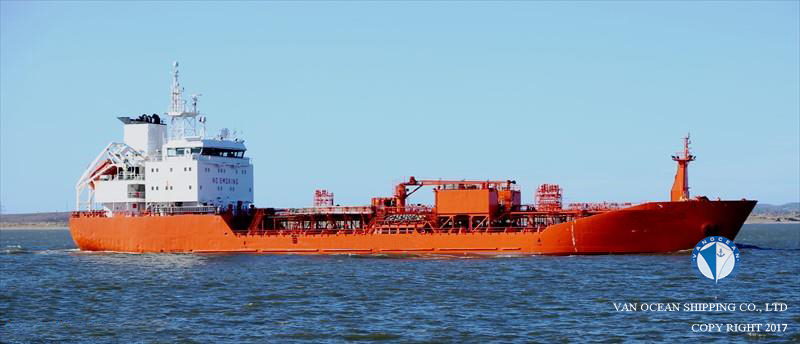

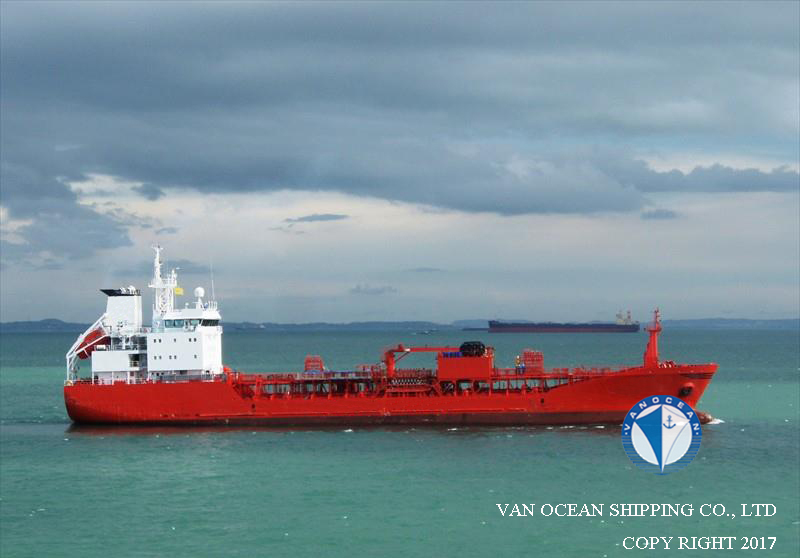

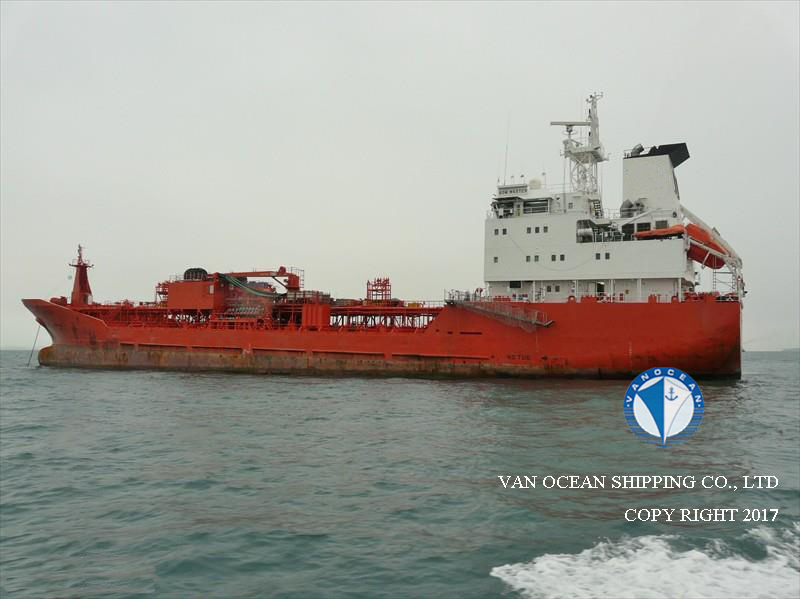

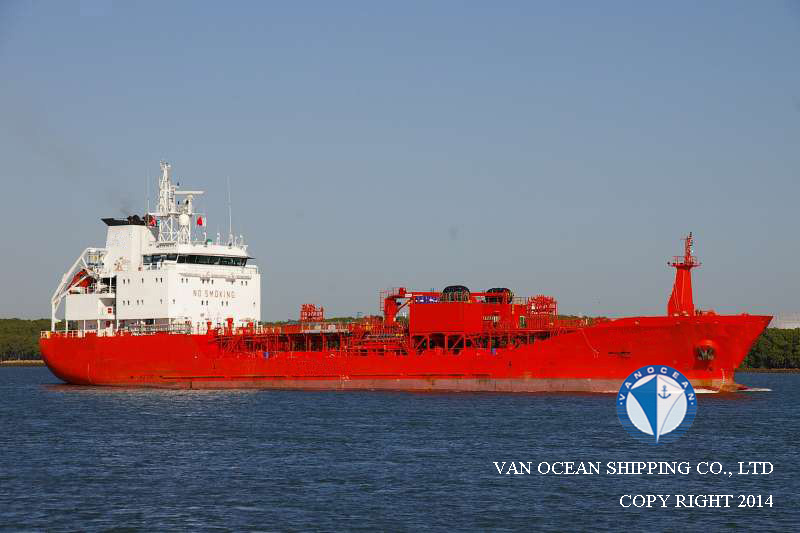

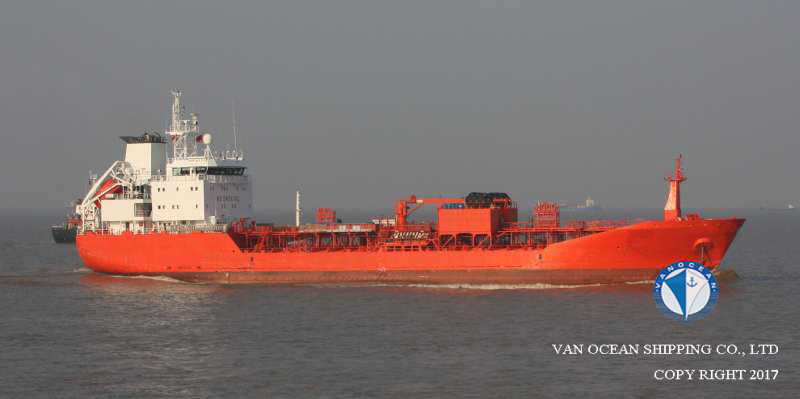

VESSEL NAME
TNK081
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL/ DOUBLE BOTTOM/ DOUBLE SIDE
FLAG
MALTA
PORT OF REGISTRY
VALLETTA
BUILT YEAR
1999
BUILT PLACE
NEW SZCZECIN SHIPYARD, POLAND
CLASSIFICATION
DNV
CLASS NOTATION
OIL/CHEMICAL TANKER, ICE CLASS 1C
SS
-
DD
-
LOA (M)
103.60
LBP (M)
-
BEAM (M)
16.60
DEPTH (M)
9.40
SUMMER DRAFT (M)
7.11
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
4667.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1956.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
6046.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)
B&W 6S35MC, 4895BHP, 146RPM
M/E POWER (KW)
3600
A/E(S)
-
GENERATOR(S)
2 x 713 KVA
SHAFT GENERATOR(S)
875 KVA
PROPELLER(S)
-
SPEED /CONSUMPTIONS
13.1 KTS
FUEL TYPE
IFO600
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
14
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
247277
CARGO CAPACITY98% (CBM)
7005
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL 316L
HEATING SYSTEM
STAINLESS STEEL HEATING COILS, 65-90 DC
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
FRAMO CENTR. 14 x 200 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOWTHRUSTER, 400KW
INSURANCE
-
CREW
-
ACCOMMODATION
16+1
INSPECTION
-
DELIVERY
-
PRICE
USD 5.4 MILLION
REMARK(S)
MAX DISCHARGE RATE 1200 CBM/HR
SBT
