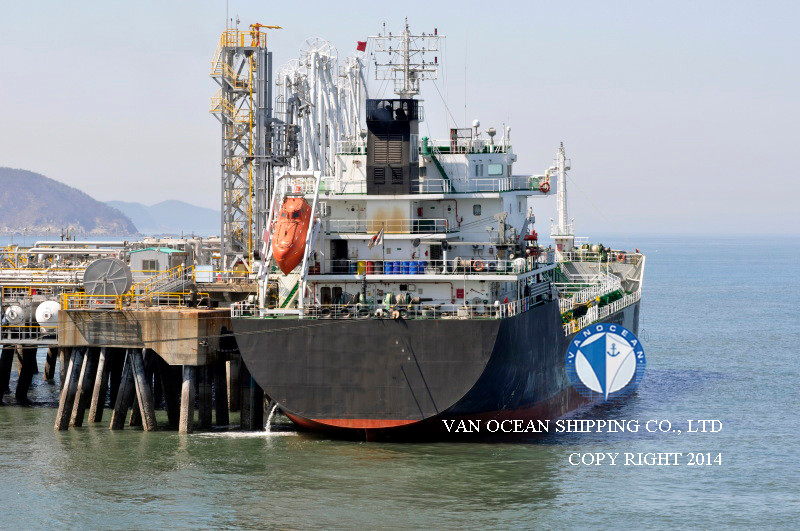

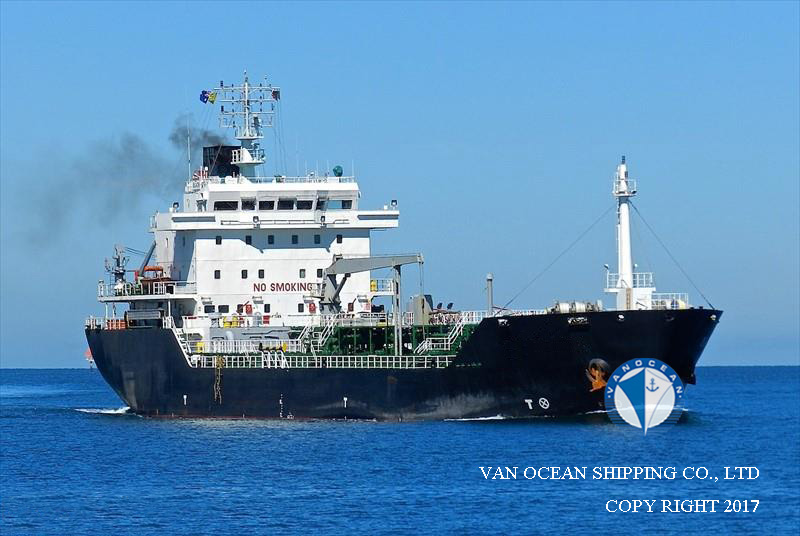

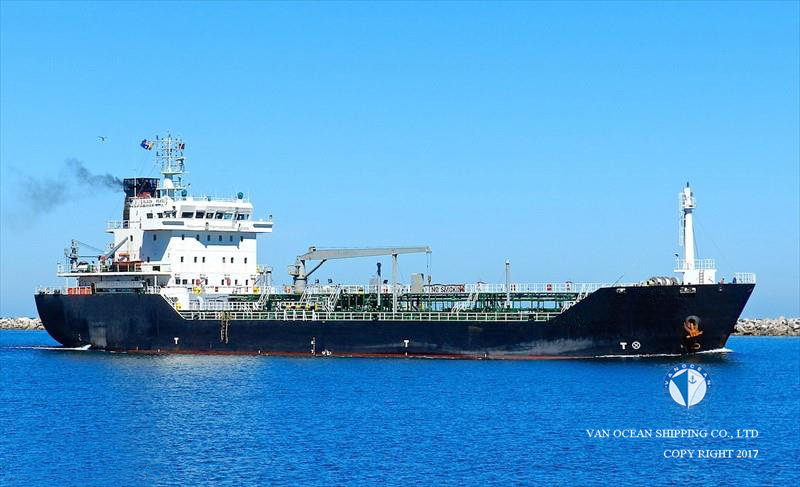

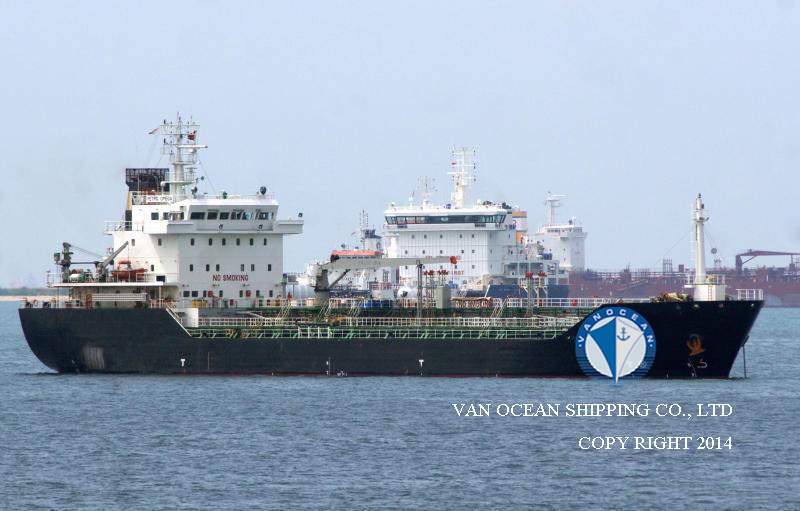

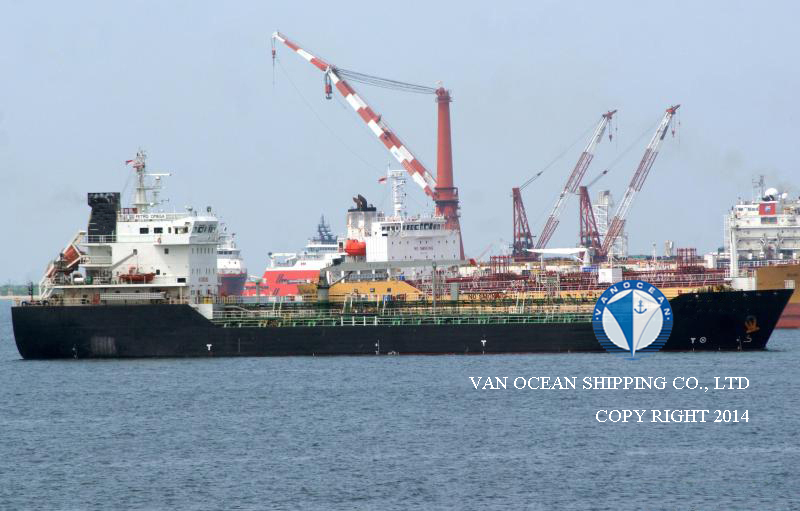

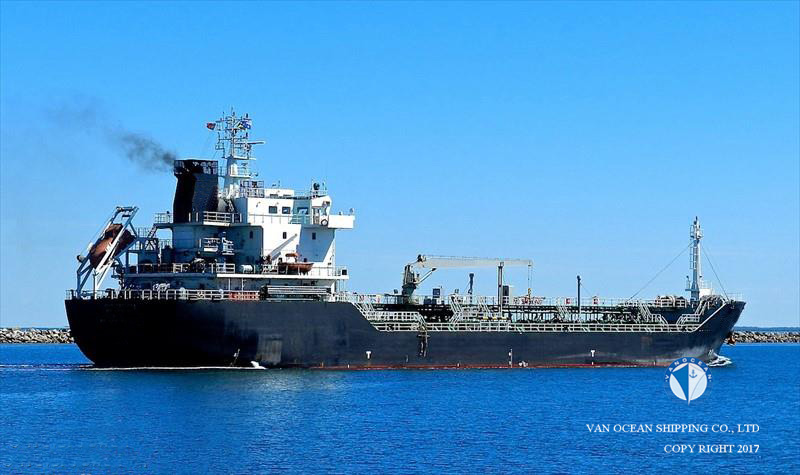

VESSEL NAME
TNK100
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
KOREA
PORT OF REGISTRY
JEJU
BUILT YEAR
2010
BUILT PLACE
CHINA
CLASSIFICATION
KR
CLASS NOTATION
DOUBLE HULL, ESP (FBC) PRODUCT/II 2G 1.025SG, ERS ENV (IAFS IOPP IGPP IAPP VEC-1), IMO II
SS
-
DD
-
LOA (M)
101.39
LBP (M)
94.96
BEAM (M)
19.05
DEPTH (M)
10.50
SUMMER DRAFT (M)
7.00
WINTER DRAFT (M)
6.86
TROPICAL DRAFT (M)
7.14
GT (MT)
5637.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2034.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
7226.00
WINTER DWT (MT)
7162.55
TROPICAL DWT (MT)
7629.76
DISPLACEMENT (MT)
9978.98
LDT (MT)
-
GEAR(S)
CRANE: 5MT
CRANE: 0.9MT
M/E(S)
YANMAR 8N330-EN, 4500 HP
M/E POWER (KW)
3310
A/E(S)
-
GENERATOR(S)
GENERATOR SETS：3 x KTA38-G, 500KW, 1500RPM
EMERGENCY GENERATOR：1 x 6BT5.9-120, 90KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
426.7
TANKS CAPACITY (CBM)
MGO: 171.6，SLOP TANK：323
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
307569
CARGO CAPACITY98% (CBM)
8713
COATING/MATERIAL OF HOLD(S)
PHENOLIC EPOXY
HEATING SYSTEM
STAINLESS STEEL HEATING COILS STEAM HEATING
SACRIFICIAL ANODE
ZINC
IGS
-
PUMP(S)
CARGO PUMPS (DEEP WELL):10 x 200CBM / HR，2 x 120CBM / HR
BALLAST PUMP: 2 x 250 CBM / HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 536BHP, 400KW
INSURANCE
POLLUTION LIABILITY COVERAGE: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 8.2 MILLION
REMARK(S)
DISPLACEMENT (MT): 9745.82(WINTER), 10213.03 (TROPICAL)
SBT: 3150CBM
BALLAST TANKS ARE EPOXY COATED
SLOP TANKS ARE PHENOLIC EPOXY COATED
