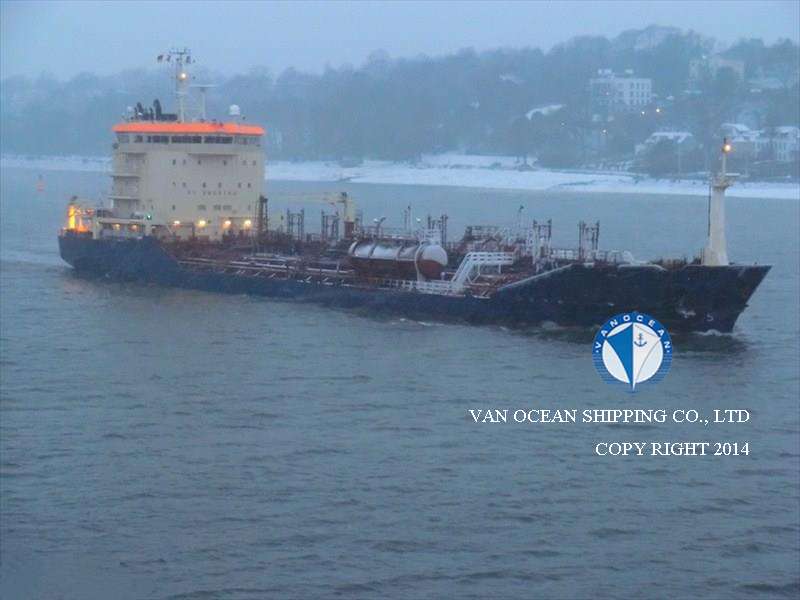

VESSEL NAME
TNK98
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
ITALY
PORT OF REGISTRY
NAPLES
BUILT YEAR
2006
BUILT PLACE
YARDIMCI SHIPYARD TUZLA, TURKEY
CLASSIFICATION
ABS
CLASS NOTATION
A1, CHEMICAL CARRIER OIL CARRIER ICE CLASS 1B E +AMS +ACCU VEC
SS
-
DD
-
LOA (M)
118.37
LBP (M)
112.06
BEAM (M)
19.00
DEPTH (M)
10.10
SUMMER DRAFT (M)
8.22
WINTER DRAFT (M)
8.05
TROPICAL DRAFT (M)
8.39
GT (MT)
6522.00
PANAMA GT (MT)
-
SUEZ GT (MT)
6675.00
NT (MT)
3220.00
PANAMA NT (MT)
5535.00
SUEZ NT (MT)
5366.00
SUMMER DWT (MT)
10015.50
WINTER DWT (MT)
9763.60
TROPICAL DWT (MT)
10351.80
DISPLACEMENT (MT)
13712.10
LDT (MT)
3614.5
GEAR(S)
CRANES,2 x 5MT,OUTREACH, 7M
M/E(S)
MAN B&W 6S35MC, 173RPM, 5950BHP
M/E POWER (KW)
4440KW
A/E(S)
-
GENERATOR(S)
GENERATOR SETS:LIAG/MAN 3 x 500KW
EMERGENCY GENERATOR:LIAG/MAN 1 x 150KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP,DIAMETER,3.95M
SPEED /CONSUMPTIONS
14KTS
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
506.04
TANKS CAPACITY (CBM)
MGO: 120.29,SLOP TANK:187
COMPARTMENT(S)
7
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
385045
CARGO CAPACITY98% (CBM)
10907.8
COATING/MATERIAL OF HOLD(S)
MARINELINE COATED
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
CARGO PUMPS:12 x 200CBM/HR,2 x 100CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER:ROLLS-ROYCE ULSTEIN 90TV, 450KW
INSURANCE
POLLUTION LIABILITY:USD 10 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
FAR EAST
PRICE
USD 7.3 MILLION
REMARK(S)
DISPLACEMENT (MT): 9681.6 (WINTER), 14048.3 (TROPICAL)
SBT: 3831.85 CBM
BALLAST TANK ARE EPOXY COATED
SLOP TANK ARE MARINELINE COATED
