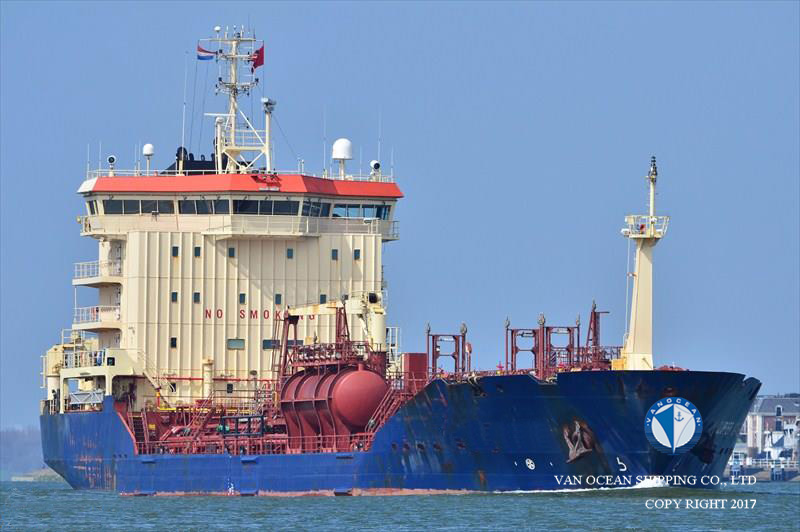

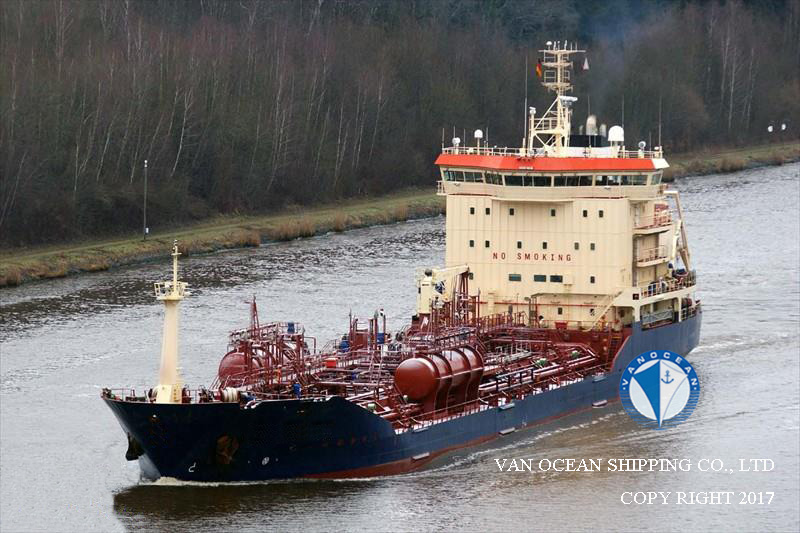

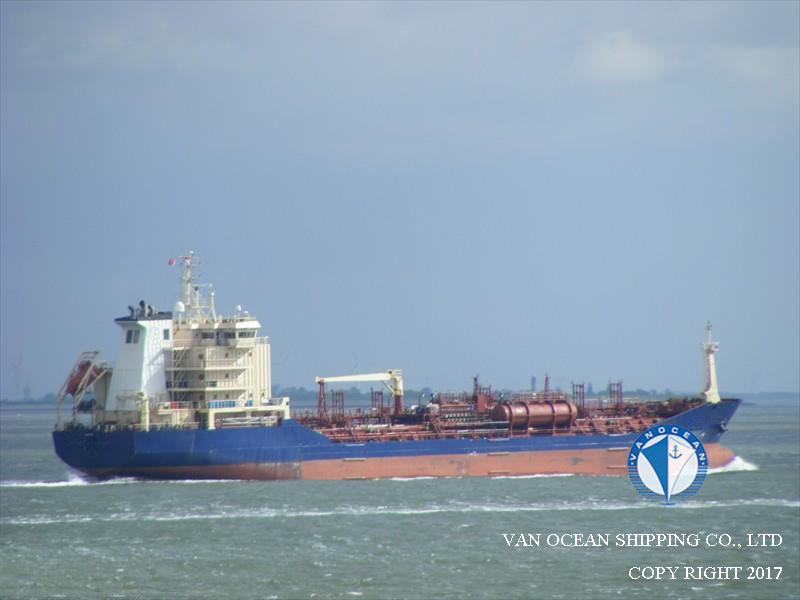

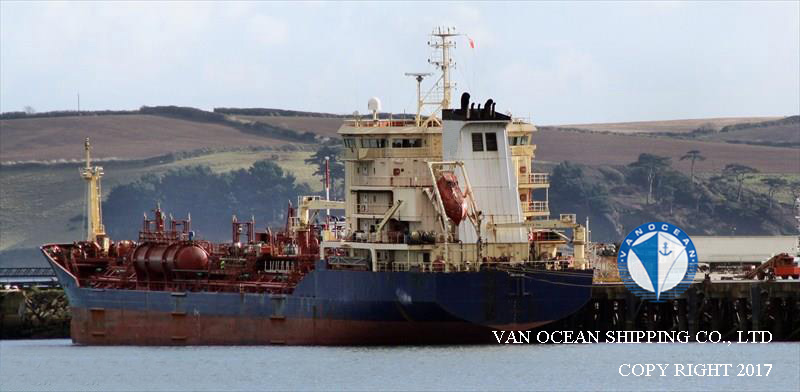

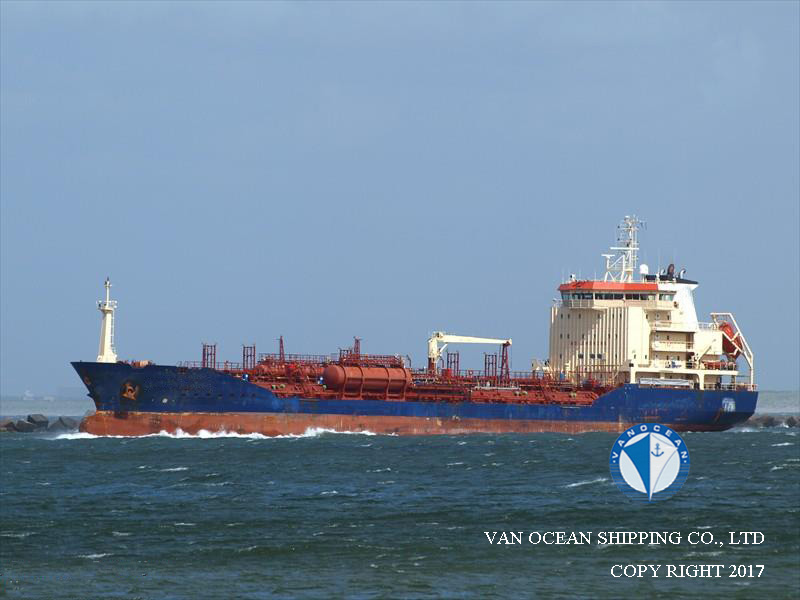

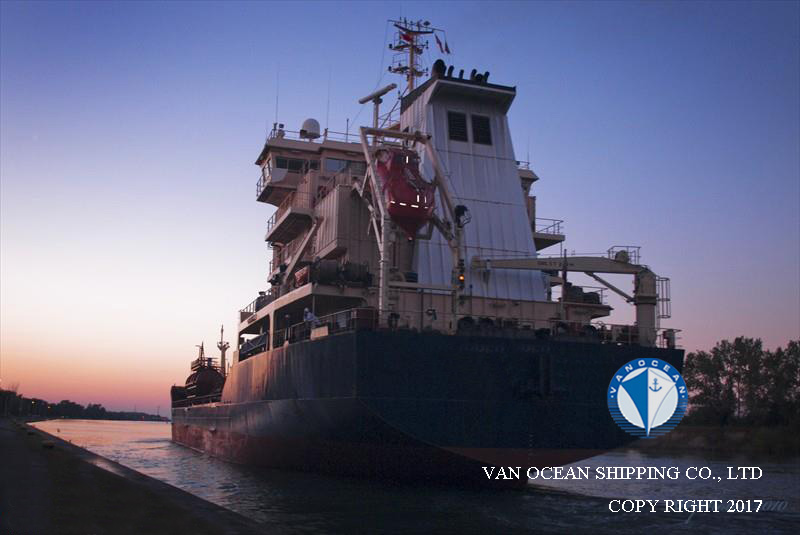

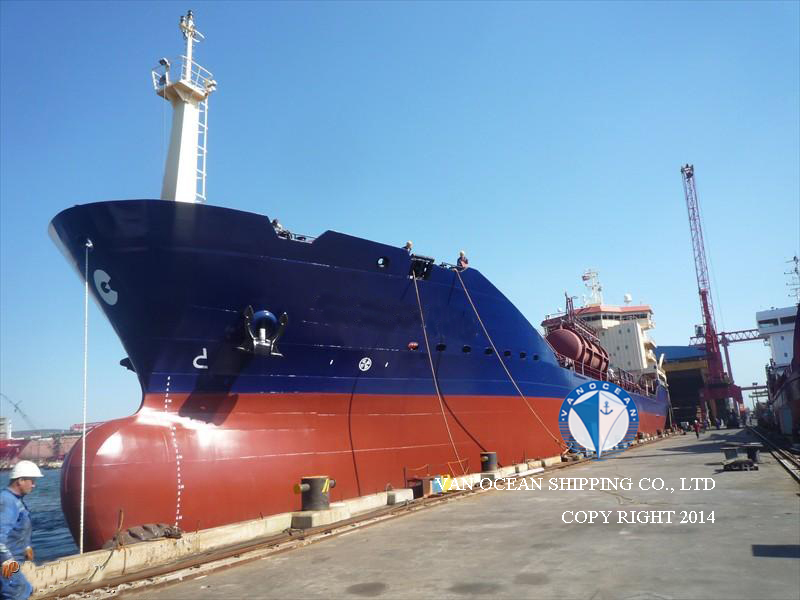

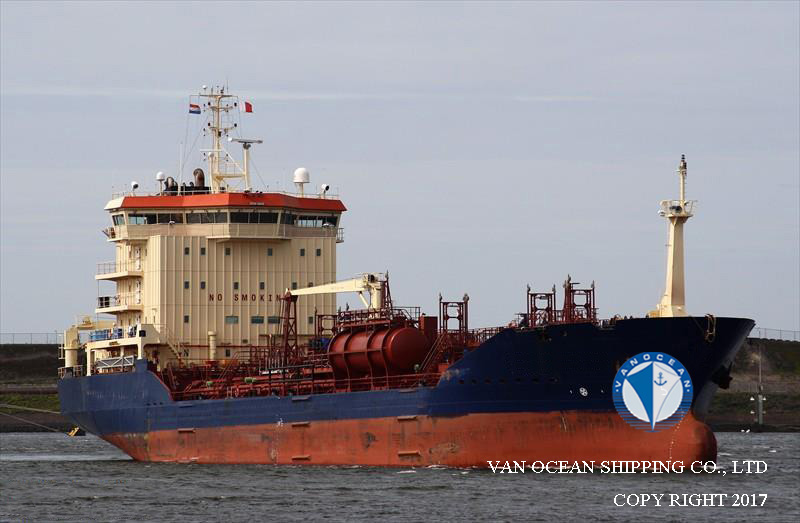

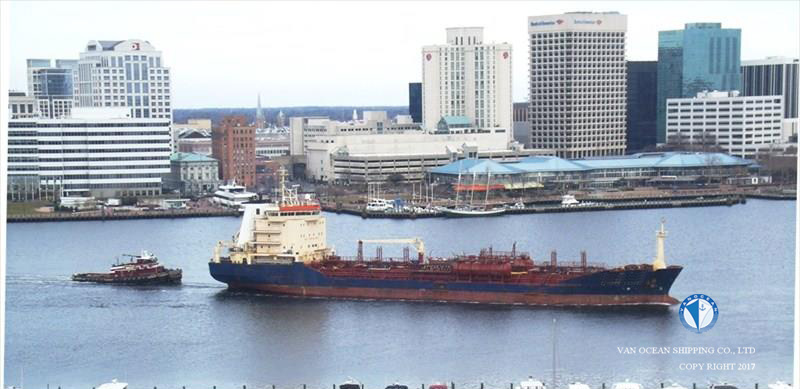

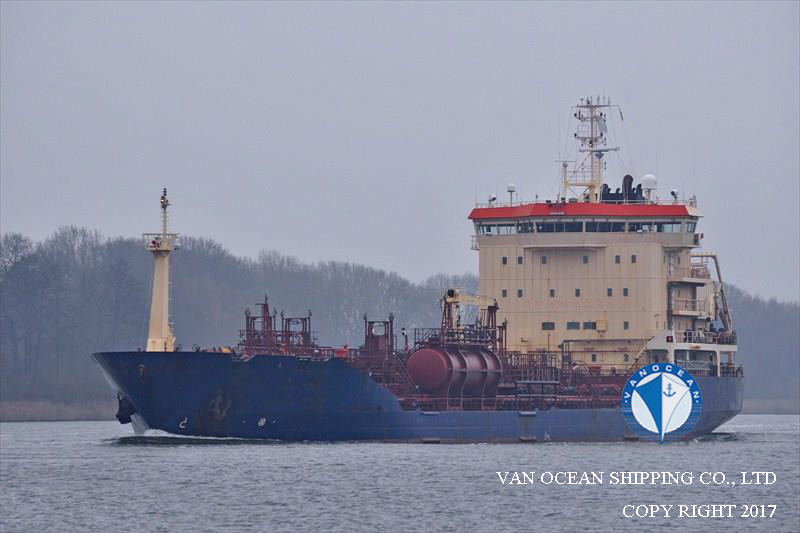

VESSEL NAME
TNK97
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
LEBERIA
PORT OF REGISTRY
MONROVIA
BUILT YEAR
2006
BUILT PLACE
YARDIMCI GEMI INSA A.S., TUZLA, TURKEY
CLASSIFICATION
ABS
CLASS NOTATION
+A1 CHEMICAL CARRIER OIL CARRIER ICE CLASS 1B E +AMS +ACCU VEC
SS
-
DD
-
LOA (M)
118.37
LBP (M)
112.06
BEAM (M)
19.00
DEPTH (M)
10.10
SUMMER DRAFT (M)
8.22
WINTER DRAFT (M)
8.05
TROPICAL DRAFT (M)
8.39
GT (MT)
6522.00
PANAMA GT (MT)
-
SUEZ GT (MT)
6675.00
NT (MT)
3220.00
PANAMA NT (MT)
5535.00
SUEZ NT (MT)
5366.00
SUMMER DWT (MT)
9970.70
WINTER DWT (MT)
9637.00
TROPICAL DWT (MT)
10307.00
DISPLACEMENT (MT)
13712.00
LDT (MT)
3614.50
GEAR(S)
CRANES：2 x 5MT，OUTREACH，6 米
M/E(S)
MAN B & W 6S35MC 173 RPM 5950BHP
M/E POWER (KW)
4440
A/E(S)
-
GENERATOR(S)
GENERATOR SETS：LIAG/MAN 3 x 500KW
EMERGENCY GENERATOR：LIAG/MAN 1 x 150KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP，DIAMETER 3.95M
SPEED /CONSUMPTIONS
14KTS
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
468.63
TANKS CAPACITY (CBM)
MGO: 123.21，SLOP TANK：188.65
COMPARTMENT(S)
7
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
385855.12
CARGO CAPACITY98% (CBM)
10930.7
COATING/MATERIAL OF HOLD(S)
MARINELINE COATED
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
-
IGS
YES

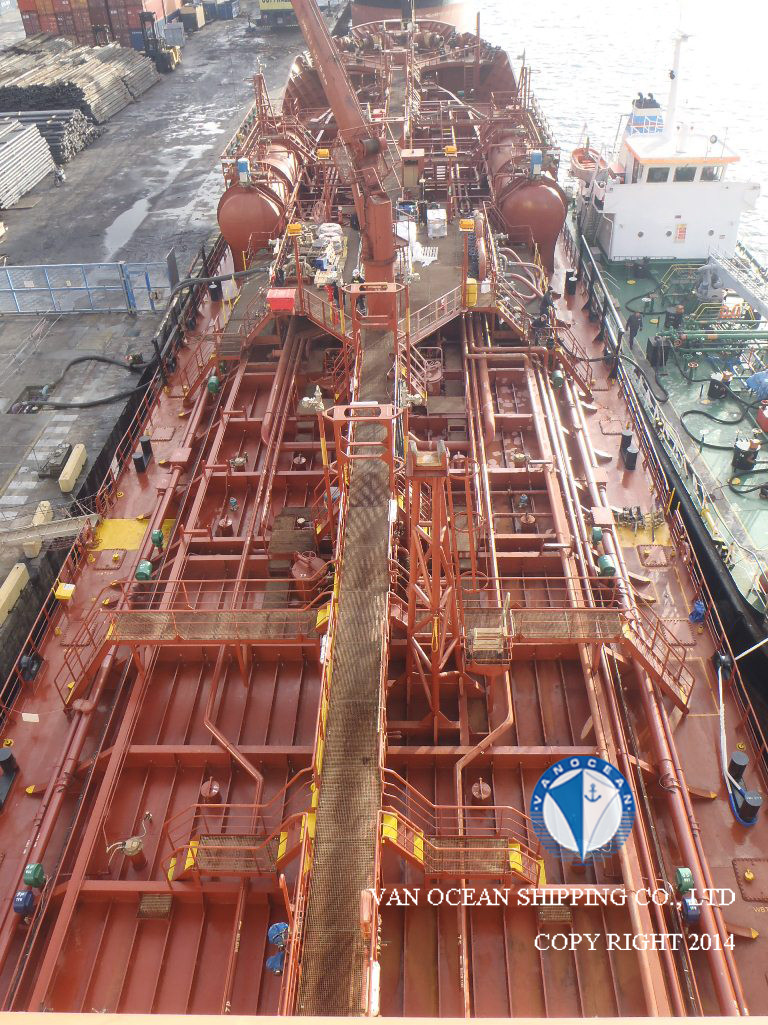

PUMP(S)
CARGO PUMP: 12 x 200CBM/HR, 2 x 100CBM/HR
BALLAST PUMP: 2 x 400 CBM
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: ROLLS-ROYCE ULSTEIN 90TV 450KW
INSURANCE
POLLUITON LIABILITY: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 8.7 MILLION
REMARK(S)
DISPLACEMENT (MT); 13378(WINTER), 14048(TROPICAL)
SBT:3831.82CBM
BALLAST TANKS AND SLOP TANKS ARE COATED
