VESSEL NAME
TNK96
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
-
BUILT YEAR
2004
BUILT PLACE
CELIK TEKNE SHIPYARD, TURKEY
CLASSIFICATION
BV
CLASS NOTATION
1 + HULL + MACH OIL TANKER ESP CHEMICAL TANKER ESP UNRESTRICTED NAVIGATION + AUT-IMS IG ICE CLASS 1A IMO 2
SS
-
DD
-
LOA (M)
119.10
LBP (M)
111.60
BEAM (M)
16.90
DEPTH (M)
8.40
SUMMER DRAFT (M)
6.78
WINTER DRAFT (M)
6.63
TROPICAL DRAFT (M)
6.92
GT (MT)
4730.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2231.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
7114.45
WINTER DWT (MT)
6877.12
TROPICAL DWT (MT)
7354.46
DISPLACEMENT (MT)
9961.75
LDT (MT)
-
GEAR(S)
DERRICK:1 x 5MT
CRANE:1 x 2MT
M/E(S)
CATERPILLAR 8 M 32 C 4T 8CYL 600RPM 5217BHP
M/E POWER (KW)
3840
A/E(S)
-
GENERATOR(S)
GENERATOR STES:3 x 625 KVA (500KW) 400V 50HZ
EMERGENCY GENERATOR:1 x 269KVA (215KW) 400V 50HZ
SHAFT GENERATOR(S)
1 x 1260 KVA (1008KW) 400V 50HZ
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
13KTS,13MT IFO
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
400
TANKS CAPACITY (CBM)
MDO: 74,SLOP TANKS:154CBM
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
272127.7
CARGO CAPACITY98% (CBM)
7709
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
ZINC
IGS
YES
PUMP(S)
CARGO PUMP:12 x 300CBM/HR,1 x 100CBM/HR,1 x 70CBM/HR

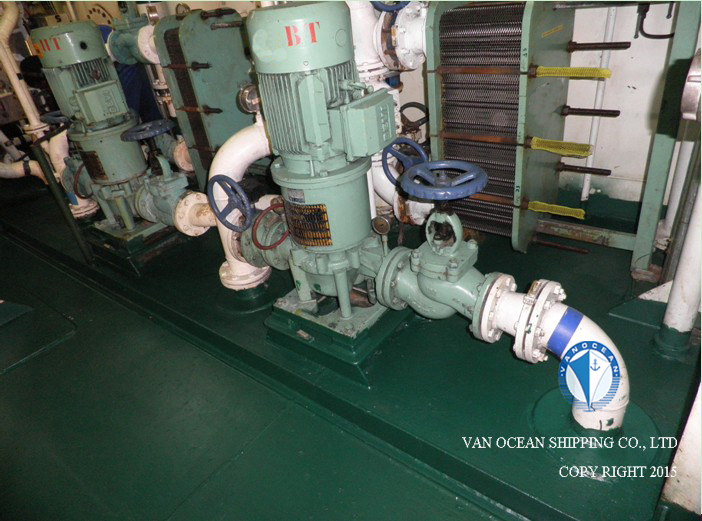

BALLAST PUMP:2 x 250CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER:350BHP, 260.99KW
INSURANCE
POLLUTION LIABILITY:USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 7.3 MILLION
REMARK(S)
DISPLACEMENT (MT): 9724.42(WINTER), 10201.76(TROPICAL)
SBT: 2744CBM
