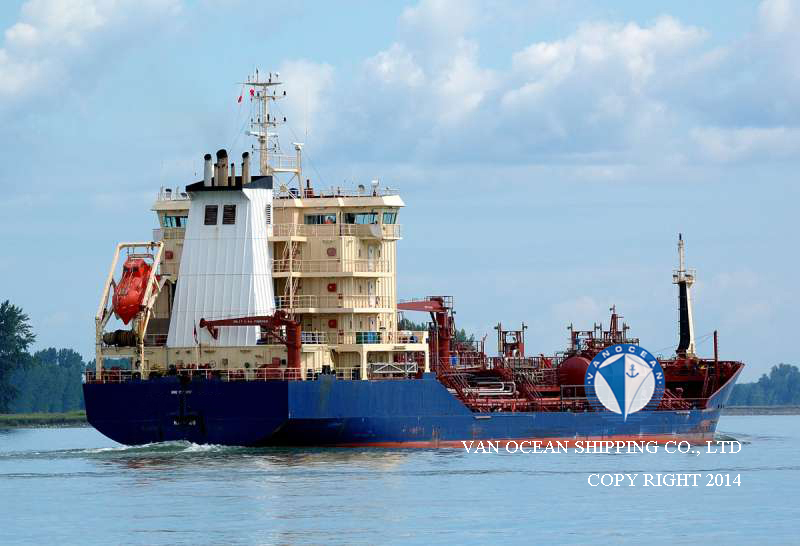

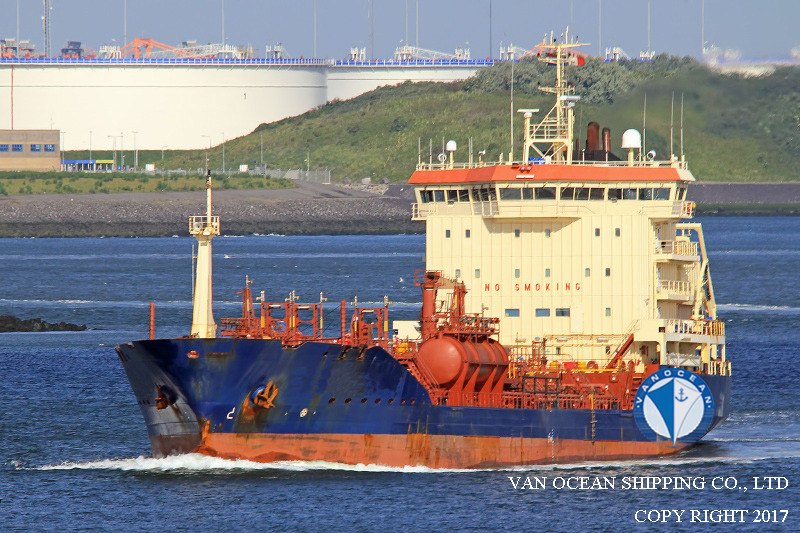

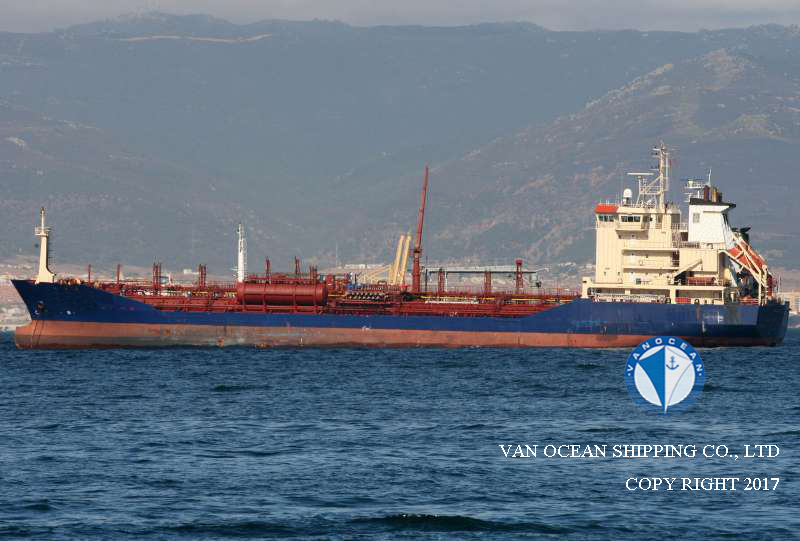

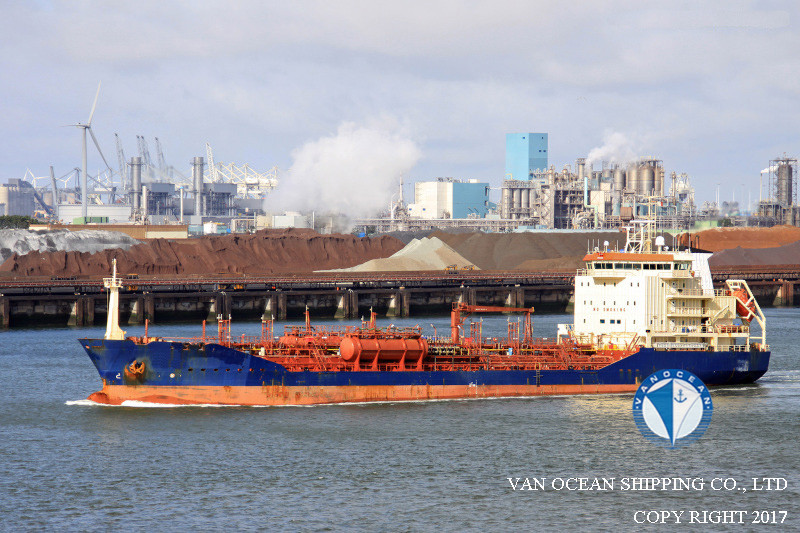

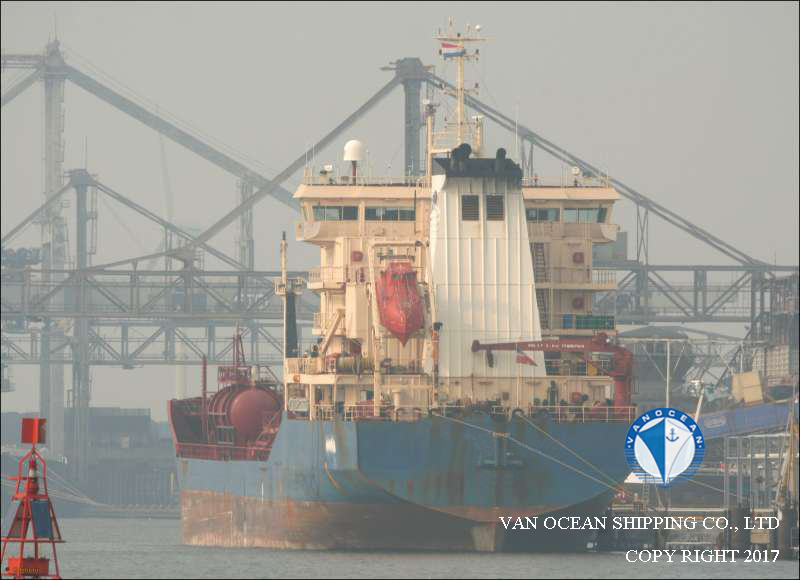

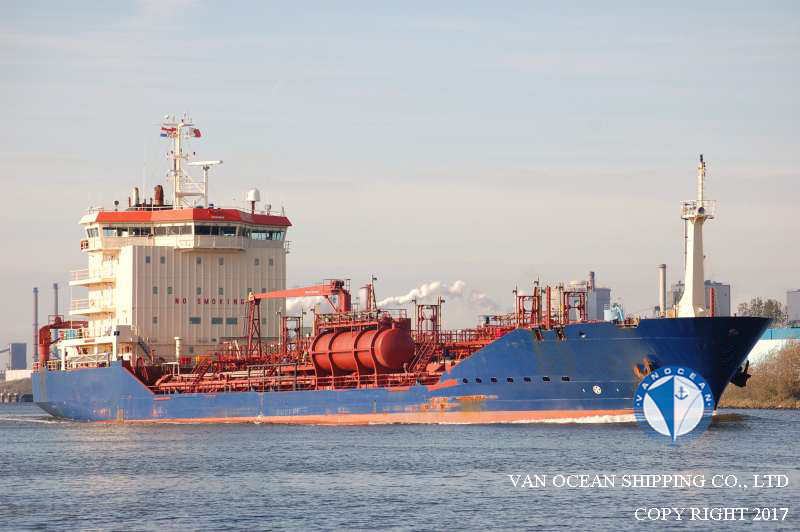

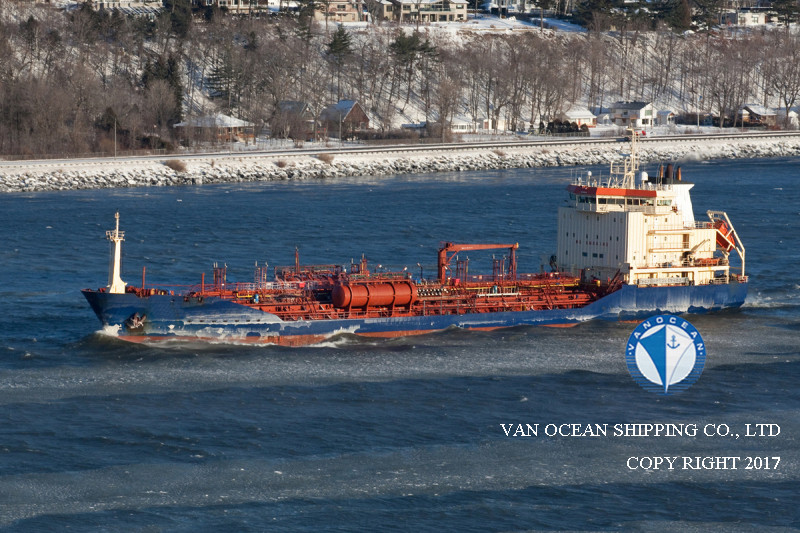

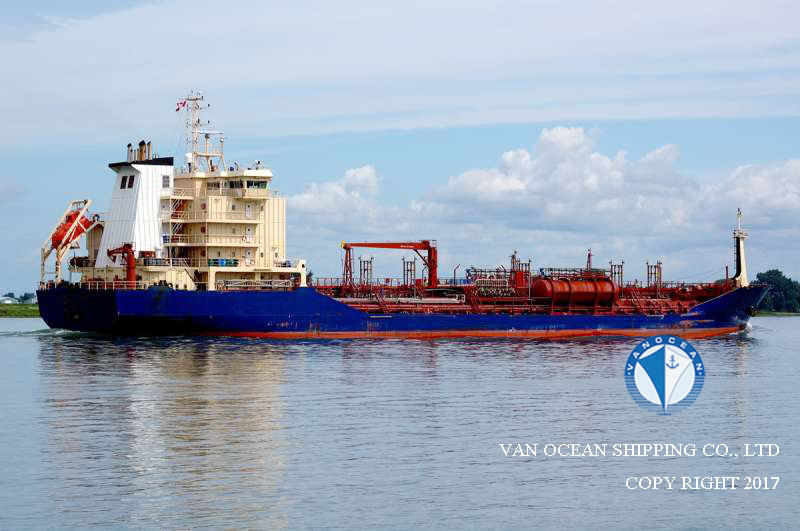

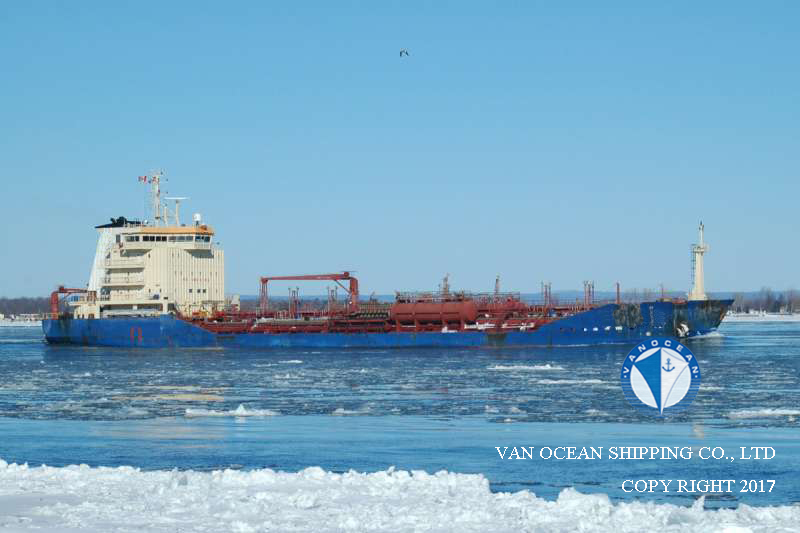

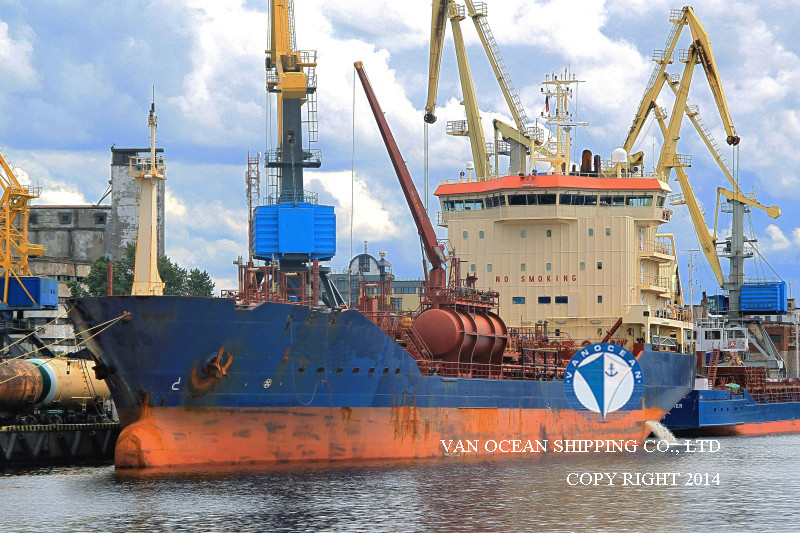

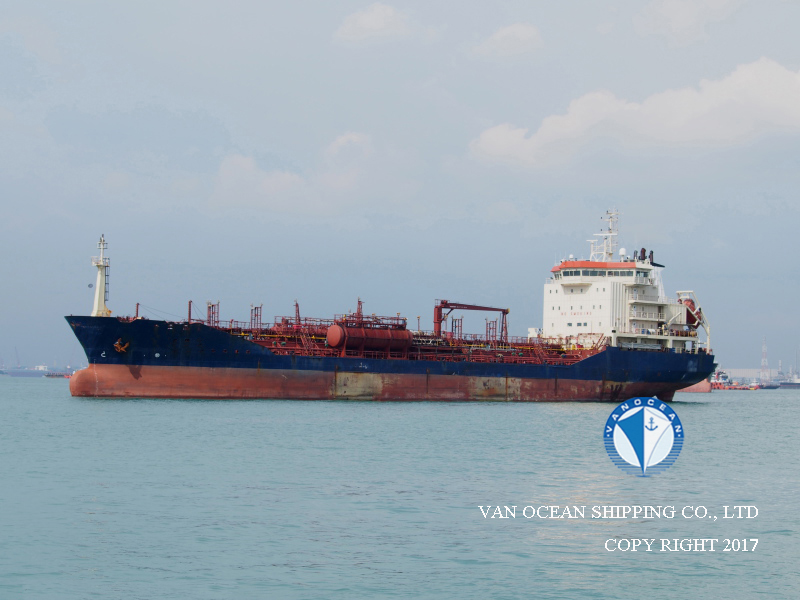

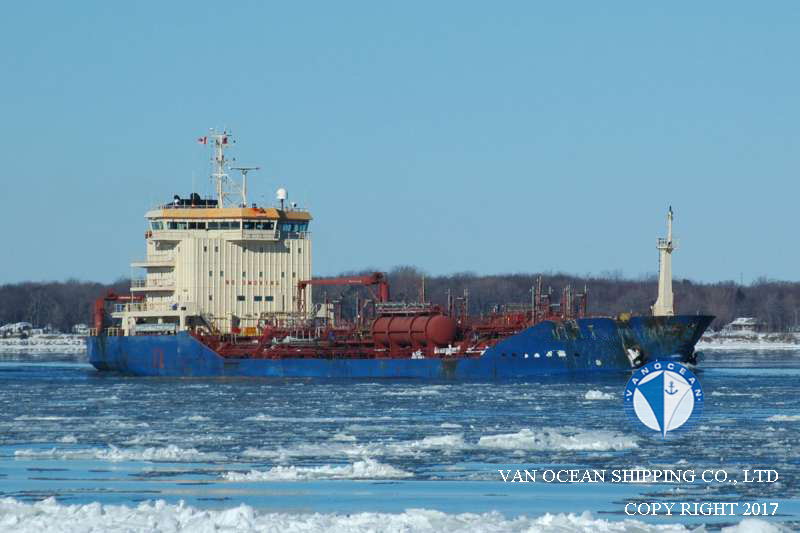

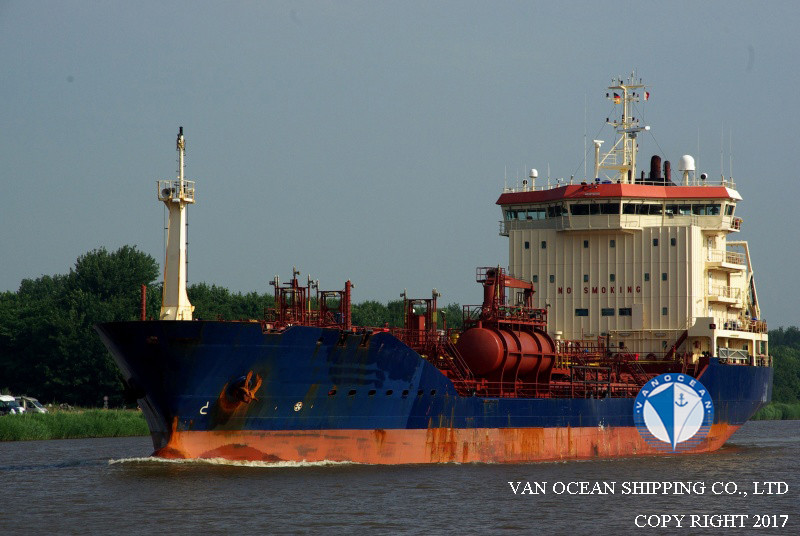

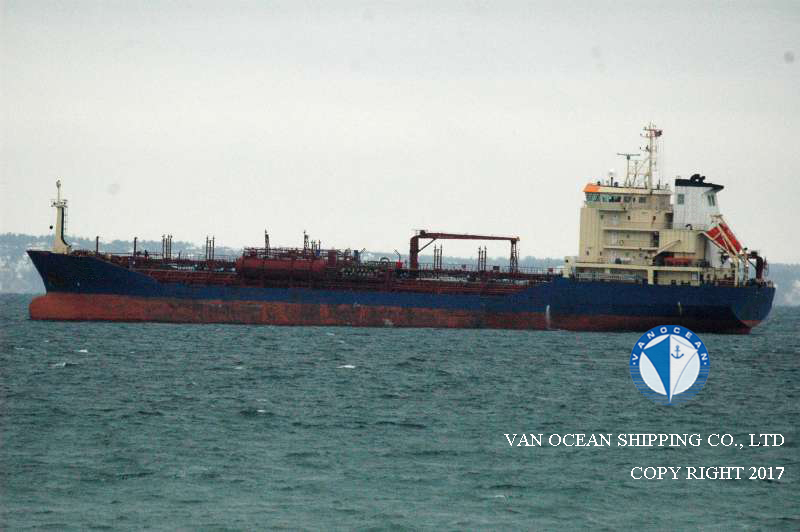

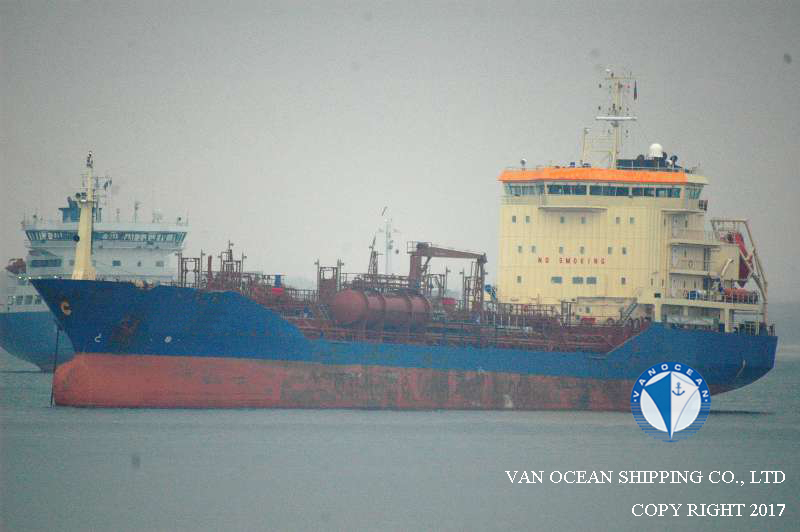

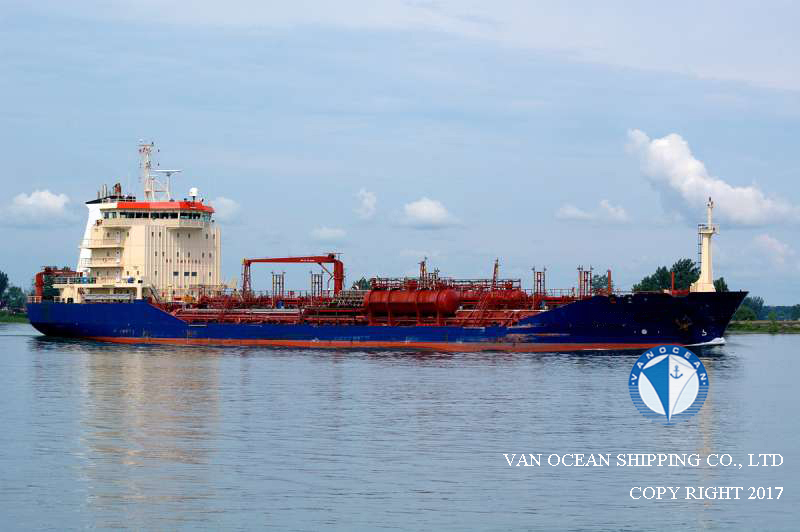

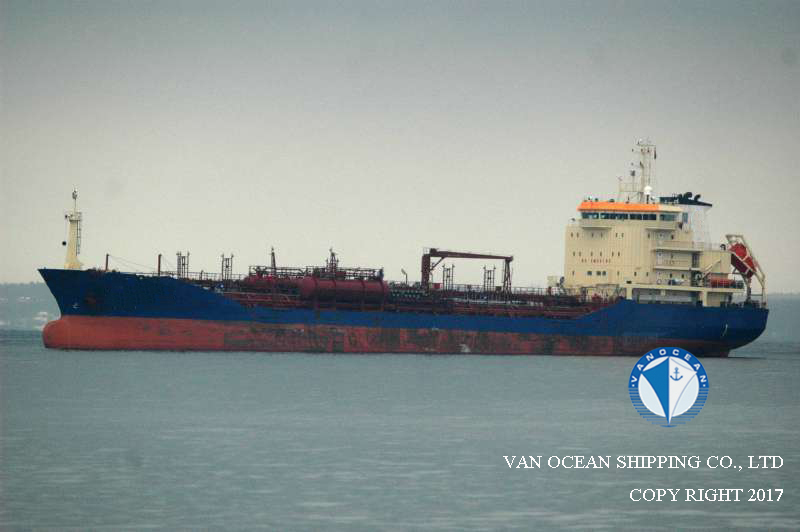

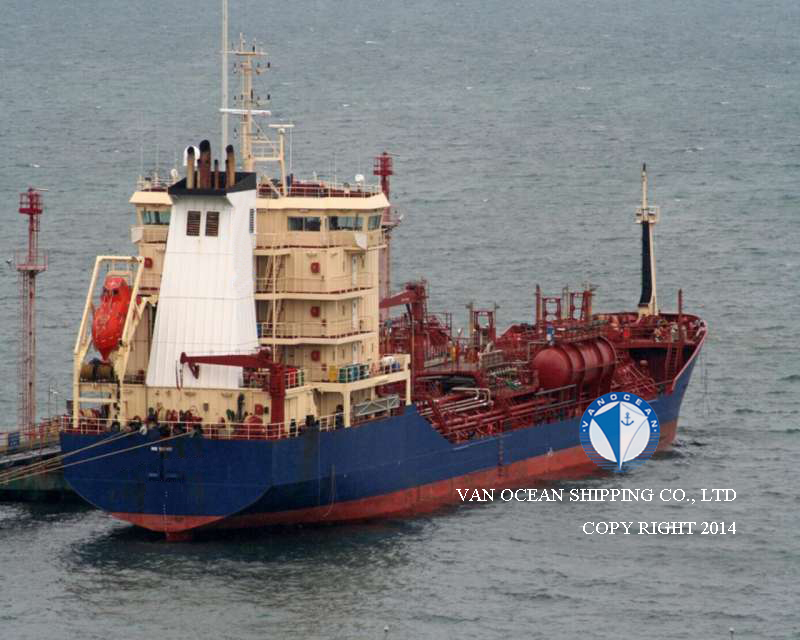

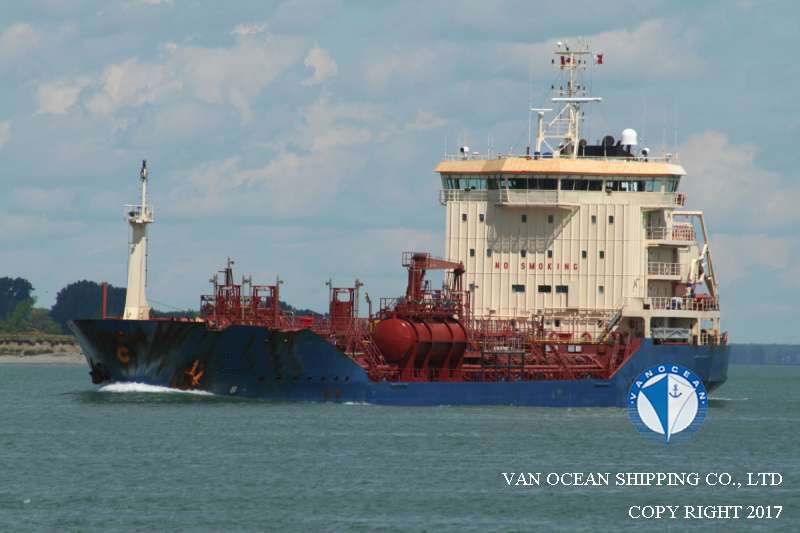

VESSEL NAME
TNK113
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL /DOUBLE BOTTOM /DOUBLE SIDE
FLAG
SINGAPORE
PORT OF REGISTRY
-
BUILT YEAR
2006
BUILT PLACE
YARDIMCI, TURKEY
CLASSIFICATION
ABS
CLASS NOTATION
ICE 1B
SS
-
DD
-
LOA (M)
118.37
LBP (M)
112.06
BEAM (M)
19.00
DEPTH (M)
10.10
SUMMER DRAFT (M)
8.22
WINTER DRAFT (M)
8.05
TROPICAL DRAFT (M)
8.39
GT (MT)
6522.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3220.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
10098.00
WINTER DWT (MT)
9764.00
TROPICAL DWT (MT)
10434.00
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
CRANES, 2 x 5MT
M/E(S)
MAN-B&W 6S35MC, 6056BHP @ 173RPM
M/E POWER (KW)
4519
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
386747
CARGO CAPACITY98% (CBM)
10956
COATING/MATERIAL OF HOLD(S)
POLYSILOXANE COATED
HEATING SYSTEM
HEATING COILS
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
12 x 200 CBM/HR
2 x 100 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 8.7 MILLION
REMARK(S)
-
