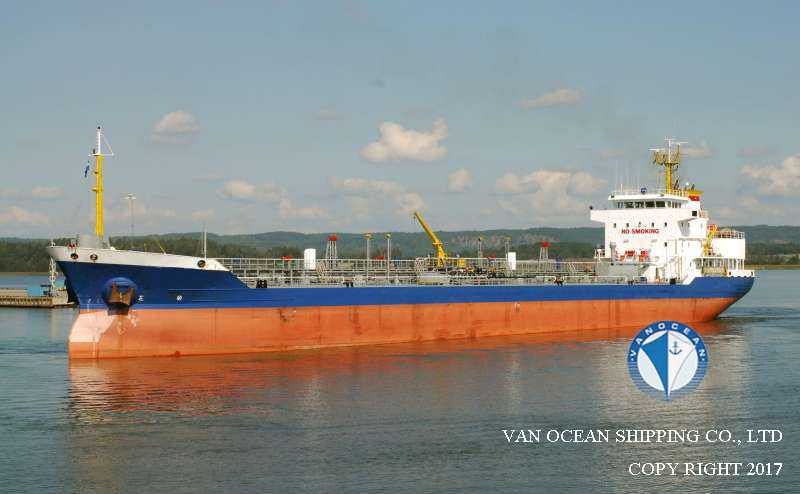

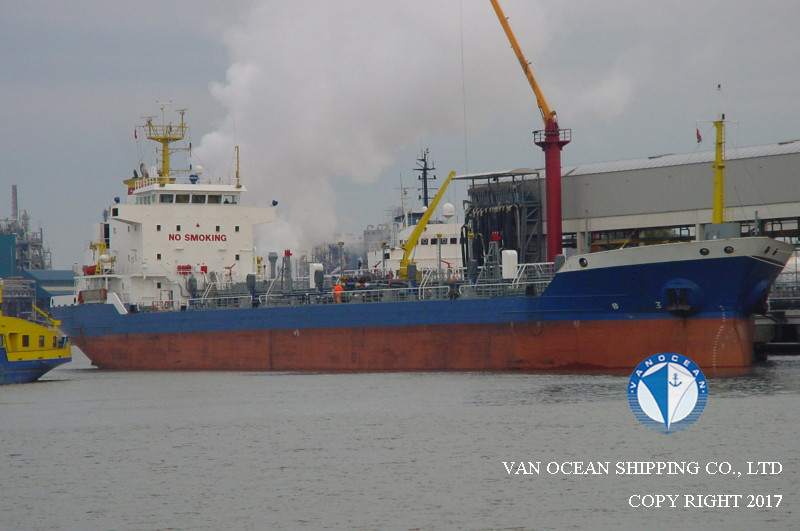

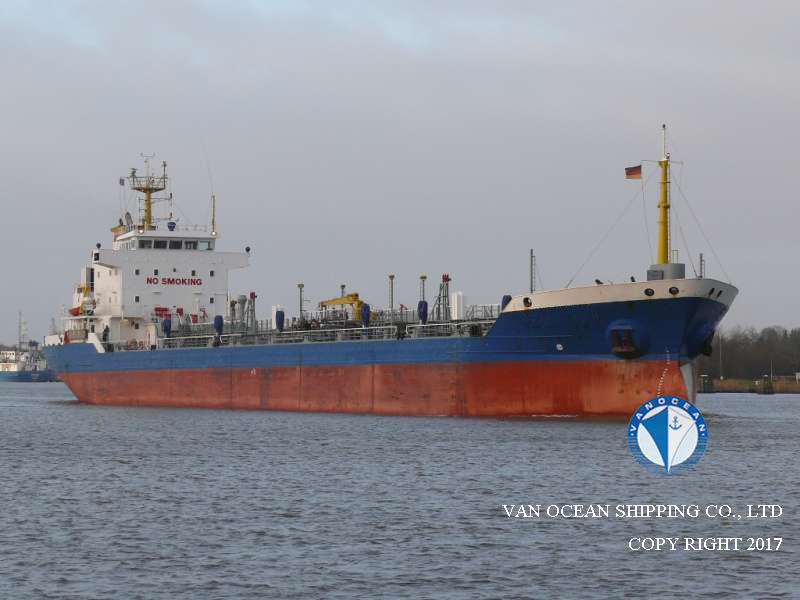

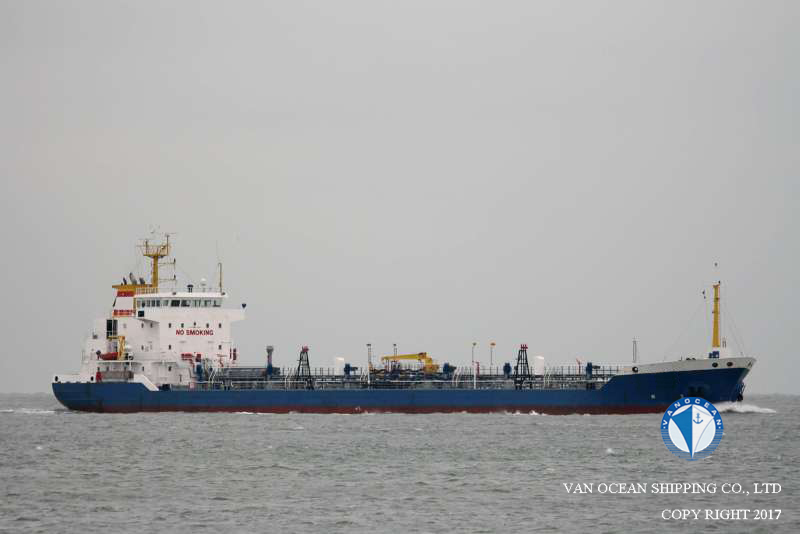

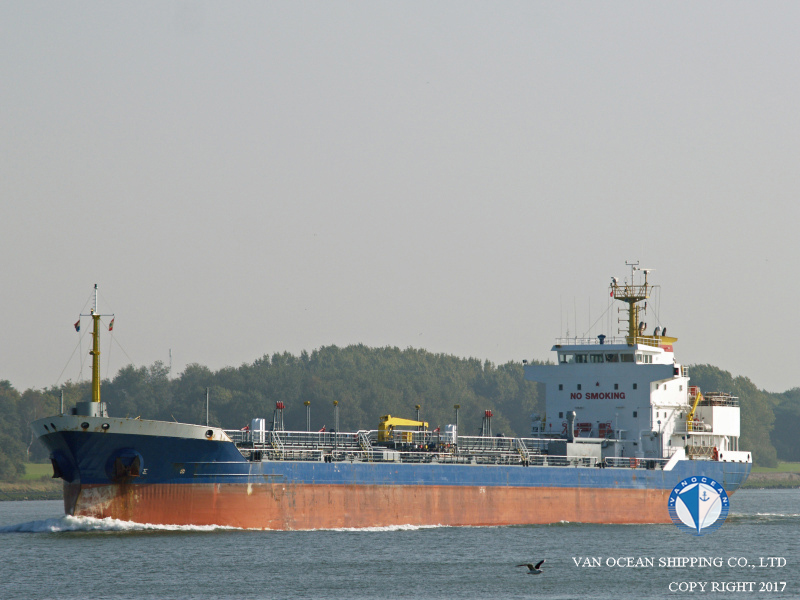

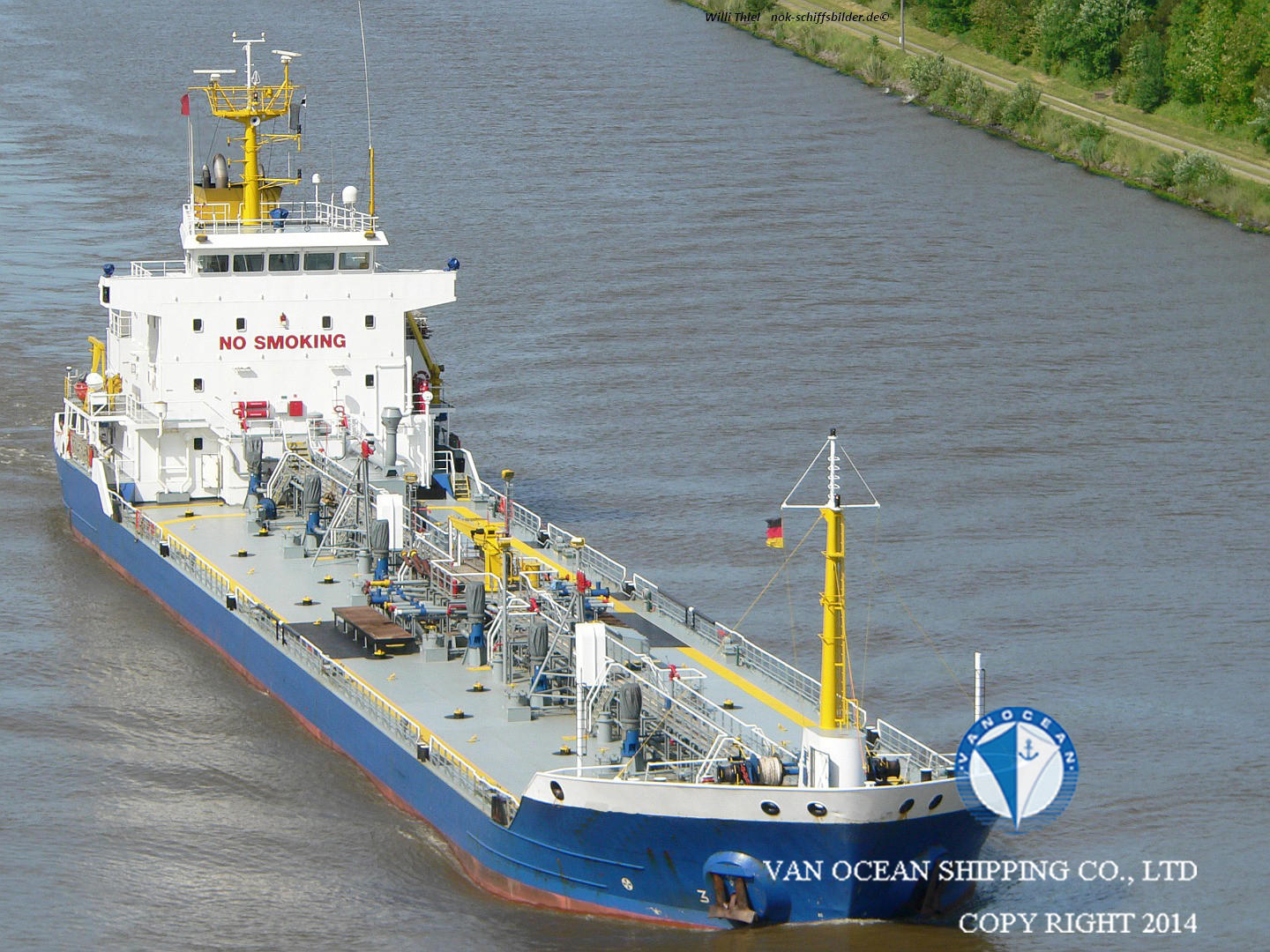

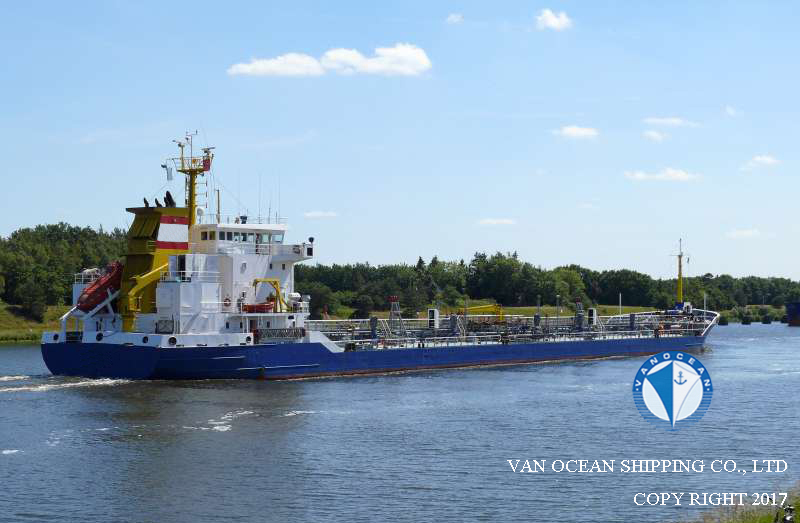

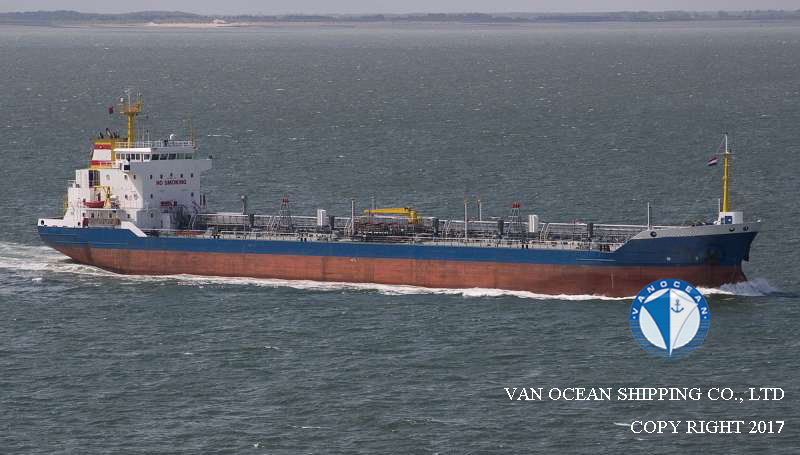

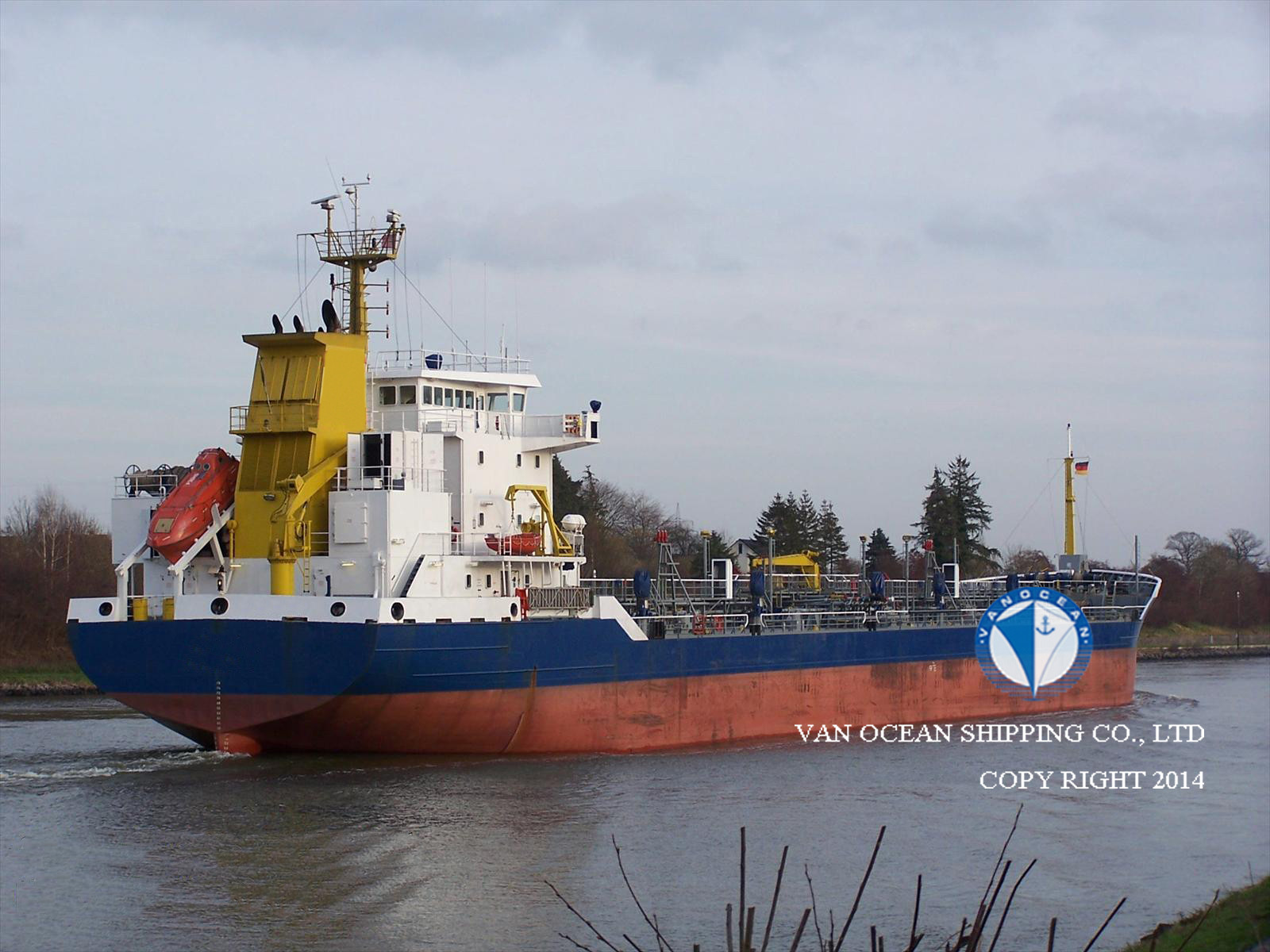

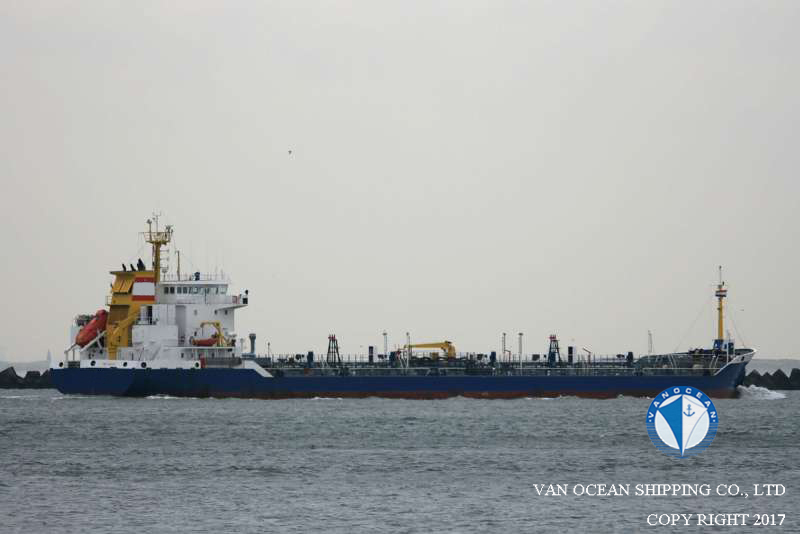

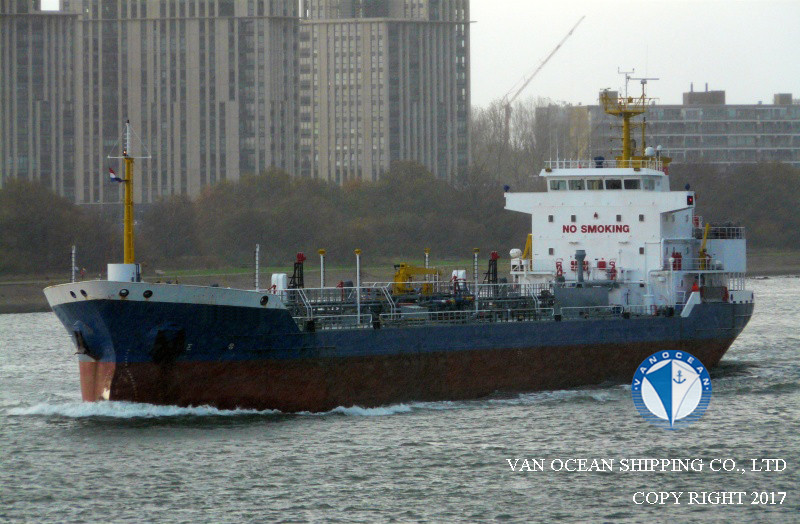

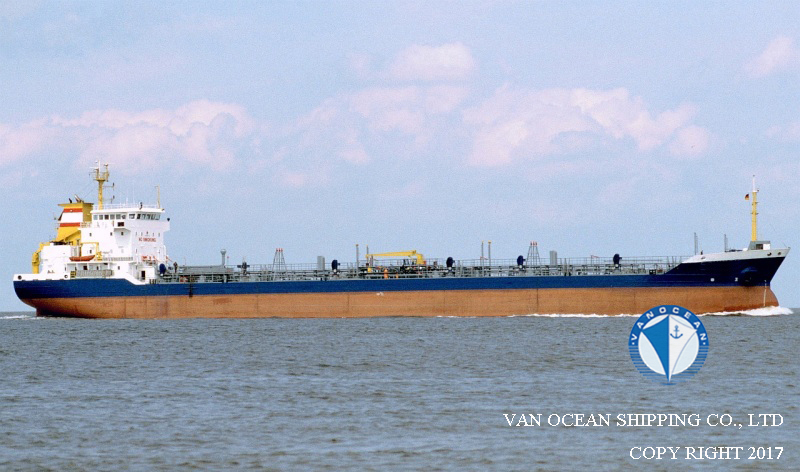

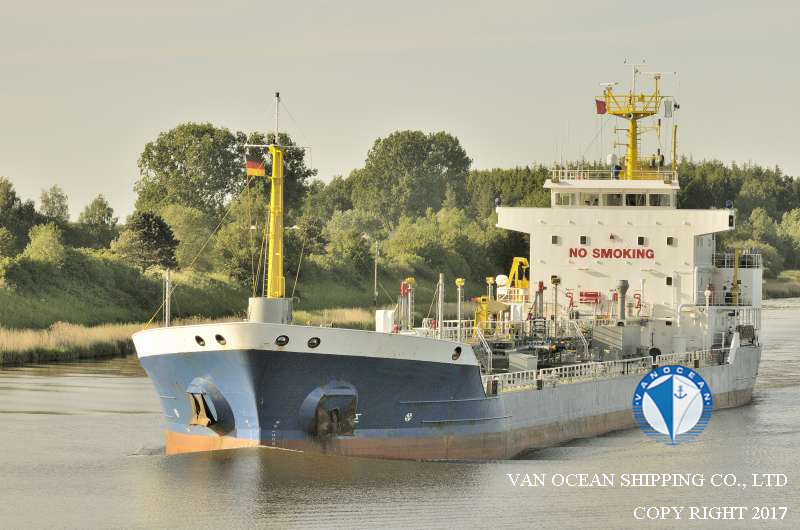

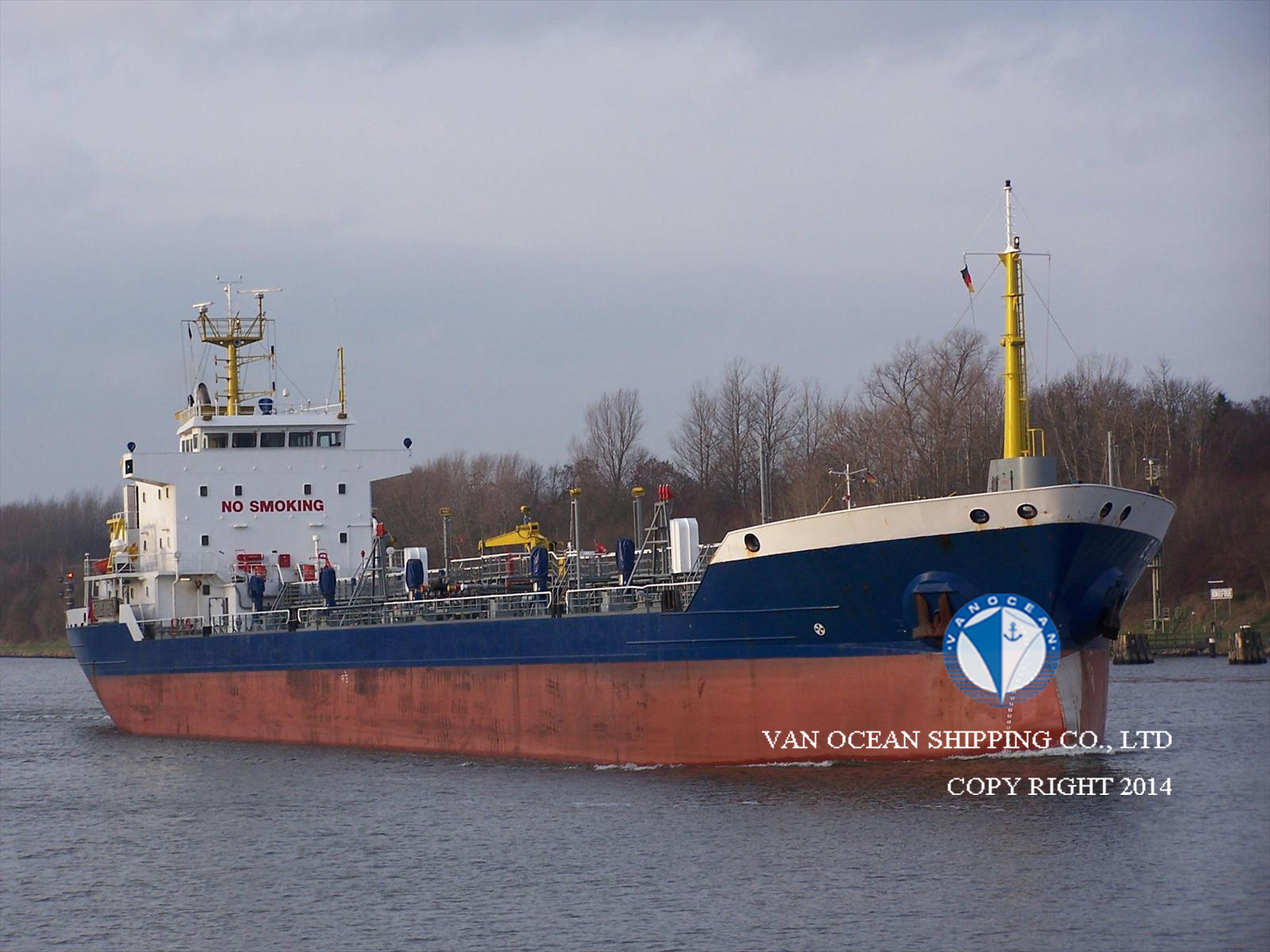

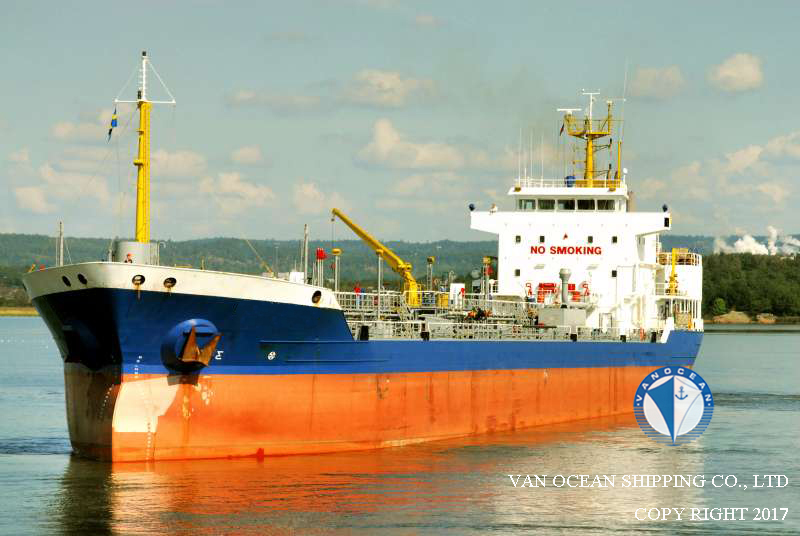

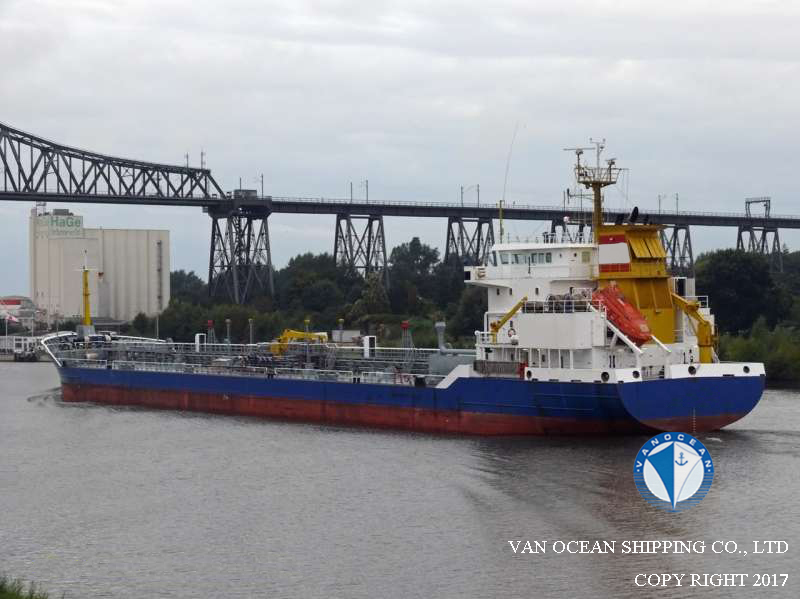

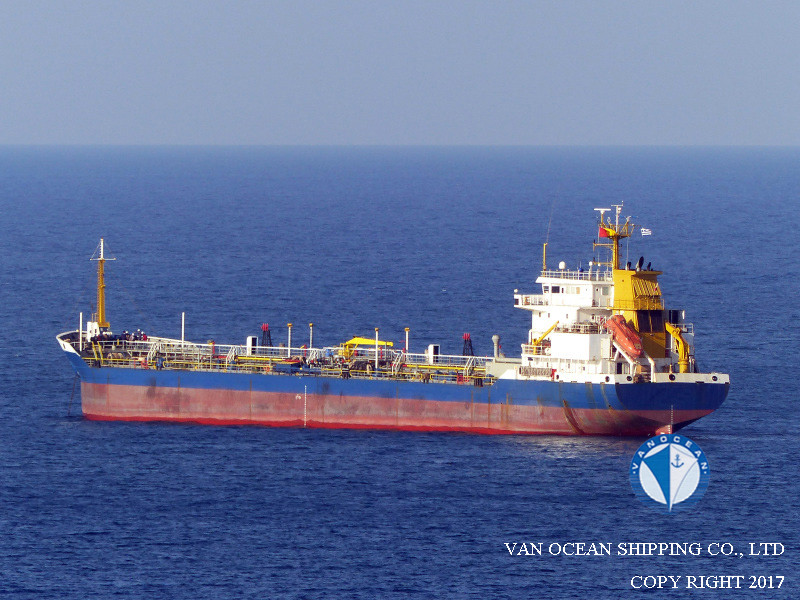

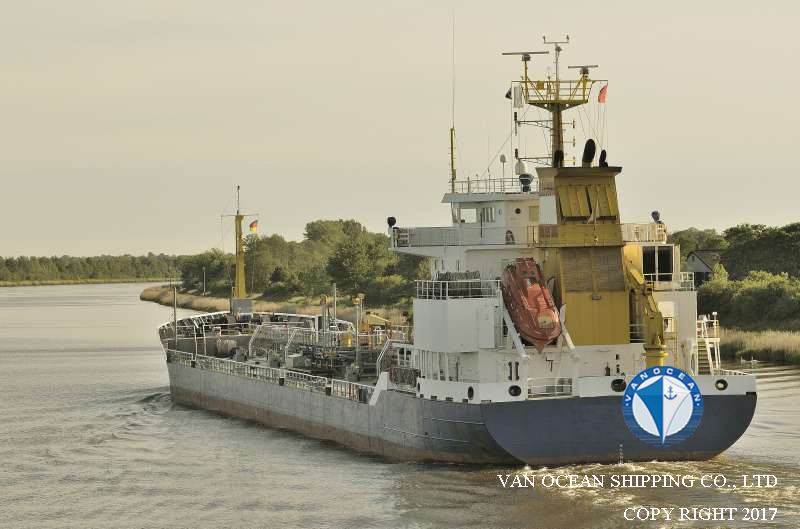

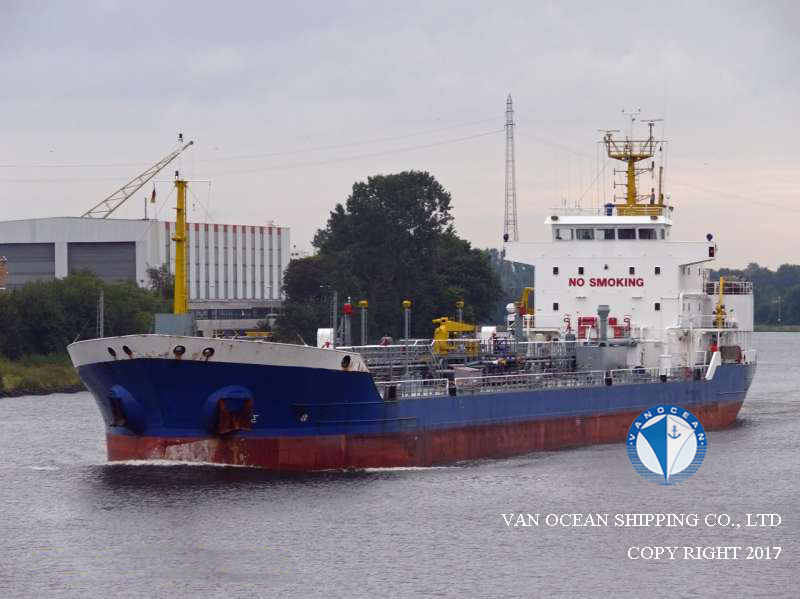

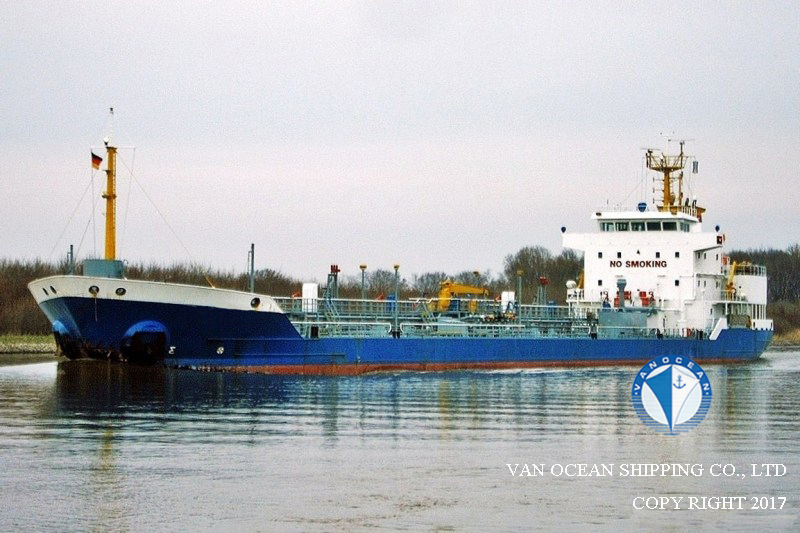

VESSEL NAME
TNK111
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
-
BUILT YEAR
1993
BUILT PLACE
SLOB SCHEEPSWERFT PAPENDRECHT, NETHERLANDS
CLASSIFICATION
GL
CLASS NOTATION
IMO II, ICE FS-1C, +100A5 E1 / OIL TANKER TYPE -2 ESP, +MCE1 IGS
SS
2018-03
DD
2018-03
LOA (M)
122.00
LBP (M)
117.71
BEAM (M)
16.70
DEPTH (M)
8.95
SUMMER DRAFT (M)
6.78
WINTER DRAFT (M)
6.64
TROPICAL DRAFT (M)
6.92
GT (MT)
5050.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2829.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
9431.00
WINTER DWT (MT)
9136.00
TROPICAL DWT (MT)
9676.00
DISPLACEMENT (MT)
-
LDT (MT)
2454.00
GEAR(S)
CRANE, 1 x 2.2MT
M/E(S)
KRUPP MAK 8M453C,4000HP/600RPM
M/E POWER (KW)
2985
A/E(S)
-
GENERATOR(S)
1 x 584KW 380V 50HZ A.C.
1 x 548KW 380V 50HZ A.C.
SHAFT GENERATOR(S)
810KVA
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
12.5KTS ON 11.5MT
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
349717
CARGO CAPACITY98% (CBM)
9907
COATING/MATERIAL OF HOLD(S)
EPOXY COATED
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
6 x 280CBM / HR,DEEPWELL PUMP
ONE PUMP FOR SINGLE HOLD OR NOT
NO
SIDE THRUSTER(S)
BOW THRUSTER, 400KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
SINGAPORE
PRICE
USD 2.5 MILLION
REMARK(S)
SLOP TANK IS EPOXY COATED
SBT
