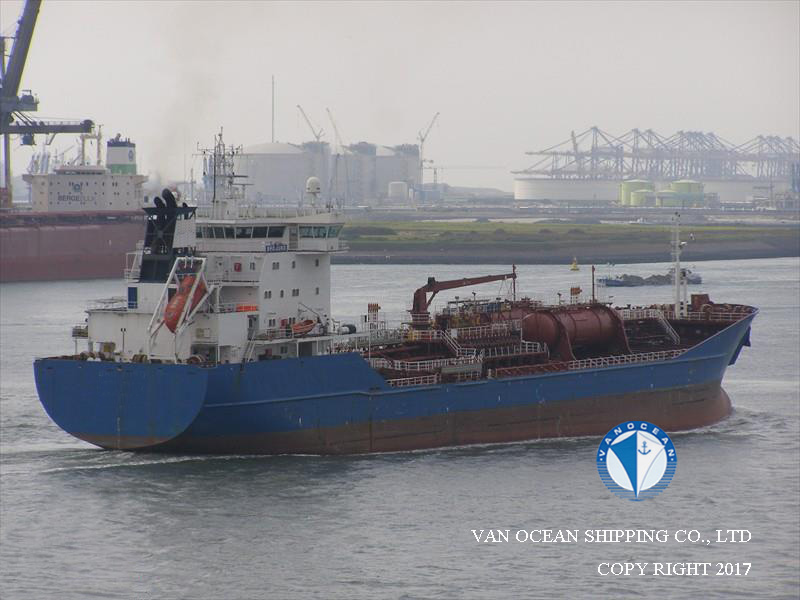

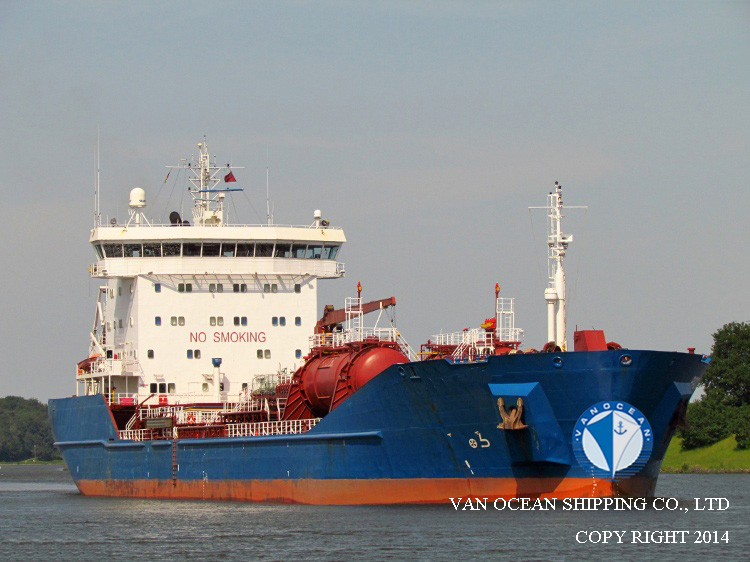

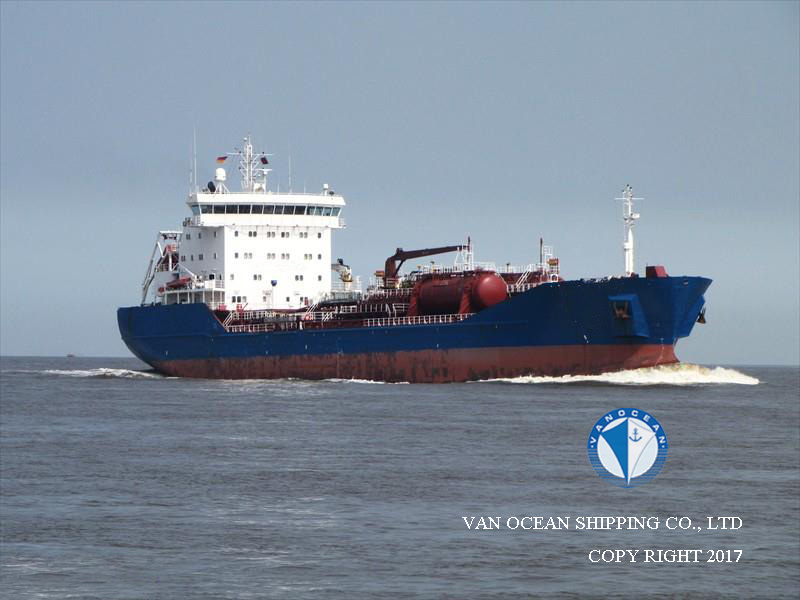

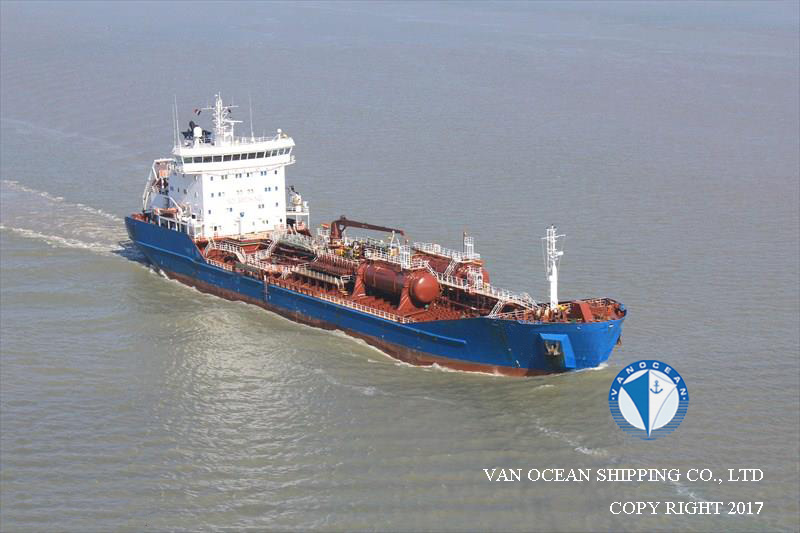

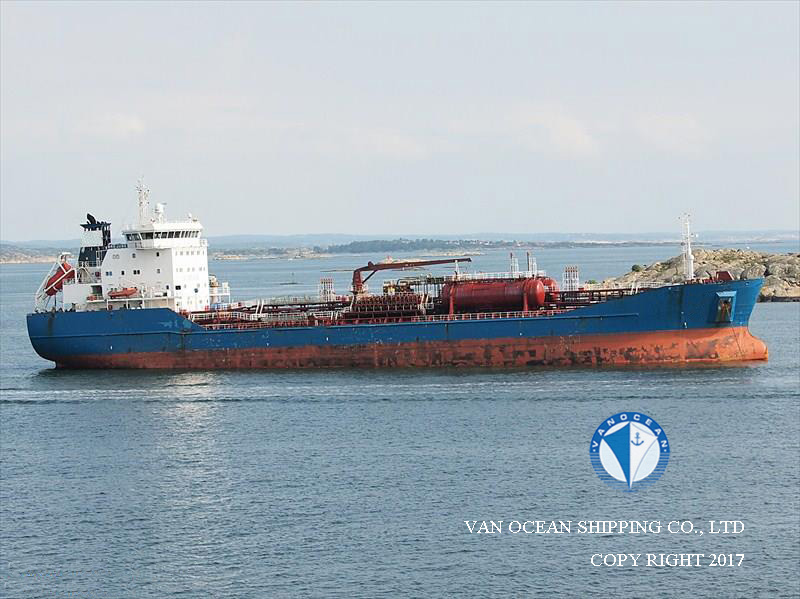

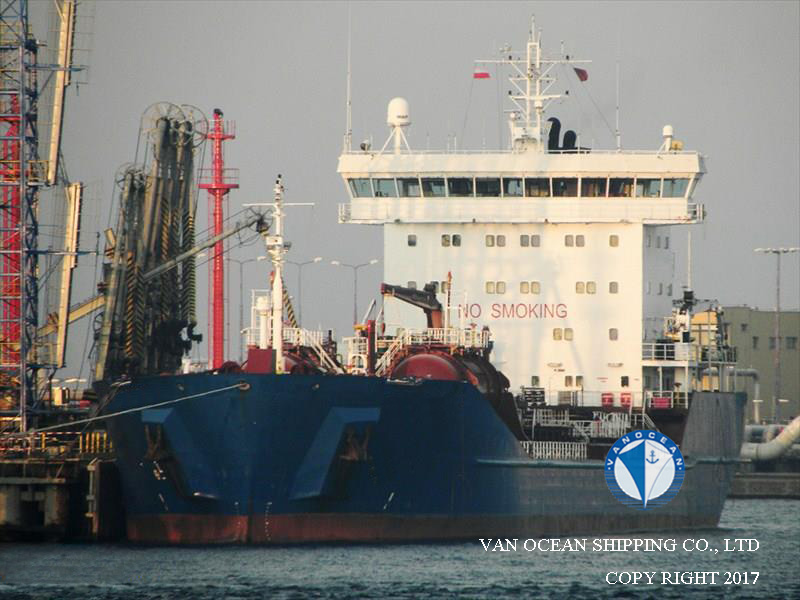

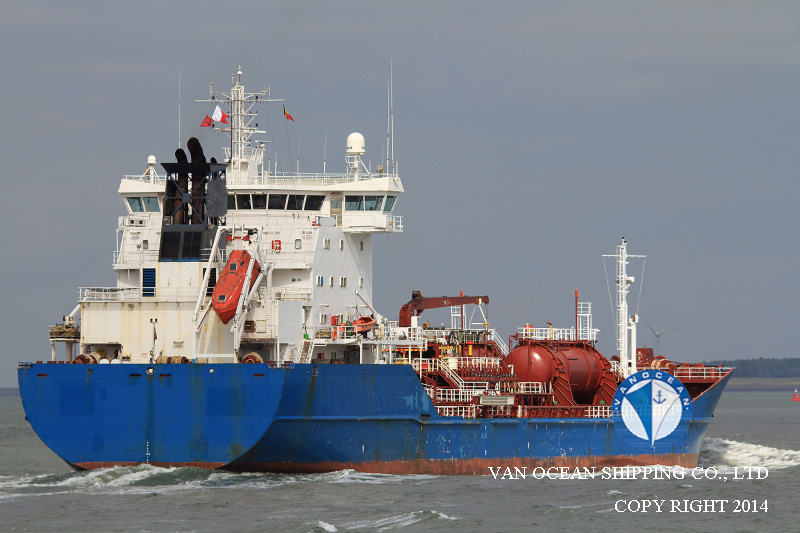

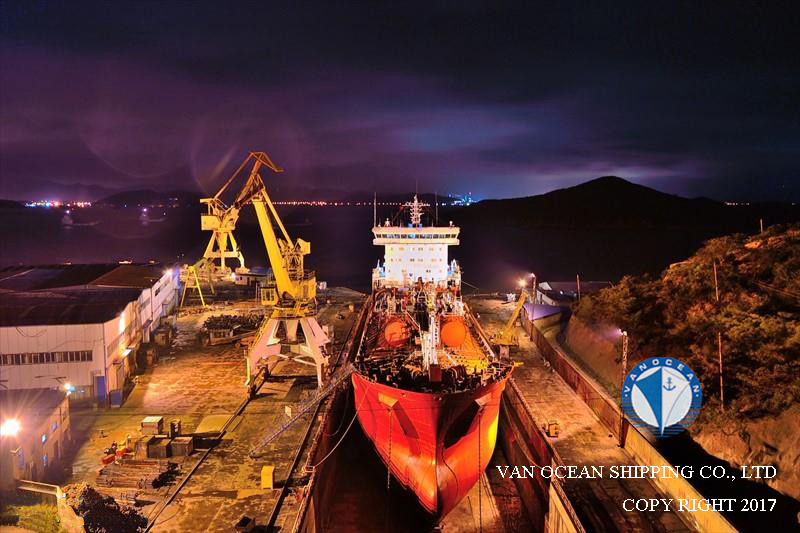

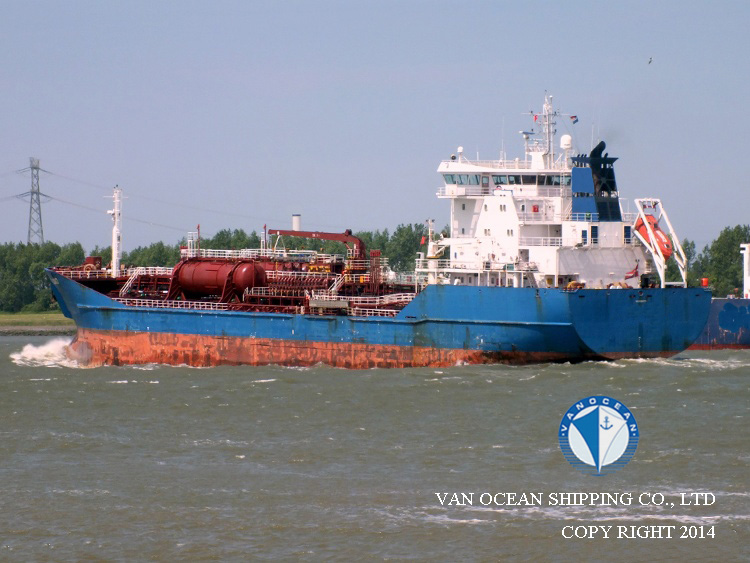

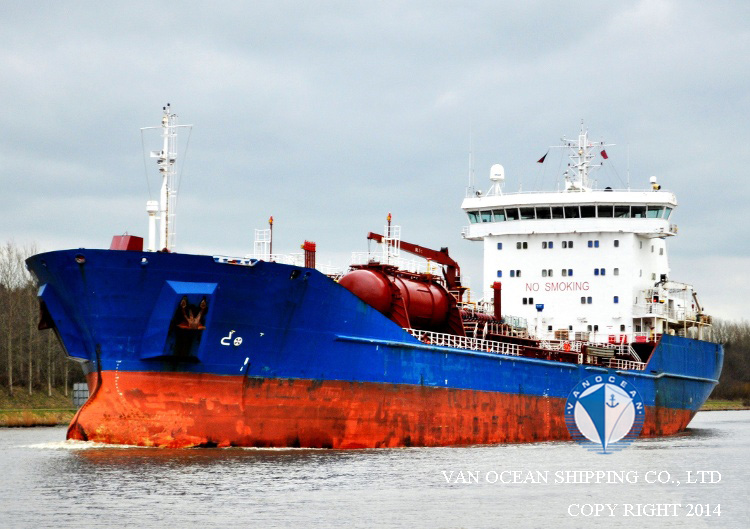

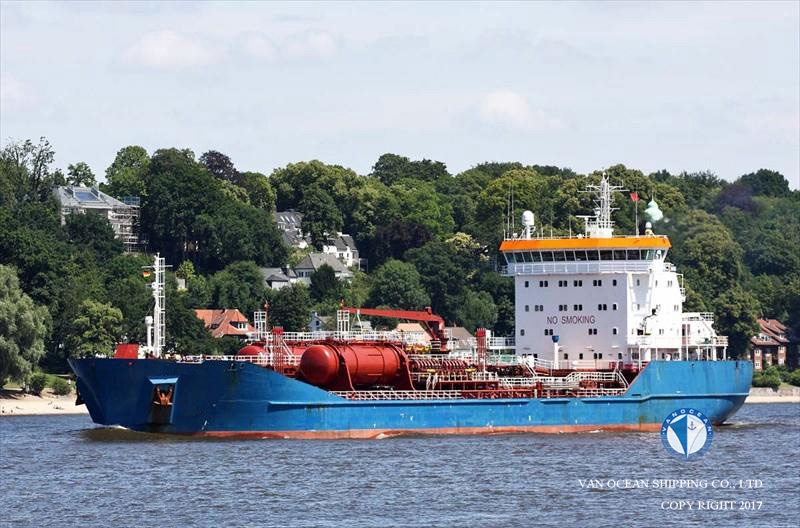

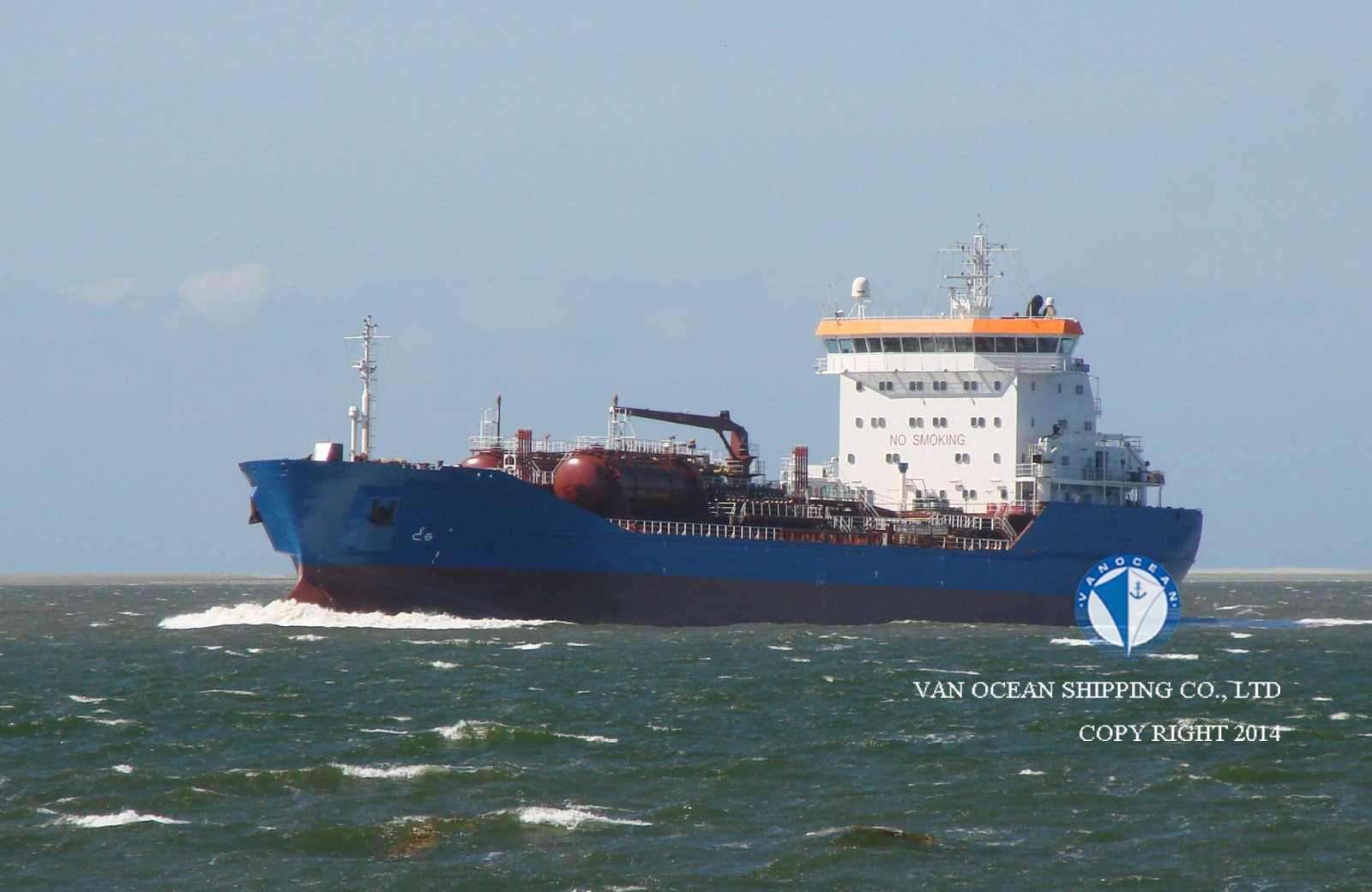

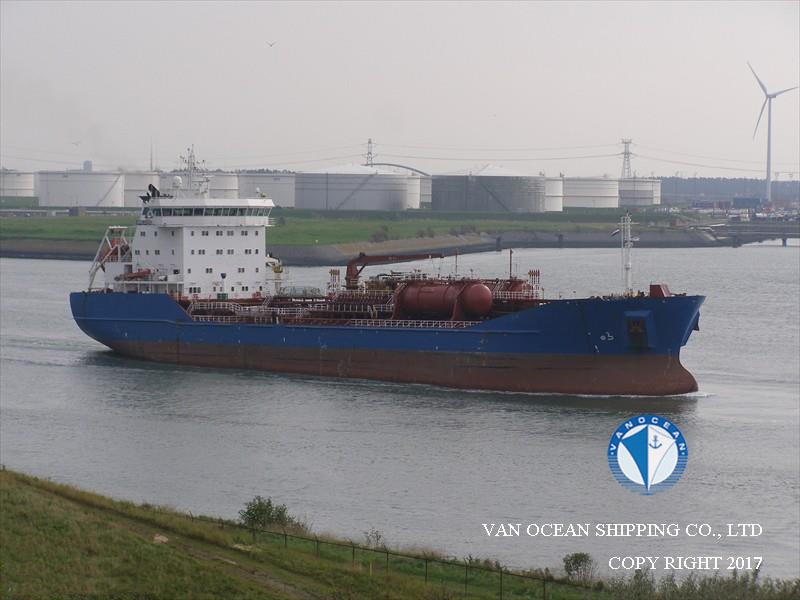

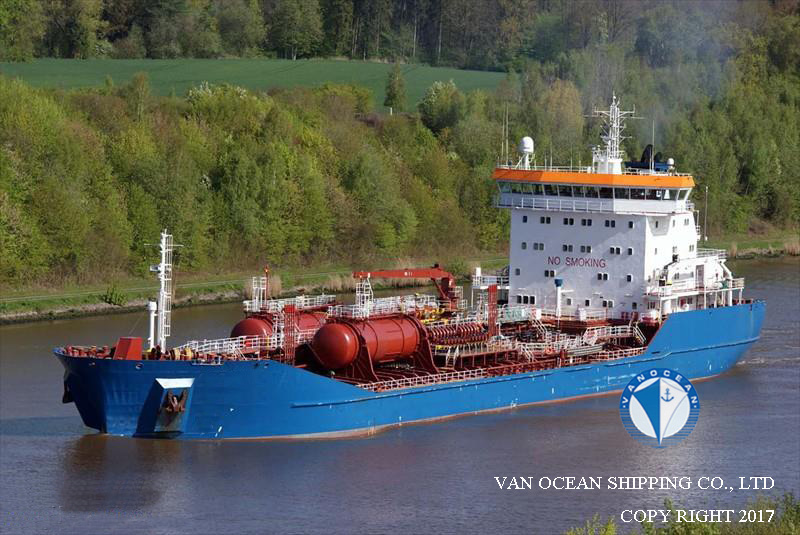

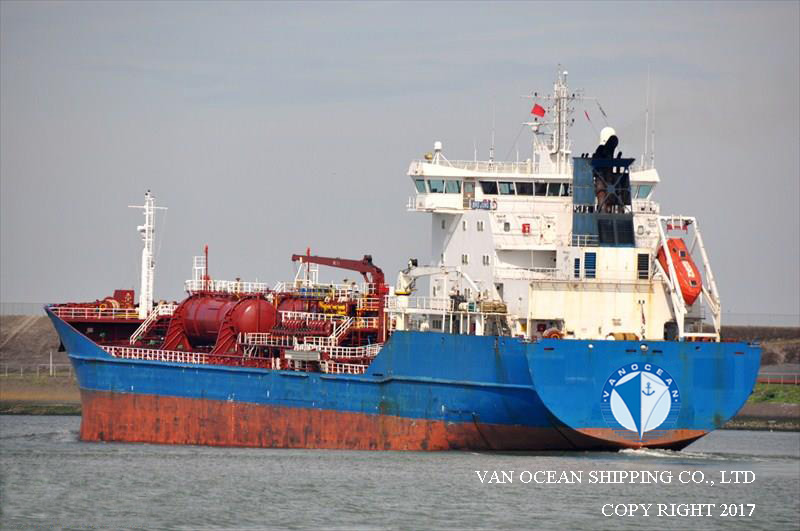

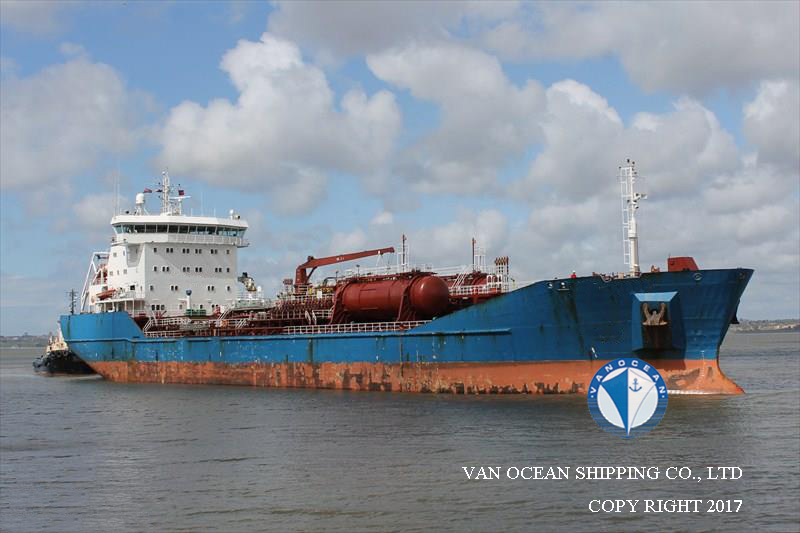

VESSEL NAME
TNK106
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
RUSSIA
PORT OF REGISTRY
VOSTOCHNY
BUILT YEAR
1999
BUILT PLACE
CHINA
CLASSIFICATION
LR
CLASS NOTATION
CHEMICAL TANKER, (2), SG 1.55，IMO II，ICE 1A
SS
-
DD
-
LOA (M)
121.07
LBP (M)
114.23
BEAM (M)
21.47
DEPTH (M)
12.31
SUMMER DRAFT (M)
9.50
WINTER DRAFT (M)
9.30
TROPICAL DRAFT (M)
9.70
GT (MT)
8848.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4527.00
PANAMA NT (MT)
7475.00
SUEZ NT (MT)
9627.00
SUMMER DWT (MT)
14359.00
WINTER DWT (MT)
13903.00
TROPICAL DWT (MT)
14815.00
DISPLACEMENT (MT)
18821.57
LDT (MT)
-
GEAR(S)
CRANE: 1 x 5MT
M/E(S)
MAN-B&W 6S42MC 8362 BHP 136 RPM
M/E POWER (KW)
6240
A/E(S)
-
GENERATOR(S)
EMERGENCY GENERATOR: 1 x 117KW
DIESEL GENERATOR: 3 x 536KW
SHAFT GENERATOR(S)
1 x BW1V-S42-GCR, 900KW
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
MAX SPEED AT BALLAST CONDITION: 13KTS, 24MT
MAX SPEED AT LADEN CONDITION: 13KTS, 28.4MT
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
872.1
TANKS CAPACITY (CBM)
MGO: 181.3，SLOP TANK：379
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
526570.1
CARGO CAPACITY98% (CBM)
14917
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
STAINLESS STEEL COILED
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
CARGO TANK (SUBMERGED): 10 x 300CBM/HR, 1 x 125CBM/HR, 2 x 120CBM/HR
BALLAST PUMP （HYDR DRIVEN): 2 x 500CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 800BHP 596.56KW
INSURANCE
POLLUTION LIABILITY COVERAGE: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 7.4 MILLION
REMARK(S)
DISPLACEMENT (MT): 18366.09(WINTER), 19278.7(TROPICAL)
BALLAST TANK AND SLOP TANK ARE COATED
SBT: 5590 CBM
