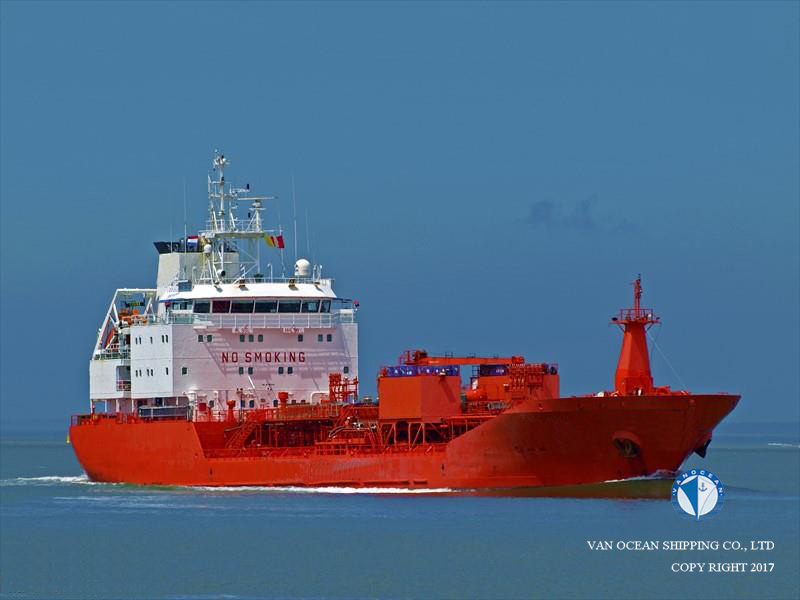

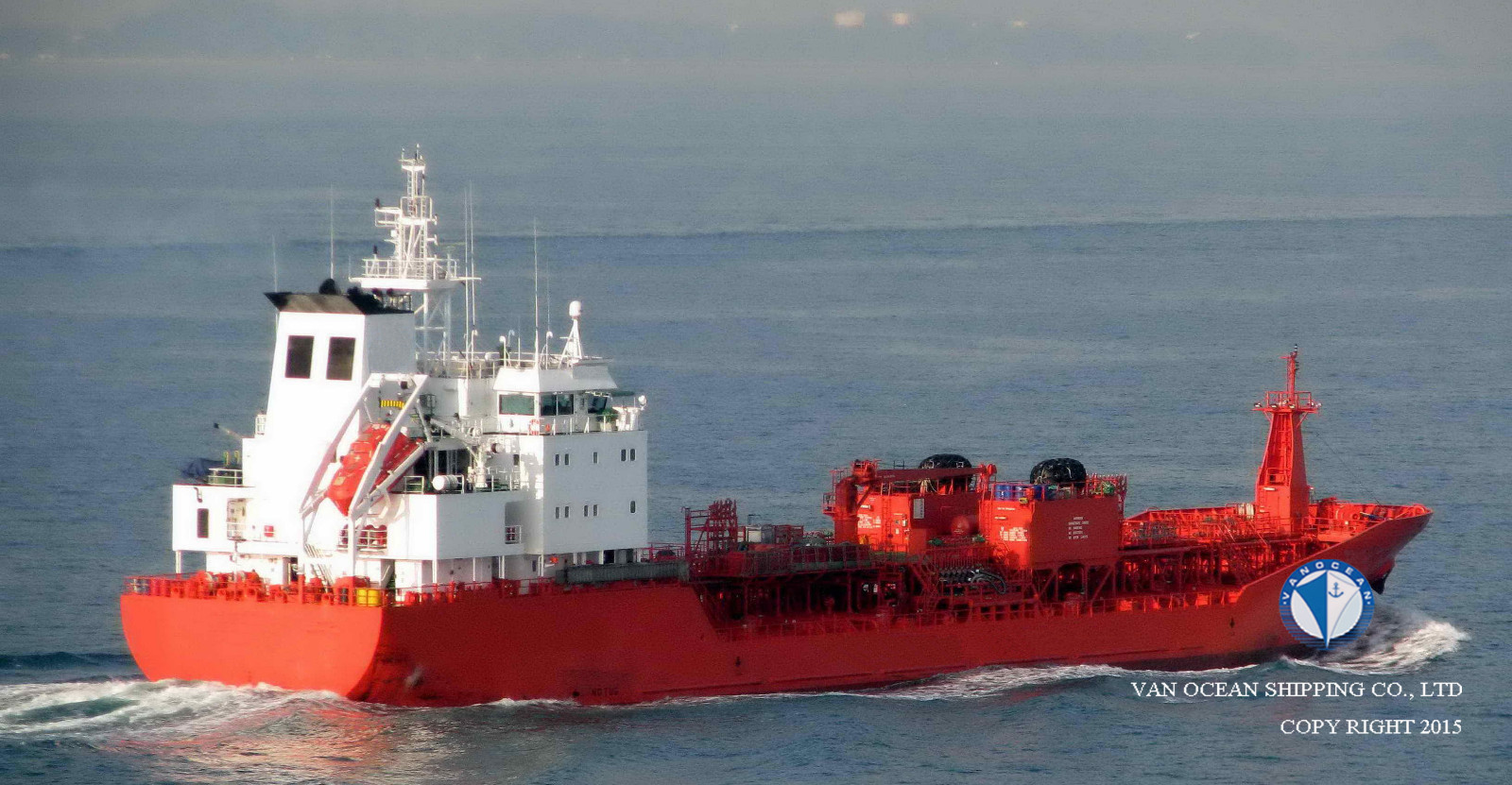

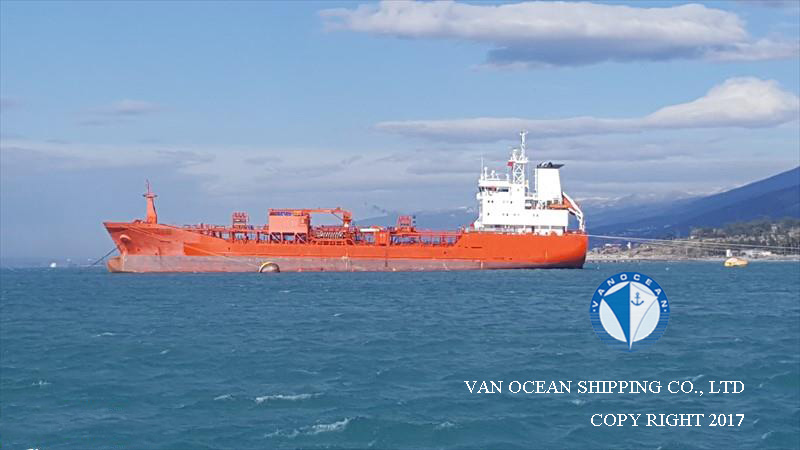

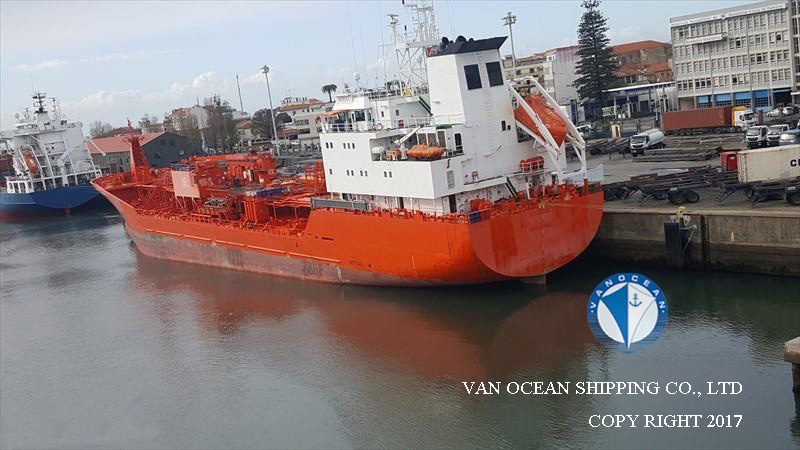

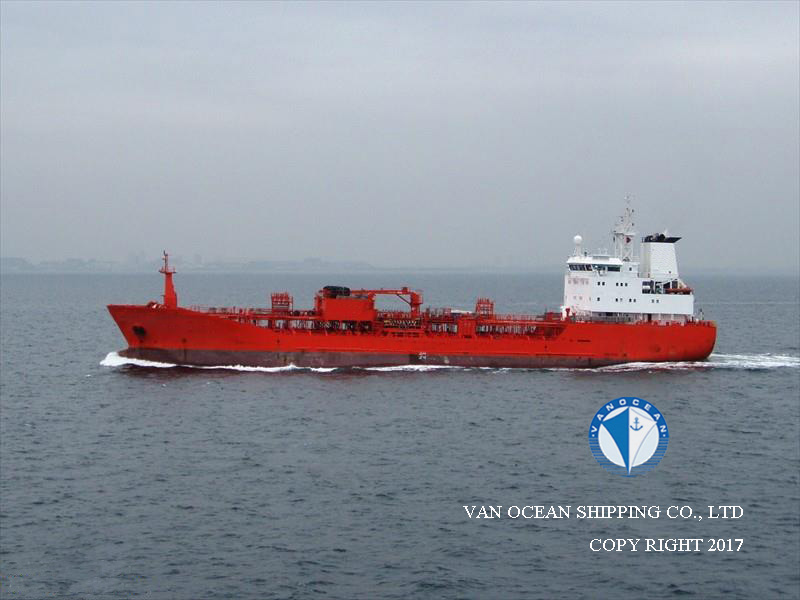

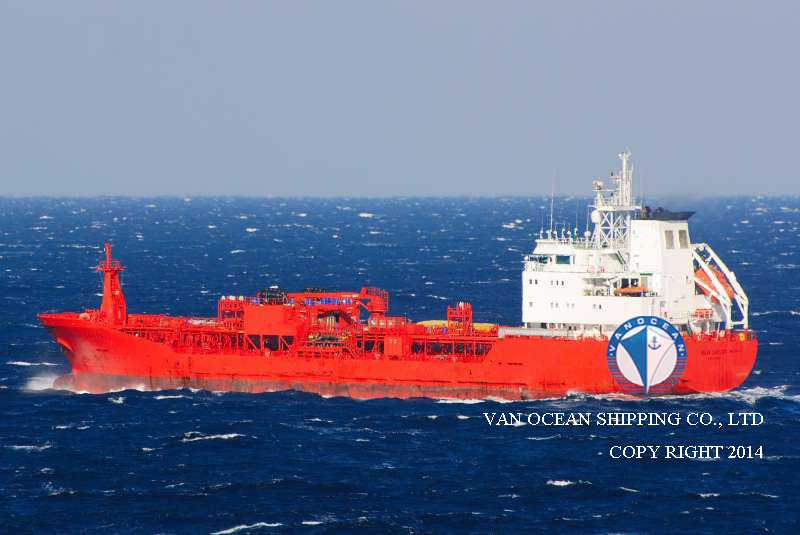

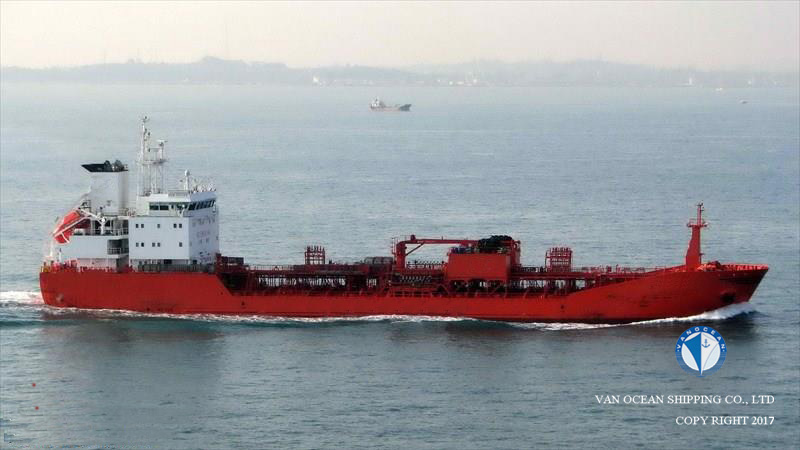

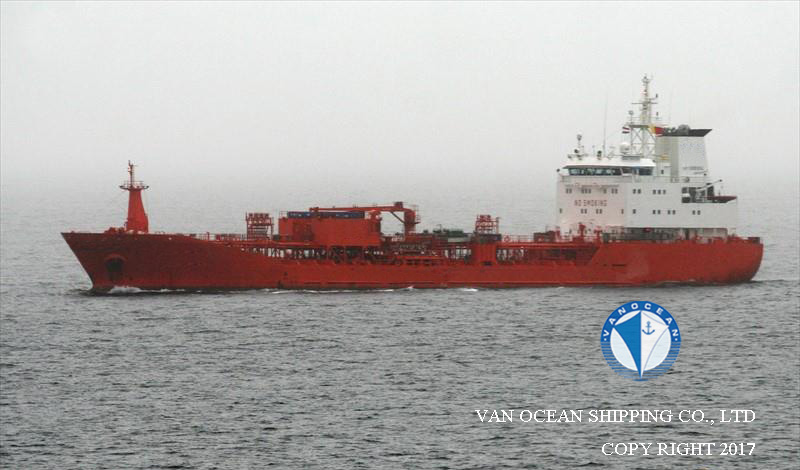

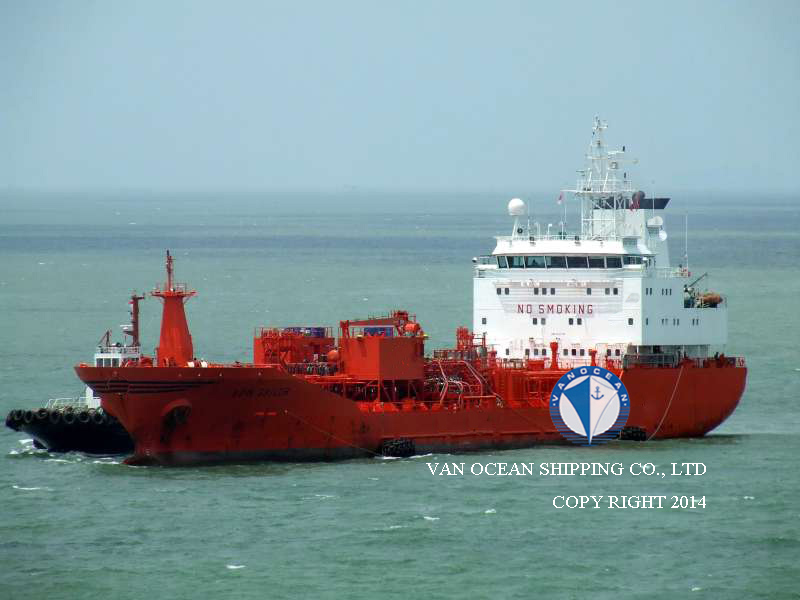

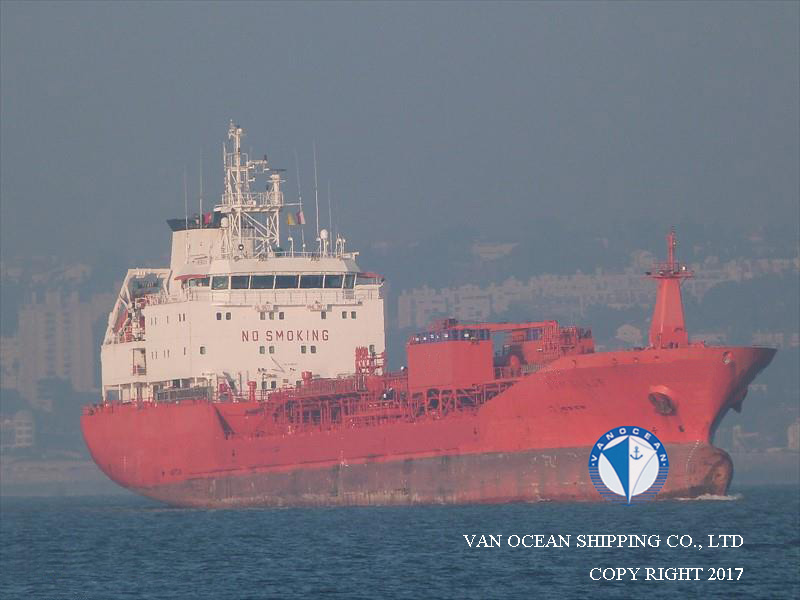

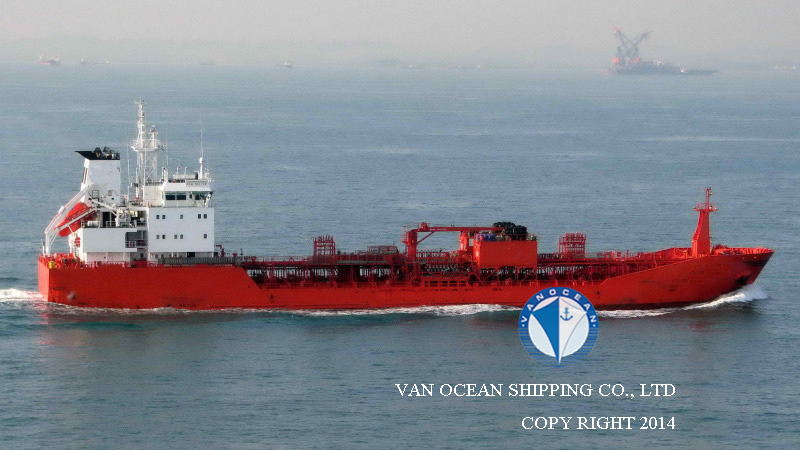

VESSEL NAME
TNK107
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MALTA
PORT OF REGISTRY
VALLETTA
BUILT YEAR
1999
BUILT PLACE
POLAND, SZCZECIN SHIPYARD
CLASSIFICATION
DNV
CLASS NOTATION
ICE 1C
SS
-
DD
-
LOA (M)
103.60
LBP (M)
-
BEAM (M)
16.60
DEPTH (M)
9.40
SUMMER DRAFT (M)
7.11
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
4667.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1956.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
6046.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)
B&W 6S35MC 4895 BHP, 146 RPM
M/E POWER (KW)
3600
A/E(S)
-
GENERATOR(S)
2 x 713KVA
SHAFT GENERATOR(S)
875KVA
PROPELLER(S)
-
SPEED /CONSUMPTIONS
13KTS
FUEL TYPE
IFO600
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
14
NUMBER OF CARGO HOLDS
7
CARGO CAPACITY98% (CBFT)
242793.4
CARGO CAPACITY98% (CBM)
6878
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
HEATING COILS
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
CENTRIFUGAL PUMP: 14 x 200CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 400KW
INSURANCE
-
CREW
16+1
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 5.4 MILLION
REMARK(S)
MAX DISCHARGE RATE: 1200CBM/HR
SBT
LIFEBOAT: 18 PAX
-
-
-
-
-
-
-
-
-
-
-
-
