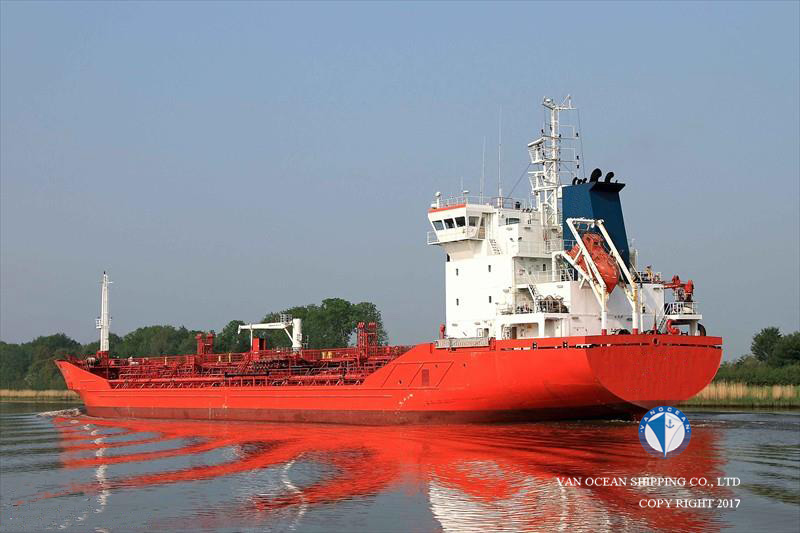

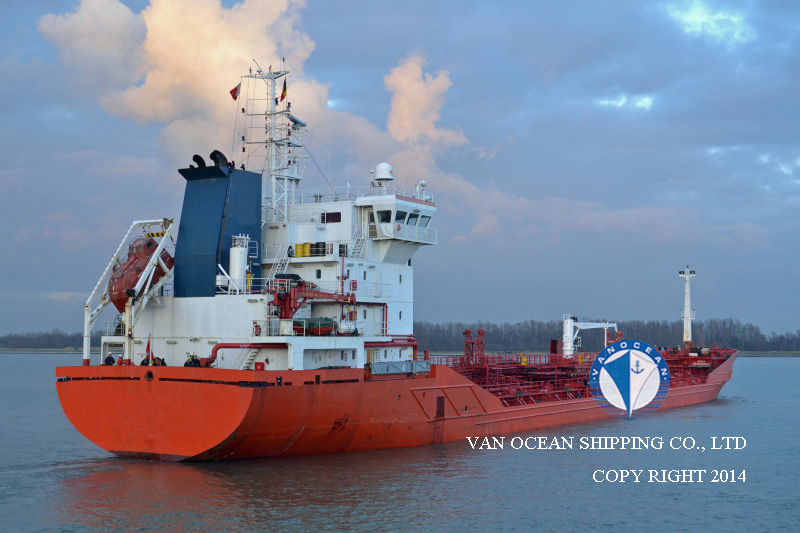

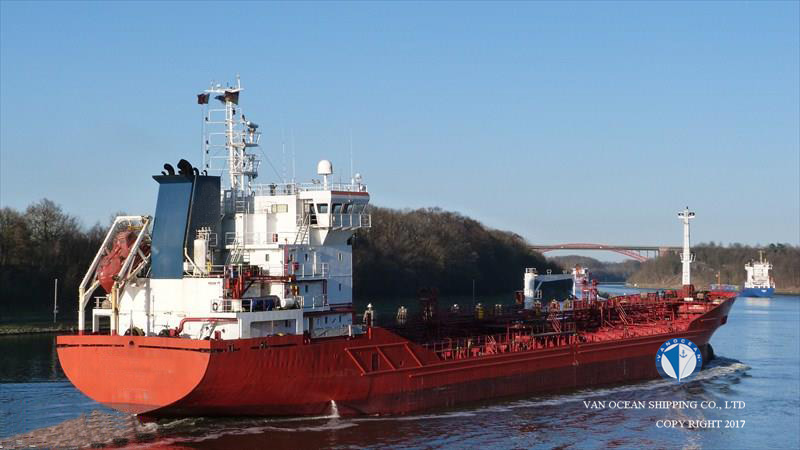

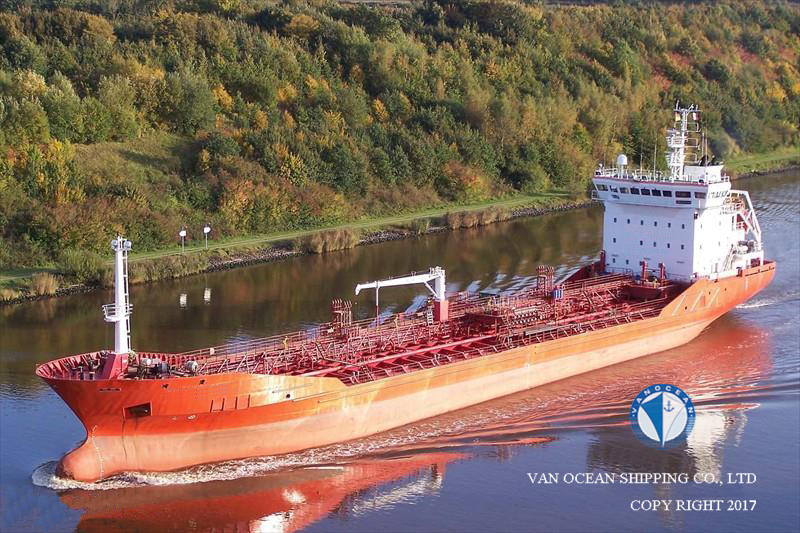

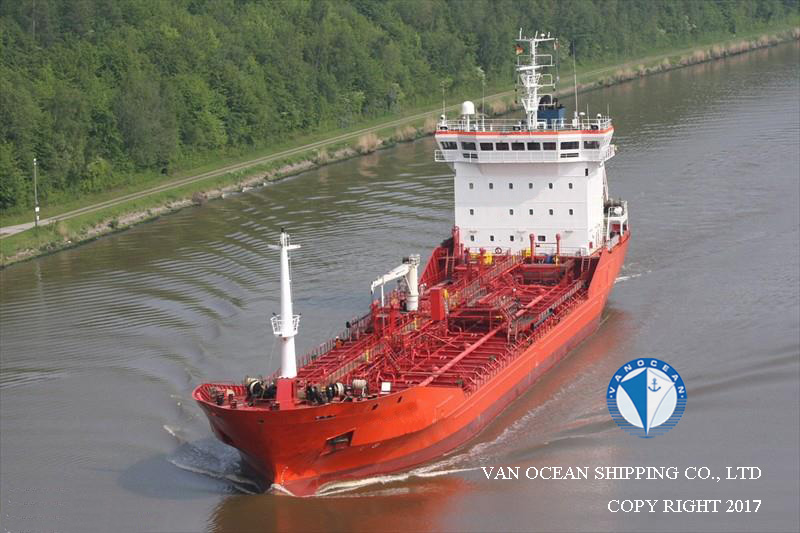

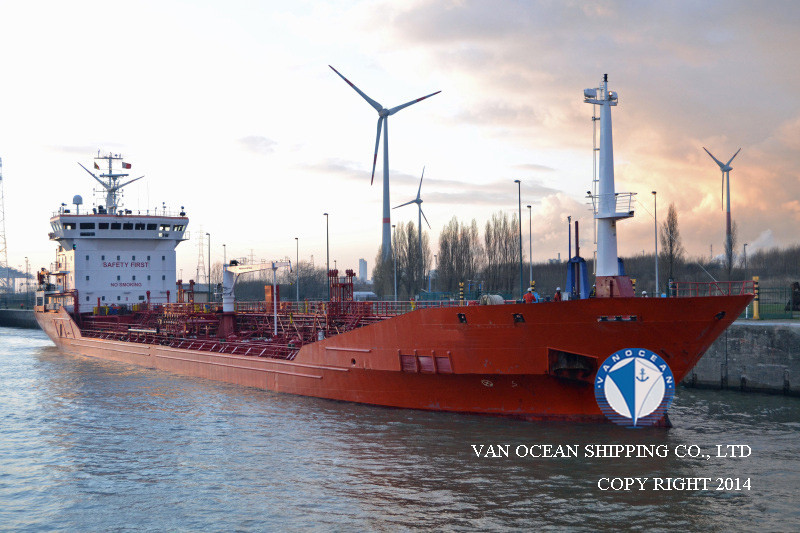

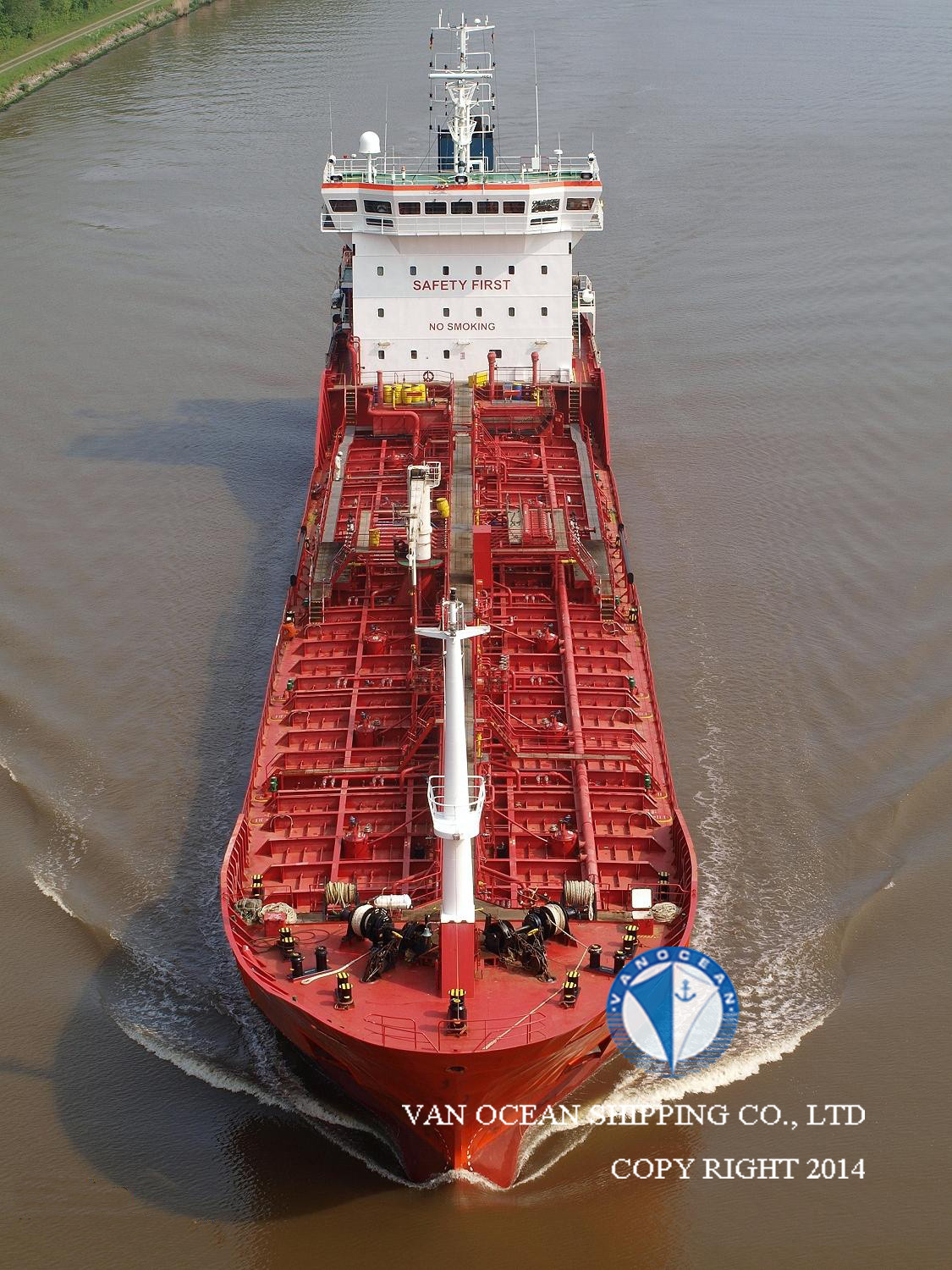

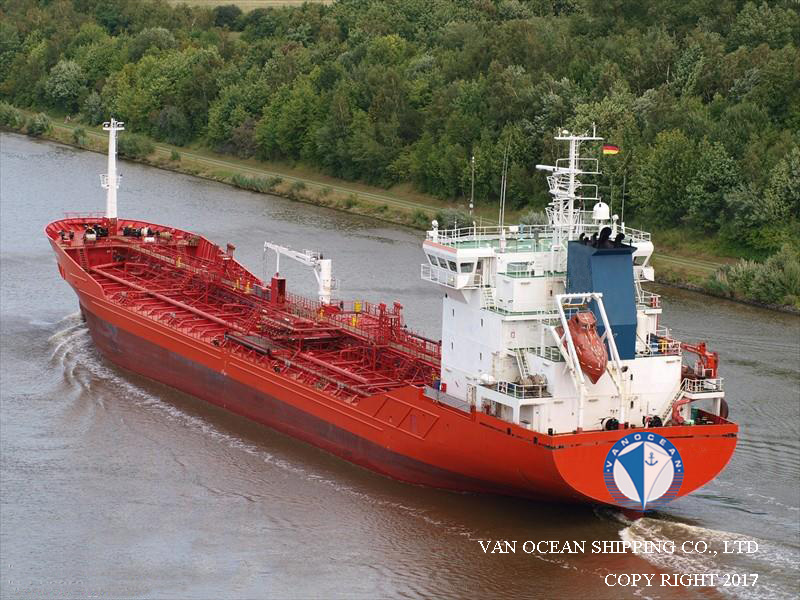

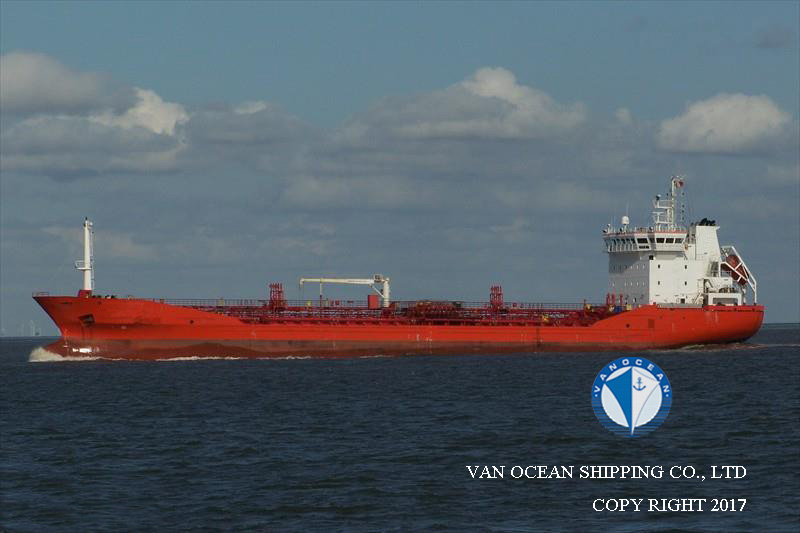

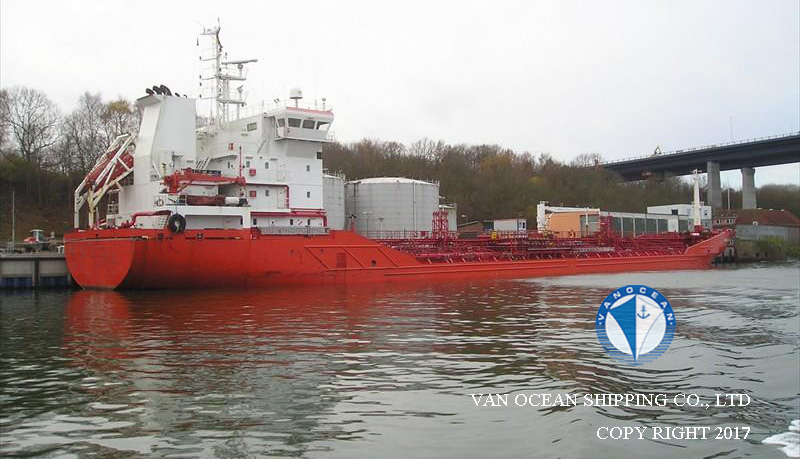

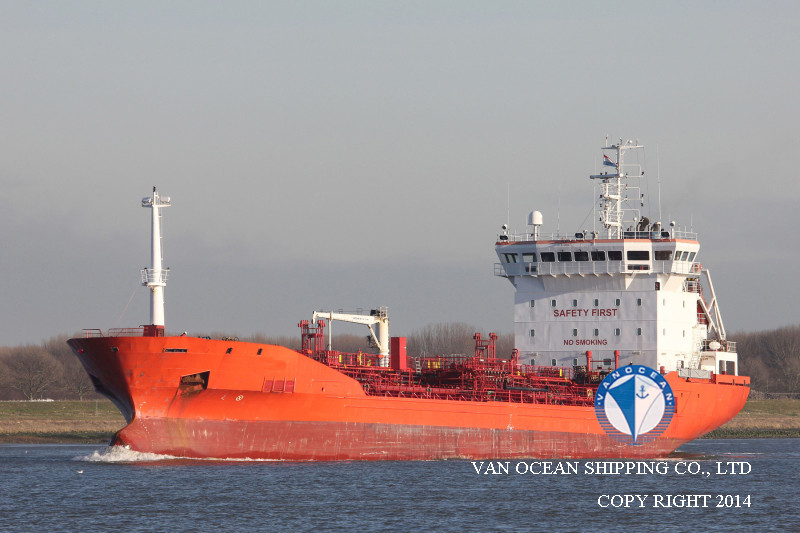

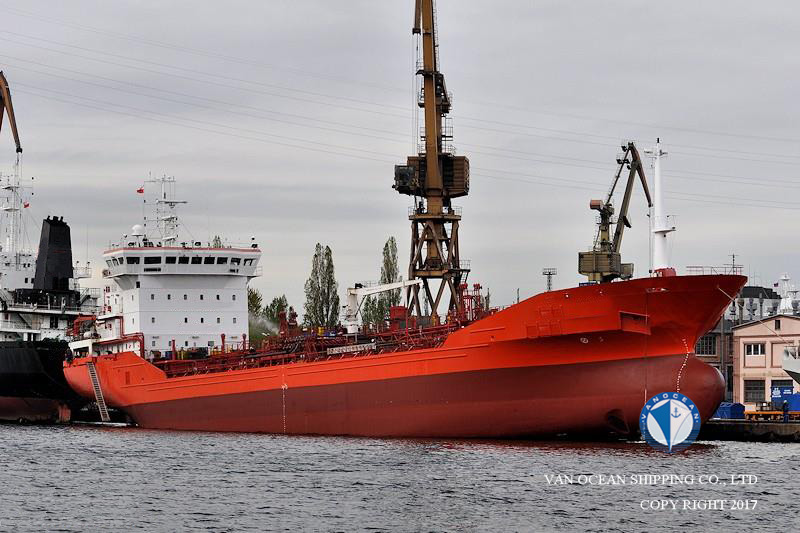

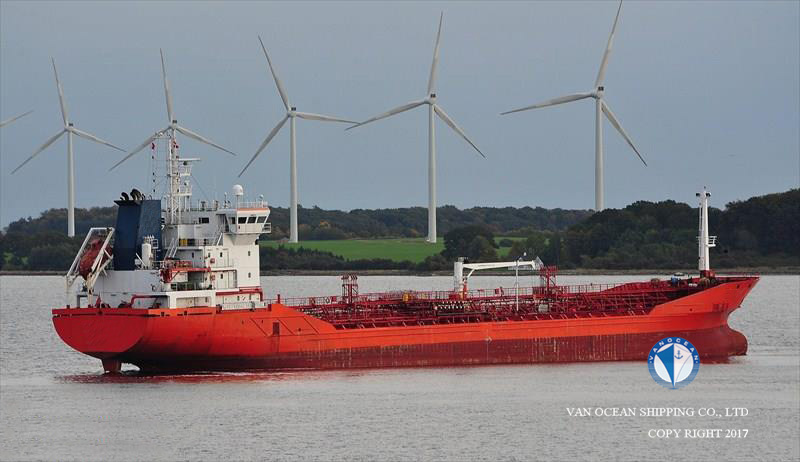

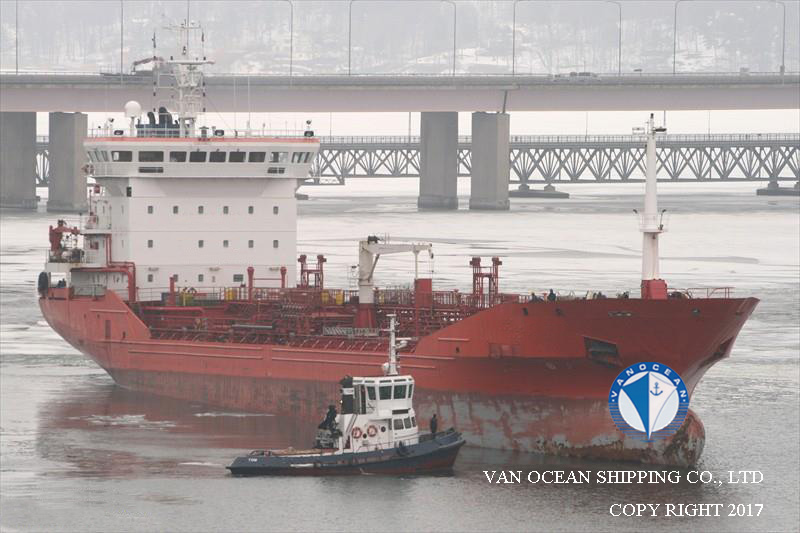

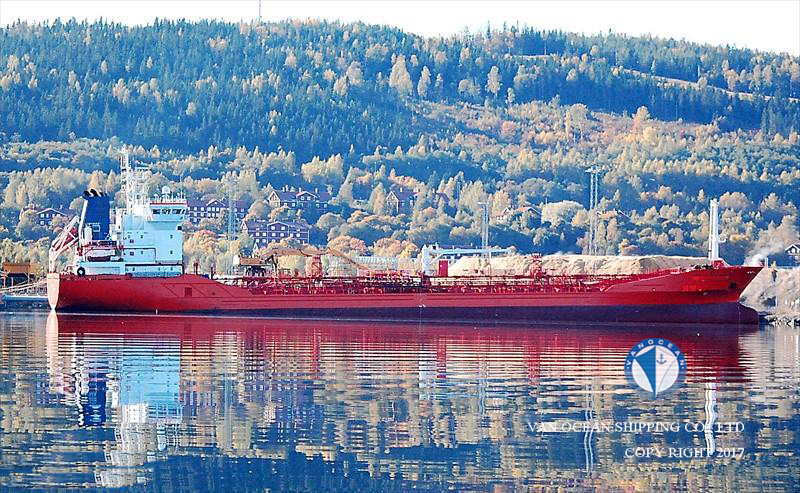

VESSEL NAME
TNK122
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MALTA
PORT OF REGISTRY
VALLETTA
BUILT YEAR
2005
BUILT PLACE
ANADOLU SHIPYARD ADIK TURKEY
CLASSIFICATION
DNV
CLASS NOTATION
1A1 TANKER FOR CHEMICALS AND OIL PRODUCTS ESP EP-1 E0
SS
-
DD
-
LOA (M)
122.66
LBP (M)
116.08
BEAM (M)
17.20
DEPTH (M)
8.80
SUMMER DRAFT (M)
6.86
WINTER DRAFT (M)
6.71
TROPICAL DRAFT (M)
7.00
GT (MT)
5039.00
PANAMA GT (MT)
-
SUEZ GT (MT)
5185.70
NT (MT)
2398.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
8124.92
WINTER DWT (MT)
7869.13
TROPICAL DWT (MT)
8382.66
DISPLACEMENT (MT)
10949.70
LDT (MT)
-
GEAR(S)
CRANE, 1 x 3 MT, OUTREACH, 4.5M
M/E(S)
MAK 8M32C 3840 BHP
M/E POWER (KW)
2865.67
A/E(S)
3 x 580KW
GENERATOR(S)
-
SHAFT GENERATOR(S)
1 SET
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO 380
BUNKER CAPACITY (CBM)
434.7
TANKS CAPACITY (CBM)
MDO: 76.2, MGO: 0.69，SLOP TANK：249.1
COMPARTMENT(S)
7
NUMBER OF CARGO HOLDS
13
CARGO CAPACITY98% (CBFT)
289029.34
CARGO CAPACITY98% (CBM)
8187.8
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
CARGO PUMP：12 x 380CBM/HR，1 x 100CBM/HR
BALLAST PUMP：2 x 250CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 673BHP, 501.85KW
INSURANCE
POLLUTION LIABILITY COVERAGE: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 7.9 MILLION
REMARK(S)
DISPLACEMENT(MT): 10693.89(WINTER), 11207.42(TROPICAL)
SBT: 3638.1CBM
BALLAST TANKS AND SLOP TANKS ARE EPOXY COATED
