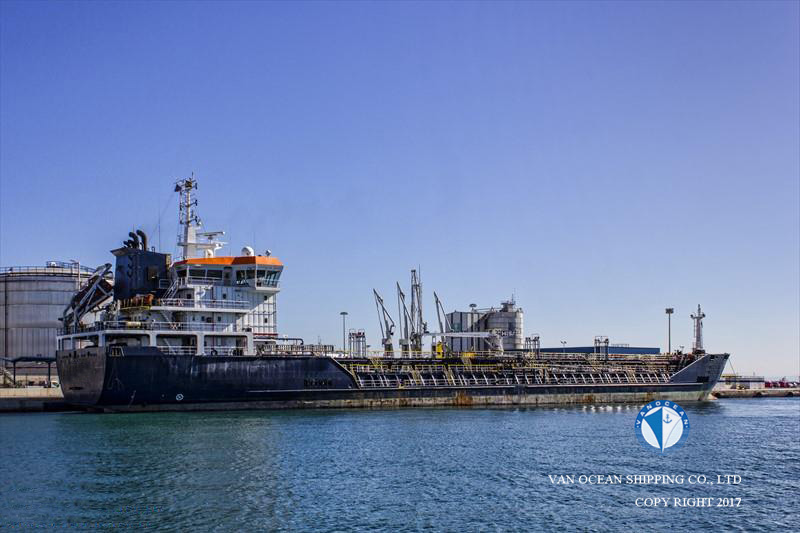

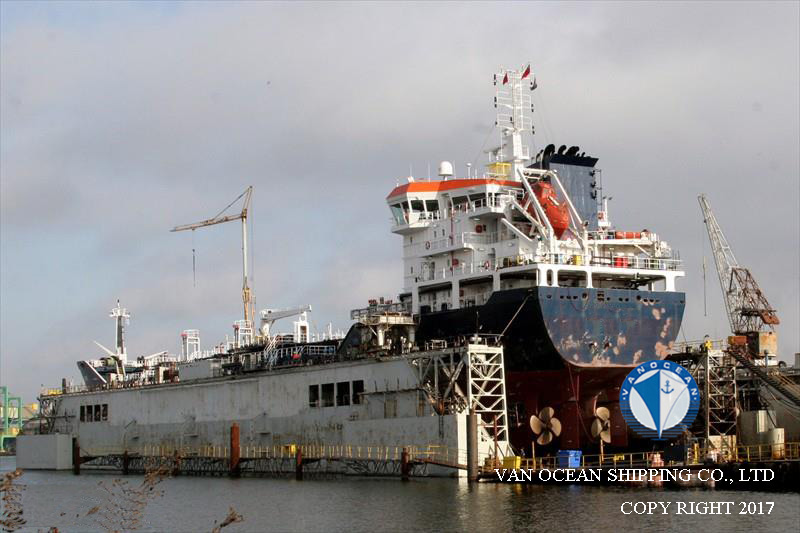

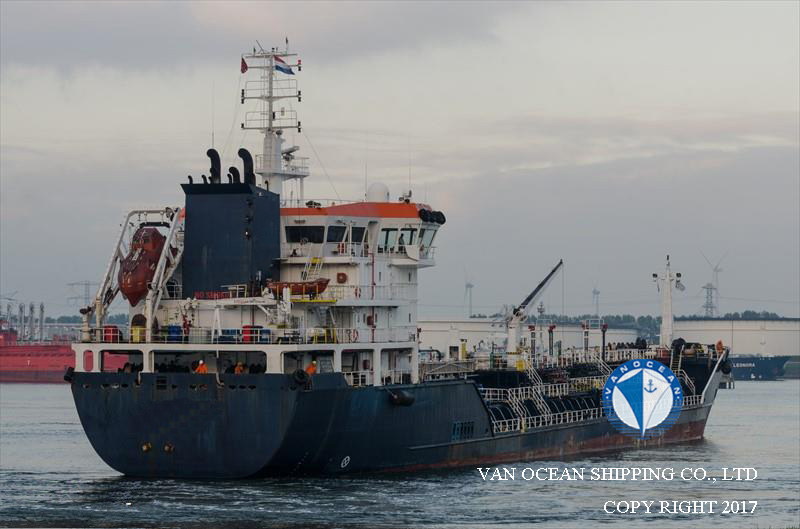

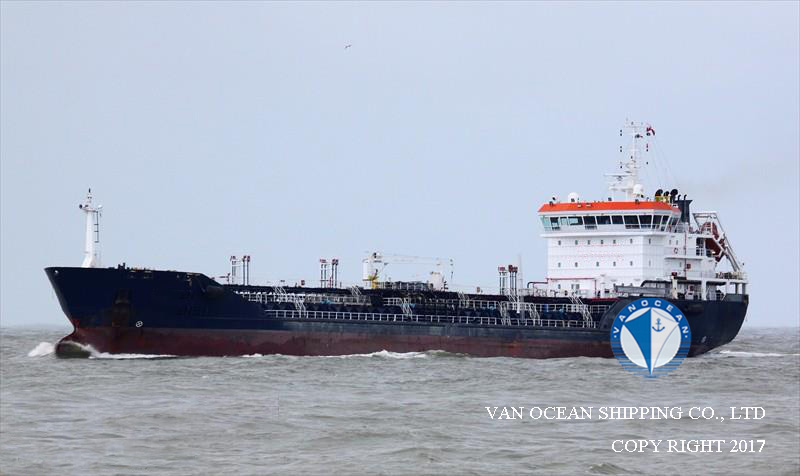

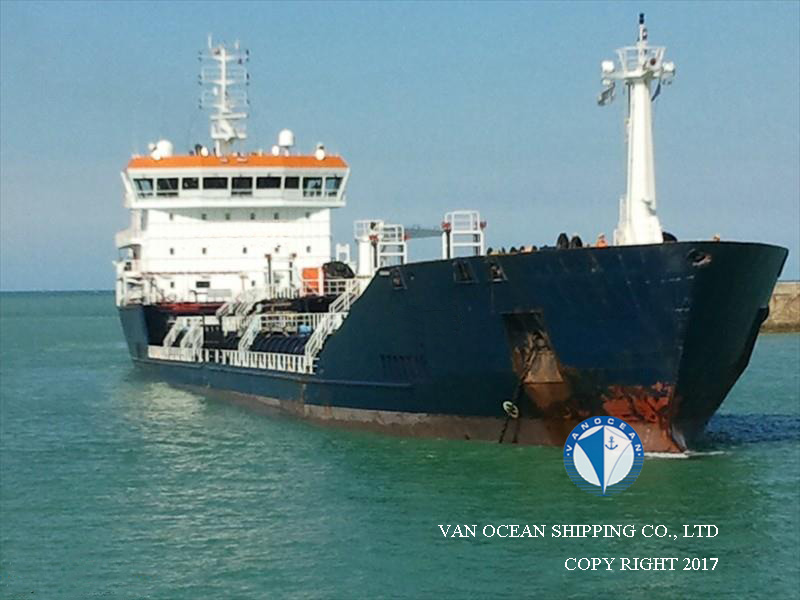

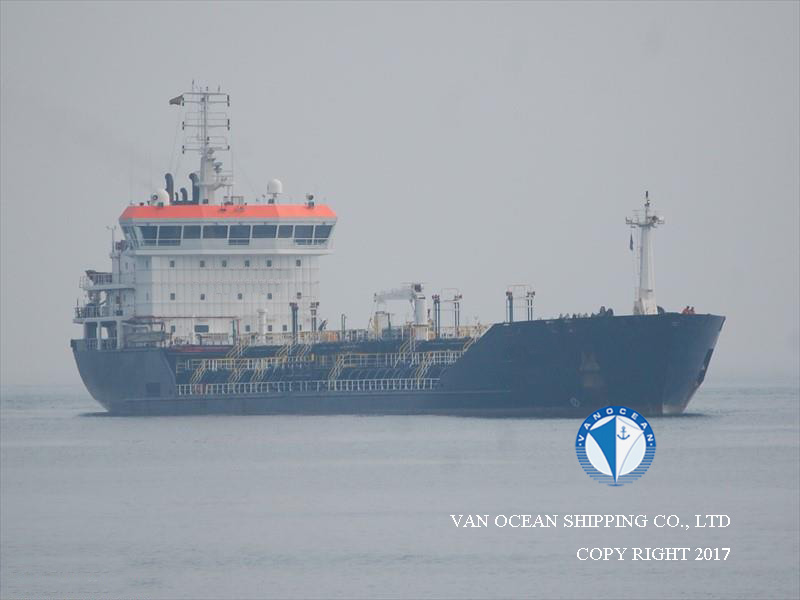

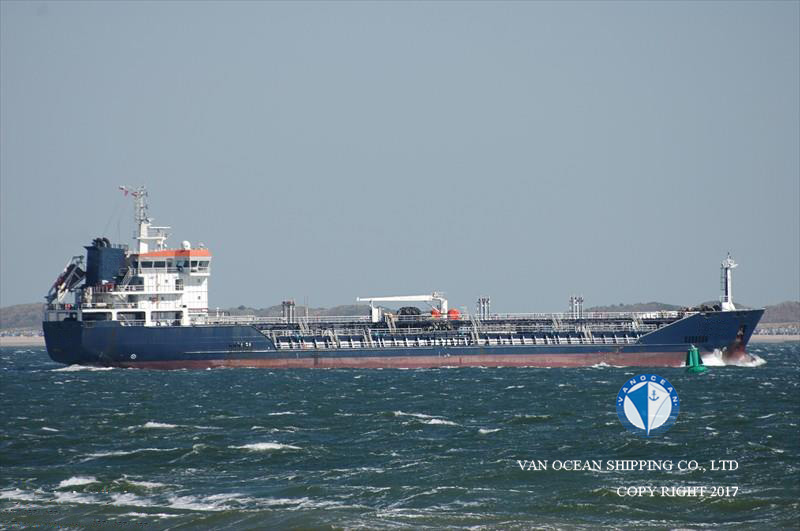

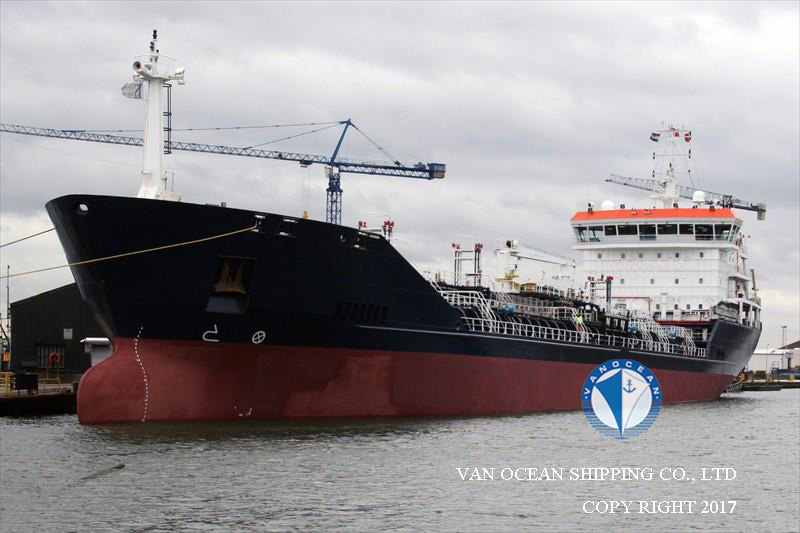

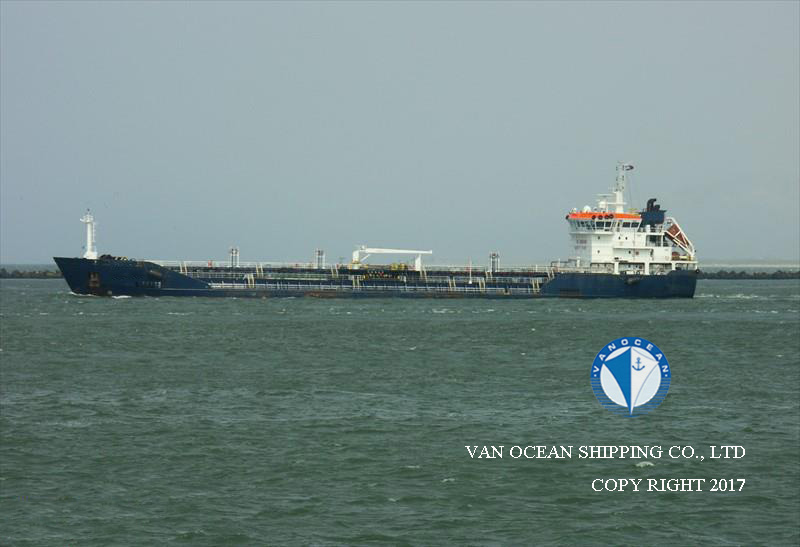

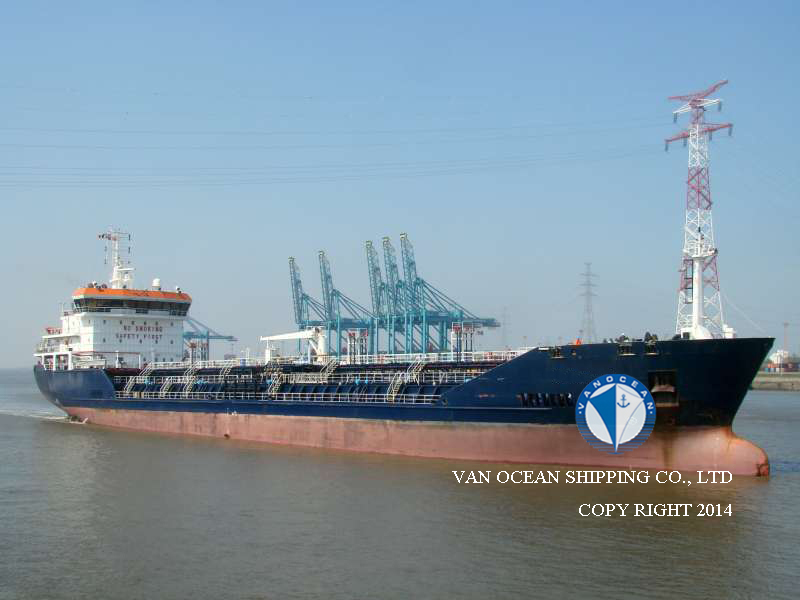

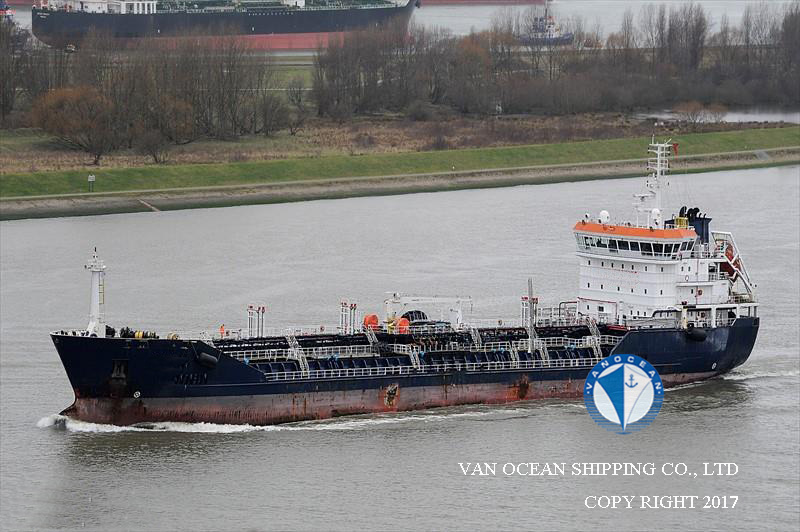

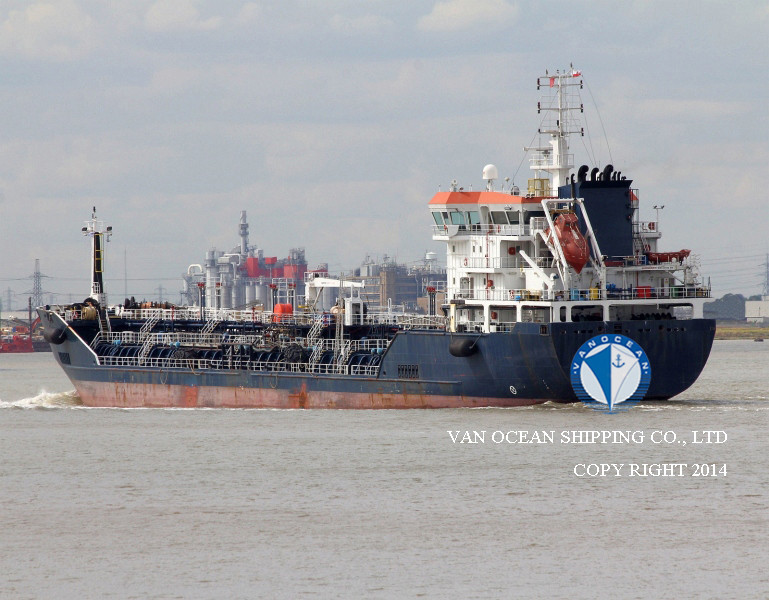

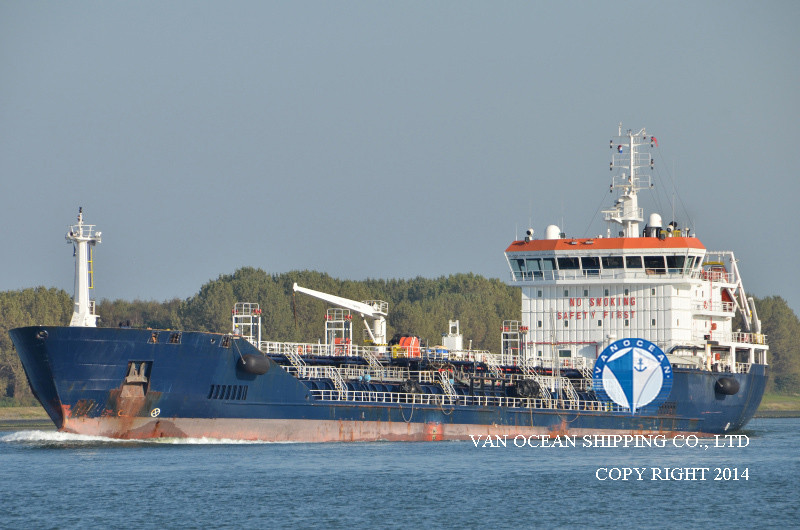

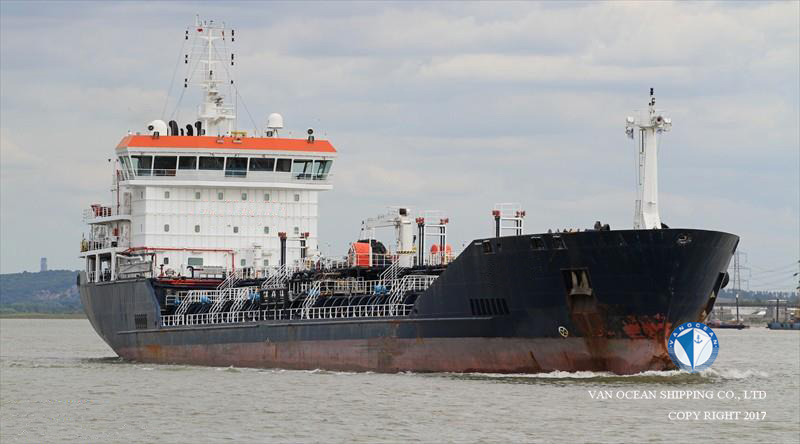

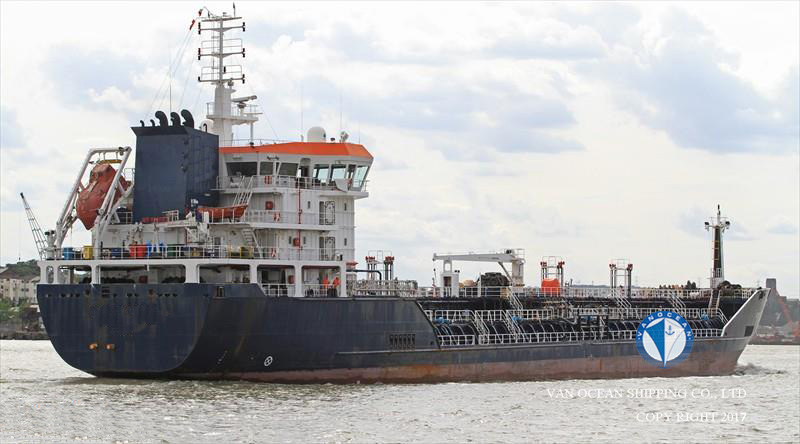

VESSEL NAME
TNK120
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
GIBRALTAR
PORT OF REGISTRY
-
BUILT YEAR
2007
BUILT PLACE
TURTKER SHIPYARD, TURKEY
CLASSIFICATION
BV
CLASS NOTATION
I+HULL;+MACH OIL TANKER ESP; CHEMICAL TANKER ESP UNRESTRICTED NAVIGATION AVM-IPS; AUT-UMS ; SYS-NEQ1; CLEAN-SEA ICE 1C; INWATERSURVEY; VCS CARGOCONTROL; MANOVR,
SS
-
DD
-
LOA (M)
125.40
LBP (M)
-
BEAM (M)
18.00
DEPTH (M)
-
SUMMER DRAFT (M)
7.04
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
-
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
-
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
8672.87
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
CRANES:
1 x 3MT CENTRAL LOCATED
1 x 2MT STARBOARD SIDE LOCATED
1 x 1MT PORT SIDE LOCATED
M/E(S)
AVM-DPS, DUBLICATE PROPULSION:
2 x WARTSILA VASA, 6R32LNE,750RPM
M/E POWER (KW)
2 x 2460
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
14KTS / 18.5MT
FUEL TYPE
-
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
10
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
363228.88
CARGO CAPACITY98% (CBM)
10289.77
COATING/MATERIAL OF HOLD(S)
MARINE LINE COATING
HEATING SYSTEM
-
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
CARGO PUMP(DEEPWELL PUMP):
12 x MARFLEX 200CBM / HR, BACK PRESSURE 10 BAR,
2 x MARFLEX 100CBM / HR, BACK PRESSURE 10 BAR
BALLAST PUM:
2 x 400CBM / HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 400KW
STERN THRUSTER: 2 x 200KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
NORTH SEA - ENGLISH CHANNEL
DELIVERY
-
PRICE
USD 13 MILLION
REMARK(S)
STERN MANIFOLDS
