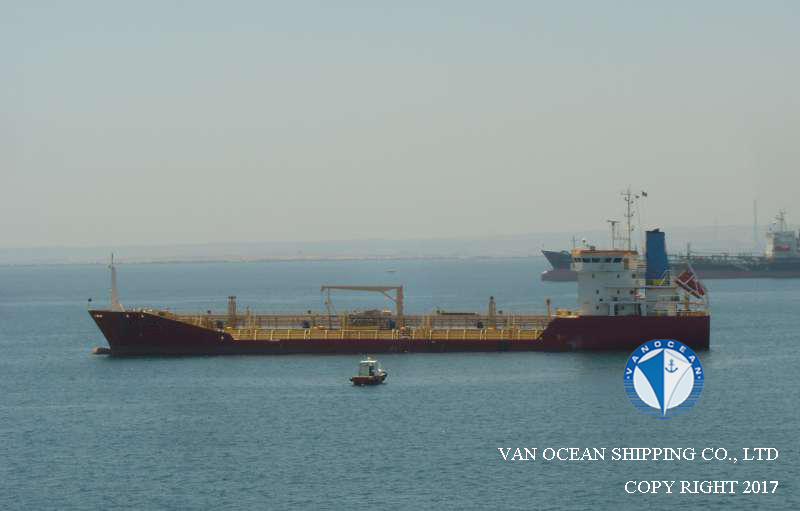

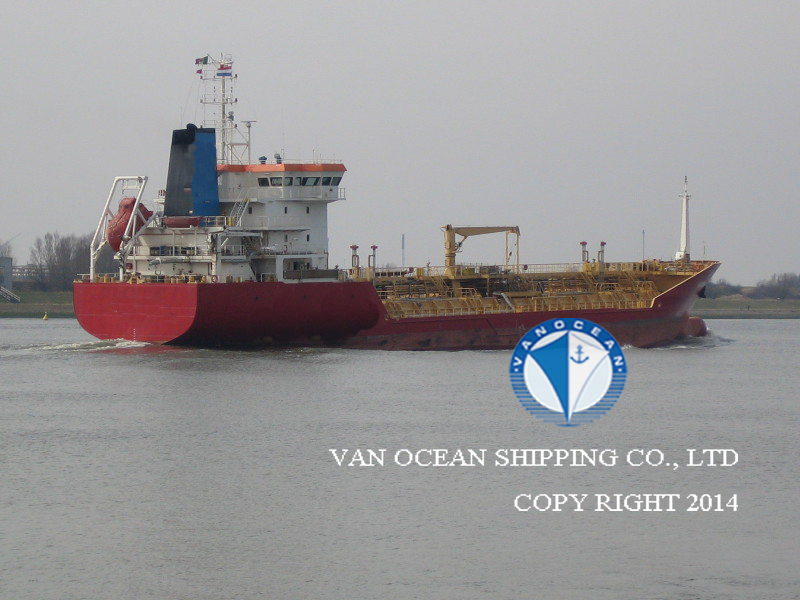

VESSEL NAME
TNK149
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MEXICO
PORT OF REGISTRY
COATZACOALCOS
BUILT YEAR
2001
BUILT PLACE
SAHIN CELIK, TURKEY
CLASSIFICATION
RINA
CLASS NOTATION
IMO 2, ICE III
SS
-
DD
-
LOA (M)
102.90
LBP (M)
99.30
BEAM (M)
16.80
DEPTH (M)
7.40
SUMMER DRAFT (M)
6.20
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
3744.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1776.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
5841.10
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
7947.70
LDT (MT)
-
GEAR(S)
-
M/E(S)
MAK, 3261BHP 750RPM
M/E POWER (KW)
2434
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-

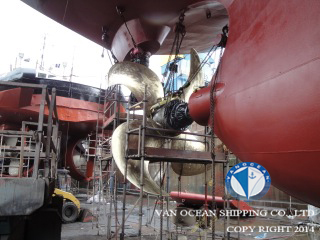

PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
13KTS AT 9.30 MT/DAY
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
333
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
10
NUMBER OF CARGO HOLDS
10
CARGO CAPACITY98% (CBFT)
216707
CARGO CAPACITY98% (CBM)
6139
COATING/MATERIAL OF HOLD(S)
EPOXY

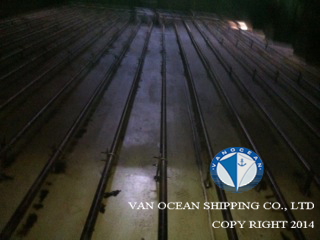

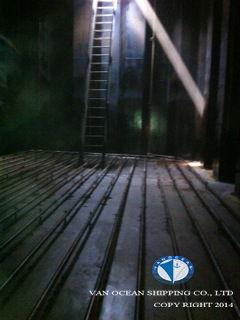

HEATING SYSTEM
HEATING COILS
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
10 x PUMPS, TOTAL 2750 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
MEXICO
DELIVERY
MEXICO
PRICE
BUYERS OFFER
REMARK(S)
BOW THRUSTER, 483BHP/ 360KW
SBT
LIFTING EQUIPMENT:
1 x HOSE HANDLING CRANE AMIDSHIPS 5MT
1 x PROVISION CRANE STARBOARD QUARTER 2MT
VENT SYSTEM: CONTROLLED. HIGH VELOCITY P/V VALVES
