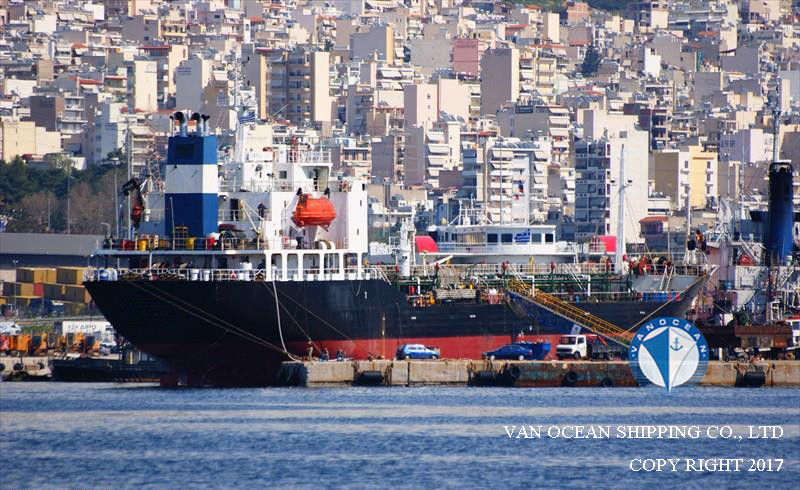

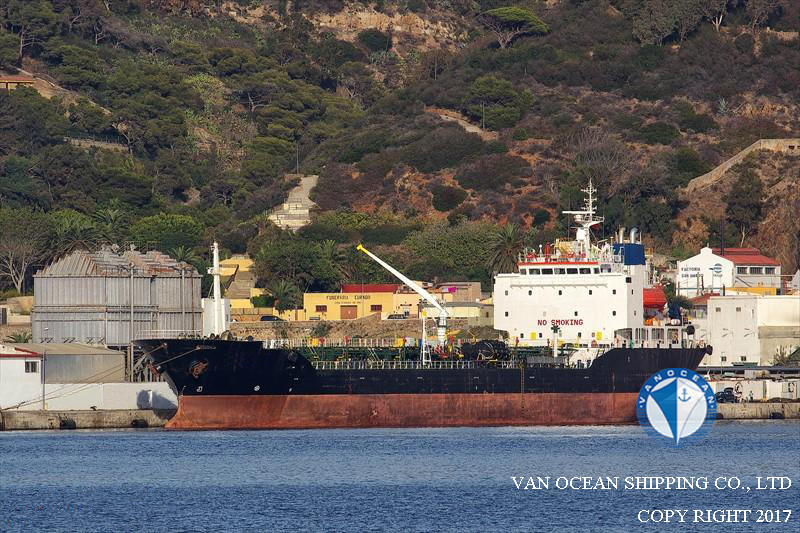

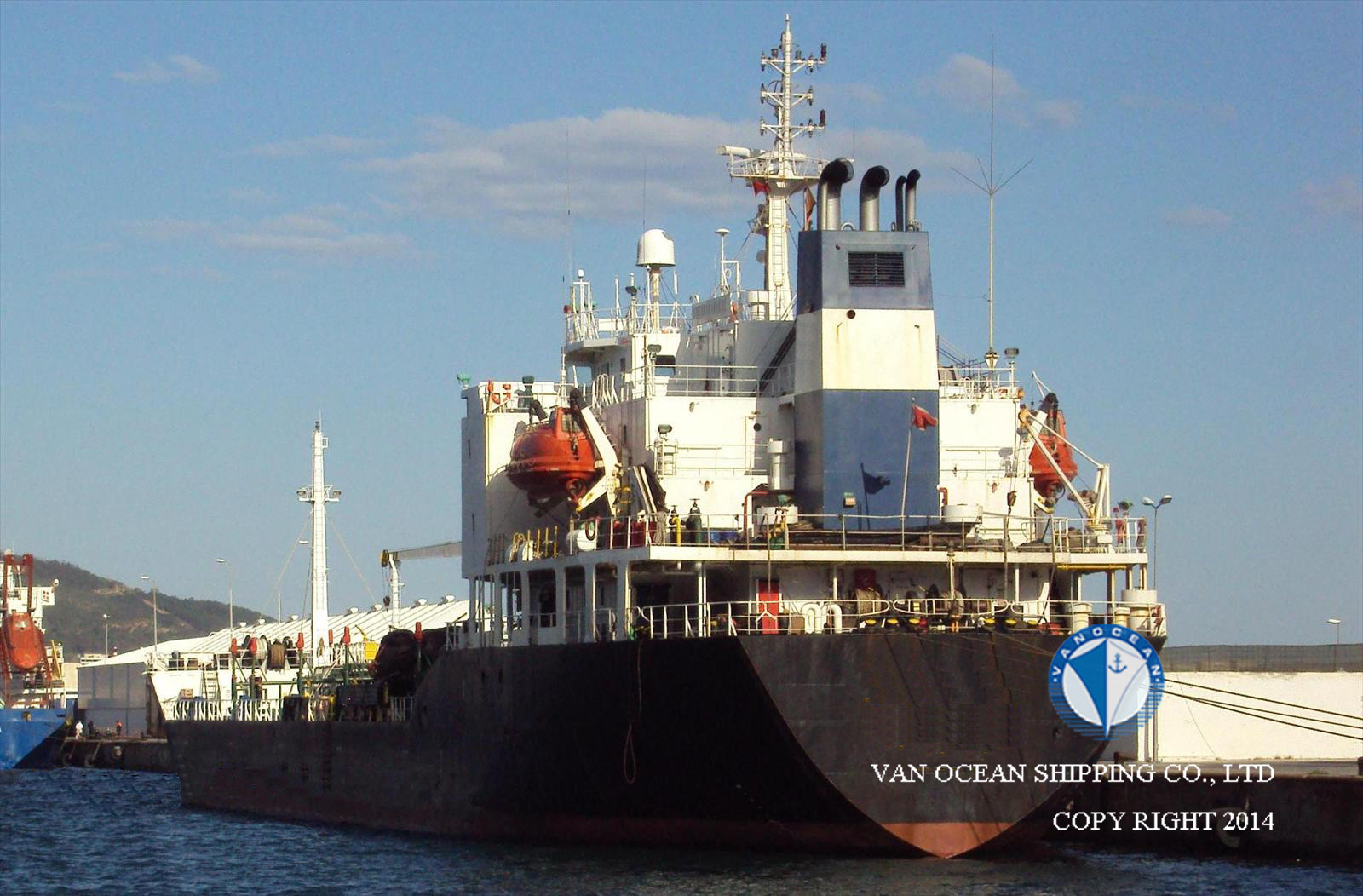

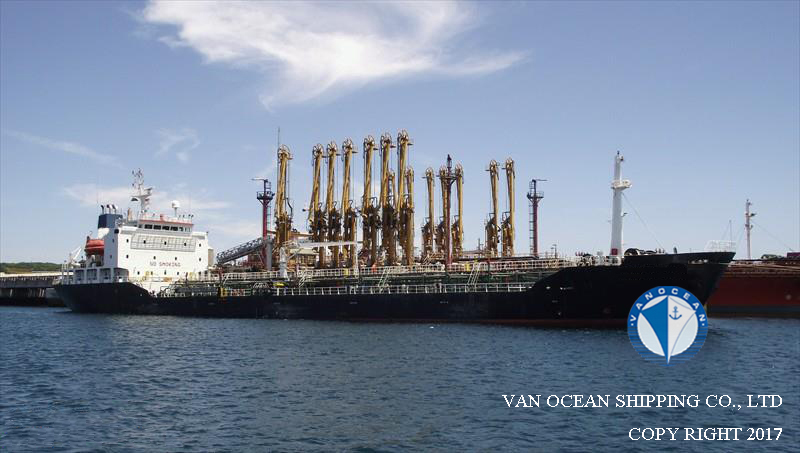

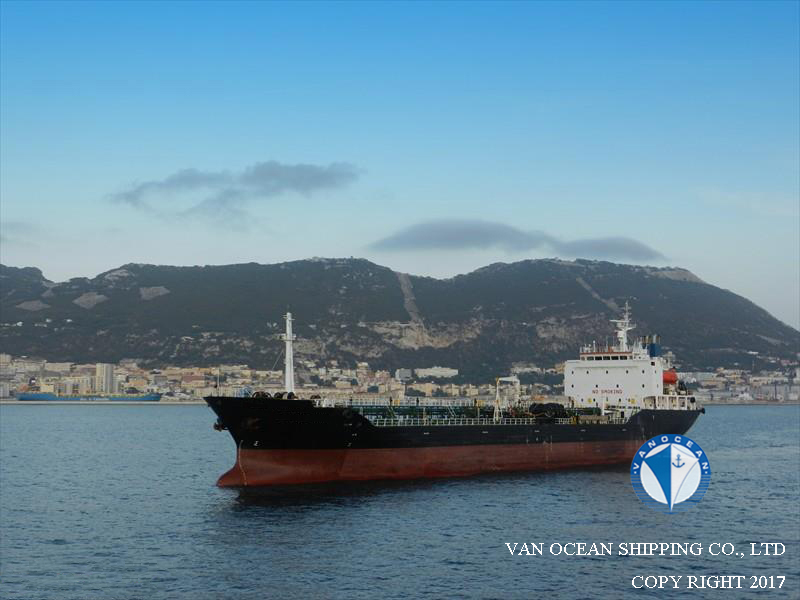

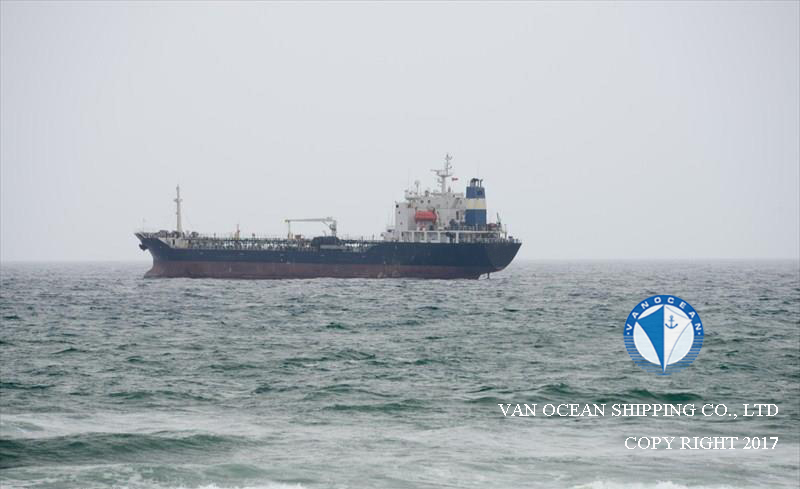

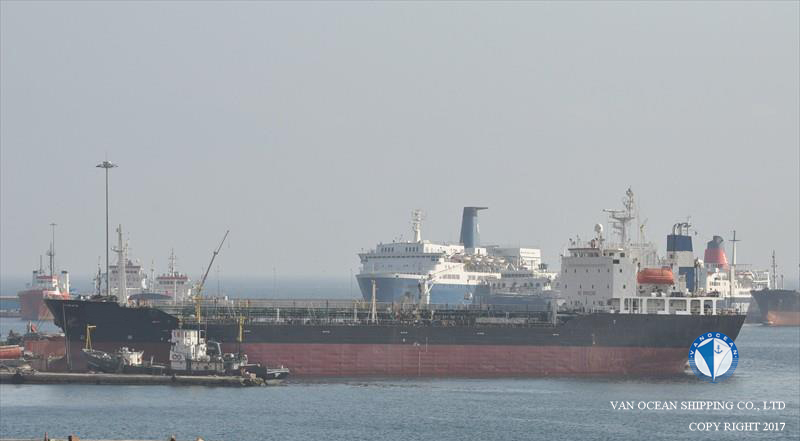

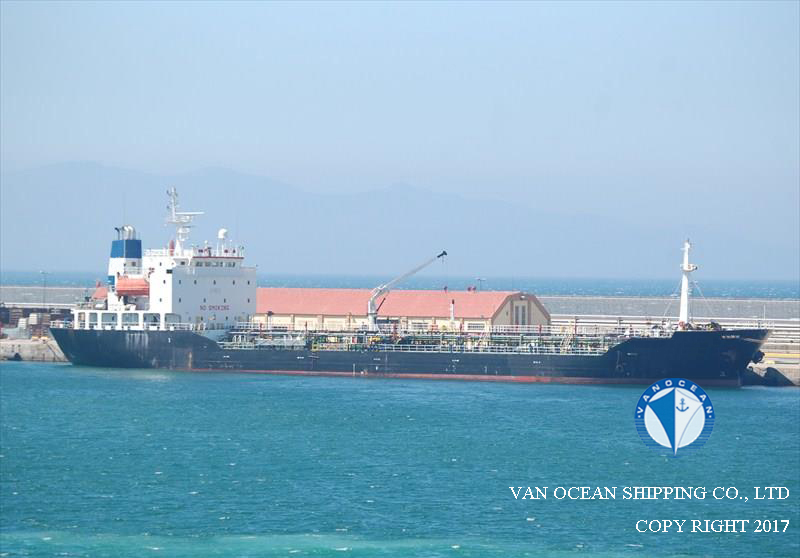

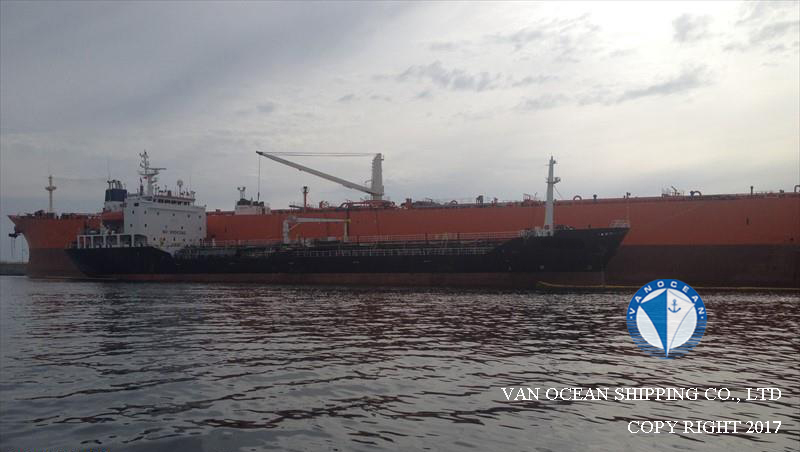

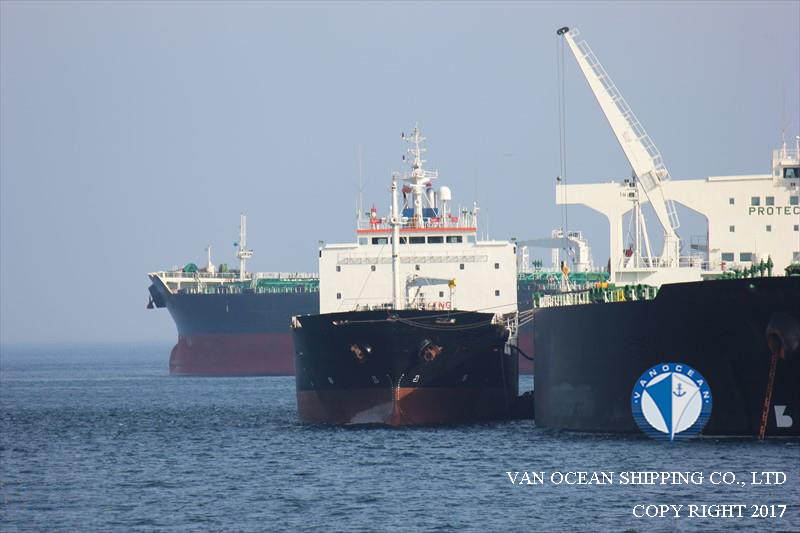

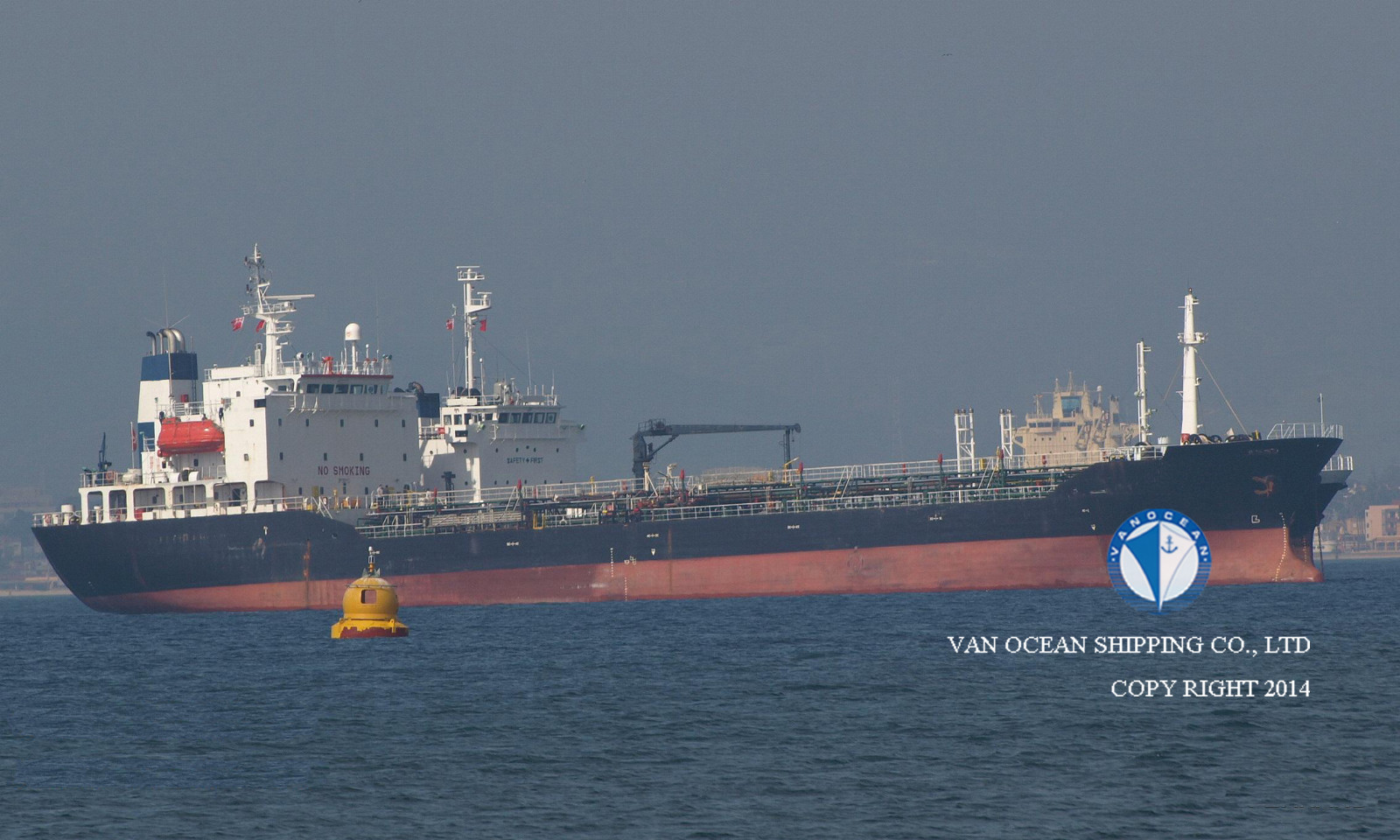

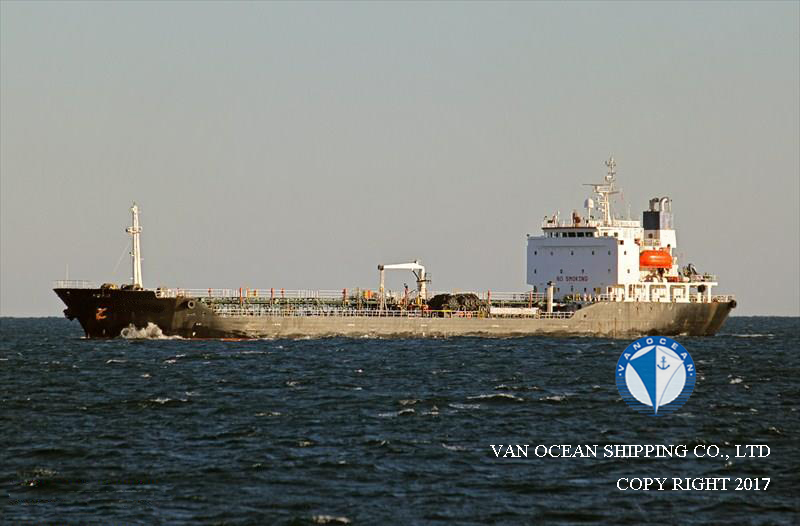

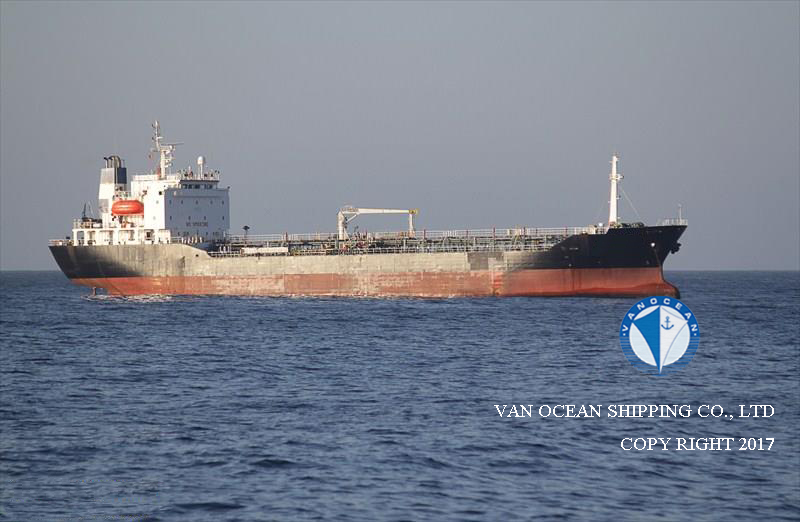

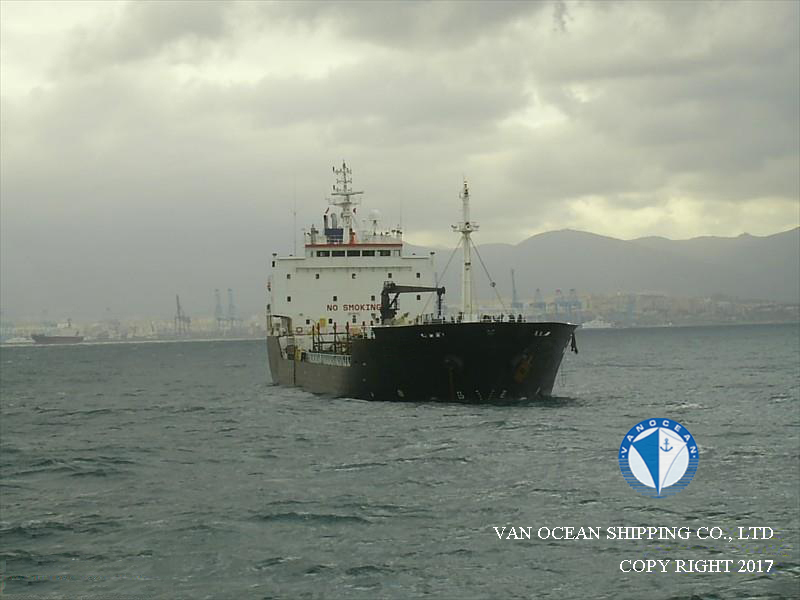

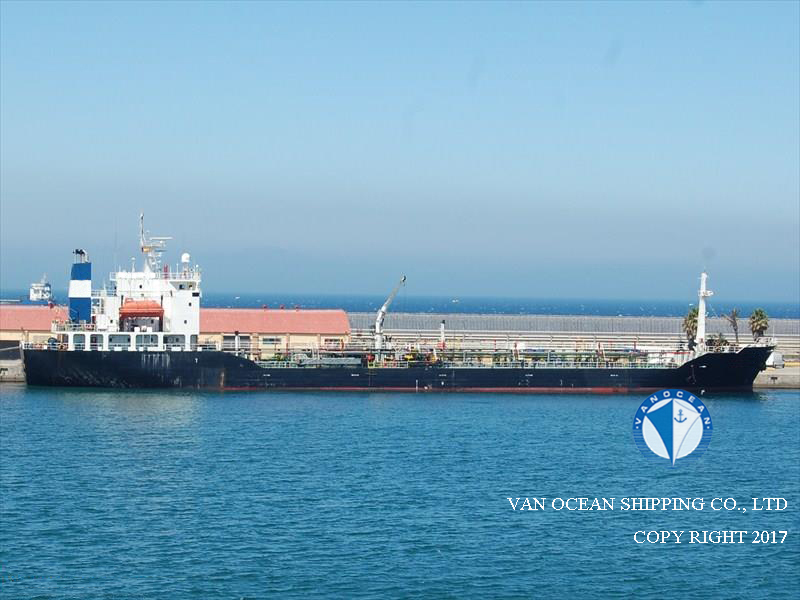

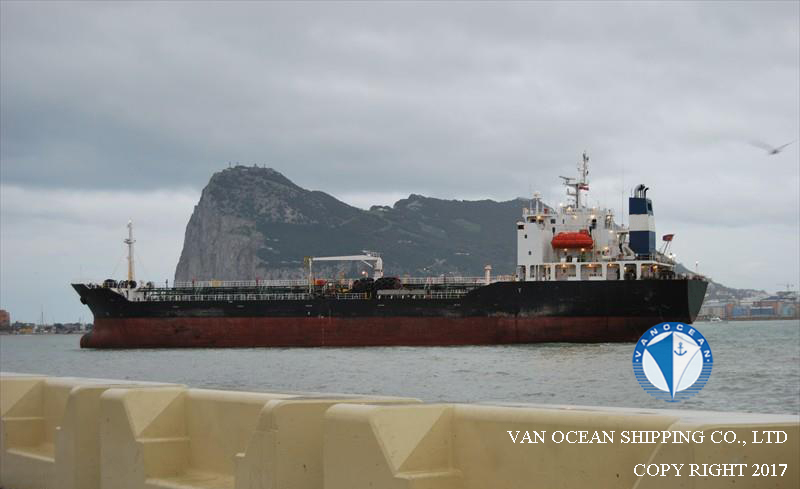

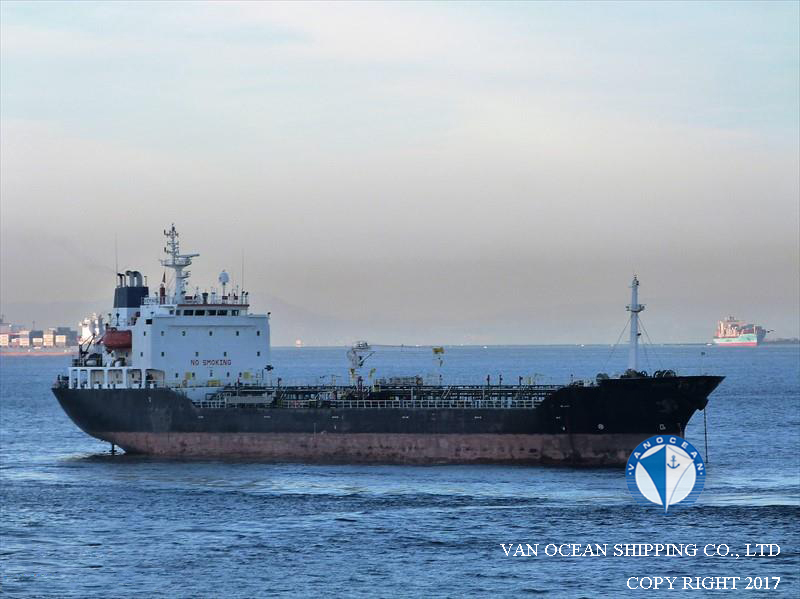

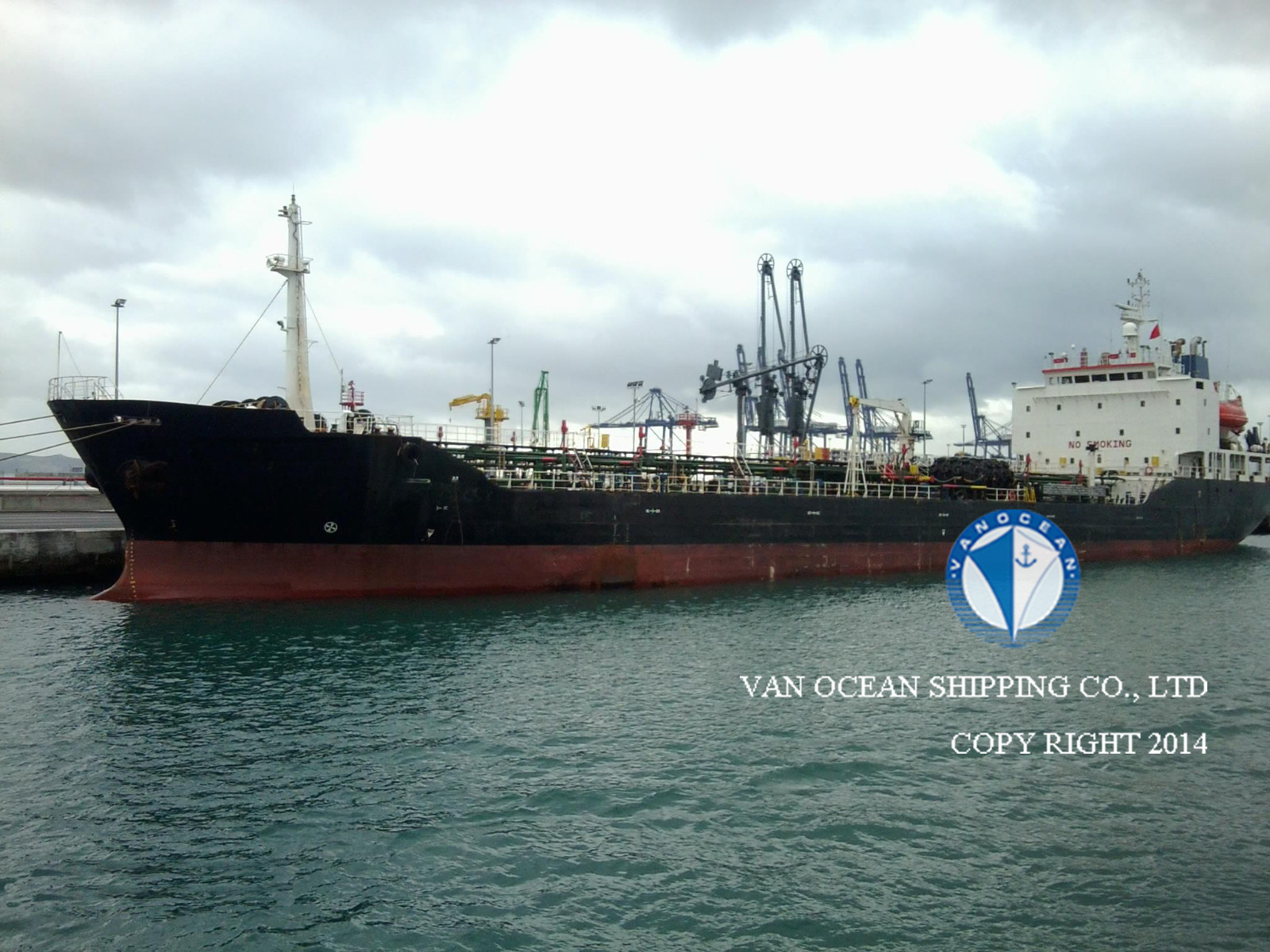

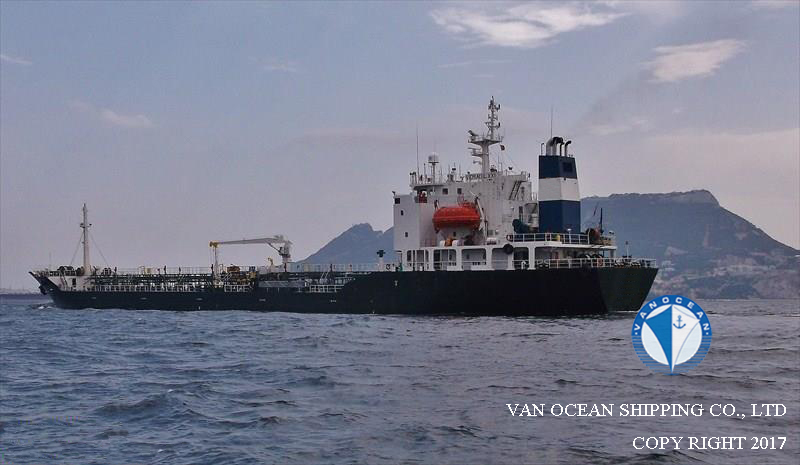

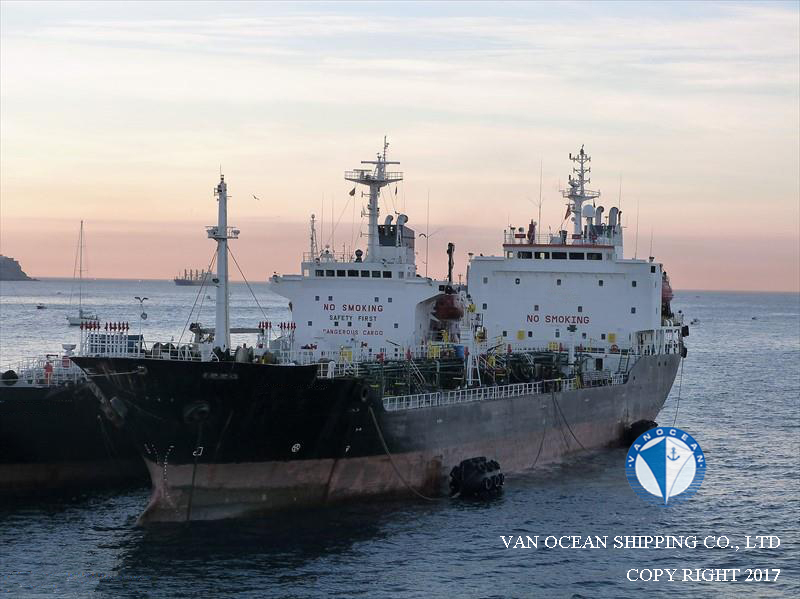

VESSEL NAME
TNK146
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
LIBERIA
PORT OF REGISTRY
MONROVIA
BUILT YEAR
1994
BUILT PLACE
DAEDONG SHIPBUILDING, KOREA
CLASSIFICATION
BV
CLASS NOTATION
IMO II/III
SS
2018-11
DD
-
LOA (M)
115.00
LBP (M)
-
BEAM (M)
18.22
DEPTH (M)
10.72
SUMMER DRAFT (M)
8.01
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
5971.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2799.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
9593.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)
B&W 6L35MC, 4557BHP
M/E POWER (KW)
3401
A/E(S)
-
GENERATOR(S)
2 x 393KVA
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
10
CARGO CAPACITY98% (CBFT)
323948
CARGO CAPACITY98% (CBM)
9177
COATING/MATERIAL OF HOLD(S)
EPOXY COATED
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
STRIPPING PUMPS: 1 x 100CBM/HR ELECTRIC
BALLAST PUMPS: 1 x 300CBM/HR ELECTRIC
CARGO PUMPS: 3 x 500CBM/HR ELECTRIC
ONE PUMP FOR SINGLE HOLD OR NOT
NO
SIDE THRUSTER(S)
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
GIBRALTAR
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
CARGO TANKS ARE COATED WITH CHUGOKOU MARINE PAINTS/EPICCON T-500
SBT: 3110CBM
