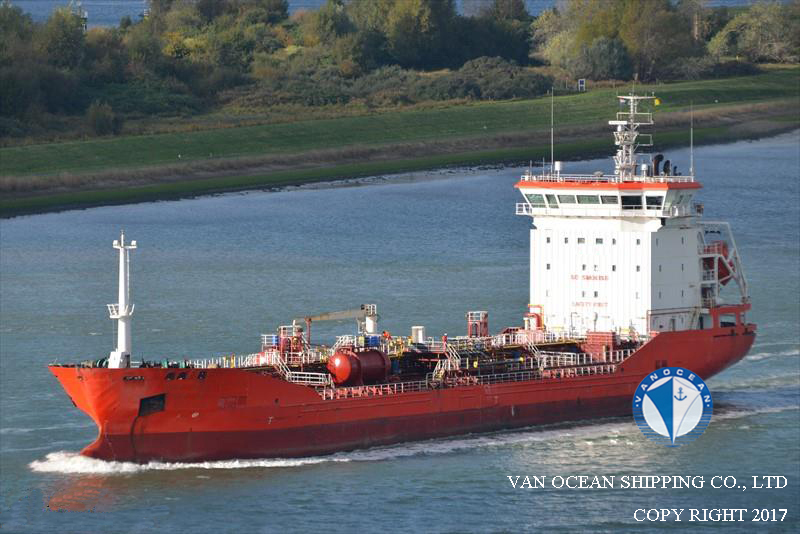

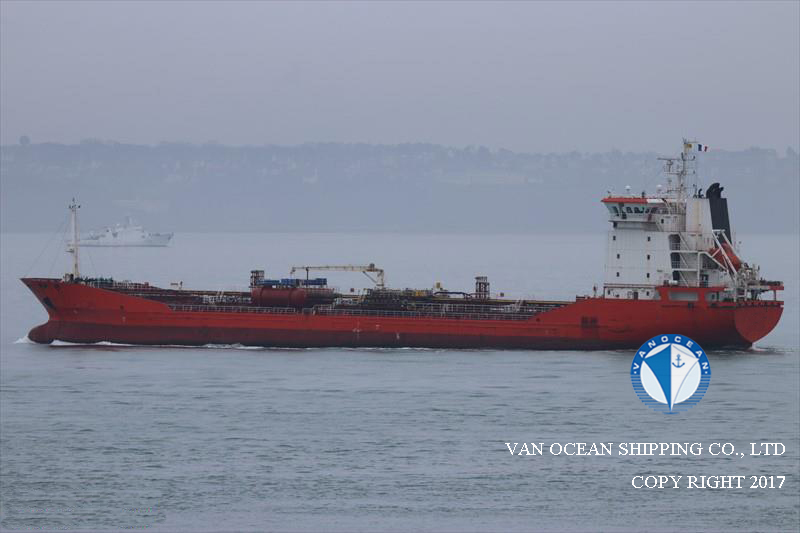

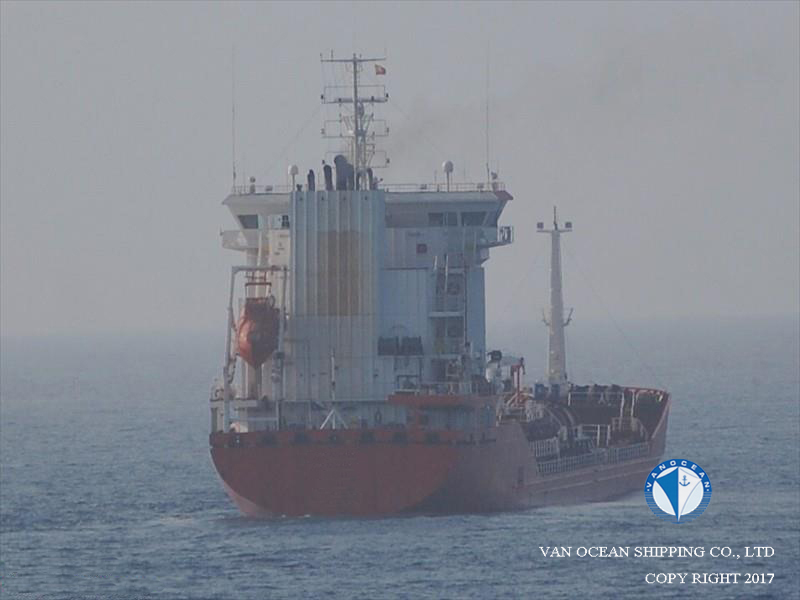

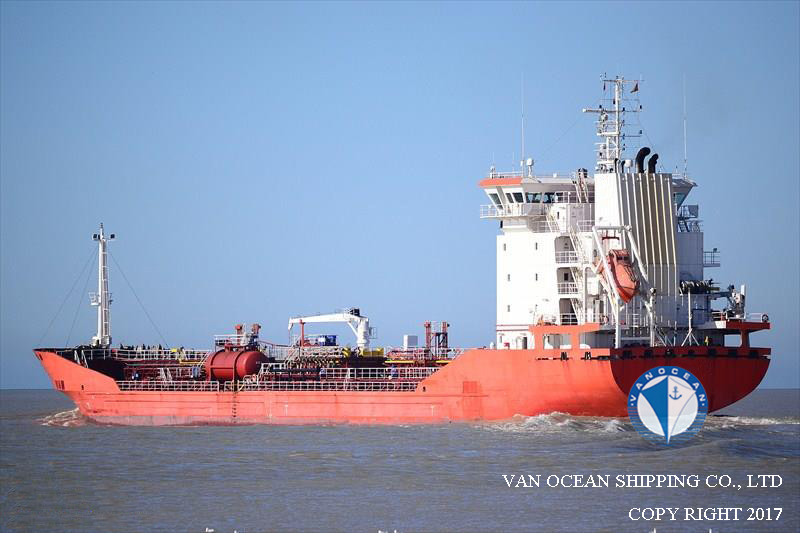

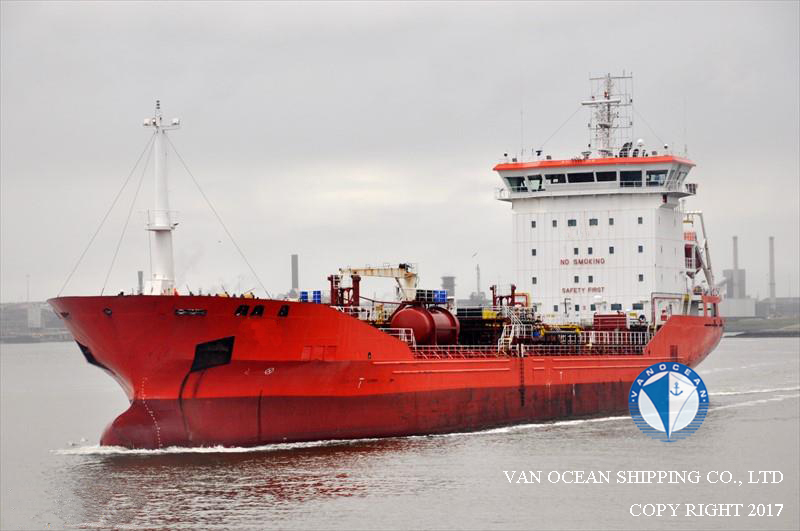

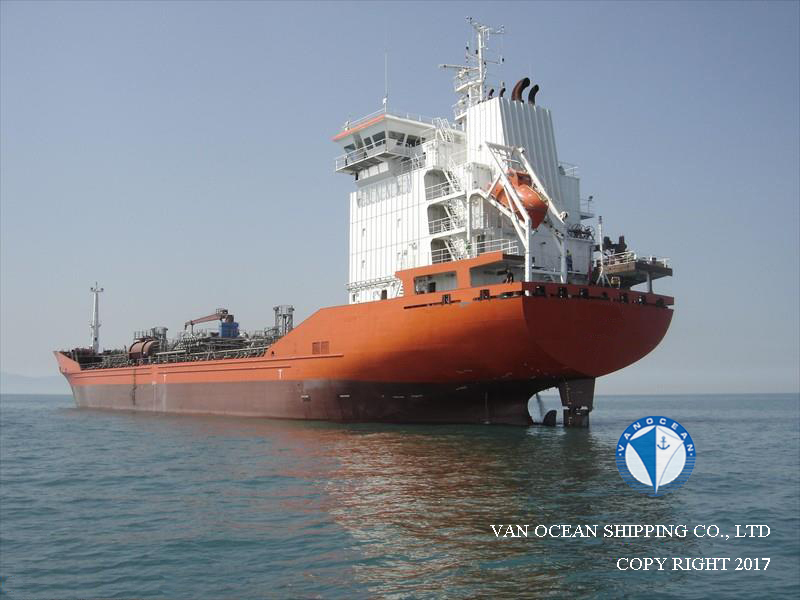

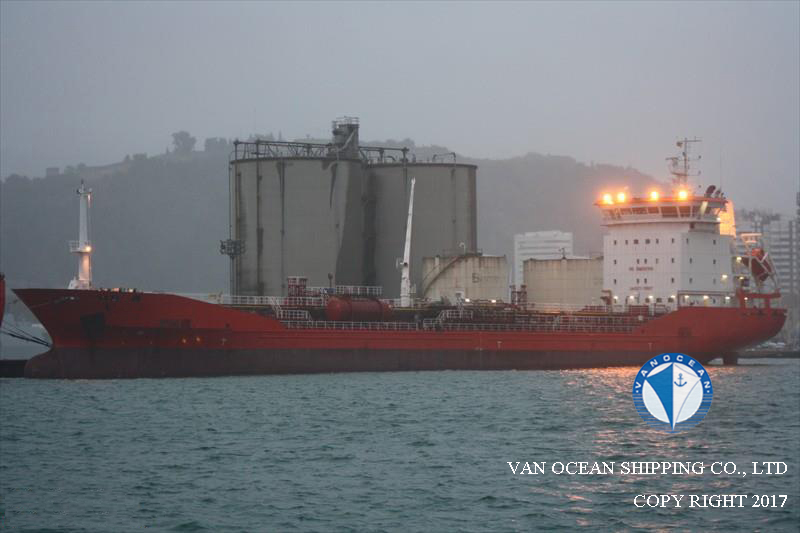

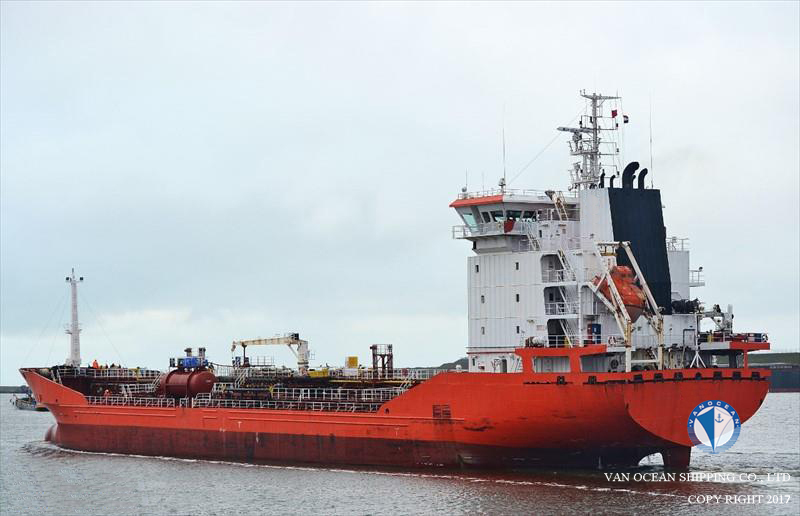

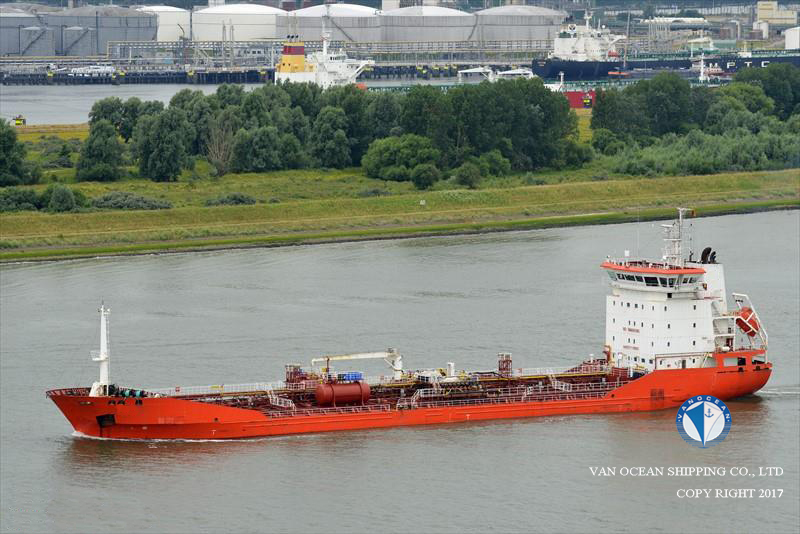

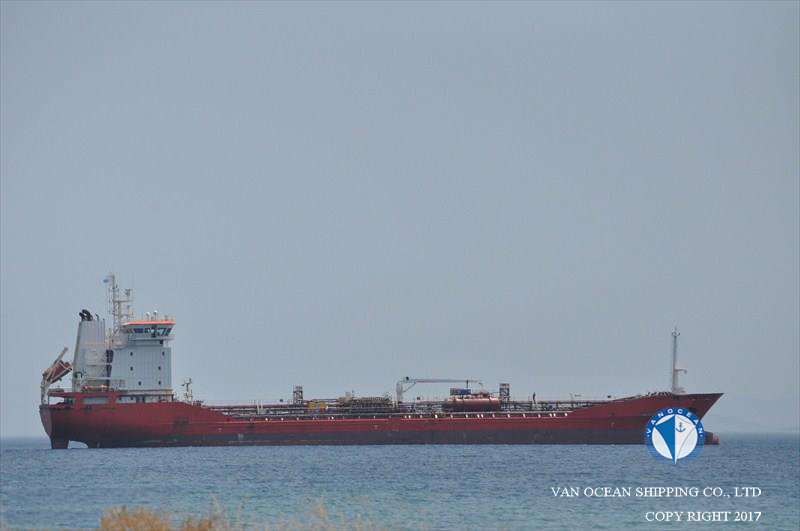

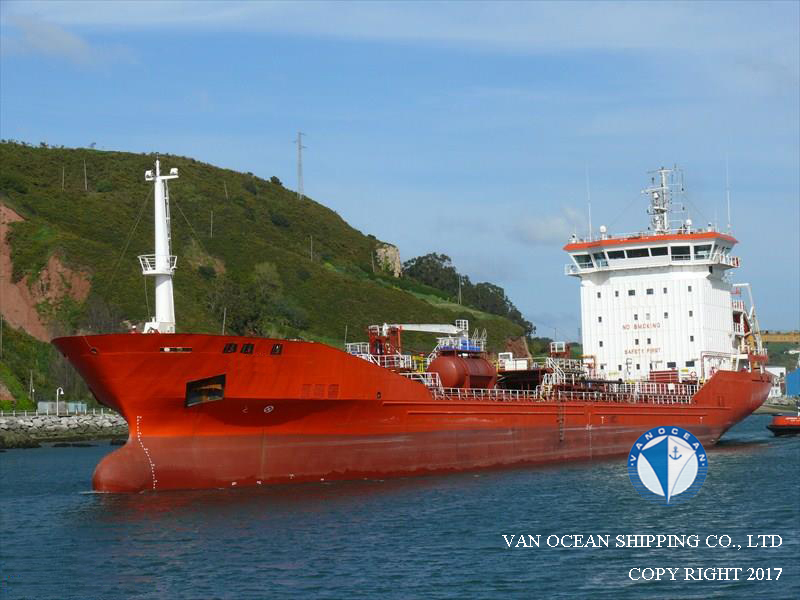

VESSEL NAME
TNK145
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MARSHALL IS
PORT OF REGISTRY
MAJURO
BUILT YEAR
2009
BUILT PLACE
HIDRODINAMIK GEMI TUZL, TUEKEY
CLASSIFICATION
BV
CLASS NOTATION
+HULL ICE 1C, +MACH, ESP, +AUT-UMS, AVM-APS, CLEANSHIP, SUPER, VCS, IG, MON-SHAFT, IN WATER SURVEY, CARGO CONTROL, UNRESTRICTED NAVIGATION
SS
-
DD
-
LOA (M)
123.56
LBP (M)
116.04
BEAM (M)
17.20
DEPTH (M)
8.80
SUMMER DRAFT (M)
6.70
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
4242.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2419.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
8000.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
3246.00
GEAR(S)
-
M/E(S)
MAN-B&W 8L32/40CD, 5438BHP AT 750RPM
M/E POWER (KW)
4058
A/E(S)
3 x 590KW 450V 60HZ AC
GENERATOR(S)
-
SHAFT GENERATOR(S)
FITTED
PROPELLER(S)
-
SPEED /CONSUMPTIONS
12KTS ON ABOUT 13MT
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
303827
CARGO CAPACITY98% (CBM)
8607
COATING/MATERIAL OF HOLD(S)
MARINE LINE COATED
HEATING SYSTEM
HEATING COILS
SACRIFICIAL ANODE
-
IGS
YES, NITROGEN GENERATOR: 650CBM/HR
PUMP(S)
MARFLEX DEEPWELL PUMPS
12 x 250 CBM/HR + 1 x 100 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER 350KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
ISTANBUL, TURKEY
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
