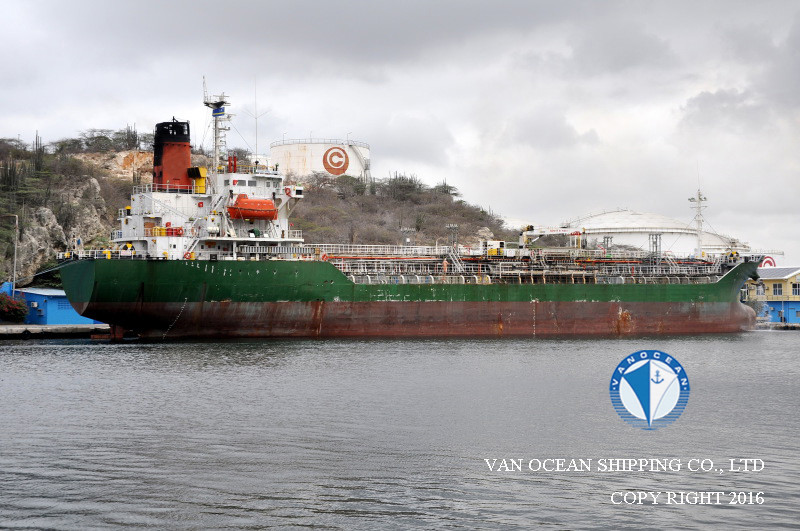

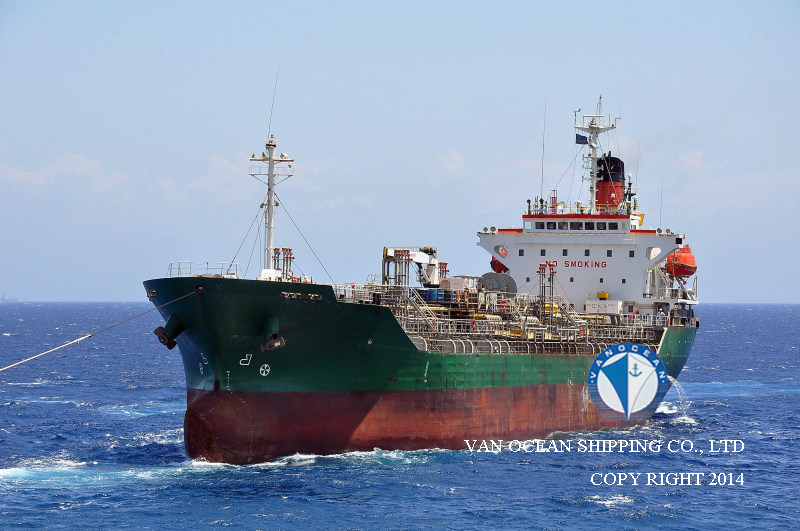

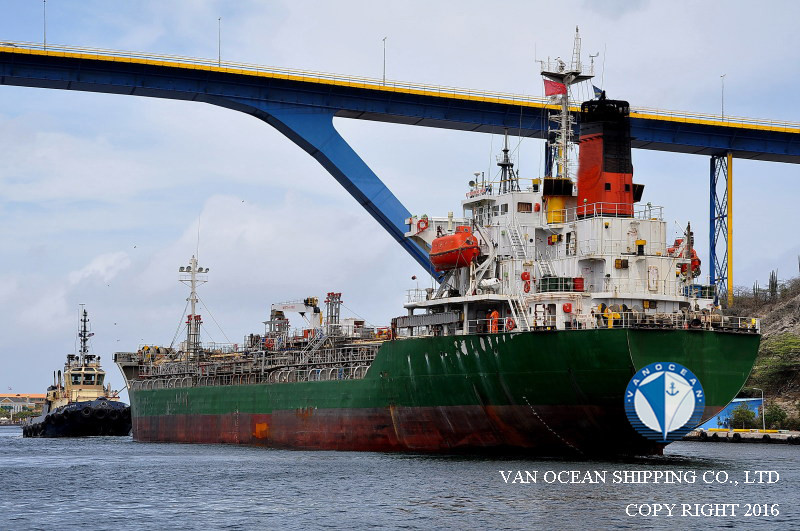

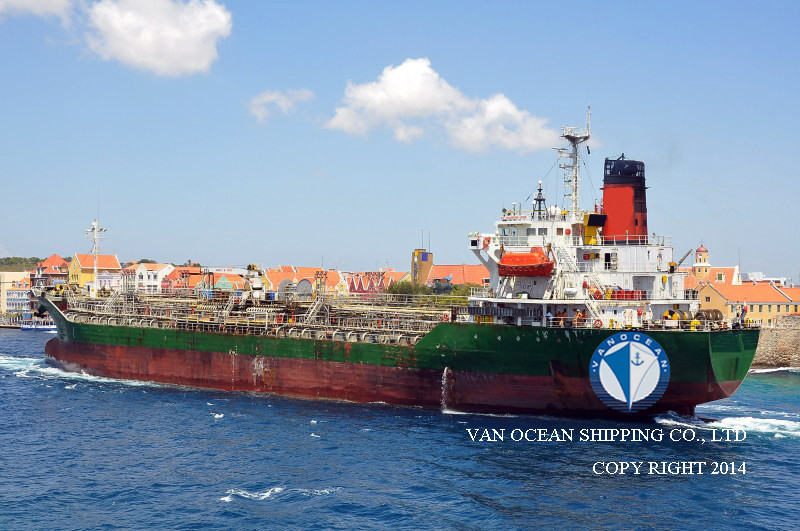

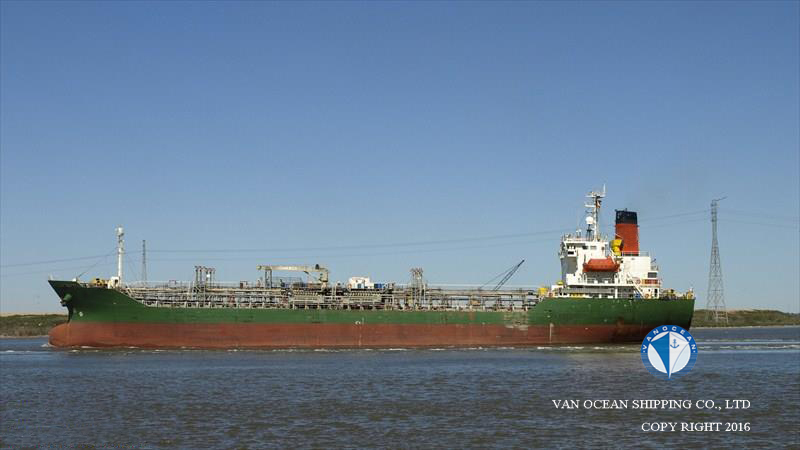

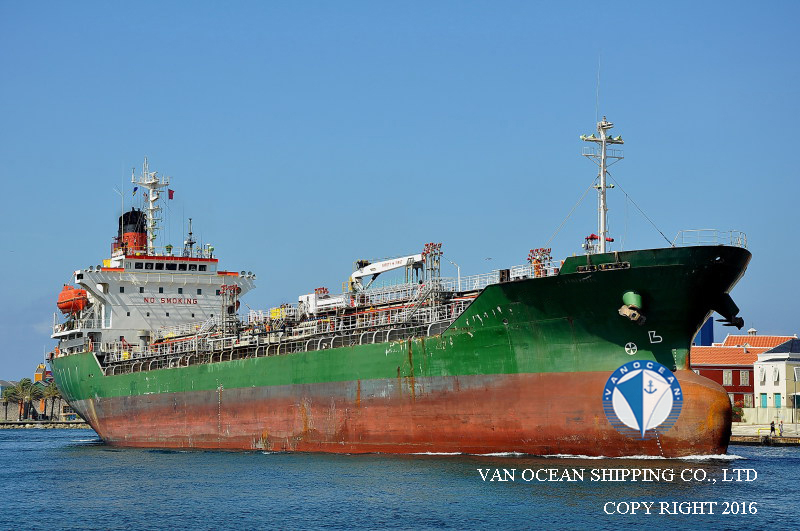

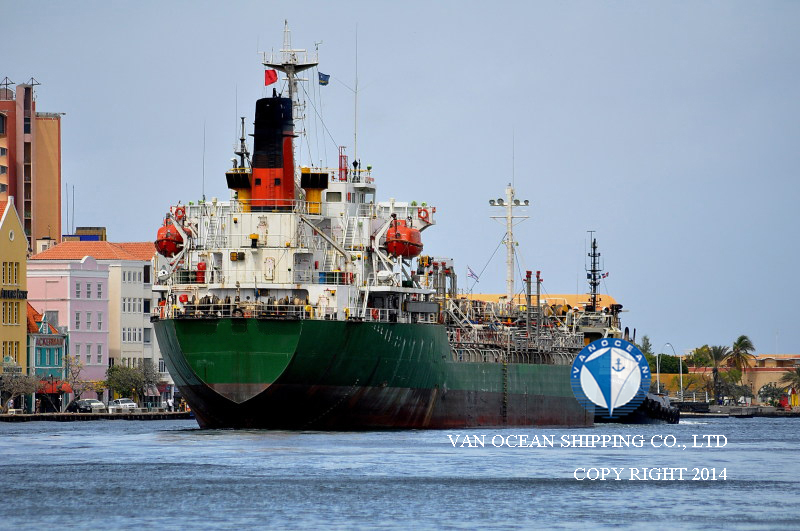

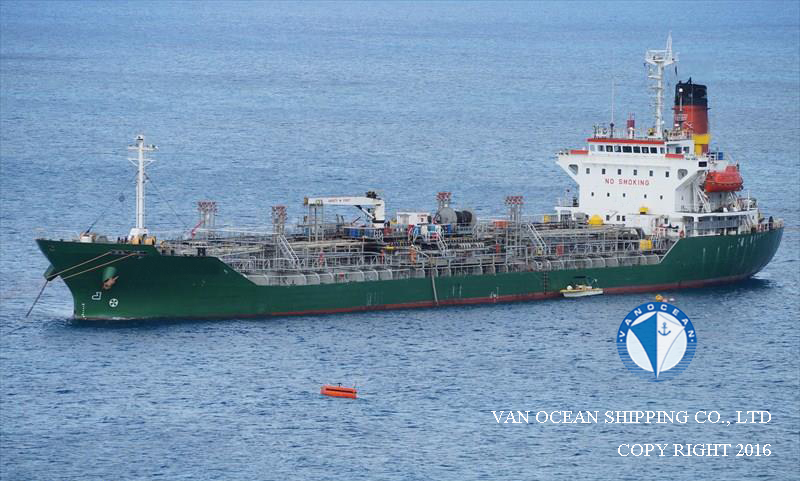

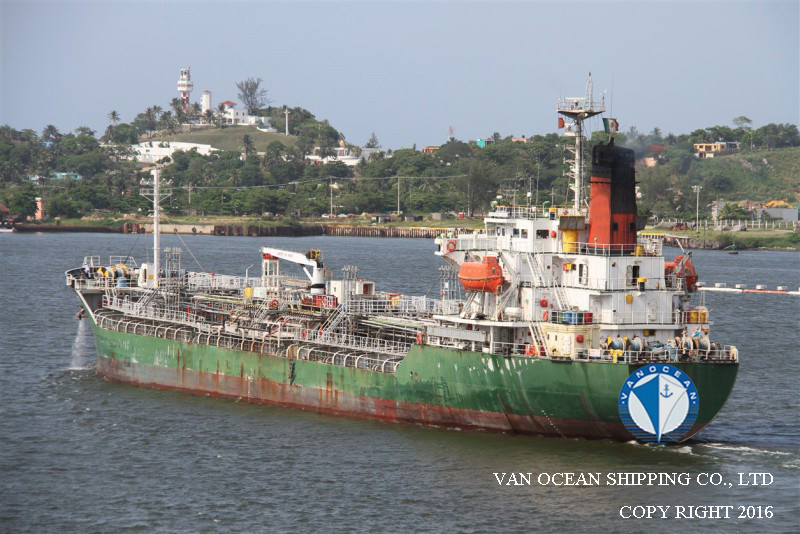

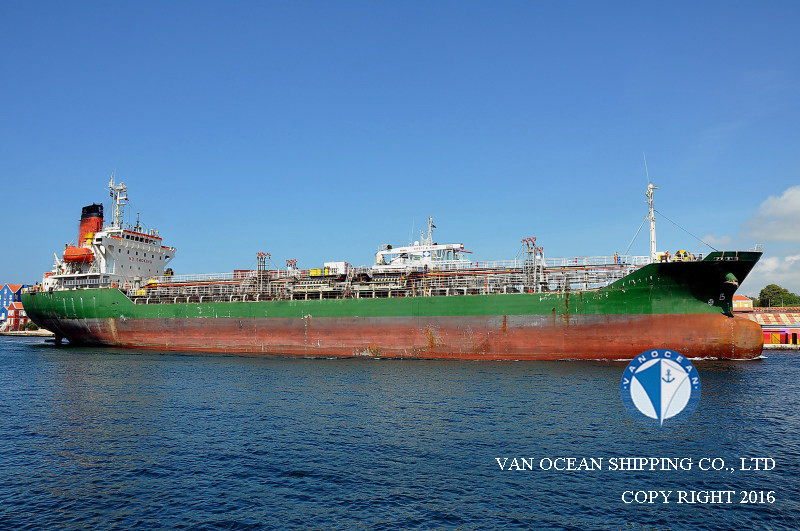

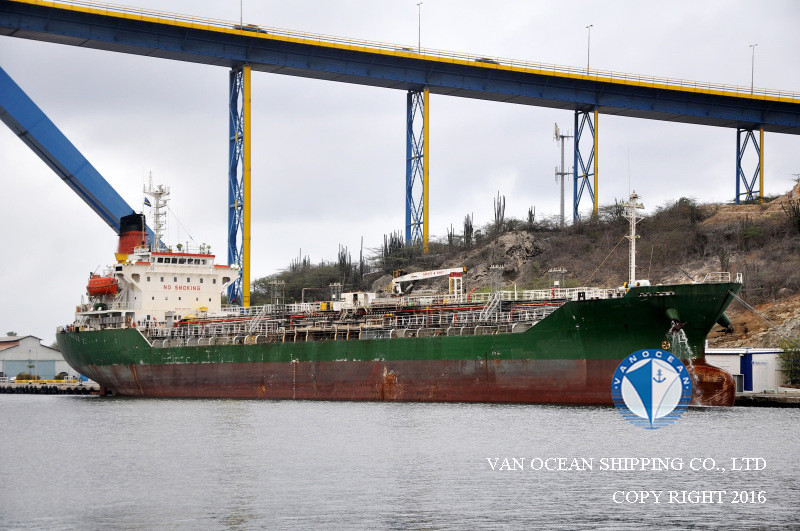

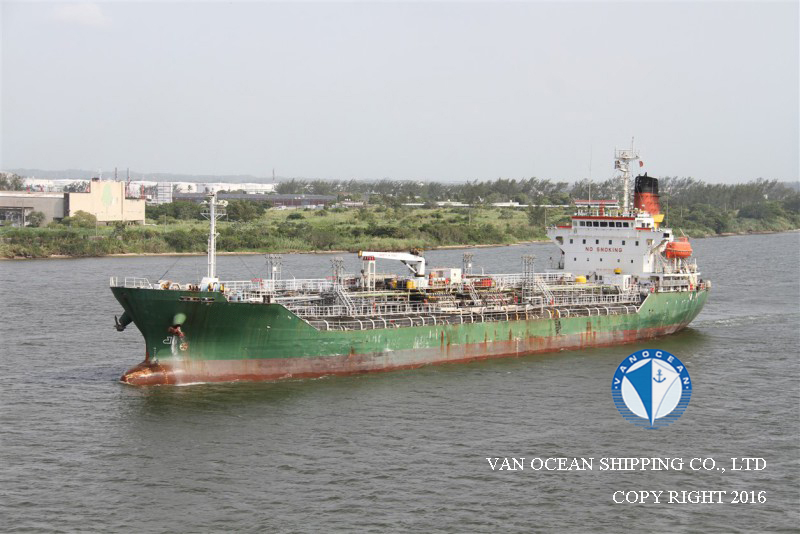

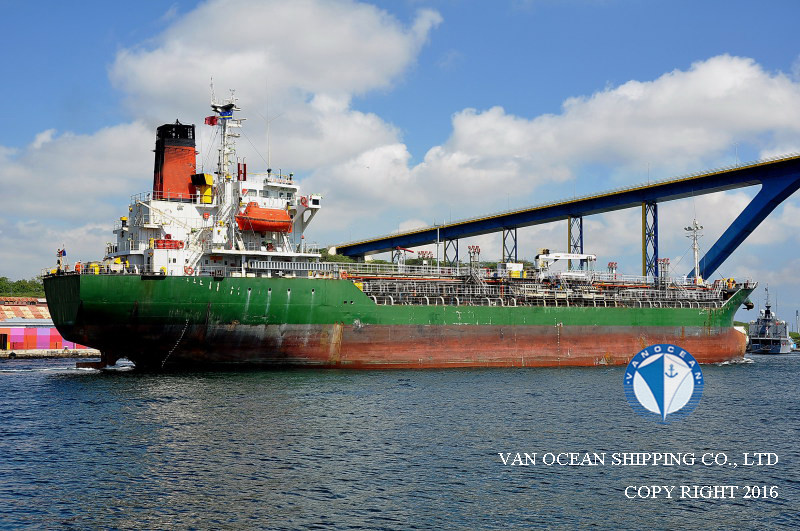

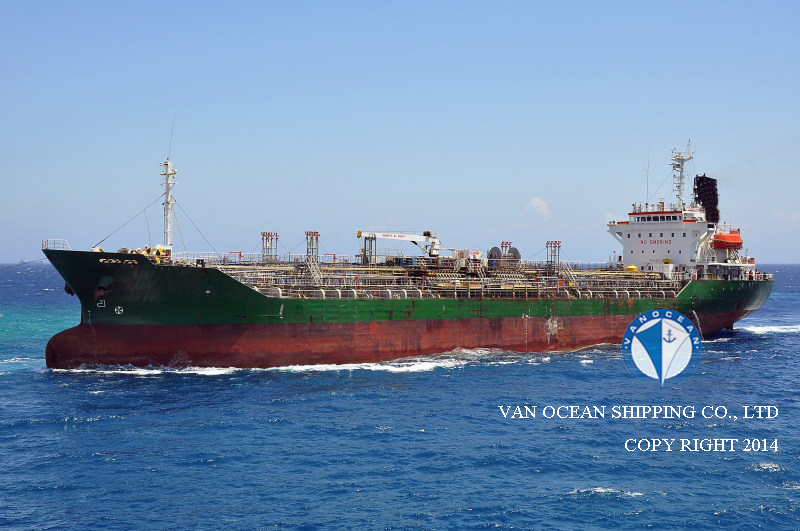

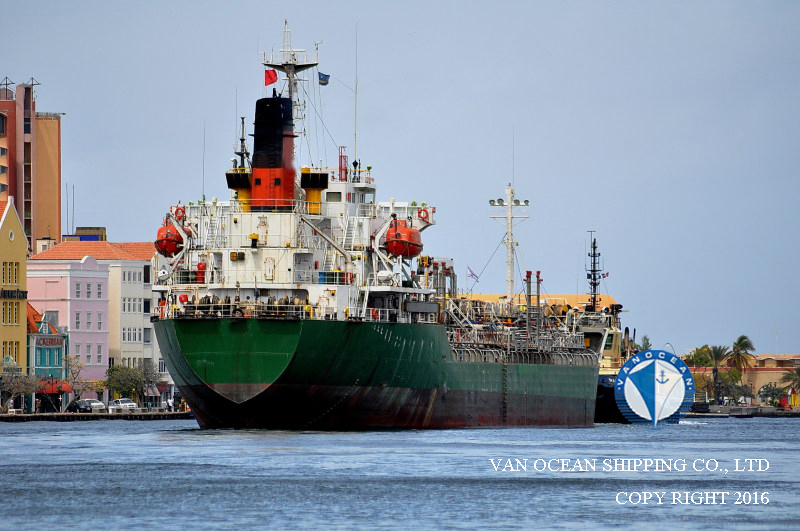

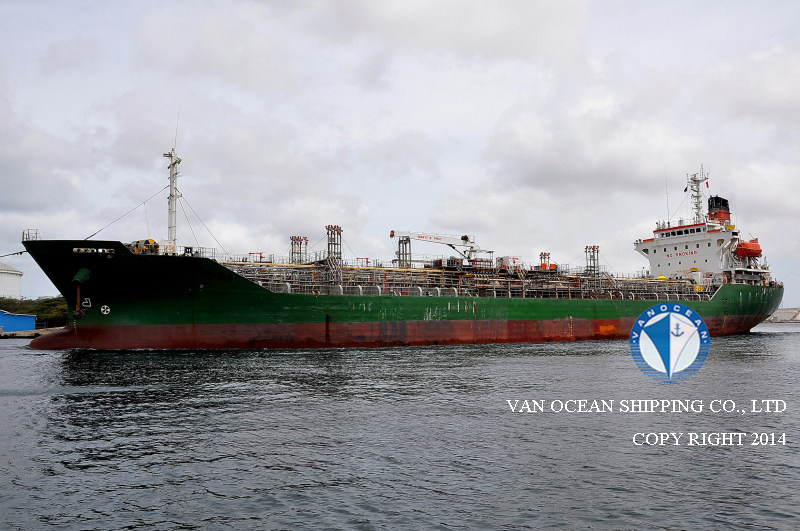

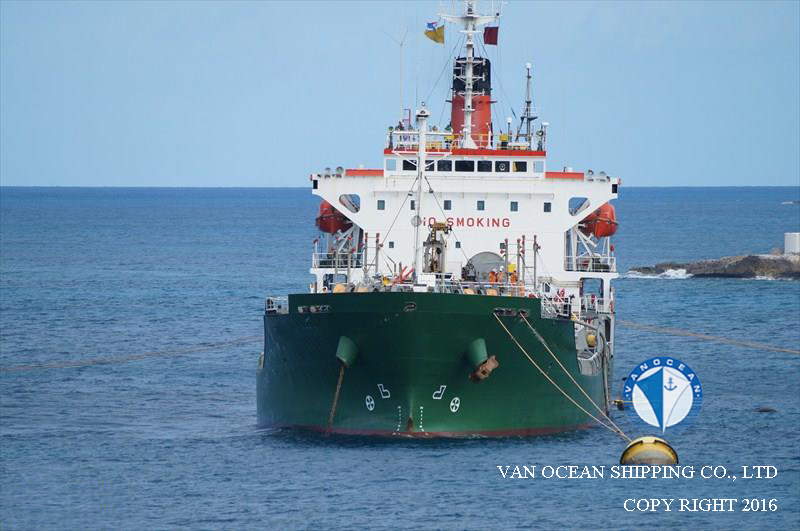

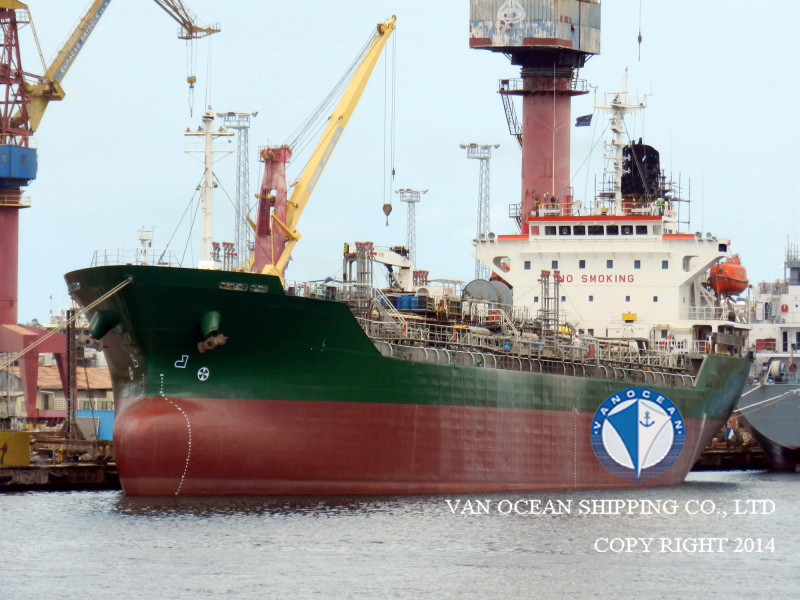

VESSEL NAME
TNK131
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PALAU
PORT OF REGISTRY
-
BUILT YEAR
1997
BUILT PLACE
ASAKAWA SHIP BUILDING IMABARI, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS*(TANKER MOLASSES OR OILS FLASHPOINT BELOW 60℃ & CHEMICALS TYPES II & III MNS*ESP
SS
2017-09-24
DD
-
LOA (M)
118.00
LBP (M)
110.00
BEAM (M)
19.22
DEPTH (M)
10.40
SUMMER DRAFT (M)
8.26
WINTER DRAFT (M)
8.08
TROPICAL DRAFT (M)
8.43
GT (MT)
5999.00
PANAMA GT (MT)
-
SUEZ GT (MT)
6505.41
NT (MT)
3306.00
PANAMA NT (MT)
5098.00
SUEZ NT (MT)
5639.46
SUMMER DWT (MT)
10600.20
WINTER DWT (MT)
10272.50
TROPICAL DWT (MT)
10929.20
DISPLACEMENT (MT)
13969.00
LDT (MT)
-
GEAR(S)
CRANE, 1 x 5MT, OUTREACH 2.4M
M/E(S)
2 SA 6 CY 170RPM 5617BHP
M/E POWER (KW)
4192
A/E(S)
-
GENERATOR(S)
4 x 1530KVA
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
HFO
BUNKER CAPACITY (CBM)
662.69
TANKS CAPACITY (CBM)
MDO: 90.71 ，SLOP TANK：1318.24
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
20
CARGO CAPACITY98% (CBFT)
403369.57
CARGO CAPACITY98% (CBM)
11426.9
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
ZINC
IGS
-
PUMP(S)
CARGO PUMP (SUBMERGED): 12 x 200 CBM/HR, 8 x 150 CBM/HR
BALLAST TANK:2 x 200 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 314.68KW, 422BHP
INSURANCE
USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 6.6 MILLION
REMARK(S)
DISPLACEMENT (MT): 13609.2 (WINTER), 14265.9 (TROPICAL)
SBT: 2937.02CBM
BALLAST TANK ARE EPOXY COATED, SLOP TANK ARE MADE IN STAINLESS STEEL
