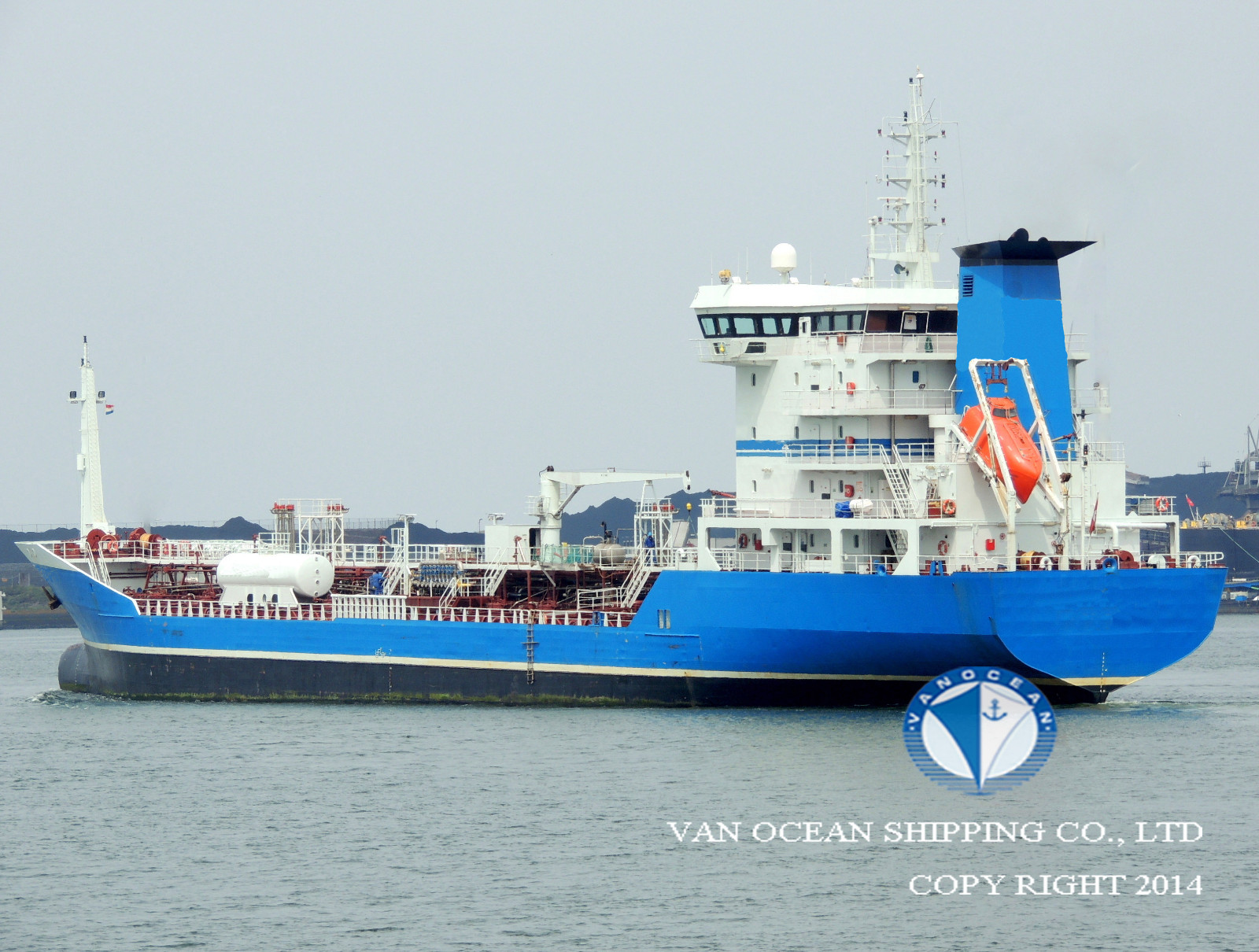

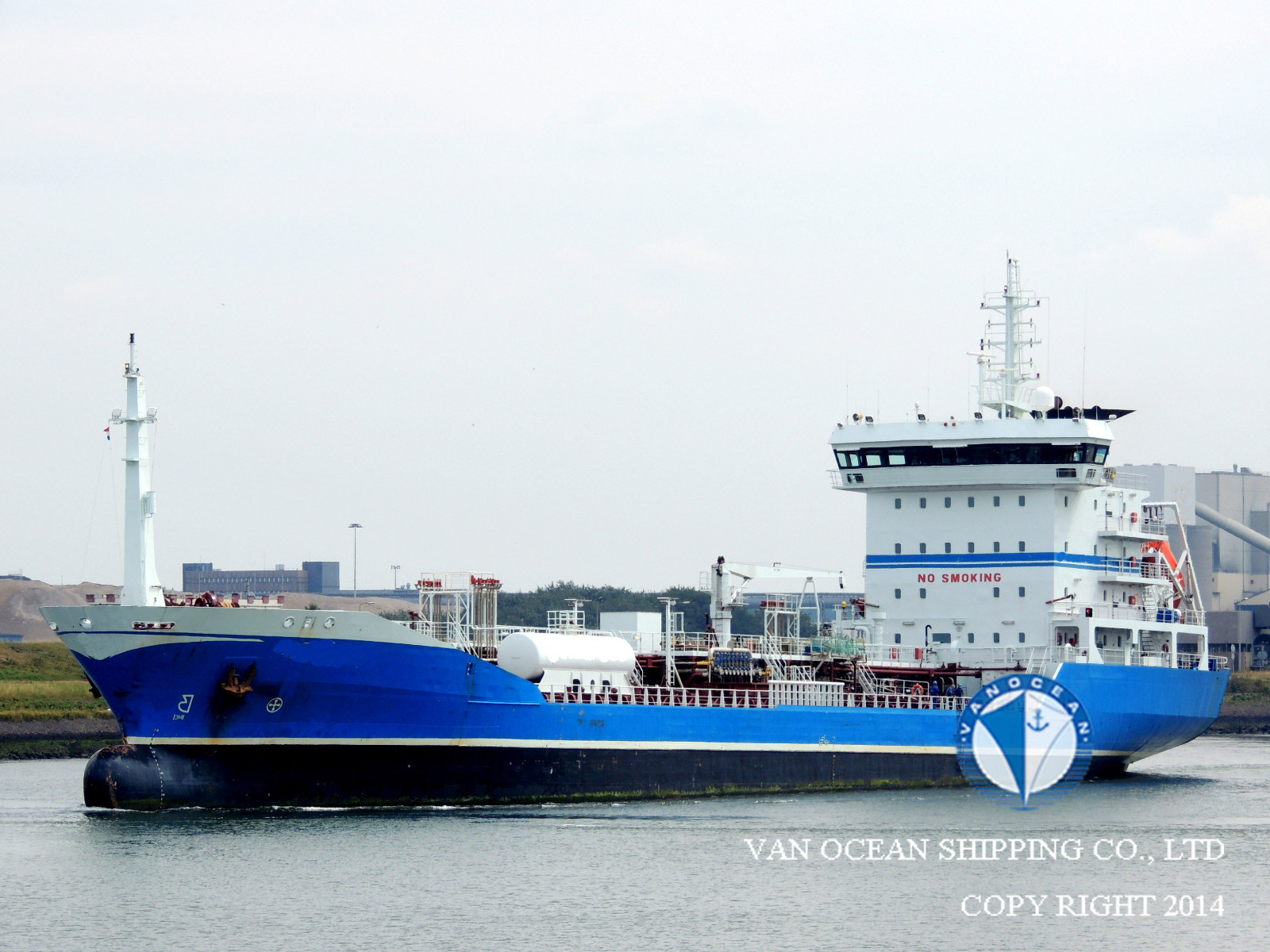

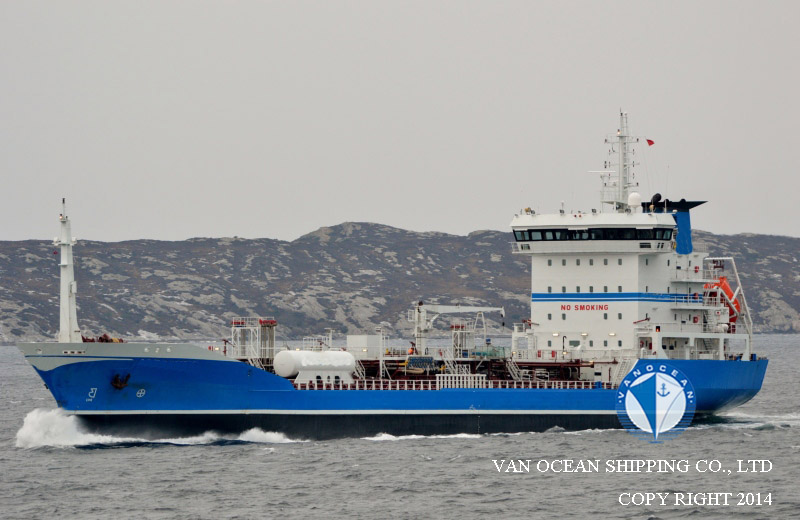

VESSEL NAME
TNK132
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
DANMARK
PORT OF REGISTRY
LAES
BUILT YEAR
2003
BUILT PLACE
GELIBOLU SHIPYARD, TURKEY
CLASSIFICATION
DNV
CLASS NOTATION
1A1 ICE-C TANKER FOR CHEMICALS AND OIL PRODUCTS ESP E0 IMO II
SS
2018-01-27
DD
-
LOA (M)
119.15
LBP (M)
112.38
BEAM (M)
16.94
DEPTH (M)
8.40
SUMMER DRAFT (M)
6.76
WINTER DRAFT (M)
6.62
TROPICAL DRAFT (M)
6.90
GT (MT)
4823.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2238.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
7082.00
WINTER DWT (MT)
6846.00
TROPICAL DWT (MT)
7320.00
DISPLACEMENT (MT)
9836.60
LDT (MT)
-
GEAR(S)
CRANE, 2 x 1.5MT, OUTREACH, 7 M
M/E(S)
-
M/E POWER (KW)
-
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-

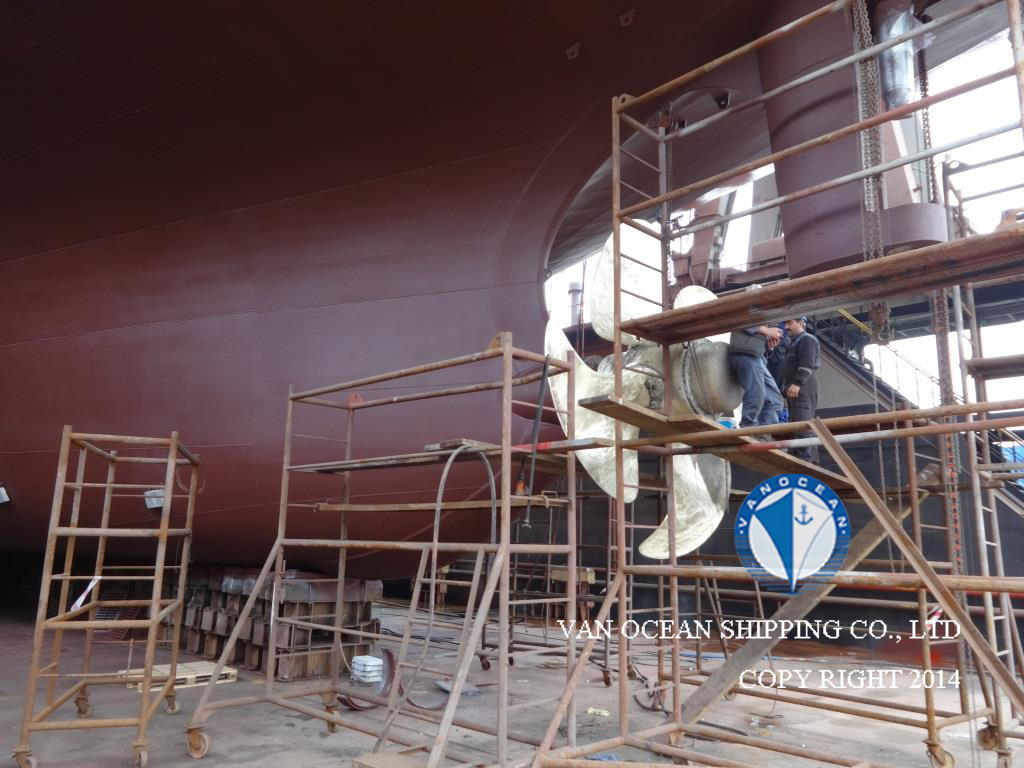

PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
384
TANKS CAPACITY (CBM)
MGO: 70，SLOPTANK：204.5
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
9
CARGO CAPACITY98% (CBFT)
273031.73
CARGO CAPACITY98% (CBM)
7734.61
COATING/MATERIAL OF HOLD(S)
SIGMA PHENGUARD 743 EPOXY
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
CARGO PUMP: 16 x 179CBM/HR（CENTRIFUGAL），1 x 70CBM/HR
BALLAST PUMP：2 x 250CBM/HR （CENTRIFUGAL）
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 335.56KW 450BHP
INSURANCE
POLLUTION LIABILITY COVERAGE: USD 1 BILLION
CREW
-

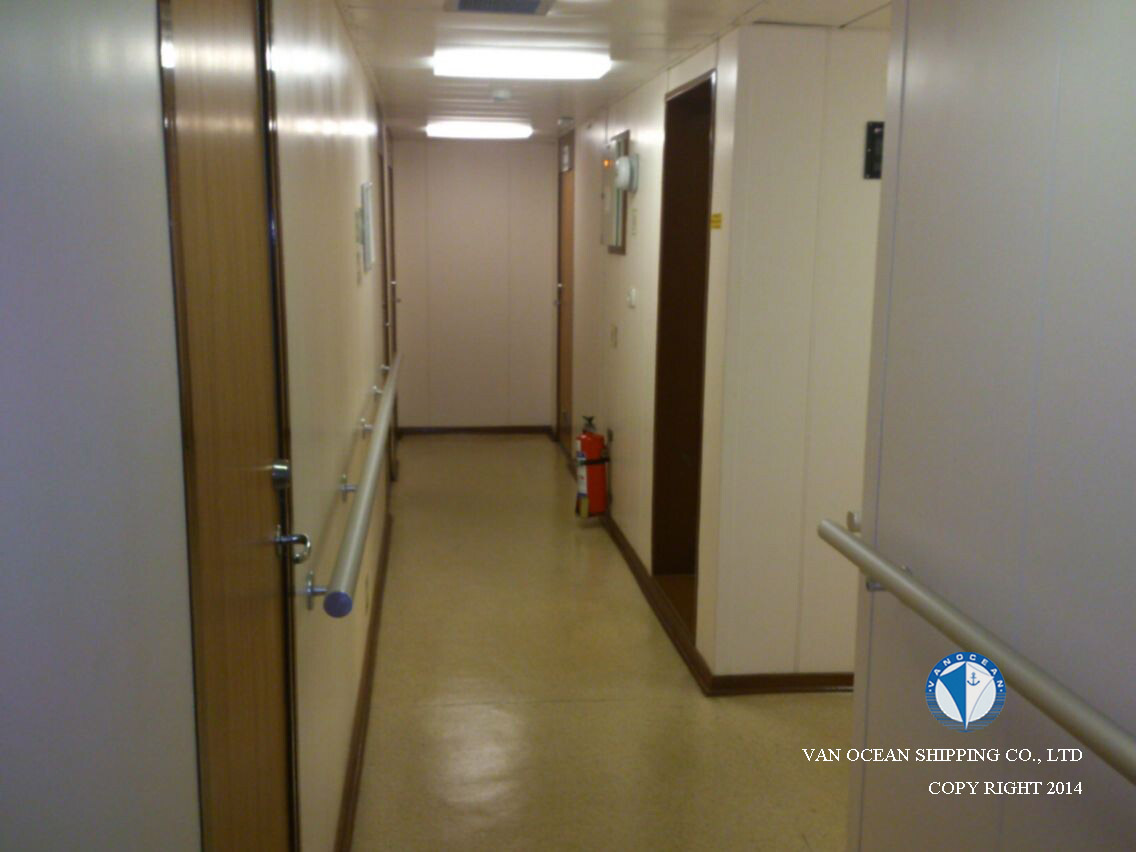

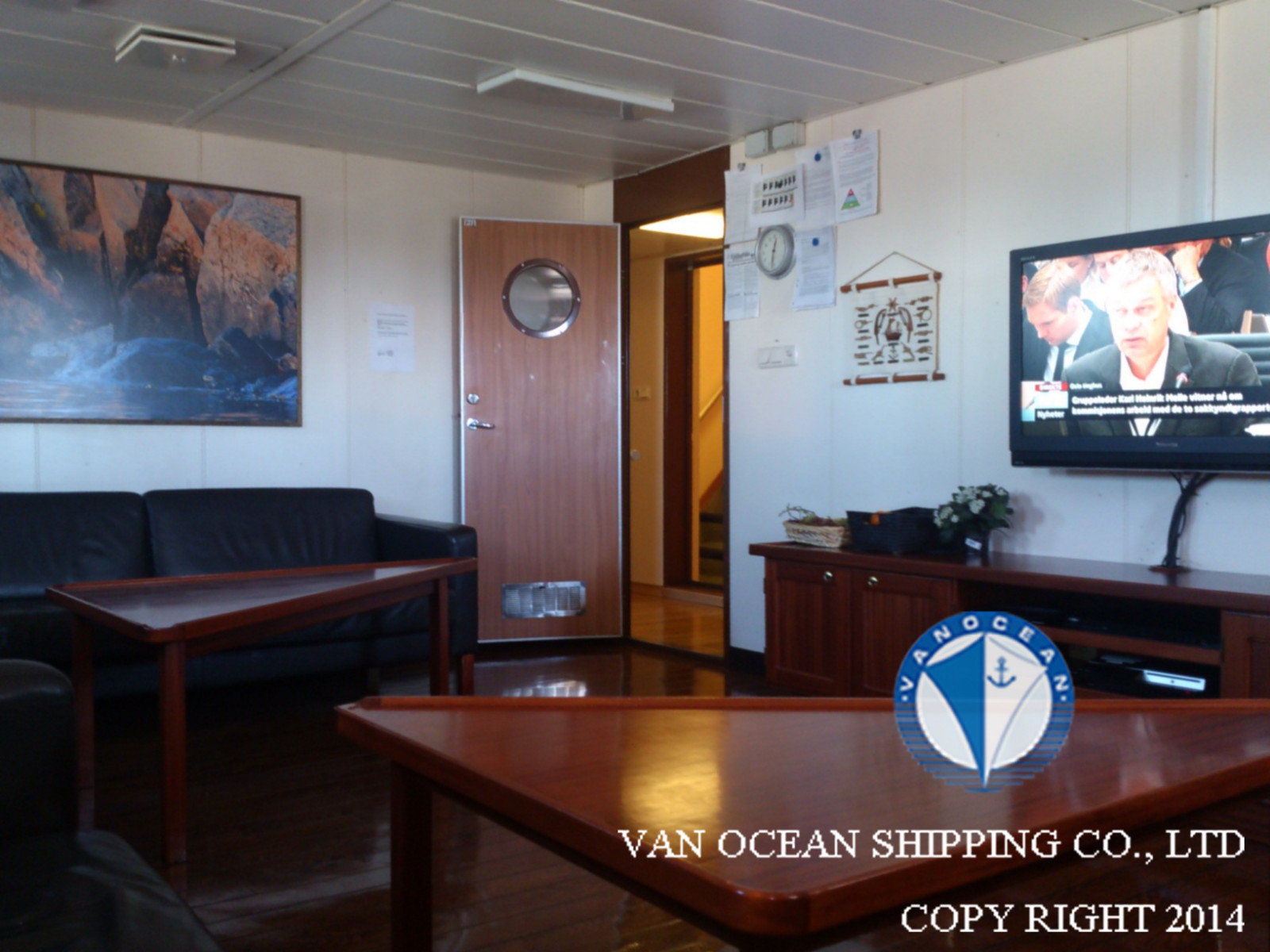

ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 8.9 MILLION
REMARK(S)
DISPLACEMENT (MT): 9600.6 (WINTER), 10074 (TROPICAL)
SBT: 2761.5 CBM
BALLAST TANK AND SLOPE TANK ARE COATED
-
-
