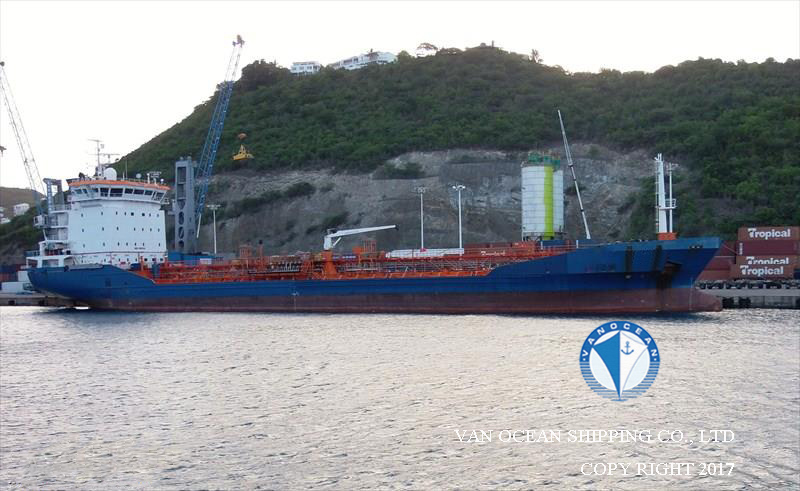

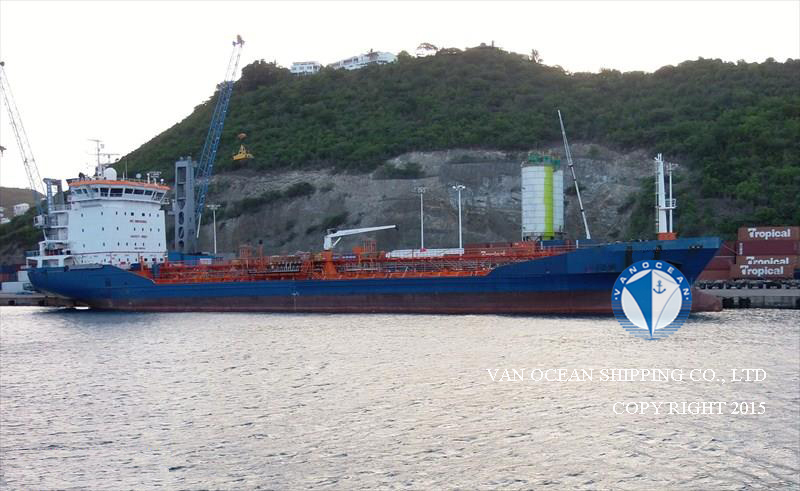

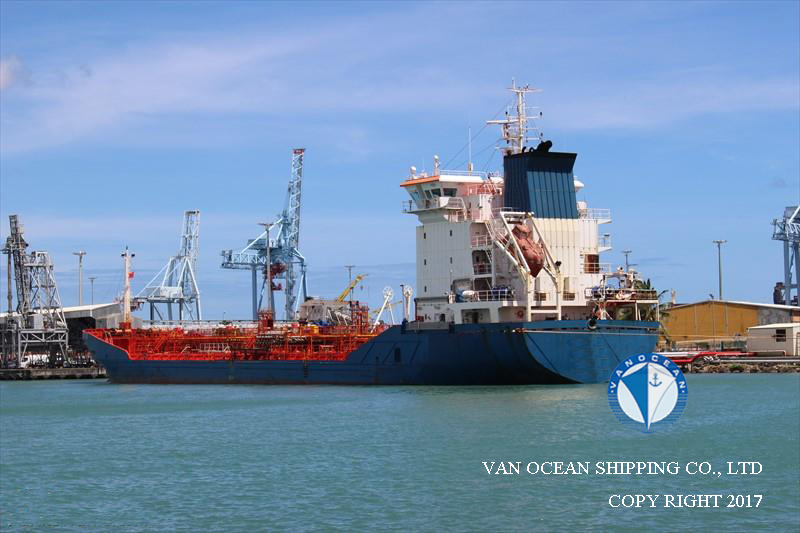

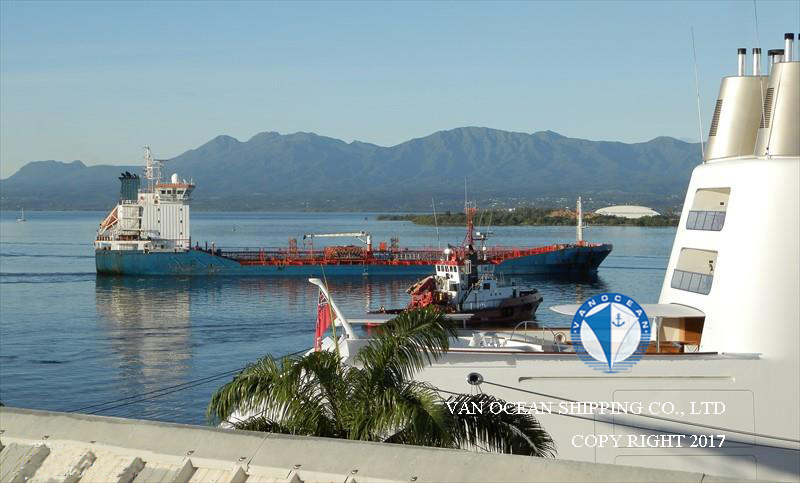

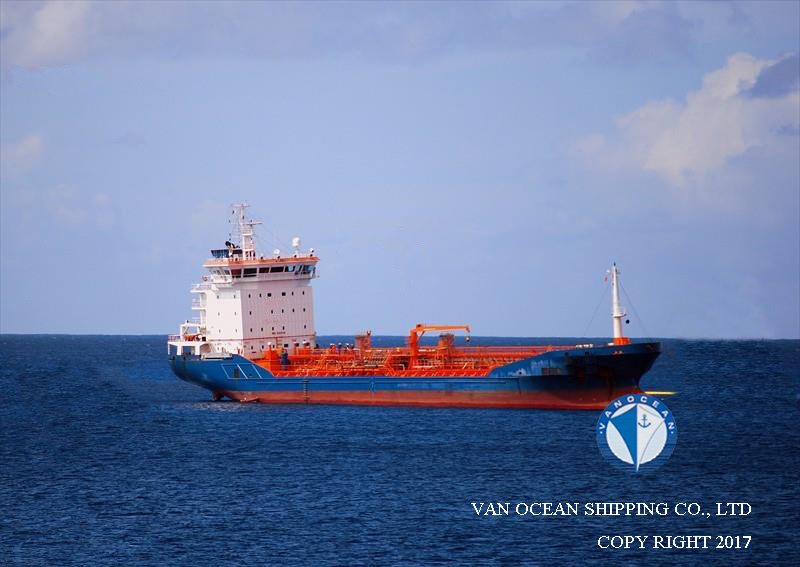

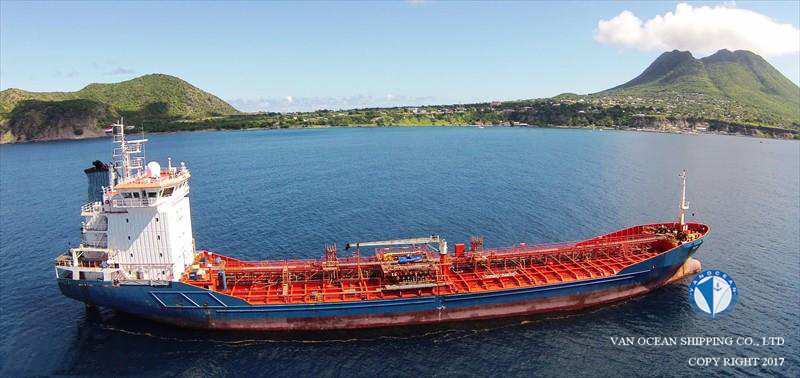

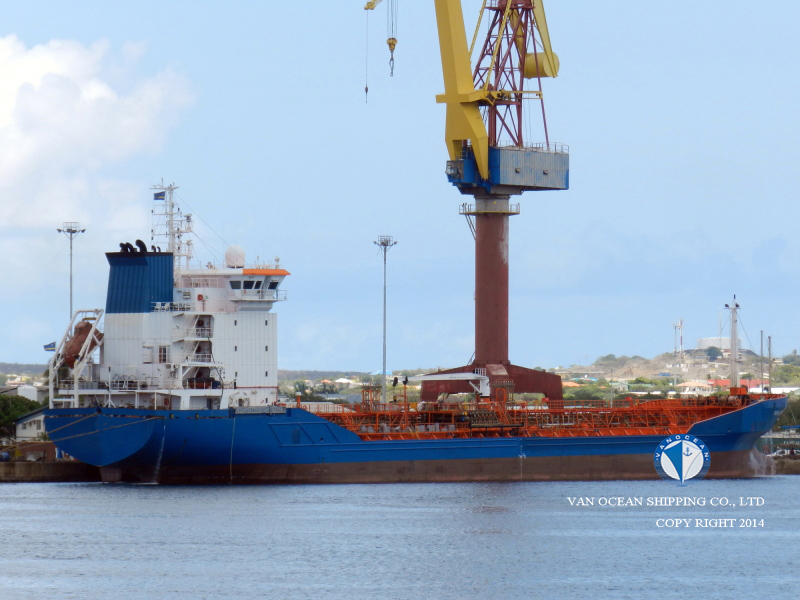

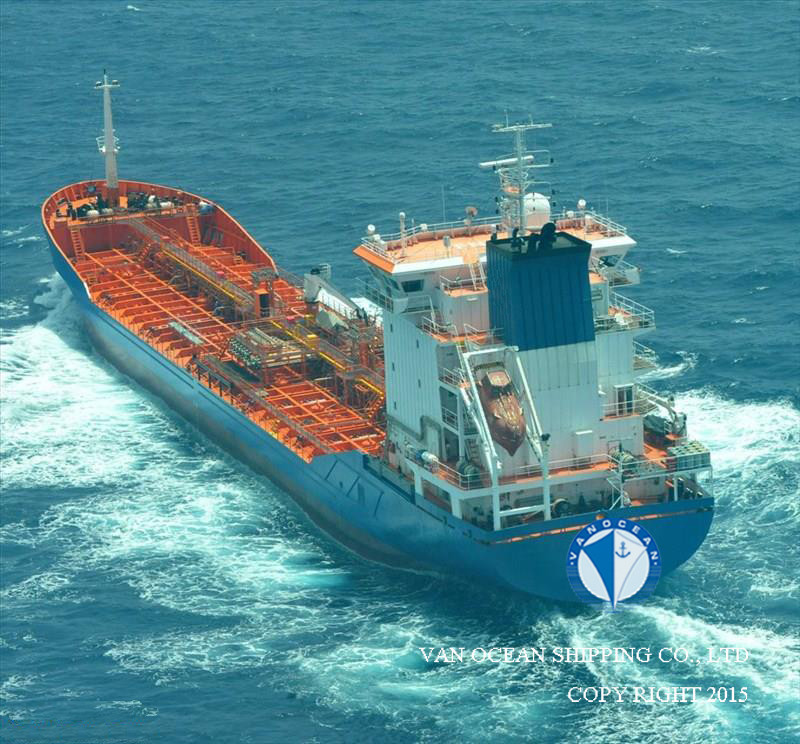

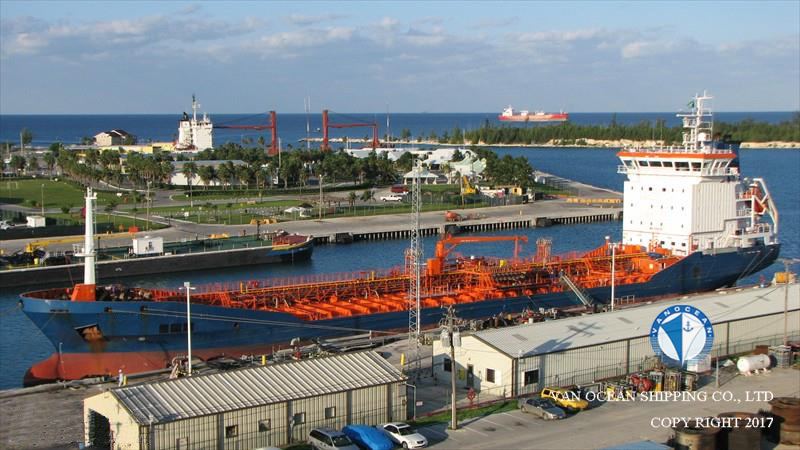

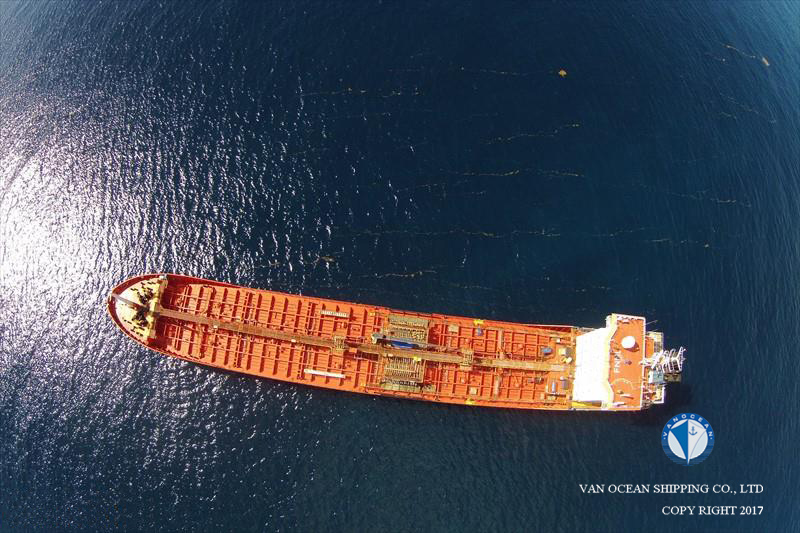

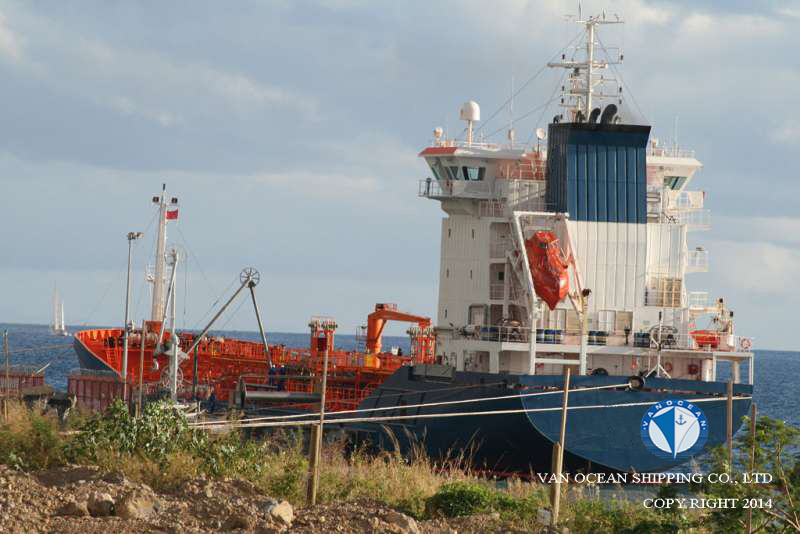

VESSEL NAME
TNK136
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
FRANCE
PORT OF REGISTRY
RIF - MARSEILLE
BUILT YEAR
2007
BUILT PLACE
ADIK SHIPYARD , TUZLA, TURKEY
CLASSIFICATION
BV
CLASS NOTATION
1+HULL+MACH+CHEMICAL/OIL TANKER ESP UNRESTIED AVIGATION, AUT-IMS-CLESN DHIP,VCS;IG; INWATER SURVEY: AVM-APS; MON-SHAFT INWATER SURVEY
SS
2017-08
DD
2017-08
LOA (M)
120.98
LBP (M)
115.38
BEAM (M)
17.20
DEPTH (M)
8.80
SUMMER DRAFT (M)
6.86
WINTER DRAFT (M)
6.72
TROPICAL DRAFT (M)
7.00
GT (MT)
5242.00
PANAMA GT (MT)
-
SUEZ GT (MT)
5476.50
NT (MT)
2374.00
PANAMA NT (MT)
-
SUEZ NT (MT)
4468.43
SUMMER DWT (MT)
7915.00
WINTER DWT (MT)
7650.00
TROPICAL DWT (MT)
8150.00
DISPLACEMENT (MT)
10866.60
LDT (MT)
-
GEAR(S)
CRANE, 5MT, SPAN 14.54M
M/E(S)
MAK 8M32C 4冲 STROKES
M/E POWER (KW)
3840KW
A/E(S)
3 x 580KW
GENERATOR(S)
3 x 400KW
1 x 200KW
SHAFT GENERATOR(S)
1 x 1200KW
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
13KTS, 15MT IFO380 / DAY
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
364.00
TANKS CAPACITY (CBM)
MDO/MGO:111，SLOP TANK：254，FRESH WATER TANK：227.378
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
12.00
CARGO CAPACITY98% (CBFT)
285753.50
CARGO CAPACITY98% (CBM)
8095.00
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
STAINLESS STEEL HEATING COILED
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
CARGO (CENTRIFUGAL): 12 x 330CBM/HR, 1 x 110CBM/HR
BALLAST (CENTRIFUGAL): 2 x 250 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 500KW
STERN THRUSTER: 2 x 450KW
INSURANCE
POLLUTION LIABILITY COVERAGE: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
DISPLACEMENT (MT): 10650 (WINTER), 11120 (TROPICAL)
SBT: 3581CBM
BALLAST TANKS ARE COATED
TRADING AT CARIBBEAN SEA
TAKE HOME SYSTEM
FIXED TANK WASHING MACHINE
CLOSE LOADING SYSTEM
