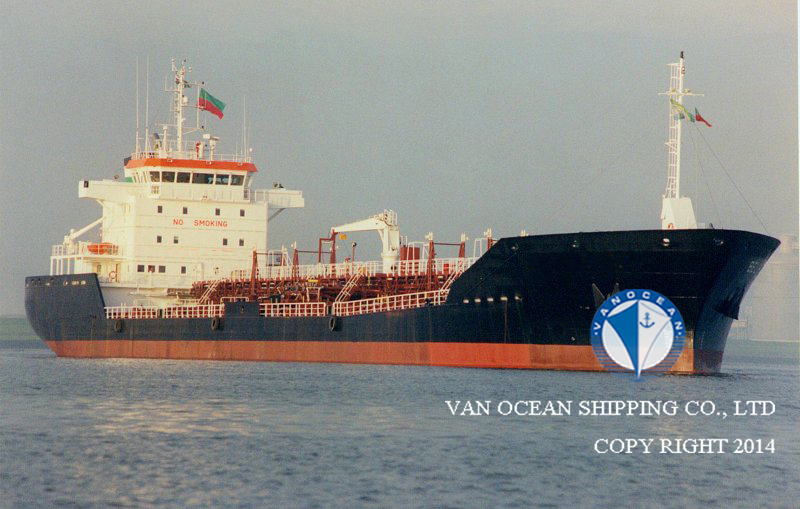

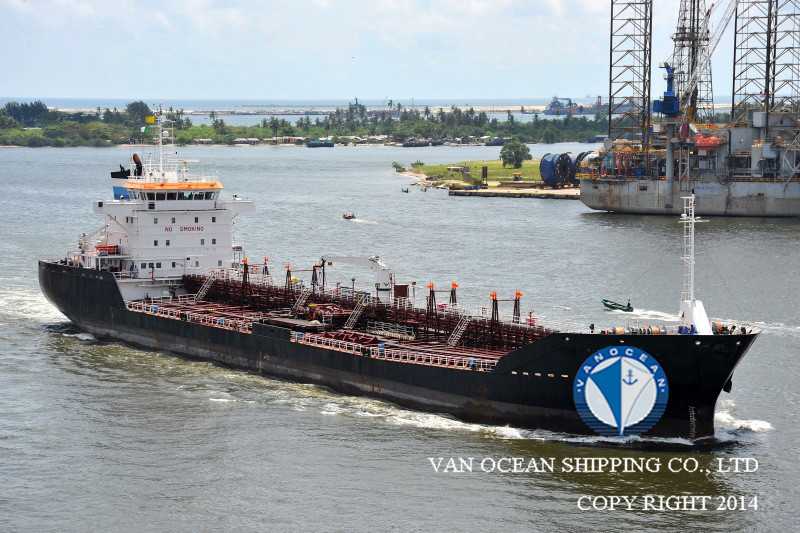

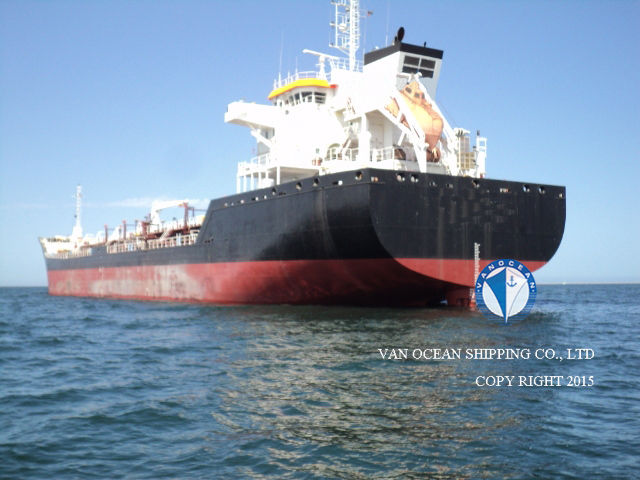

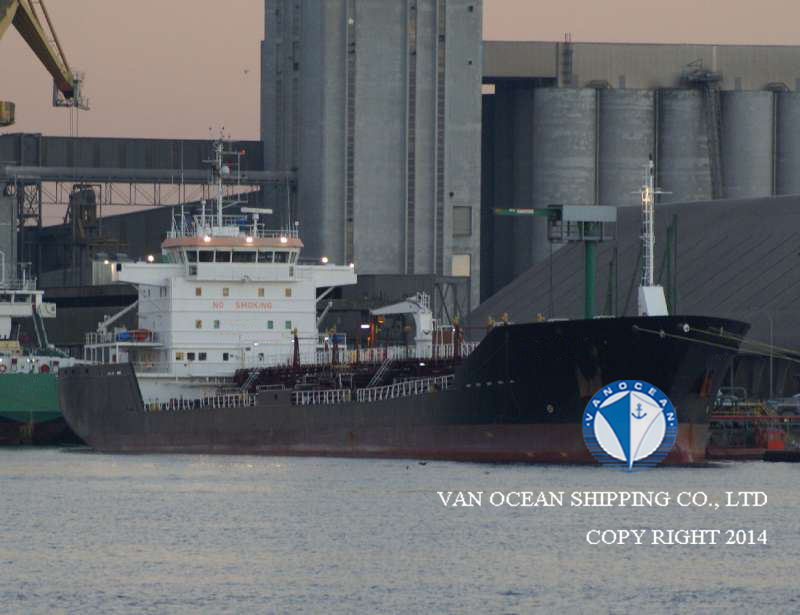

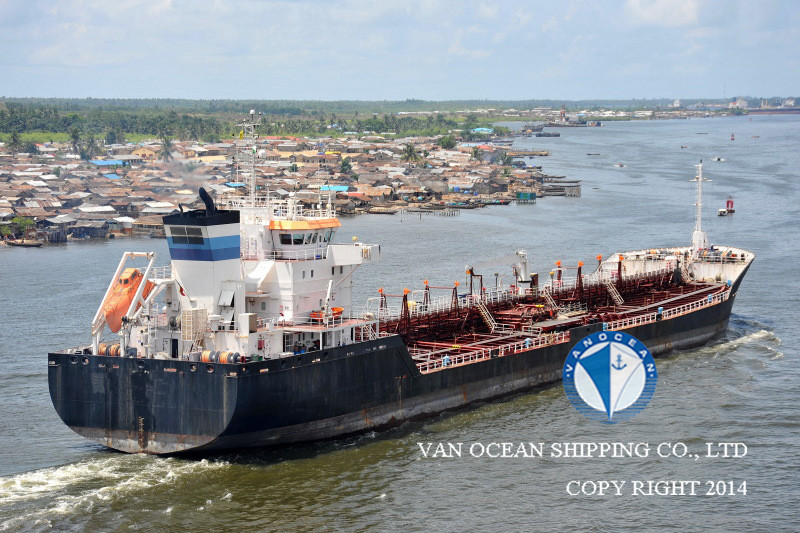

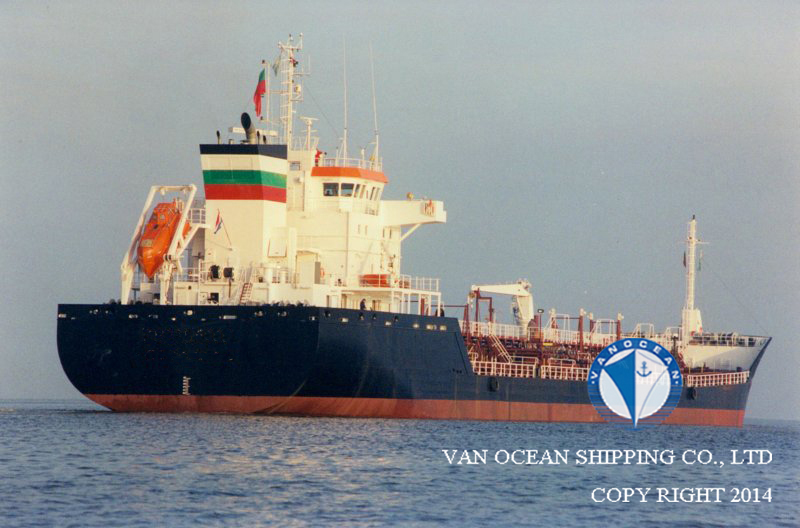

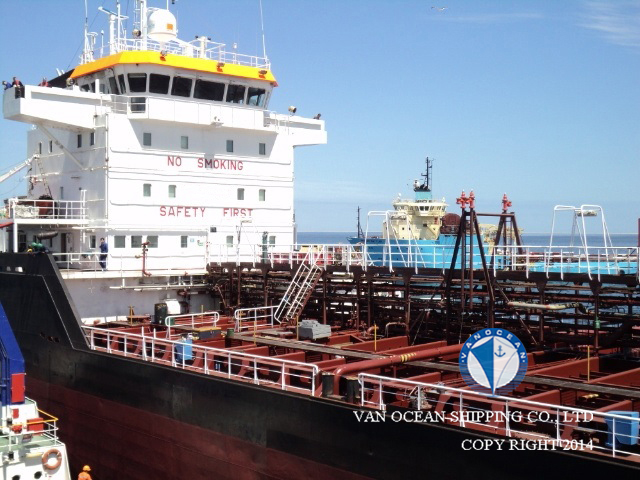

VESSEL NAME
TNK168
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
ST VINCENT GRENADINES
PORT OF REGISTRY
-
BUILT YEAR
2001
BUILT PLACE
NIESTERN SANDER B.V, NETHERLAND
CLASSIFICATION
BV
CLASS NOTATION
I + HULL+ MACH OIL TANKER CHEMICAL TANKER IMO II/ESP UNRESTRICTED NAVIGATION + AUT-UMS + AUTPORT SBT SYS-NEQ 1 AVM-APS IG-MANOVR
SS
-
DD
-
LOA (M)
129.95
LBP (M)
124.30
BEAM (M)
20.00
DEPTH (M)
9.75
SUMMER DRAFT (M)
7.59
WINTER DRAFT (M)
7.43
TROPICAL DRAFT (M)
7.75
GT (MT)
7093.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3692.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
12681.00
WINTER DWT (MT)
12304.00
TROPICAL DWT (MT)
13058.00
DISPLACEMENT (MT)
-
LDT (MT)
3450.00
GEAR(S)
CRANE, 1 x 5MT

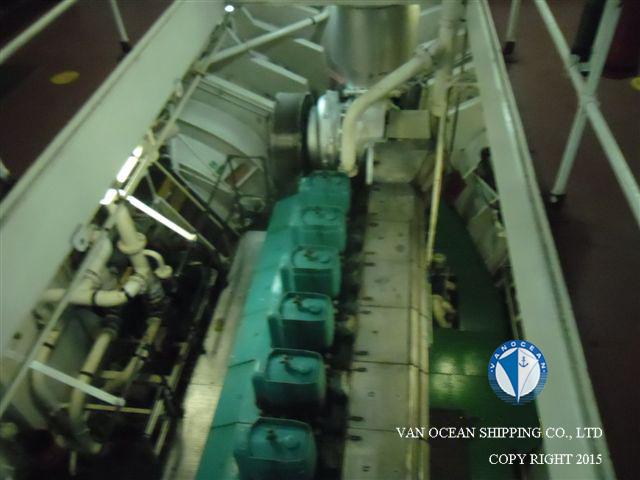

M/E(S)
MAK 8M32C, 5146BHP
M/E POWER (KW)
3840
A/E(S)
2 x CAT, 570KW
1 x CAT, 370KW
1 x CAT, 105KW
GENERATOR(S)
-
SHAFT GENERATOR(S)
1 x 900KW
PROPELLER(S)
CPP, 4 BLADES
SPEED /CONSUMPTIONS
12KTS ON 13MT/DAY
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
437620
CARGO CAPACITY98% (CBM)
12690
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
STAINLESS STEEL HEATING COILS, MAX TEMP. 65DC
SACRIFICIAL ANODE
-
IGS
FITTED
PUMP(S)
12 x 300 CBM/HR, DEEPWELL CENTRIFUGAL PUMP, 7 BAR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOWTHRUSTER, 500KW
INSURANCE
-
CREW
-

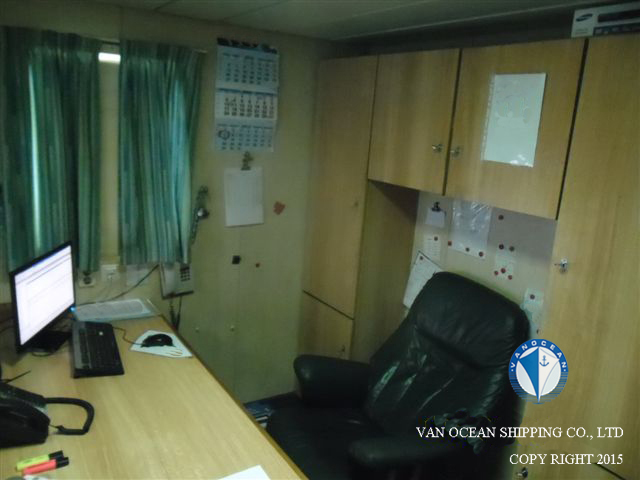

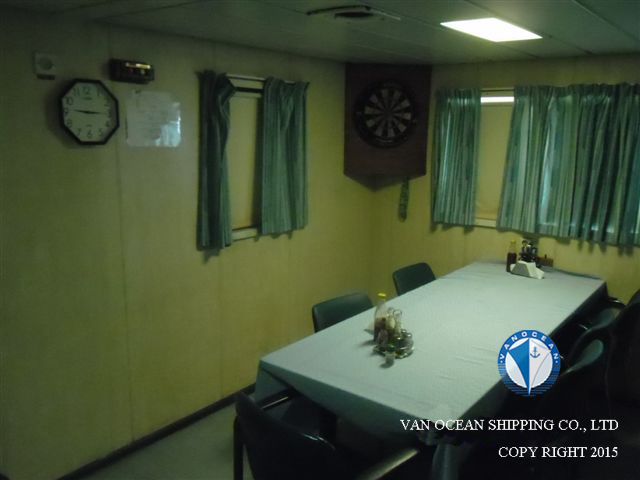

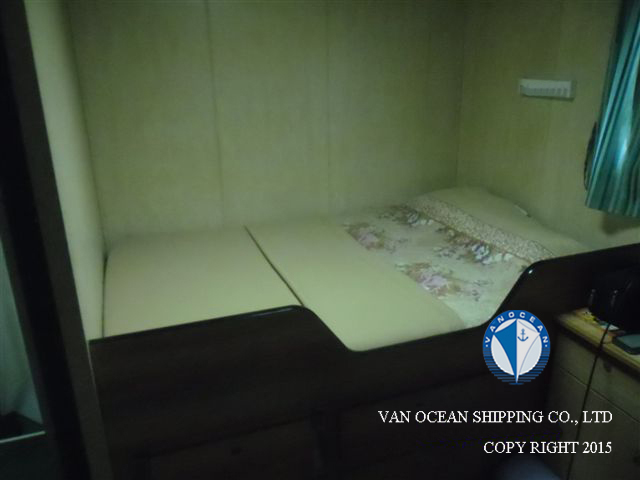

ACCOMMODATION
-
INSPECTION
WEST AFRICA
DELIVERY
-
PRICE
USD 8.75 MILLION
