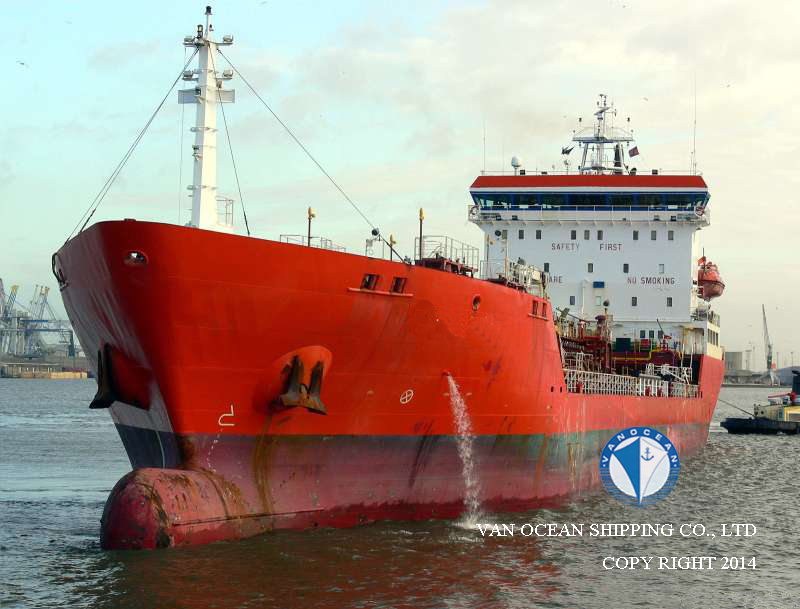

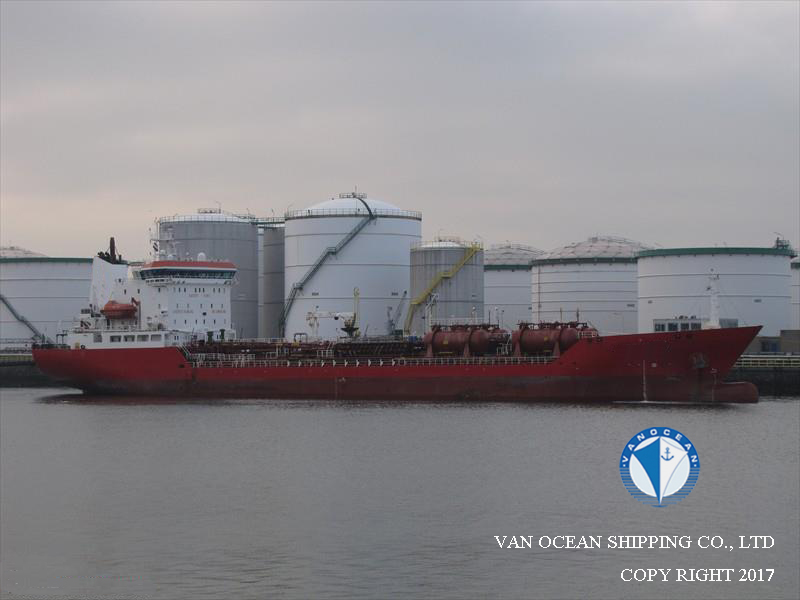

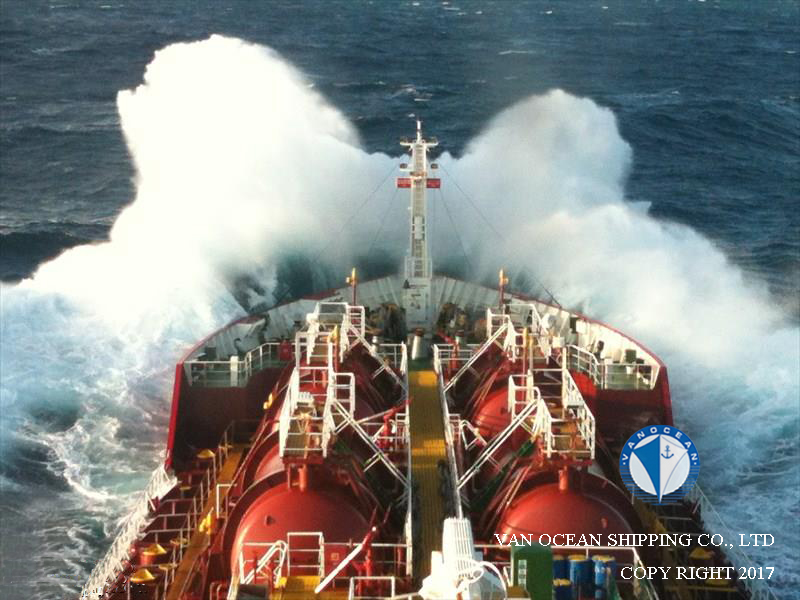

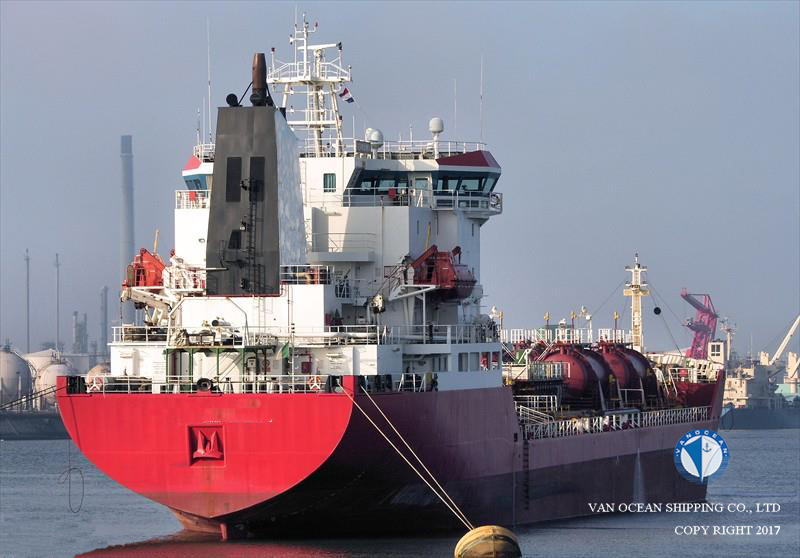

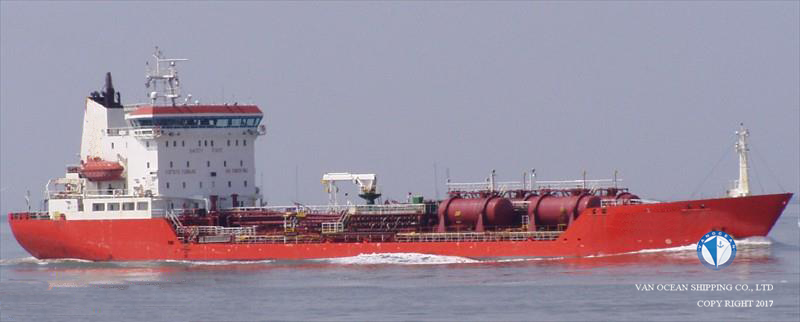

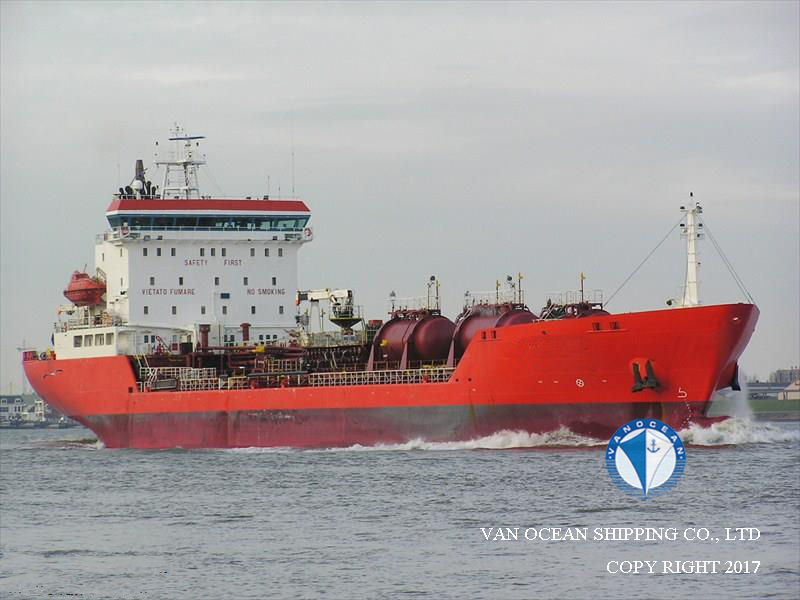

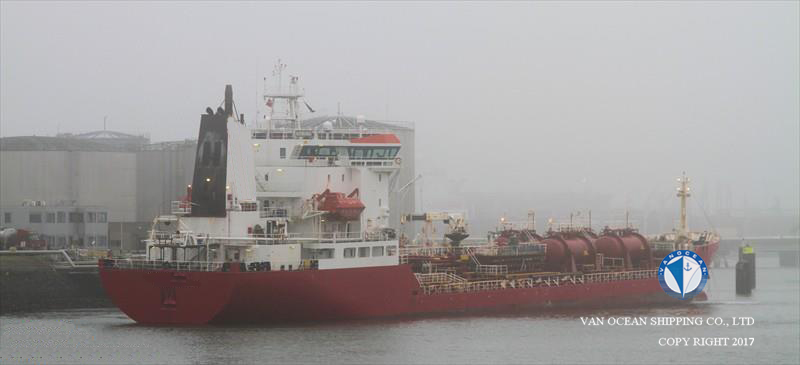

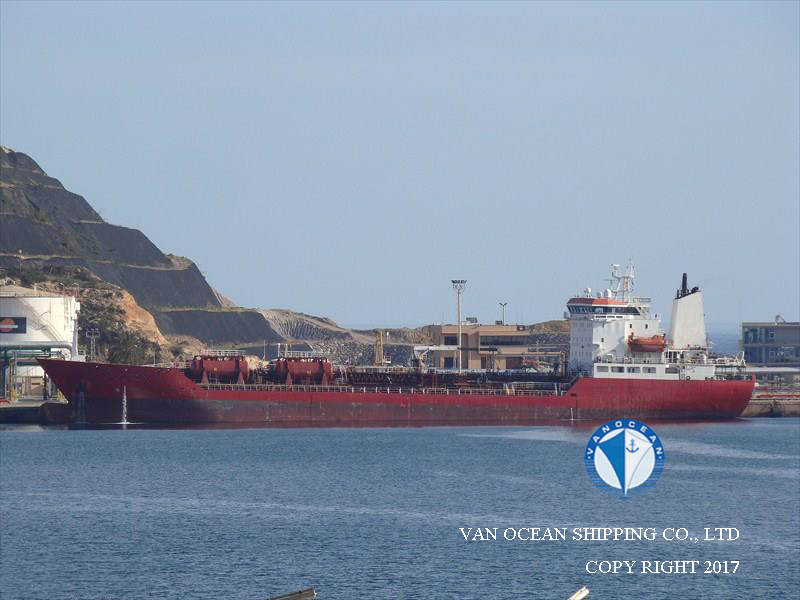

VESSEL NAME
TNK160
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
BOUBLE HULL
FLAG
ITALY
PORT OF REGISTRY
RAVENNA
BUILT YEAR
1996
BUILT PLACE
VENICE, DE POLI - PELLESTRINA, ITALY
CLASSIFICATION
RINA + BV
CLASS NOTATION
STAR MARK 100-A-1.1-NAV IL CHEMICAL TANKER ESP CST (OIL) ESP DOUBLE HULL APS EP1 IAI IAO-1 ICE CLASS 1C IIQ NAU P SCC SFI STAR-MACH PMS VCX IMO I/ II
SS
-
DD
-
LOA (M)
125.70
LBP (M)
115.20
BEAM (M)
19.00
DEPTH (M)
9.90
SUMMER DRAFT (M)
7.90
WINTER DRAFT (M)
7.73
TROPICAL DRAFT (M)
8.01
GT (MT)
6877.00
PANAMA GT (MT)
-
SUEZ GT (MT)
7451.30
NT (MT)
3293.00
PANAMA NT (MT)
5830.00
SUEZ NT (MT)
6778.45
SUMMER DWT (MT)
10022.00
WINTER DWT (MT)
9708.10
TROPICAL DWT (MT)
10381.90
DISPLACEMENT (MT)
13989.50
LDT (MT)
-
GEAR(S)
CRANE, 1 x 5MT, OUTREACH 3M
M/E(S)
-
M/E POWER (KW)
-
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
606
TANKS CAPACITY (CBM)
MDO/MGO: 132， SLOP TANK:392
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
24
CARGO CAPACITY98% (CBFT)
371638.4
CARGO CAPACITY98% (CBM)
10528
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
STAINLESS STEEL COILS
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
CARGO (SUBMERGED): 14 x 200 CBM/HR, 6 x 100CBM/HR, 4 x 50CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 700BHP, 514KW
INSURANCE
POLLUTION LIABILITY COVERAGE: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
EUR: 10.5 MILLION
REMARK(S)
DISPLACEMENT (MT): 13653.7(WINTER), 14327.5(TROPICAL)
SBT: 3751CBM
BALLAST TANKS ARE HARD COATED
SLOP TANKS ARE MADE BY STAINLESS STEEL
