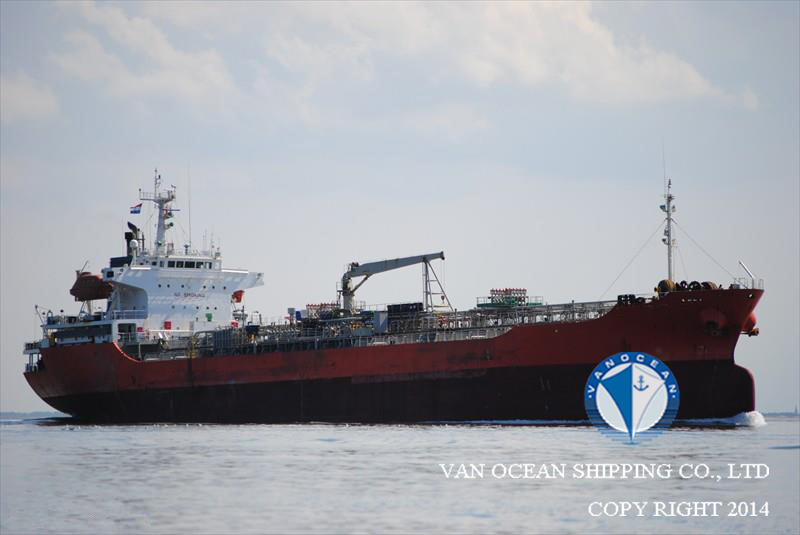

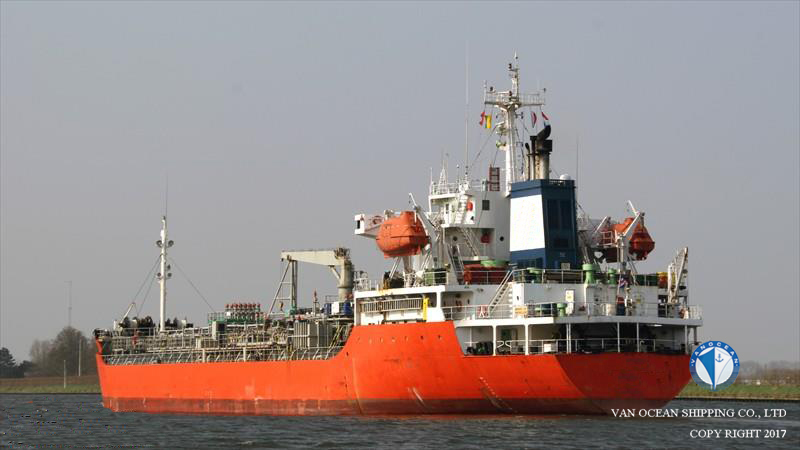

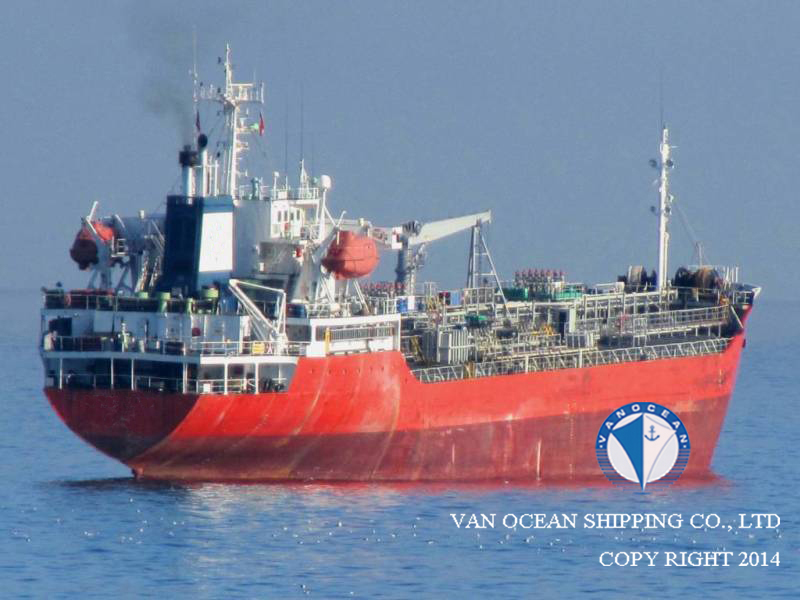

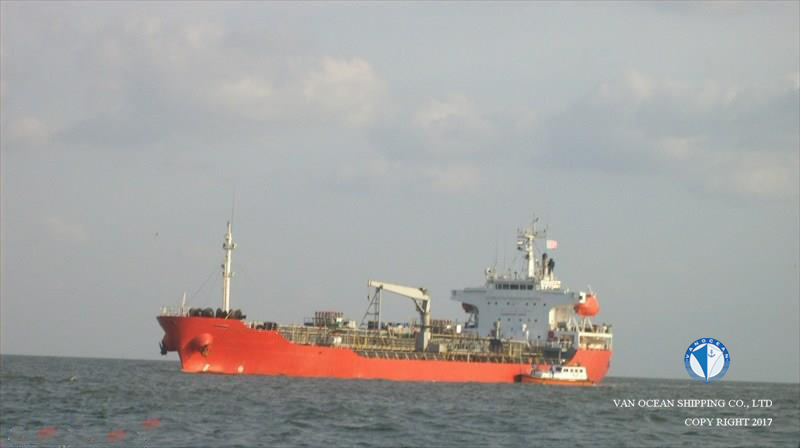

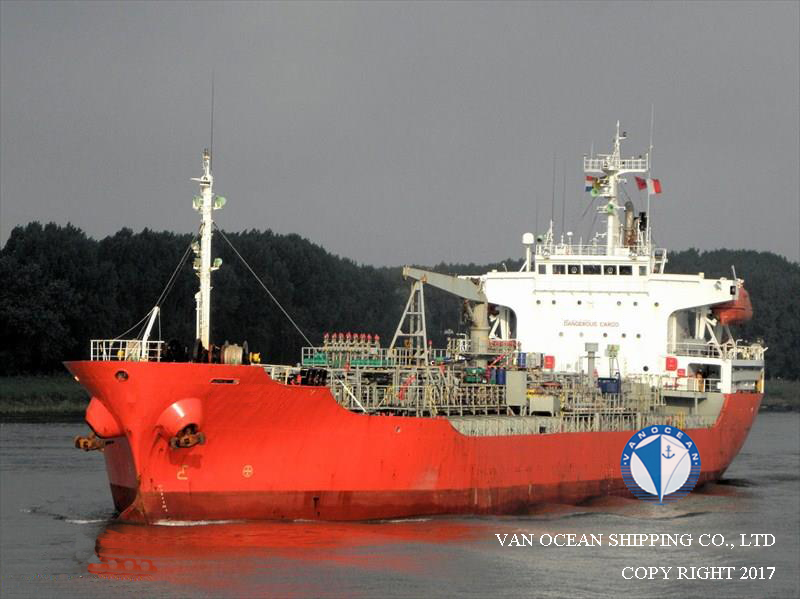

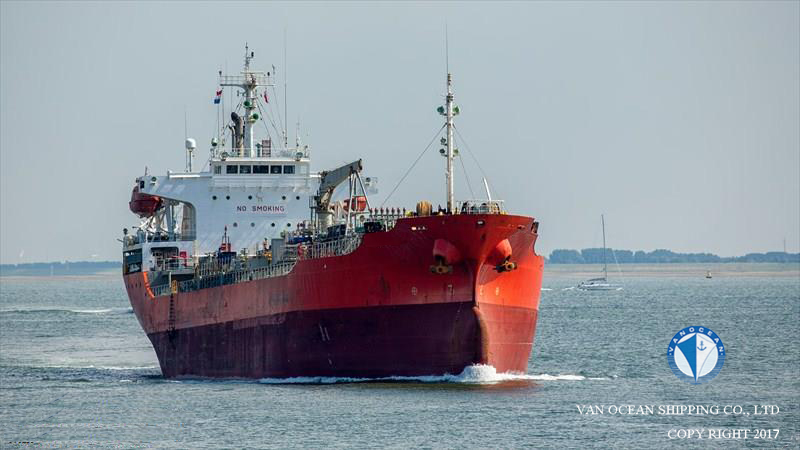

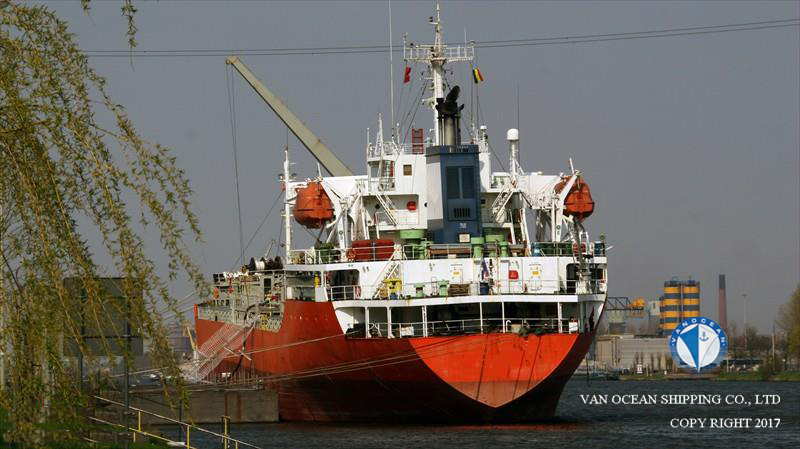

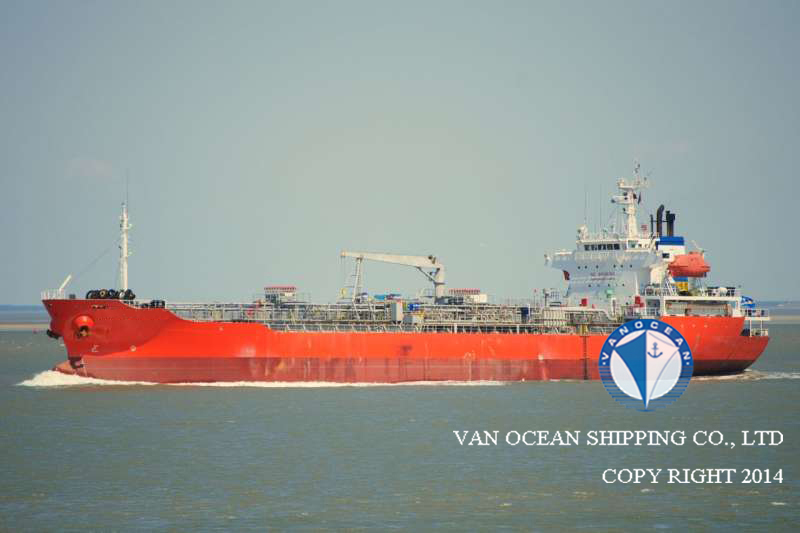

VESSEL NAME
TNK163
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
-
BUILT YEAR
1994
BUILT PLACE
HAYASHIKANE, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS* (TANKER MOLASSES OR OILS-FLASHPOINT BELOW 60C AND CHEMICALS TYPE II AND III) (ESP) MNS*
SS
2018-07
DD
2018-07
LOA (M)
113.95
LBP (M)
108.00
BEAM (M)
20.20
DEPTH (M)
11.35
SUMMER DRAFT (M)
8.90
WINTER DRAFT (M)
8.72
TROPICAL DRAFT (M)
8.90
GT (MT)
5998.00
PANAMA GT (MT)
-
SUEZ GT (MT)
6473.40
NT (MT)
3562.00
PANAMA NT (MT)
5108.00
SUEZ NT (MT)
6300.03
SUMMER DWT (MT)
11559.00
WINTER DWT (MT)
11199.00
TROPICAL DWT (MT)
11559.00
DISPLACEMENT (MT)
14791.00
LDT (MT)
-
GEAR(S)
CRANE, 1 x 5MT, CENTER, OUTREACH 6M
M/E(S)
B+W 6L35MC 4560 BHP,200RPM
M/E POWER (KW)
3403
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
687.43
TANKS CAPACITY (CBM)
MDO: 101.3, SLOP TANK:611.84
COMPARTMENT(S)
12
NUMBER OF CARGO HOLDS
24
CARGO CAPACITY98% (CBFT)
415920.13
CARGO CAPACITY98% (CBM)
11782.44
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
YES
IGS
YES
PUMP(S)
CARGO: 24 x 200CBM/HR
BALLAST (CENTRIFUGAL): 2 x 200CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 712BHP, 530.92KW
INSURANCE
POLLUTION LIABILITY COVERAGE: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 6.2 MILLION
REMARK(S)
DISPLACEMENT (MT): 14431(WINTER), 14791(TROPICAL)
SBT:3222CBM
BALLAST TANKS ARE EPOXY COATED
SLOP TANKS ARE MADE BY STAINLESS STEEL
4 PUMPS CAN BE RUN SIMULTANEOUSLY AT FULL CAPACITY
-
-
-
-
-
-
