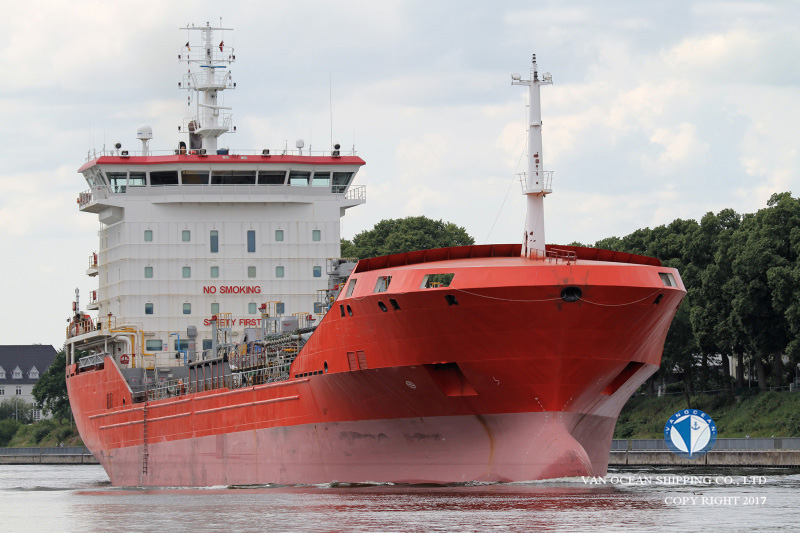

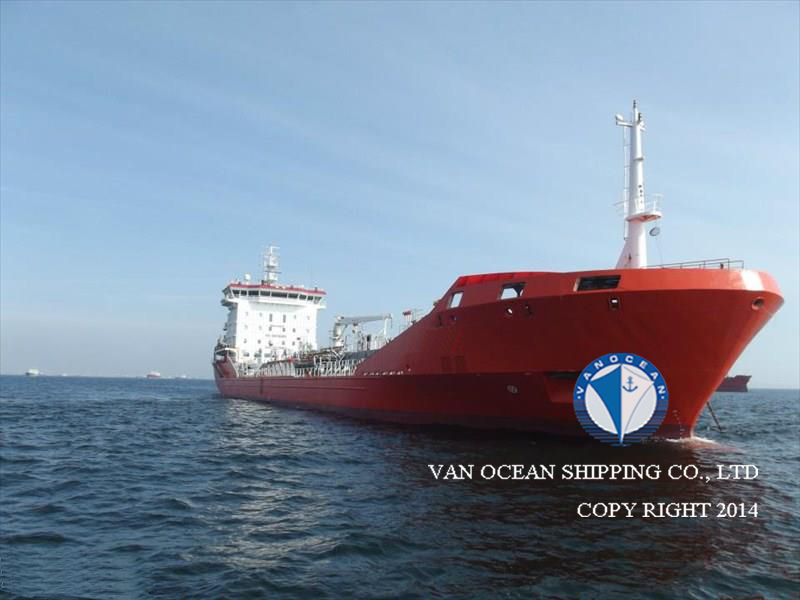

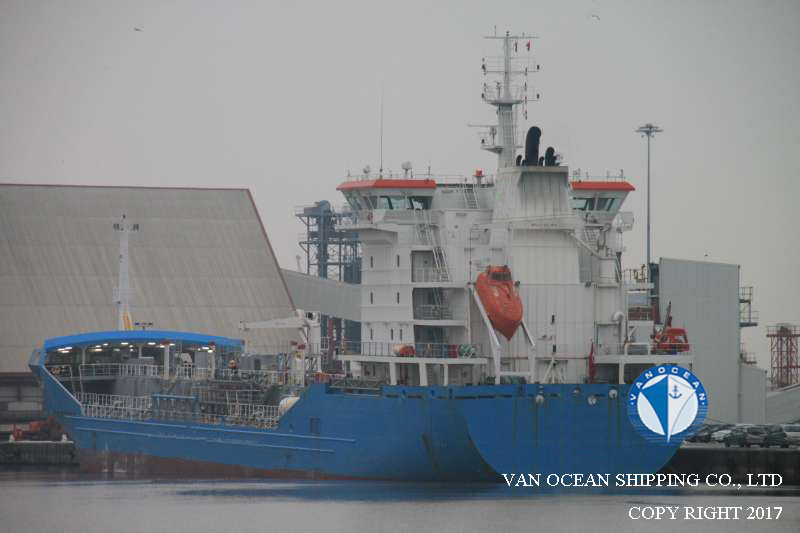

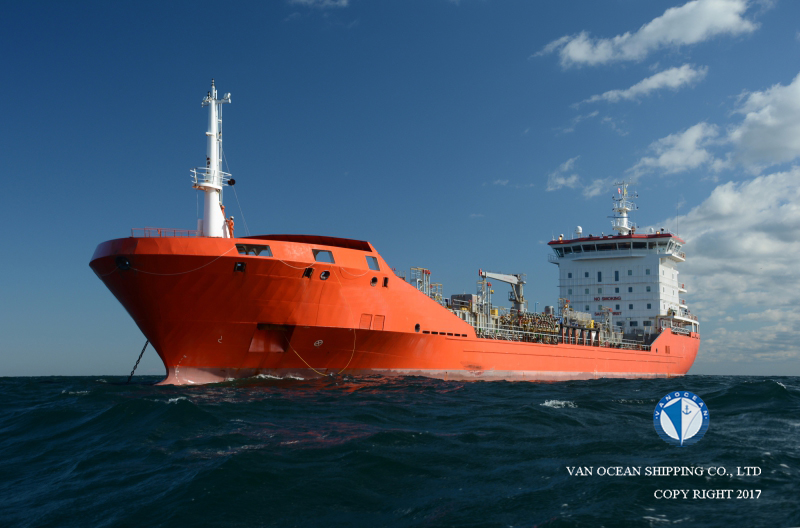

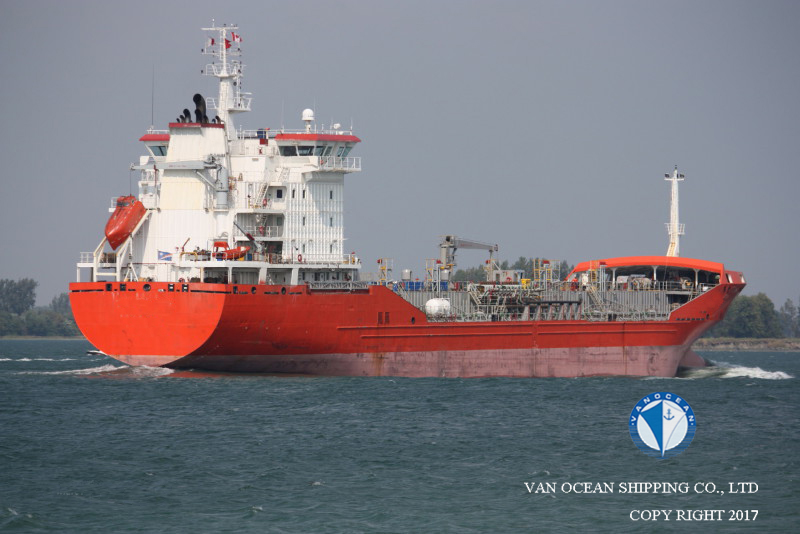

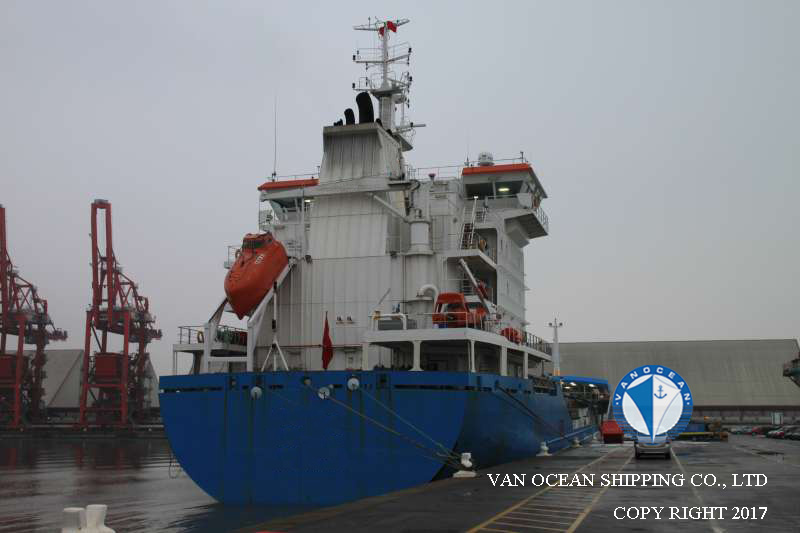

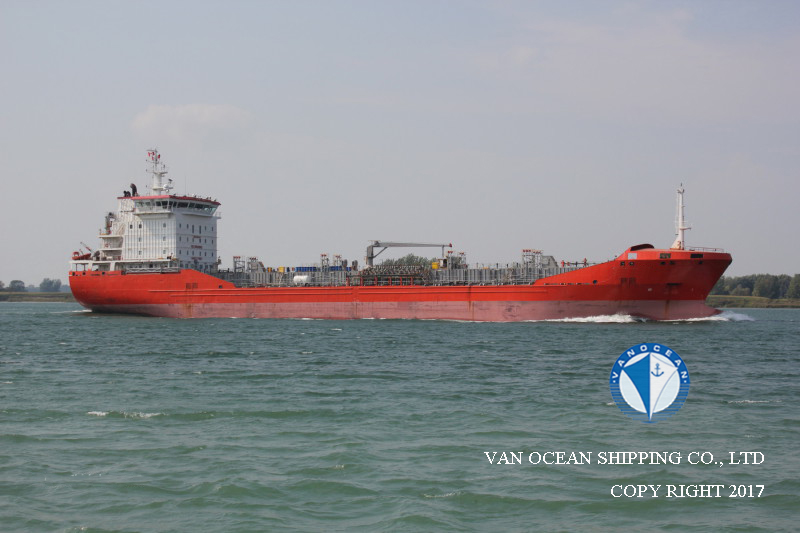

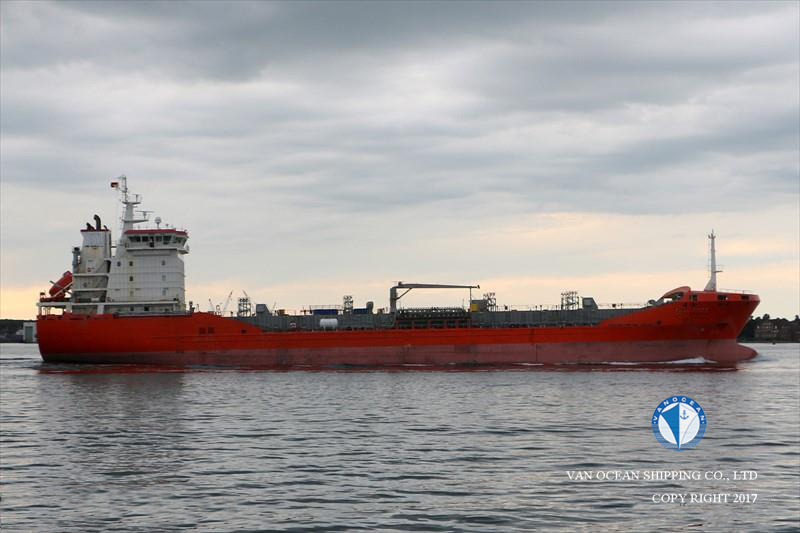

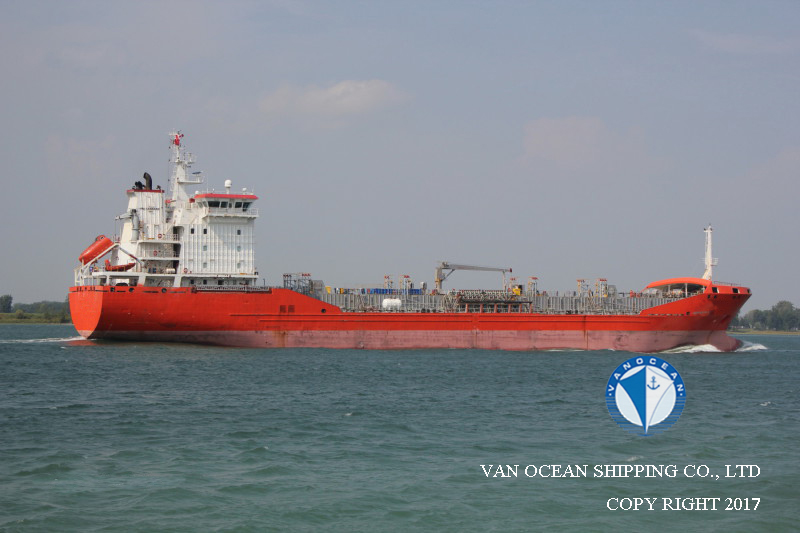

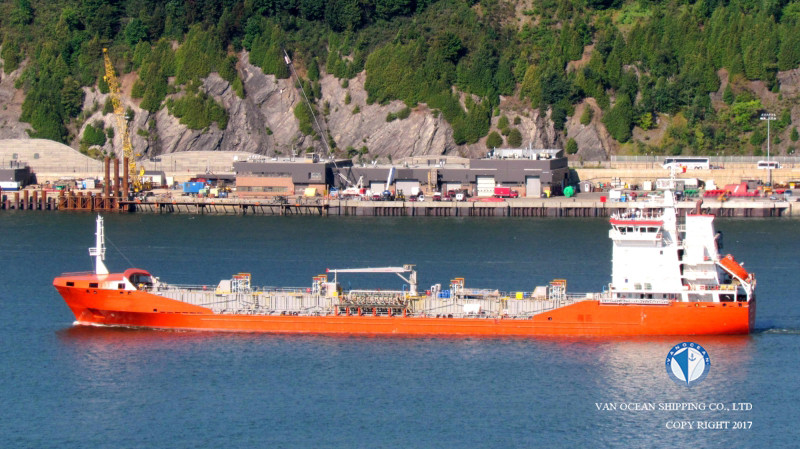

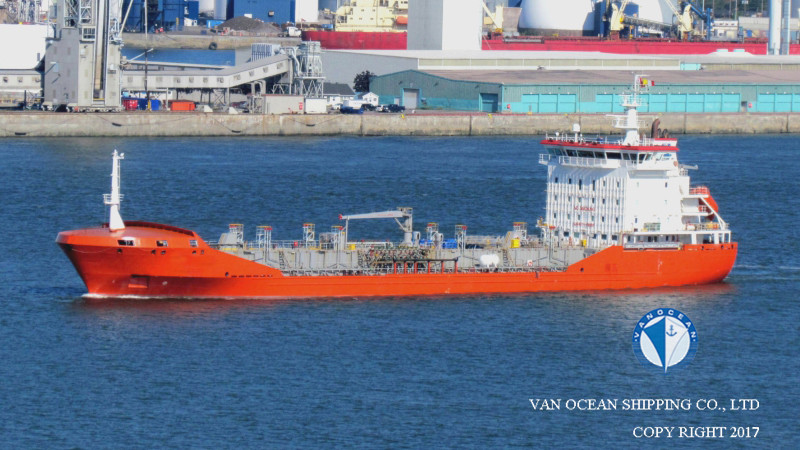

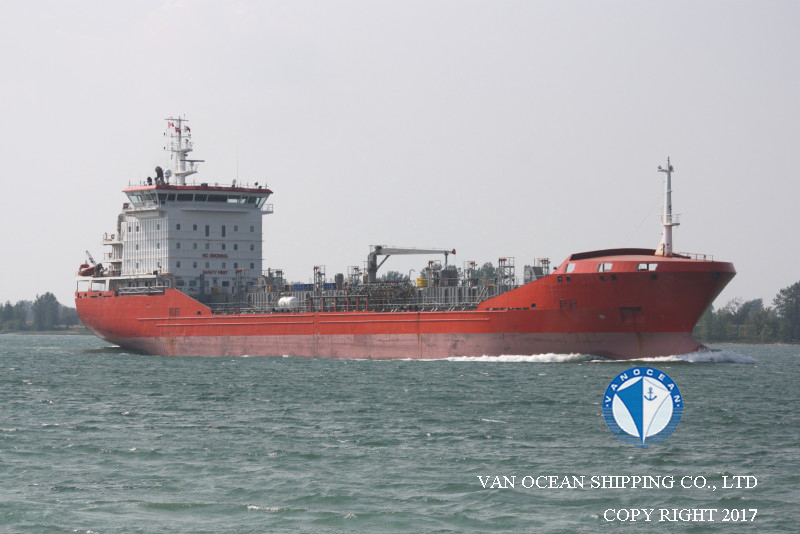

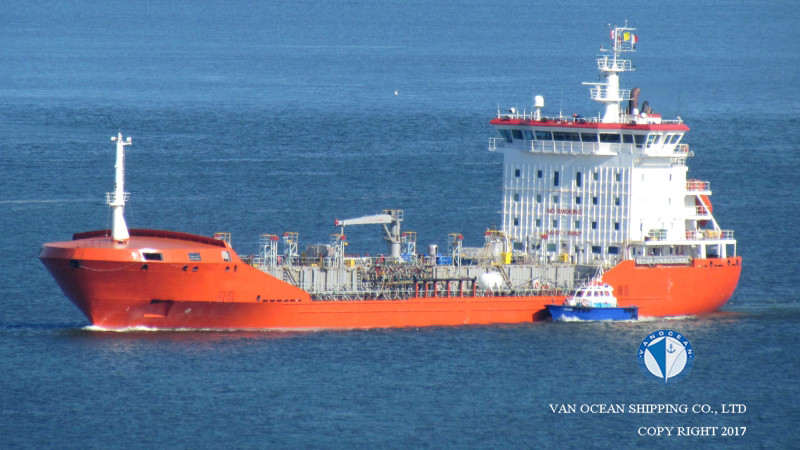

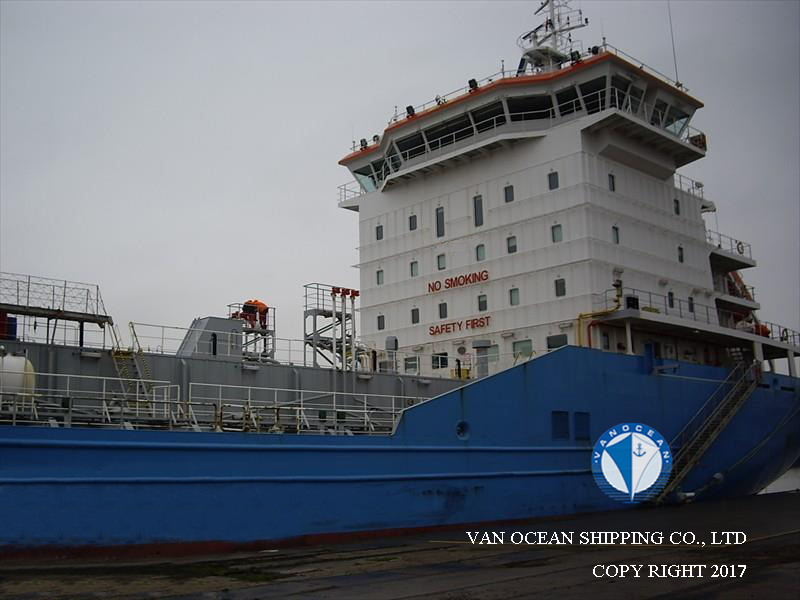

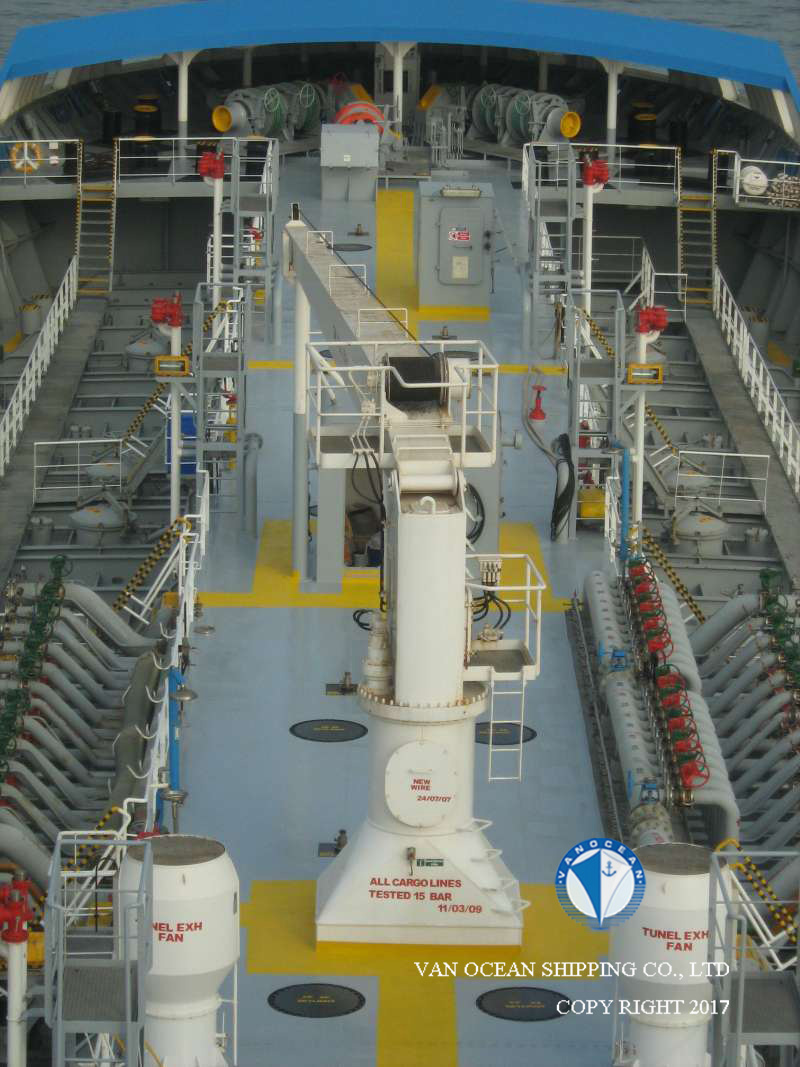

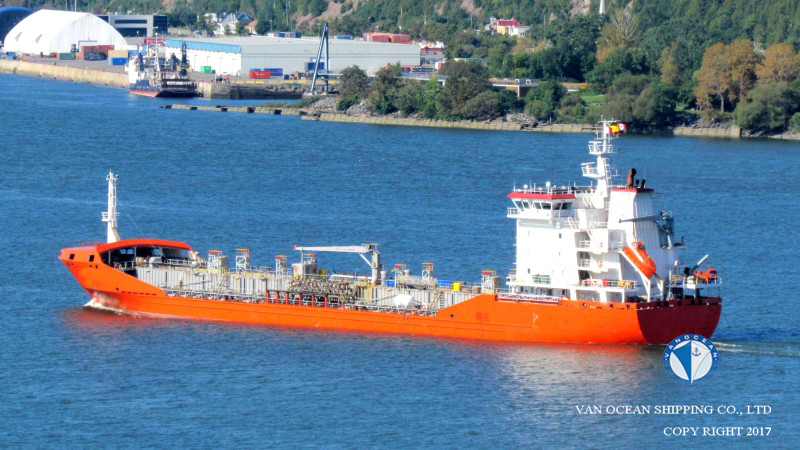

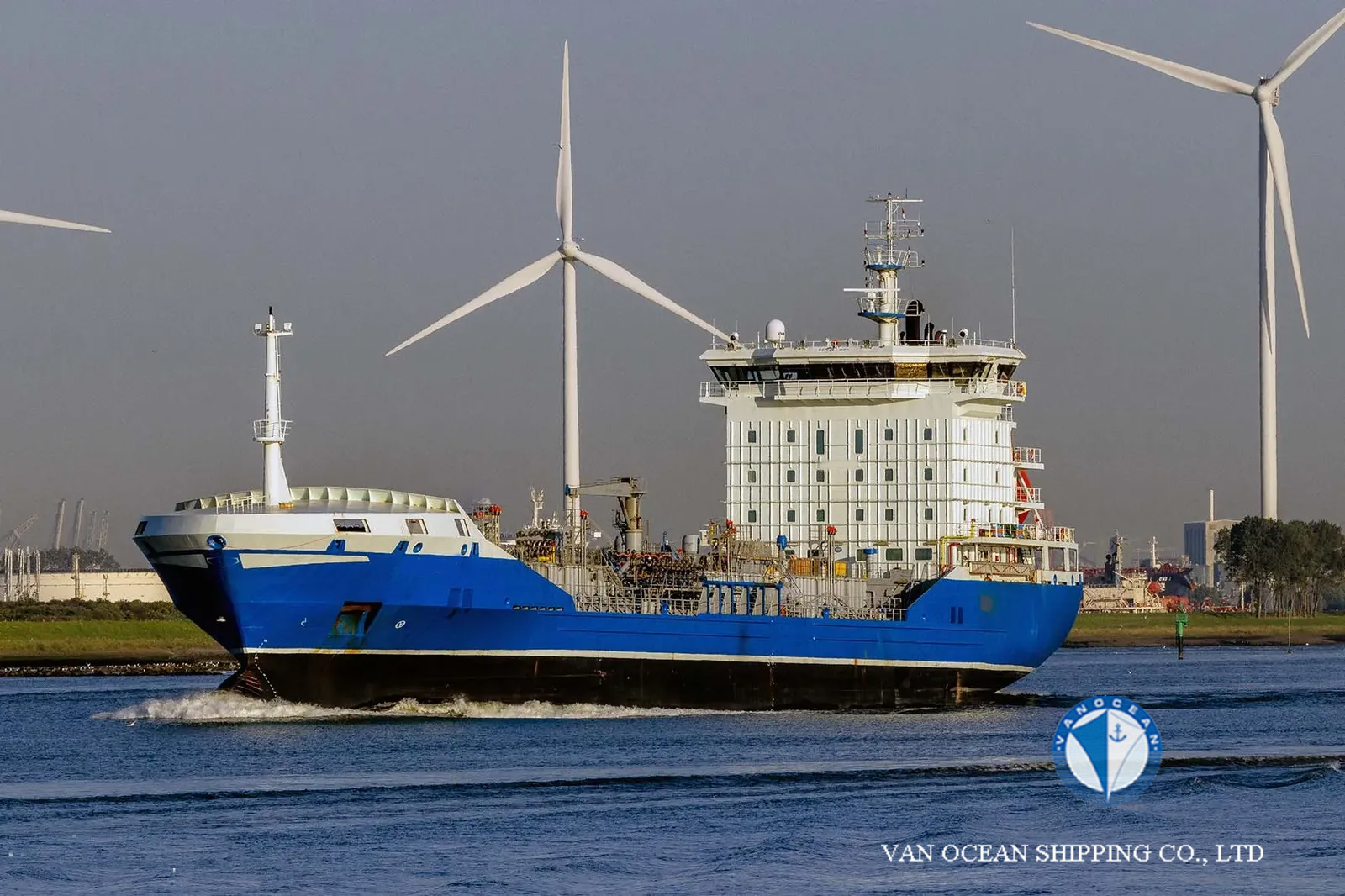

VESSEL NAME
TNK170
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL, DOUBLE SIDE, DOUBLE BOTTOM
FLAG
MARSHALL ISLAND
PORT OF REGISTRY
AALBORG
BUILT YEAR
2008
BUILT PLACE
TURKEY
CLASSIFICATION
DNV
CLASS NOTATION
✠1A, Tanker for chemicals Tanker for oil products,
E0 ESP Ice(1C) Recyclable, PMS(M) DDV(PMS)
SS
2030-03
DD
2028-04
LOA (M)
129.91
LBP (M)
123.67
BEAM (M)
19.6
DEPTH (M)
10.9
SUMMER DRAFT (M)
8.35
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
8198
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3753
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
11530
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)
MAK 6M43C 7342BHP 500RPM
M/E POWER (KW)
5479
A/E(S)
3 x 580KW AC
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
13.8KTS, 18MT IFO
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
20
CARGO CAPACITY98% (CBFT)
459112
CARGO CAPACITY98% (CBM)
13006
COATING/MATERIAL OF HOLD(S)
MARINELINE COATED
HEATING SYSTEM
STAINLESS STEEL COILS STEAM HEATING
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
12 x 200 CBM/H, 6 x 300 CBM/H, 2 x 100 CBM/H
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
