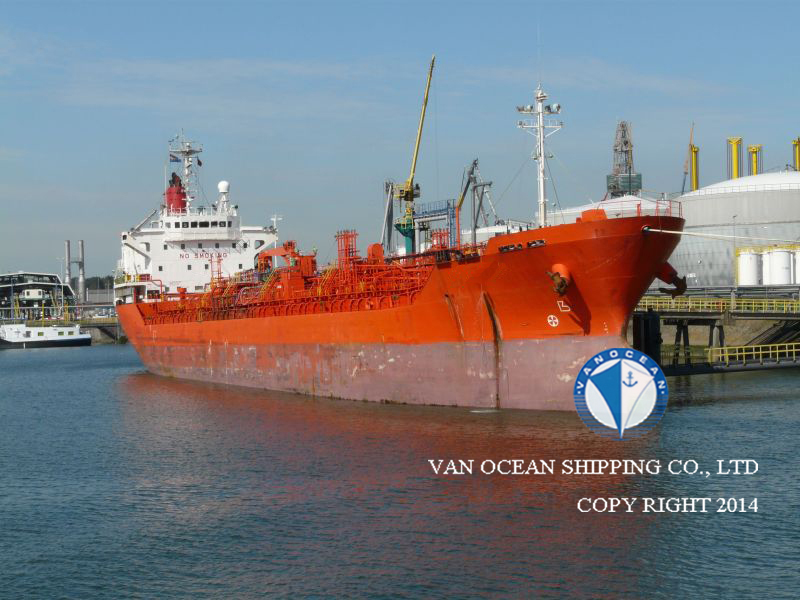

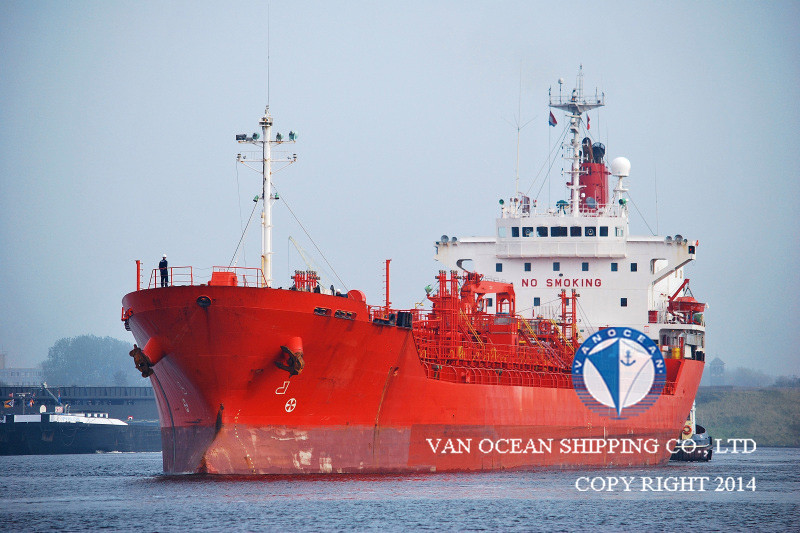

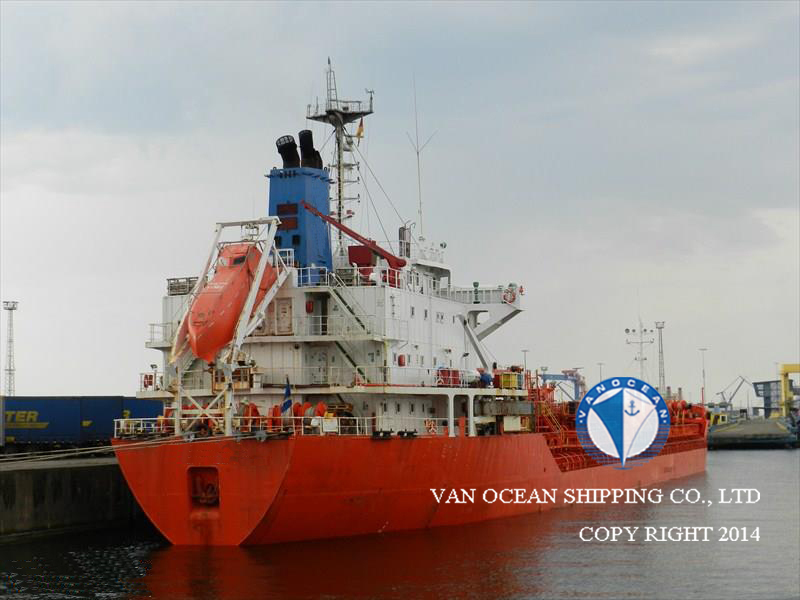

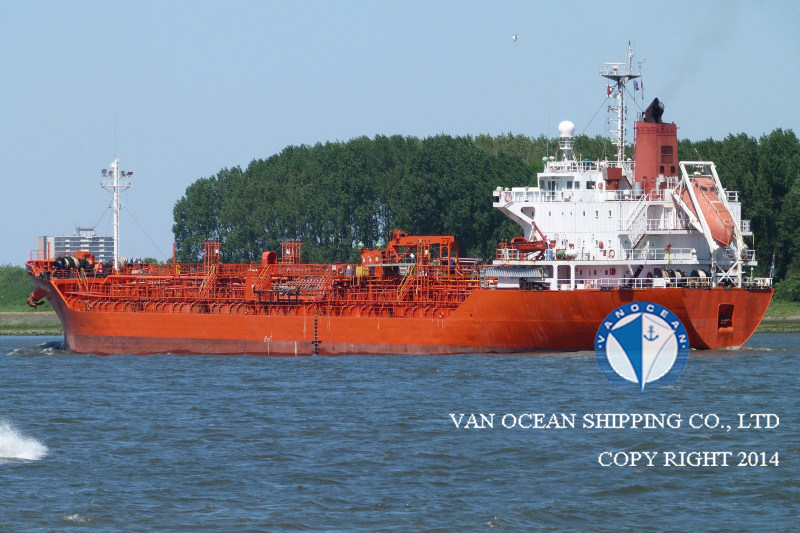

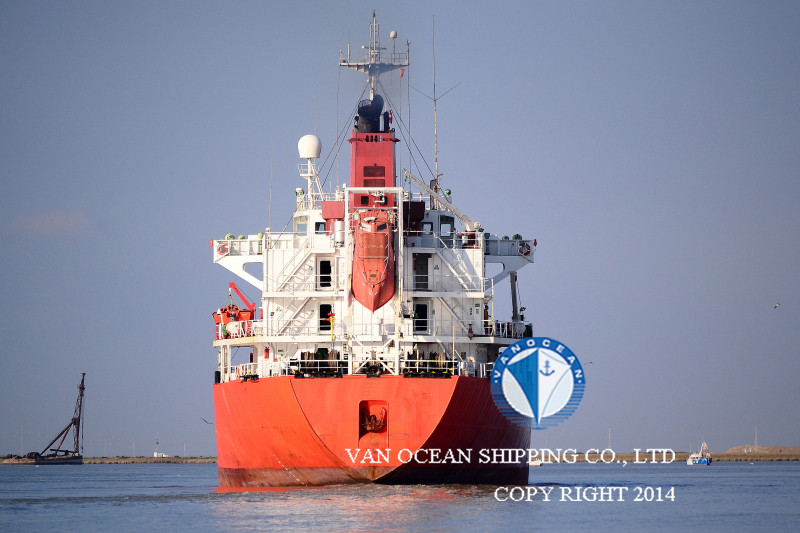

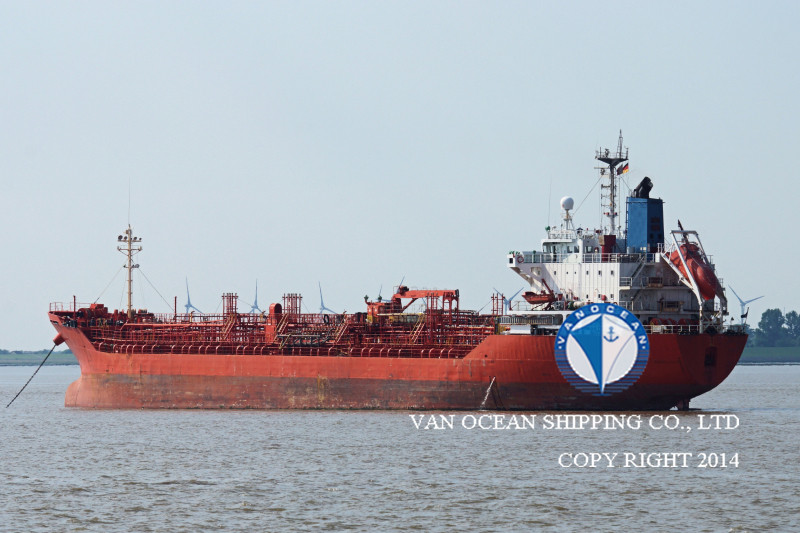

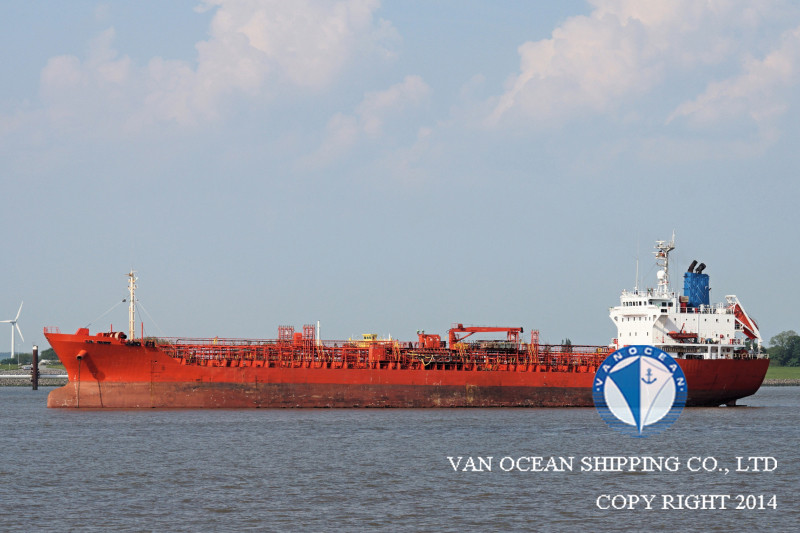

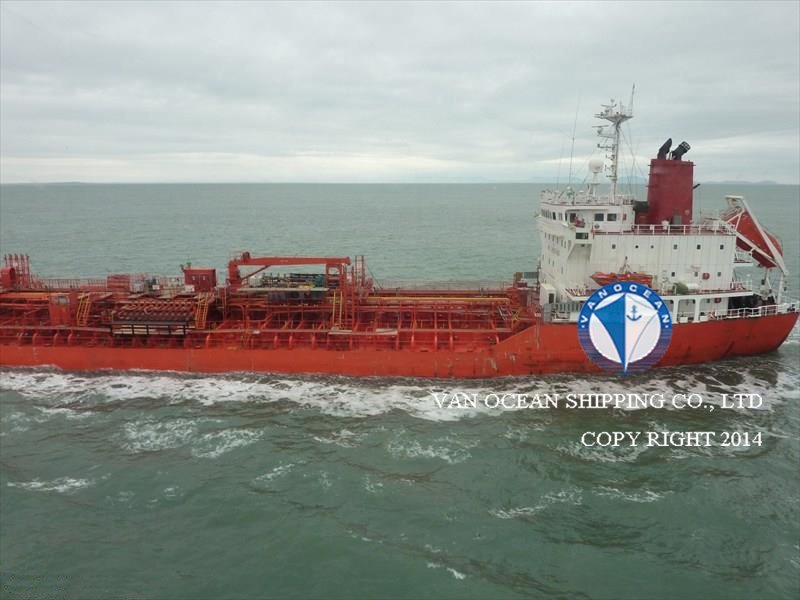

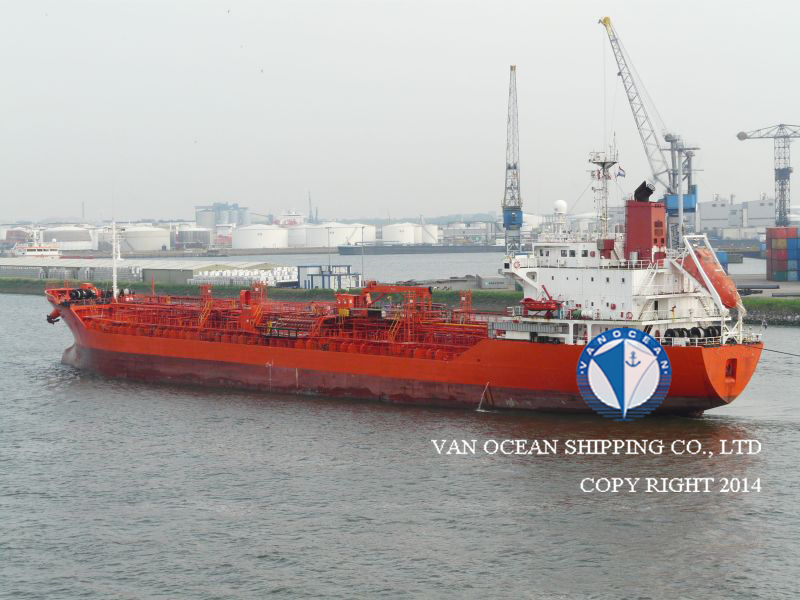

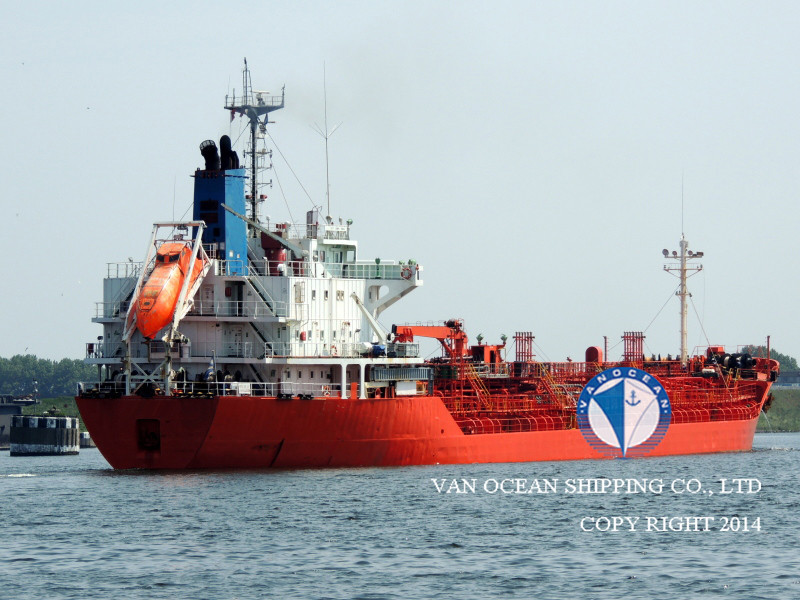

VESSEL NAME
TNK174
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MARSHALL ISLAND
PORT OF REGISTRY
MAJURO
BUILT YEAR
1998
BUILT PLACE
ASAKAWA SHIPBUILDING CO.,LTD, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS*(TM OR OB & AND C II & III) (ESP)/MNS* IMO II
SS
2018-03
DD
-
LOA (M)
125.00
LBP (M)
117.00
BEAM (M)
18.80
DEPTH (M)
9.90
SUMMER DRAFT (M)
7.76
WINTER DRAFT (M)
7.60
TROPICAL DRAFT (M)
7.93
GT (MT)
5994.00
PANAMA GT (MT)
-
SUEZ GT (MT)
6431.00
NT (MT)
3253.00
PANAMA NT (MT)
5094.00
SUEZ NT (MT)
5943.00
SUMMER DWT (MT)
10300.30
WINTER DWT (MT)
9984.40
TROPICAL DWT (MT)
10617.50
DISPLACEMENT (MT)
13621.30
LDT (MT)
-
GEAR(S)
CRANE, 1 x 5MT, CENTER
M/E(S)
B&W 6L35MC 210RPM
M/E POWER (KW)
3884
A/E(S)
-
GENERATOR(S)
1176 KVA
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
SPEED /CONSUMPTIONS
14.6
FUEL TYPE
HFO
BUNKER CAPACITY (CBM)
585.77
TANKS CAPACITY (CBM)
MGO/MDO:99.36
COMPARTMENT(S)
13
NUMBER OF CARGO HOLDS
21
CARGO CAPACITY98% (CBFT)
399850.87
CARGO CAPACITY98% (CBM)
11327.22
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
ZINC
IGS
-
PUMP(S)
CARGO (CENTRIFUGAL): 7 x 300CBM/HR, 14 x 200CBM/HR, 1 x 70CBM/HR
BALLAST (CENTRIFUGAL): 1 x 250CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 420BHP, 313.19KW
INSURANCE
POLLUTION LIABILITY COVERAGE: 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 7.5 MILLION
REMARK(S)
DISPLACEMENT (MT): 13305.4 (WINTER), 13938.5 (TROPICAL)
SBT:3068.54CBM
6 PUMPS CAN BE RUN SIMULTANEOUSLY AT FULL CAPACITY
