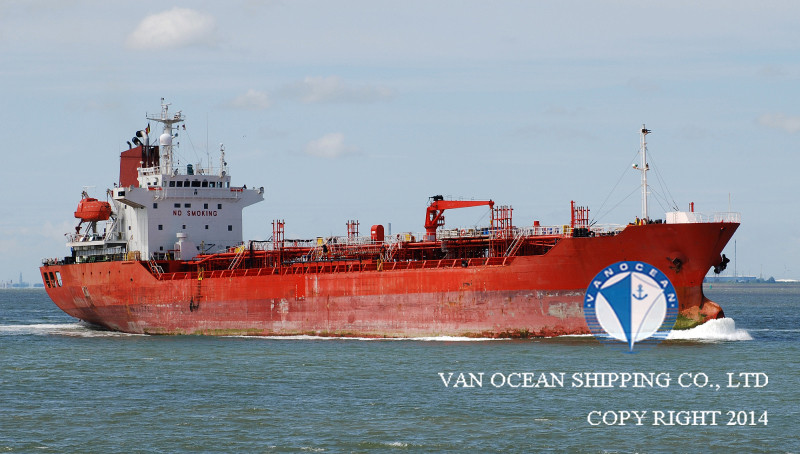

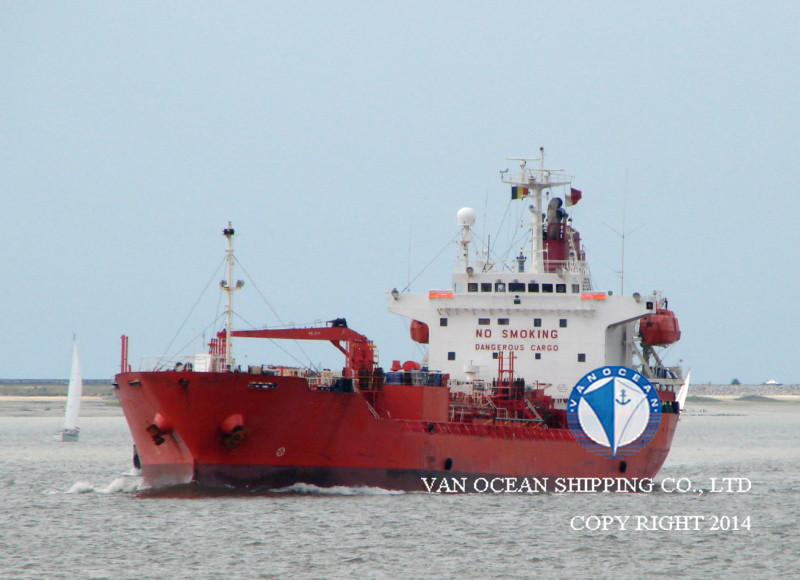

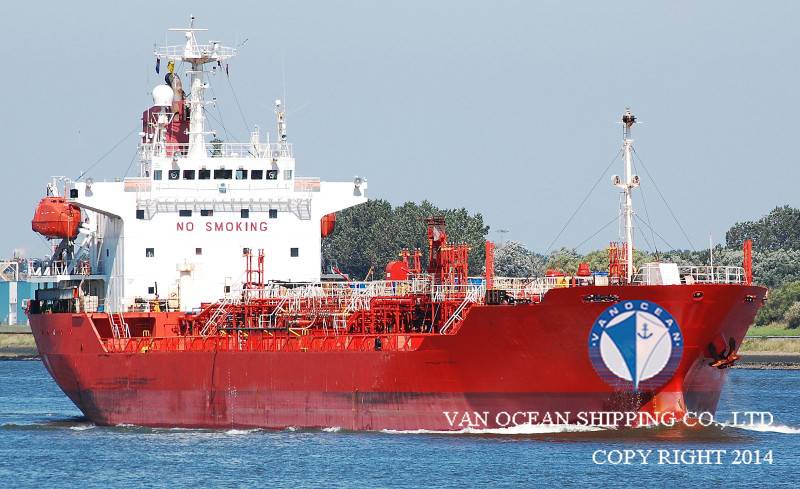

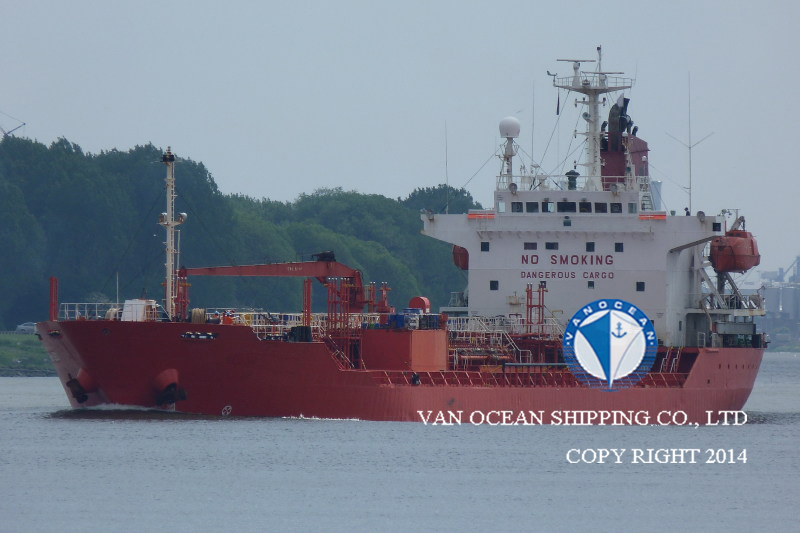

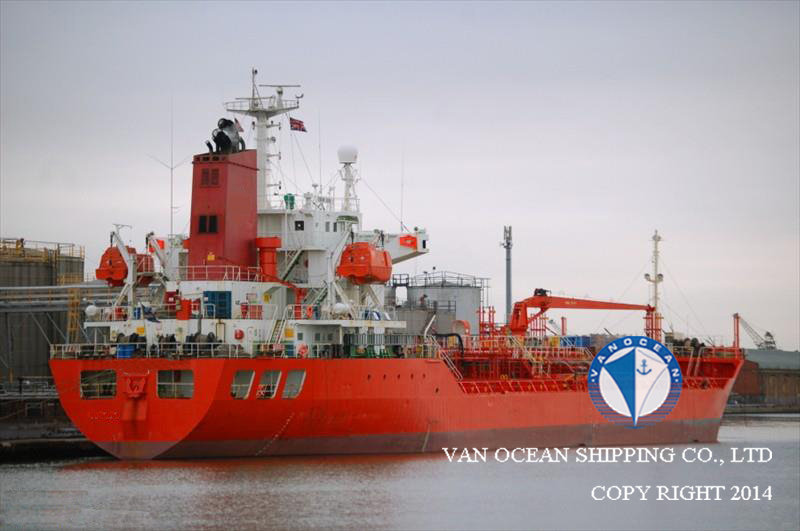

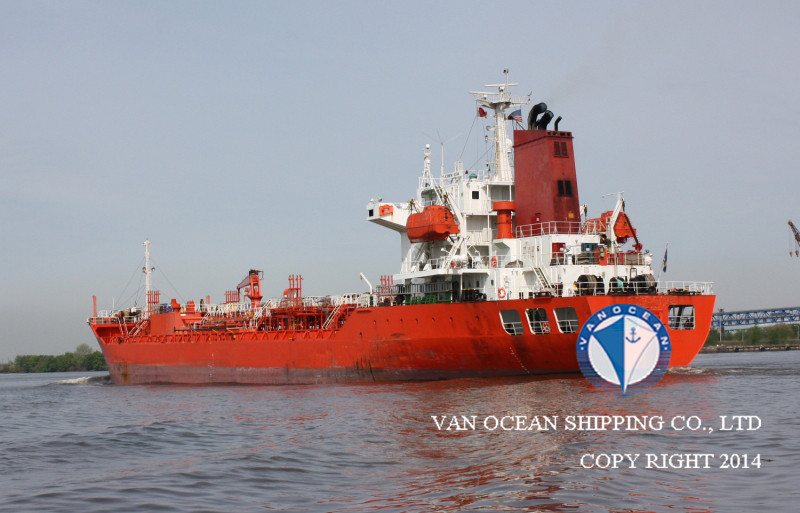

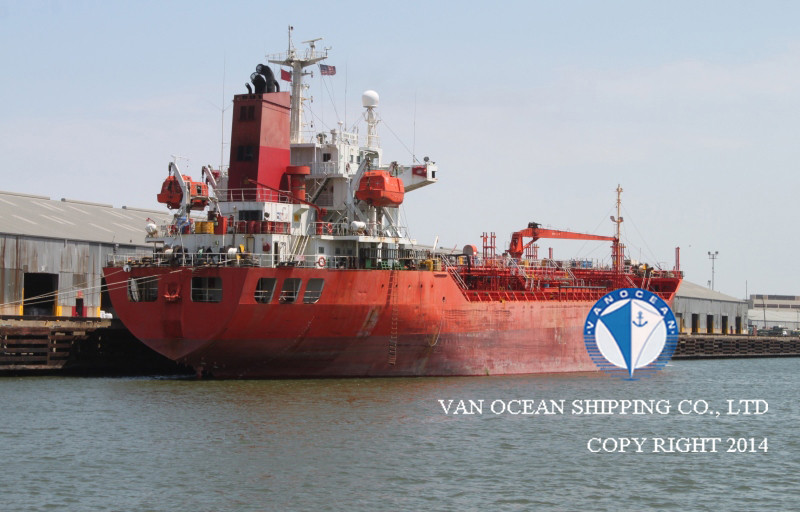

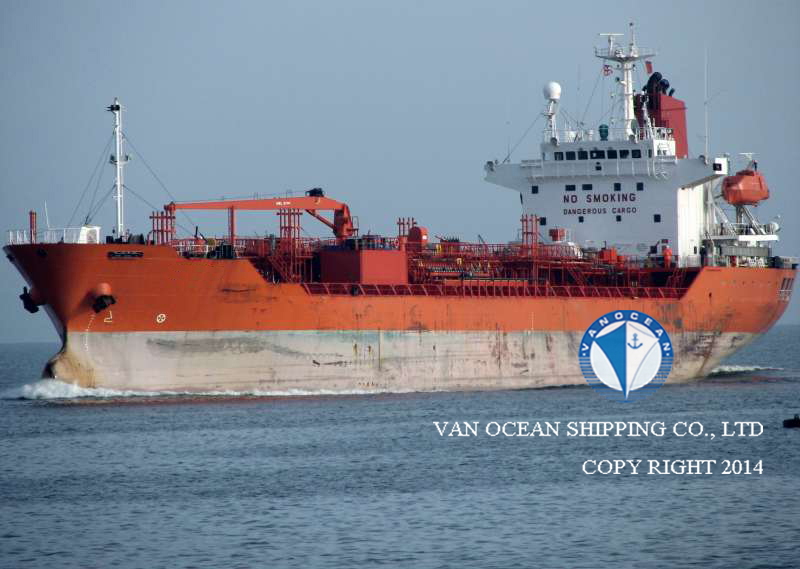

VESSEL NAME
TNK175
TYPE

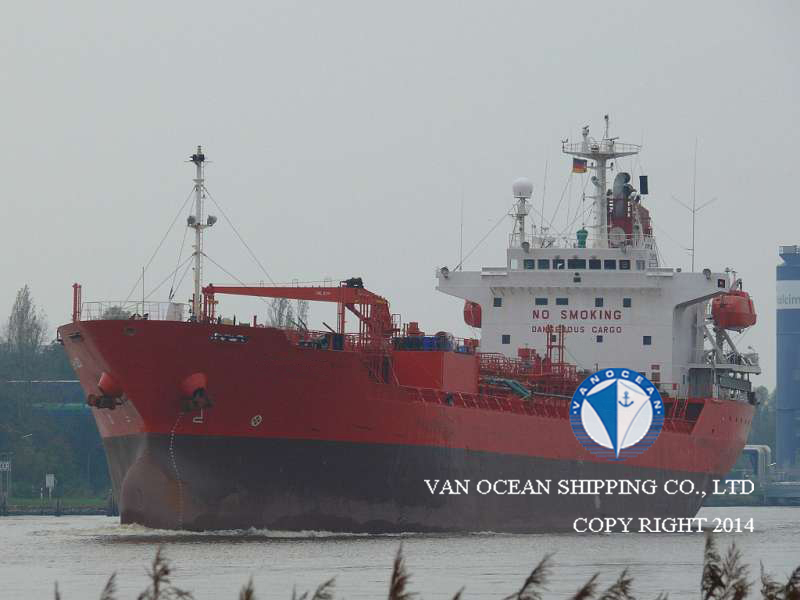

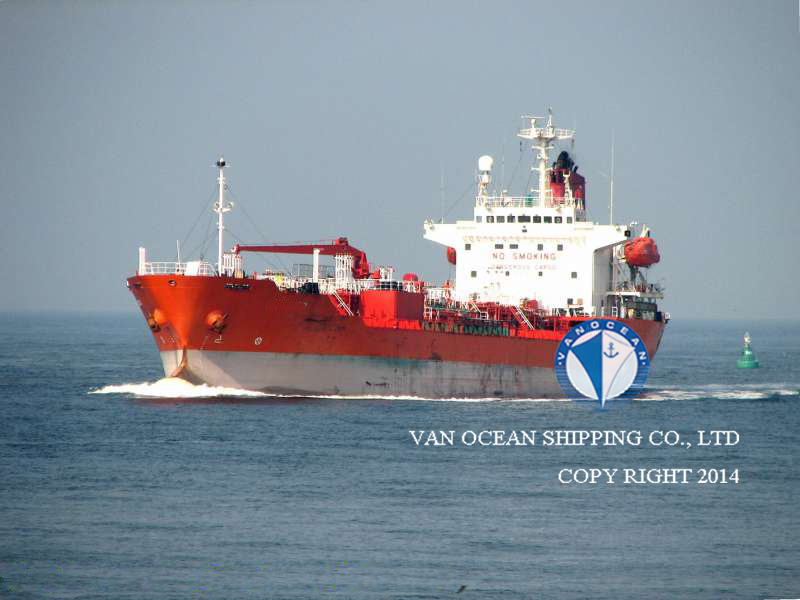

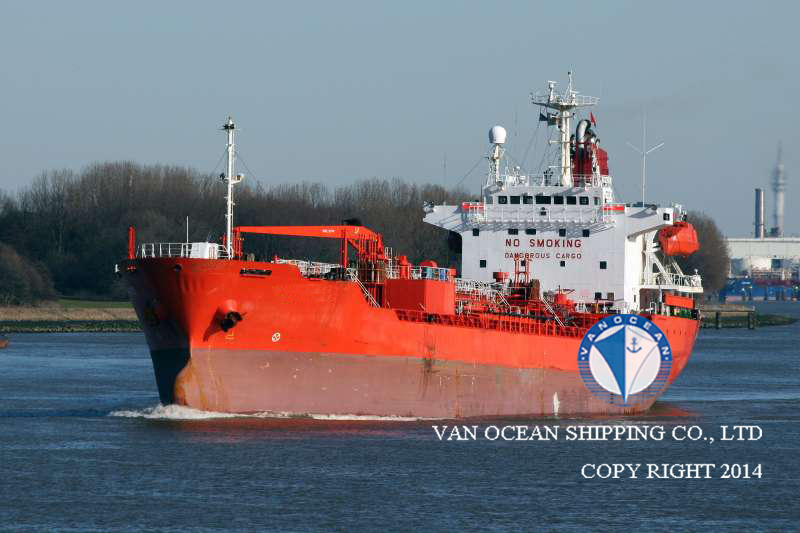

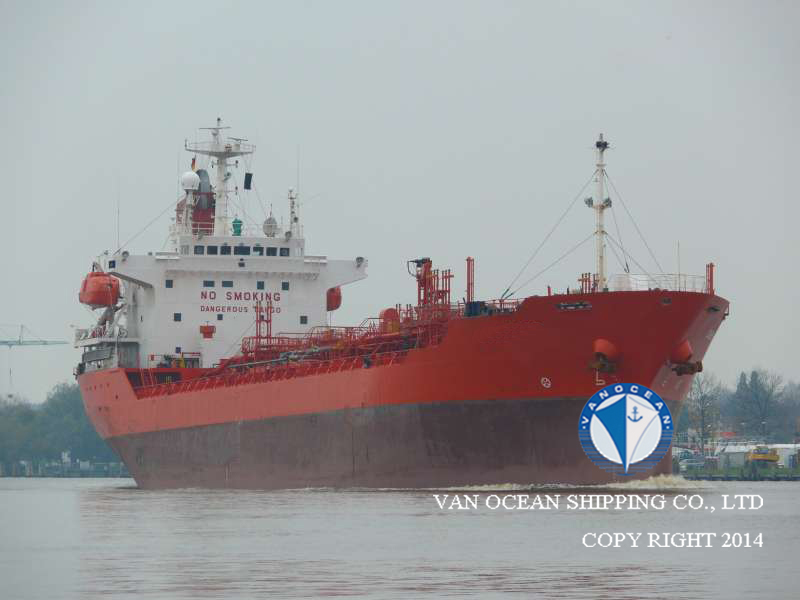

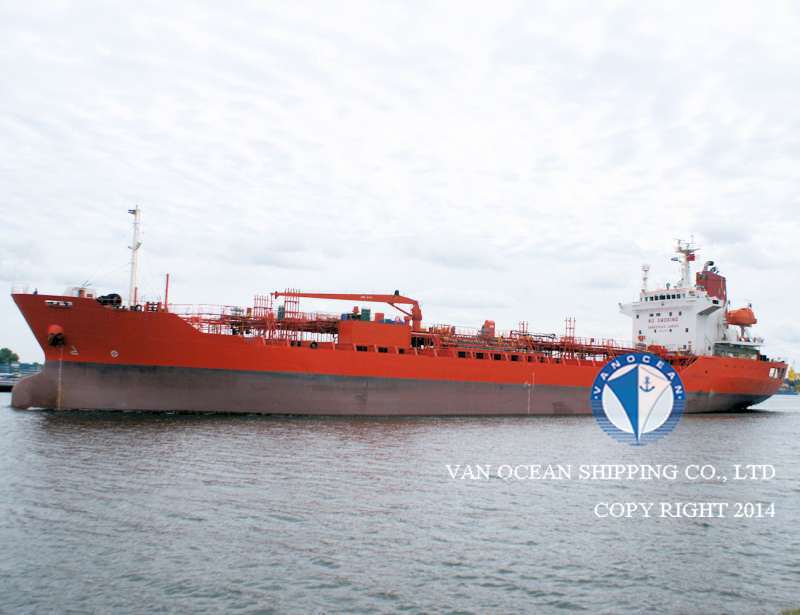

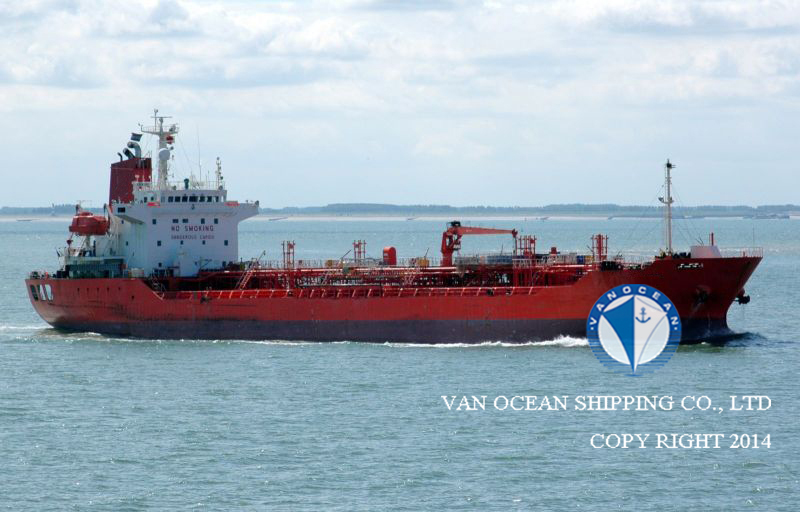

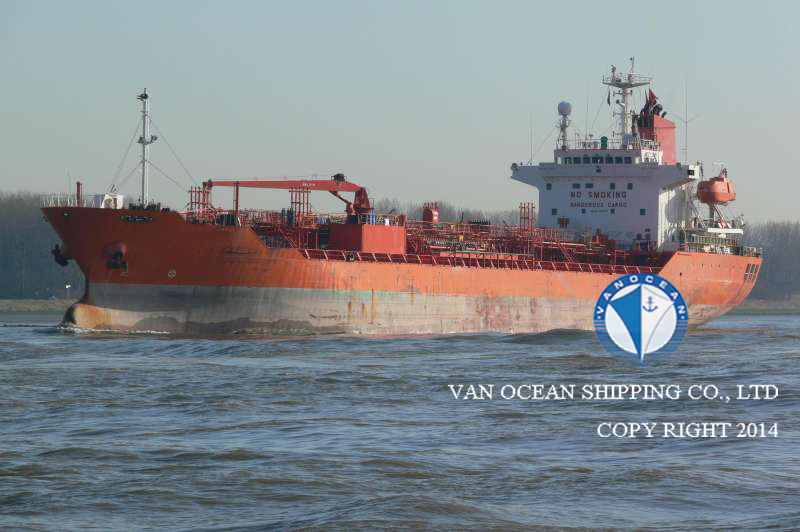

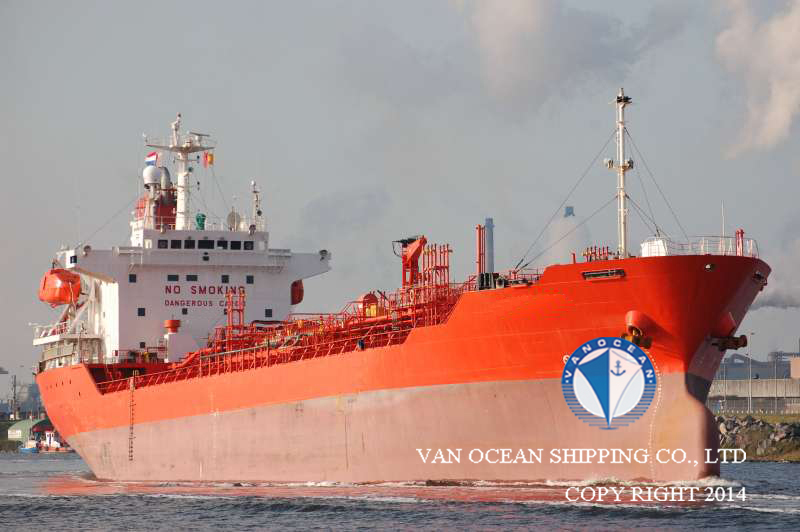

OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
KIRIBATI
PORT OF REGISTRY
-
BUILT YEAR
1998
BUILT PLACE
FUKUOKA SHIP BUILDING, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
1A1 TANKER FOR CHEMICALS AND OIL ESP IMO II
SS
2018-05-06
DD
-
LOA (M)
117.27
LBP (M)
110.10
BEAM (M)
20.22
DEPTH (M)
11.20
SUMMER DRAFT (M)
8.76
WINTER DRAFT (M)
8.58
TROPICAL DRAFT (M)
8.95
GT (MT)
6332.00
PANAMA GT (MT)
-
SUEZ GT (MT)
6769.81
NT (MT)
3536.00
PANAMA NT (MT)
5376.00
SUEZ NT (MT)
5757.30
SUMMER DWT (MT)
11629.92
WINTER DWT (MT)
11272.53
TROPICAL DWT (MT)
11989.19
DISPLACEMENT (MT)
14858.19
LDT (MT)
-
GEAR(S)
CRANE, 1 x 5MT, CENTER, OUTREACH 2M
M/E(S)
MITSUBISHI 7UEC37LA 4828BHP 210RPM
M/E POWER (KW)
3603
A/E(S)
-
GENERATOR(S)
1746KVA
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
720
TANKS CAPACITY (CBM)
MGO: 103, SLOP TANK：532.28
COMPARTMENT(S)
10
NUMBER OF CARGO HOLDS
20
CARGO CAPACITY98% (CBFT)
433893.83
CARGO CAPACITY98% (CBM)
12291.61
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
ZINC
IGS
YES
PUMP(S)
CARGO (CENTRIFUGAL): 8 x 300CBM/HR, 6 x 200CBM/HR, 6 x 100CBM/HR
BALLAST (CENTRIFUGAL): 1 x 300CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 510BHP, 380.3KW
INSURANCE
POLLUTION LIABILITY COVERAGE: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 7.9 MILLION
REMARK(S)
DISPLACEMENT (MT): 14500.80(WINTER),15217.46(TROPICAL)
SBT: 3316CBM
BALLAST TANKS ARE EPOXY COATED
SLOP TANKS ARE MADE BY STAINLESS STEEL
