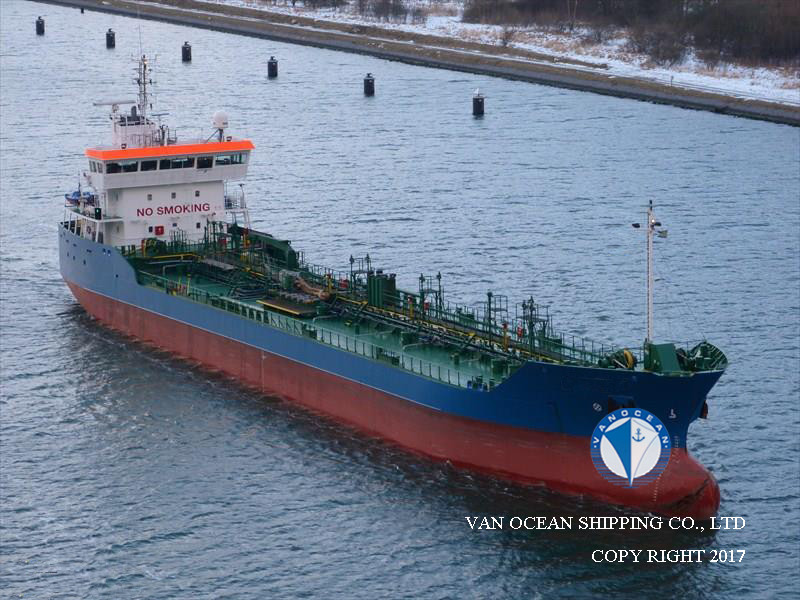

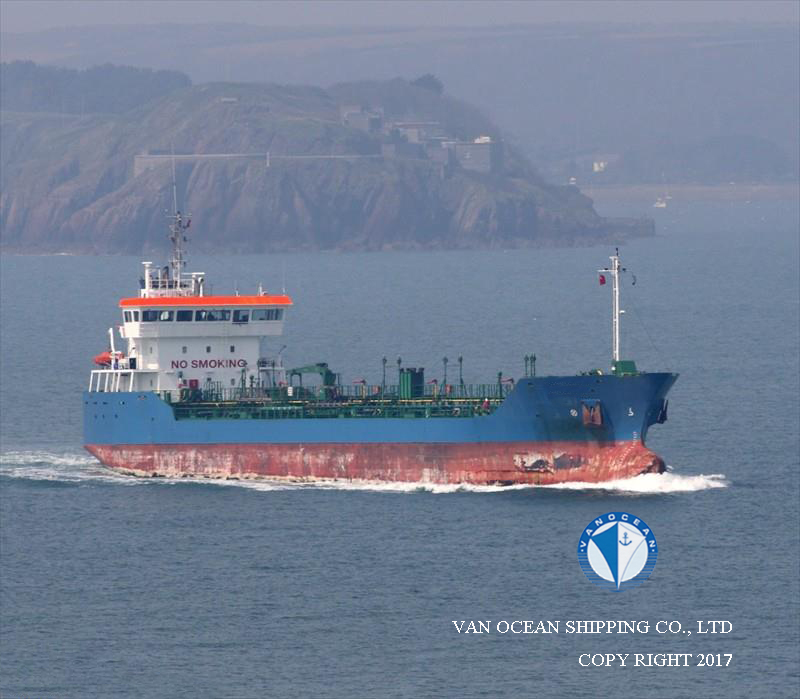

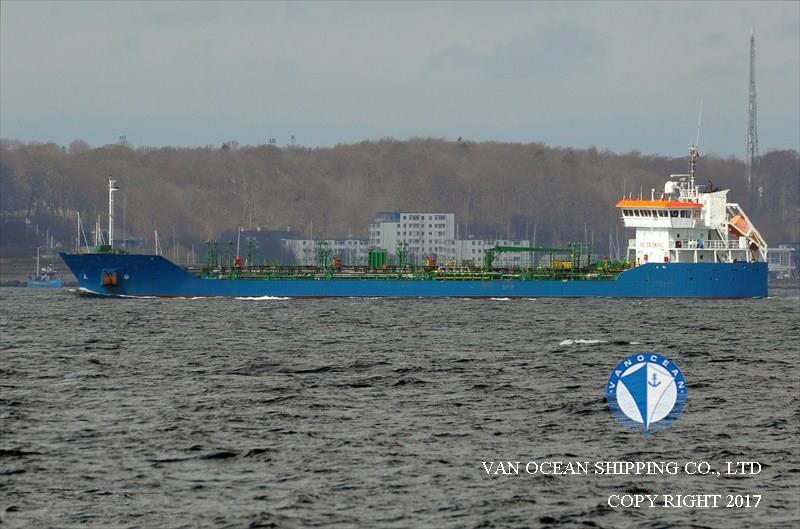

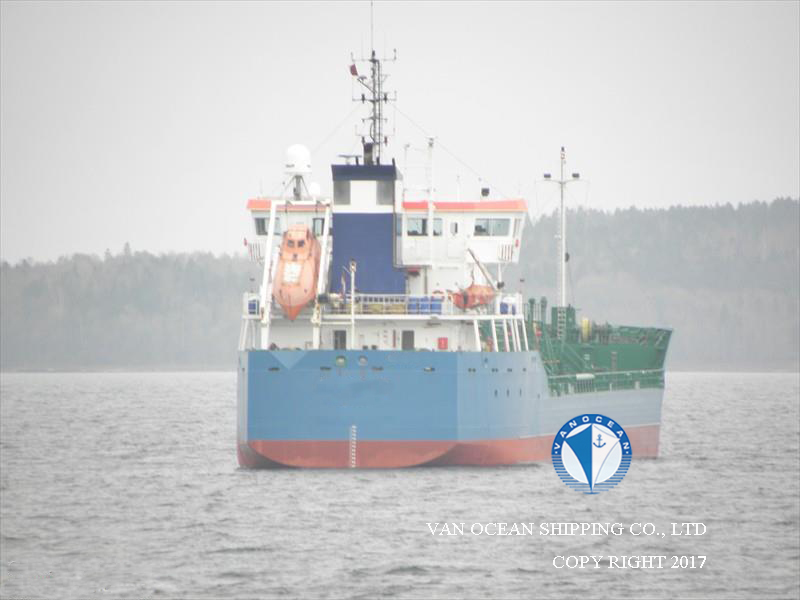

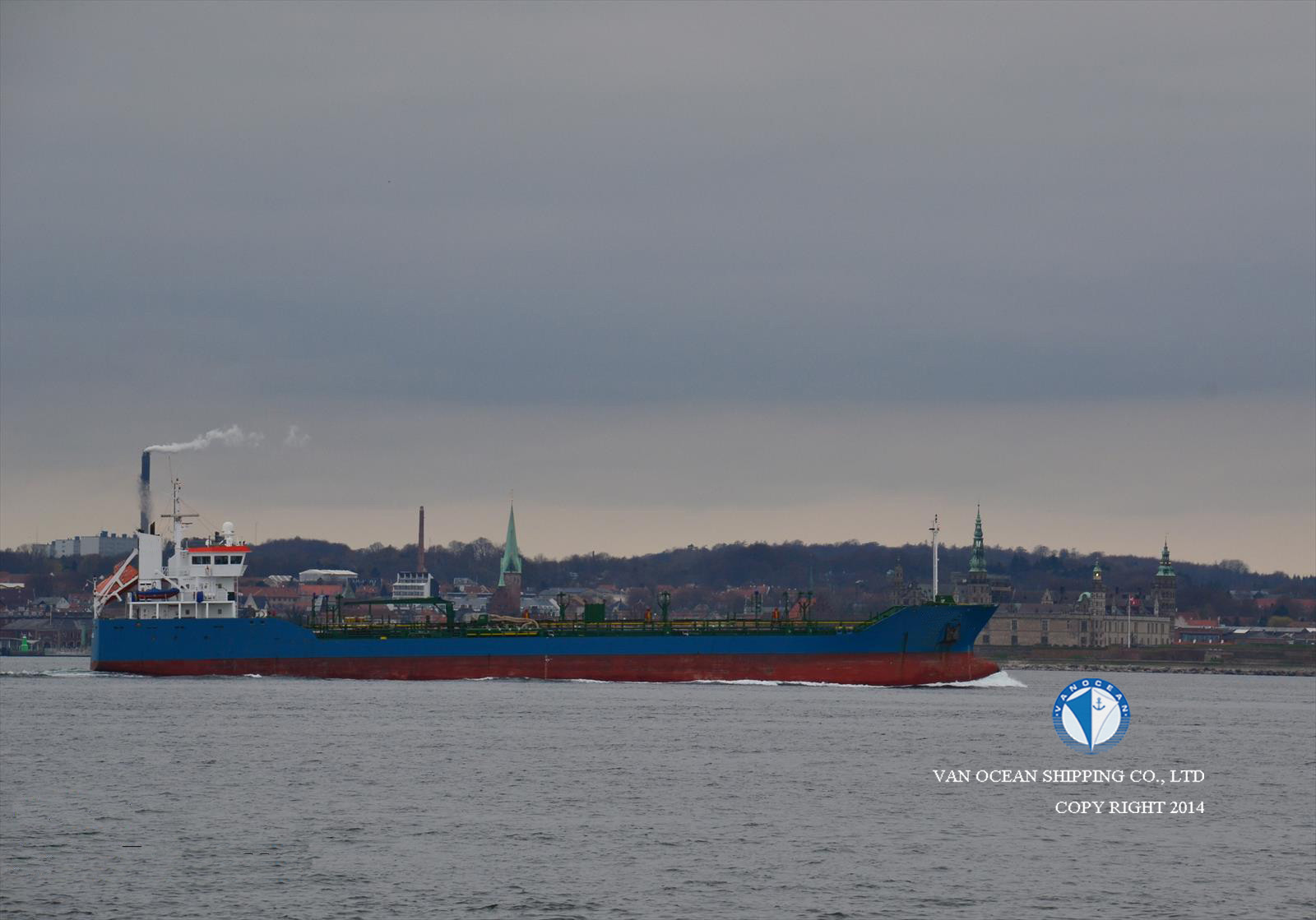

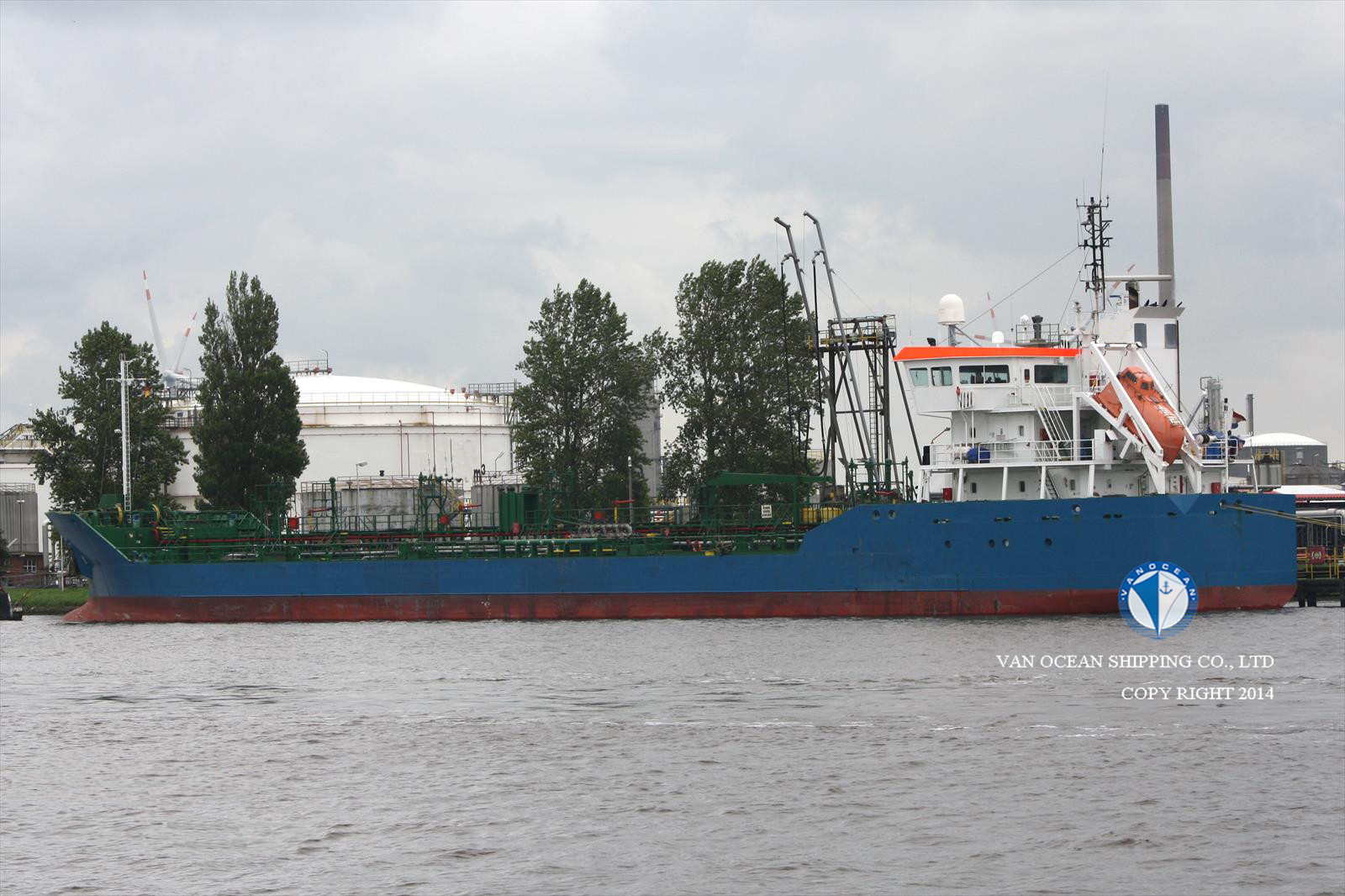

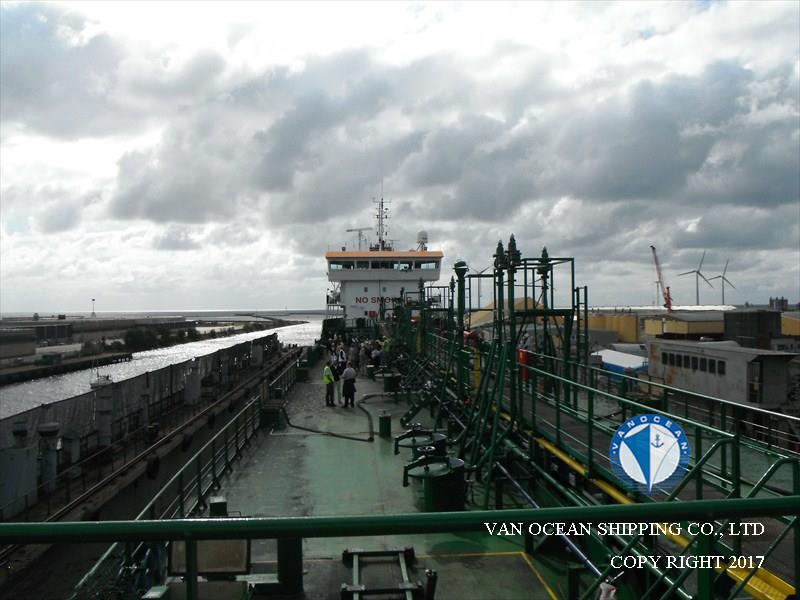

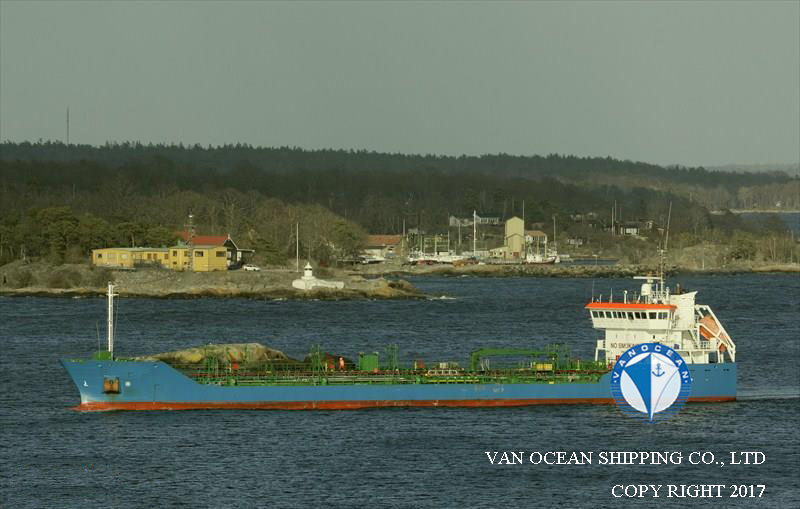

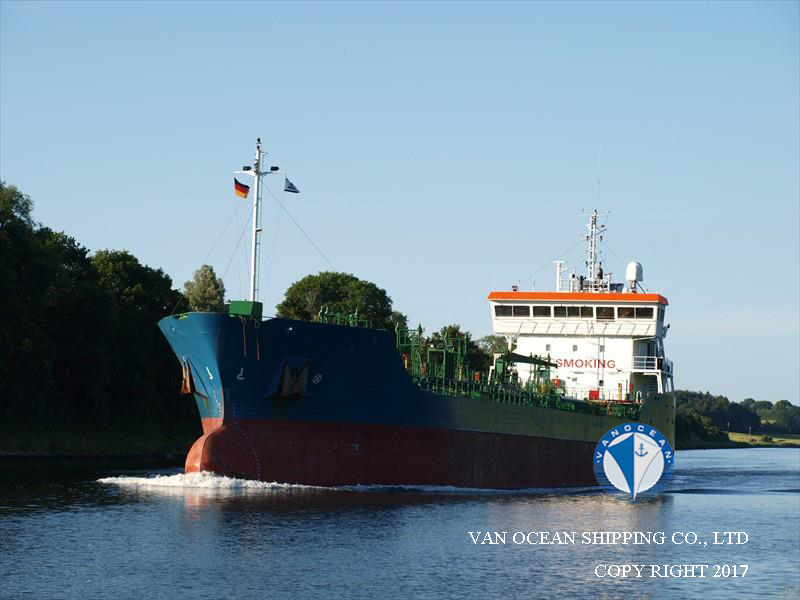

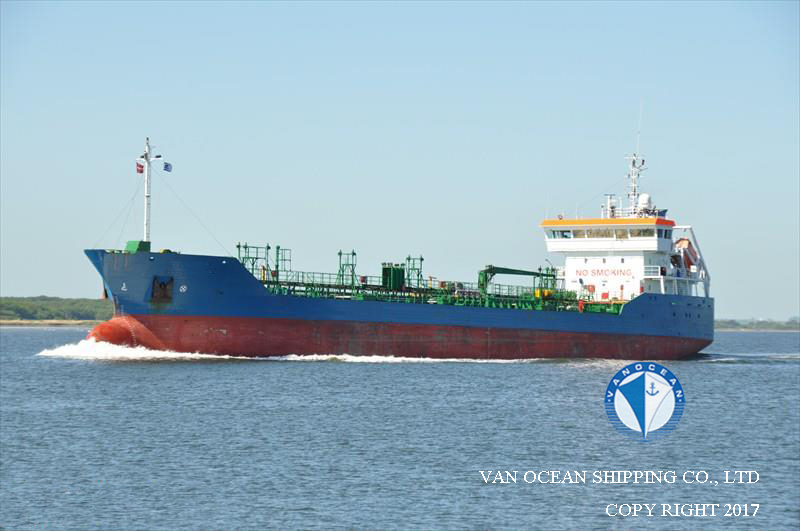

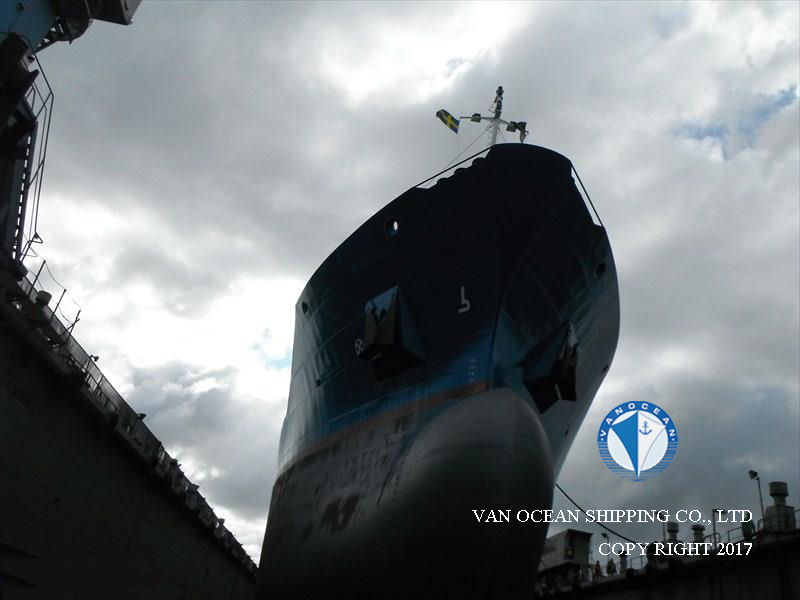

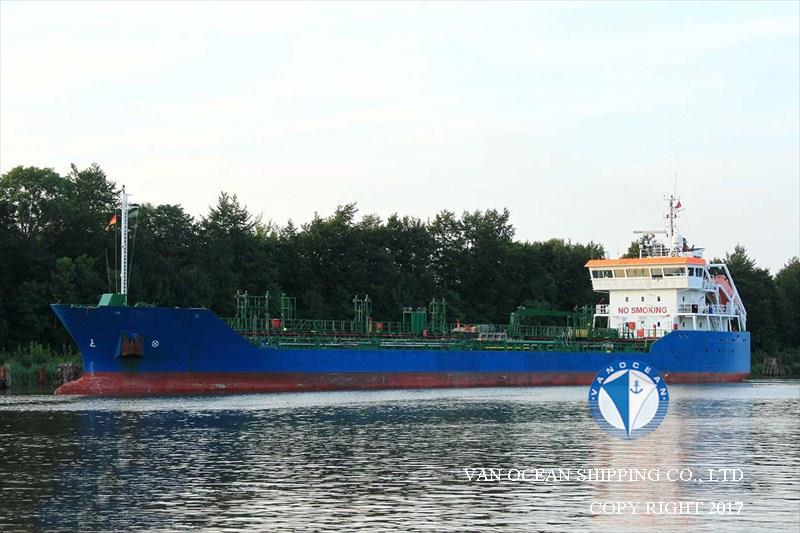

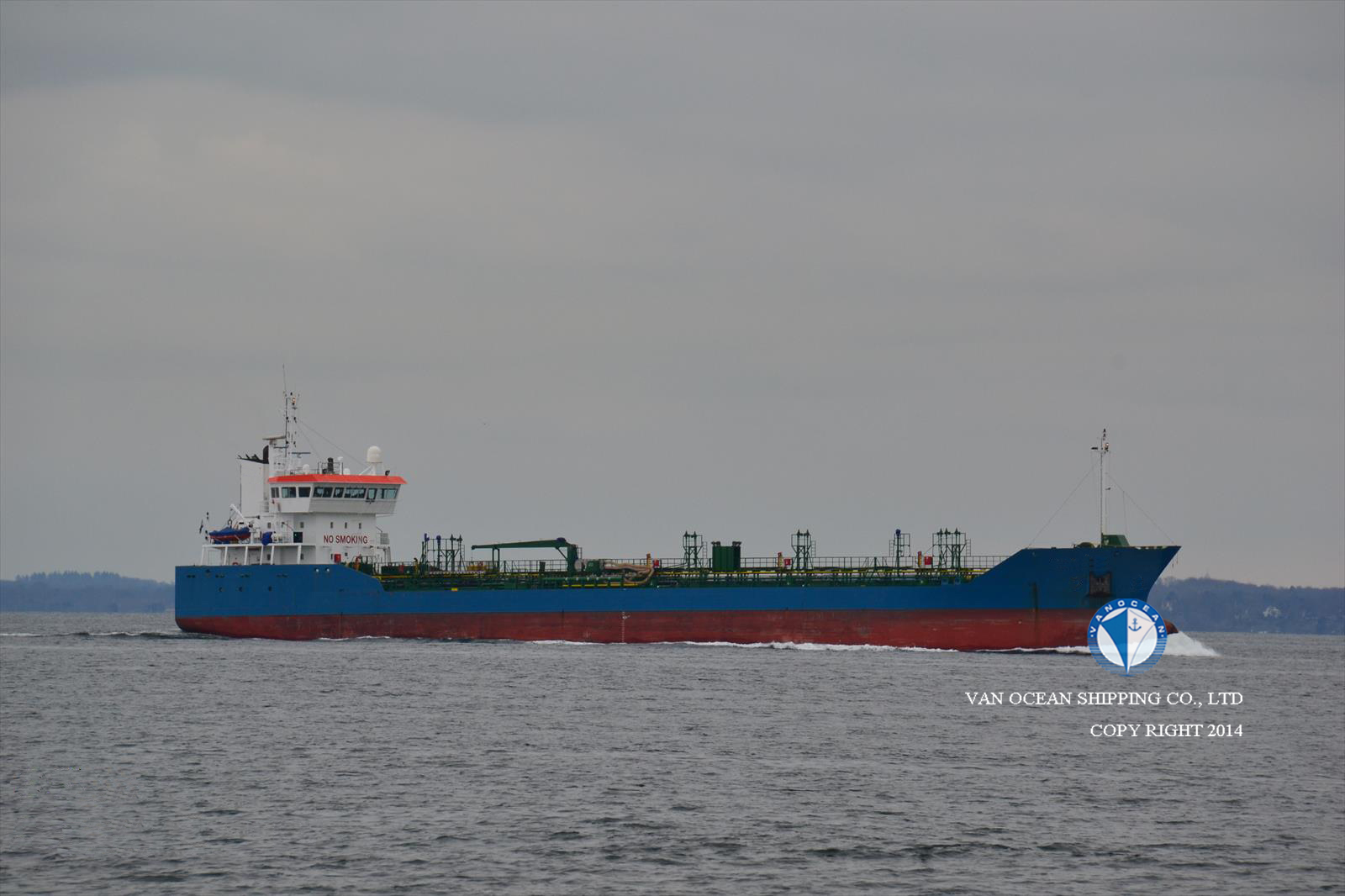

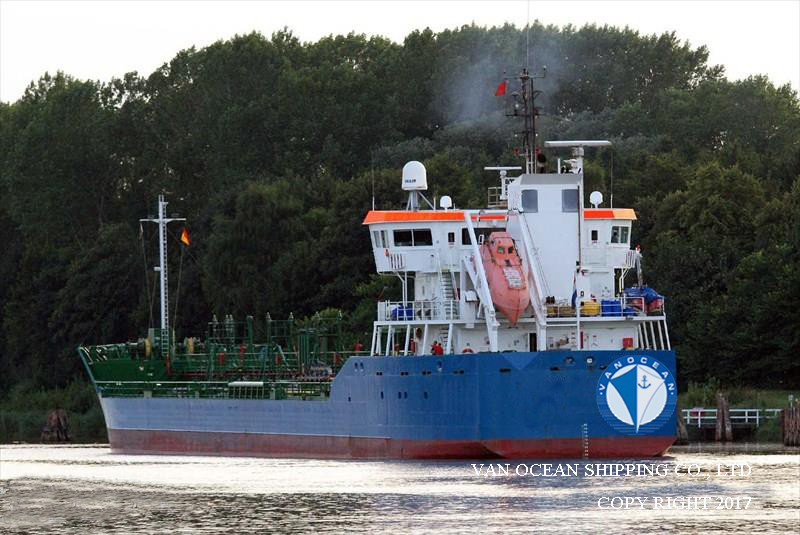

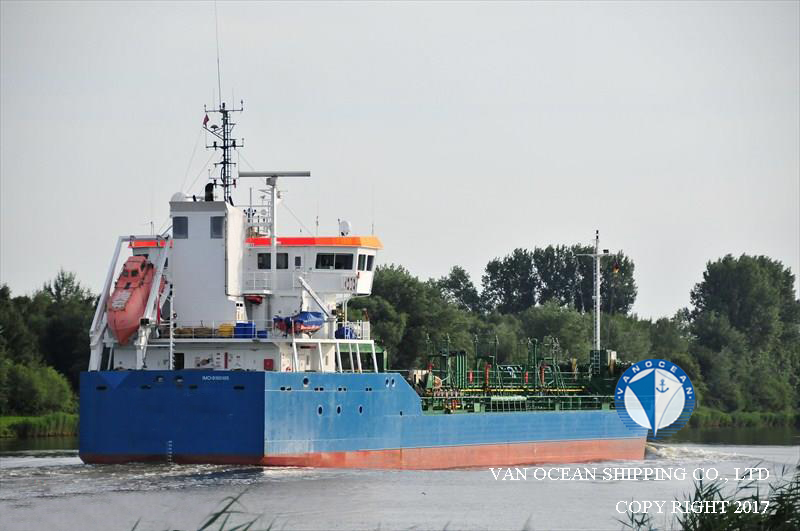

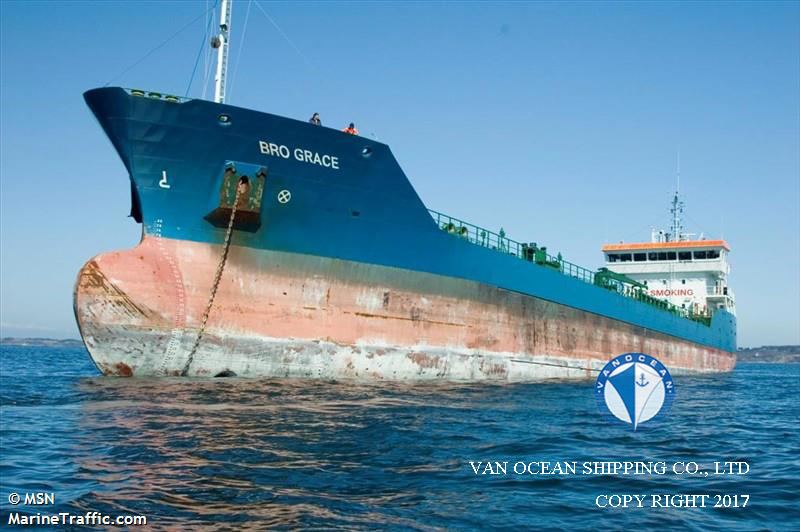

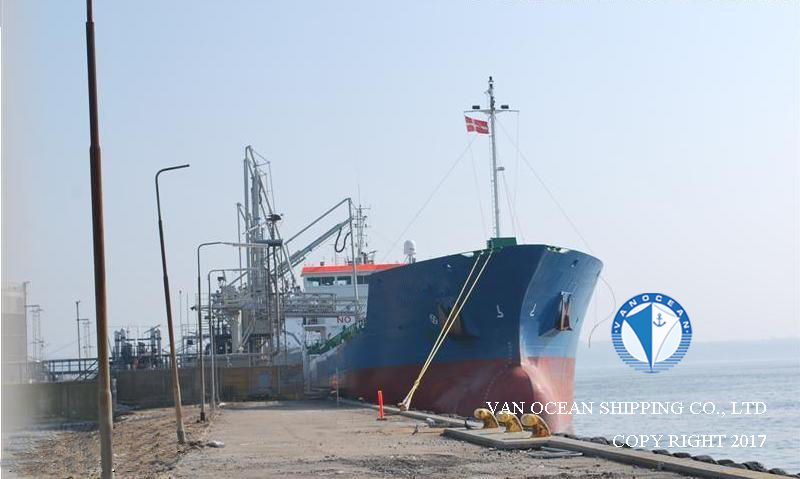

VESSEL NAME
TNK180
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
NETHERLAND
PORT OF REGISTRY
DELFZIJL
BUILT YEAR
1999
BUILT PLACE
SCHEEPSWERF FERUS SMIT B. V , NETHERLAND
CLASSIFICATION
BV
CLASS NOTATION
I 3/3 +OIL AND CHEMICAL TANKER IMO III ESP DEEP SEA +MACH +AUT-MS ICE 1B SBT
SS
-
DD
-
LOA (M)
103.46
LBP (M)
98.35
BEAM (M)
15.00
DEPTH (M)
9.30
SUMMER DRAFT (M)
6.76
WINTER DRAFT (M)
6.76
TROPICAL DRAFT (M)
6.76
GT (MT)
3653.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1825.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
6535.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
8405.00
LDT (MT)
-
GEAR(S)
CRANE, 1 x 1.5MT
M/E(S)
WARTSILA 6R32E BHP 3304 3302 HP
M/E POWER (KW)
2430
A/E(S)
-
GENERATOR(S)
3 x 280KVA 224KW 440V
1 x 54KVA 43KW 440V
SHAFT GENERATOR(S)
1 x 450KVA 360KW 440V
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
13KTS
FUEL TYPE
IFO 180
BUNKER CAPACITY (CBM)
231
TANKS CAPACITY (CBM)
MDO/MGO：58, SLOP TANK：31
COMPARTMENT(S)
5
NUMBER OF CARGO HOLDS
9
CARGO CAPACITY98% (CBFT)
243322.90
CARGO CAPACITY98% (CBM)
6893.00
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
-
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
CARGO (CENTRIFUGAL): 9 x 300CBM/HR, 2 x 70CBM/HR
BALLAST (CENTRIFUGAL): 2 x 300CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 353BHP, 263.23KW
INSURANCE
POLLUTION LIABILITY: USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 6.7 MILLION
REMARK(S)
SBT: 2581CBM
BALLAST TANK AND SLOP TAN ARE EPOXY COATED
