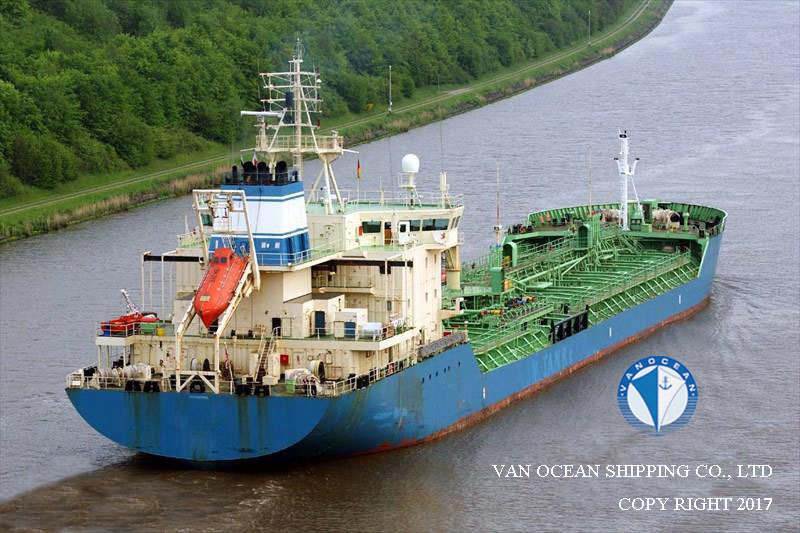

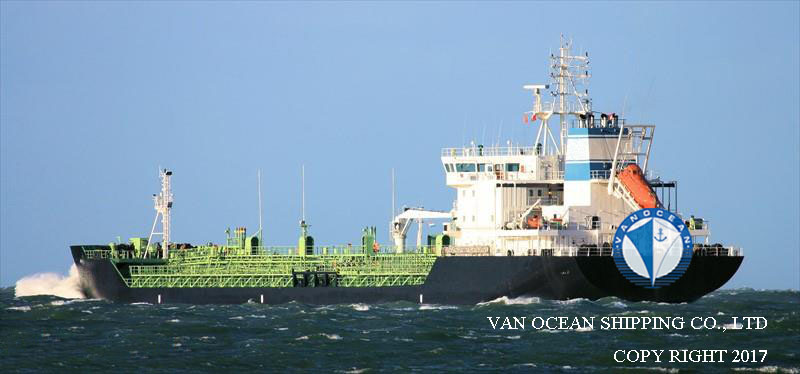

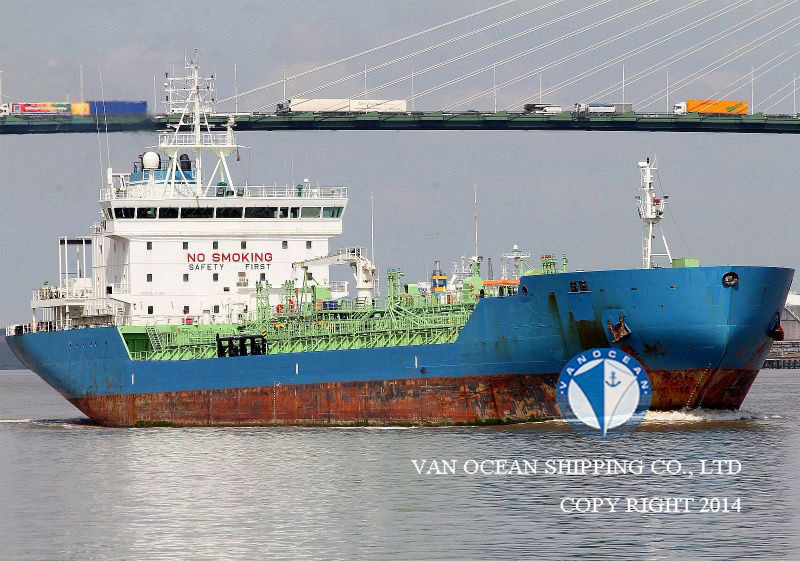

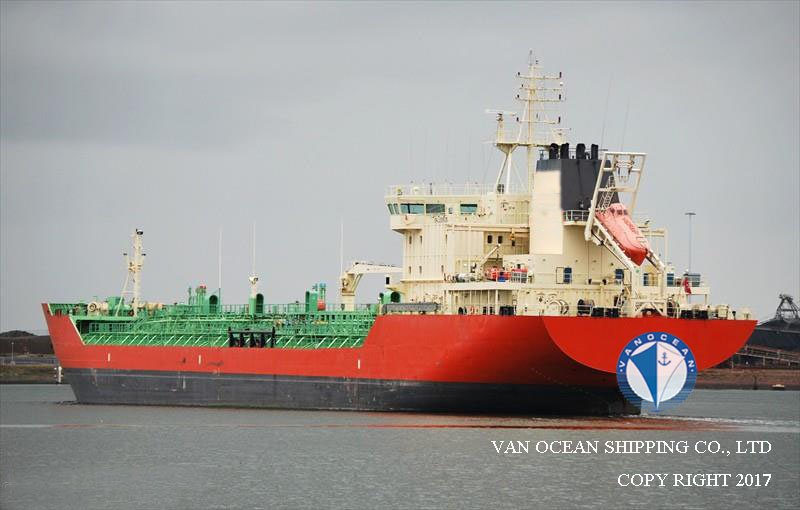

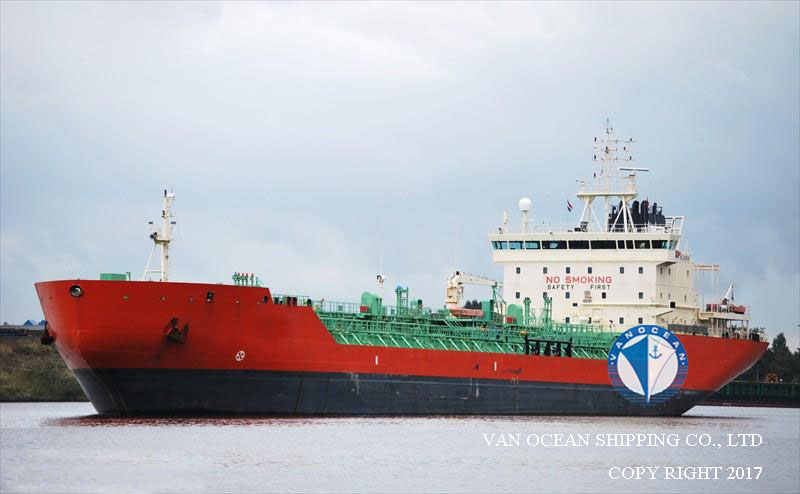

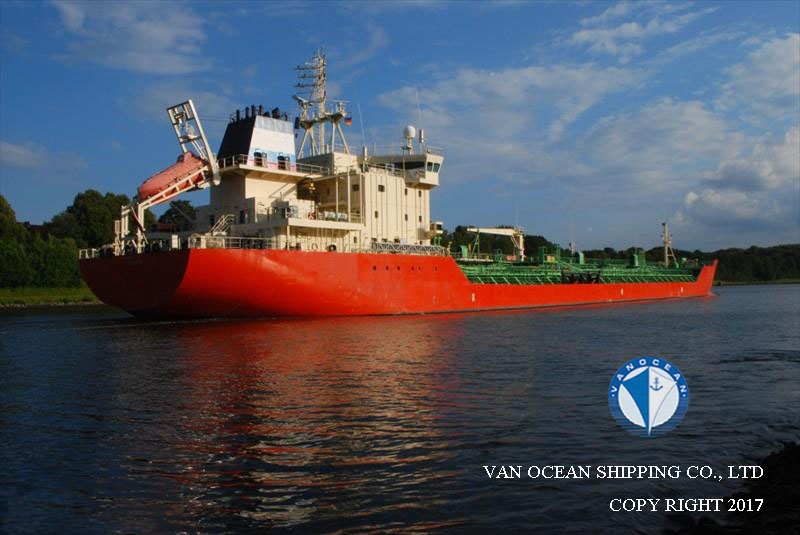

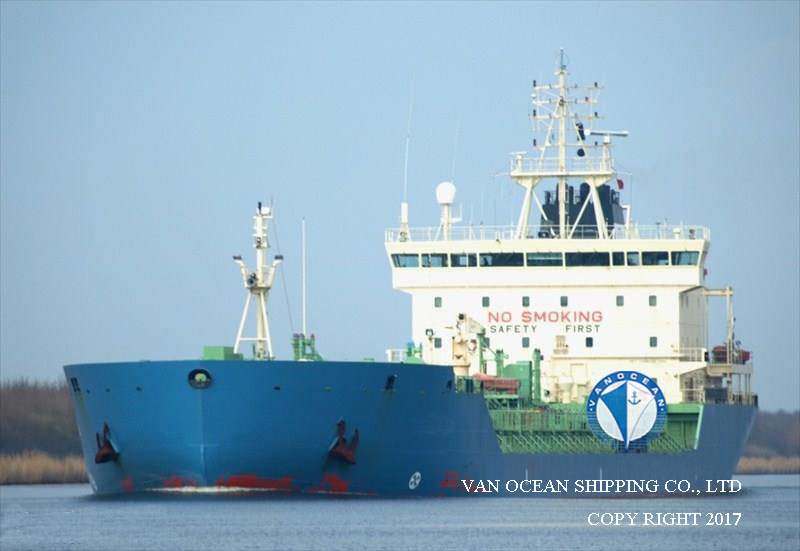

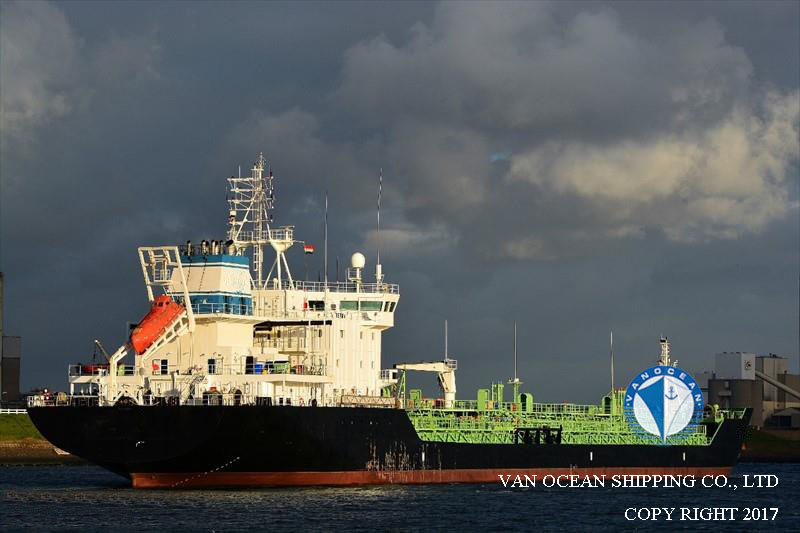

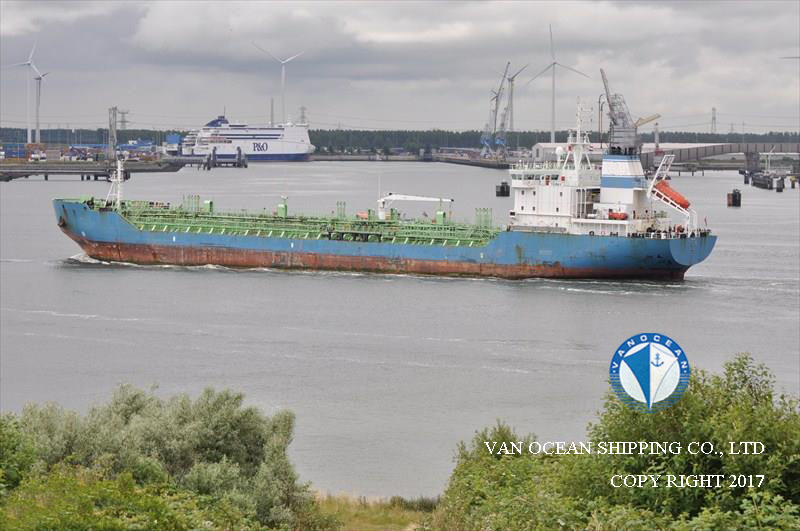

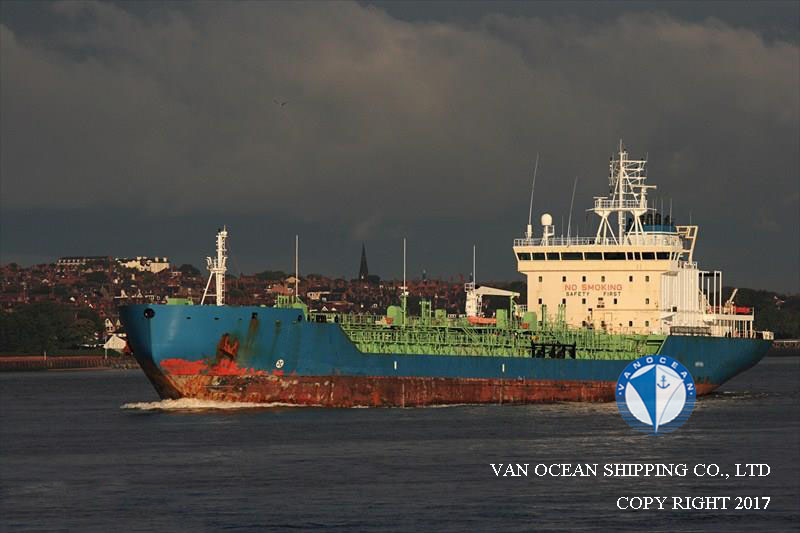

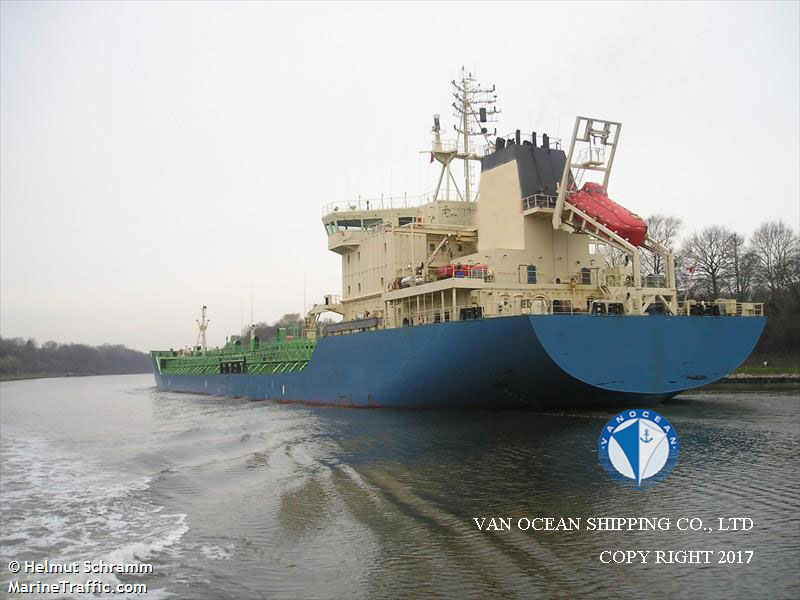

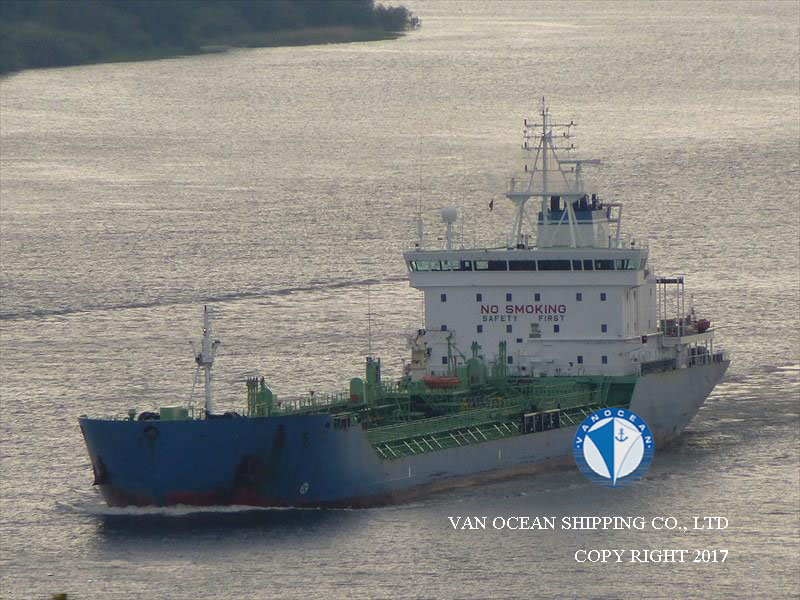

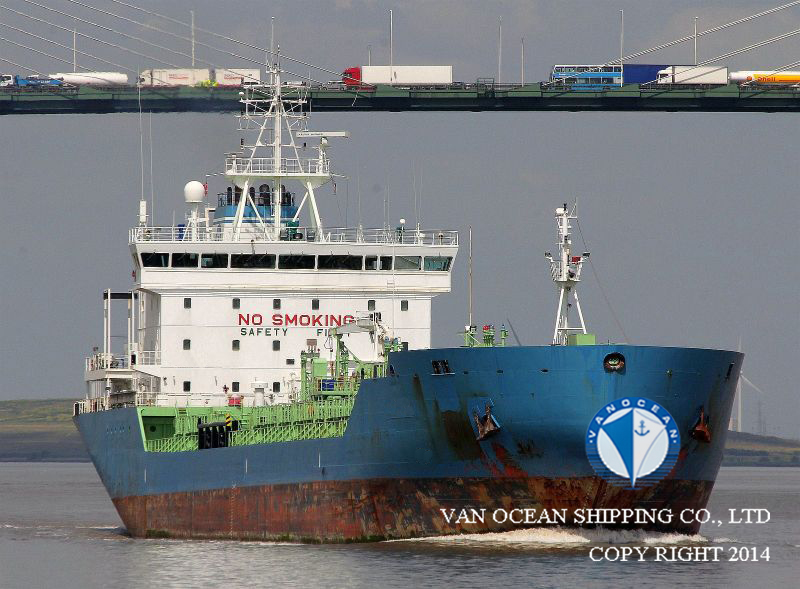

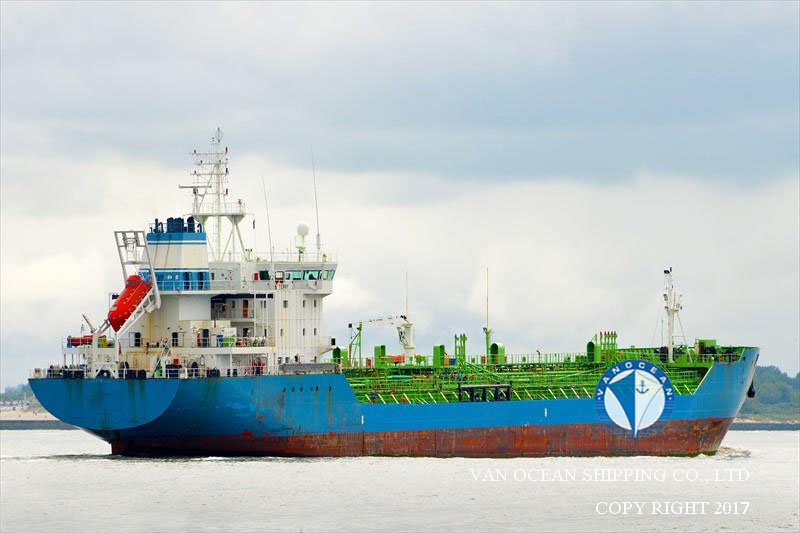

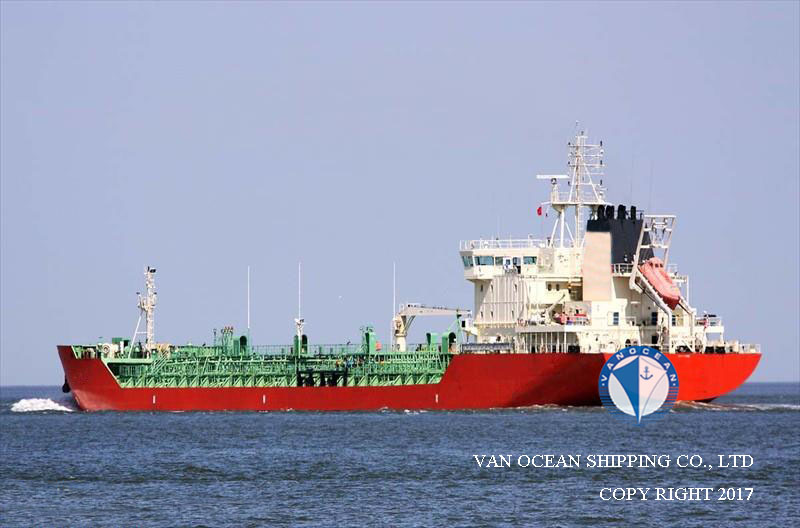

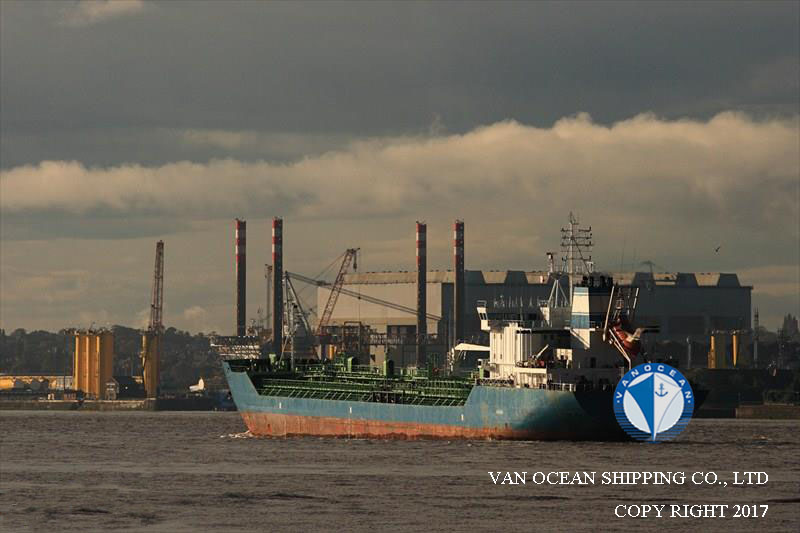

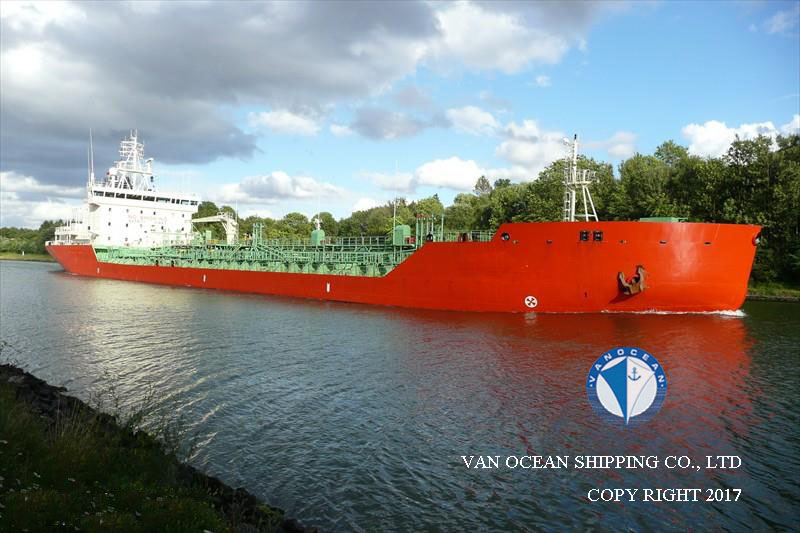

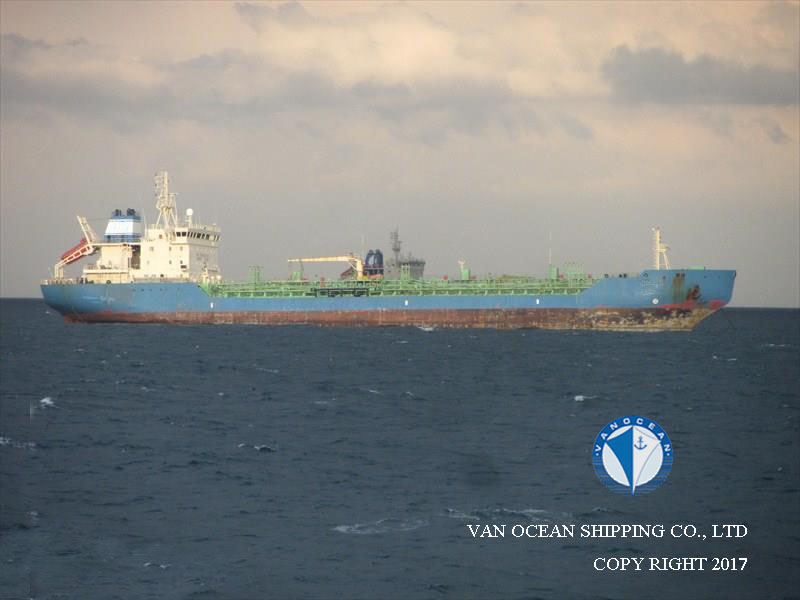

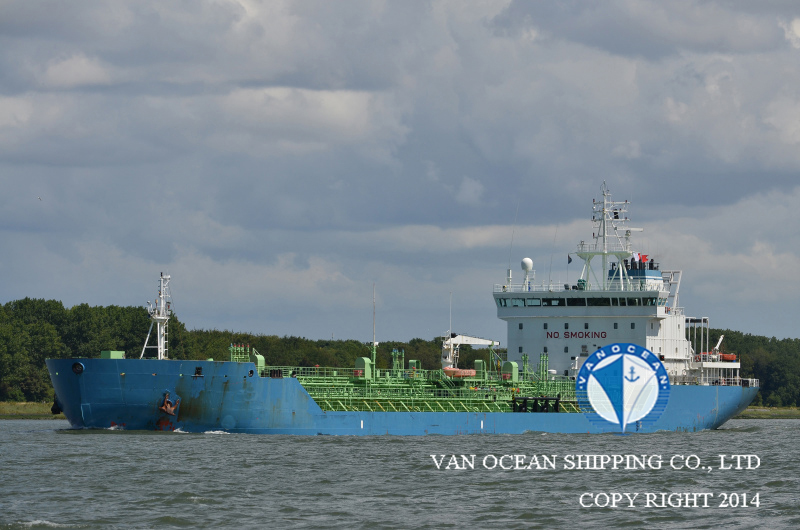

VESSEL NAME
TNK184
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
SIERRA LEONE
PORT OF REGISTRY
FREETOWN
BUILT YEAR
1999
BUILT PLACE
AKER MTW WERFT GMBH, WISMAR, GERMANY
CLASSIFICATION
RINA
CLASS NOTATION
C✠,✠AUT-UMS ICE CLASS IA
SS
2027-09
DD
2025-12
LOA (M)
144.88
LBP (M)
137
BEAM (M)
22.5
DEPTH (M)
11.25
SUMMER DRAFT (M)
8.7
WINTER DRAFT (M)
8.57
TROPICAL DRAFT (M)
-
GT (MT)
10321
PANAMA GT (MT)
-
SUEZ GT (MT)
10729.34
NT (MT)
5054
PANAMA NT (MT)
8699
SUEZ NT (MT)
9656.41
SUMMER DWT (MT)
15441
WINTER DWT (MT)
15073
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
21101
LDT (MT)
-
GEAR(S)
CRANE: 1 x 7MT, OUTREACH 3.75M
M/E(S)
B&W 8S35MC 7206 BHP
M/E POWER (KW)
5378
A/E(S)
-
GENERATOR(S)
3 x 670 KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
14.4 KTS/22 MT
FUEL TYPE
LSGO / HFO380 CST
BUNKER CAPACITY (CBM)
665
TANKS CAPACITY (CBM)
MDO/MGO: 492.6， SLOP TANK：258CBM
COMPARTMENT(S)
3
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
598264.4
CARGO CAPACITY98% (CBM)
16948
COATING/MATERIAL OF HOLD(S)
MARINELINE
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
ZINC
IGS
YES
PUMP(S)
CARGO (SCREW): 1 x 684CBM/HR, 2 x 472CBM/HR
STRIPPING (SCREW): 1 x 5 CBM/HR
BALLAST (CENTRIFUGAL): 2 x 448CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 670BHP, 499.61KW
INSURANCE
-
CREW
28
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
DISPLACEMENT (MT): 20733 (WINTER)
BALLAST TANKS ARE EPOXY COATED
SLOP TANKS ARE POLYMER COATED
SBT: 6121CBM
3 CARGO PUMPS CAN BE RUN SIMULTANEOUSLY AT FULL CAPACITY
