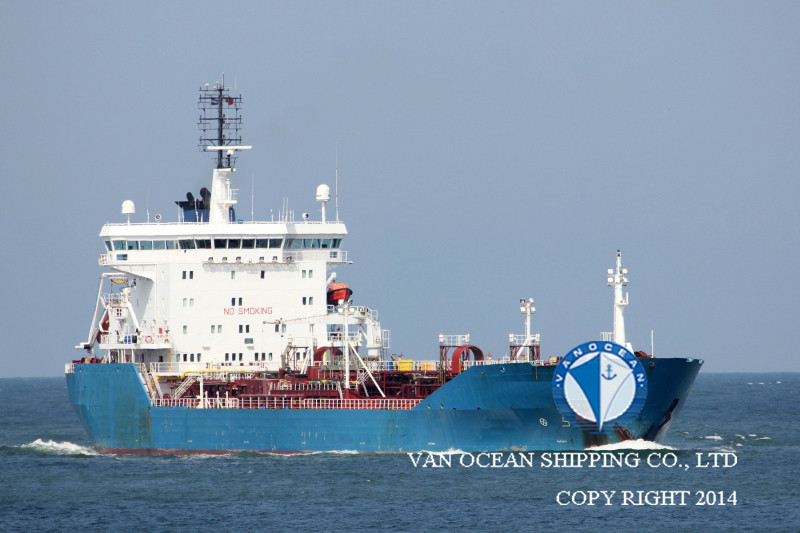

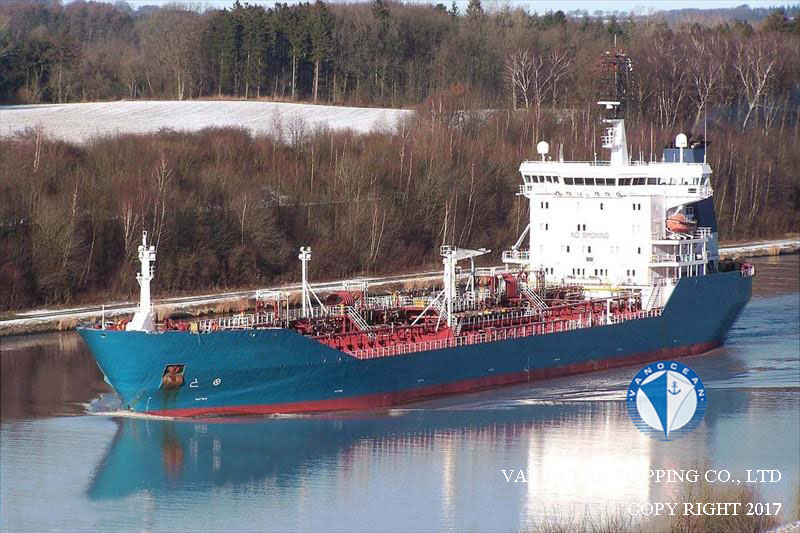

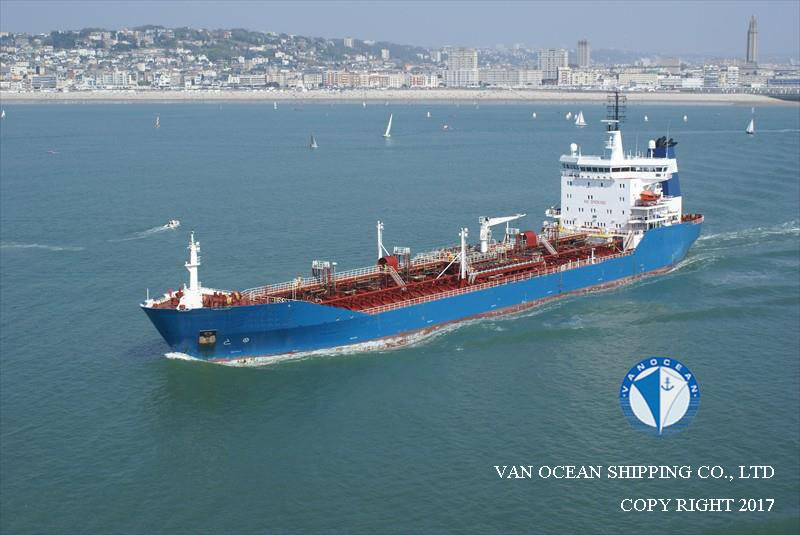

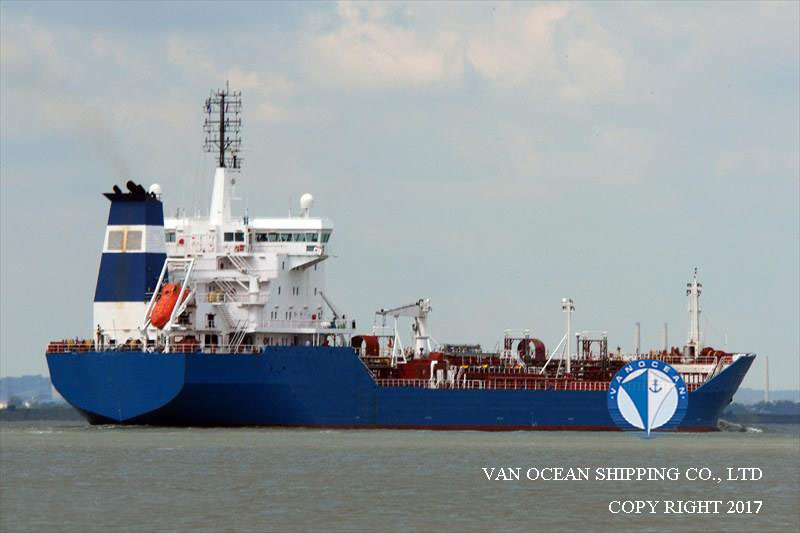

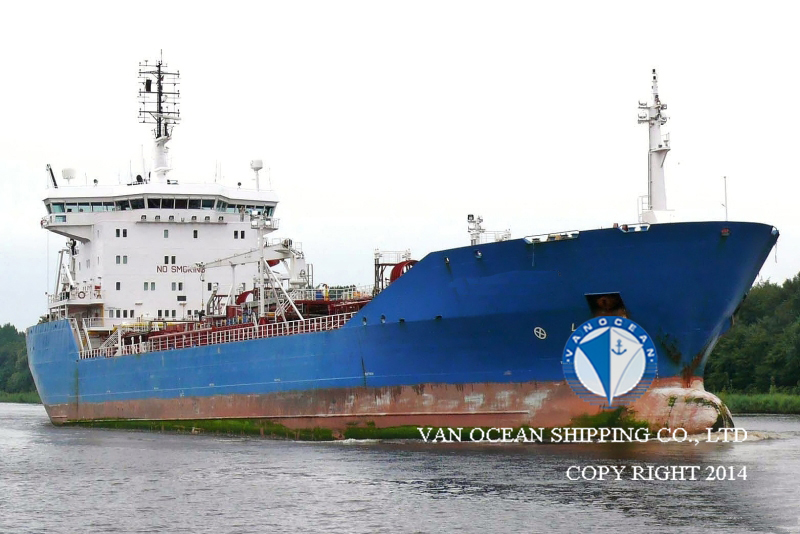

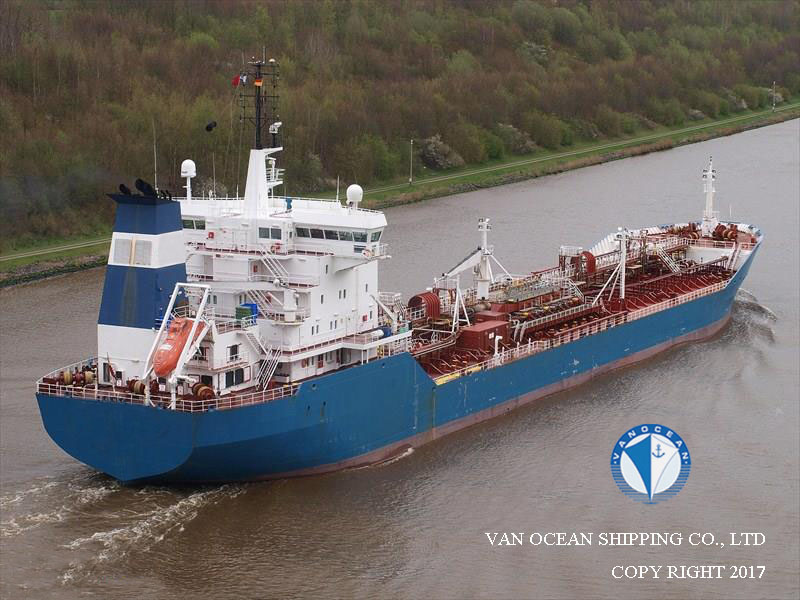

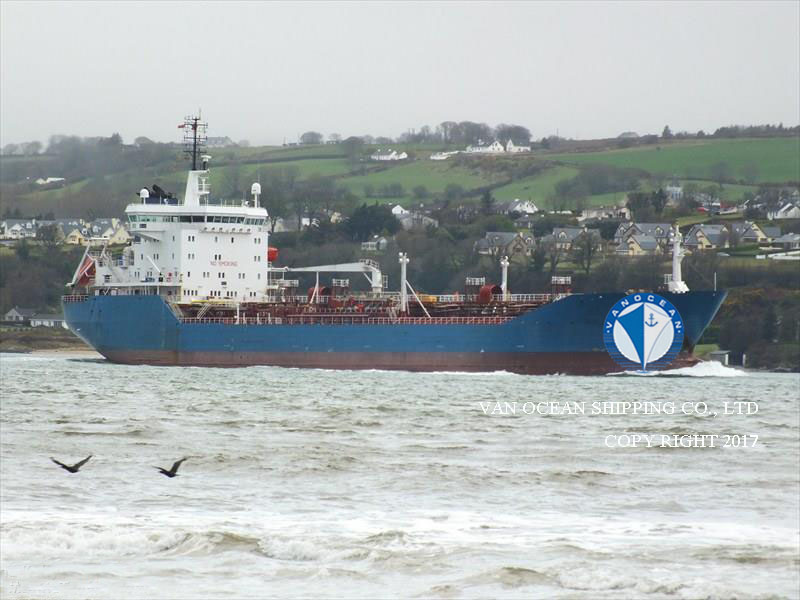

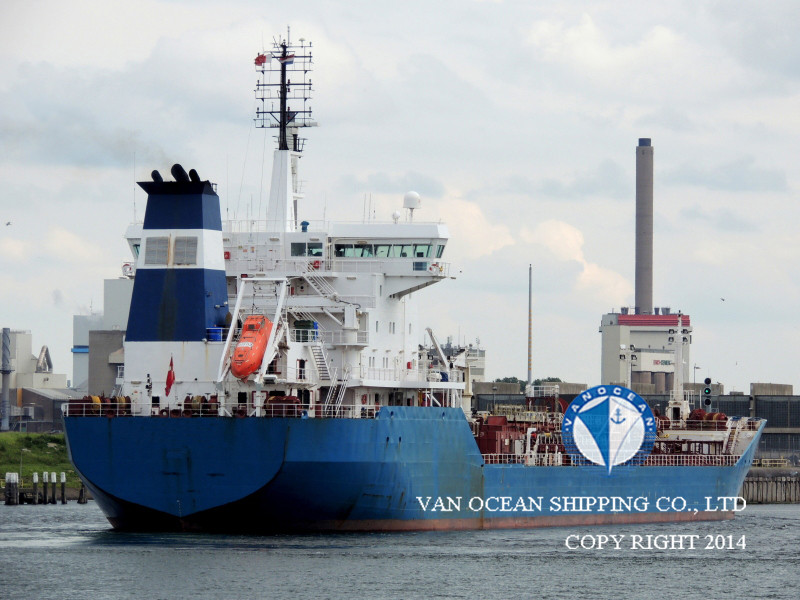

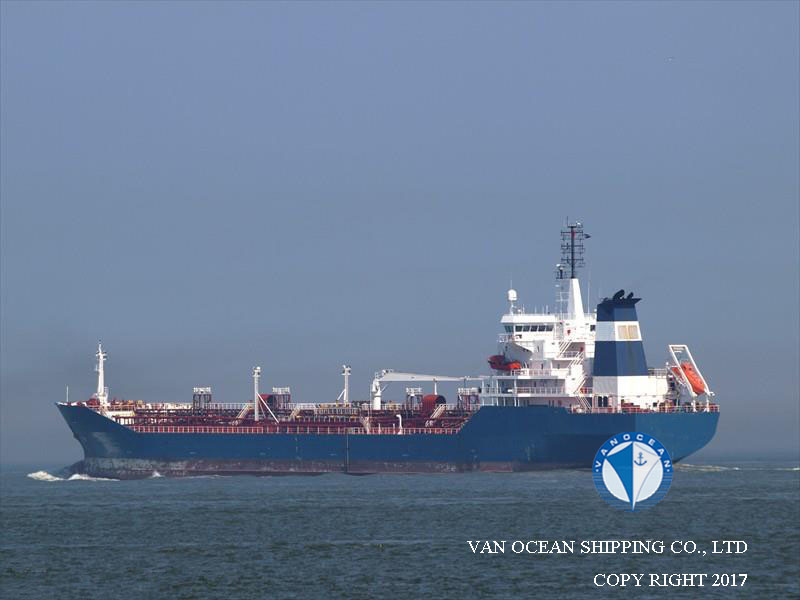

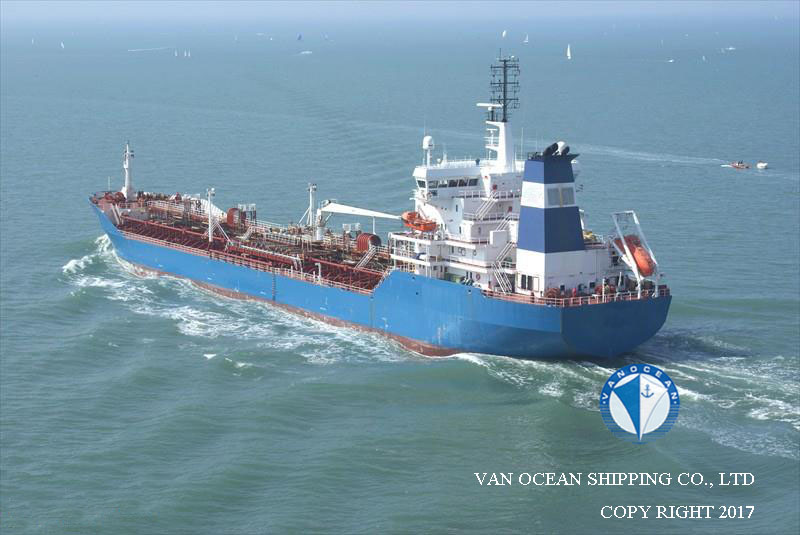

VESSEL NAME
TNK185
IMO
-
CALL SIGN
-
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
CAMEROON
PORT OF REGISTRY
-
BUILT YEAR
1999
BUILT PLACE
FACTORIAS VULCANO S.A VIGO SPAIN, SPAIN
CLASSIFICATION
IMB
CLASS NOTATION
+1A1 ICE-1A TANKER FOR CHEMICALS AND OIL ESP E0 NAUT-OC HL(1.5) ETC
SS
2024.08
DD
2024.08
LOA (M)
144.12
LBP (M)
135.65
BEAM (M)
23.19
DEPTH (M)
12.4
SUMMER DRAFT (M)
8.7
WINTER DRAFT (M)
8.7
TROPICAL DRAFT (M)
8.89
GT (MT)
11375
PANAMA GT (MT)
-
SUEZ GT (MT)
9447.57
NT (MT)
4912
PANAMA NT (MT)
9575
SUEZ NT (MT)
9447.57
SUMMER DWT (MT)
16326
WINTER DWT (MT)
16326
TROPICAL DWT (MT)
17300
DISPLACEMENT (MT)
22000
LDT (MT)
-
GEAR(S)
CRANE, 1 x 5MT, CENTER, OUTREACH 5M
M/E(S)
MAN 9L40/54 8810 BHP
M/E POWER (KW)
6575
A/E(S)
4 X 390 KW@1800 RPM VOLVO PENTA/TAMD 162C-B
GENERATOR(S)
-
SHAFT GENERATOR(S)
1 SET
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
15KTS
FUEL TYPE
LSFO
BUNKER CAPACITY (CBM)
556
TANKS CAPACITY (CBM)
MGO: 114， SLOP TANK: 516
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
658239
CARGO CAPACITY98% (CBM)
18647
COATING/MATERIAL OF HOLD(S)
PHENOLIC EPOXY
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
ZINC
IGS
YES
PUMP(S)
CARGO (CENTRIFUGAL): 12 x 300CBM/HR, 2 x 150CBM/HR
BALLAST: 2 x 1000CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 600BHP, 447.42KW
INSURANCE
POLLUTION LIABILITY: 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
DISPLACEMENT(MT): 20000 (WINTER), 22900 (TROPICAL)
SBT: 8161.4CBM
BALLAST TANKS AND SLOP TANKS ARE EPOXY COATED BWTS
