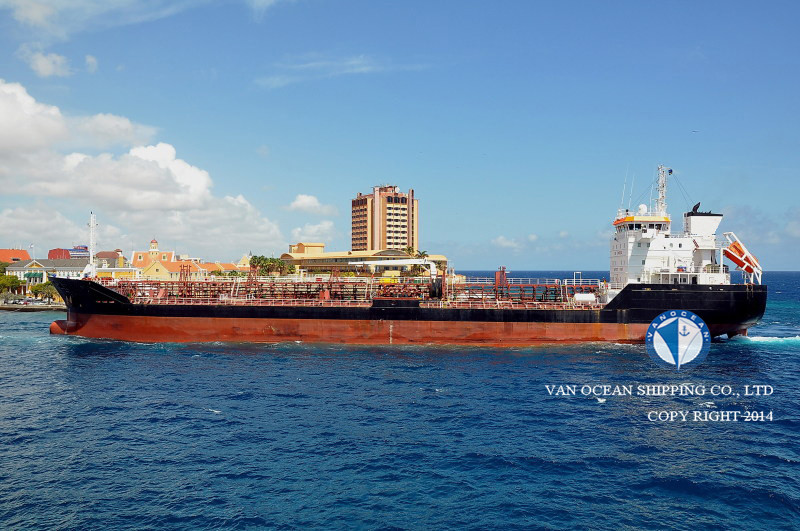

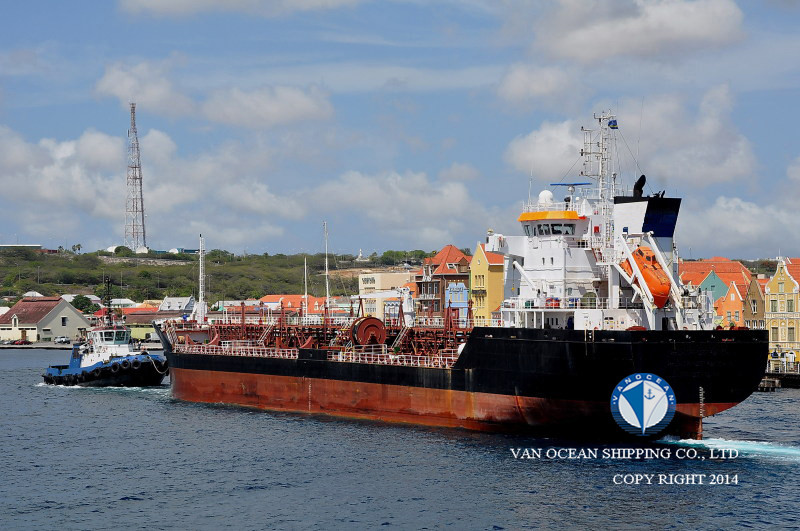

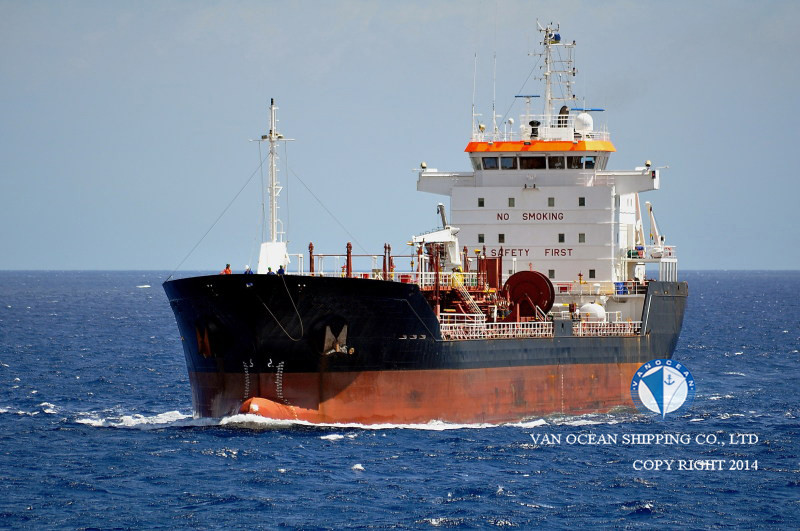

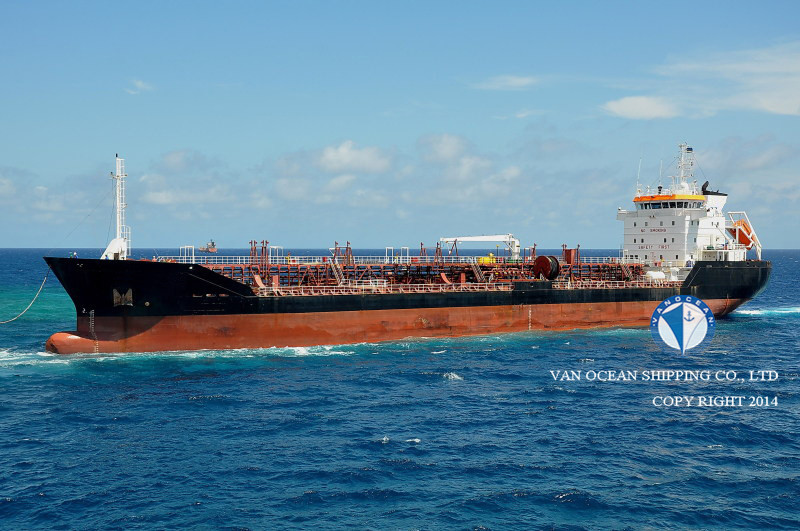

VESSEL NAME
TNK188
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL, DOUBLE BOTTOM,DOUBLE SIDE
FLAG
BELGIUM
PORT OF REGISTRY
ANTWERPRN
BUILT YEAR
2000
BUILT PLACE
NIESTERN SANDER BV NETHERLAND
CLASSIFICATION
BV
CLASS NOTATION
I HULL MACH OIL TANKER ESP; UNRESTRICTED NAVIGATION; AUT-IMS; AUT-PORT; SYSNEQ-1; MON-SHAFT; IG
SS
2018-11-14

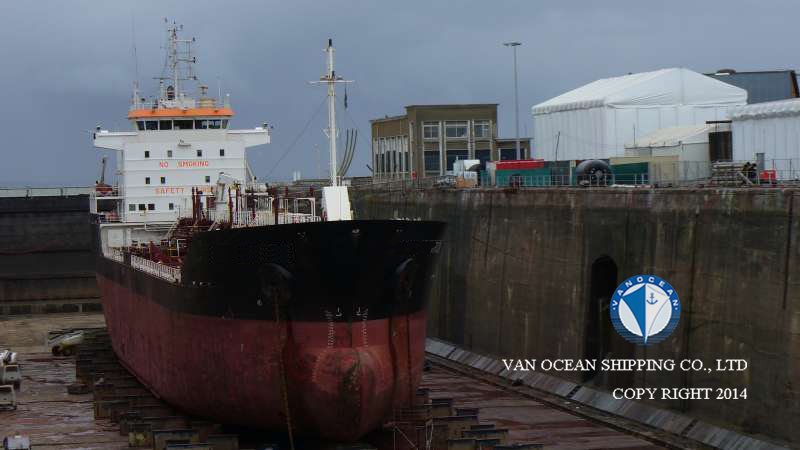

DD
2018-11-14
LOA (M)
119.00
LBP (M)
113.68
BEAM (M)
17.80
DEPTH (M)
9.50
SUMMER DRAFT (M)
7.38
WINTER DRAFT (M)
7.24
TROPICAL DRAFT (M)
7.54
GT (MT)
5547.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2903.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
9995.00
WINTER DWT (MT)
9697.00
TROPICAL DWT (MT)
10292.00
DISPLACEMENT (MT)
12759.00
LDT (MT)
2764.00
GEAR(S)
CRANE，1 x 5MT，OUTREACH：5M
M/E(S)

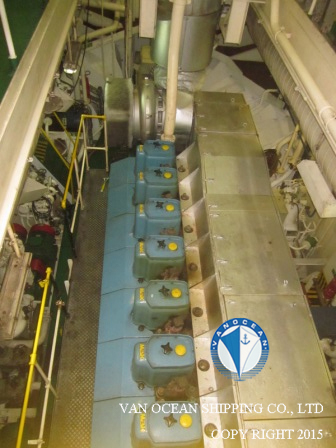

MAK 8M32 MCR 5221 BHP 600 RPM
M/E POWER (KW)
3840

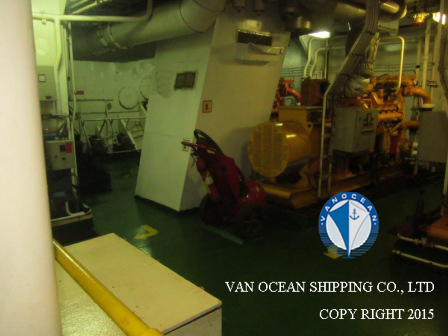

A/E(S)

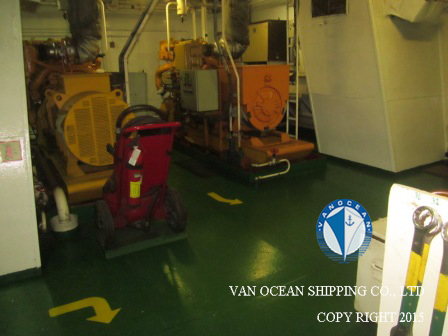

CATERPILLAR 3 x 410KW，1 x 116KW
GENERATOR(S)
-
SHAFT GENERATOR(S)
721
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
14KTS, 14MT (IFO380)
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
490.63
TANKS CAPACITY (CBM)
SLOP TANK：180.92，SBT：4061，MDO/MGO: 108.85
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
350388
CARGO CAPACITY98% (CBM)
9926
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
HEAT EXCHANGER ON DECK
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
CARGO（CENTRIFUGAL）：12 x 230CBM/HR，1 x 80CBM/HR
BALLAST（CENTRIFUGAL）：2 x 350CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER：1 x 490BHP 365.39KW
INSURANCE
POLLUTION LIABILITY：USD 1 BILLION
CREW
-

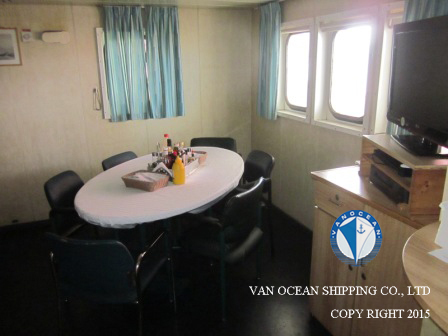

ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 6.7 MILLION
REMARK(S)
DISPLACEMENT（MT）：12461（WINTER），13056（TROPICAL）
SBT
BALLAST TANKS ARE COATED WITHEPOXY
TRADING IN CARIBBEAN-LOADING IN TRINIDAD / DISCHARGING IN GRENADA, DOMINICA, ST LUCIA
-
-
