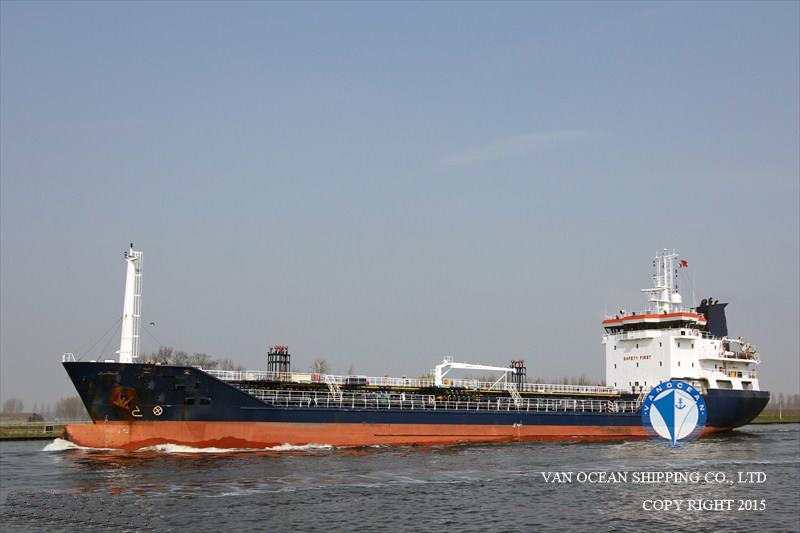

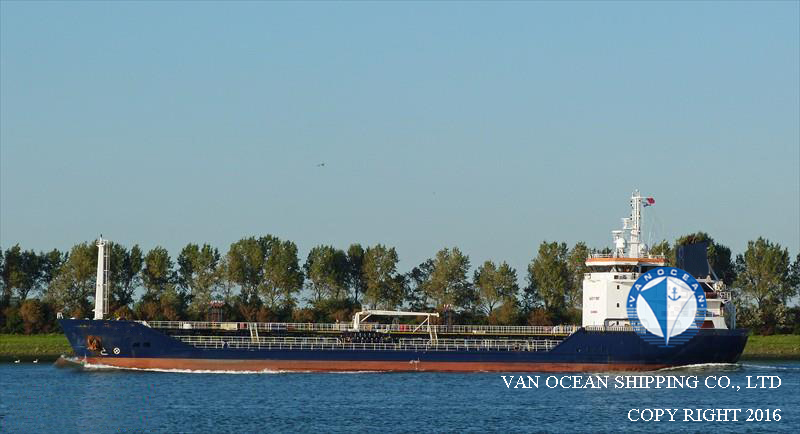

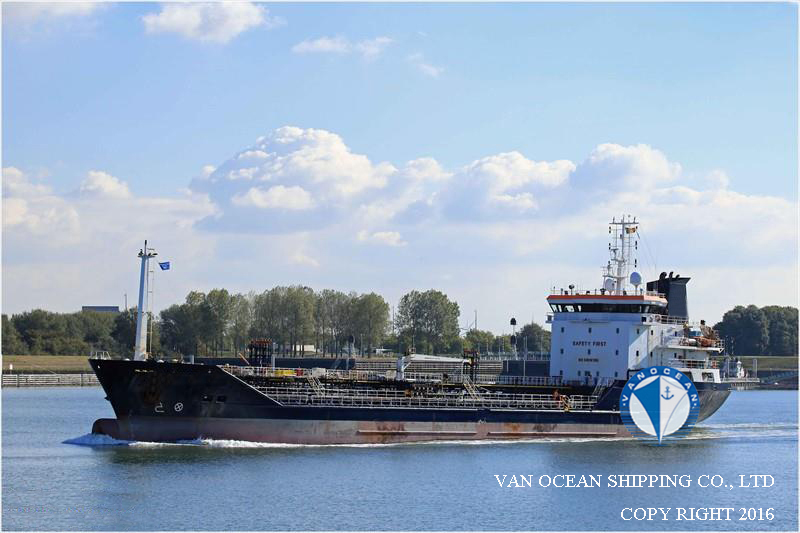

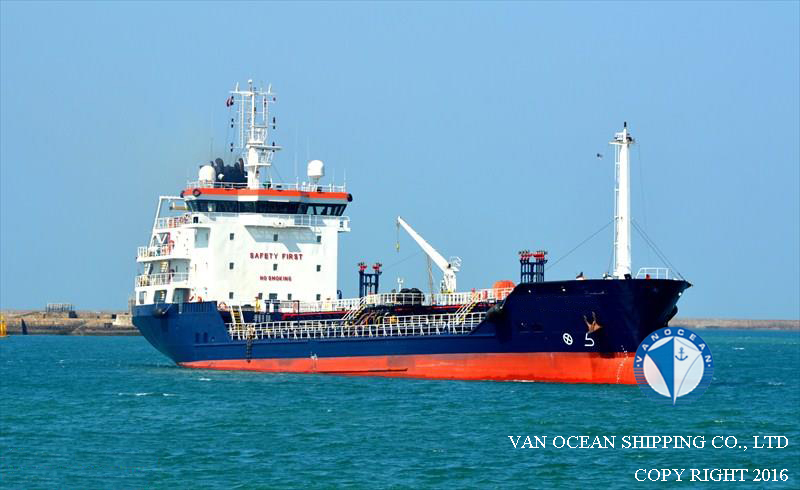

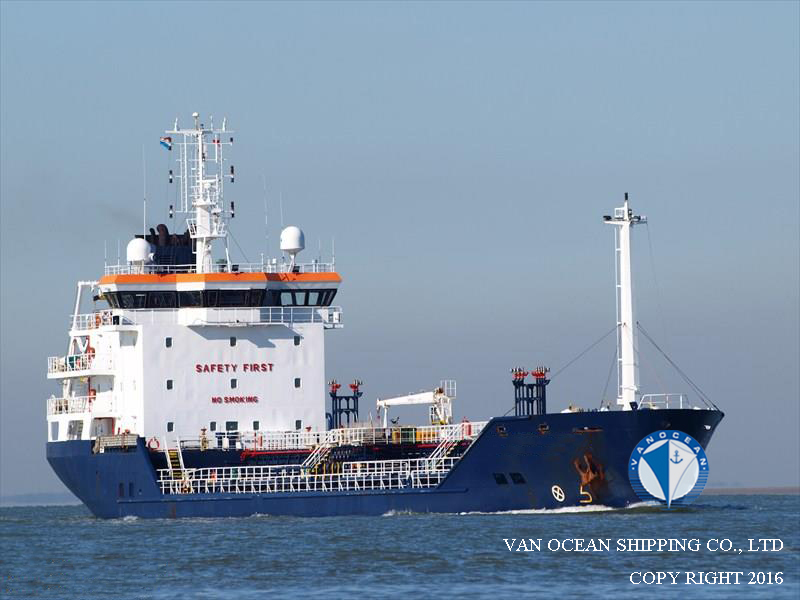

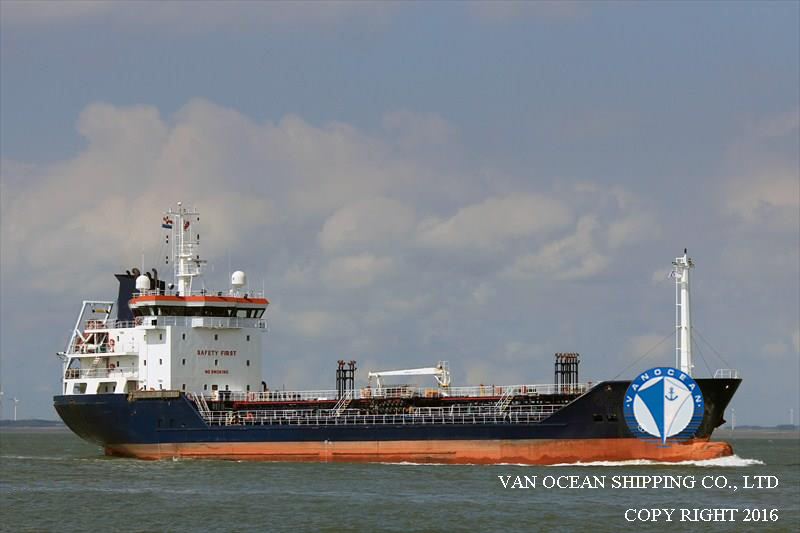

VESSEL NAME
TNK209
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
GIBRALTAR
PORT OF REGISTRY
-
BUILT YEAR
2003
BUILT PLACE
CEKSAN SHIPYARD, TURKEY
CLASSIFICATION
BV
CLASS NOTATION
I, +HULL; +MACH OIL TANKER ESP; CHEMICAL TANKER ESP; VECS; ICE 3; AUT-UMS; IMO 2; UNRESTRICTED NAVIGATION
SS
-
DD
-
LOA (M)
99.90
LBP (M)
94.10
BEAM (M)
15.00
DEPTH (M)
-
SUMMER DRAFT (M)
5.97
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
3057.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1280.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
4692.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
CRANES, 1 x 2MT HOSE CRANE, MAIN DECK MIDSHIP AND 1 x 2MT CRANE FOR PROVISION & RESCUE BOAT
M/E(S)
1 x CATERPILLAR MAK8M25, 3216HP, 750RPM
M/E POWER (KW)
2400
A/E(S)
-
GENERATOR(S)
2 x DIESEL GENERATORS, 400KW EACH
1 x EMERGENCY DIESEL GENERATOR, 90KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
ABT. 12KTS, ON ABT. 8.5MT/DAY
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
309
TANKS CAPACITY (CBM)
MGO: 90
BW: 1963
COMPARTMENT(S)
11
NUMBER OF CARGO HOLDS
11
CARGO CAPACITY98% (CBFT)
160382
CARGO CAPACITY98% (CBM)
4544
COATING/MATERIAL OF HOLD(S)
INTERLINE 904 EPOXY COATED
HEATING SYSTEM
-
SACRIFICIAL ANODE
-
IGS
NITROGEN (BOTTLED)
PUMP(S)
10 x 200 CBM/HR, SVANEHOJ ELECTRICAL DRIVEN DEEPWELL PUMPS, BACK PRESSURE 8 BAR
SLOP PUMP: 1 x 125 CBM/HR, SVANEHOJ ELECTRICAL DRIVEN DEEPWELL PUMP, BACK PRESSURE 8 BAR
BALLAST PUMP: 2 x 200 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
1 x BOW THRUSTER, 240KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 5.8 MILLION
REMARK(S)
-
