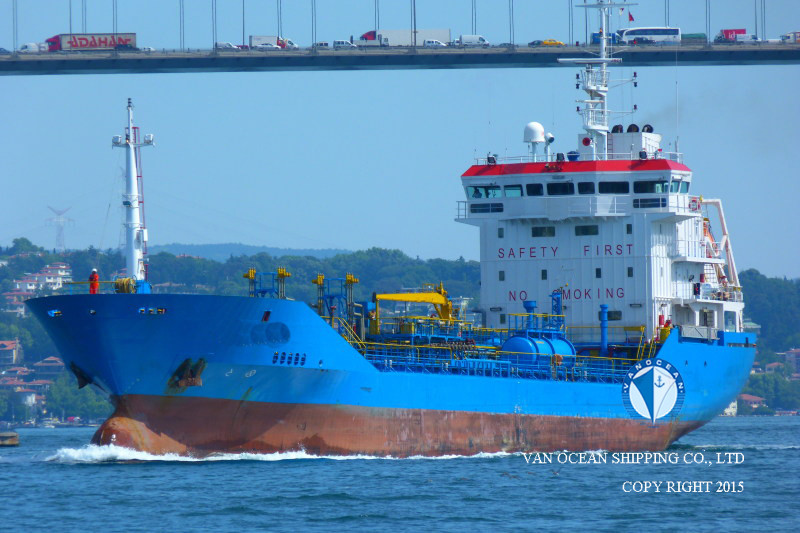

VESSEL NAME
TNK218
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
TURKEY
PORT OF REGISTRY
ISTANBUL
BUILT YEAR
2004
BUILT PLACE
TORLAK SHIPYARD, TURKEY
CLASSIFICATION
BV
CLASS NOTATION
I 3/3 E OIL TANKER CHEMICAL TANKER ESP, DEEP SEA, AUTMNS, ICE III, IMO 2, UNRESTRICTED NAVIGATION
SS
-
DD
-
LOA (M)
96.30
LBP (M)
88.91
BEAM (M)
14.20
DEPTH (M)
7.65
SUMMER DRAFT (M)
6.10
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
2798.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1361.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
4274.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
6019.00
LDT (MT)
-
GEAR(S)
1 x SWL 2MT, MAX OUTREACH 7M, NEAR MANIFOLD
M/E(S)
MAN B&W, 800RPM
M/E POWER (KW)
2040
A/E(S)
2 x 400KW, MAN D2842
GENERATOR(S)
1 x 100KW, MAN D2866 E (EMERGENCY GEN)
SHAFT GENERATOR(S)
1x400KW
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
12KTS ON 8.5MT（IFO180）(85% MCR)
FUEL TYPE
IFO180CST, MGO
BUNKER CAPACITY (CBM)
148
TANKS CAPACITY (CBM)
BAL: 1757.416; MGO: 53
COMPARTMENT(S)
12
NUMBER OF CARGO HOLDS
6
CARGO CAPACITY98% (CBFT)
168240
CARGO CAPACITY98% (CBM)
4766 (98%, 50CBM SLOP TANK EXCLUDED)
COATING/MATERIAL OF HOLD(S)
PHENOLIC EPOXY
HEATING SYSTEM
STAINLESS STEEL COILED
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
2xBALLAST PUMP, 250CBM/H
10 X 200 + 2 X 100 + 1 X 70 (PORTABLE) CBM/H (FRAMO)
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOWTHRUSTER: ULSTEIN, 240KW
INSURANCE
P&I (COVERING HULL & MACHINERY)
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 7.3 MILLION
REMARK(S)
VENTILATION: PV VALVE, PRES VAC
SHIPOWNER FROM TURKEY, STERN LINE
