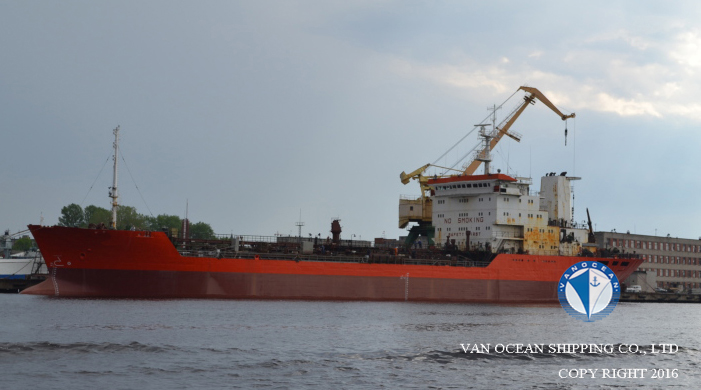

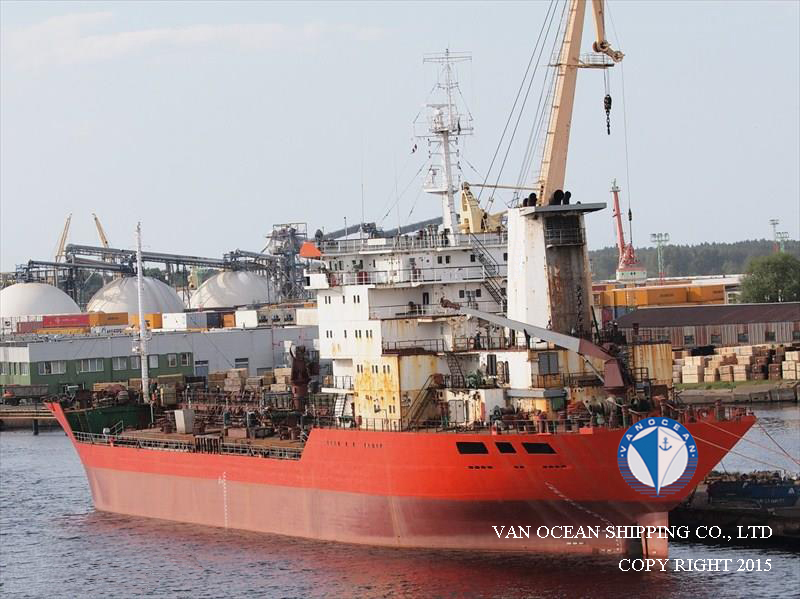

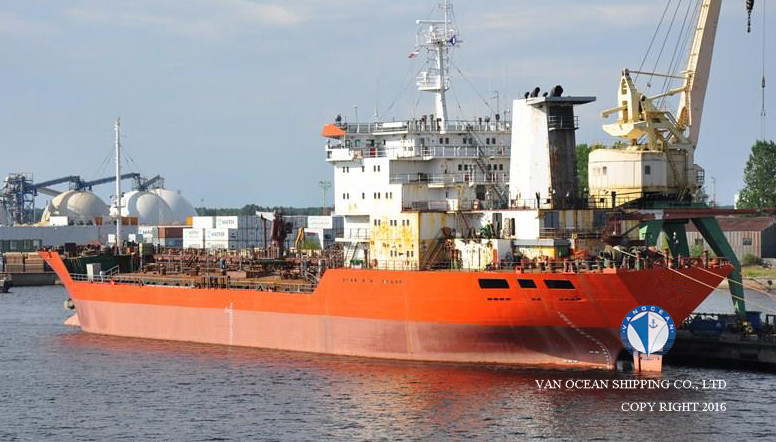

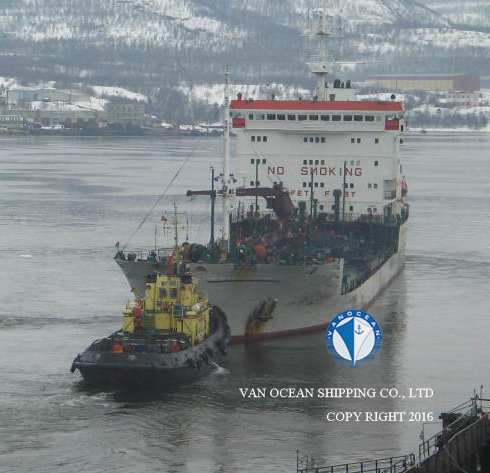

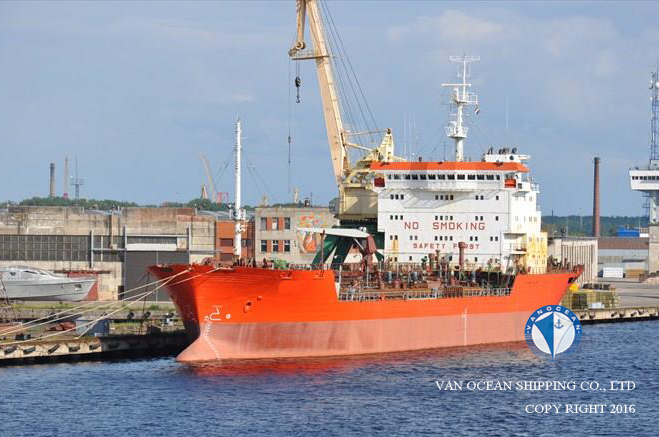

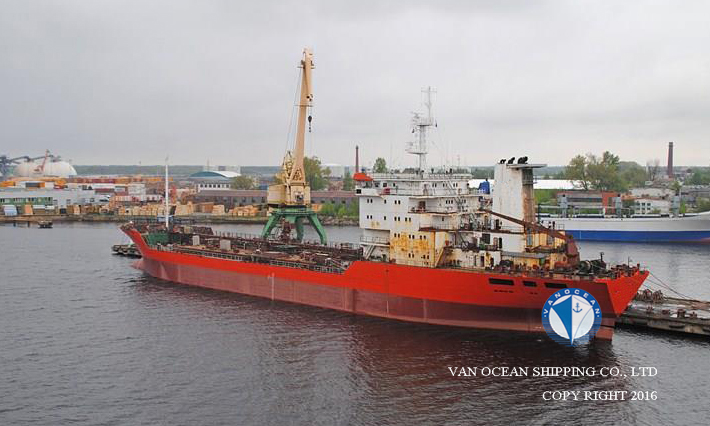

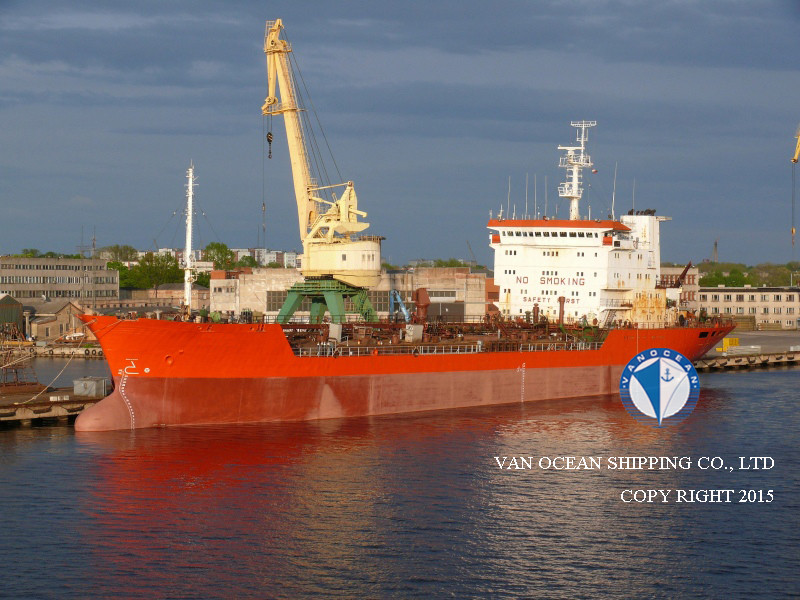

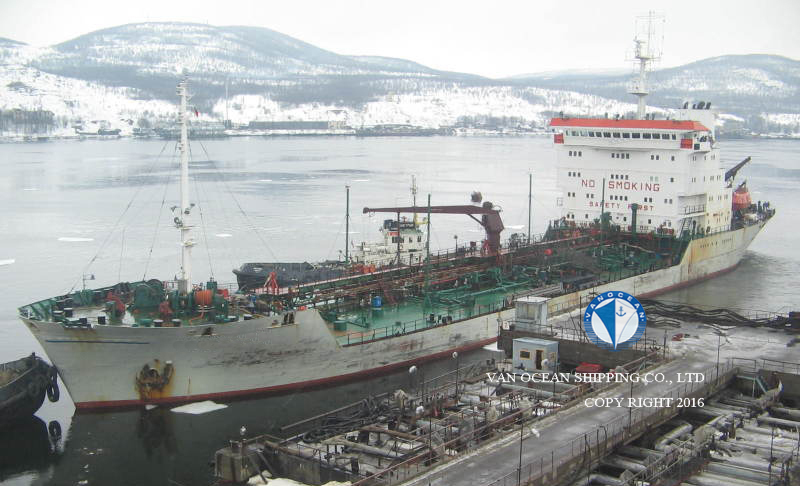

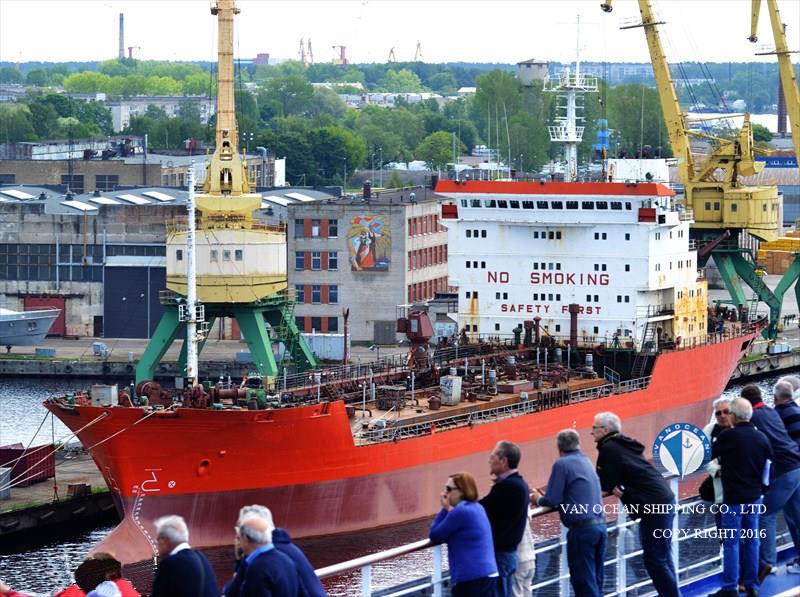

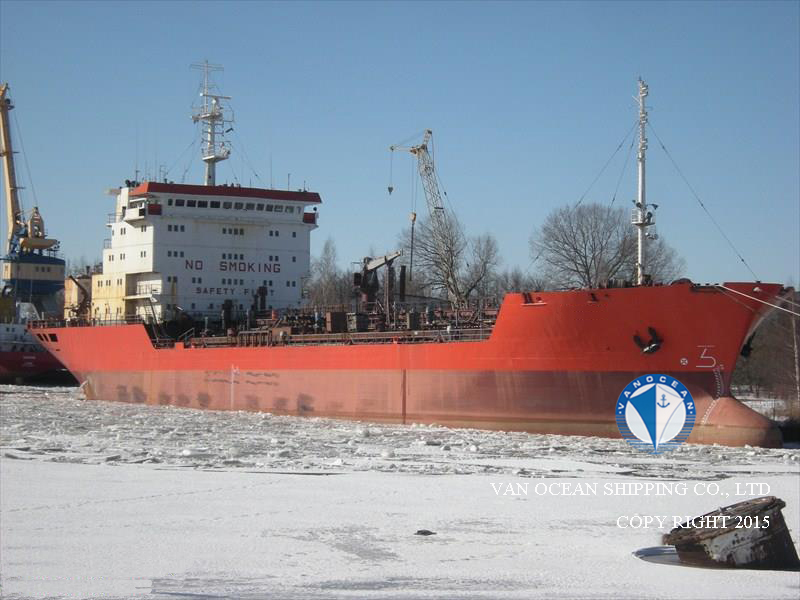

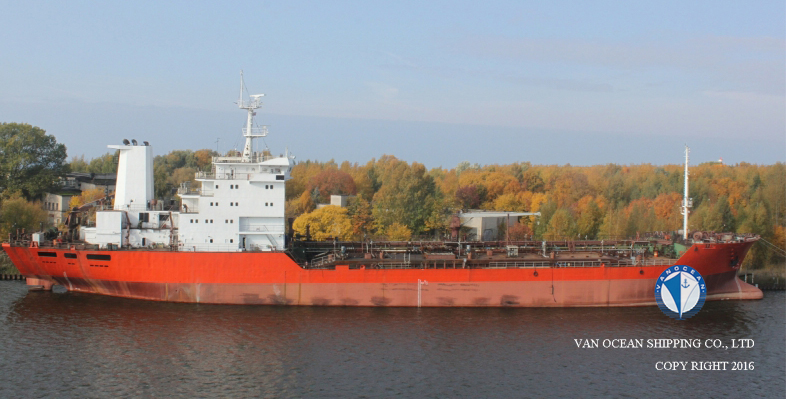

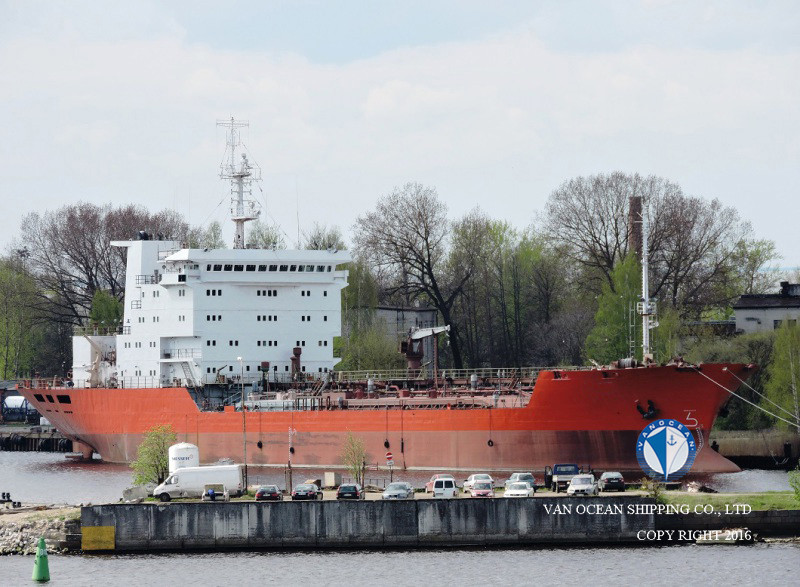

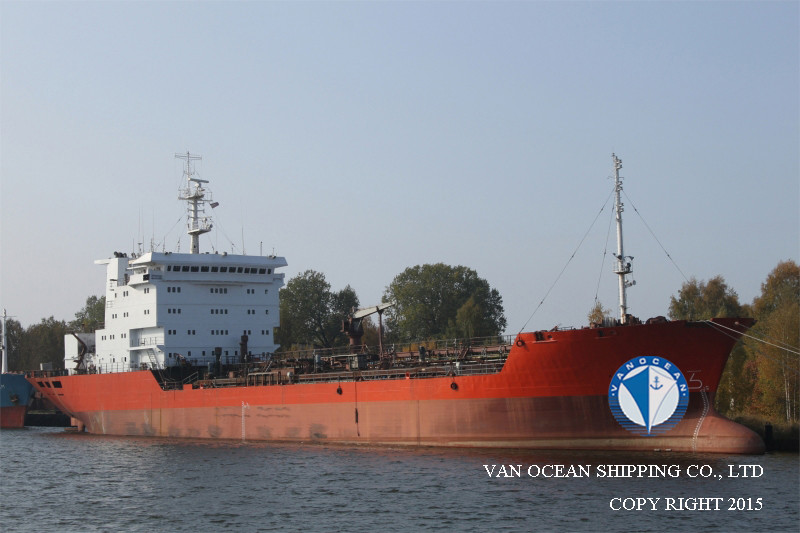

VESSEL NAME
TNK221
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
BELIZE
PORT OF REGISTRY
BELIZE
BUILT YEAR
1991
BUILT PLACE
SANTIERUL, NAVAL, GALATI SHIPYARD, ROMANIA
CLASSIFICATION
RMRS
CLASS NOTATION
KM*ESP ICE L2
SS
-
DD
-
LOA (M)
127.81
LBP (M)
-
BEAM (M)
20.00
DEPTH (M)
10.00
SUMMER DRAFT (M)
8.05
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
7659.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2602.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
10522.00
WINTER DWT (MT)
10175.00
TROPICAL DWT (MT)
10850.00
DISPLACEMENT (MT)
-
LDT (MT)
4832.00
GEAR(S)
CRANES, 2 x 3MT
M/E(S)
K6SZ52/105CLE, I.S.M. RESITA, 6150HP 157RPM
M/E POWER (KW)
4500
A/E(S)
3 x CIEGELSKI SULZER 6AL20D
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
SOLID PITCH PROPELLER
SPEED /CONSUMPTIONS
BAL: 11KTS ON 13MT IFO PER DAY
LADEN: 10KTS ON 15MT IFO PER DAY
AT SEA: 1.8MT/DAY MGO
LOAD/DISCHARGE IN PORT: 4.5MT/DAY MGO
BERTH IN PORT: 1.1MT/DAY MGO
HEATING OIL: 3.6MT/DAY IFO
FUEL TYPE
IFO180, MGO
BUNKER CAPACITY (CBM)
770
TANKS CAPACITY (CBM)
MGO: 292
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
17
CARGO CAPACITY98% (CBFT)
318917
CARGO CAPACITY98% (CBM)
9034.46
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
COIL HEATING
SACRIFICIAL ANODE
-
IGS
NO
PUMP(S)
7 x 200CBM/HR; 1 x 300CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
MAX. LOADING RATE FOR HOMOGENOUS CARGO PER MANIFOLD CONNECTION: 1200CBM/HR
MAX. LOADING RATE FOR HOMOGENOUS CARGO LOADED SIMULTANEOUSLY THROUGH ALL MANIFOLDS:2400CBM/HR
CARGO TANK VENTING SYSTEM: INDIVIDUAL P/V VALVES
