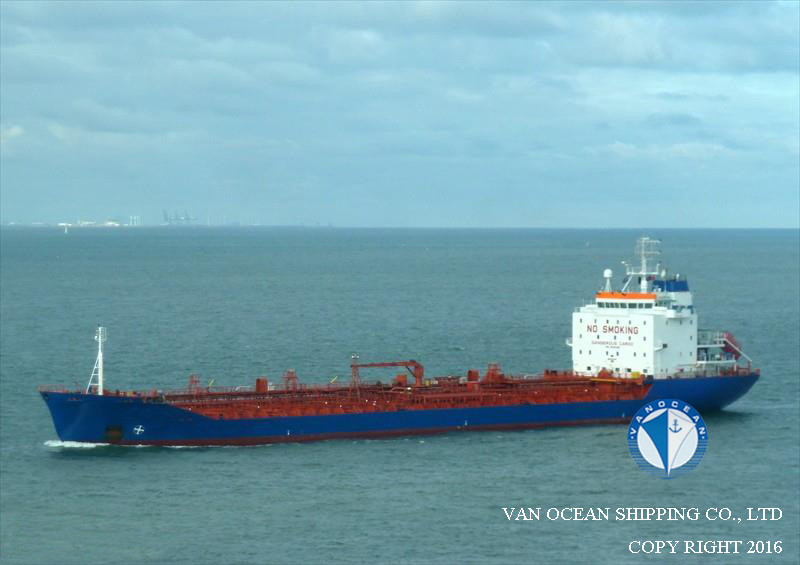

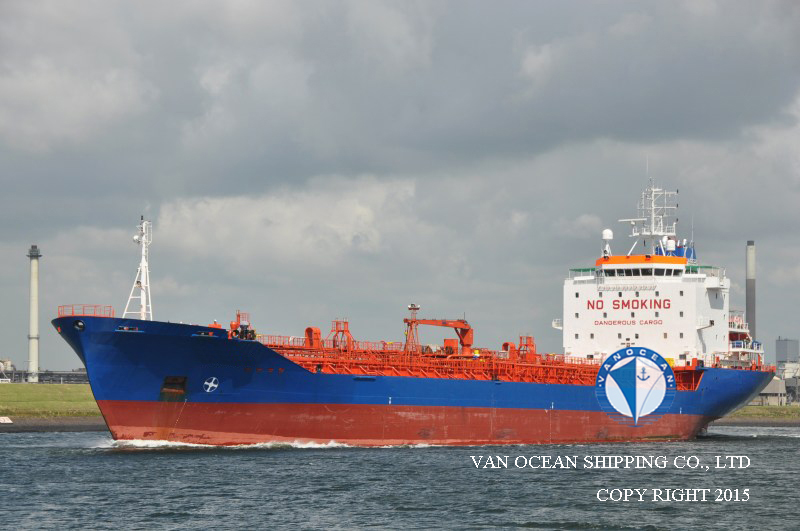

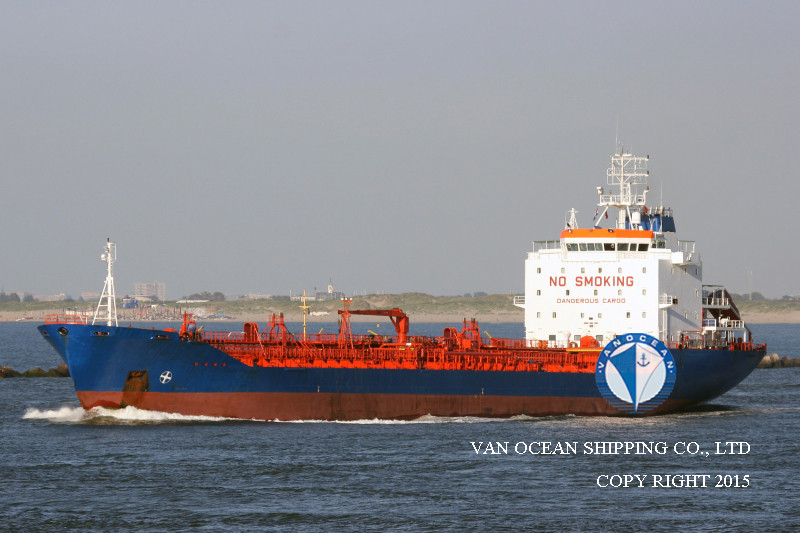

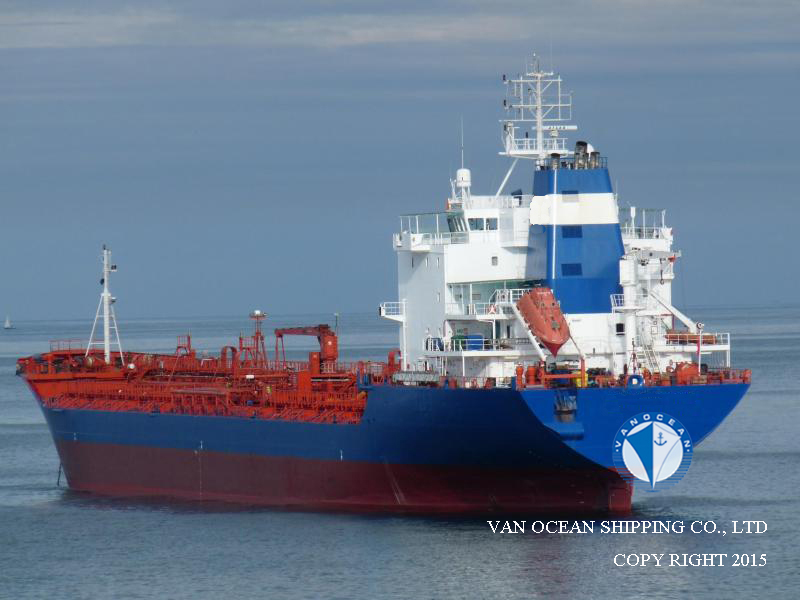

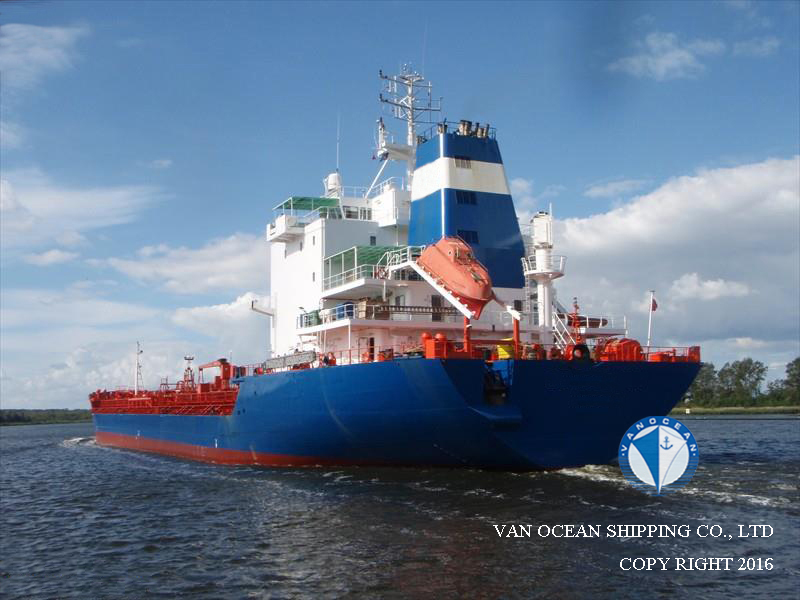

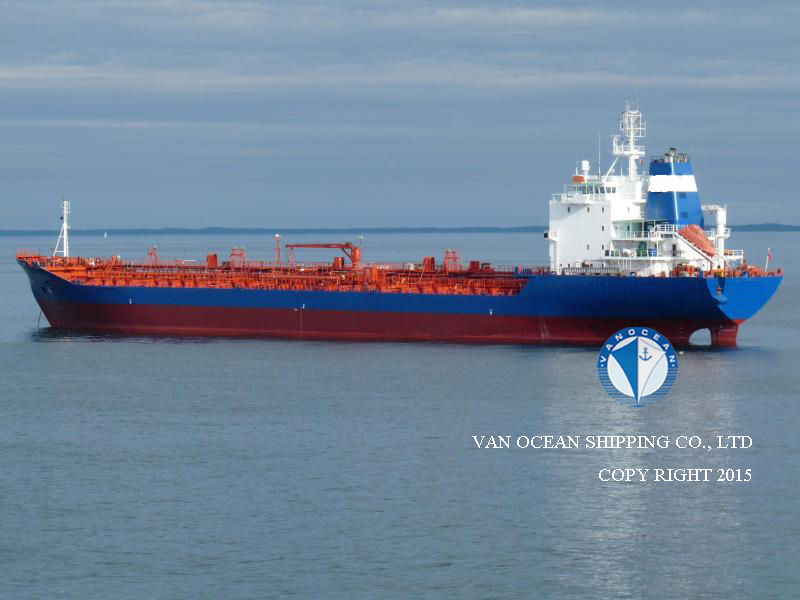

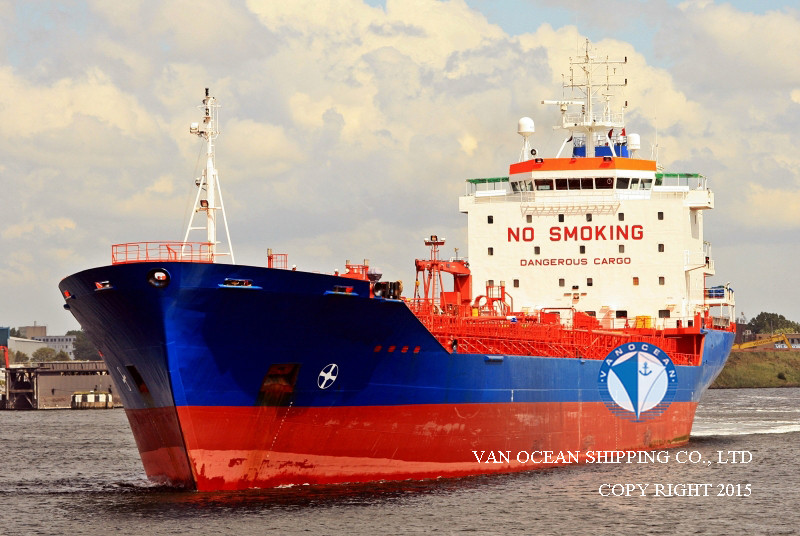

VESSEL NAME
TNK206
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
BARBADOS
PORT OF REGISTRY
BRIDGETOWN
BUILT YEAR
1995
BUILT PLACE
MTW SCHIFFSWERFT GMBH, GERMANY
CLASSIFICATION
GL
CLASS NOTATION
+100 A5 E3 ESP, ICE E3(1A), IMO 1
SS
2020-04-30
DD
2018-05-20
LOA (M)
161.36
LBP (M)
154.02
BEAM (M)
23.00
DEPTH (M)
11.70
SUMMER DRAFT (M)
8.60
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
11426.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5612.00
PANAMA NT (MT)
9618.00
SUEZ NT (MT)
9302.00
SUMMER DWT (MT)
17080.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
5984.00
GEAR(S)
CRANE, 1 x 5MT
M/E(S)
MAN B&W 7L48/60, 8973BHP, 428RPM
M/E POWER (KW)
6000
A/E(S)
3 x B&W 640KVA, 512KW
GENERATOR(S)
-
SHAFT GENERATOR(S)
1 x 600KVA, 480KW
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
14.5KTS ON 25MT
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
18
CARGO CAPACITY98% (CBFT)
706000
CARGO CAPACITY98% (CBM)
20000
COATING/MATERIAL OF HOLD(S)
ZINC SILICATE COATED
HEATING SYSTEM
STAINLESS STEEL HEATING COILS, 60DC
SACRIFICIAL ANODE
-
IGS
FITTED
PUMP(S)
FRAMO DEEPWELL PUMP, 4 x 500 CBM/HR
FRAMO DEEPWELL PUMP, 9 x 300 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
NOT
SIDE THRUSTER(S)
BOW THRUSTER, 600KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 7.8 MILLION
REMARK(S)
SBT: 6898 CBM
LOAD RATE: 3000 CBM/HR
