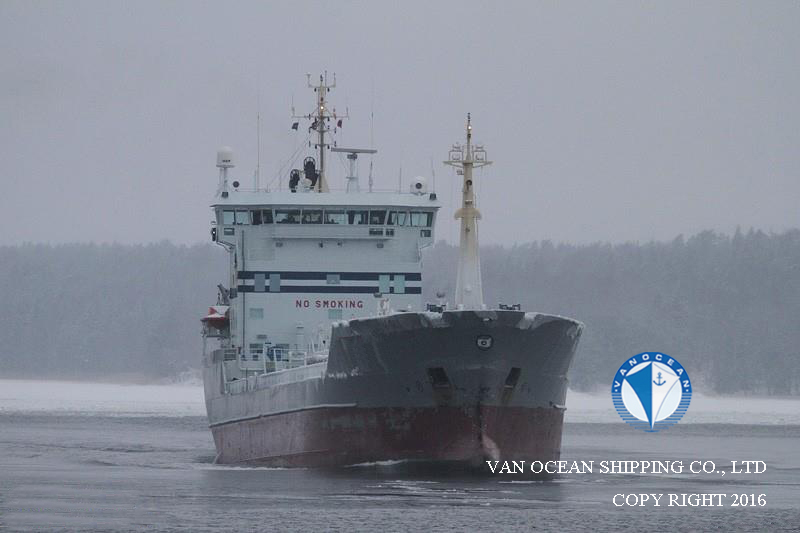

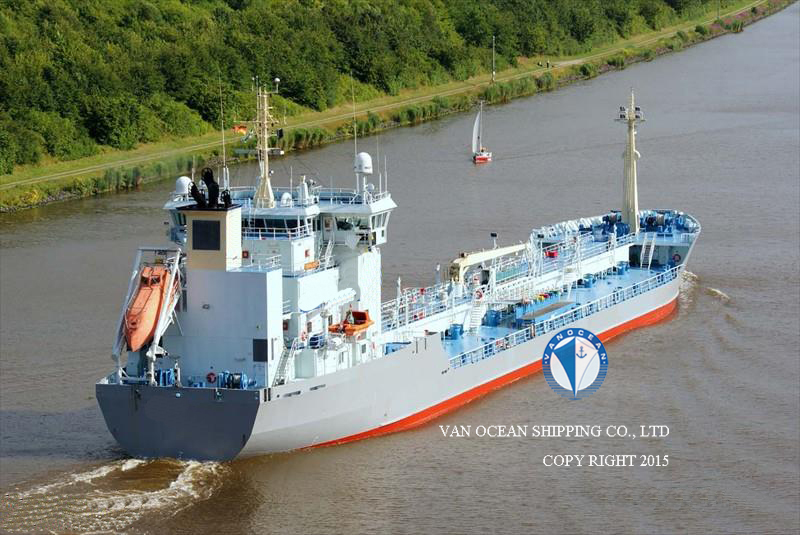

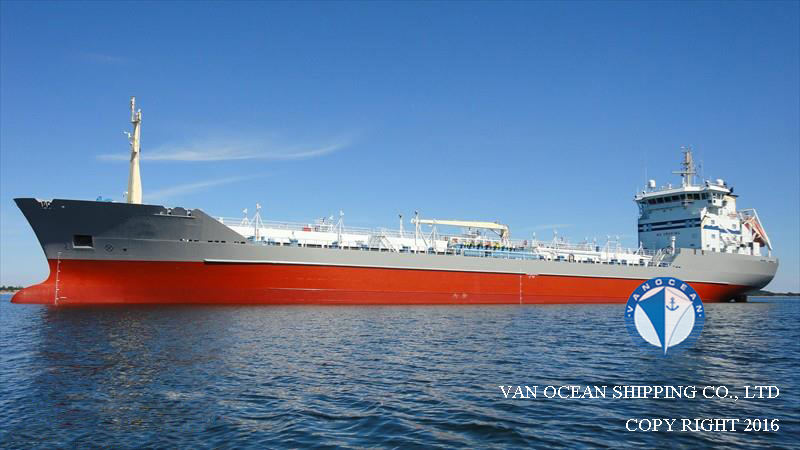

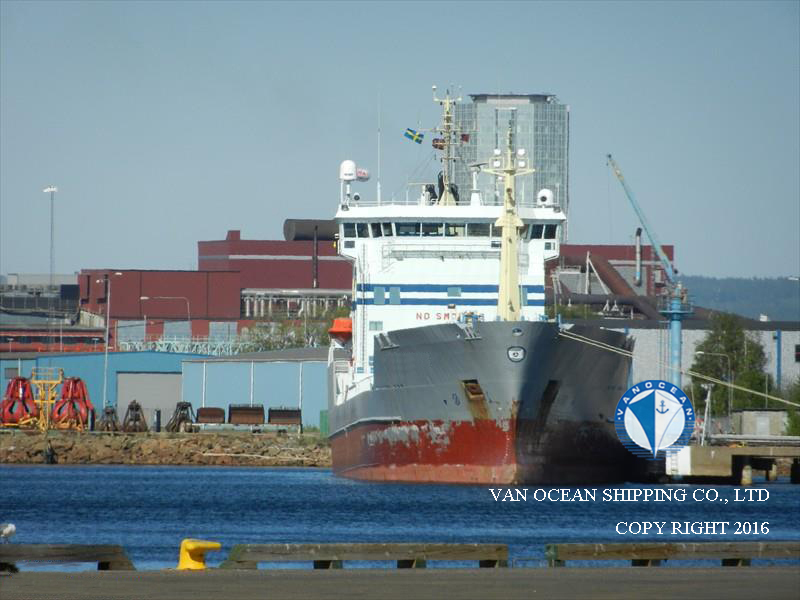

VESSEL NAME
TNK205
TYPE
OIL/CHEMICAL TANKER

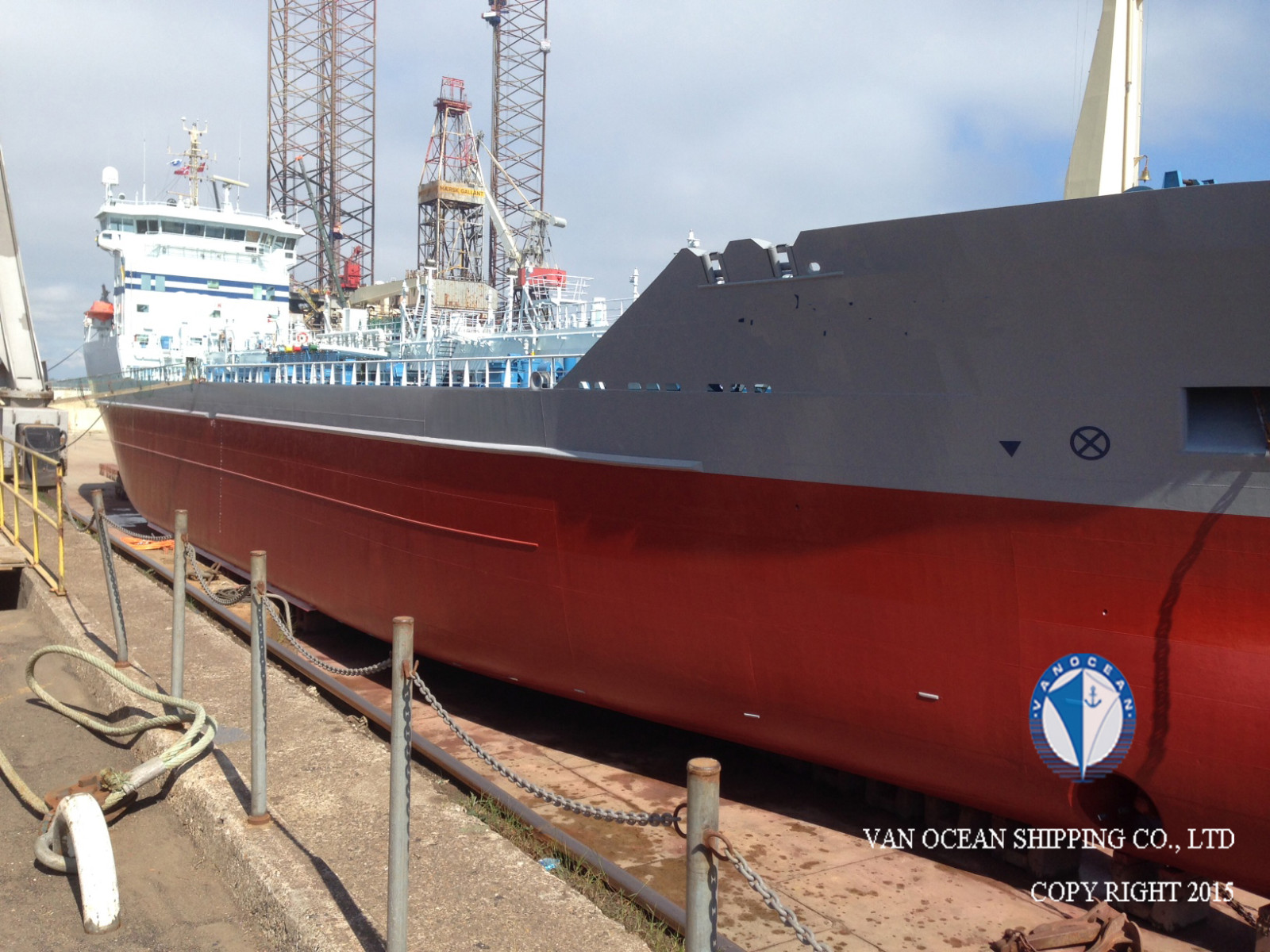

HULL TYPE
DOUBLE HULL/DOUBLE SIDE
FLAG
CYPRUS
PORT OF REGISTRY
-
BUILT YEAR
1996
BUILT PLACE
KVAERNER KLEVEN LEIRVIK, NORWAY
CLASSIFICATION
GL
CLASS NOTATION
+1A1, ICE E2 /ICE-1A, ESP, IMO 2
SS
-
DD
-
LOA (M)
129.22
LBP (M)
123.13
BEAM (M)
18.37
DEPTH (M)
10.40
SUMMER DRAFT (M)
8.10
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
6534.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3481.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
10877.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
CRANES, 1 x ABAS,13M/5MT, 16M/2.5MT(SWL); 1 x SINGLE SERVICE CRANE

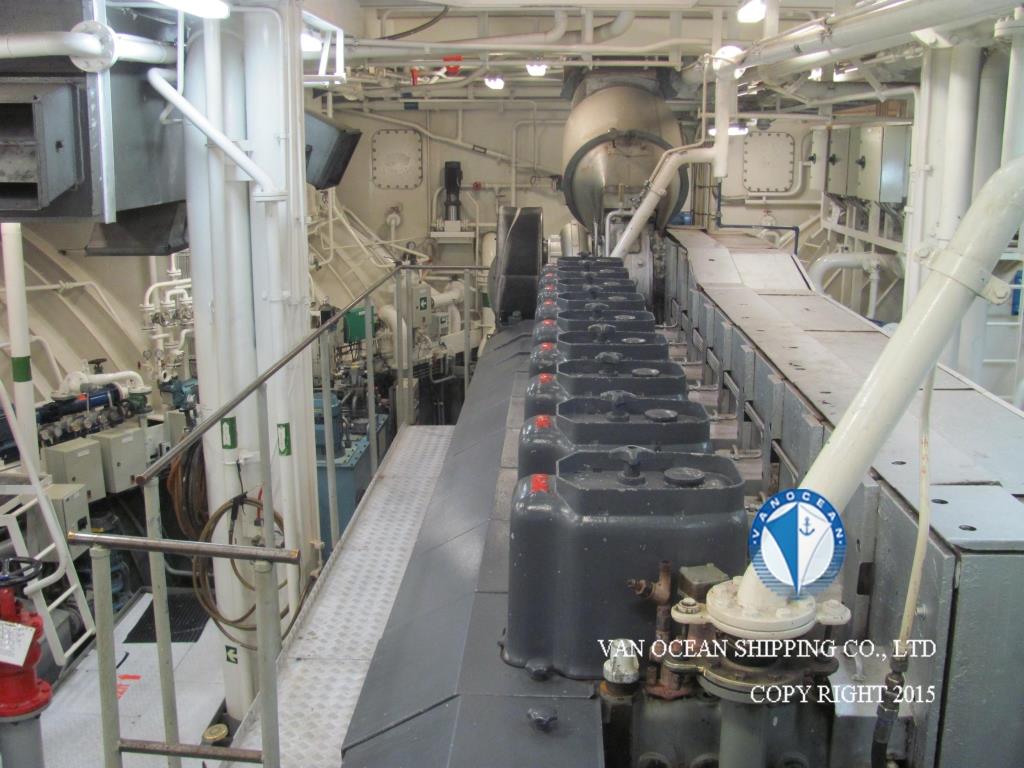

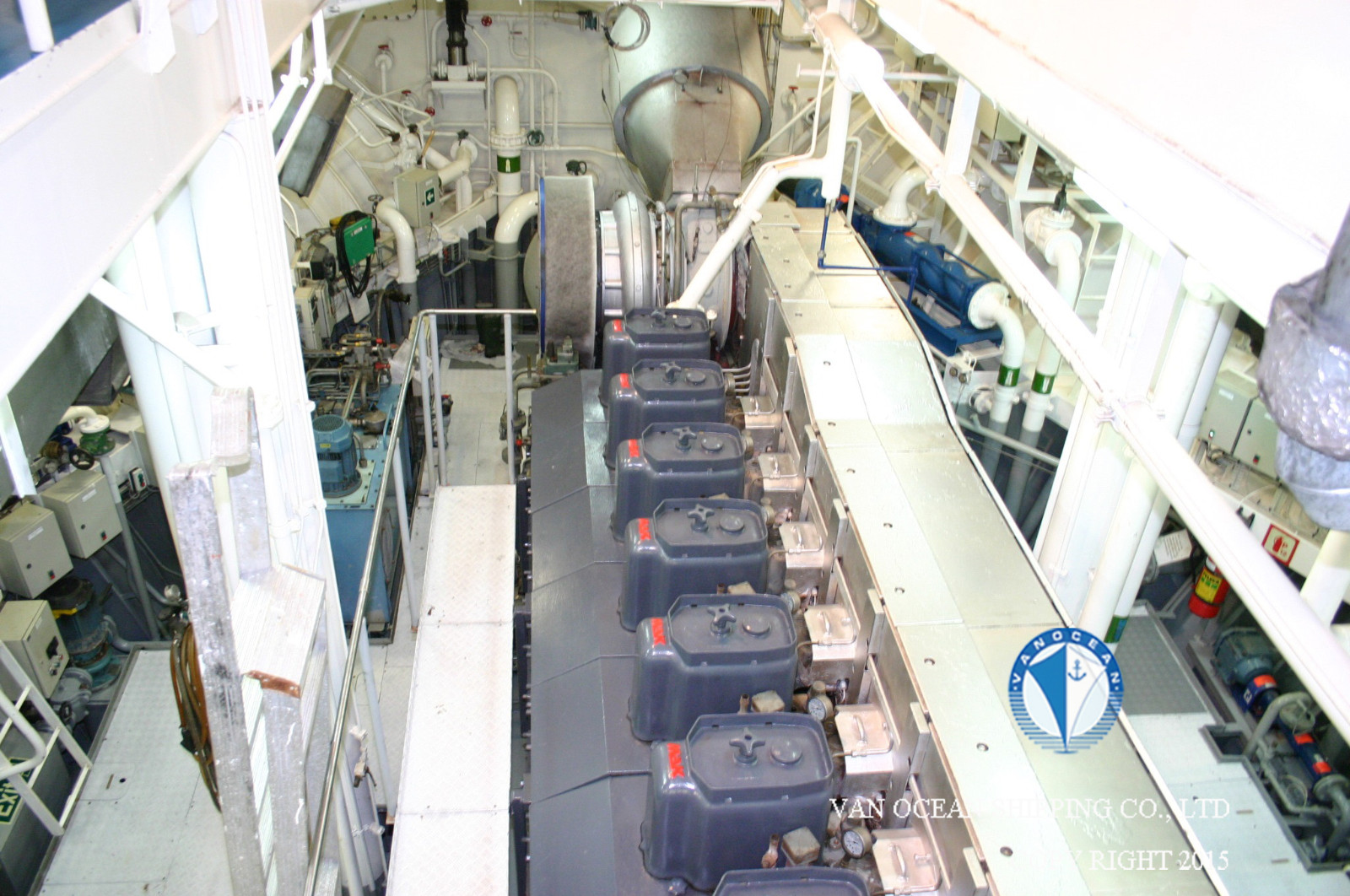

M/E(S)
1 x MAK 9M32, 9-CYL, DIESEL, 4 STROKE SINGLE ACTION, TURBO CHARGER, 139823HP,600RPM
REDUCTION GEAR: RENK-TACKE HSU-950C-600/118,92
M/E POWER (KW)
3960
A/E(S)
3 x MITSUBISHI DIESEL ENGINE
1 x CUMMINS 6BT59G2 EMERGENCY DIESEL ENGINE, 100KW, 1800RPM
GENERATOR(S)
3 x STAMFORD S12A2-MPTA GENERATORS, 709KW, 1800RPM
1 x STAMFORD GENERATOR, 100KW, 450V,60HZ
SHAFT GENERATOR(S)
1 x STAMFORD, 500KW, 1800RPM, 60HZ
PROPELLER(S)
KAMEWA HIGHLY SKEWED, 4 BLADES, DIA 4600MM, 120RPM
SPEED /CONSUMPTIONS
13.5KTS ON 14MT
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
183
TANKS CAPACITY (CBM)
BW: 4465
MDO: 63
FW: 92
COMPARTMENT(S)
7
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
428860
CARGO CAPACITY98% (CBM)
12149
COATING/MATERIAL OF HOLD(S)
INTERZINC QH100 COATING
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
ZINC
IGS
-
PUMP(S)
7 x SVANEHOJ DW200/250-2K ELECTRICAL DRIVEN FREQUENCY CONTROLLED DEEPWELL PUMPS, 400CBM/HR EACH
1 x SVANEHOJ NH80-1-NE HYDRAULICAL DRIVEN PUMP, 70CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
NOT

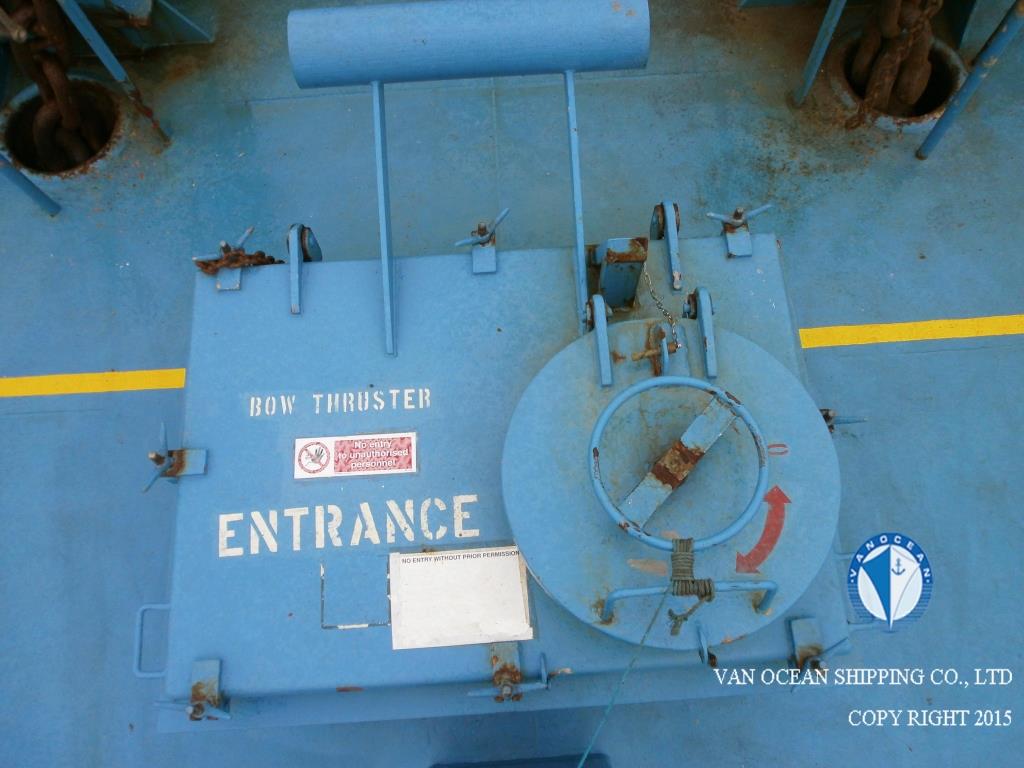

SIDE THRUSTER(S)
1 x BRUNVOLL ELECTRICAL BOW THRUSTER, 960BHP
INSURANCE
-
CREW
-
ACCOMMODATION
6 x SINGLE WITH SEPARATE BEDROOMS /TOILETS /BATHROOMS
5 x SINGLE WITH SEPARATE TOILETS/BATHROOMS
INSPECTION
-
DELIVERY
-
PRICE
USD 6.8 MILLION
REMARK(S)

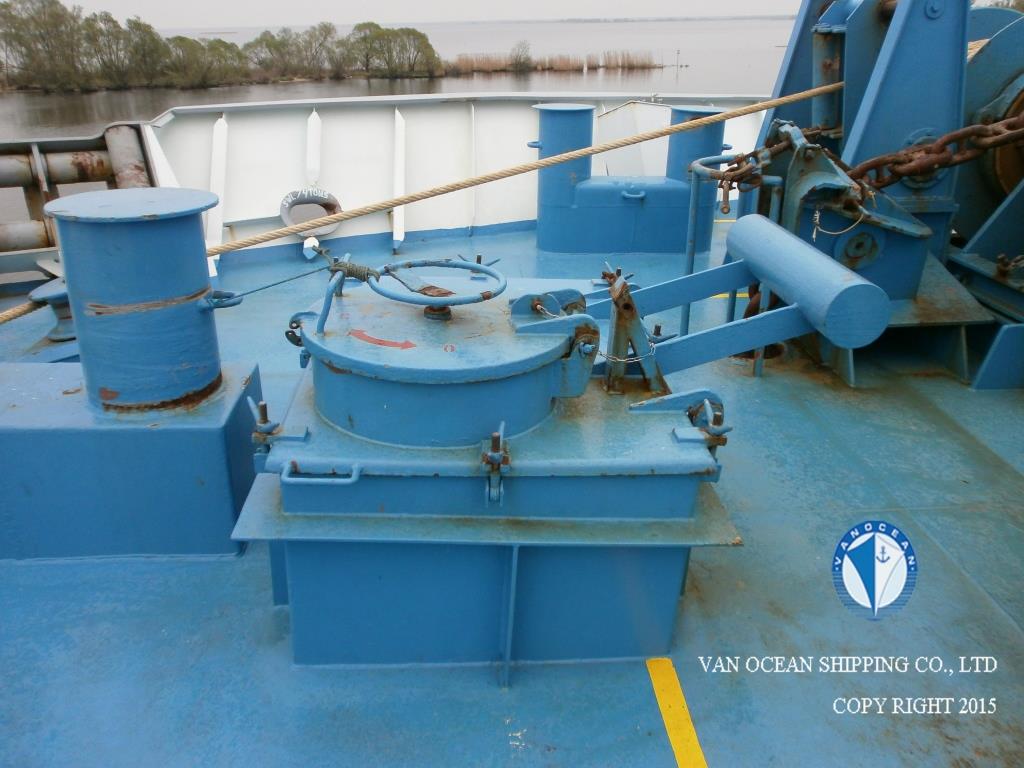

2 x COMBINED ANCHOR/MOORING WINCHES, NORWINCH A/S, 24MT
4 x 8MT MOORING WINCHES, NORWINCH A/S, 24MT
SCHILLING RUDDER 67.5
