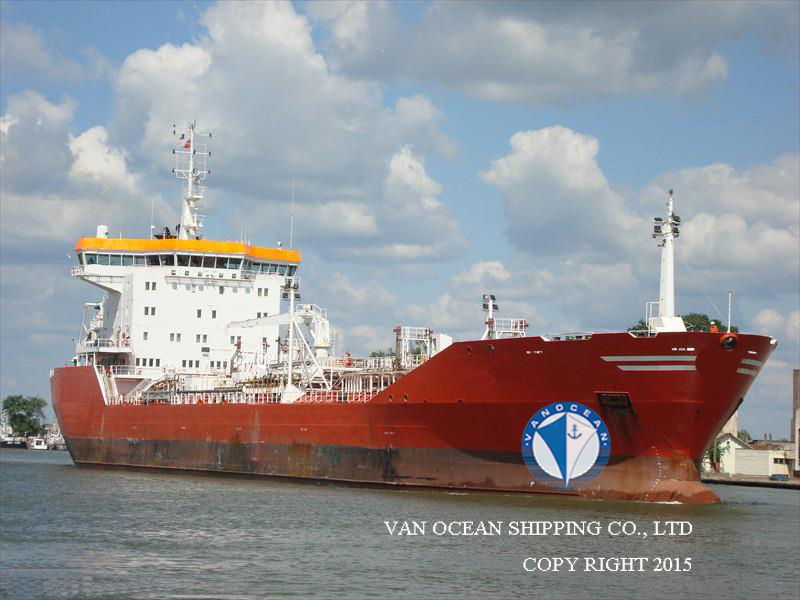

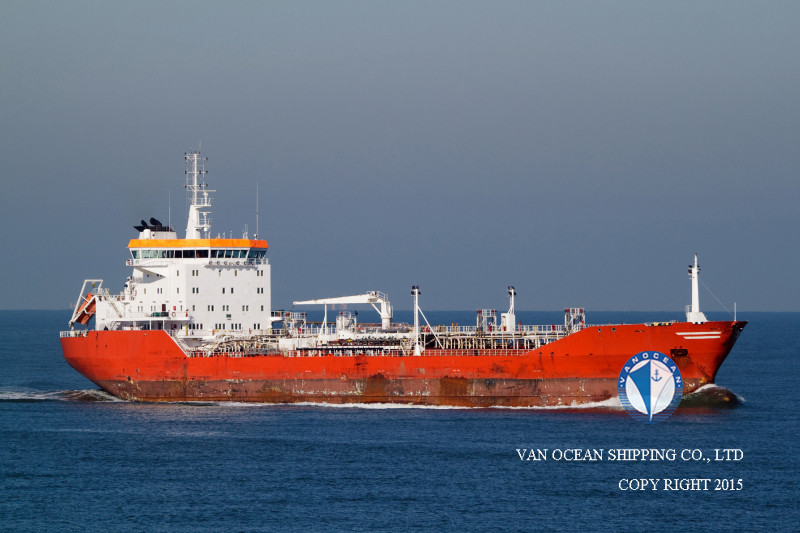

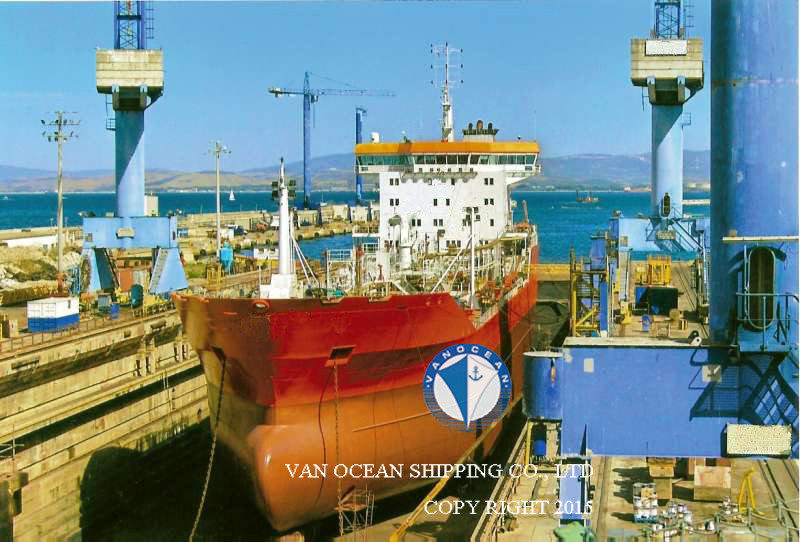

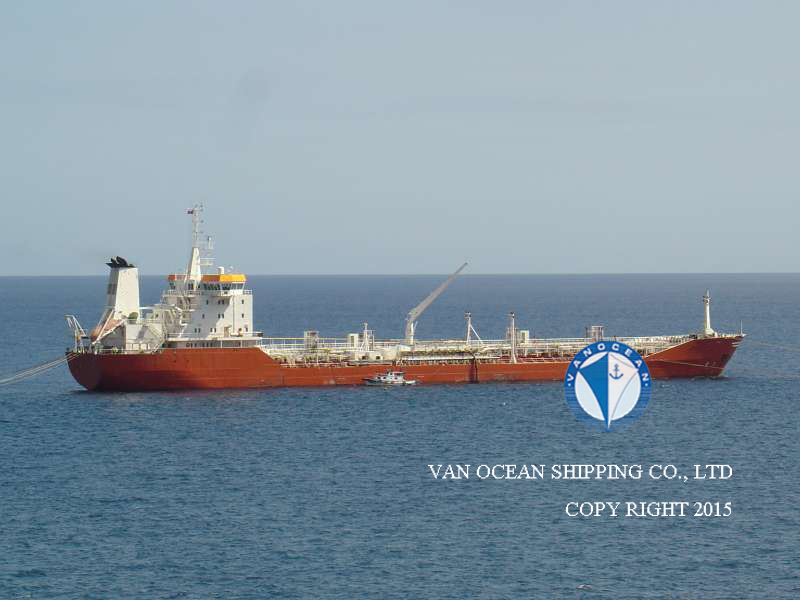

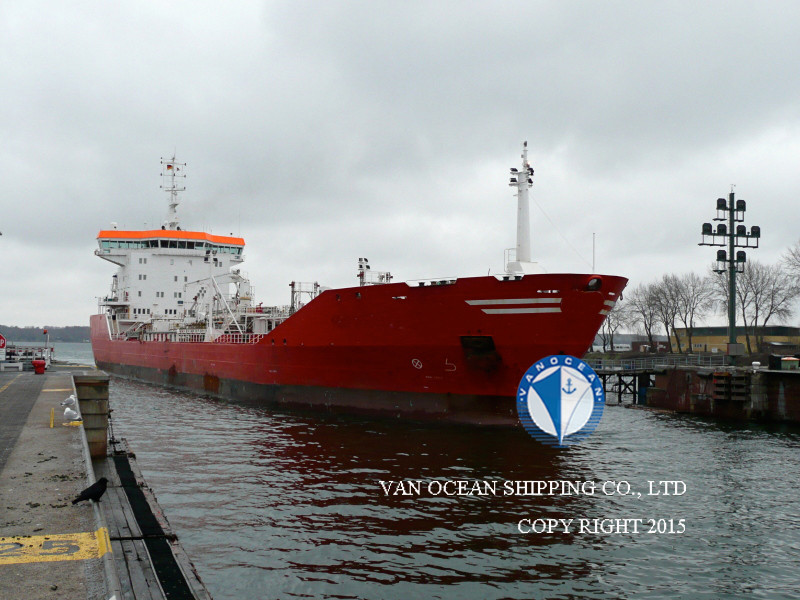

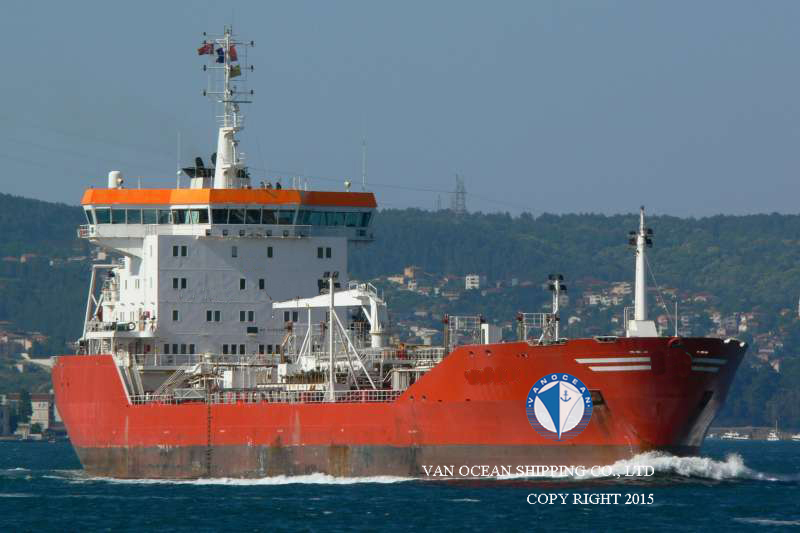

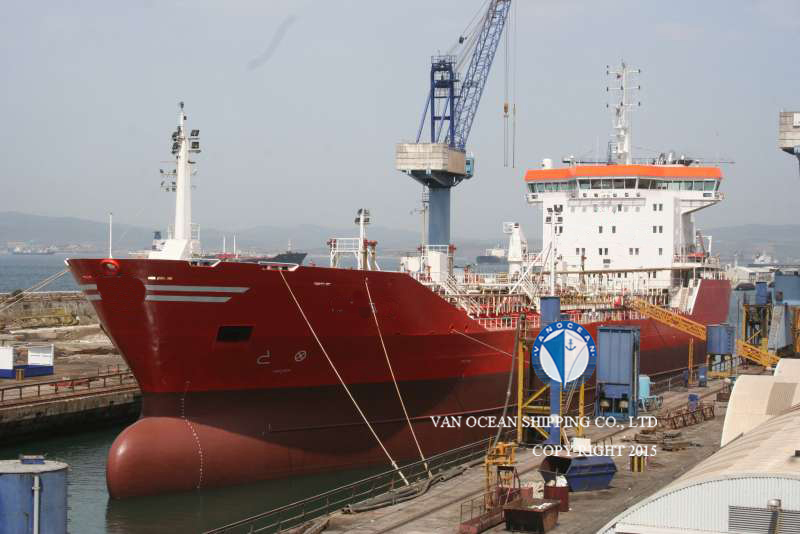

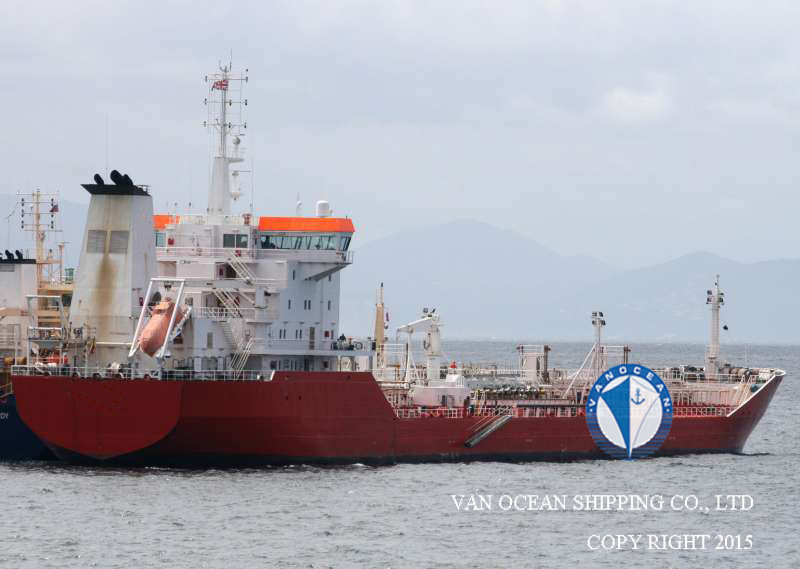

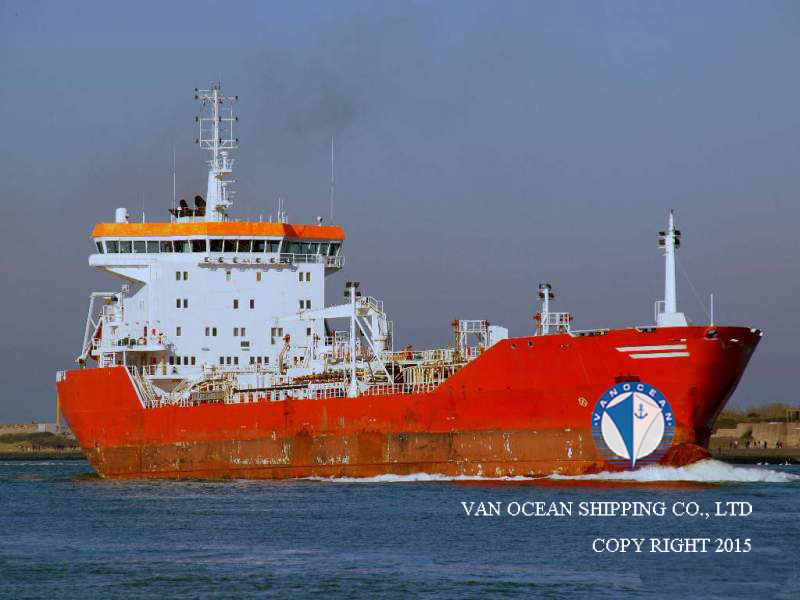

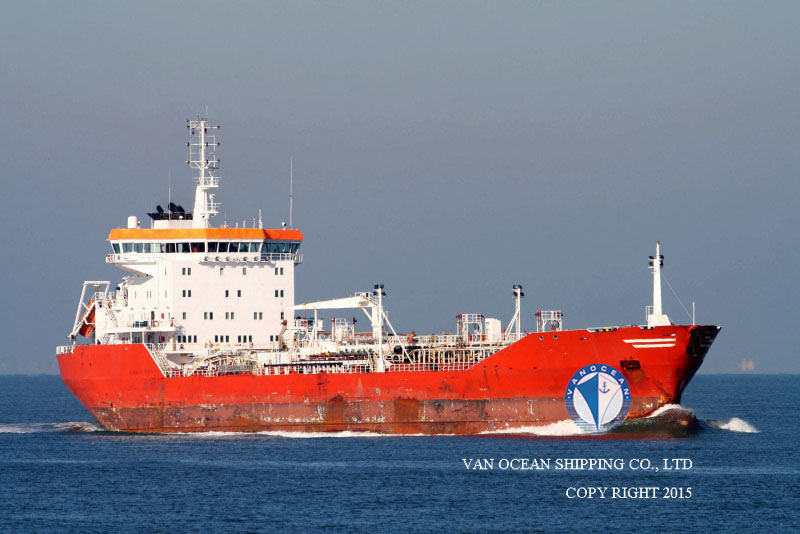

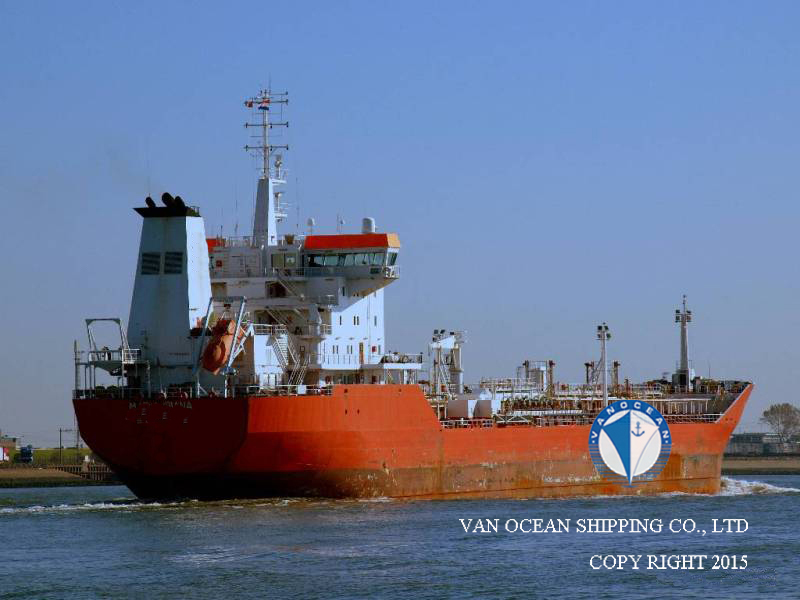

VESSEL NAME

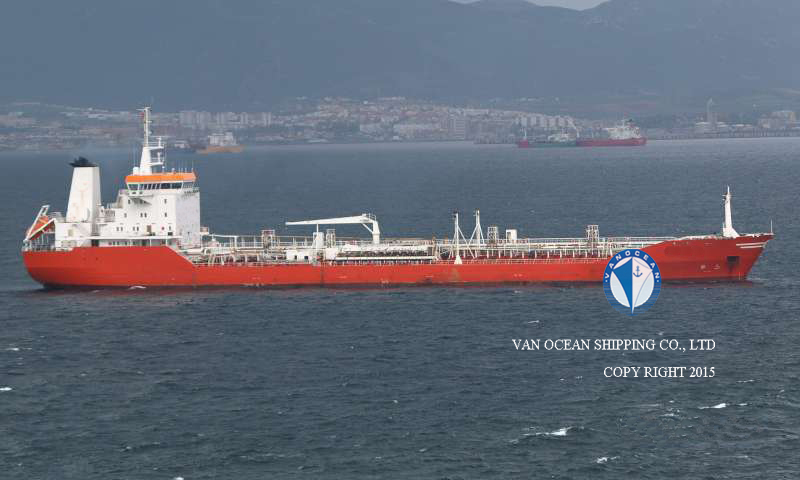

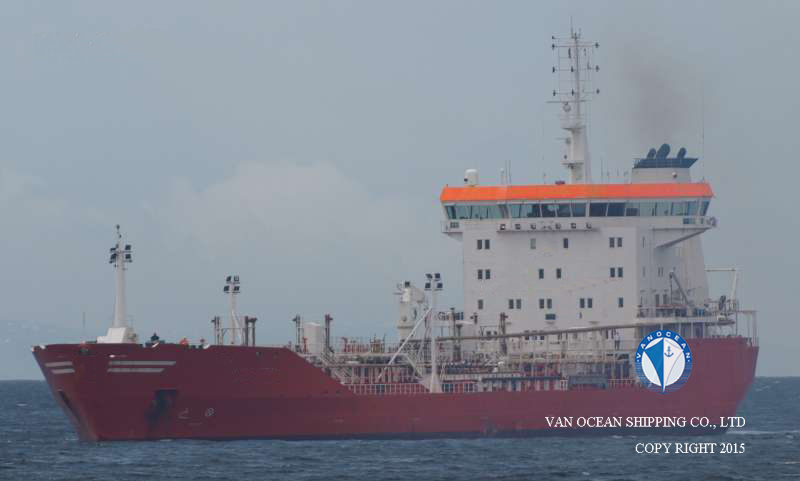

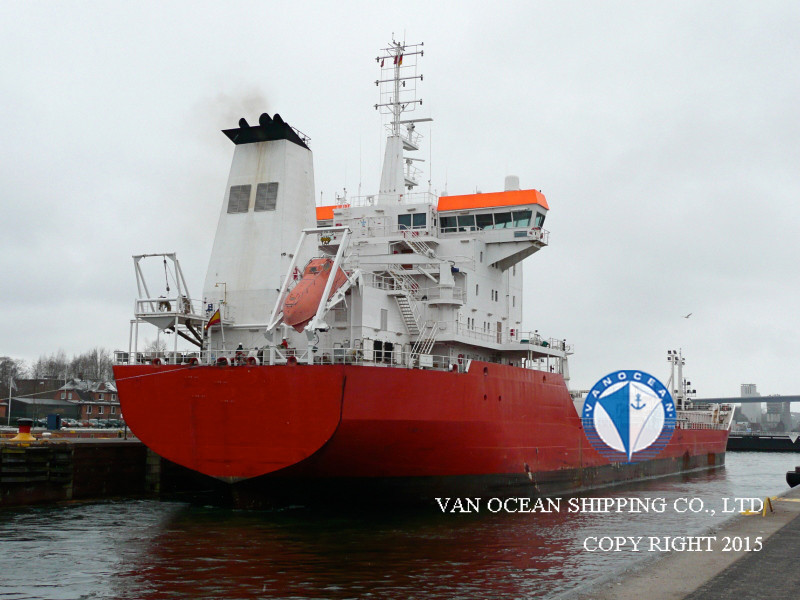

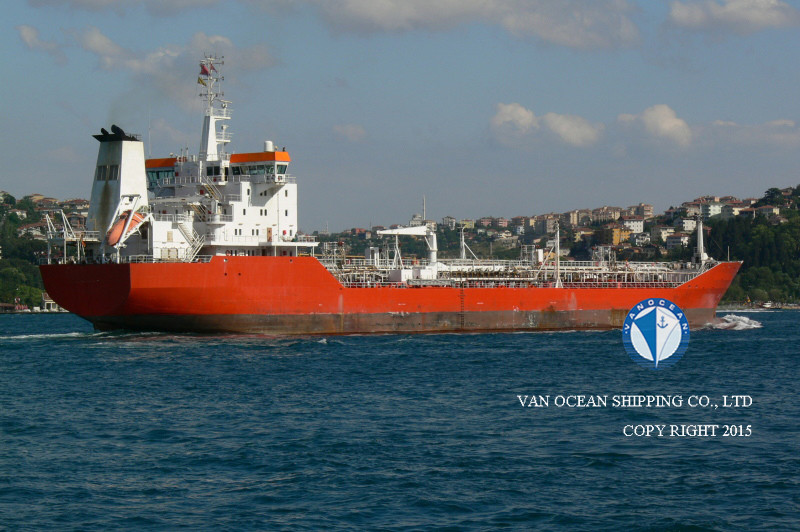

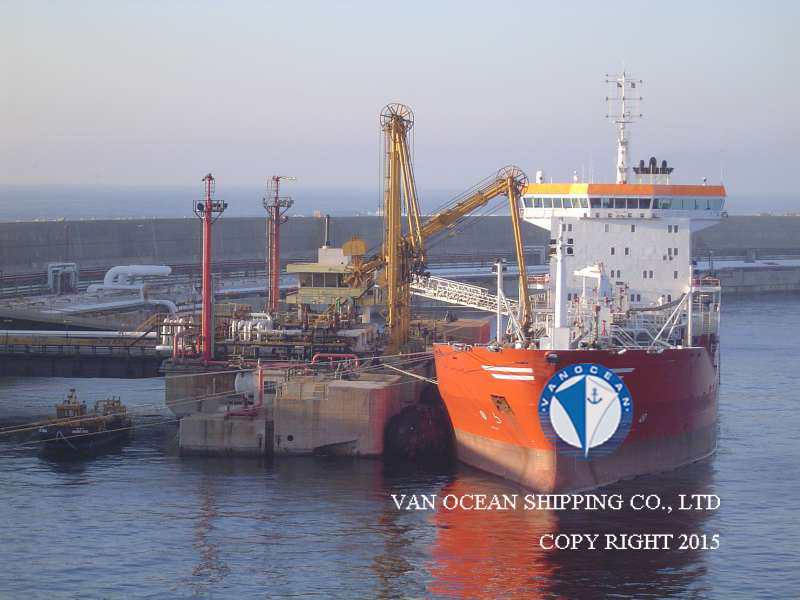

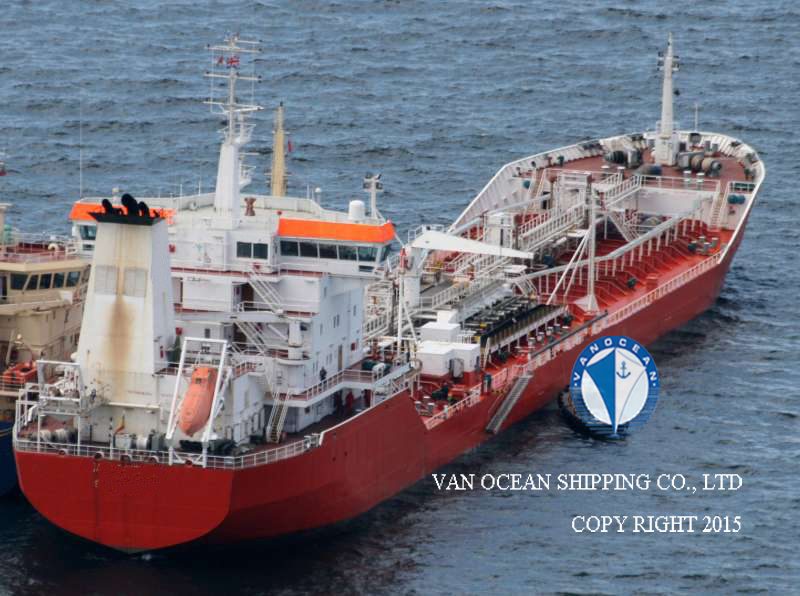

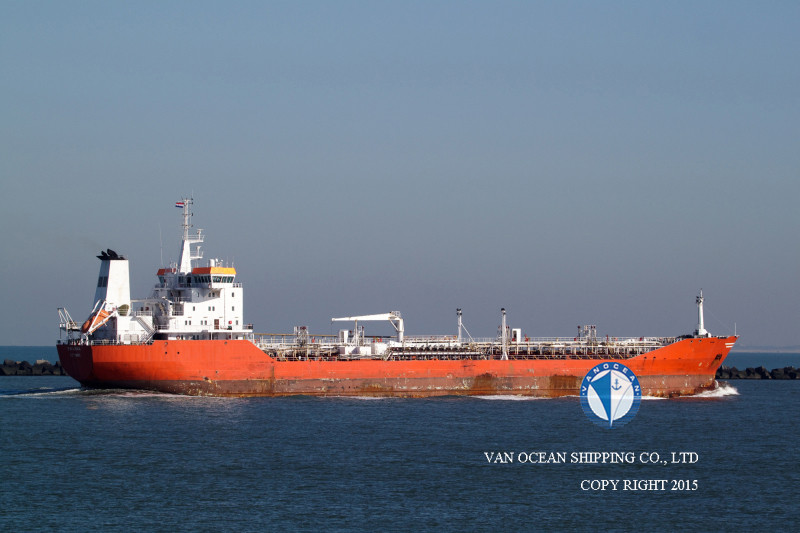

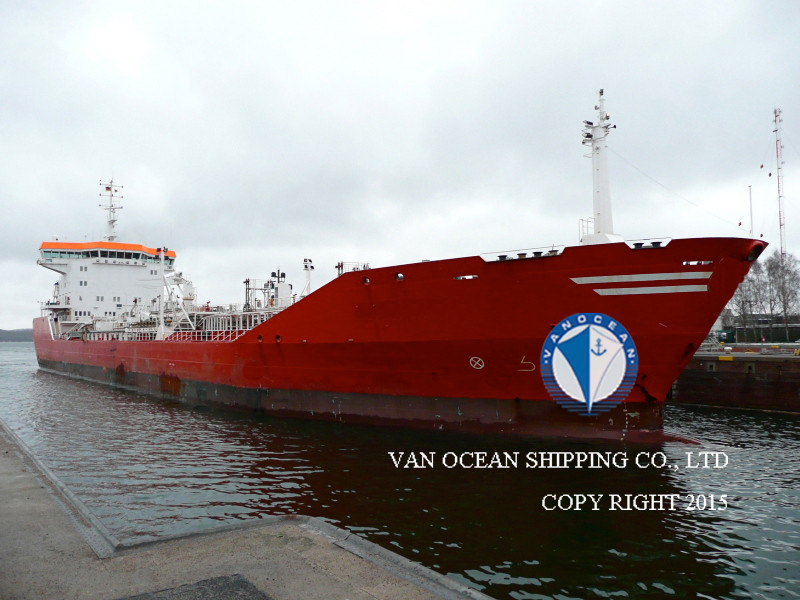

TNK200
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
-
BUILT YEAR
2002
BUILT PLACE
FACTORIAS VULKANO VIGO, SPAIN
CLASSIFICATION
LR
CLASS NOTATION
IMO2,IMO3
SS
2025-04-14
DD
2025-04-14
LOA (M)
144.05
LBP (M)
-
BEAM (M)
23
DEPTH (M)
12.4
SUMMER DRAFT (M)
9.5
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
11377
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5600
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
18736
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
5590
GEAR(S)
-
M/E(S)
MAN B&W 9L 40/54 8683HP 500
M/E POWER (KW)
6480
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
-
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
657780
CARGO CAPACITY98% (CBM)
18634
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL AVESTA 2205
HEATING SYSTEM
STAINLESS STEEL COILED
SACRIFICIAL ANODE
-
IGS
FITTED
PUMP(S)
CARGO PUMP: 12 x 280 CBM/HR (DEEPWELL); 2 x 80 CBM/HR (DEEPWELL); 1 x 70CBM/HR
BALLAST PUMP: 2 x 498 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BWTS FITTED, SBT
