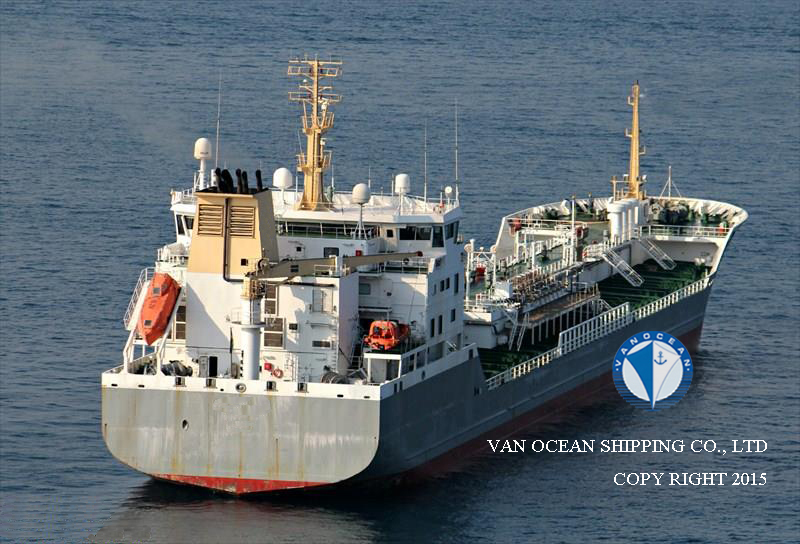

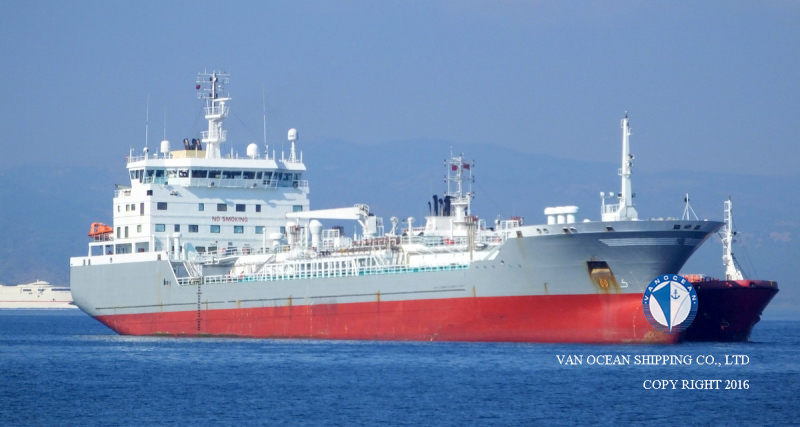

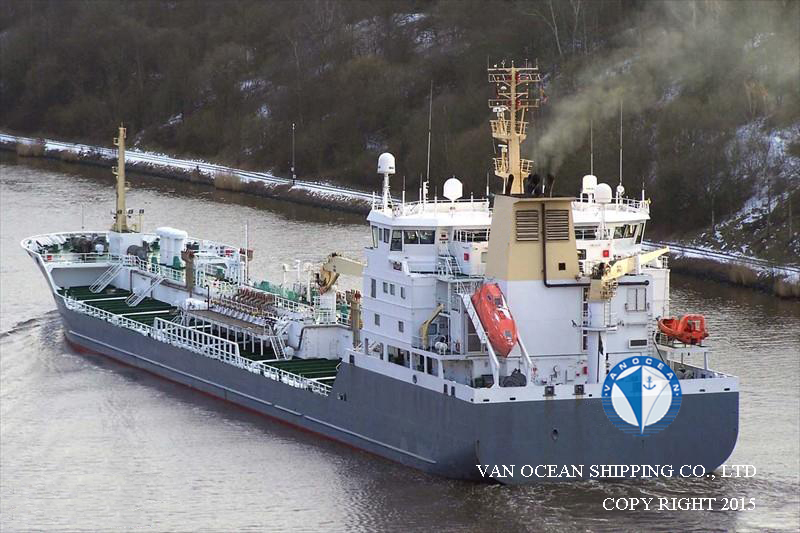

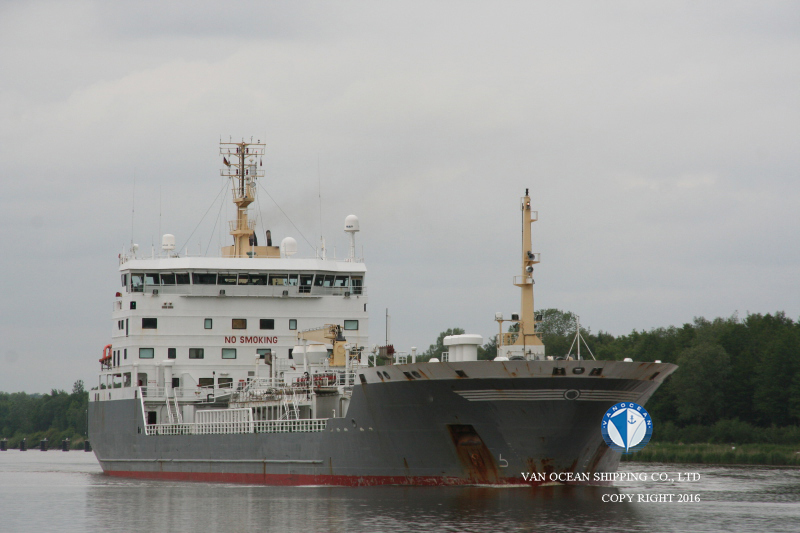

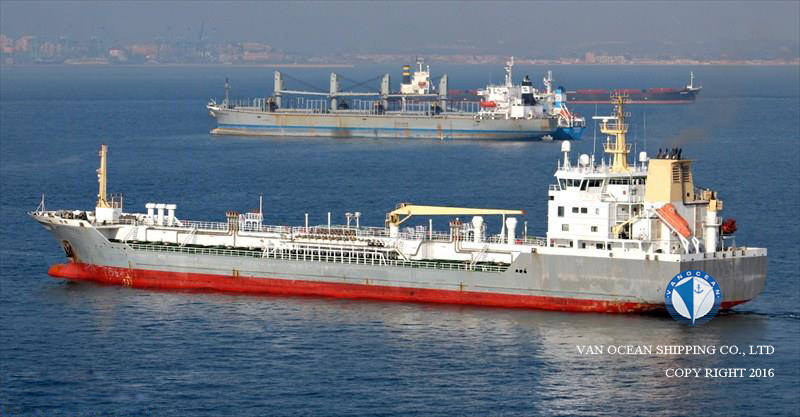

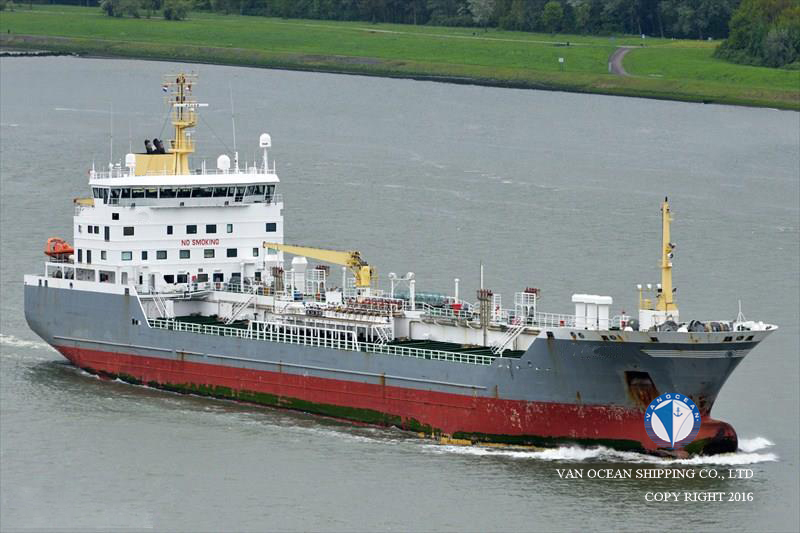

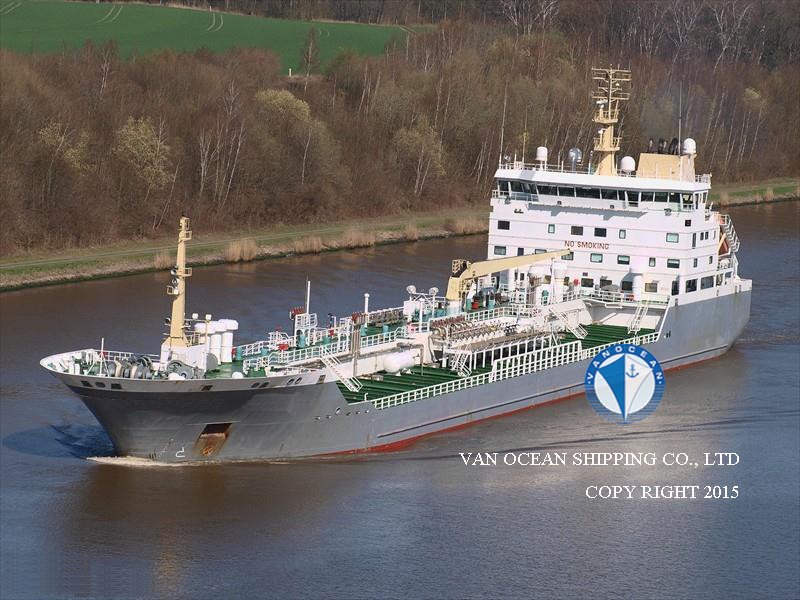

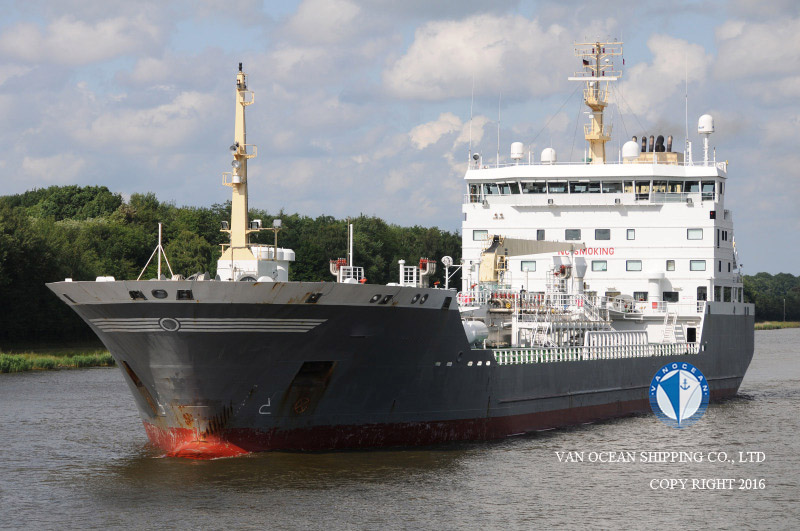

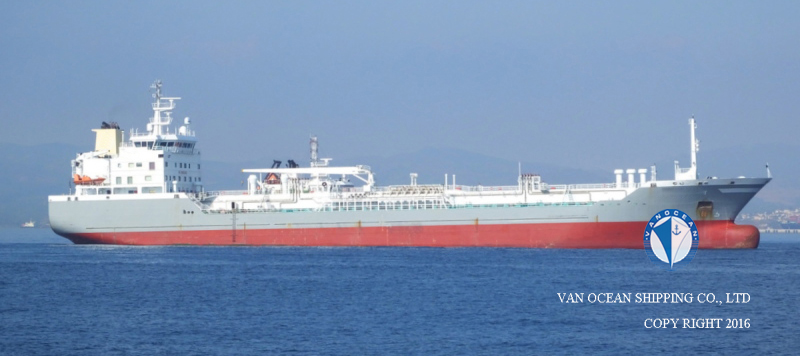

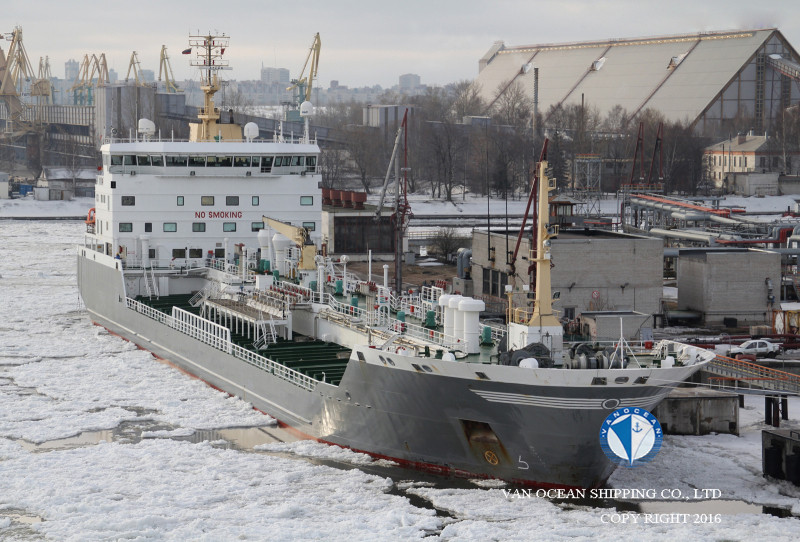

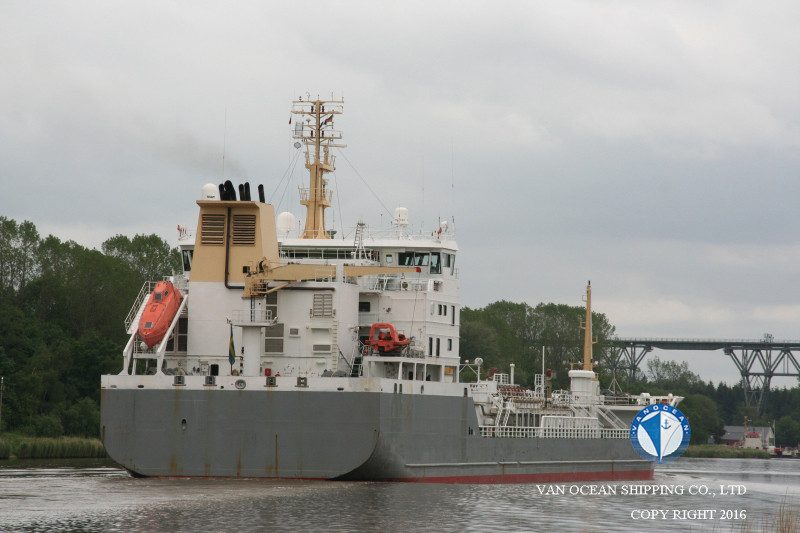

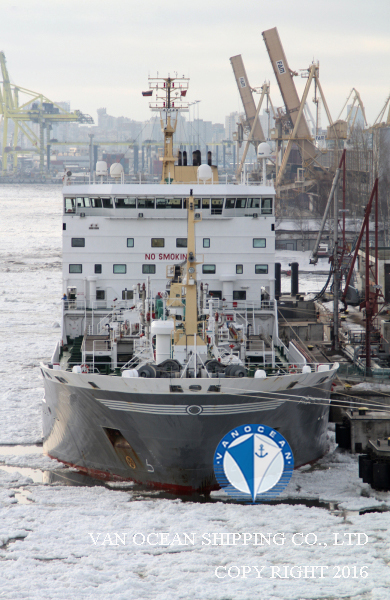

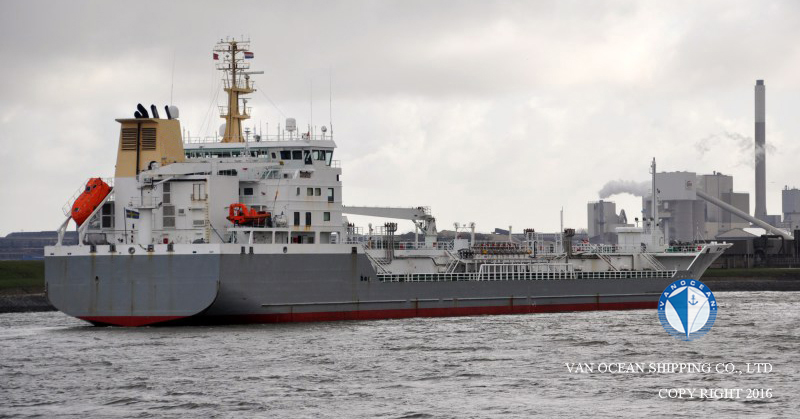

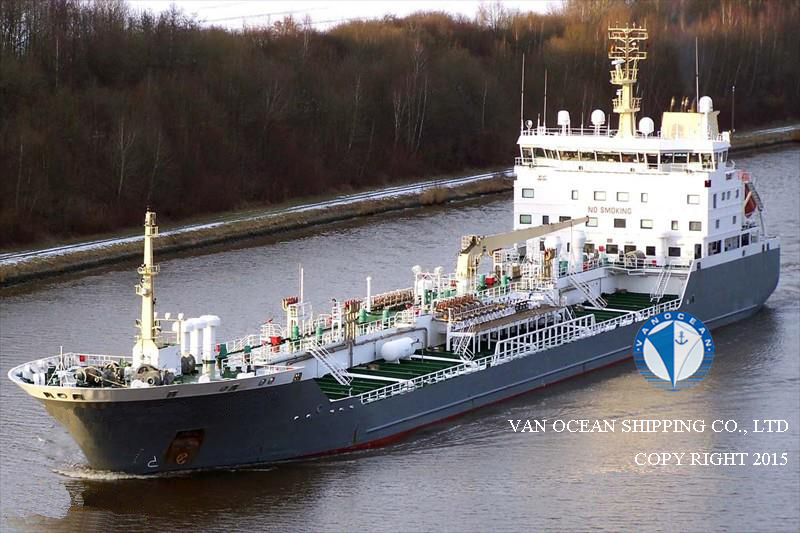

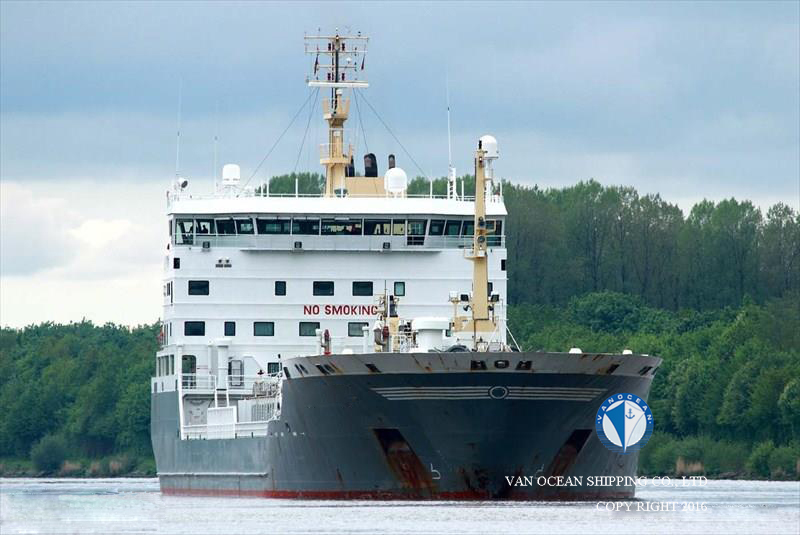

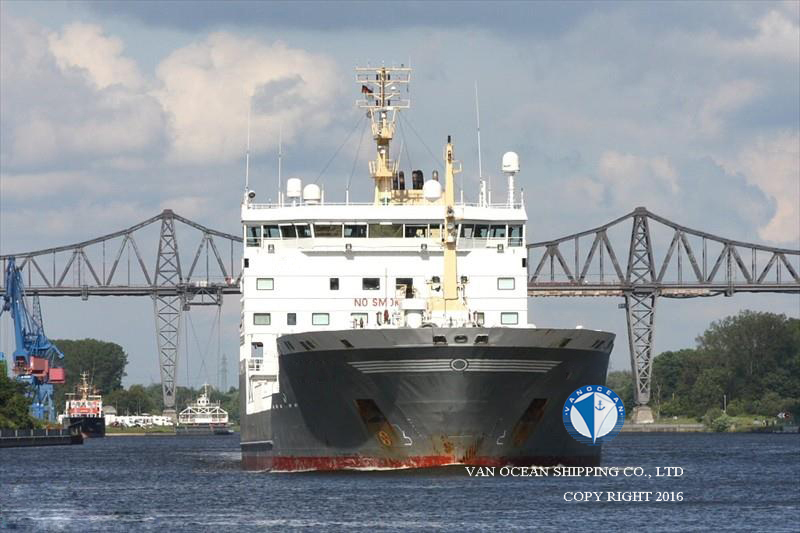

VESSEL NAME
TNK236
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
SWEDEN
PORT OF REGISTRY
DONSO
BUILT YEAR
2000
BUILT PLACE
SHANGHAI, CHINA
CLASSIFICATION
DNV
CLASS NOTATION
+1A1 ICE CLASS, UNRESTRICTED NAVIGATION, IMOⅡ
SS
2015-10-31
DD
-
LOA (M)
145.70
LBP (M)
134.95
BEAM (M)
22.00
DEPTH (M)
12.80
SUMMER DRAFT (M)
9.80
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
11793.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5914.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
17000.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
23838.00
LDT (MT)
-
GEAR(S)
-
M/E(S)
SIEMENS SCHOTTEL 7
M/E POWER (KW)
5100
A/E(S)
4 x WARTSILA 9L20 EACH 1620KW
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
-
FUEL TYPE
HFO
BUNKER CAPACITY (CBM)
560
TANKS CAPACITY (CBM)
SBT: 2131; FRESH WATER: 90; DO: 70; TECHNICAL FRESH WATER: 130
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
723650
CARGO CAPACITY98% (CBM)
20500
COATING/MATERIAL OF HOLD(S)
PHENOLIC EPOXY COATED
HEATING SYSTEM
-
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
14 x SVANEHOJ EACH 250/12 BAR, DISCHARGE CAPACITY: 4900CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOWTHRUSTER SCHOTTEL 640KW
INSURANCE
-
CREW
-
ACCOMMODATION
15 PERSONS
INSPECTION
-
DELIVERY
-
PRICE
USD 11 MILLION
REMARK(S)
2 x GESAB BOILERS, EACH 3800KW
4 x GESAB EXHAUST BOILERS, EACH 300KW
AUTRONICA CARGO MONITORING
STEIN & SOHN ENGINE MONITORING
