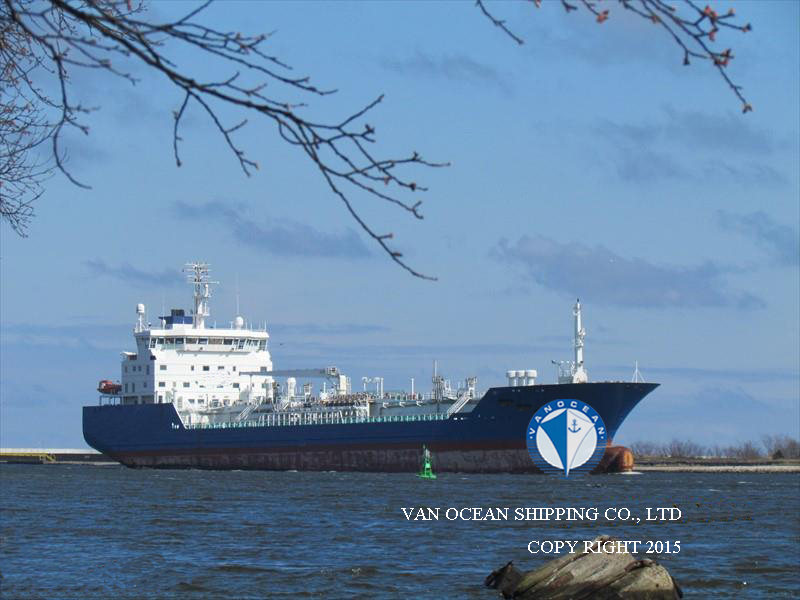

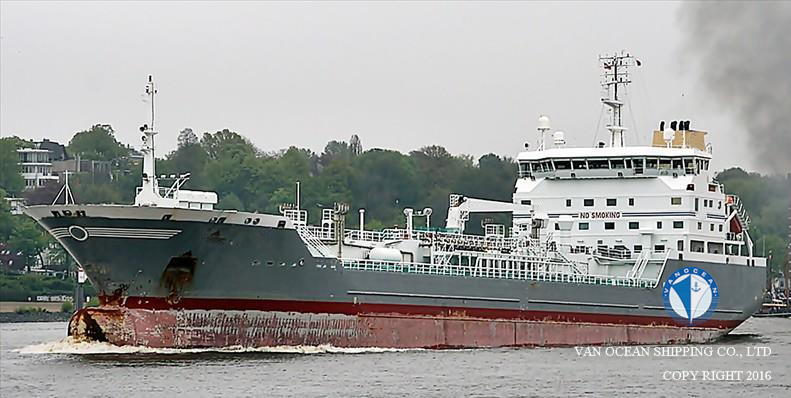

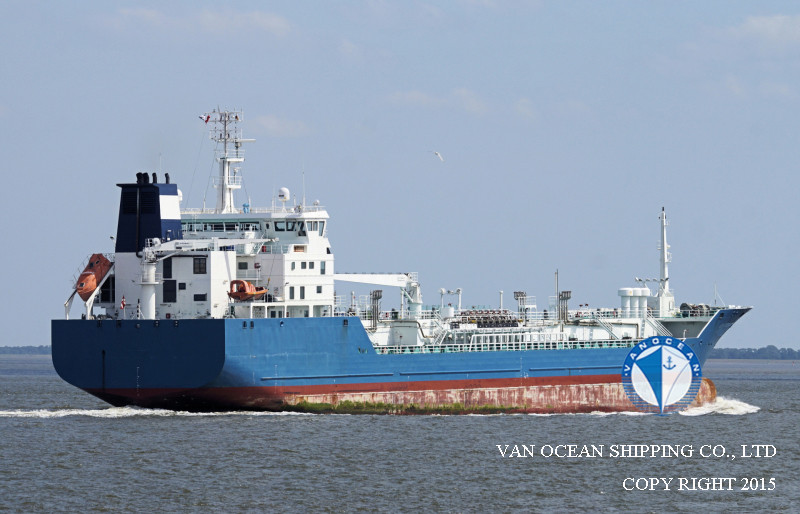

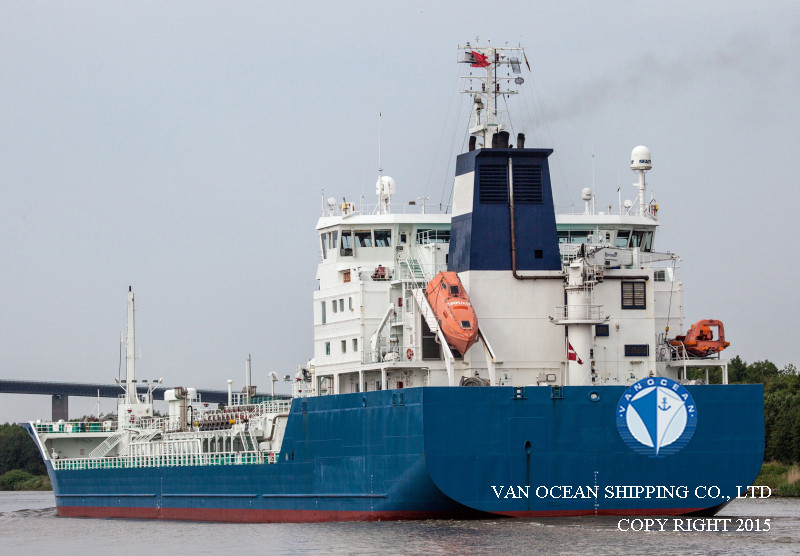

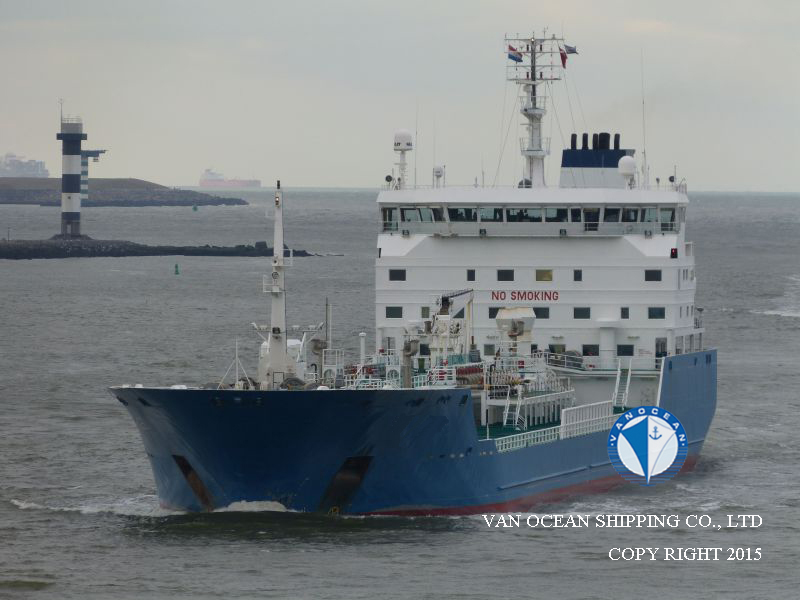

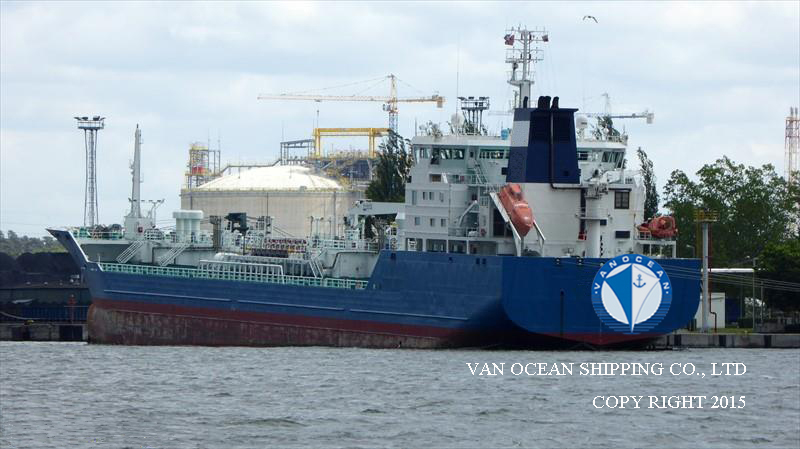

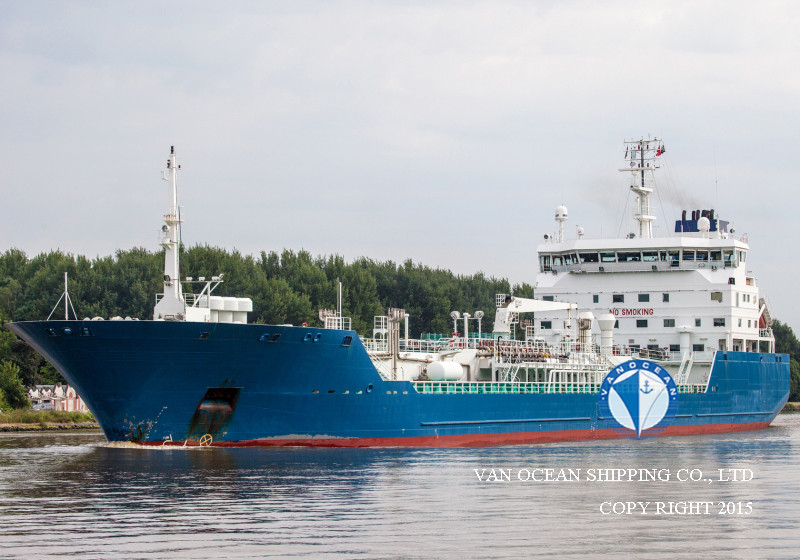

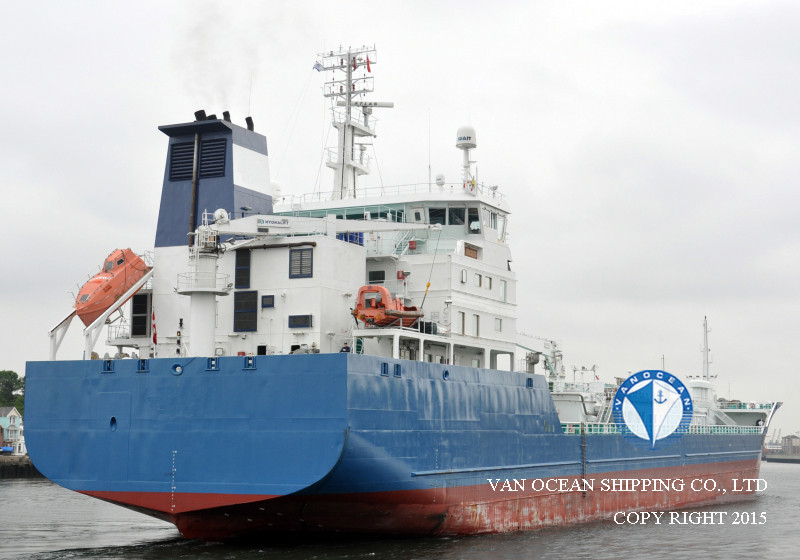

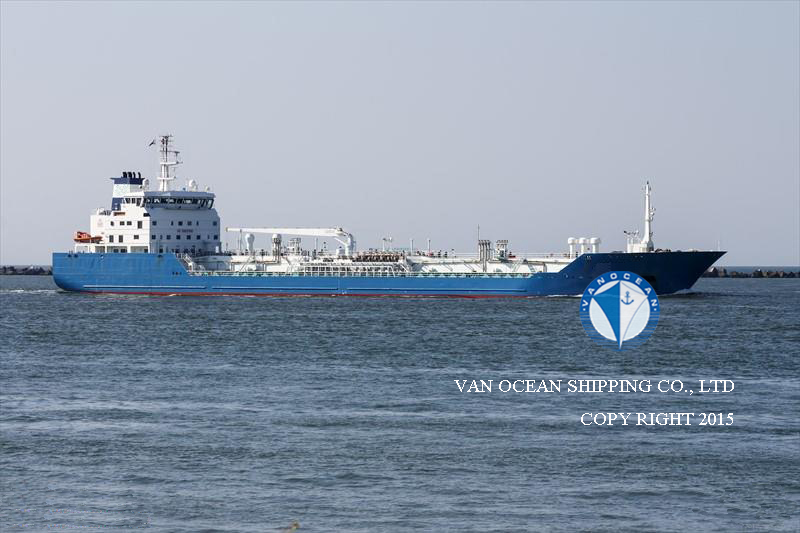

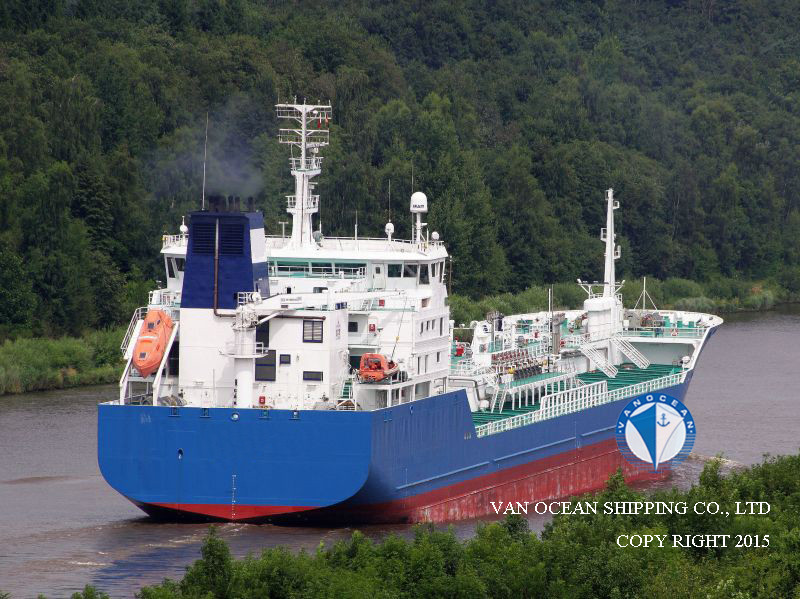

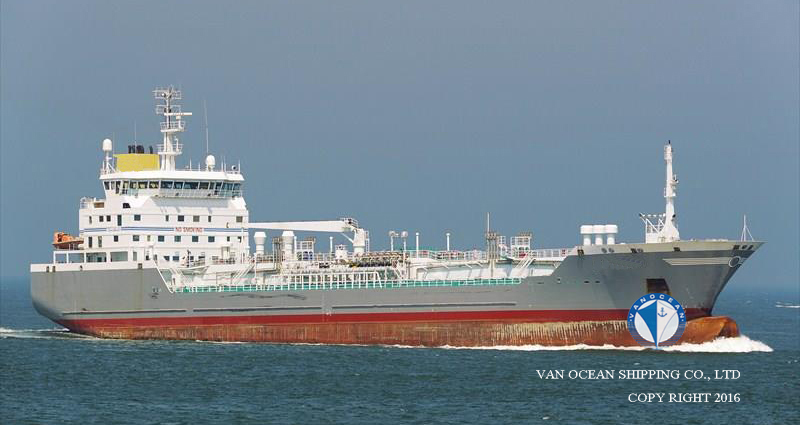

VESSEL NAME
TNK238
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
-
FLAG
PANAMA
PORT OF REGISTRY
-
BUILT YEAR
2002
BUILT PLACE
SHANGHAI EDWARD SHIPYARD, CHINA
CLASSIFICATION
DNV GL
CLASS NOTATION
+1A1, ICE 1A, EO, ESP, ETC, HL(1.5), NAUT(OC), IMO II
SS
2017-11-18
DD
2017-11-18
LOA (M)
146.05
LBP (M)
-
BEAM (M)
22.33
DEPTH (M)
12.80
SUMMER DRAFT (M)
9.25
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
11885.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5914.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
18008.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)
2 x SIEMENS SCHOTTEL 7 (360
M/E POWER (KW)
2 x 5300
A/E(S)
4 x W
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
-
FUEL TYPE
-
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
-
CARGO CAPACITY98% (CBFT)
725909
CARGO CAPACITY98% (CBM)
20564
COATING/MATERIAL OF HOLD(S)
PHENOLIC EPOXY COATED
HEATING SYSTEM
-
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
14 x 252 CBM/HR, 12 BAR PRES-VAC;
DISCHARGE CAPACITY: 4900 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
SCHOTTEL BOWTHRUSTER, 850KW
INSURANCE
-
CREW
-
ACCOMMODATION
15 PERSONS
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
2 x GESAB BOILERS 3800KW
4 x GESAB EXHAUST GAS BOILERS 300KW
AUTRONICA CARGO MONITORING
STEIN & SOHN ENGINE MONITORING
