VESSEL NAME
TNK239
IMO
-
CALL SIGN
-
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MALTA
PORT OF REGISTRY
ANTWERP
BUILT YEAR
2006
BUILT PLACE
SPAIN
CLASSIFICATION
BV
CLASS NOTATION
+HULL+MACH OIL, CHEMICAL TANKER ESP, UNRESTRICTED NAVIGATION, AUT PORT+AUT UMS, NEQ-1, AVM, APS MANOVR, IG CLEAN AIR, CLEAN SEA, IMO Ⅱ
SS
2021/02
DD
2021/02
LOA (M)
119.85
LBP (M)
-
BEAM (M)
18.8
DEPTH (M)
10.5
SUMMER DRAFT (M)
8.23
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
6717
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3277
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
11276
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)
1 x MAK 8M32C
M/E POWER (KW)
4320

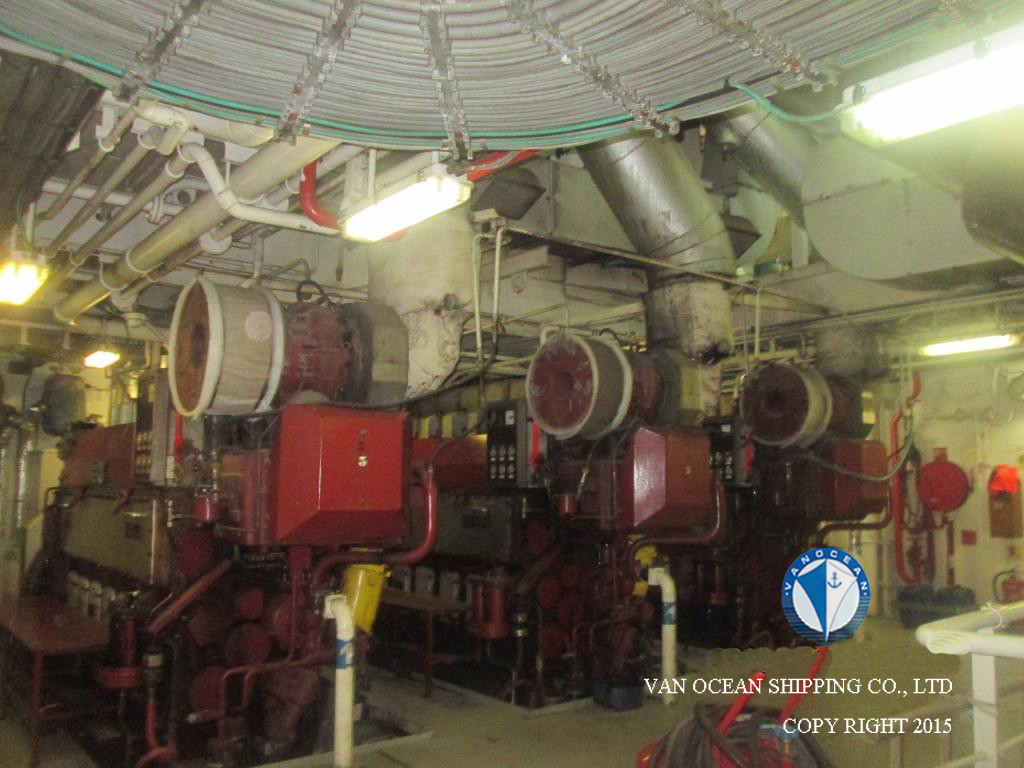

A/E(S)
MAK 9M32, 3 x 1000KW + 1 x 160KW
GENERATOR(S)
-
SHAFT GENERATOR(S)
600KW
PROPELLER(S)
1 x CPP, FOUR BLADES
SPEED /CONSUMPTIONS
13.5KTS ON 18MT IFO380CST
FUEL TYPE
IFO380CST
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
6, +2 SLOP TANKS (272CBM)
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
403620
CARGO CAPACITY98% (CBM)
11434
COATING/MATERIAL OF HOLD(S)
EPOXY COATED
HEATING SYSTEM
STAINLESS STEEL DECK HEAT EXCHANGER
SACRIFICIAL ANODE
-
IGS
NITROGEN GENERATOR 2 x 825 Nm3/h AT 5% OXYGEN
PUMP(S)
DEEPWELL CENTRIFUGAL CARGO PUMPS, 12x350CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
1 x ELECTRIC BOWTHRUSTER, 500KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
STERN DISCHARGE LINE
SEGREGATED BALLAST TANK
CEE CALIBRATED CARGO TANKS， BWTS
