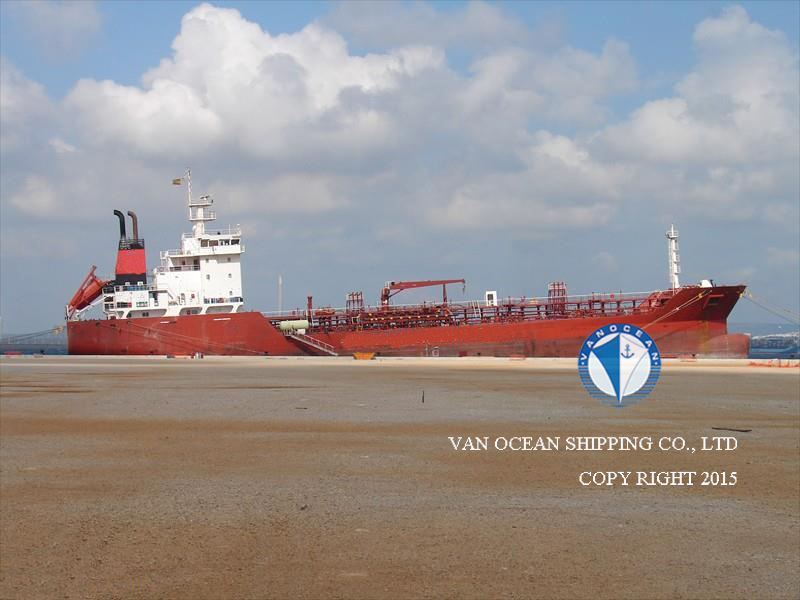

VESSEL NAME
TNK254
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
-
FLAG
MARSHALL ISLAND
PORT OF REGISTRY
-
BUILT YEAR
1998
BUILT PLACE
SPAIN
CLASSIFICATION
DNV
CLASS NOTATION
1A1 ICE-1C TANKER FOR CHEMICAL AND OILS , ESP E0 NAV-O, TMON
SS
2018-11
DD
2016-11
LOA (M)
115.30
LBP (M)
-
BEAM (M)
-
DEPTH (M)
-
SUMMER DRAFT (M)
8.00
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
-
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
-
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
8941.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
CRANES, 1 x 5MT

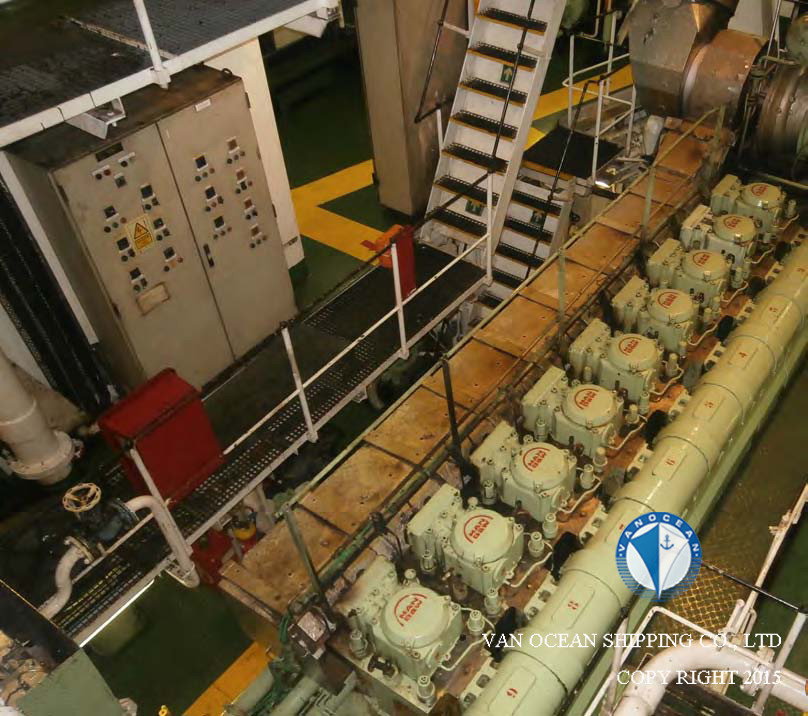

M/E(S)
MAN 9L 32-40, 3950KW
M/E POWER (KW)
3950
A/E(S)

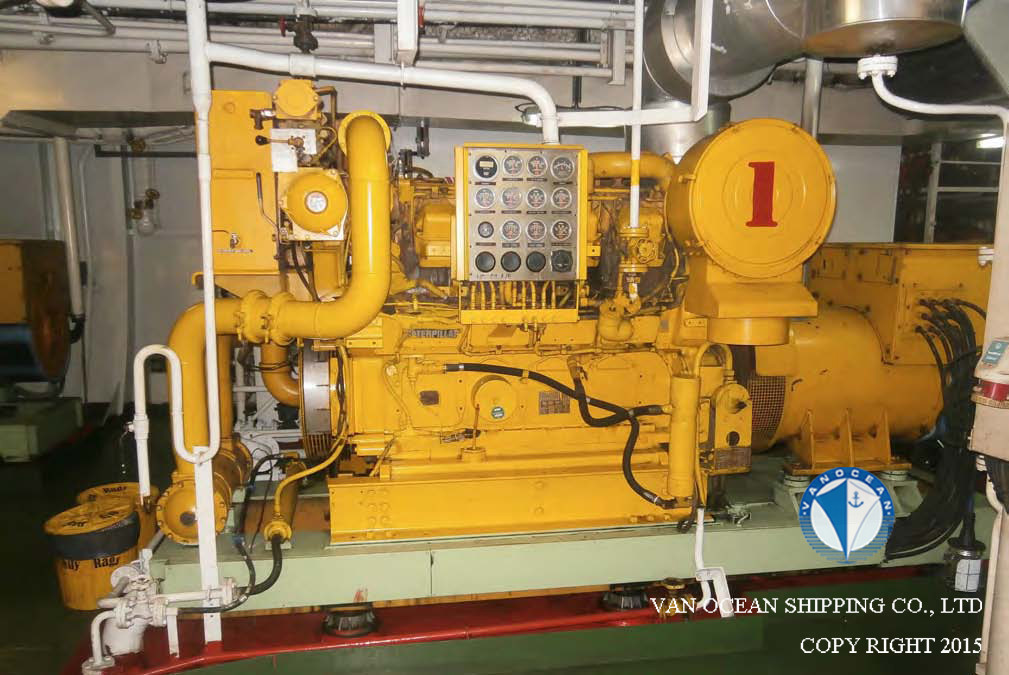

3 x GEP CAT, 450KW
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
LADEN: ABOUT 10.5 KNOTS ON ABOUT 13 MT IFO
BALLAST: ABOUT 10.5 KNOTS ON ABOUT 12 MT IFO
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
6
NUMBER OF CARGO HOLDS
12
CARGO CAPACITY98% (CBFT)
332526
CARGO CAPACITY98% (CBM)
9420
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
THERMAL OIL
SACRIFICIAL ANODE
-
IGS
YES, N2 GENERATOR
PUMP(S)
CENTRIFUGAL, FRAMO, 10 x 290 CBM/HR; 2 x 120 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER, 328KW
INSURANCE
-
CREW
-

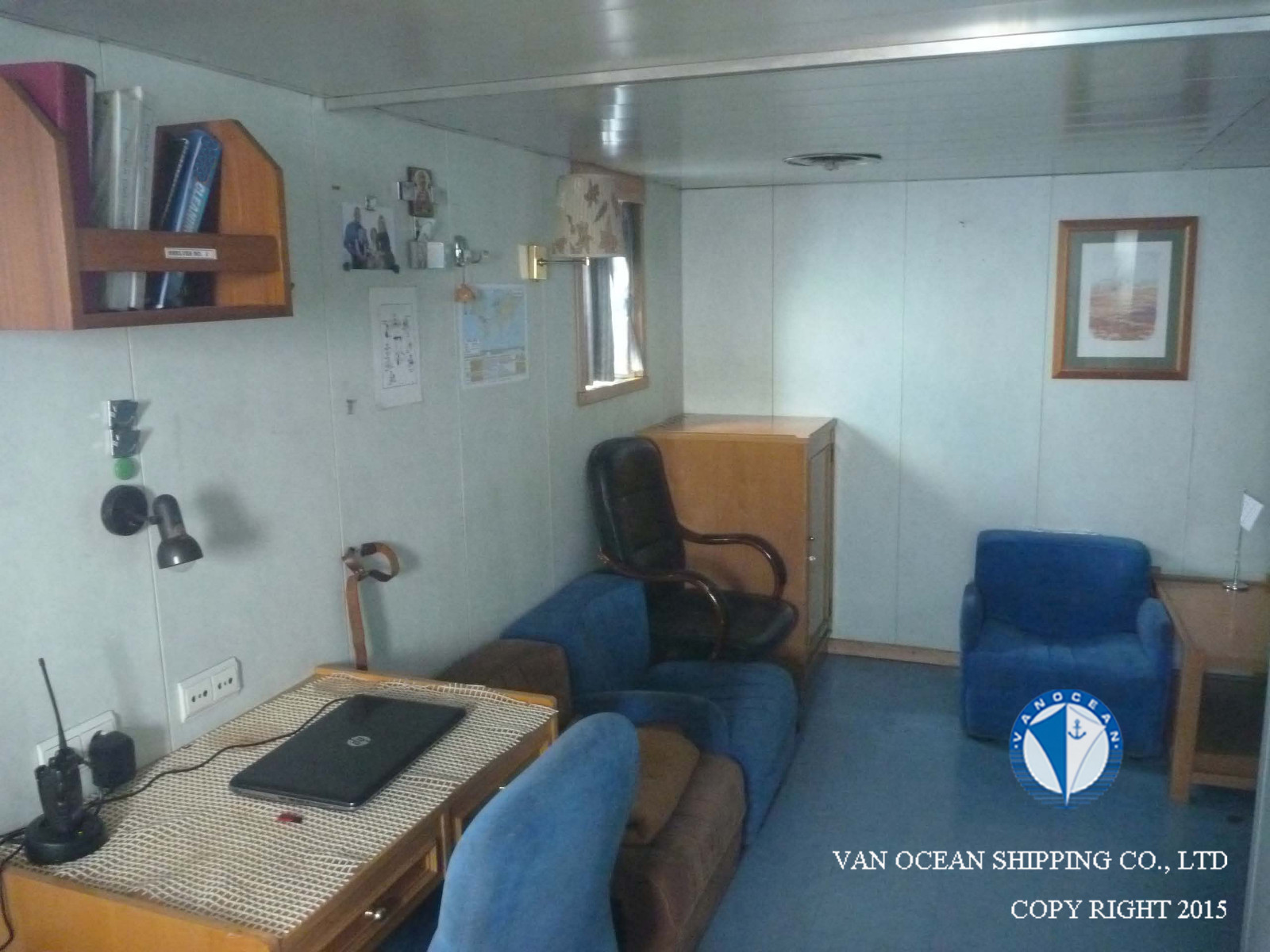

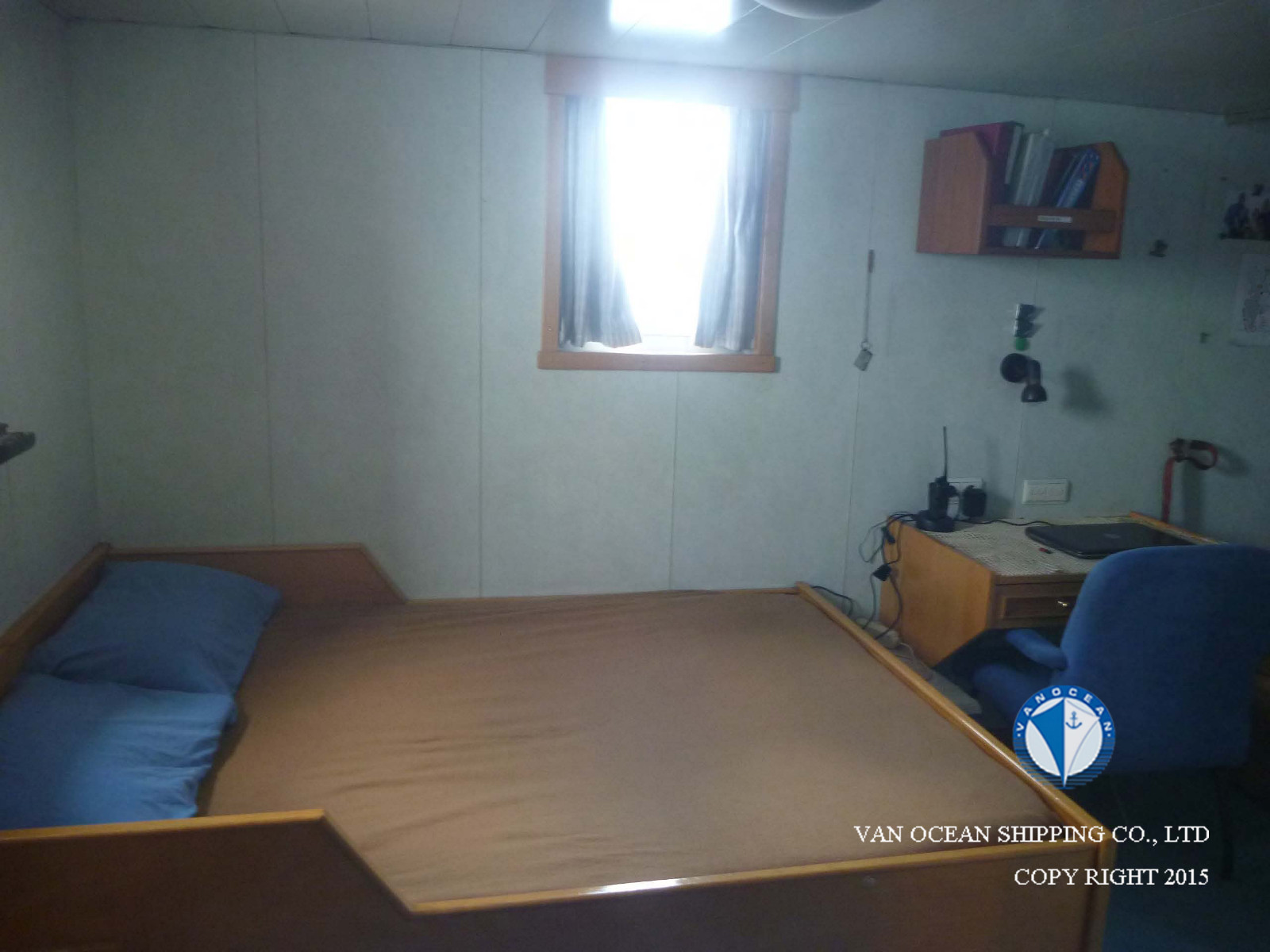

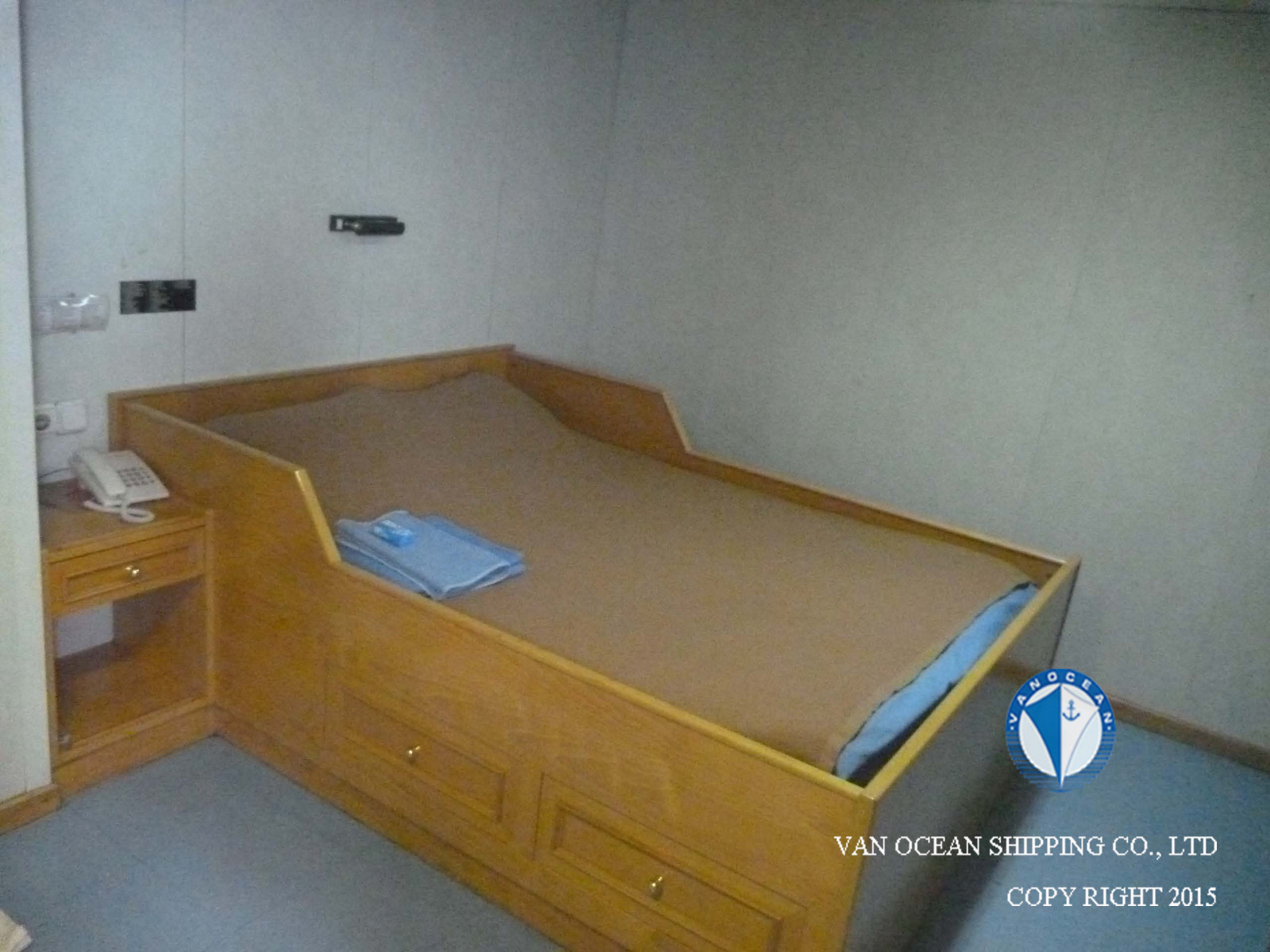

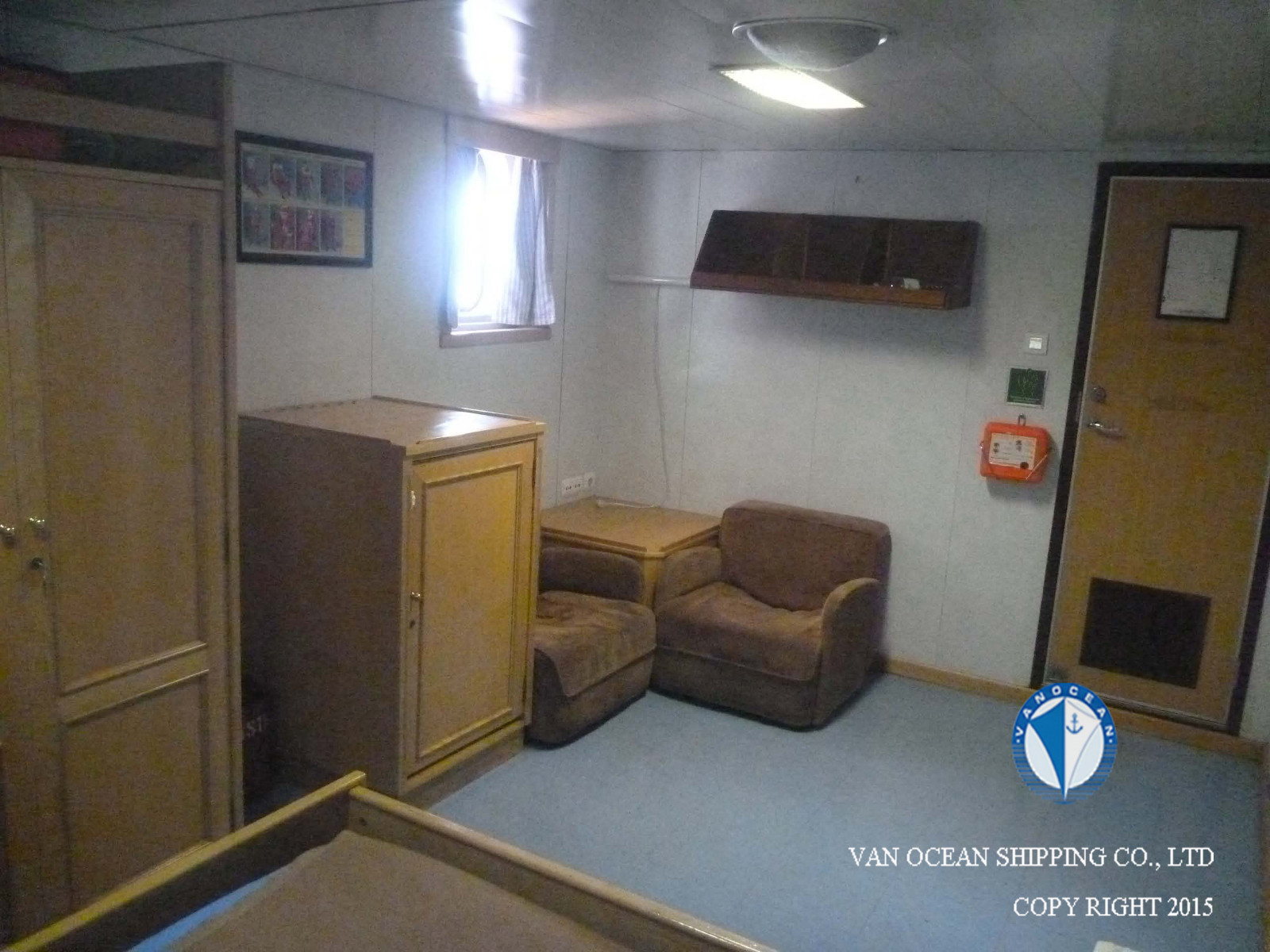

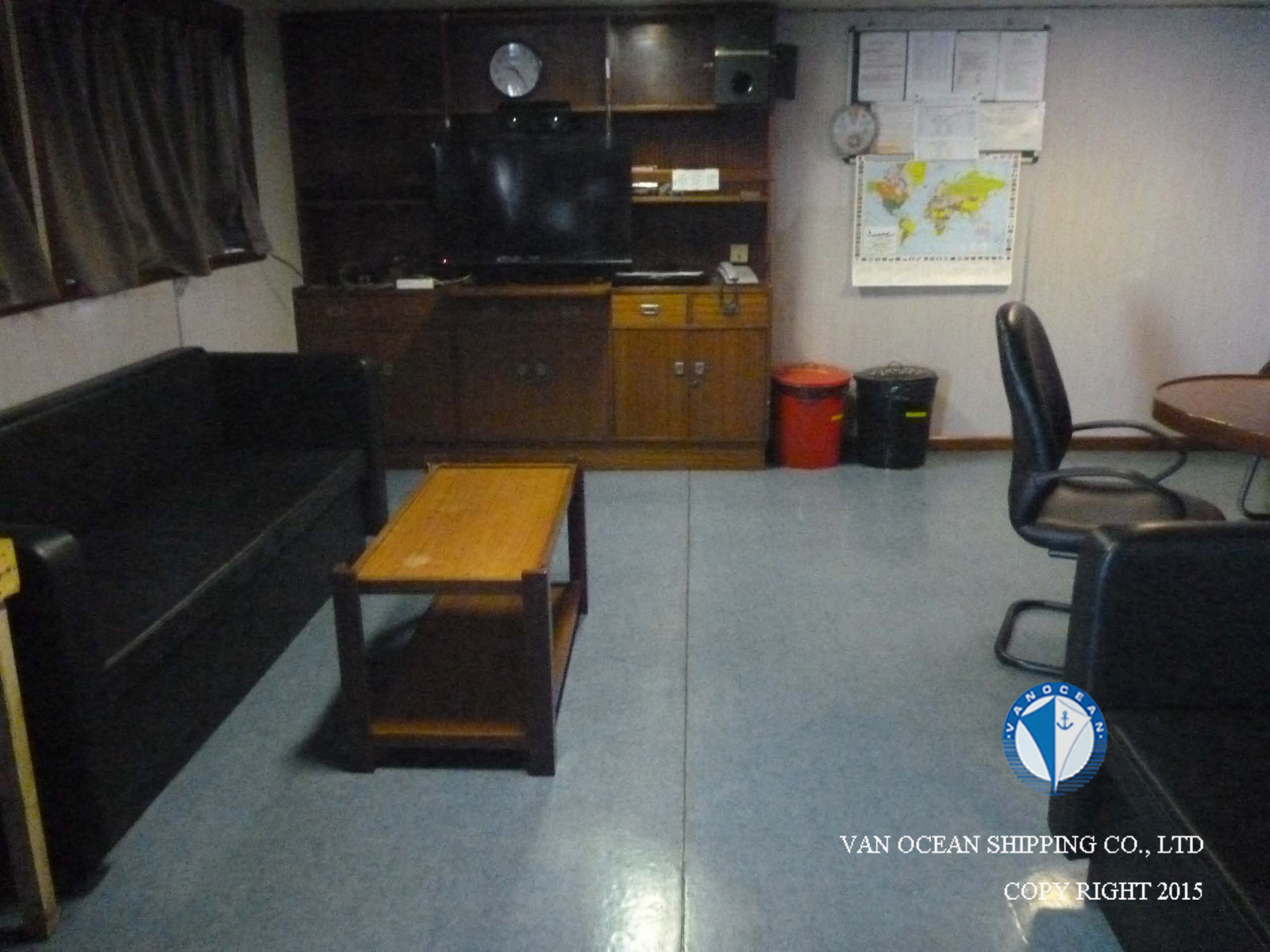

ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 6.3 MILLION
REMARK(S)
SLOP TANK: 185 CBM
BECKER RODDER

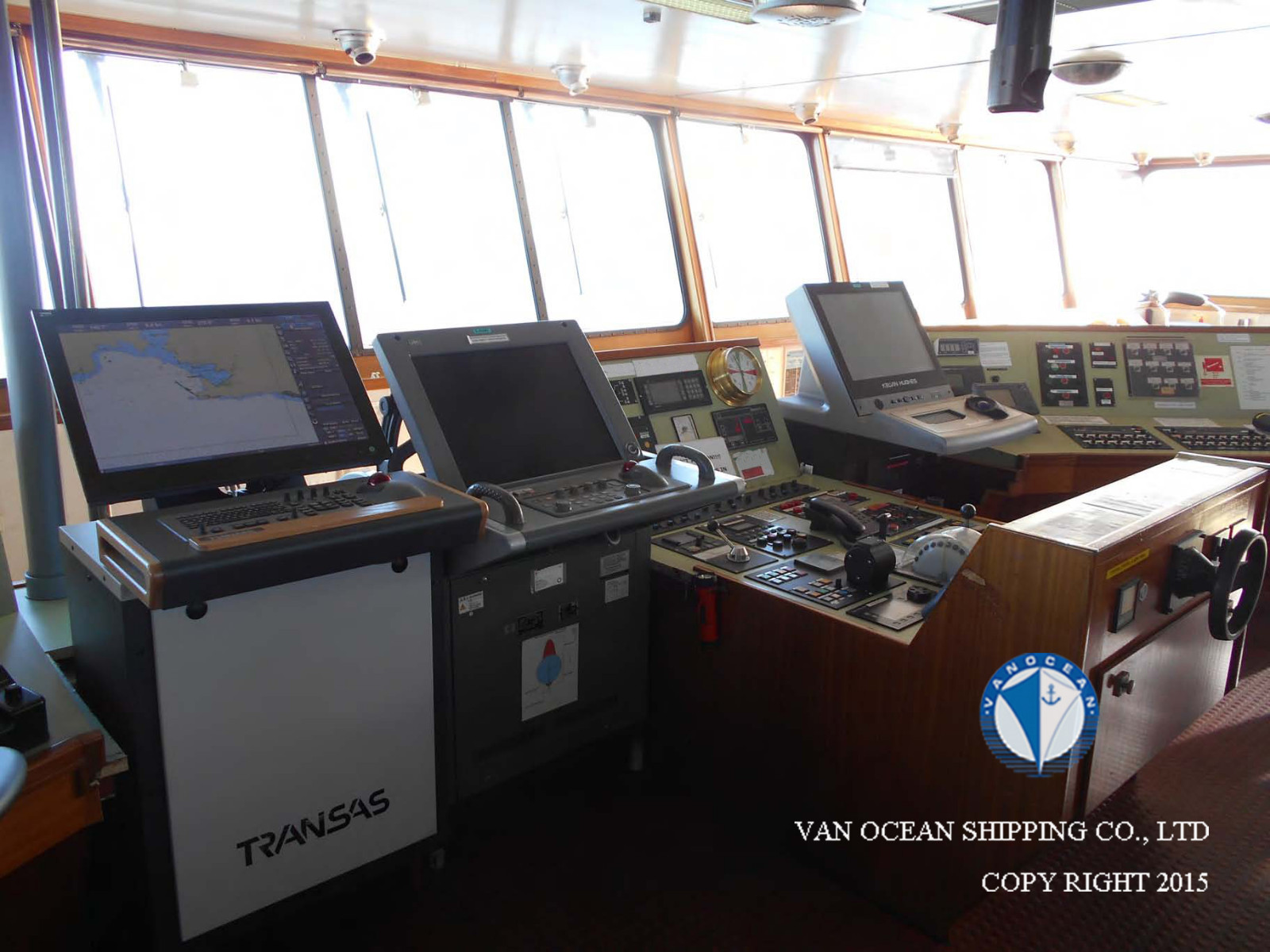

BRIDGE WING CONTROL

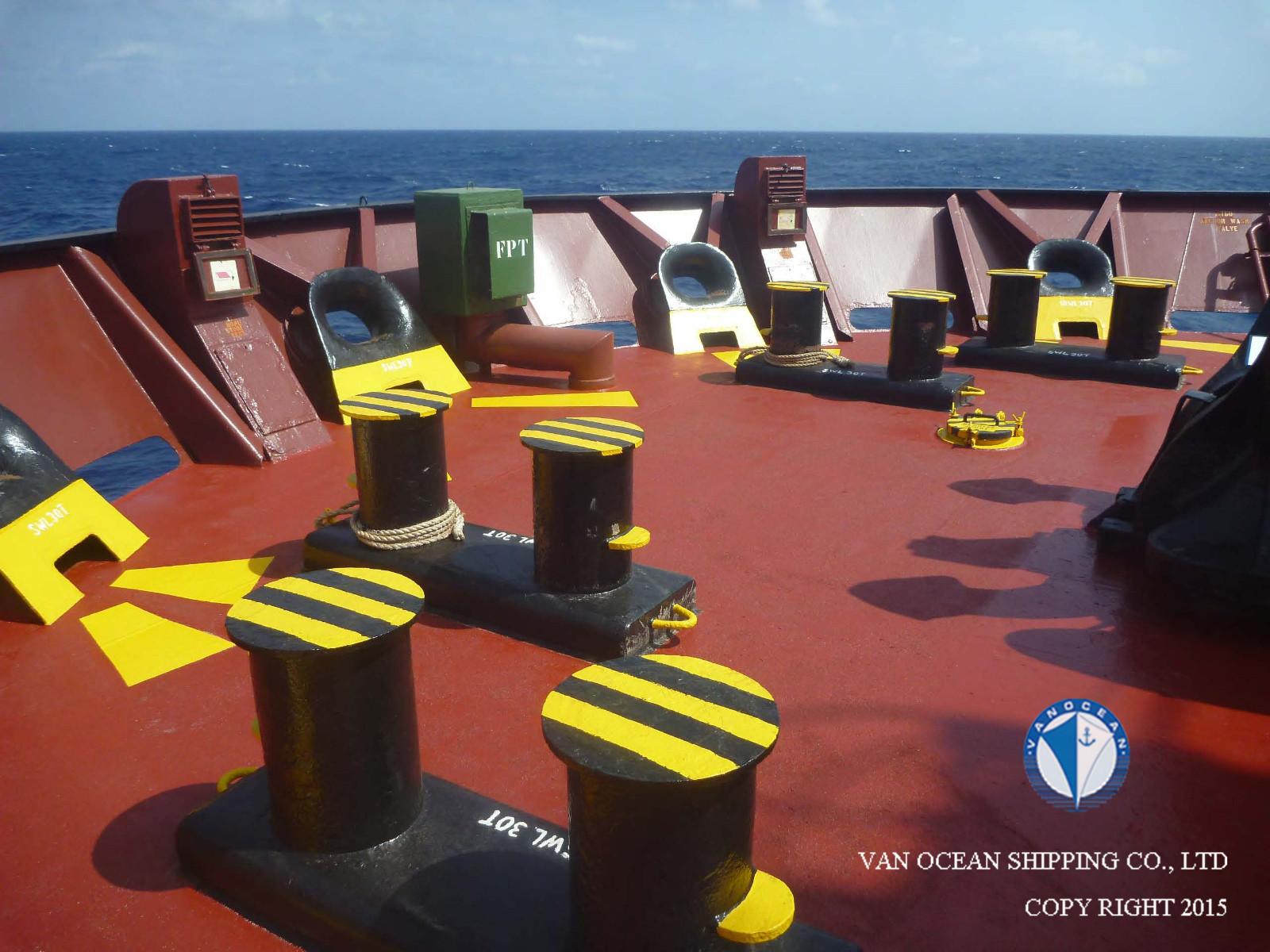

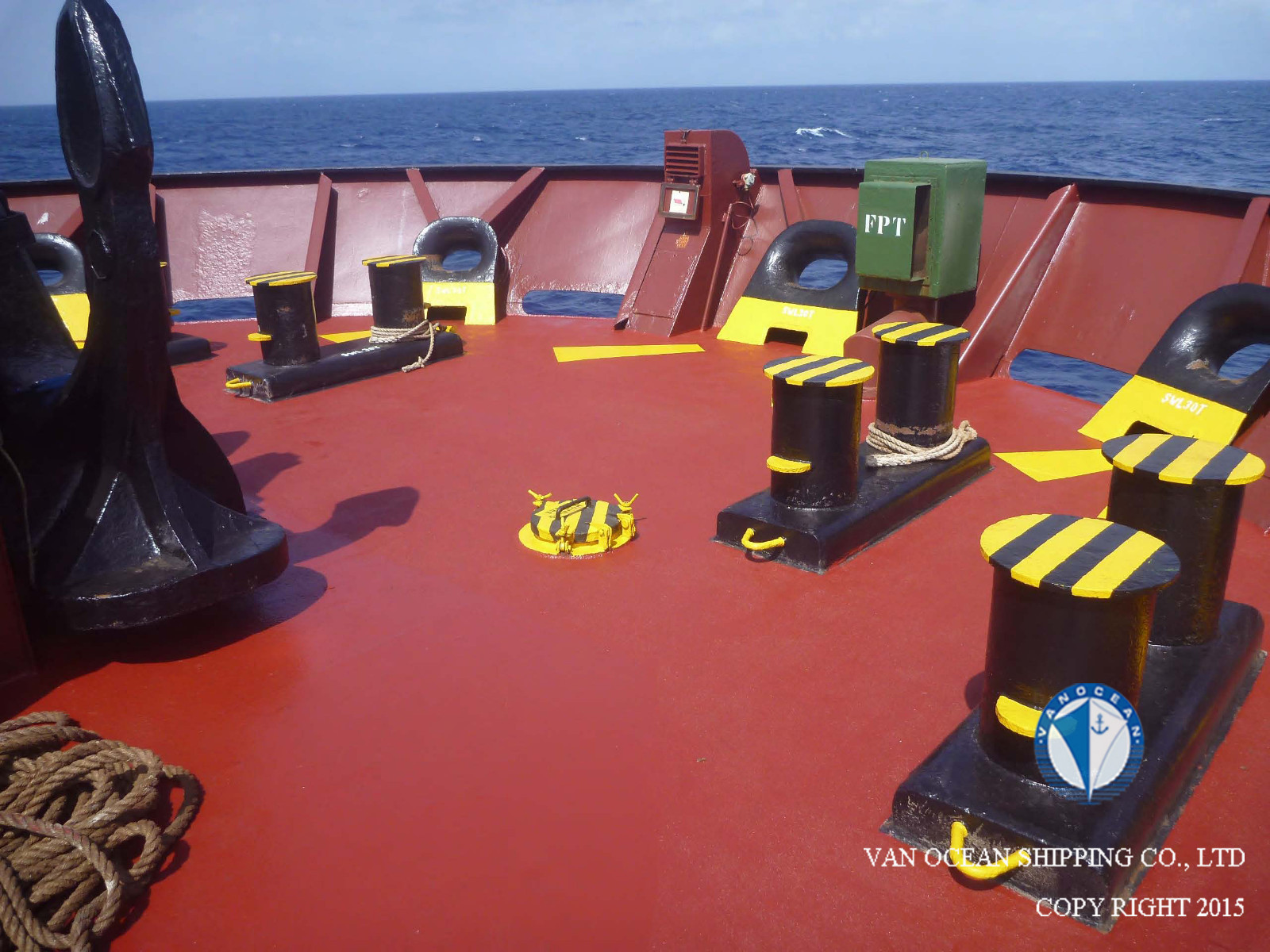

PANAMA FAIRLEAD
NO FRAMES ON DECK
