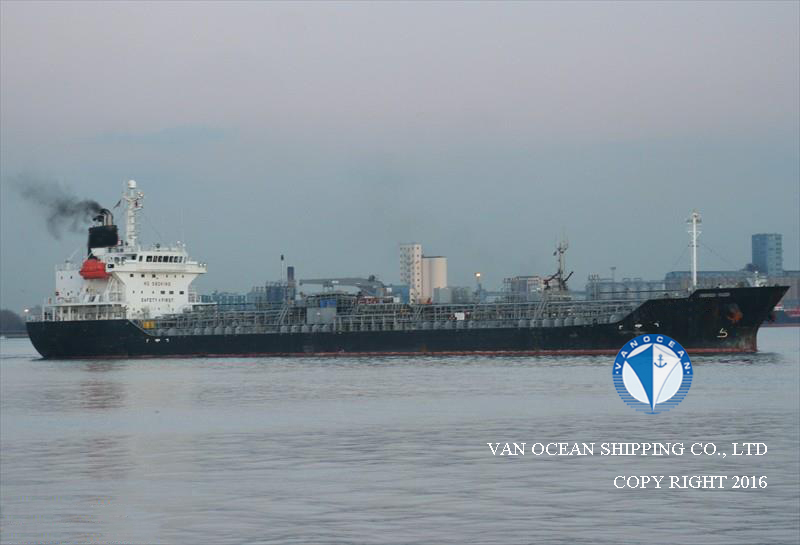

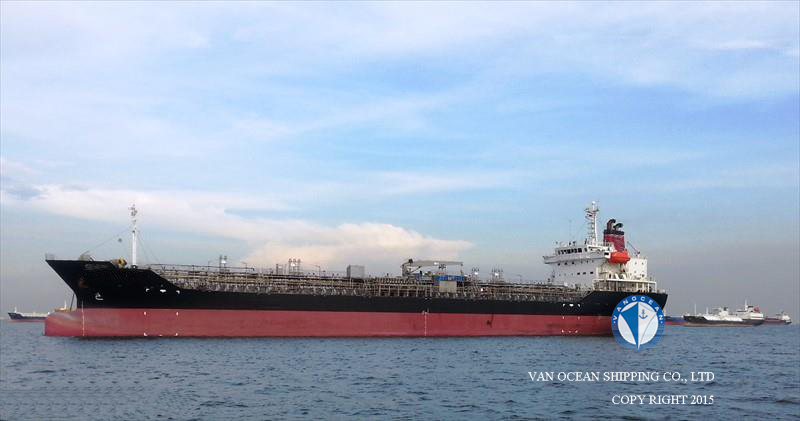

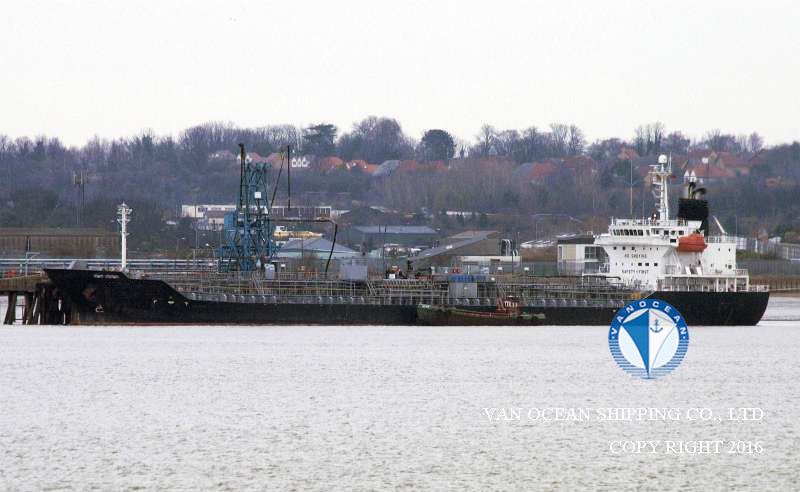

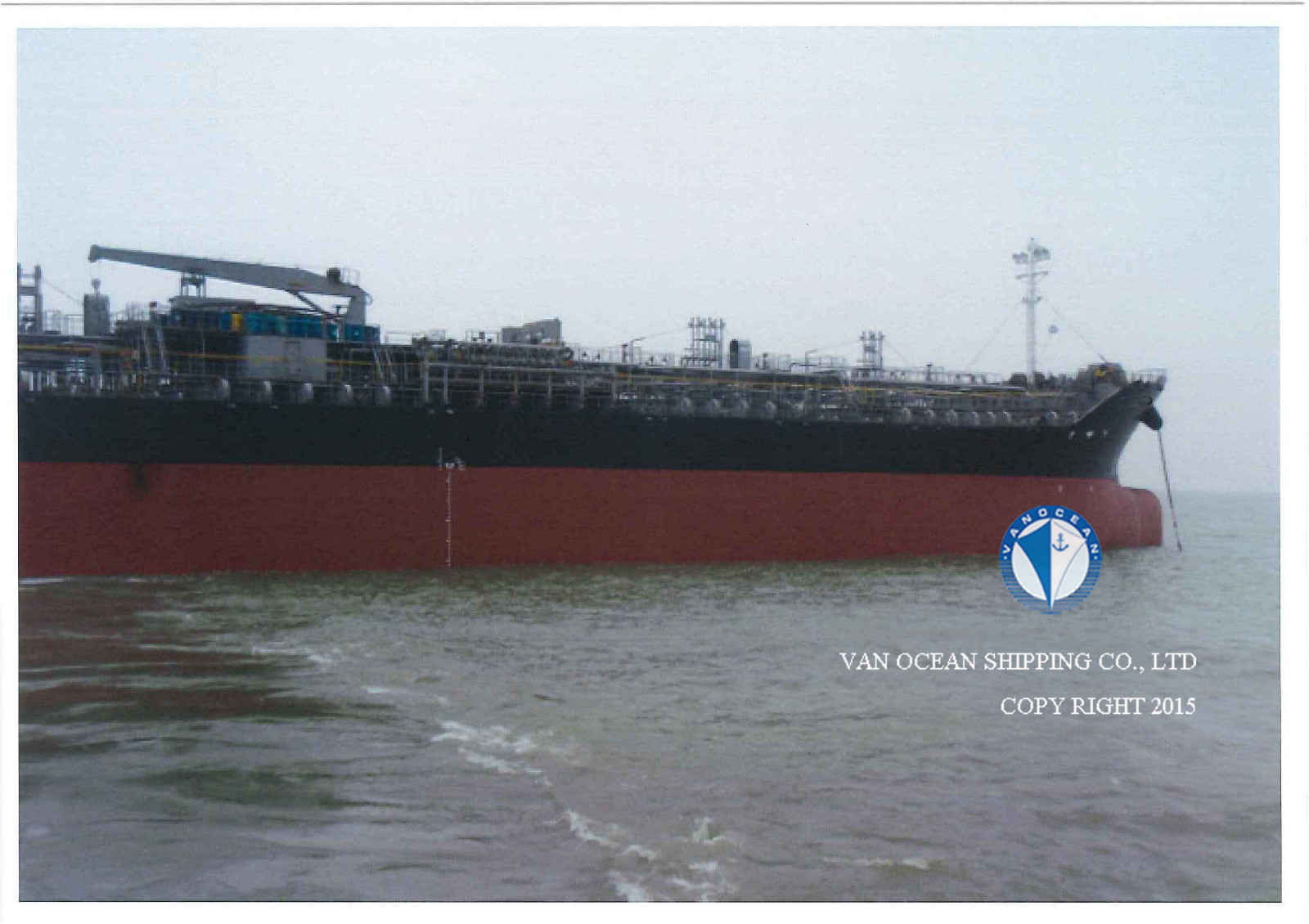

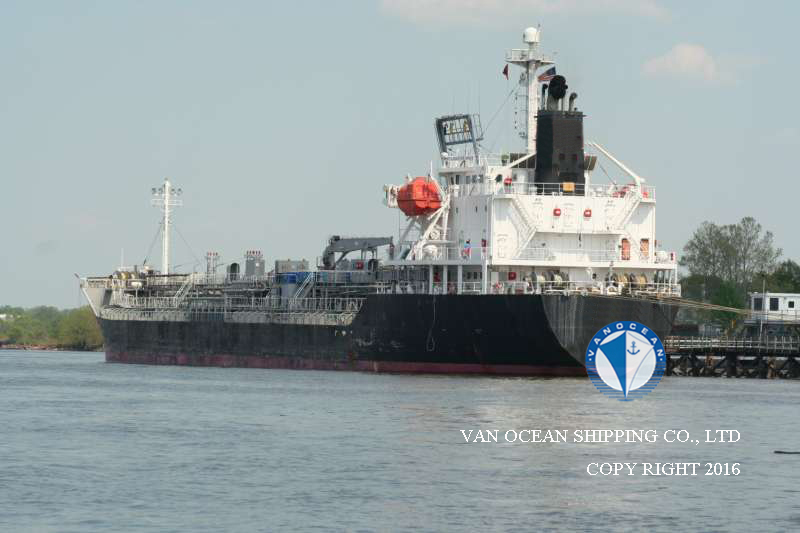

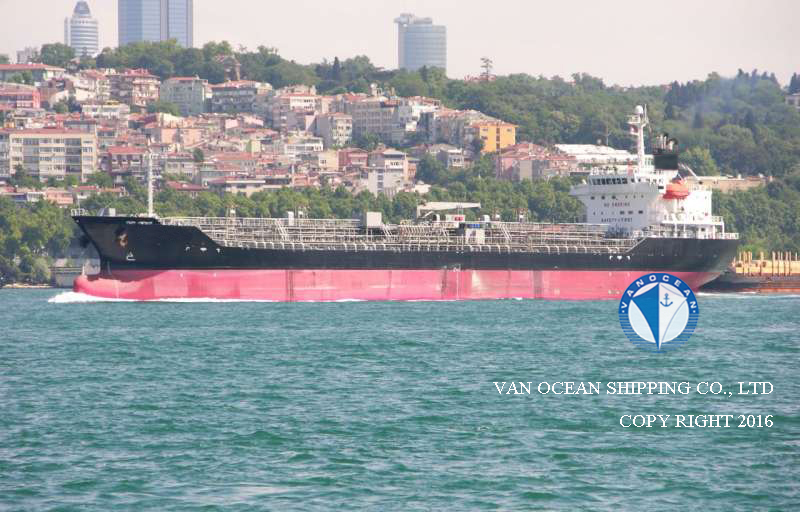

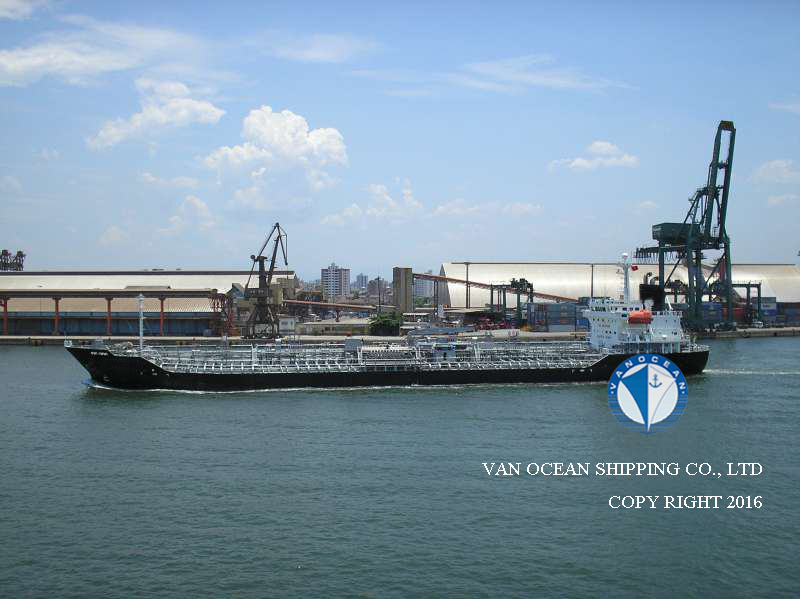

VESSEL NAME

TNK261

TYPE

OIL/CHEMICAL TANKER

HULL TYPE

DOUBLE HULL/DOUBLE SIDE

FLAG

SINGAPORE

PORT OF REGISTRY

-

BUILT YEAR

2002

BUILT PLACE

ASAKAWA SHIPBUILDING CO., LTD., JAPAN

CLASSIFICATION

NK

CLASS NOTATION

NS* (TANKER, MOLASSSES OR OIL FLASH POINT BELOW 60 DEG. C & CHEMICAL TYPE II & III)(ESP) MNS*

SS

2017-07-29

DD

2017-07-29

LOA (M)

134.16

LBP (M)

-

BEAM (M)

20.50

DEPTH (M)

11.60

SUMMER DRAFT (M)

8.81

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

8263.00

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

-

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

14298.00

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

-

LDT (MT)

-

GEAR(S)

-

M/E(S)

1 x HITACHI B&W 7S35MC(MK-7), 7070PS 173RPM TWO-STROKE CYCLE, SINGLE-ACTING DIRECT REVERSIBLE, CROSS HEAD TYPE DIESEL ENGINE WITH TURBOCHARGER MAKER: HITACHI ZOSEN CORPORATION

M/E POWER (KW)

5199

A/E(S)

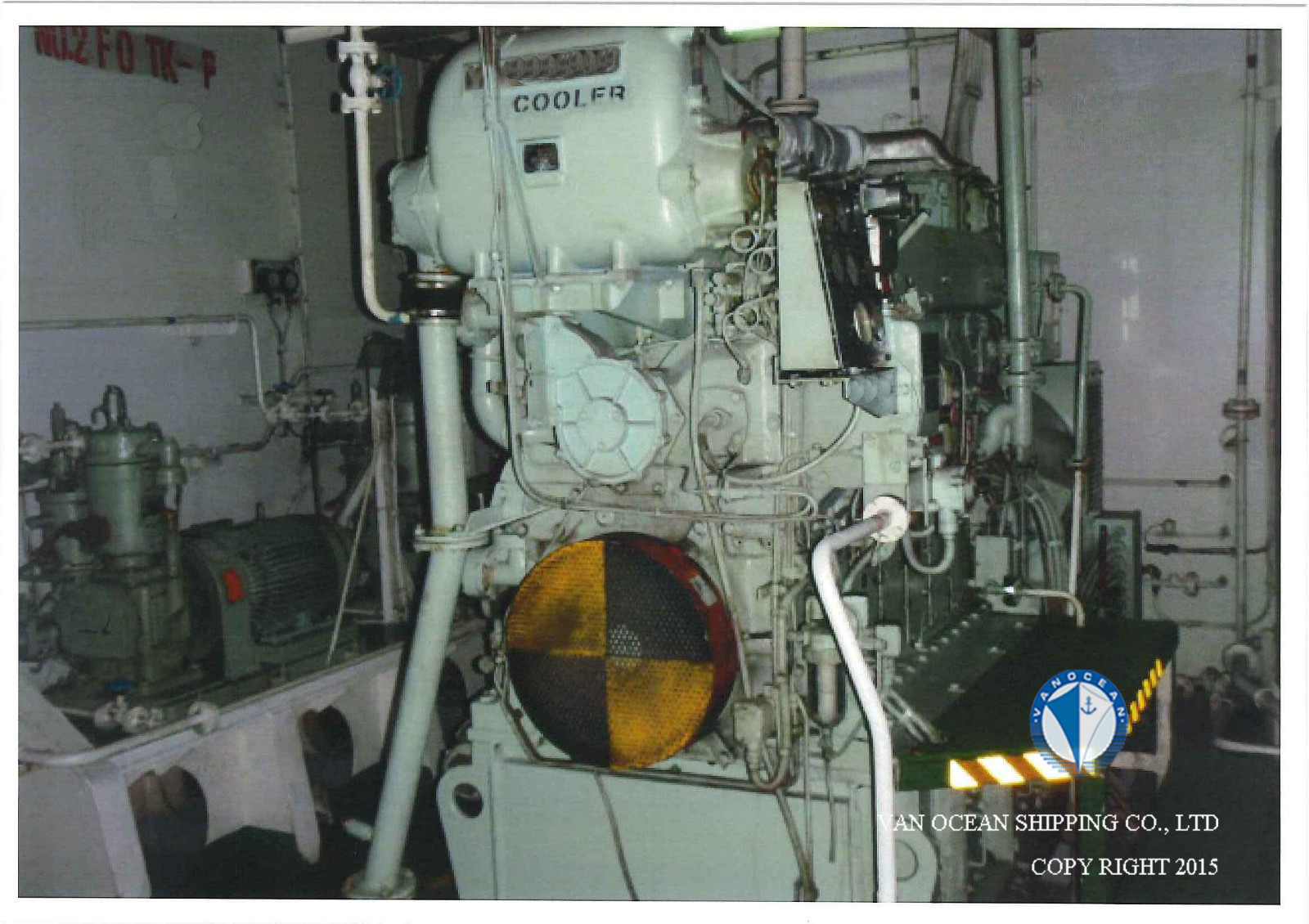

2 x YANMAR DIESEL ENGINE CO., LTD 6N165L-SN，660PS 1200RPM VERTICAL, SINGLE ACTION, 4-CYCLE, DIRECT INJECTION, WATER COOLED DIESEL ENGINE WITH TURBO-CHARGER AND AIR COOLER

GENERATOR(S)

MAIN: 2 x NISHISHIBA ELECTRIC CO., LTD，450KW 450V 60HZ 3Ø EMERGENCY: 1 x MITSUI DEUTZ DIESEL ENGINE CO., LTD 68PS 1800RPM； 1 x NISHISHIBA ELECTRIC CO., LTD 50KW 450V 60HZ 3Ø

SHAFT GENERATOR(S)

-

PROPELLER(S)

FPP

SPEED /CONSUMPTIONS

-

FUEL TYPE

IFO380

BUNKER CAPACITY (CBM)

-

TANKS CAPACITY (CBM)

-

COMPARTMENT(S)

-

NUMBER OF CARGO HOLDS

10

CARGO CAPACITY98% (CBFT)

585833

CARGO CAPACITY98% (CBM)

16596

COATING/MATERIAL OF HOLD(S)

-

HEATING SYSTEM

STAINLESS STEEL (SUS316L) HEATING COILS

SACRIFICIAL ANODE

-

IGS

-

PUMP(S)

SUBMERGERD TYPE - HYDRAULIC MOTOR DRIVEN CENTRIFUGAL PUMP 10 x 300CBM/HR FOR NO.2, 4, 5, 6, 8 (P)(S)COT 10 x 200CBM/HRFOR NO.1, 3, 7, 9, 10 (P)(S)COT

ONE PUMP FOR SINGLE HOLD OR NOT

-

SIDE THRUSTER(S)

NO

INSURANCE

-

CREW

-

INSPECTION

FAR EAST

DELIVERY

FAR EAST

PRICE

USD 12.5 MILLION

REMARK(S)

SOLID 316L: TRANSVERSE BULKHEAD, LONGITUDINAL BULKHEADCLAD 316L: UPPER DECK, INNER BOTTOM, BILGE HOPPER, INNER HULL PLATE 1 x NATURAL CIRCULATION VERTICAL WATER TUBE BOILER HB-12 (MAKER: MIURA CO., LTD.) EVAPORATION AT 12000 KG/HR STEAM PRESSURE(MPa) 0.69
