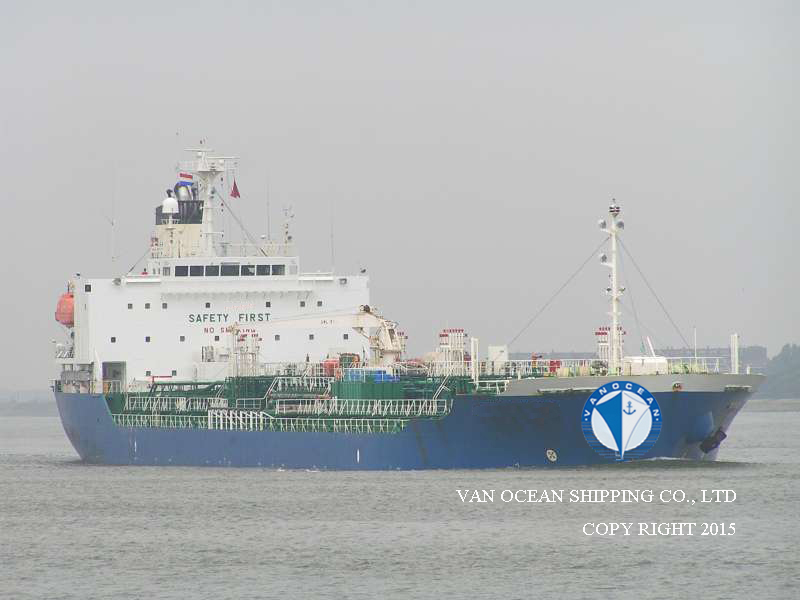

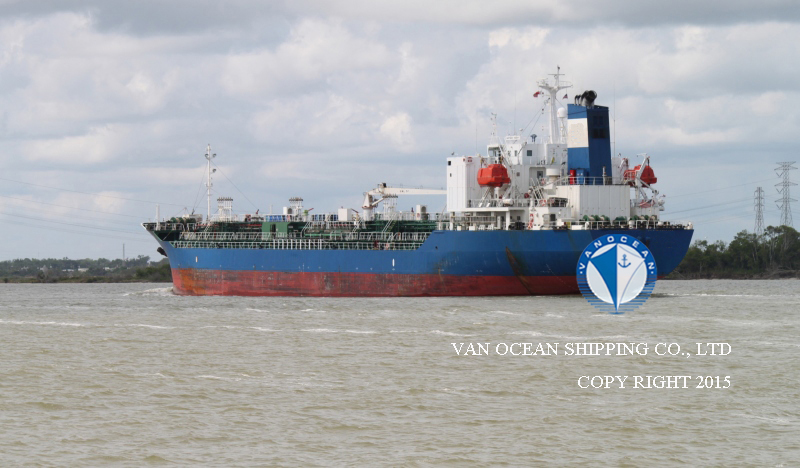

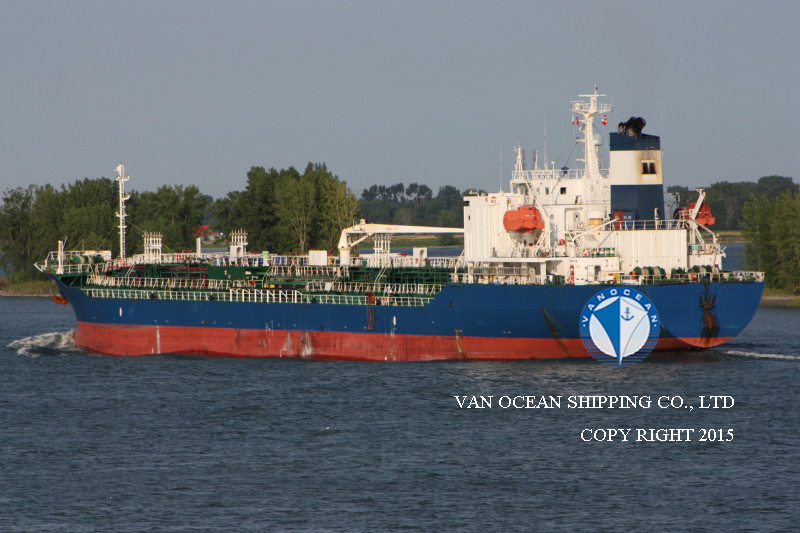

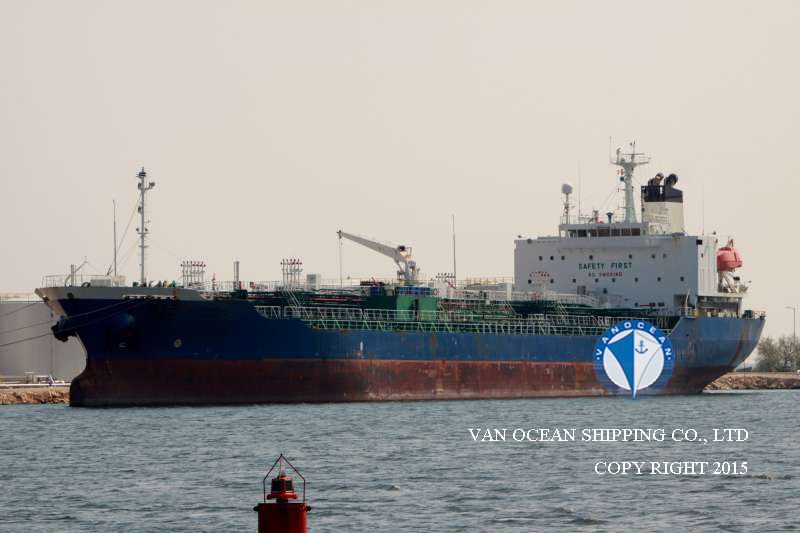

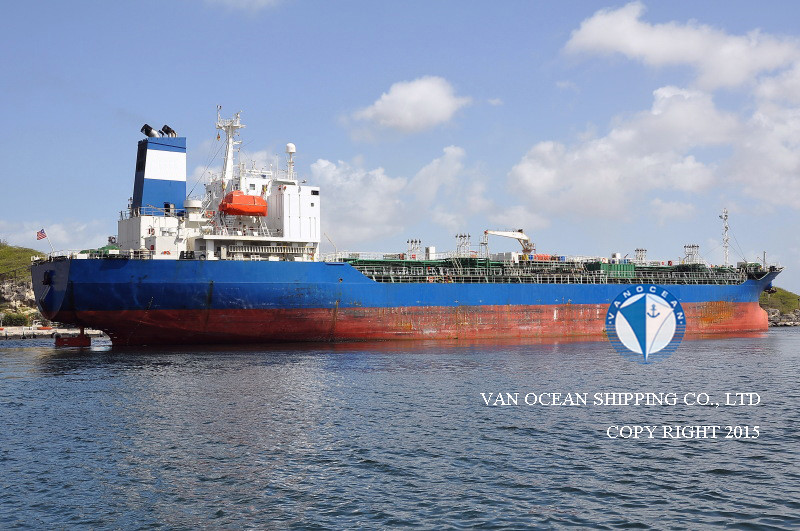

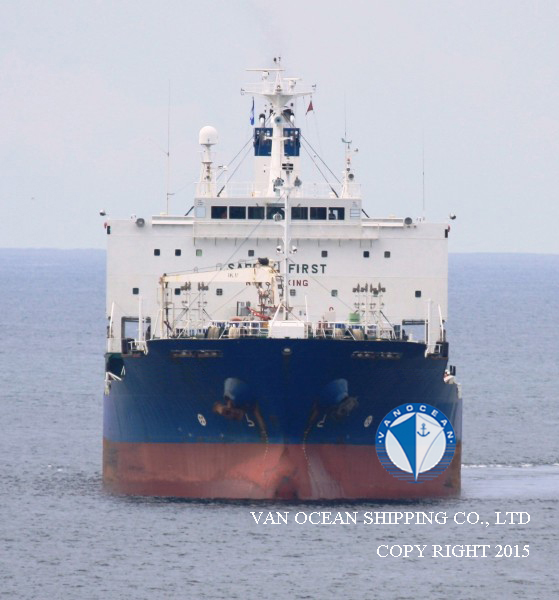

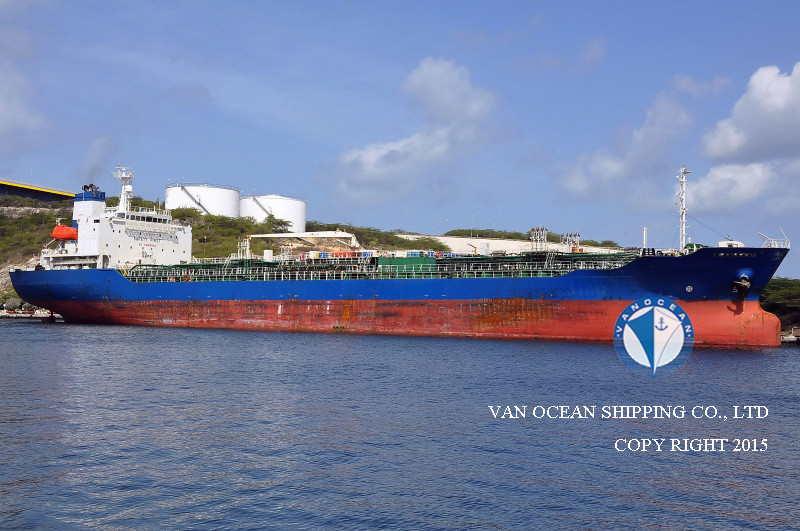

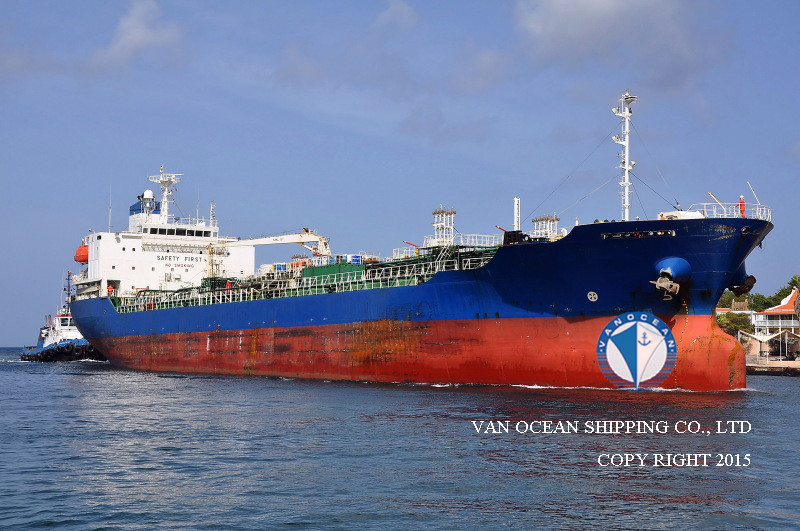

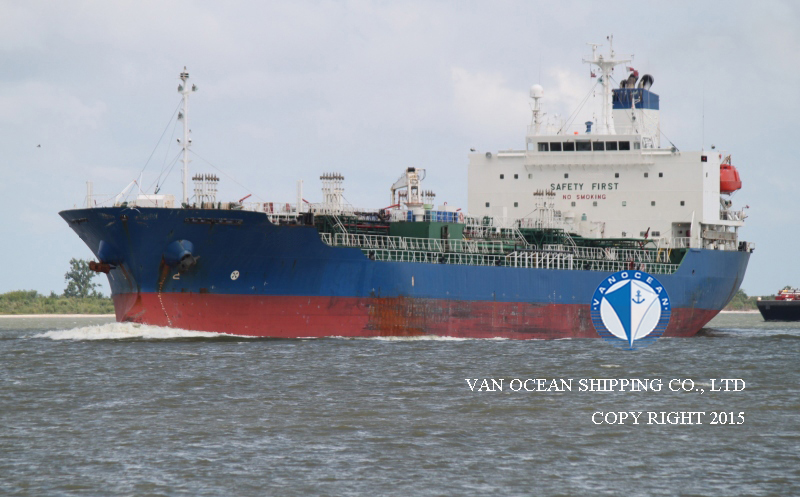

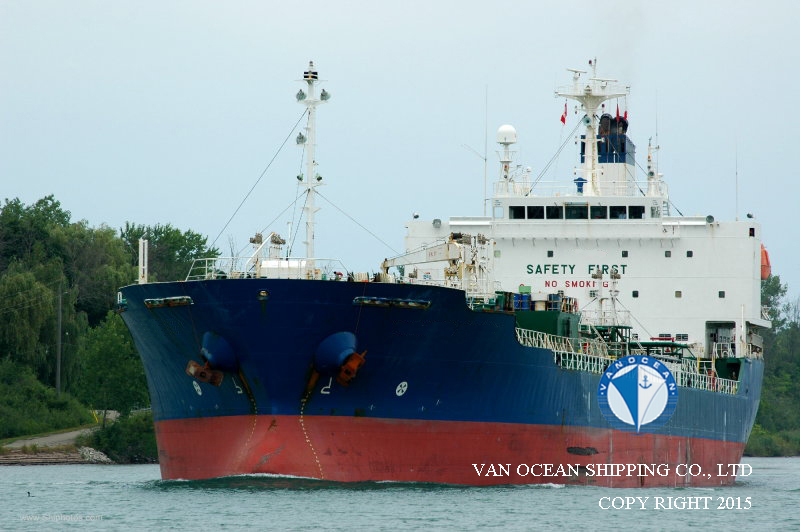

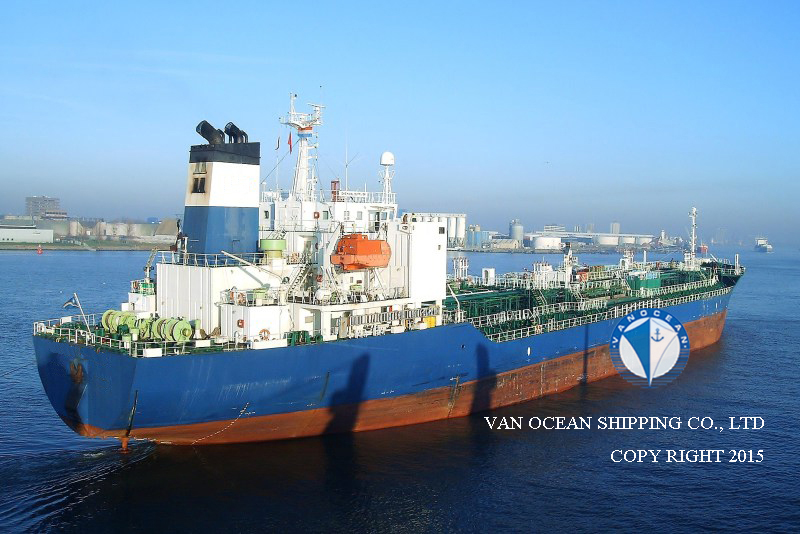

VESSEL NAME
TNK199
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLR HULL
FLAG
KOREA
PORT OF REGISTRY
MONROVIA
BUILT YEAR
2000
BUILT PLACE
FUKUOKA SHIPBUILDING CO LTD, JAPAN
CLASSIFICATION
ABS
CLASS NOTATION
+100 A5 OIL TANKER, IMO 2/3, ESP +MC
SS
-
DD
-
LOA (M)
139.70
LBP (M)
132.80
BEAM (M)
22.83
DEPTH (M)
12.00
SUMMER DRAFT (M)
9.22
WINTER DRAFT (M)
9.02
TROPICAL DRAFT (M)
9.41
GT (MT)
9797.00
PANAMA GT (MT)
-
SUEZ GT (MT)
10275.19
NT (MT)
5339.00
PANAMA NT (MT)
8263.00
SUEZ NT (MT)
8890.18
SUMMER DWT (MT)
17424.00
WINTER DWT (MT)
16899.93
TROPICAL DWT (MT)
17955.81
DISPLACEMENT (MT)
22183.76
LDT (MT)
4757.00
GEAR(S)
CRANE, 1 x 5MT, CENTER LOCATED
M/E(S)
MITSUBISHI 6UEC45LA 7200BHP 158RPM
M/E POWER (KW)
5373
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
SPEED /CONSUMPTIONS
BALLAST: 13.KTS ON 16 MT (IFO) + 1.5 MT (MGO)
LADEN: 13 KTS ON 16 MT (IFO) + 1.5 MT (MGO)
ECO:
BALLAST: 12.5.KTS ON 13.35 MT (IFO) + 1.5 MT (MGO)
LADEN: 12 KTS ON 14 MT (IFO) + 1.5 MT (MGO)
FUEL TYPE
IFO180, MDO
BUNKER CAPACITY (CBM)
993.30
TANKS CAPACITY (CBM)
SLOP TANK 553.81, MDO/MGO: 147.53
COMPARTMENT(S)
12
NUMBER OF CARGO HOLDS
24
CARGO CAPACITY98% (CBFT)
624187
CARGO CAPACITY98% (CBM)
17682.35
COATING/MATERIAL OF HOLD(S)
STAINLESS STEEL
HEATING SYSTEM
COILED
SACRIFICIAL ANODE
ZINC
IGS
YES
PUMP(S)
OIL PUMPS: 10 x 300CBM/HR, 14 x 200CBM/HR
BALLAST PUMP: 1 x 400CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 900 BHP, 671.13 KW
INSURANCE
SKULD, USD 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 10.8 MILLION
REMARK(S)
SBT
BALLAST TANK EPOXY COATED
DISPLACEMENT (MT): 21657.01(WINTER), 22712.89(TROPICAL)
