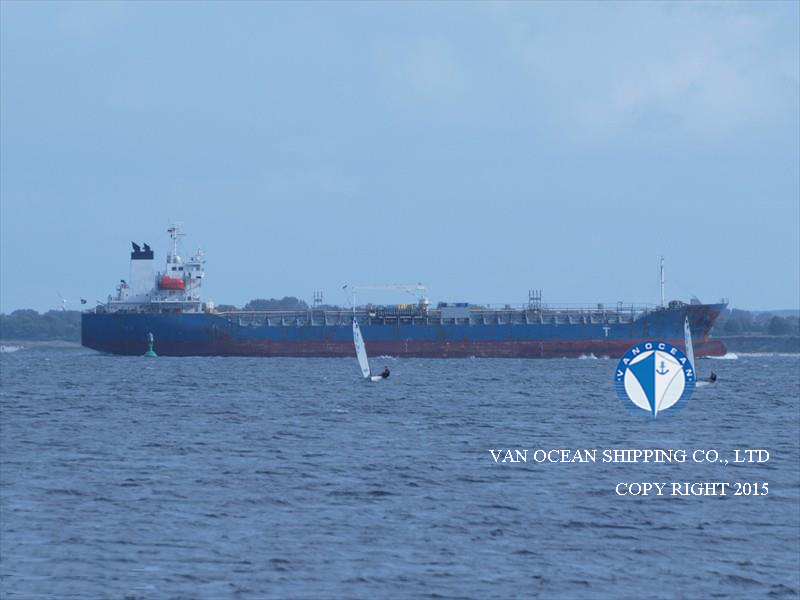

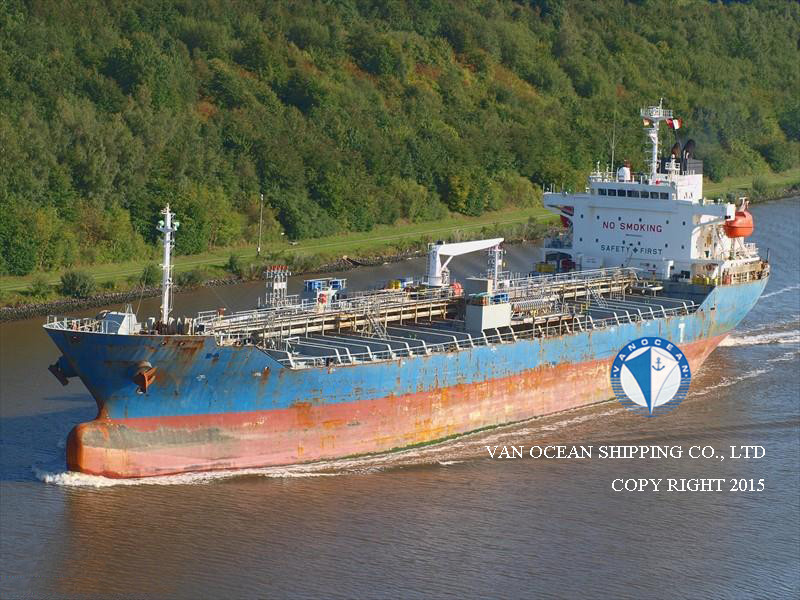

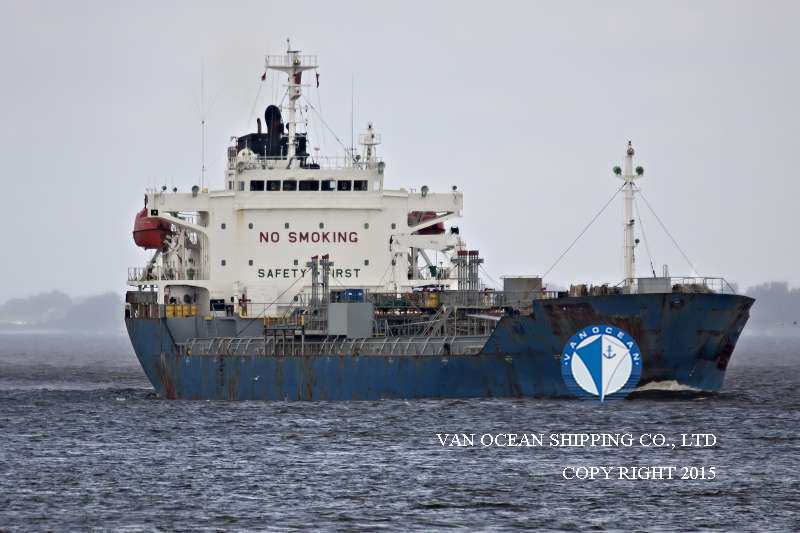

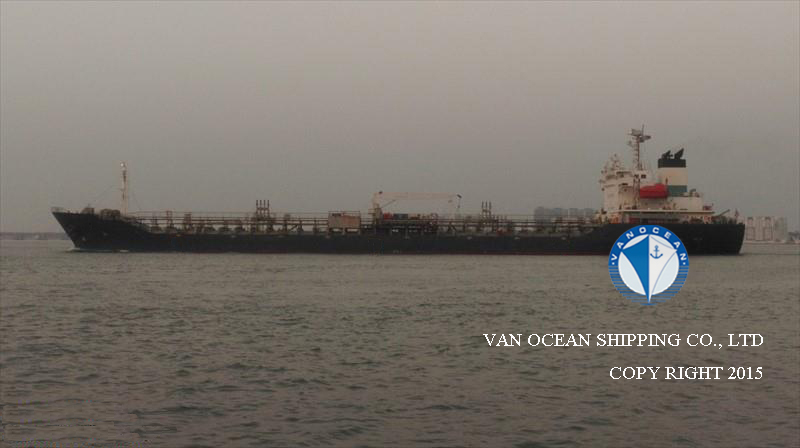

VESSEL NAME
TNK198
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
KOERA
PORT OF REGISTRY
-
BUILT YEAR
2001
BUILT PLACE
WATANABE ZOSEN IMABARI, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS*(TOB)(ESP)
SS
-
DD
-
LOA (M)
135.53
LBP (M)
127.19
BEAM (M)
22.53
DEPTH (M)
12.00
SUMMER DRAFT (M)
9.12
WINTER DRAFT (M)
8.93
TROPICAL DRAFT (M)
9.31
GT (MT)
9240.00
PANAMA GT (MT)
-
SUEZ GT (MT)
9773.00
NT (MT)
5173.00
PANAMA NT (MT)
7800.00
SUEZ NT (MT)
8435.00
SUMMER DWT (MT)
16456.00
WINTER DWT (MT)
15975.90
TROPICAL DWT (MT)
16936.60
DISPLACEMENT (MT)
20826.40
LDT (MT)
4370.00
GEAR(S)
CRANE, 1 x 5MT, OUTREACH 5M

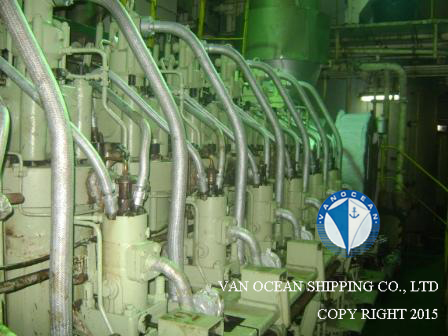

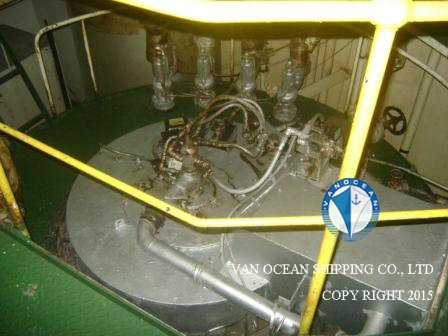

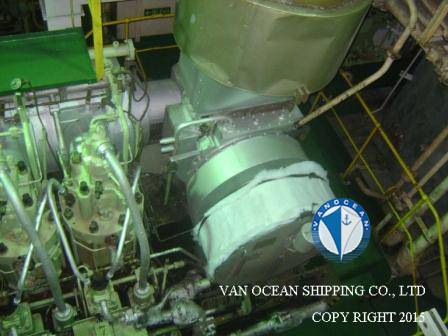

M/E(S)

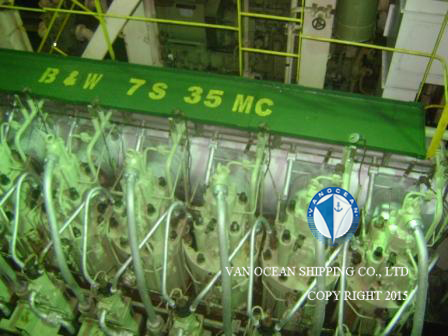

B&W 7S35MC 6650 BHP 170 RPM
M/E POWER (KW)
4891
A/E(S)
-

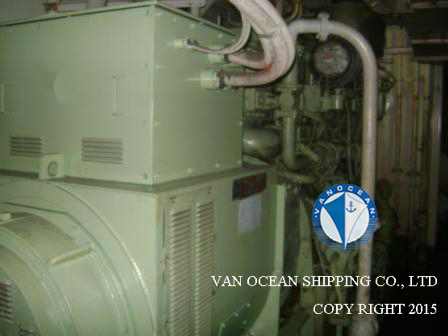

GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
915.05
TANKS CAPACITY (CBM)
SLOP TANK: 1403.95，MDO/MGO: 166.72
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
14
CARGO CAPACITY98% (CBFT)
624457
CARGO CAPACITY98% (CBM)
17690

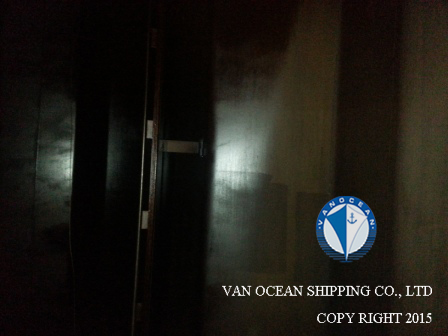

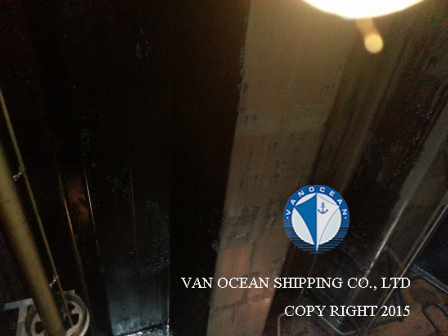

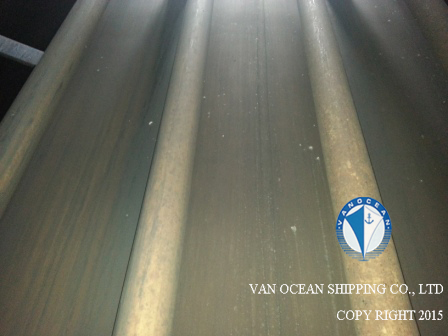

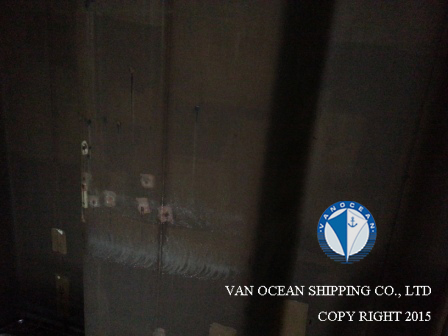

COATING/MATERIAL OF HOLD(S)

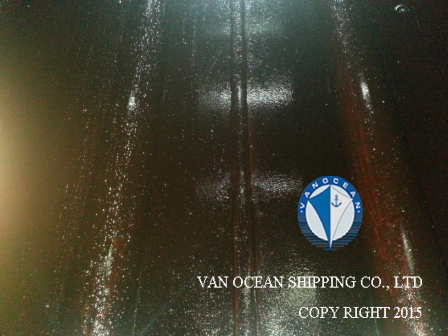

EPOXY (10 TANKS) + ZINC COATED (4 TANKS)

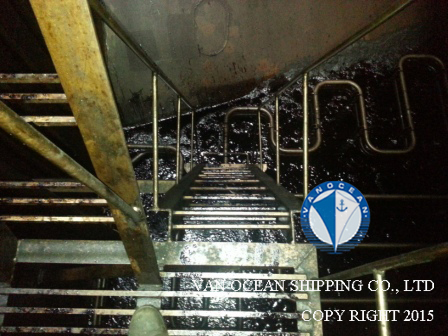

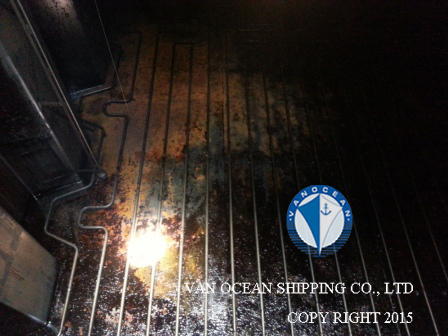

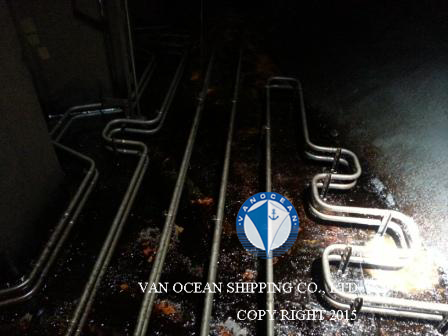

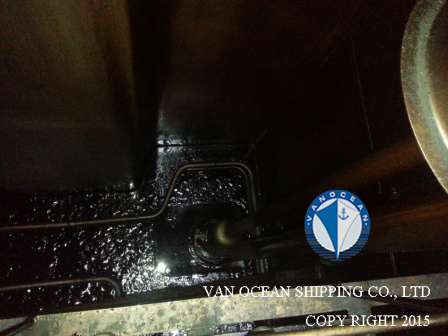

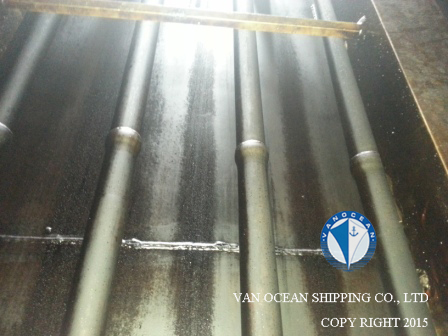

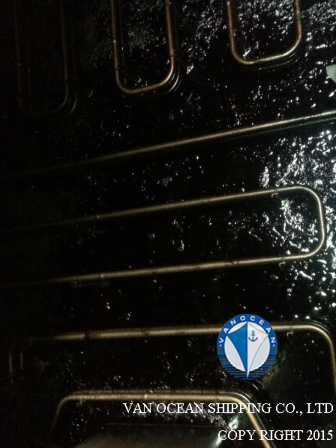

HEATING SYSTEM

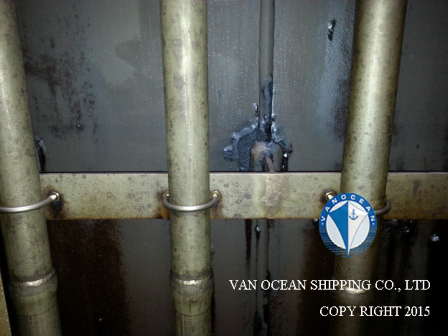

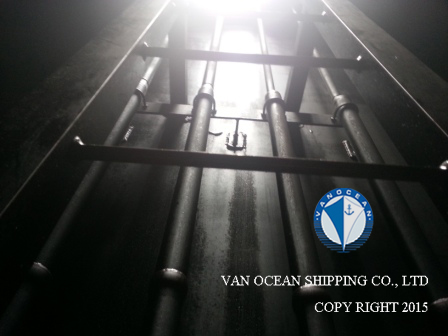

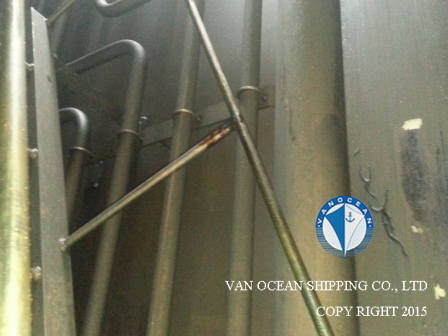

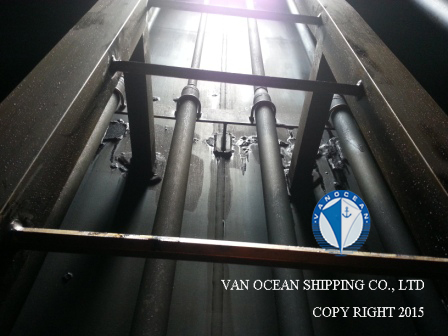

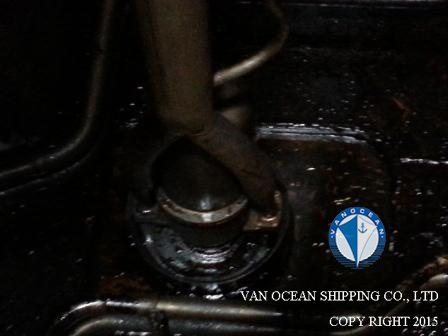

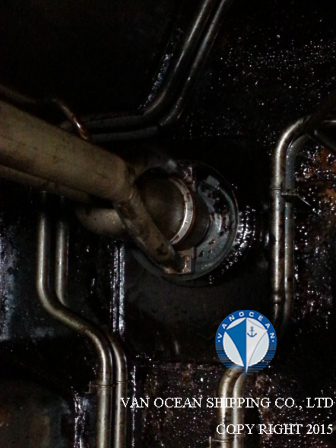

STAINLESS STEEL STEAM COILED
SACRIFICIAL ANODE
ZINC
IGS
-

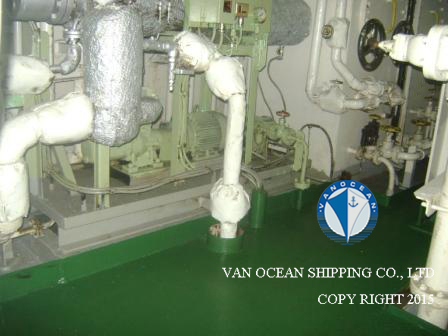

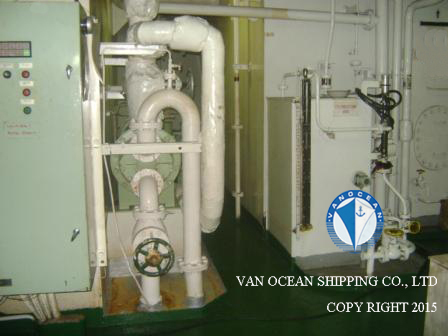

PUMP(S)

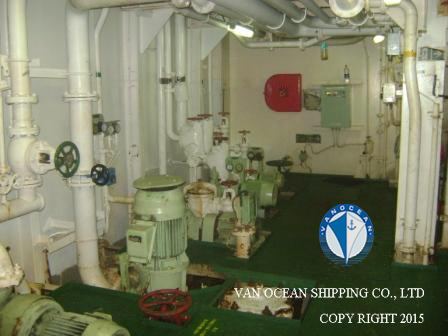

CARGO PUMP (CENTRIFUGAL): 8 x 300CBM/HR, 6 x 200CBM/HR
BALLAST (CENTRIFUGAL): 1 x 400CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
-
INSURANCE
SKULD, 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
FUJAIRAH UAE
DELIVERY
-
PRICE
USD 7.3 MILLION
REMARK(S)
DISPLACEMENT (MT): 20347.2 (WINTER), 21307.9 (TROPICAL)
BALLAST TANKS AND SLOP TANKS ARE EPOXY COATED
SBT
