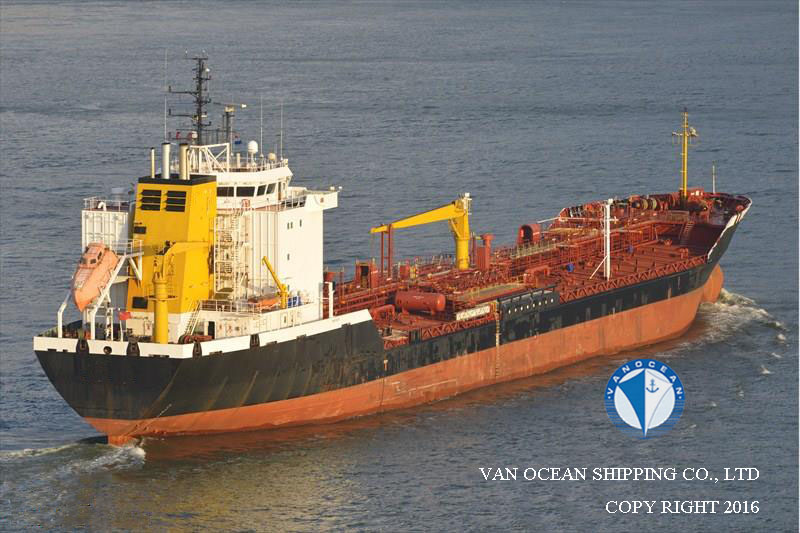

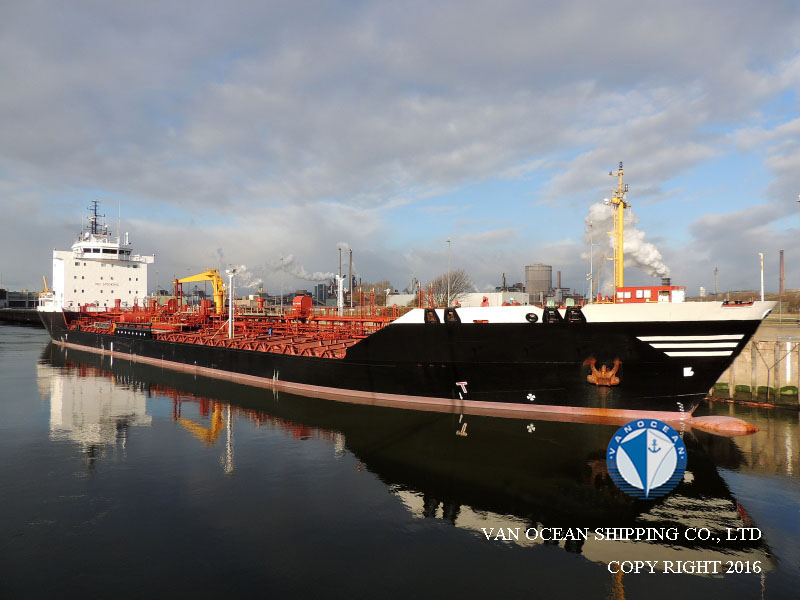

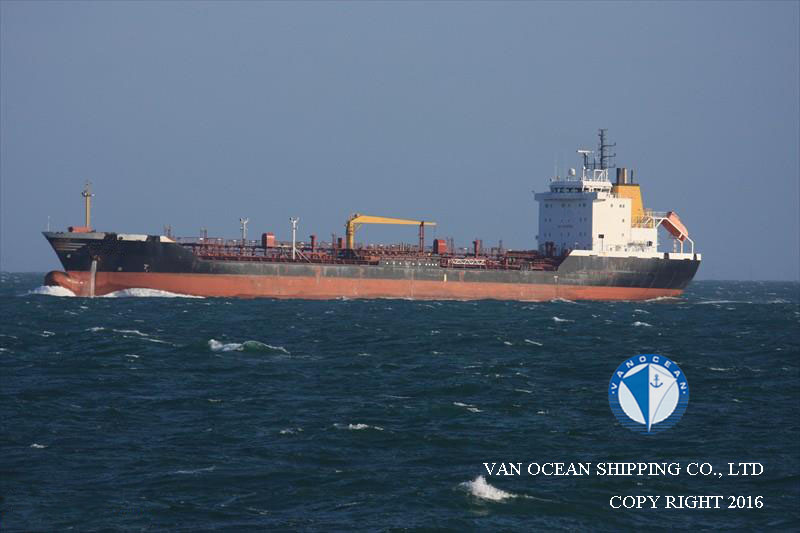

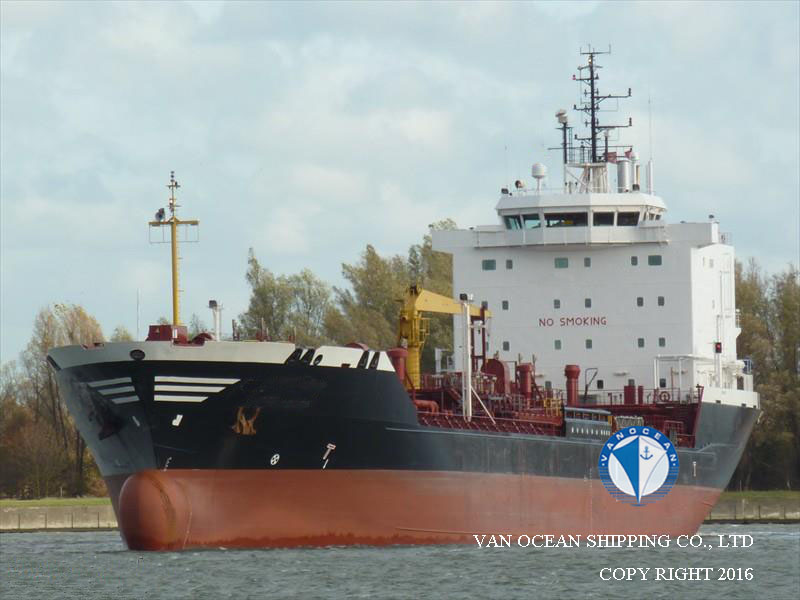

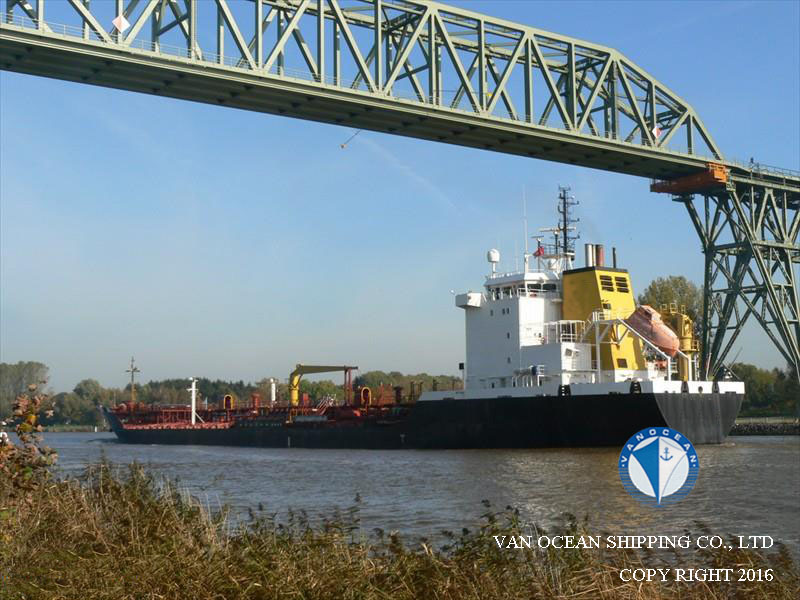

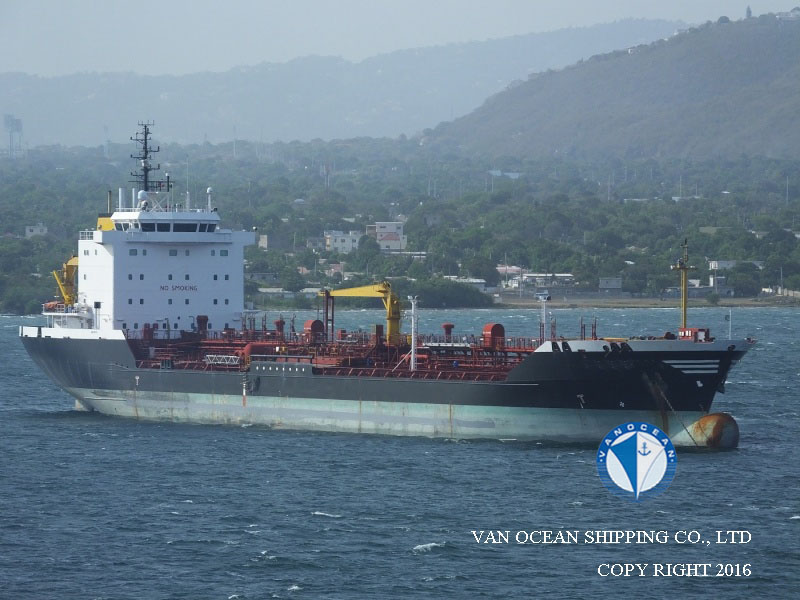

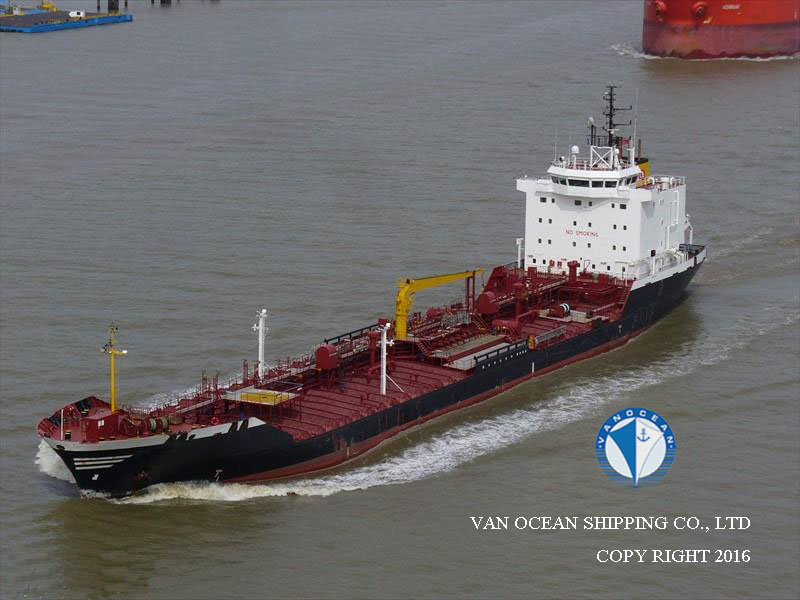

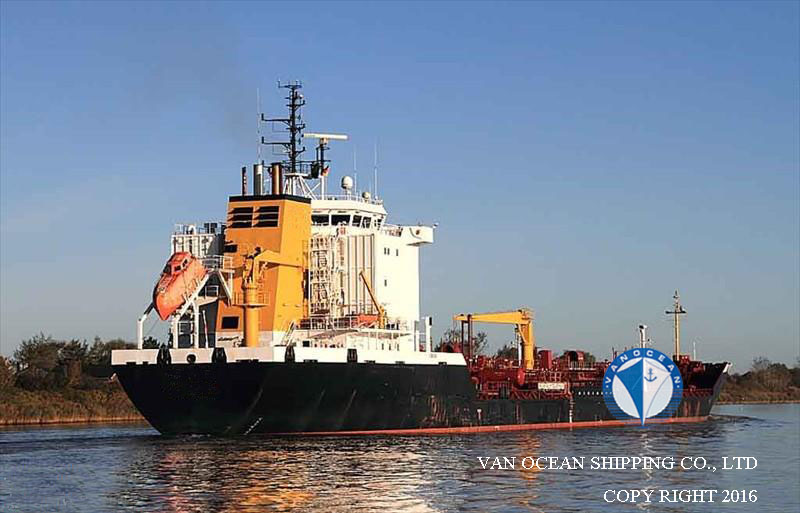

VESSEL NAME
TNK197
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL, DOUBLE BOTTOM, DOUBLE SIDES
FLAG
PANAMA
PORT OF REGISTRY
GIBRALTAR
BUILT YEAR
1999
BUILT PLACE
LINDENAU GERMANY
CLASSIFICATION
LR
CLASS NOTATION
+100A5 E2 IMO2 ICE1B 1ESP ERS T4D21 T3D10 +MC E2 AUT INERT
SS
2019-11
DD
2019-11
LOA (M)
145.61
LBP (M)
138.98
BEAM (M)
19.77
DEPTH (M)
10.65
SUMMER DRAFT (M)
8.36
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
8116.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4244.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
13050.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)
MAK 9M32 5710 BHP 600RPM
M/E POWER (KW)
4200
A/E(S)
2 x YANMAR DIESELGENERATORS 1150KVA
GENERATOR(S)
-
SHAFT GENERATOR(S)
SIEMENS 800 KVA-640 KW 380 V 50 HZ
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
14KTS
FUEL TYPE
-
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
10
CARGO CAPACITY98% (CBFT)
511779
CARGO CAPACITY98% (CBM)
14498
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
STAINLESS STEEL COILS
SACRIFICIAL ANODE
-
IGS
NITROGEN GENERATOR
PUMP(S)
FRAMO (DEEPWELL): 10 x 250CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
YES
SIDE THRUSTER(S)
BOW THRUSTER 550KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
JAMAICA
DELIVERY
JAMAICA
PRICE
BUYERS OFFER
REMARK(S)
SBT
BALLAST TANKS COATED WITH EPOXY
TRADING IN PANAMA
HEAT EXCHANGERS FITTED
COW: NO
