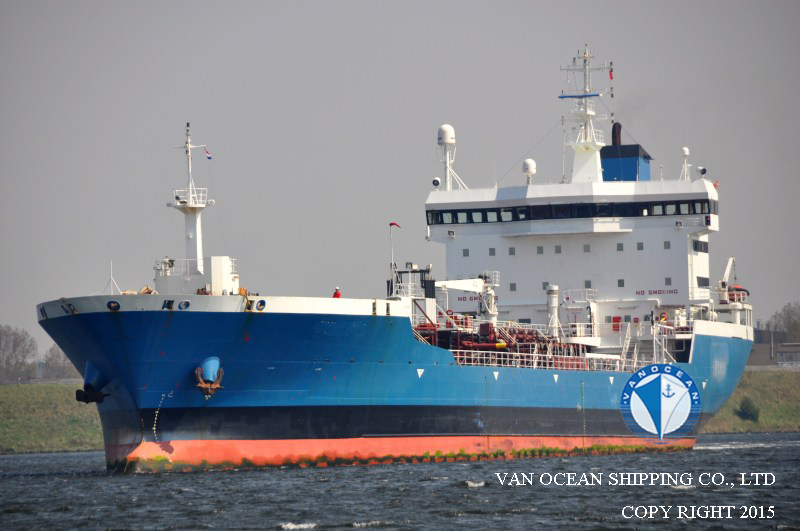

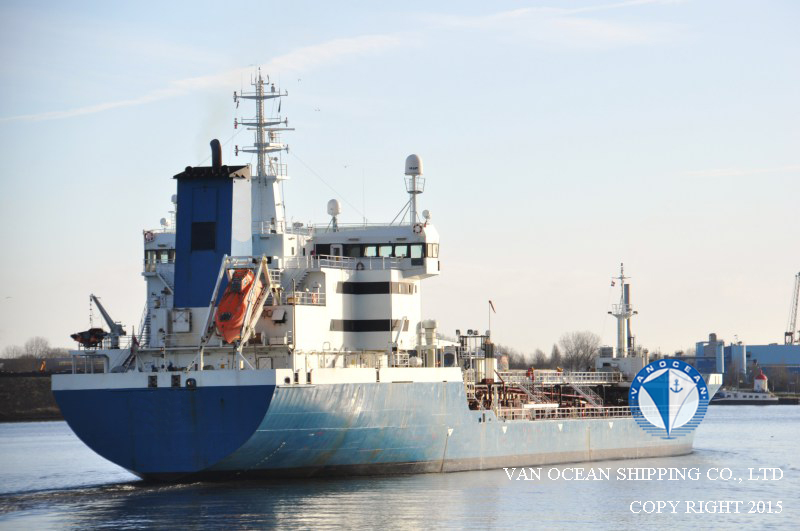

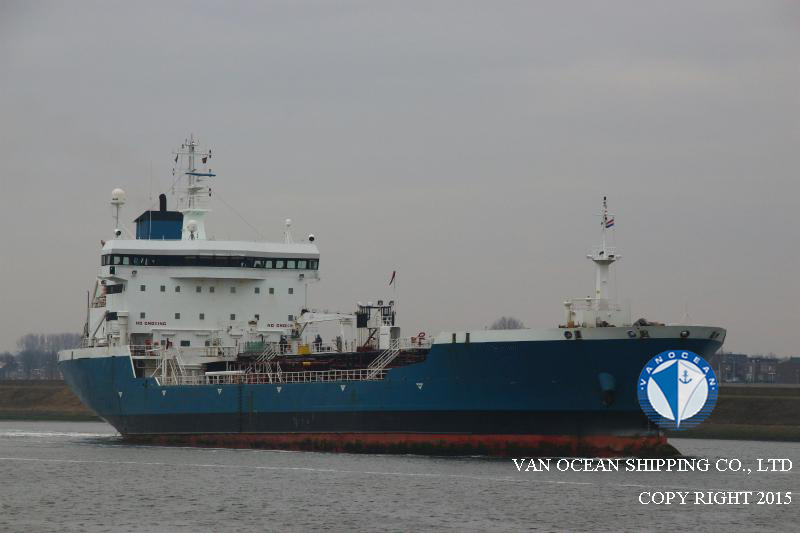

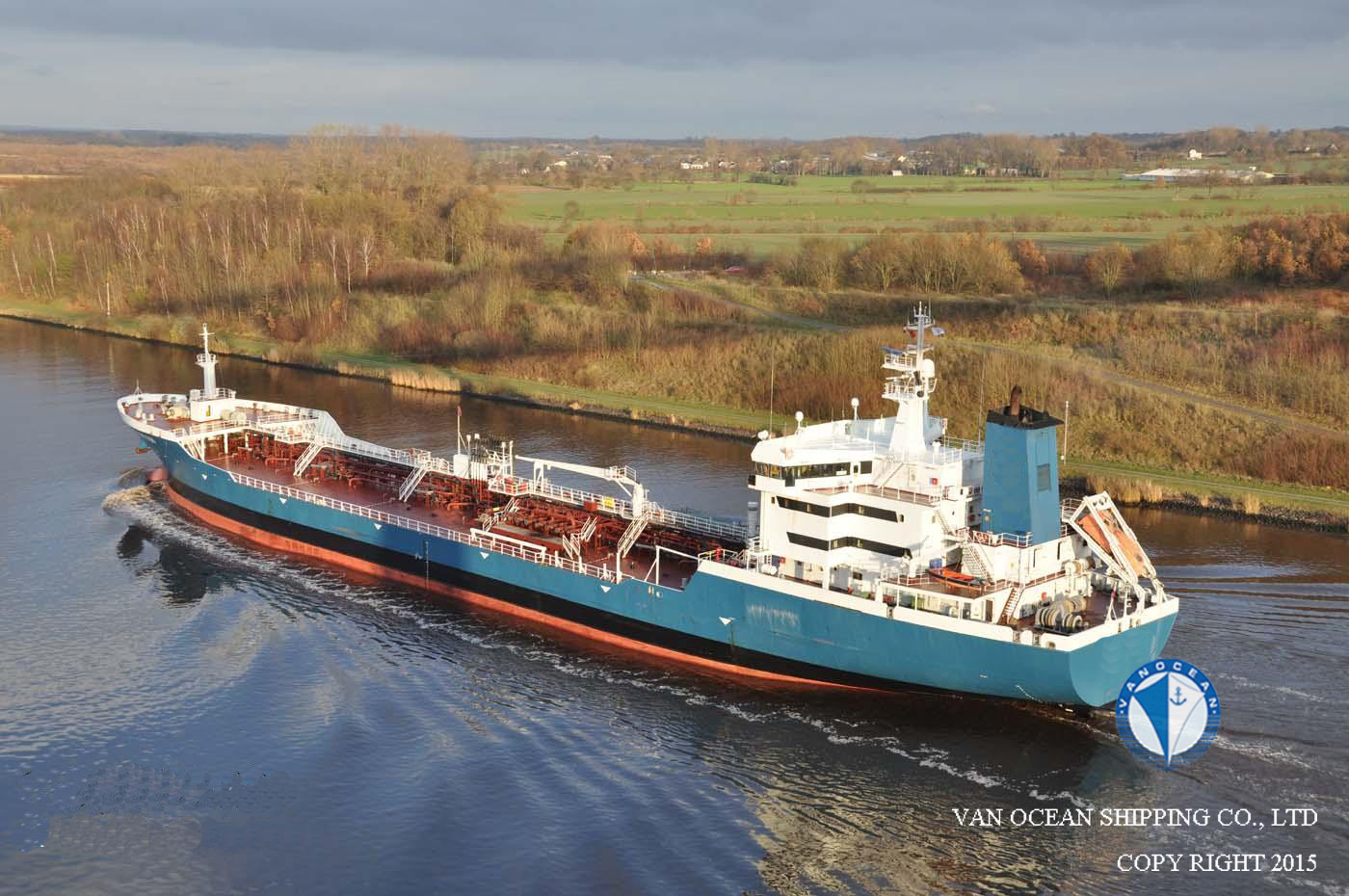

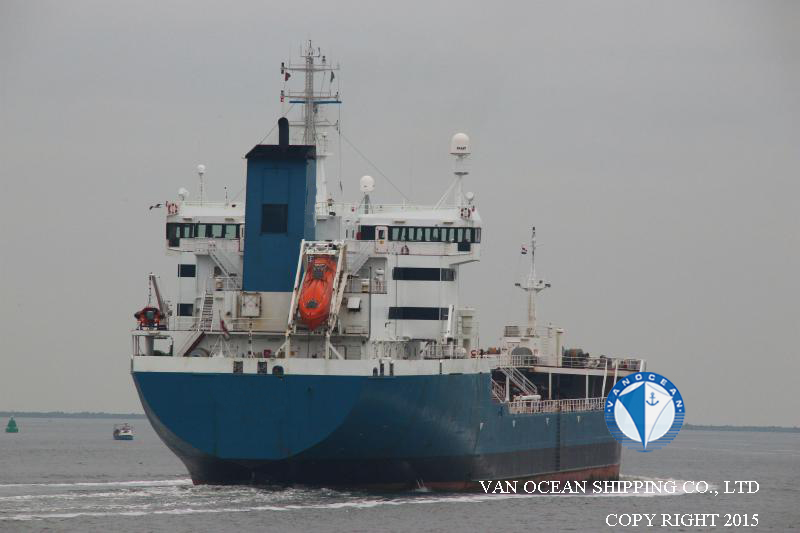

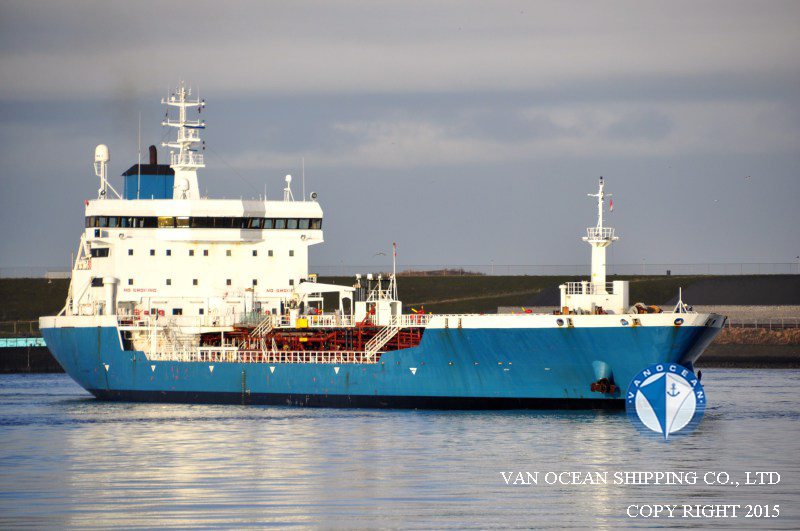

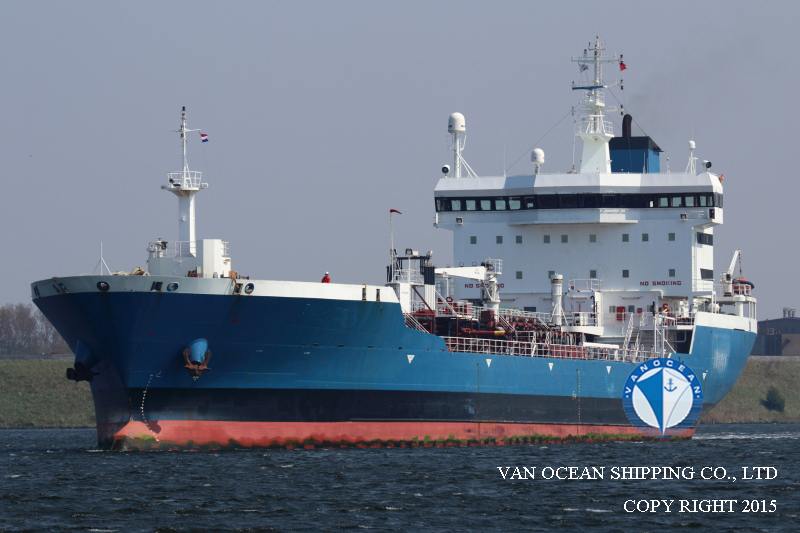

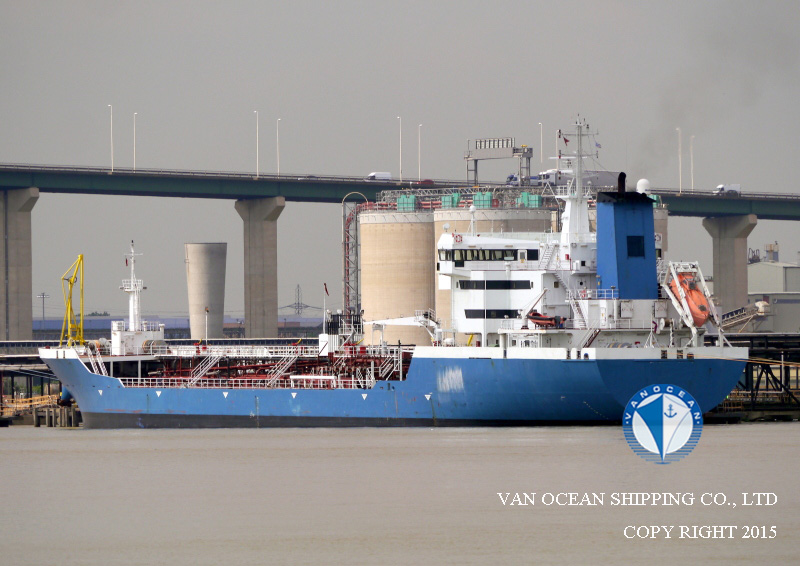

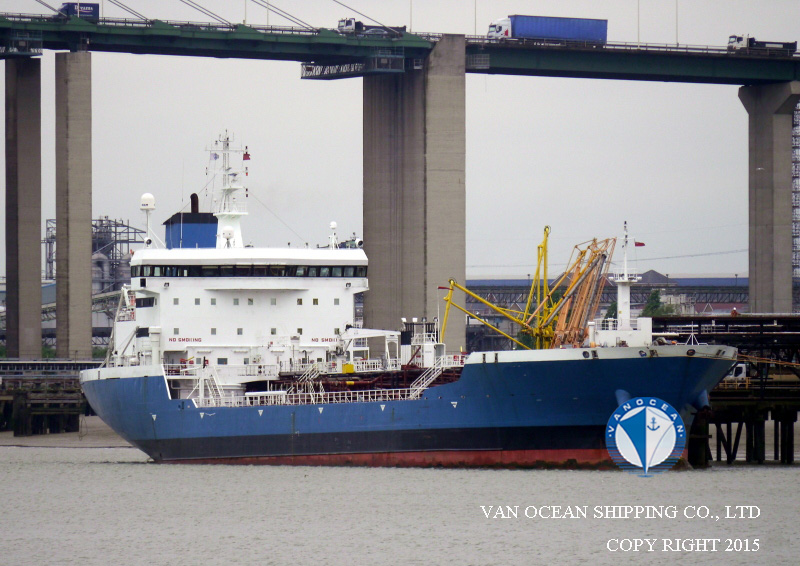

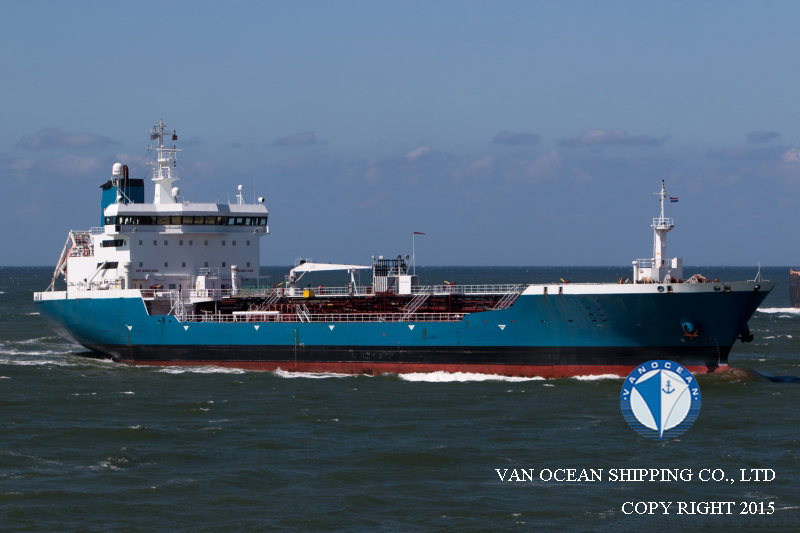

VESSEL NAME
TNK196
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MARSHALL IS
PORT OF REGISTRY
NOLSOY
BUILT YEAR
1995
BUILT PLACE
SIONG HUAT SHIPYARD SINGAPORE
CLASSIFICATION
DNV
CLASS NOTATION
+1A1 ICE-1C TANKER FOR CHEMICALS AND OIL ESP E0
SS
-
DD
-
LOA (M)
145.00
LBP (M)
136.00
BEAM (M)
22.50
DEPTH (M)
10.80
SUMMER DRAFT (M)
8.27
WINTER DRAFT (M)
8.10
TROPICAL DRAFT (M)
8.45
GT (MT)
9382.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4788.00
PANAMA NT (MT)
9862.26
SUEZ NT (MT)
-
SUMMER DWT (MT)
14999.00
WINTER DWT (MT)
14501.00
TROPICAL DWT (MT)
15411.00
DISPLACEMENT (MT)
19947.00
LDT (MT)
-
GEAR(S)
CRANE, 1x 2.8MT, OUTREACH, 4M
M/E(S)
-
M/E POWER (KW)
4860
A/E(S)
-
GENERATOR(S)
3 x 750KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
BALLAST: 12KTS, 14.5MT (HFO)
LADEN: 12KTS, 15.5MT (HFO)
FUEL TYPE
MAIN PROPULSION: HFO380
GENERATOR: MGO
BUNKER CAPACITY (CBM)
502
TANKS CAPACITY (CBM)
SLOP TANK: 136, MDO/MGO: 109, RESIDUAL TANK: 102
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
7
CARGO CAPACITY98% (CBFT)
567129.8
CARGO CAPACITY98% (CBM)
16066
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
HEAT EXCHANGER /THERMAL OIL
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
CARGO (CENTRIFUGAL): 12 x 335CBM/HR
BALLAST (CENTRIFUGAL): 2 x 70CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRISTER: 1 x 740BHP, 551.81KW
INSURANCE
SWEDISH CLUB USD 1BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 6.95 MILLION
REMARK(S)
DISPLACEMENT (MT): 19492(WINTER), 20132(TROPICAL)
SBT
THERMAL BOILERS: 2 x 3000KW
SLOP TANK EPOXY COATED
