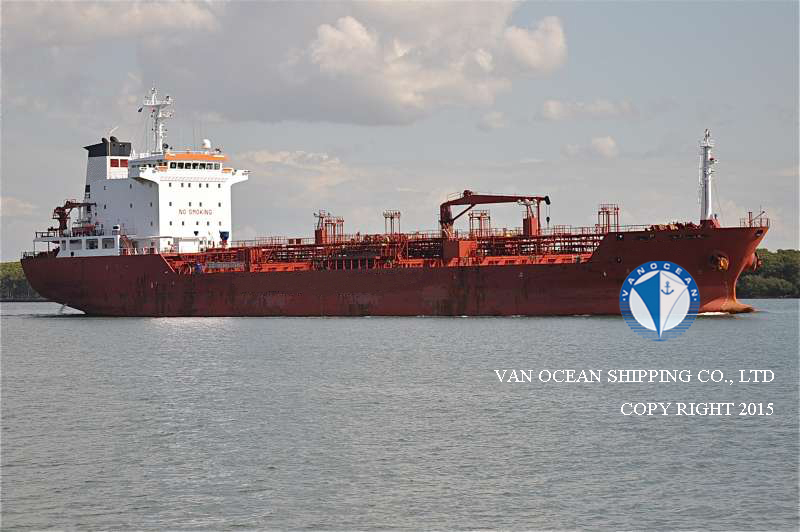

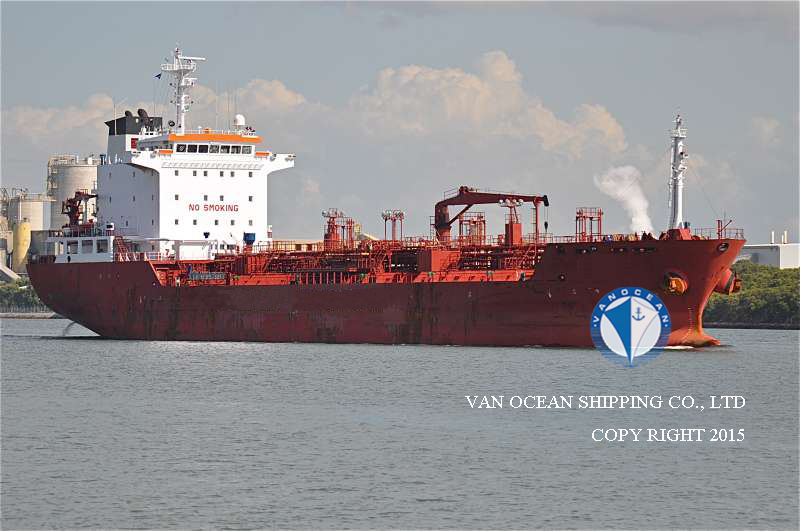

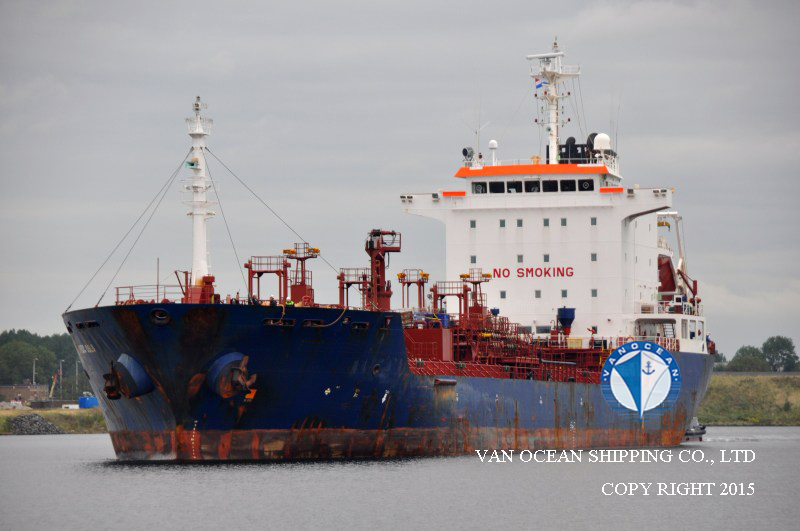

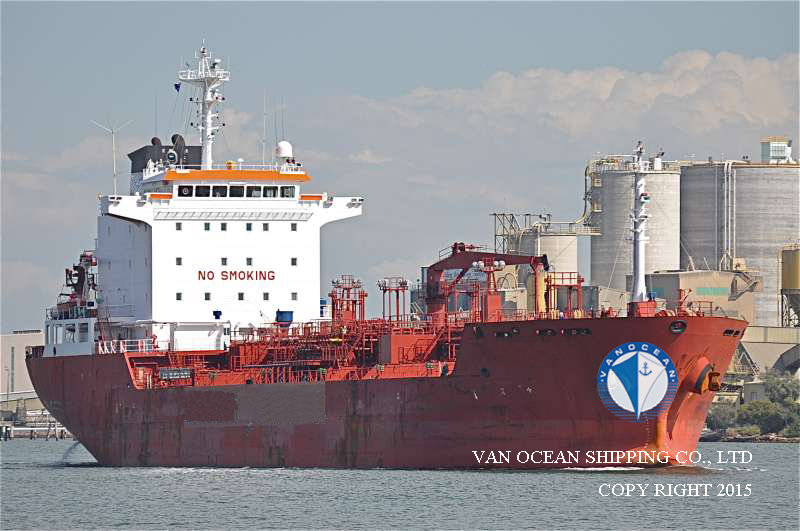

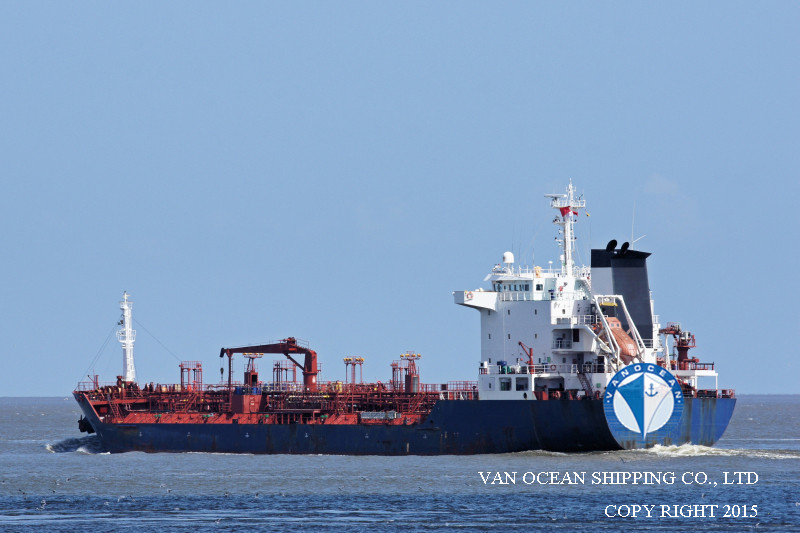

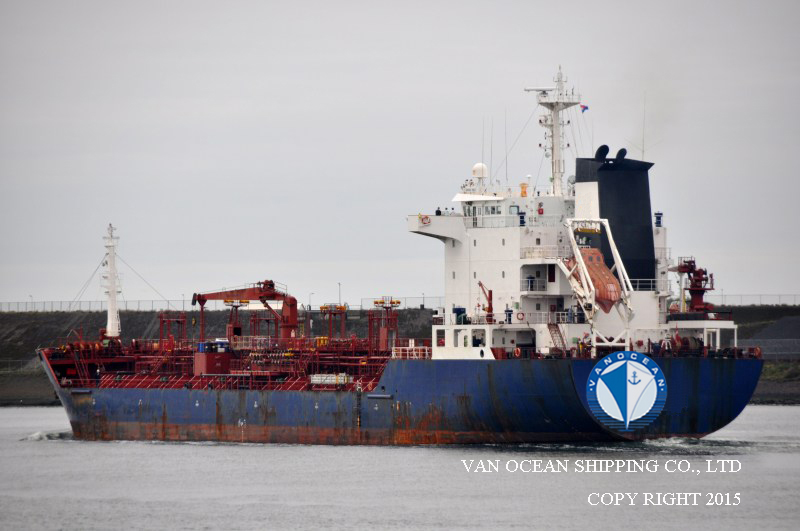

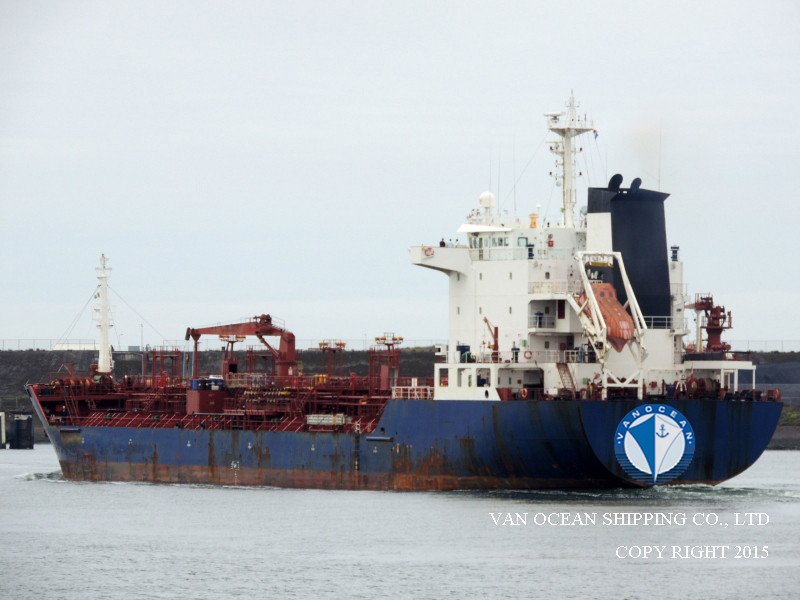

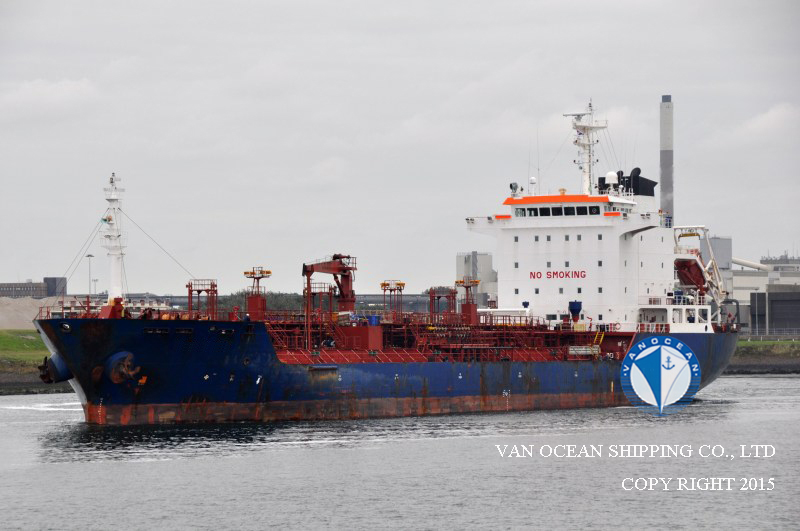

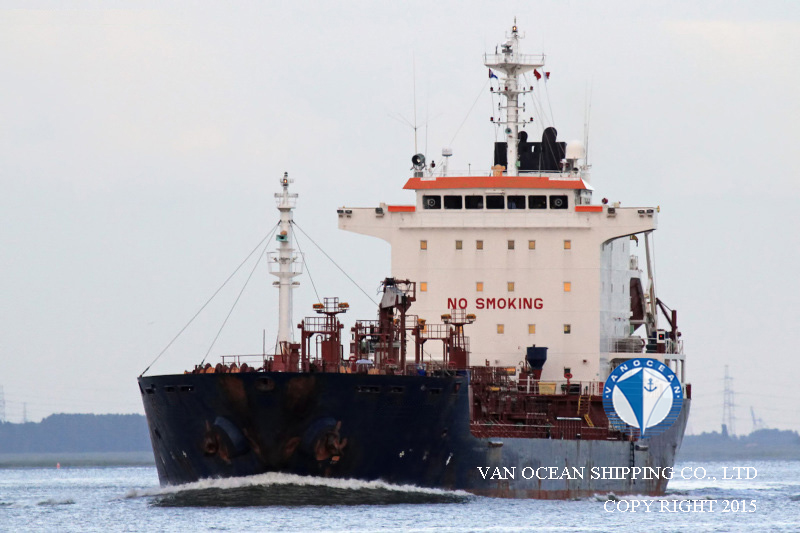

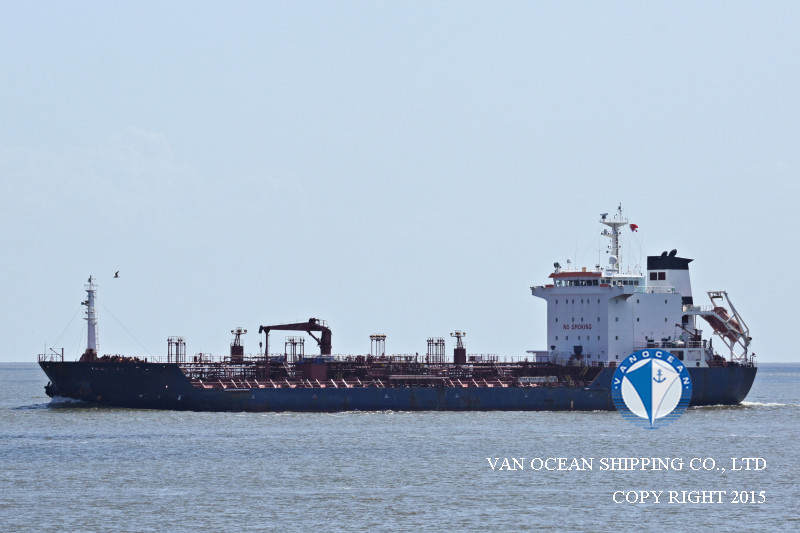

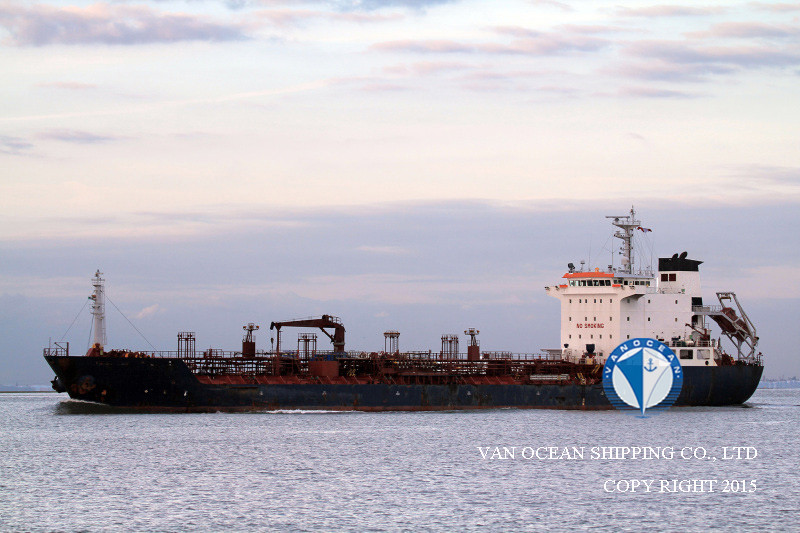

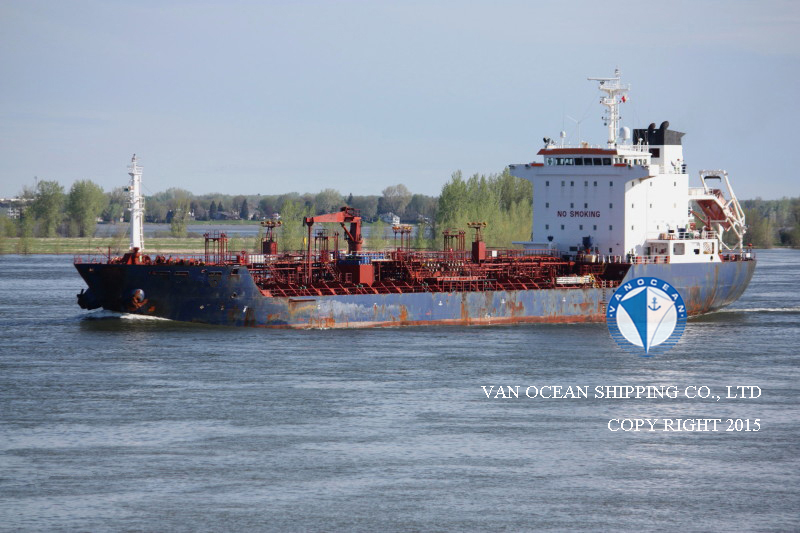

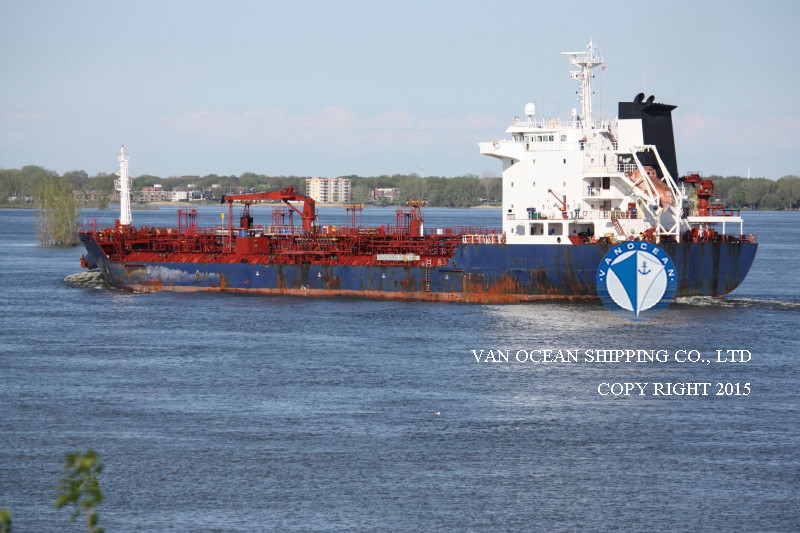

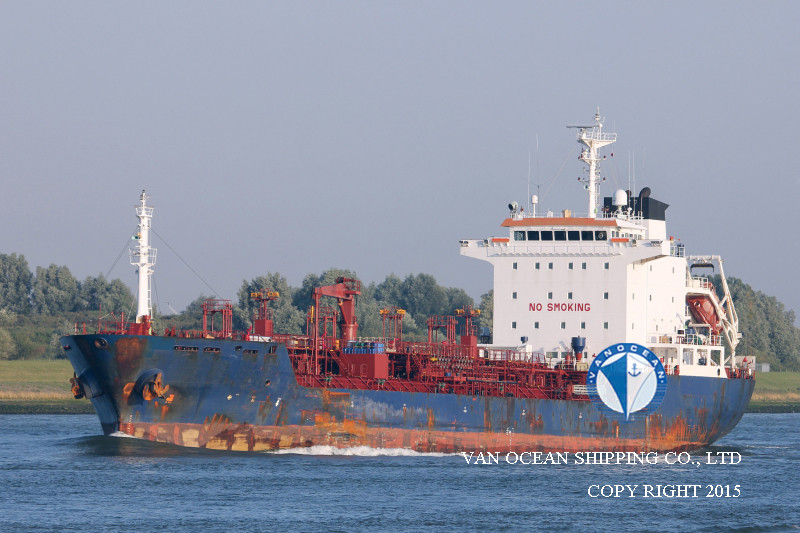

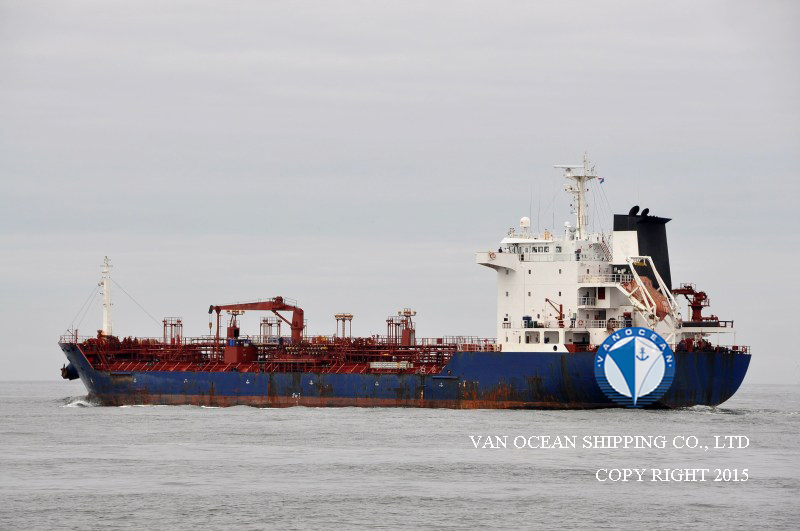

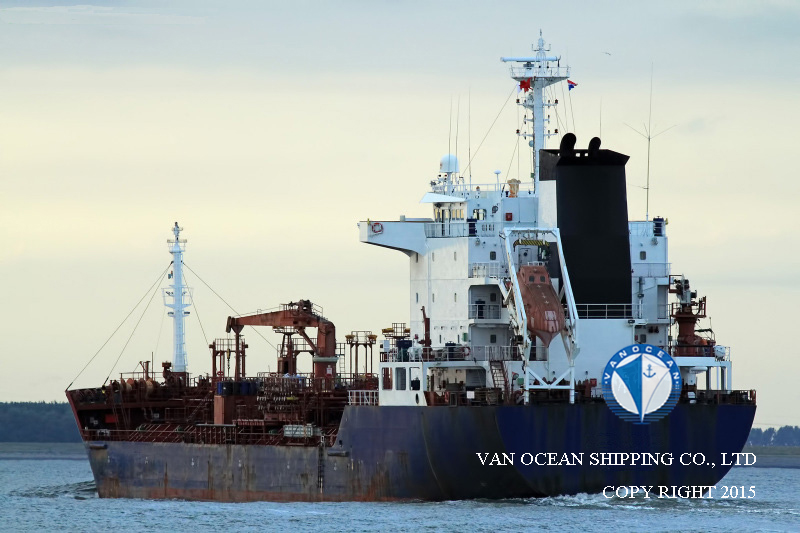

VESSEL NAME
TNK194
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
KOREA
PORT OF REGISTRY
COPENHAGEN
BUILT YEAR
2005
BUILT PLACE
SAM HO SHIPBUILDING CO.,LTD KOREA
CLASSIFICATION
LR
CLASS NOTATION
A1,CHEMICAL CARRIER,OIL CARRIER, AMS, ACCU, VEC, TCM
SS
-
DD
-
LOA (M)
127.20
LBP (M)
119.00
BEAM (M)
20.40
DEPTH (M)
11.50
SUMMER DRAFT (M)
8.71
WINTER DRAFT (M)
8.53
TROPICAL DRAFT (M)
8.91
GT (MT)
8448.00
PANAMA GT (MT)
-
SUEZ GT (MT)
9044.00
NT (MT)
4030.00
PANAMA NT (MT)
7142.00
SUEZ NT (MT)
6930.00
SUMMER DWT (MT)
12975.12
WINTER DWT (MT)
12561.27
TROPICAL DWT (MT)
13430.14
DISPLACEMENT (MT)
17232.10
LDT (MT)
-
GEAR(S)
CRANES, 1 x 10MT (MIDDLE CENTRAL), 1 x 1MT (AFT STRBOARD)
M/E(S)
MAN-B&W 6S35MC 6037BHP
M/E POWER (KW)
4505
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
SPEED /CONSUMPTIONS
LADEN: 12KTS, 11.5MT
BALLAST: 12KTS, 9.5MT
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
677
TANKS CAPACITY (CBM)
SLOP TANK: 695.87, SBT: 5214.1, MDO/MGO: 74.8
COMPARTMENT(S)
12
NUMBER OF CARGO HOLDS
-
CARGO CAPACITY98% (CBFT)
461618
CARGO CAPACITY98% (CBM)
13077
COATING/MATERIAL OF HOLD(S)
EPOXY PHENOLIC
HEATING SYSTEM
STAINLESS STEEL STEAM COILS
SACRIFICIAL ANODE
ZNIC
IGS
NO
PUMP(S)
CARGO (CENTRIFUGAL): 12 x 300 CBM/HR，2 x 100 CBM/HR
BALLAST (CENTRIFUGAL): 2 x 350 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 536BHP 399.69KW
INSURANCE
POLLUTION LIABILITY: 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
CARIBBEAN REGION
PRICE
BUYERS OFFER
REMARK(S)
DISPLAEMENT (MT): 16818.25 (WINTER), 17687.12 (TROPICAL)
BALLAST TANKS ARE TAR EPOXY COATED
SLOP TANK ARE EPOXY PHENOLIC COATED
SBT
