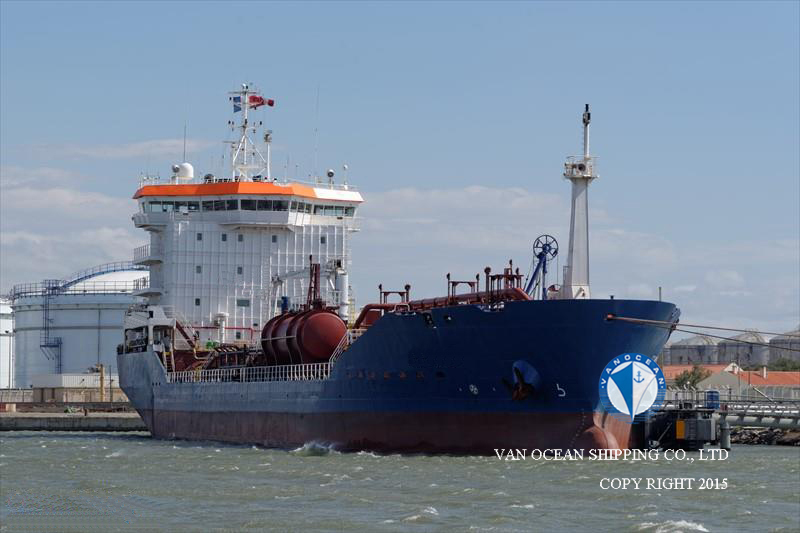

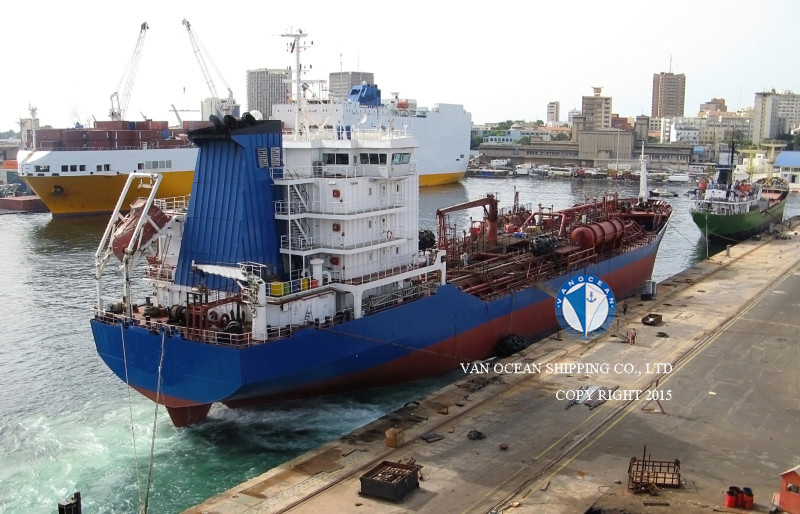

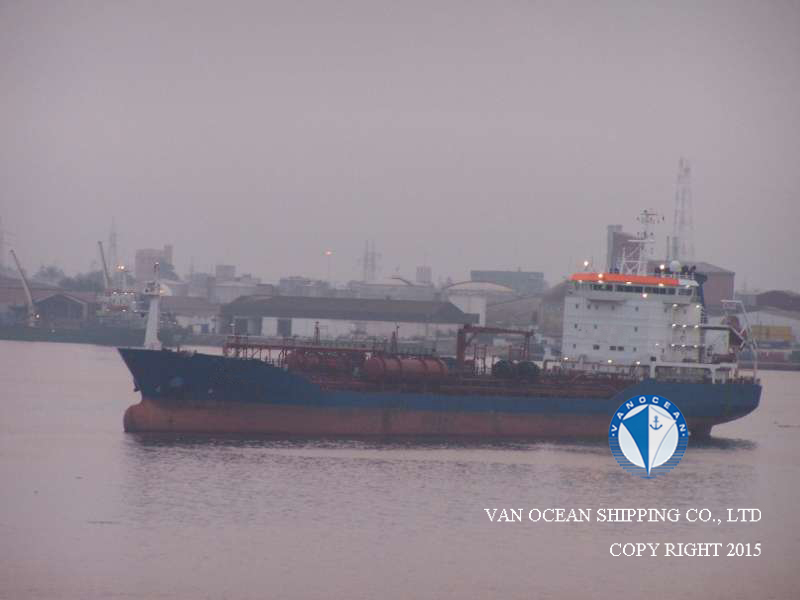

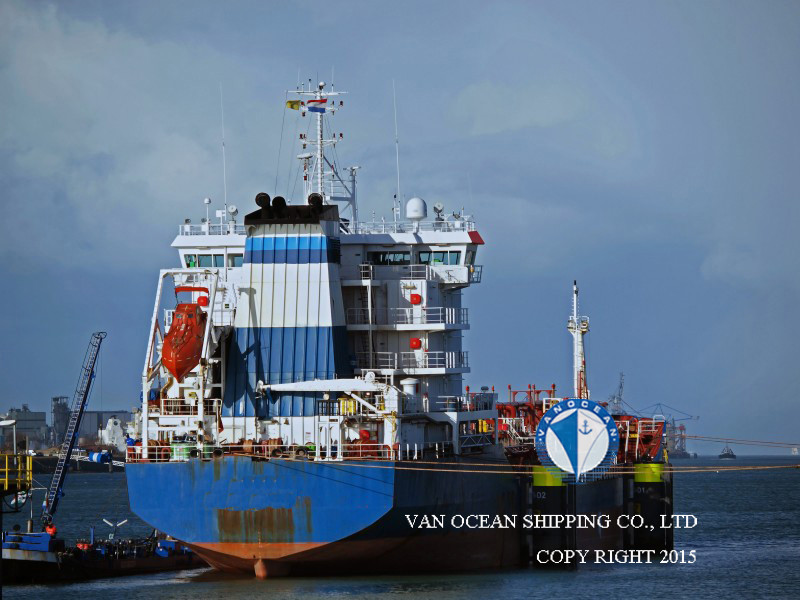

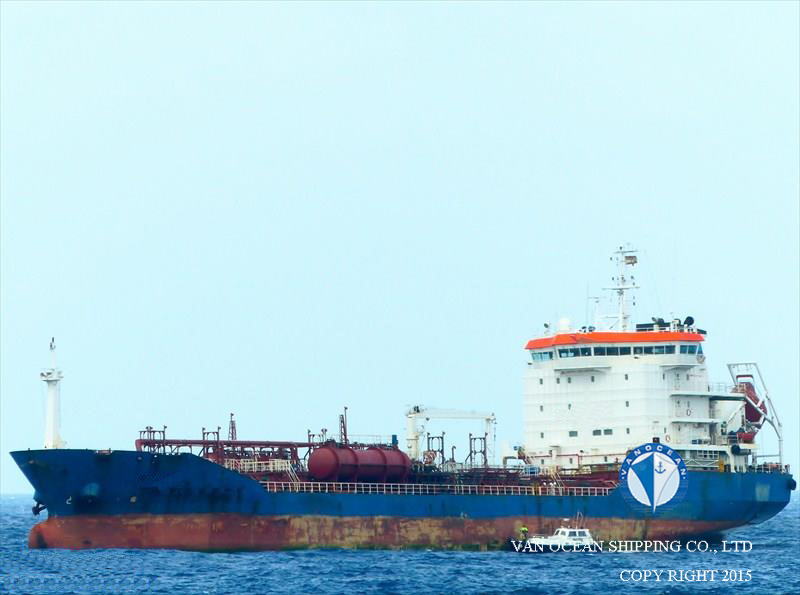

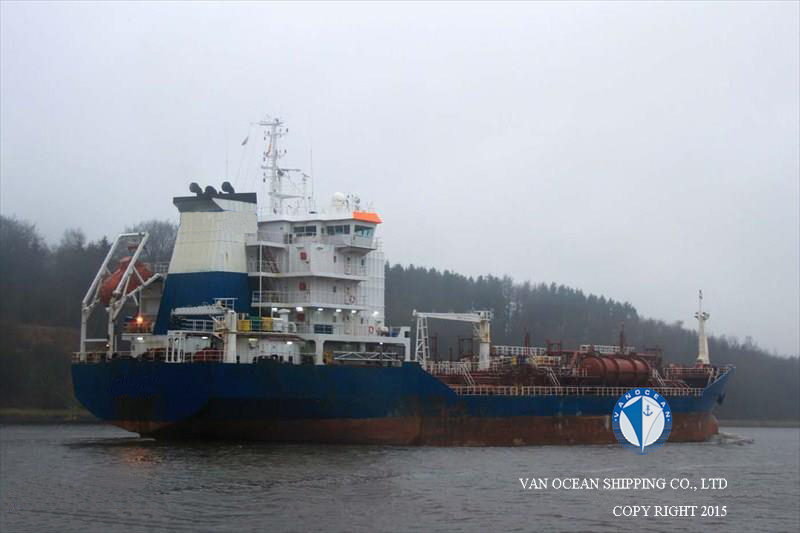

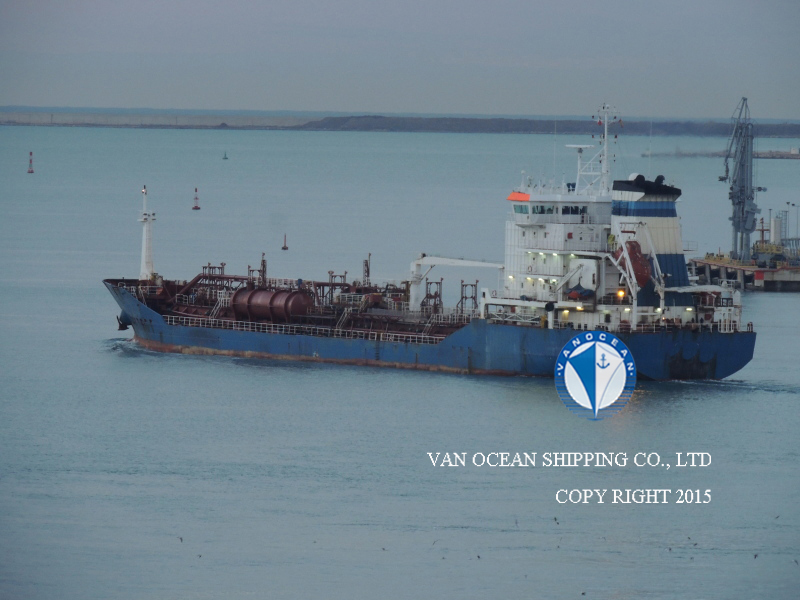

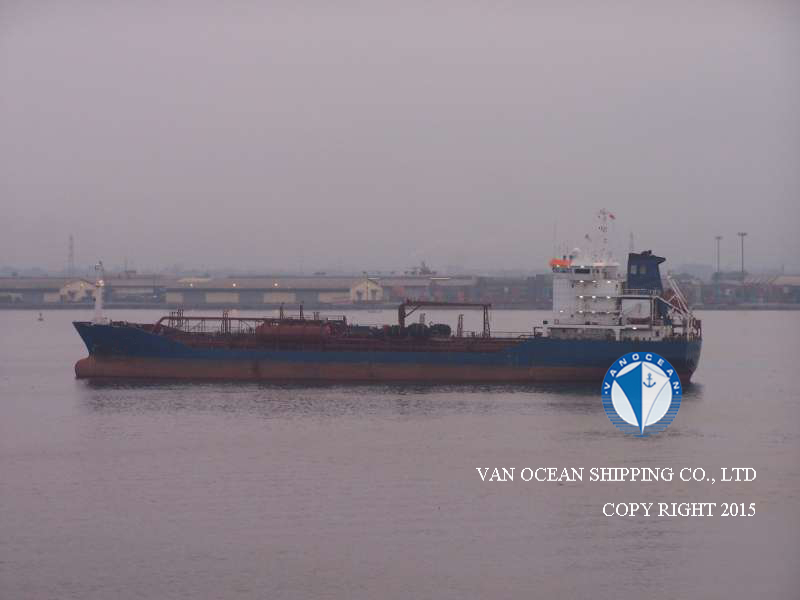

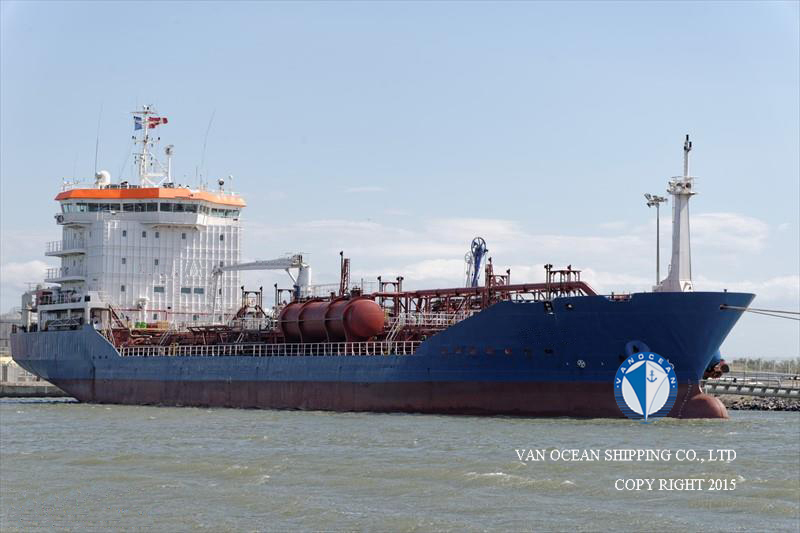

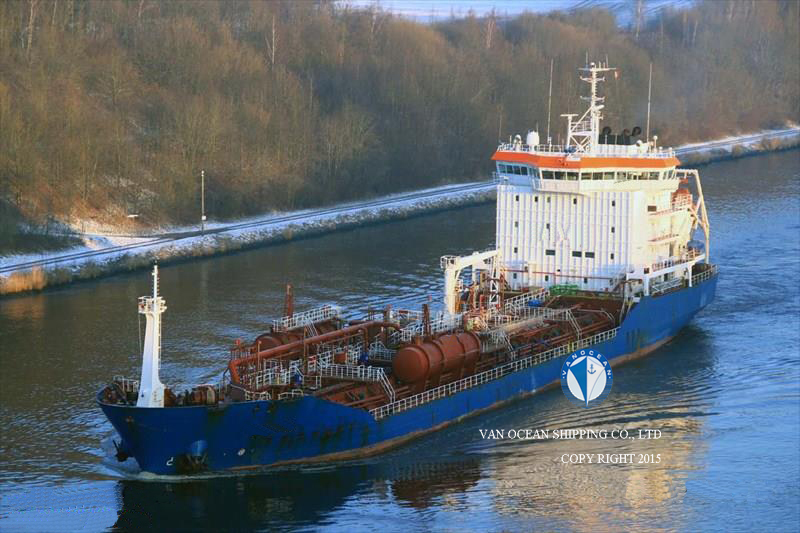

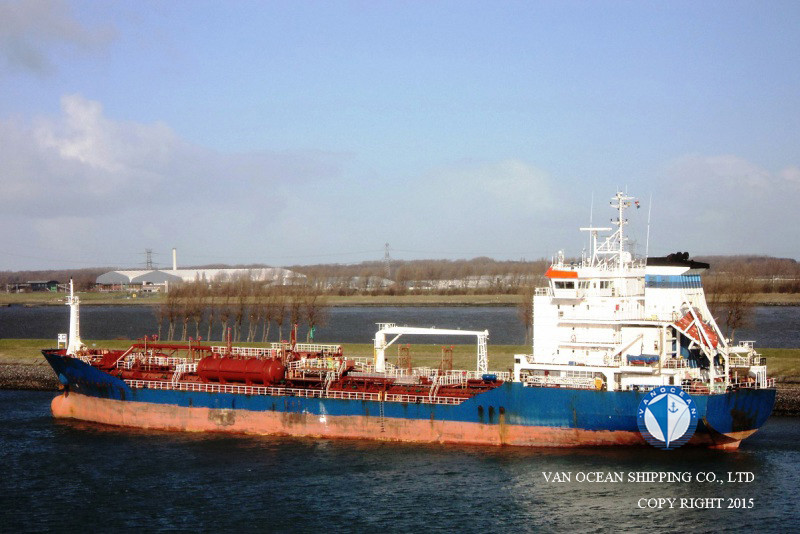

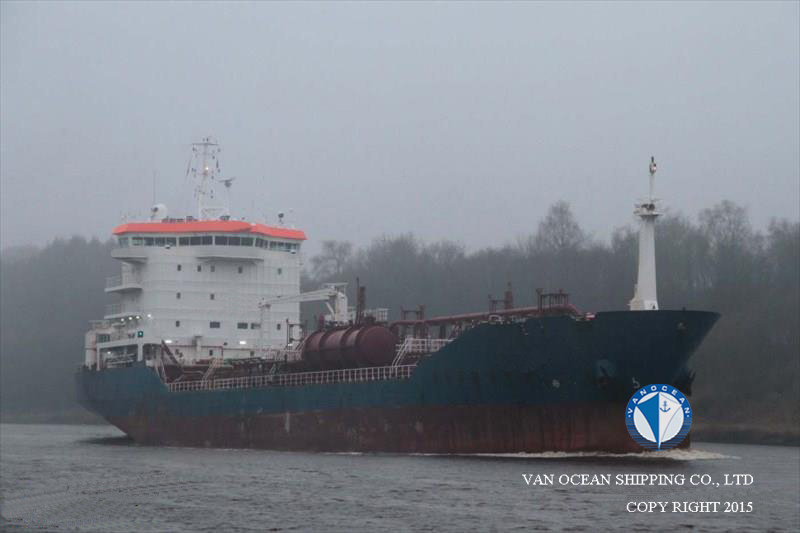

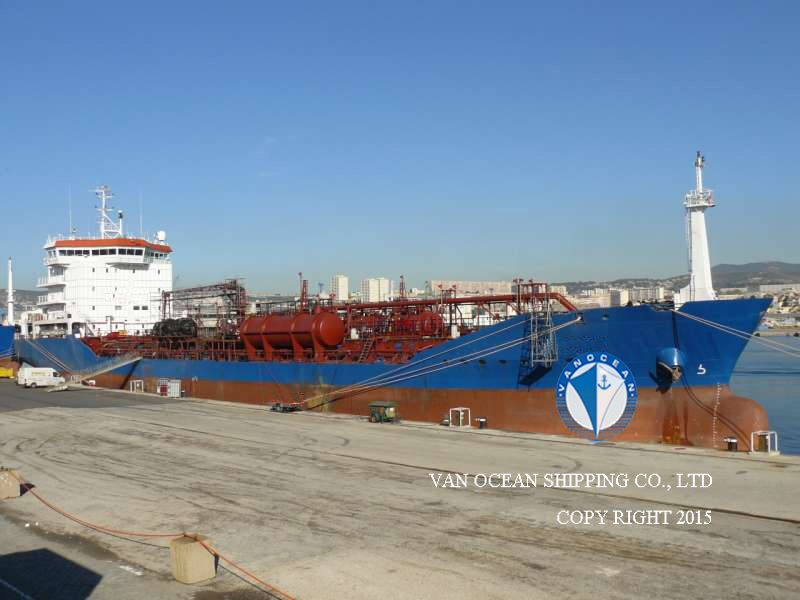

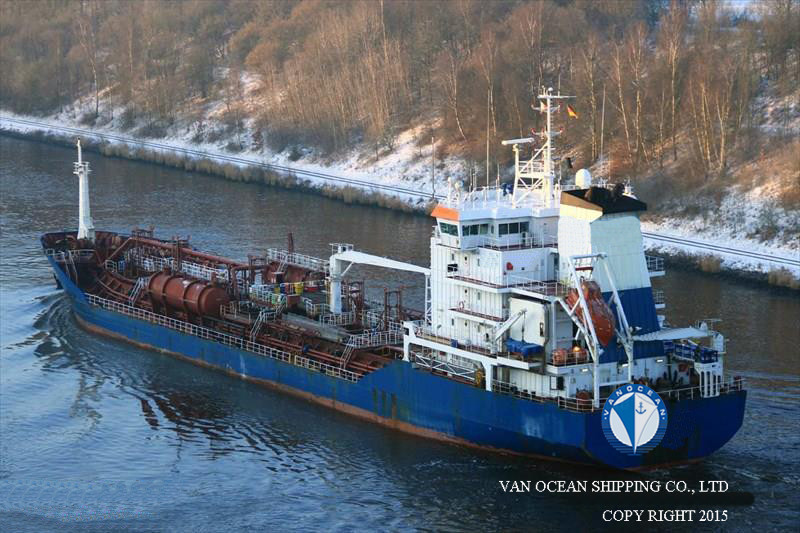

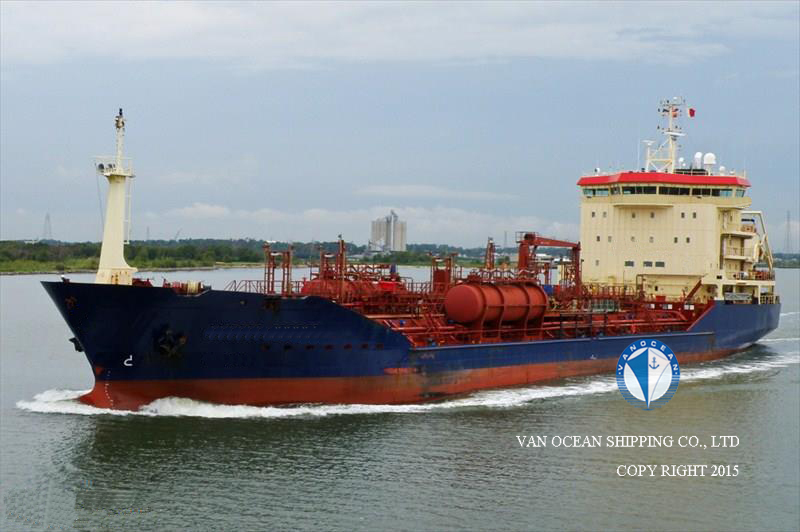

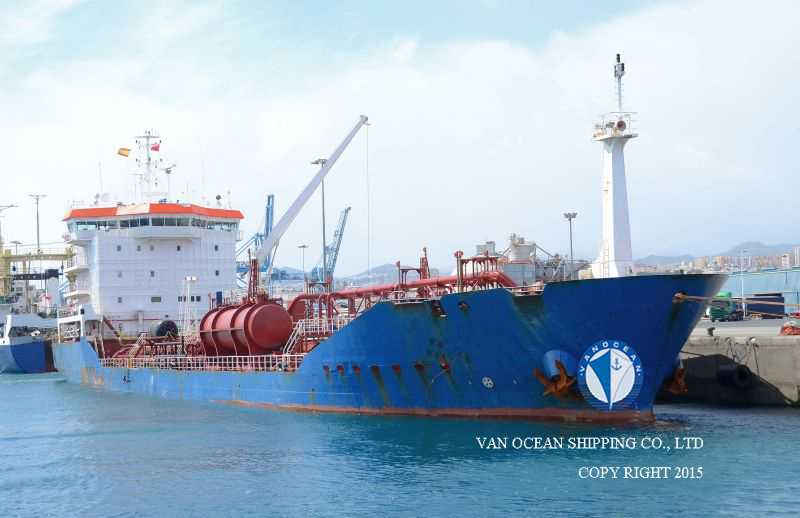

VESSEL NAME
TNK193
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
MAJURO
BUILT YEAR
2001
BUILT PLACE
YARDIMCI SHIPYARD TUZLA TURKEY
CLASSIFICATION
BV
CLASS NOTATION
HULL MACHINERY-OIL TANKER ESP-CHEMICAL TANKER ESP, UNRESTRICTED NAVIGATION,AUT-UMS,IGS,ICE CLASS 1B
SS
-
DD
-
LOA (M)
118.37
LBP (M)
112.06
BEAM (M)
19.00
DEPTH (M)
10.10
SUMMER DRAFT (M)
8.22
WINTER DRAFT (M)
8.08
TROPICAL DRAFT (M)
8.40
GT (MT)
6519.00
PANAMA GT (MT)
-
SUEZ GT (MT)
6886.97
NT (MT)
3195.00
PANAMA NT (MT)
22708.07
SUEZ NT (MT)
6285.55
SUMMER DWT (MT)
10048.00
WINTER DWT (MT)
9714.00
TROPICAL DWT (MT)
10400.00
DISPLACEMENT (MT)
13712.00
LDT (MT)
3664.00
GEAR(S)
CRANES: 2 x 5MT , CENTRE & AFT STARBOARD, OUTREACH 7M
M/E(S)
-
M/E POWER (KW)
-
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
602
TANKS CAPACITY (CBM)
SLOP TANK: 184, SBT: 3832, MDO/MGO:181
COMPARTMENT(S)
7
NUMBER OF CARGO HOLDS
-
CARGO CAPACITY98% (CBFT)
387231.12
CARGO CAPACITY98% (CBM)
10969.72
COATING/MATERIAL OF HOLD(S)
TWO COMPONENT PHENOLIC EPOXY (HEMPEL HEMPADUR15500)
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
-
IGS
YES
PUMP(S)
CARGO (CENTRIFUGAL): 12 x 200CBM/HR, 2 x 100CBM/HR
STRIPPING (CENTRIFUGAL): 12 x 50CBM/HR
BALLASTE(CENTRIFUGAL): 3 x 400CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 600BHP 447.42KW
INSURANCE
P&I
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 7.5MILLION
REMARK(S)
DISPLACEMENT(MT): 13378 (WINTER), 14064 (TROPICAL)
SBT
BALLAST TANKS ARE COATED WITH TWO COMPONENTS POLYAMIDE EPOXY (HEMPEL 45880)
SLOP TANKS ARE COATED WITH TWO COMPONENTS PHENOLIC EPOXY
4 PUMPS CAN BE RUN SIMULTANEOUSLY
