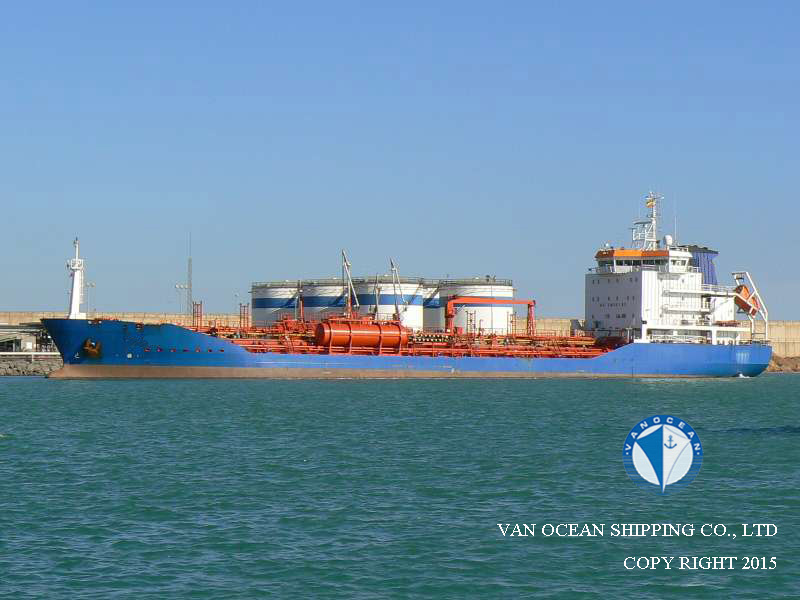

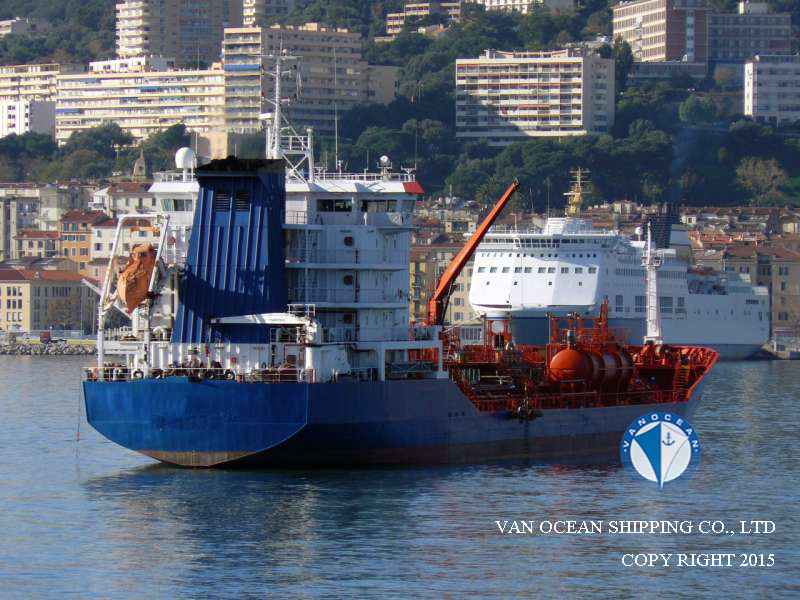

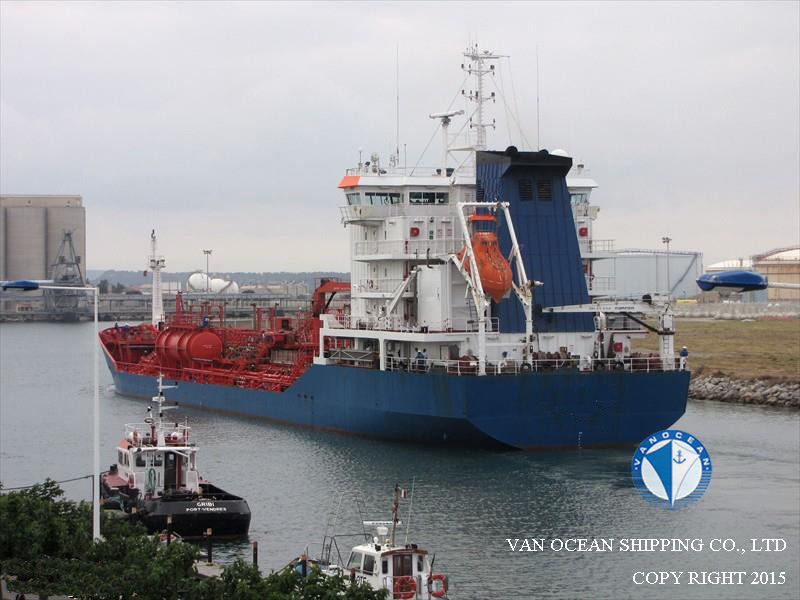

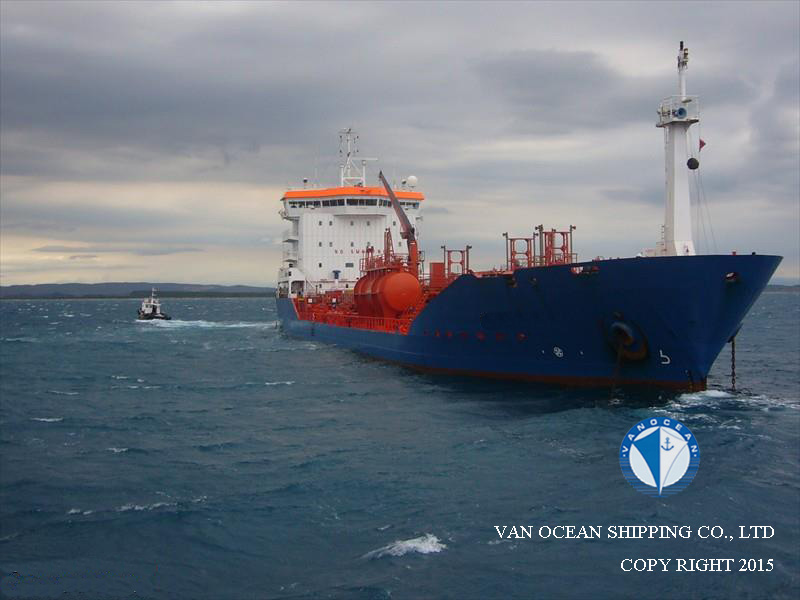

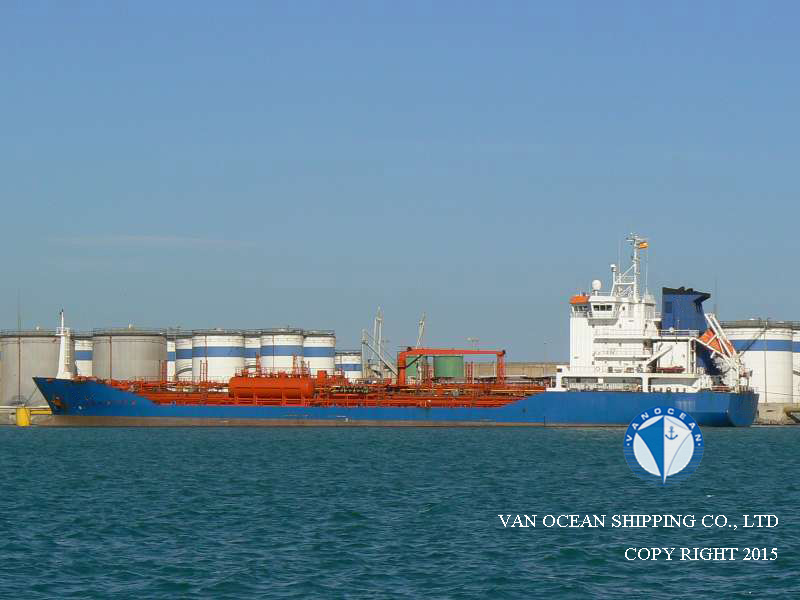

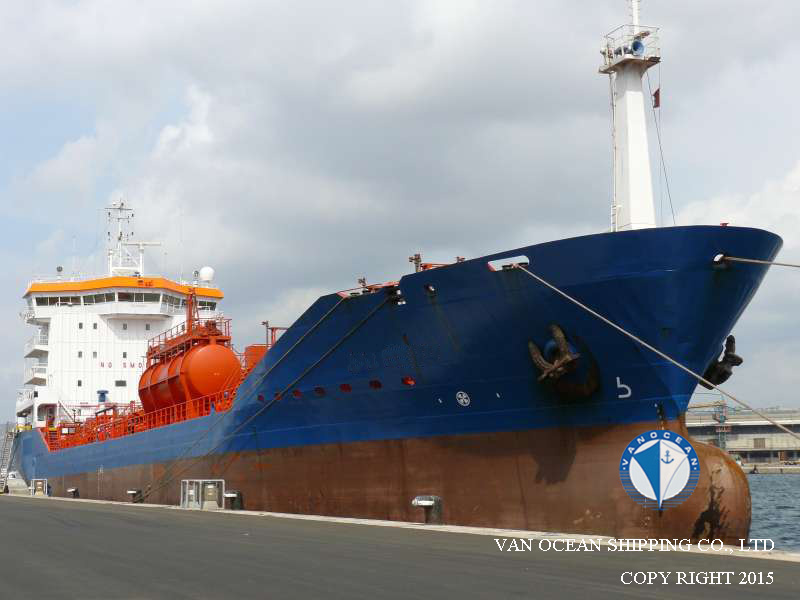

VESSEL NAME
TNK192
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
-
BUILT YEAR
2002
BUILT PLACE
YARDIMCI SHIPYARD TUZLA TURKEY
CLASSIFICATION
BV
CLASS NOTATION
I + HULL + MACH OIL TANKER ESP CHEMICAL TANKER ESP UNRESTRICTED NAVIGATION + AUT-UMS +IG ICE CLASS 1B IMO2
SS
2017-03
DD
2017-03
LOA (M)
118.37
LBP (M)
112.06
BEAM (M)
19.02
DEPTH (M)
10.10
SUMMER DRAFT (M)
8.22
WINTER DRAFT (M)
8.00
TROPICAL DRAFT (M)
8.39
GT (MT)
6516.00
PANAMA GT (MT)
-
SUEZ GT (MT)
6883.65
NT (MT)
3195.00
PANAMA NT (MT)
5531.00
SUEZ NT (MT)
-
SUMMER DWT (MT)
9986.00
WINTER DWT (MT)
9652.00
TROPICAL DWT (MT)
10322.00
DISPLACEMENT (MT)
13712.00
LDT (MT)
3726.00
GEAR(S)
CRANES: 2 x 5MT, CENTRE & AFT STARBOARD, OUTREACH: 16.5M
M/E(S)
-
M/E POWER (KW)
-
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
603
TANKS CAPACITY (CBM)
SLOP TANK: 186.95, SBT: 3832, MDO/MGO: 181
COMPARTMENT(S)
12
NUMBER OF CARGO HOLDS
-
CARGO CAPACITY98% (CBFT)
383921.18
CARGO CAPACITY98% (CBM)
10875.95
COATING/MATERIAL OF HOLD(S)
-
HEATING SYSTEM
STAINLESS STEEL COILS
SACRIFICIAL ANODE
ZINC
IGS
YES
PUMP(S)
CARGO (CENTRIFUGAL): 12 x 200CBM/HR, 2 x 100CBM/HR
BALLAST (CENTRIFUGAL): 3 x 400CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 611BHP 455.62KW
INSURANCE
POLLUTION LIABILITY: 1 BILLION
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 7.5 MILLION
REMARK(S)
DISPLACEMENT(MT): 13378 (WINTER), 14048 (TROPICAL)
BALLAST TANK ARE COATED, SLOP TANK ARE PHENOLIC EPOXY COATED
SBT
