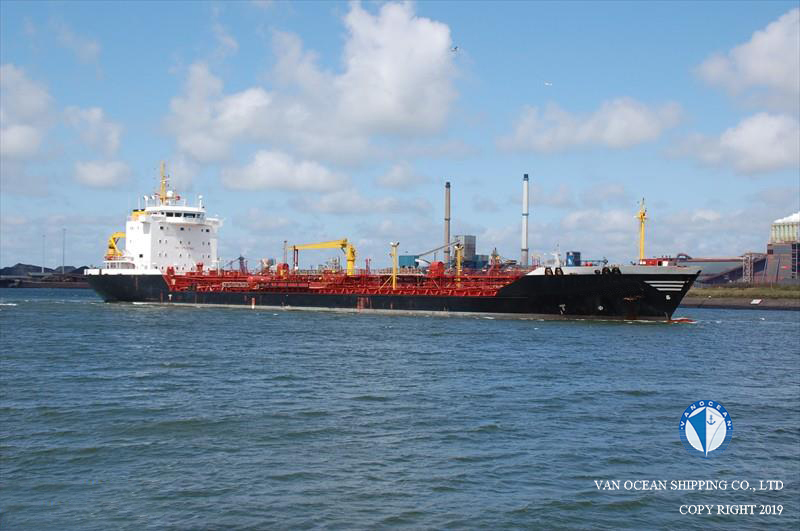

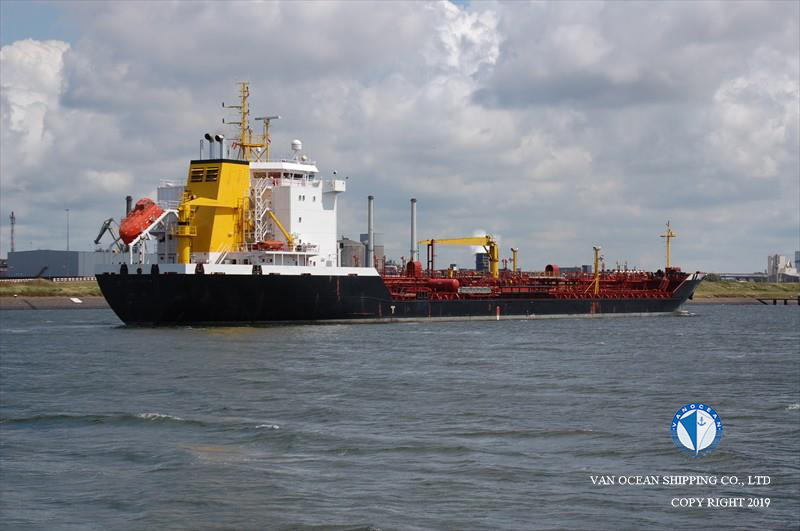

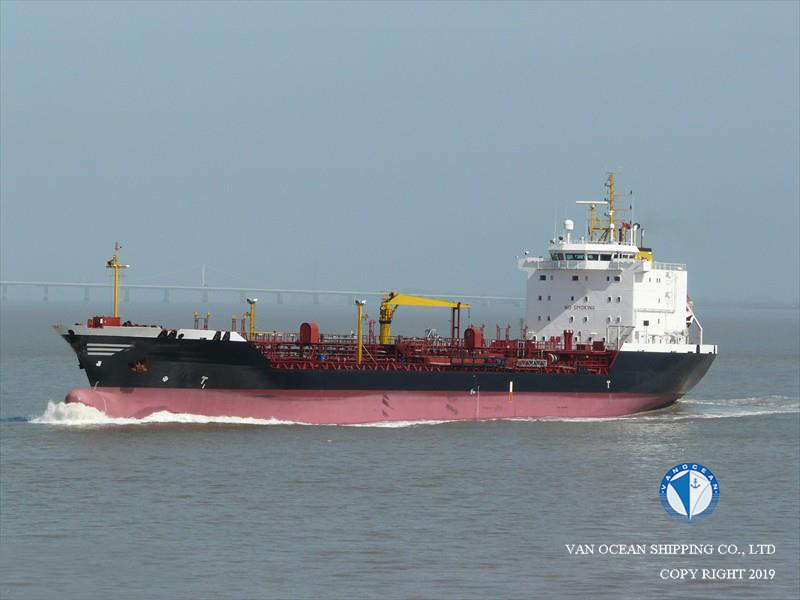

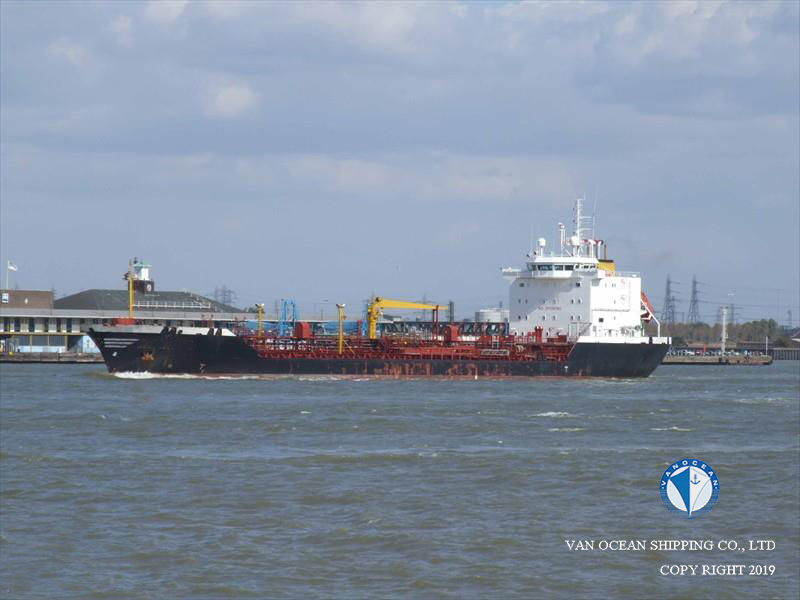

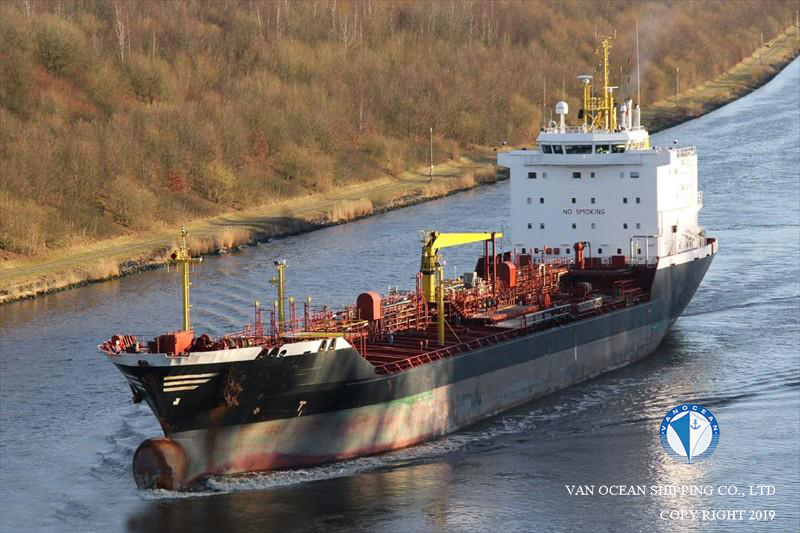

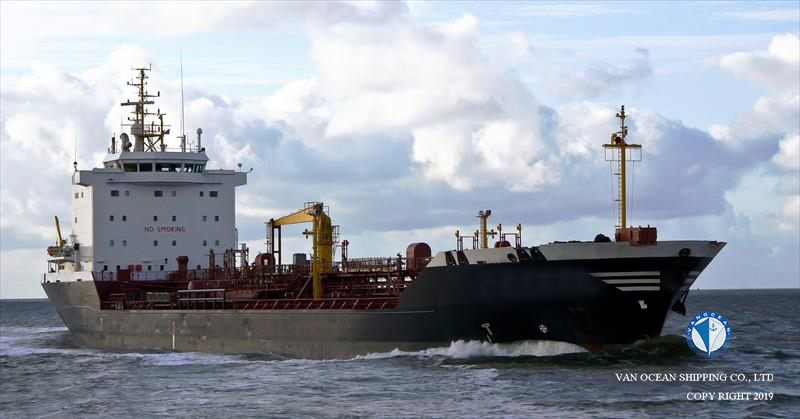

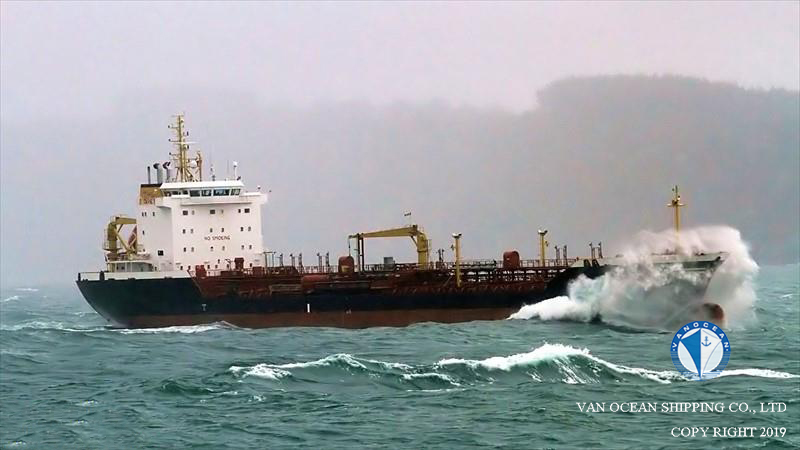

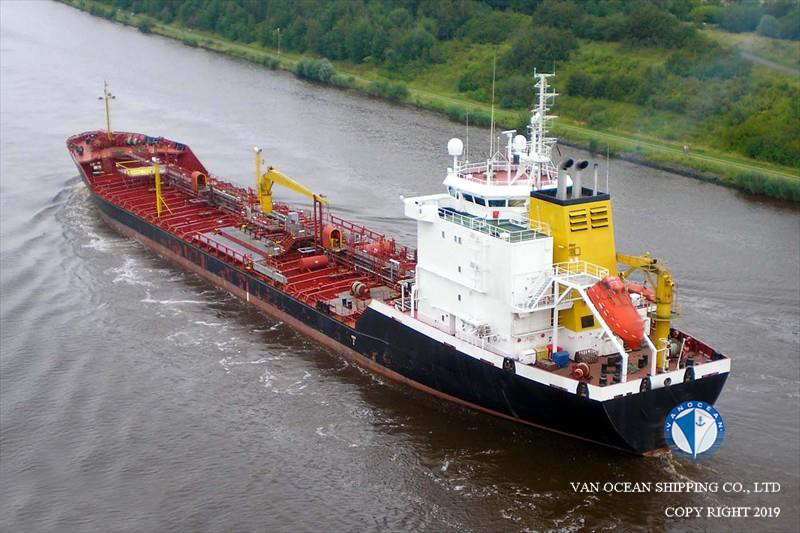

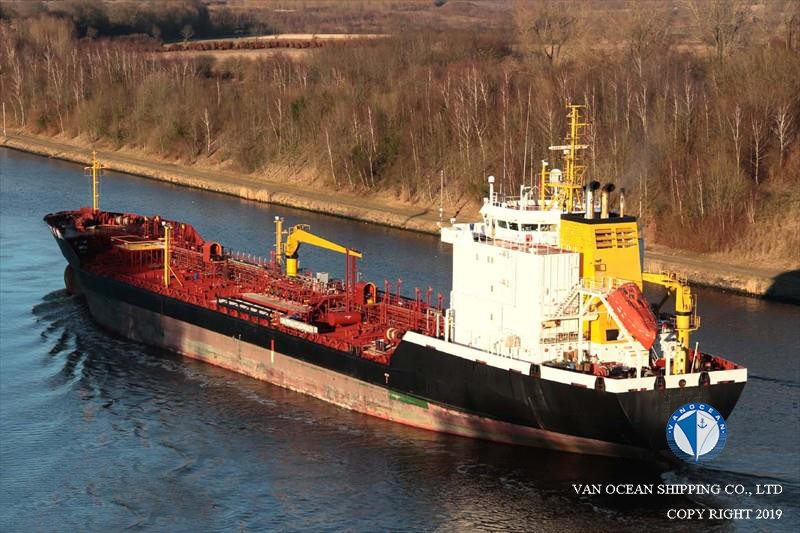

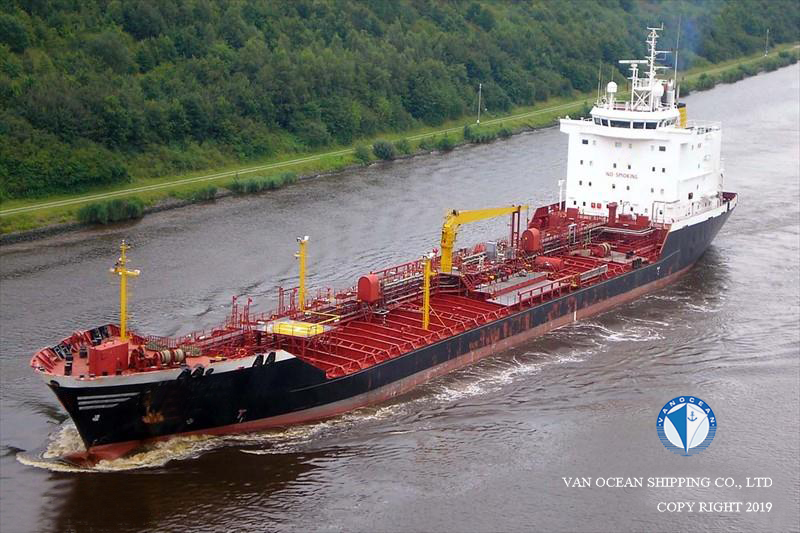

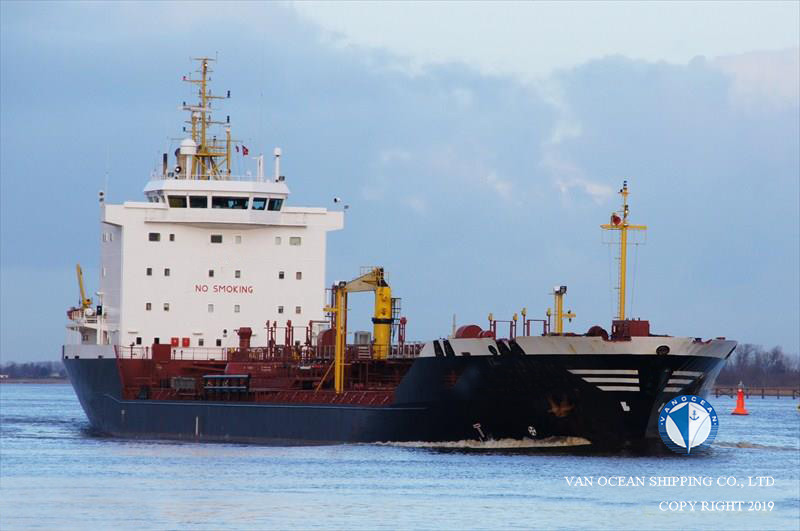

VESSEL NAME
TNK406
IMO
-
CALL SIGN
-
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1999
BUILT PLACE
LINDENAU SHIPYARD, GERMANY
CLASSIFICATION
DNV-GL
CLASS NOTATION
A5 E CHEMICAL TANKER TYPE 2 OIL TANKER COLL(1) ERS ESP, +MC E AUT INERT
SS
2026.07
DD
2024.10
LOA (M)
145.61
LBP (M)
138.98
BEAM (M)
19.6
DEPTH (M)
10.65
SUMMER DRAFT (M)
8.36
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
8085
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4184
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
13190
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
4166
GEAR(S)
CRANE
M/E(S)
MAK 9M32 5710BHP AT 600RPM
M/E POWER (KW)
4200
A/E(S)
2 x WARTSILA 6L20 1150 KVA
GENERATOR(S)
-
SHAFT GENERATOR(S)
640 KW SIEMENS
PROPELLER(S)
WARTSILA LIPS CPP
SPEED /CONSUMPTIONS
ABT 12KTS ON 13MT BALL/LADEN,
ABT 14KTS ON 17/18MT BALL/LADEN (IF380) (DETS ABT + WOG)
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
11
CARGO CAPACITY98% (CBFT)
511251
CARGO CAPACITY98% (CBM)
14477
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
COILED
SACRIFICIAL ANODE
-
IGS
FITTED(AIR PRODUCTS NITROGEN GENERATOR, 1580 CBM/HR)
PUMP(S)
PUMPS (ALL IN CBM/H): CARGO: 10X230 + 1X100 (ALL DEEPWELL)
BALLAST: 2X300 CBM/HSCREW
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
ROLLS ROYCE BOW THRUSTER 550 KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
UAE
DELIVERY
UAE
PRICE
BUYERS OFFER
REMARK(S)
BOWTHRUSTER FITTED
VESSEL IS ALREADY FIT FOR IMO 2020 FUEL REGULATIONS
CAP II PROGRAMME RATING: 1
1 x 173 CBM SLOPTANK HEATING BY HEAT EXCHANGER,SBT,BWTS
