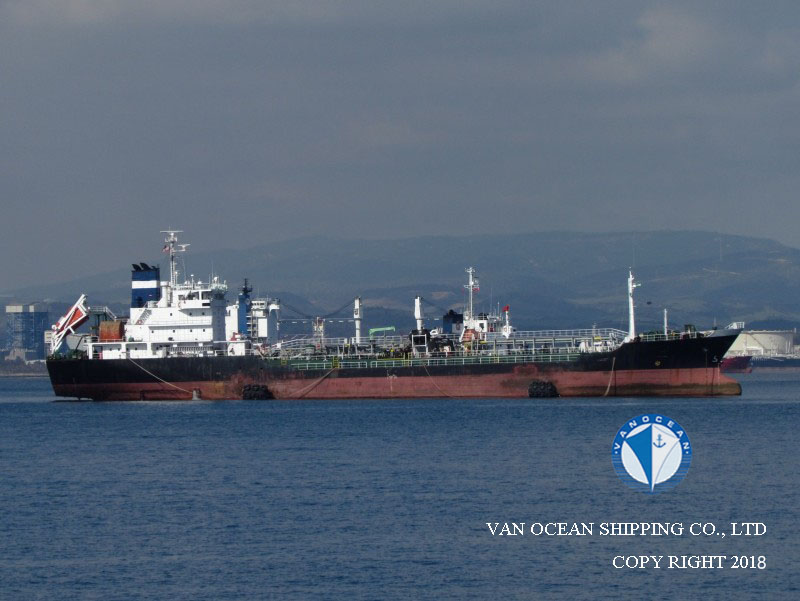

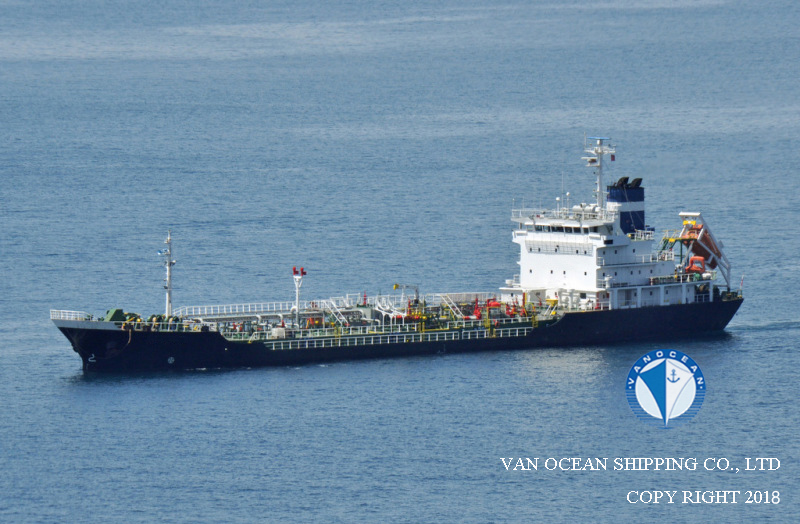

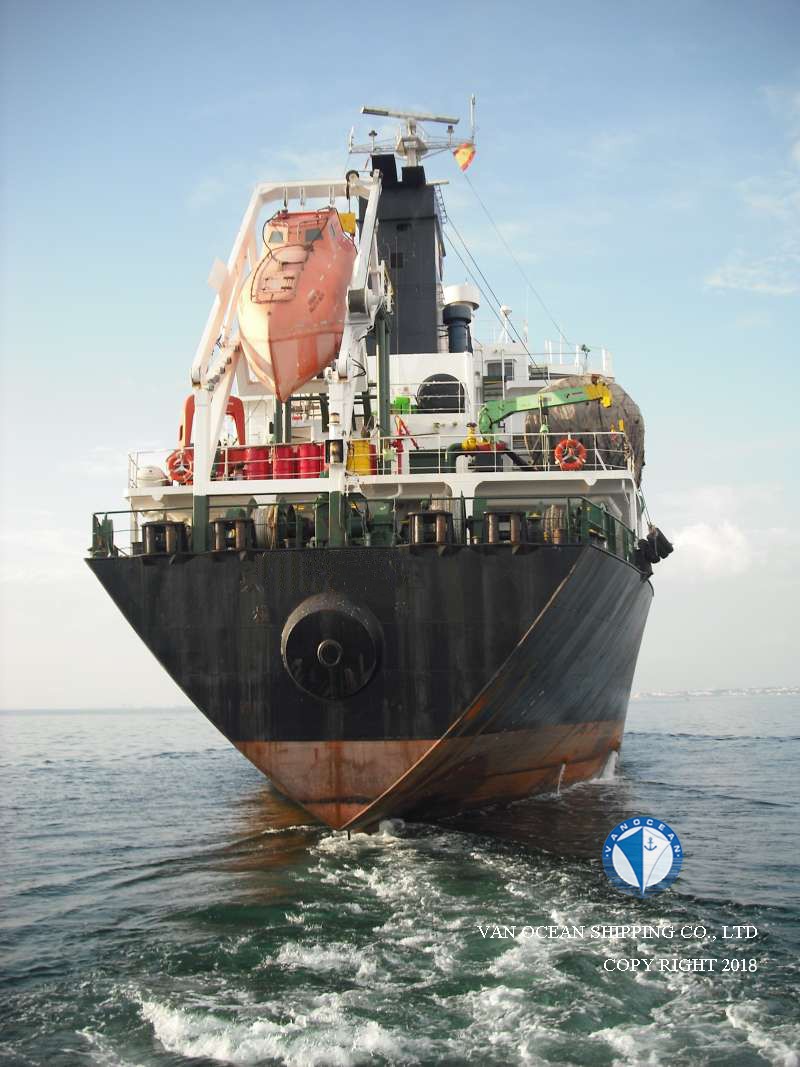

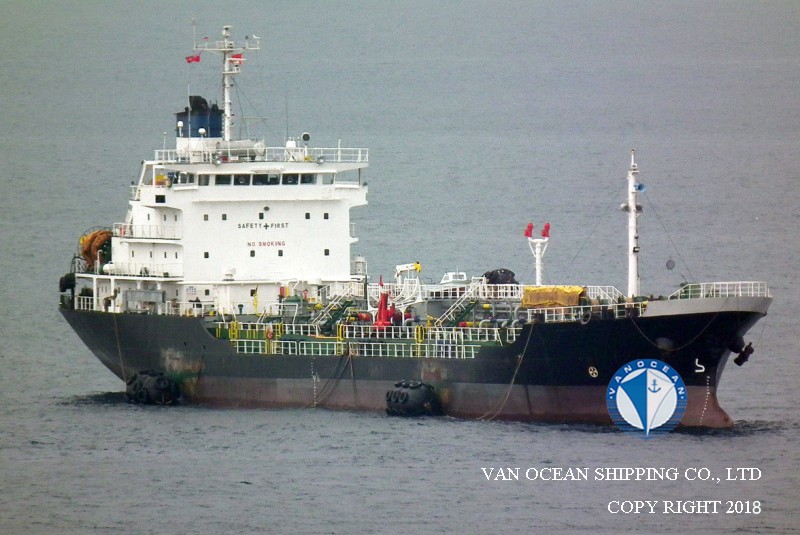

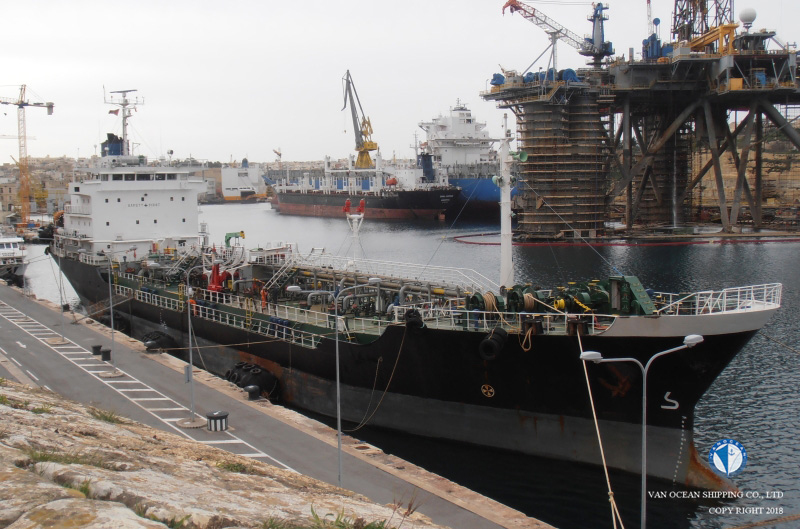

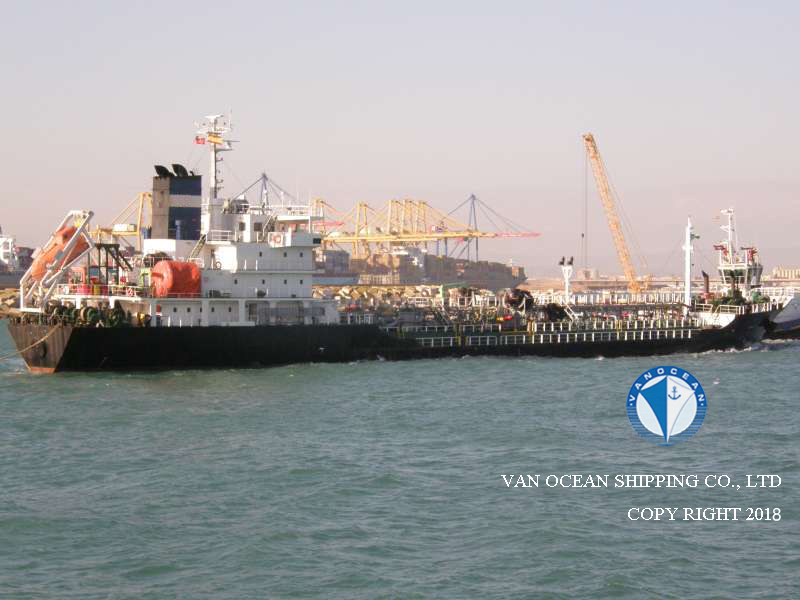

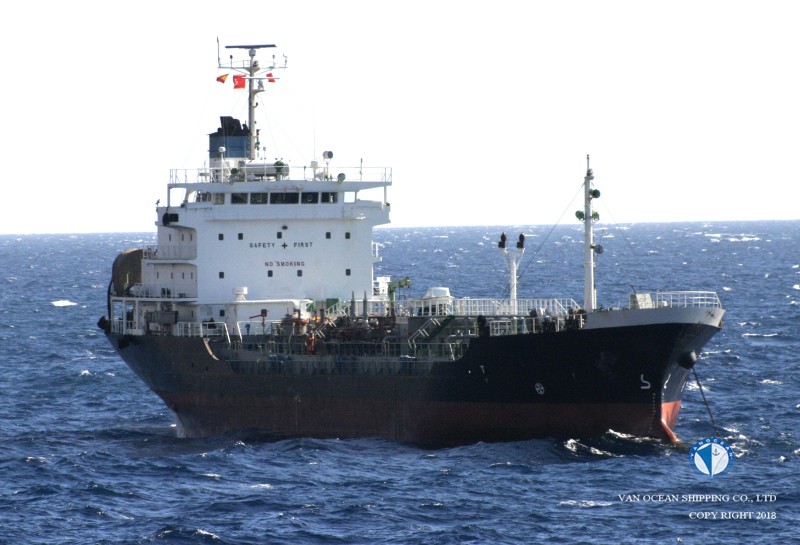

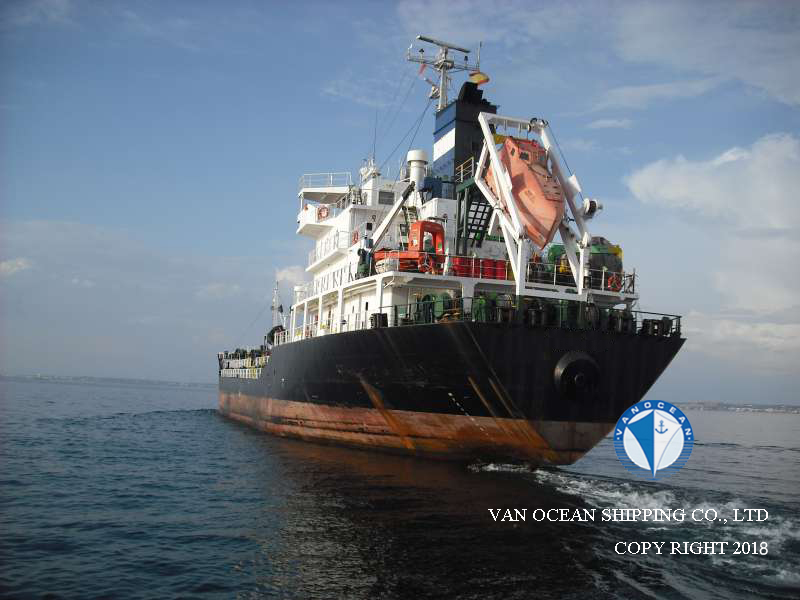

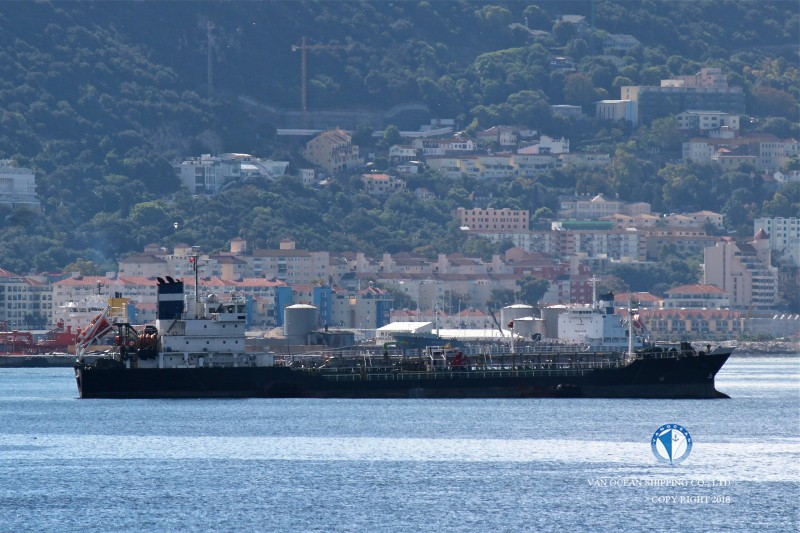

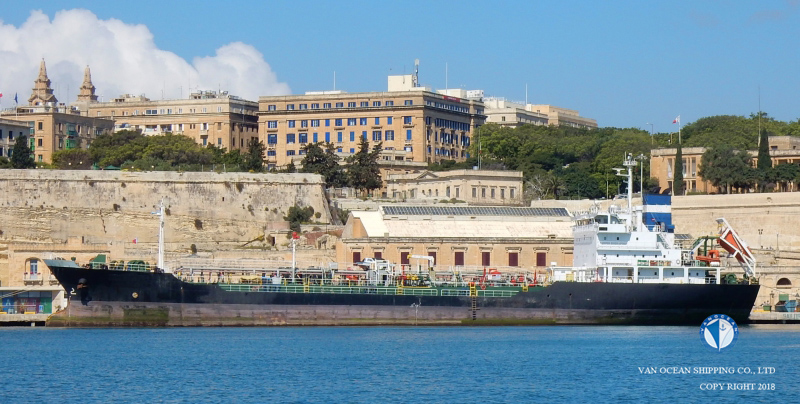

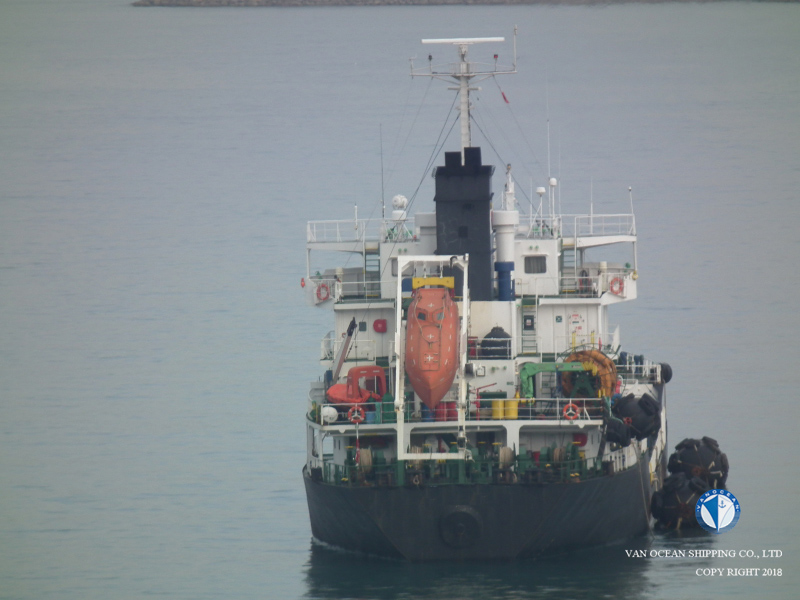

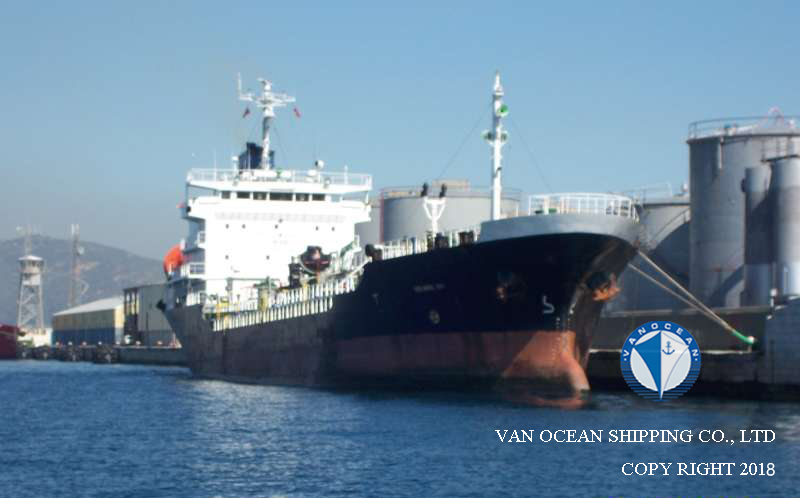

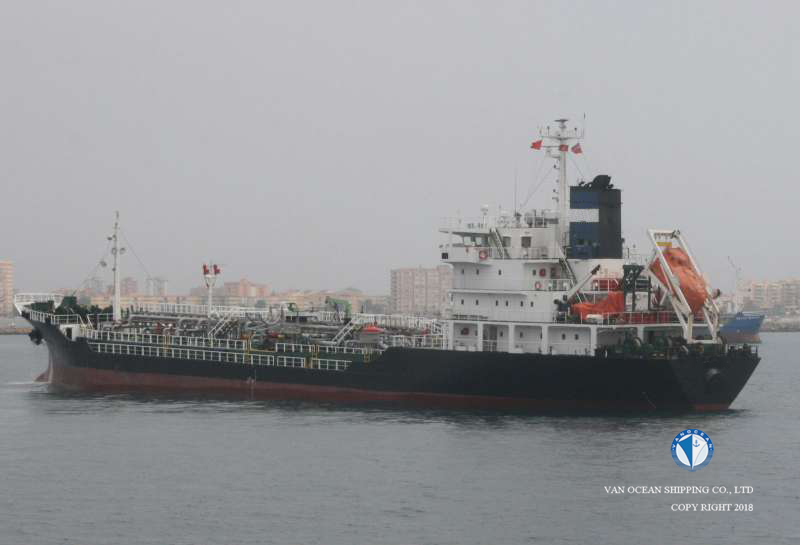

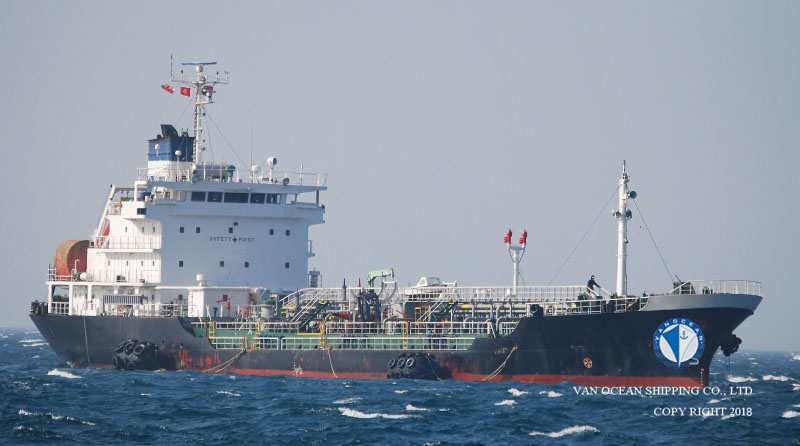

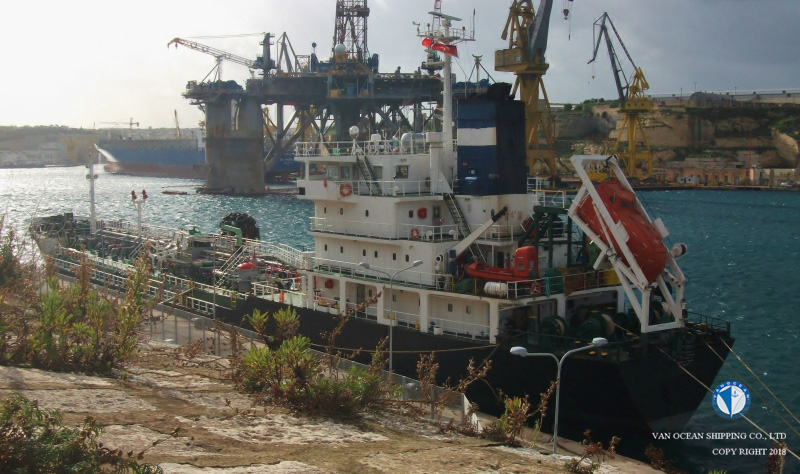

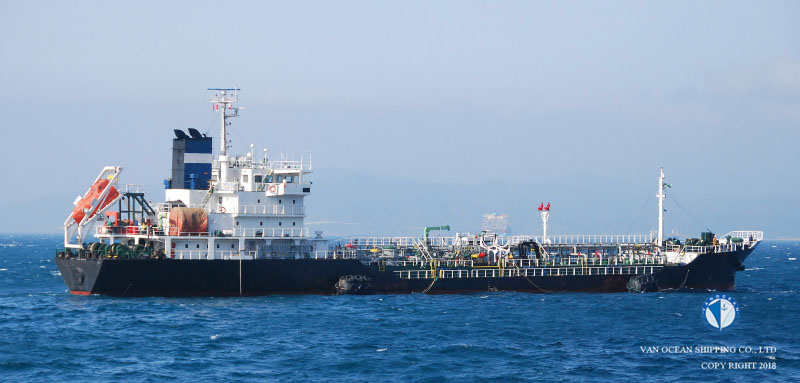

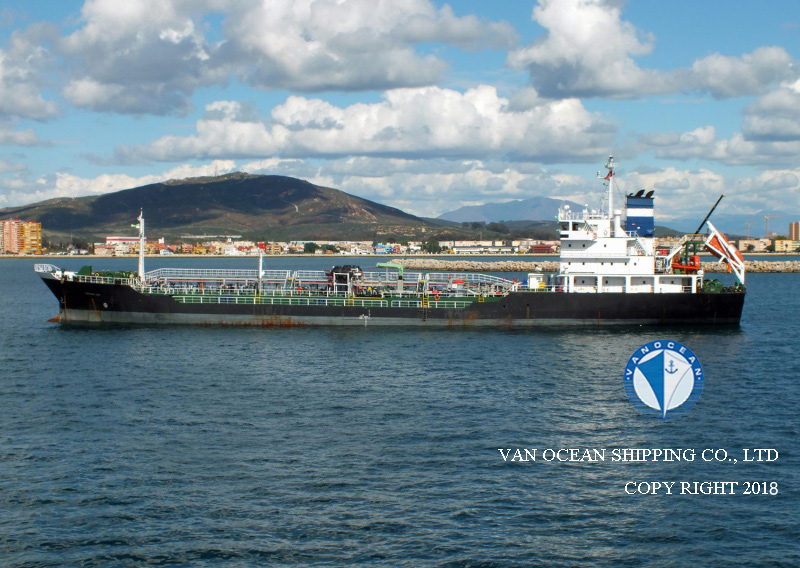

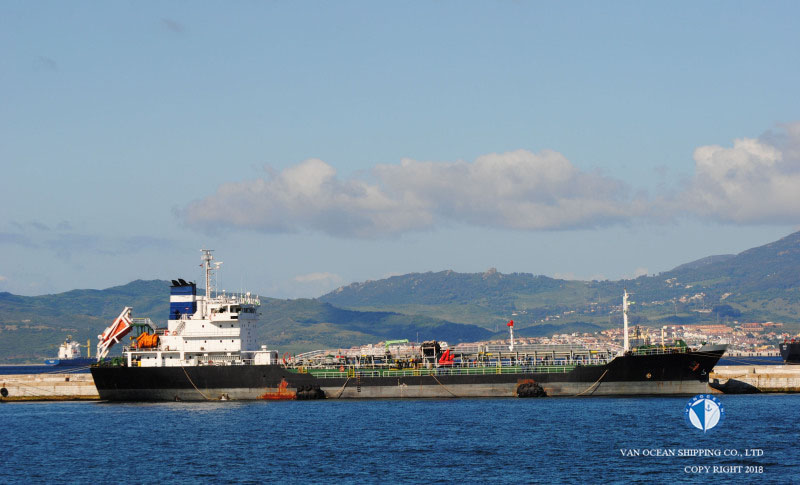

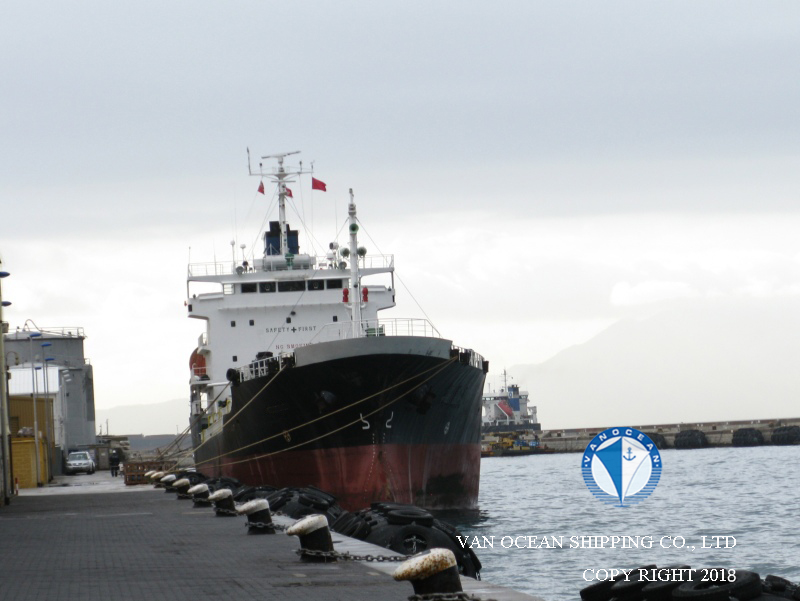

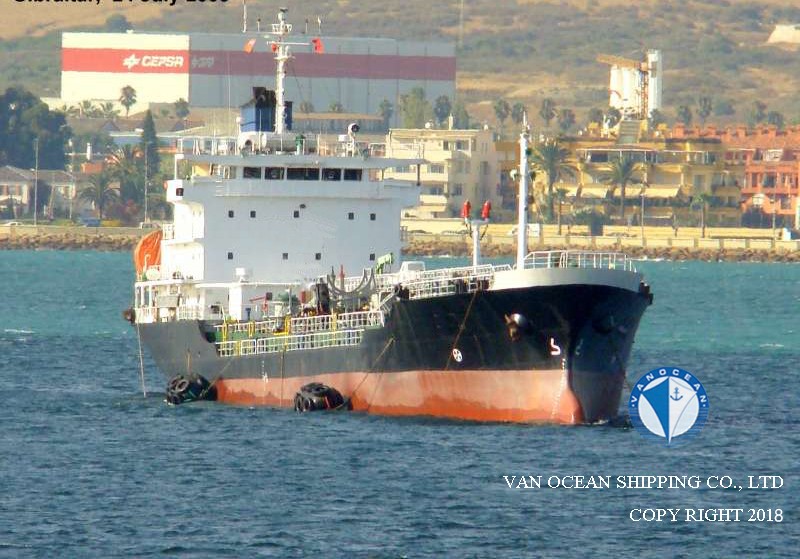

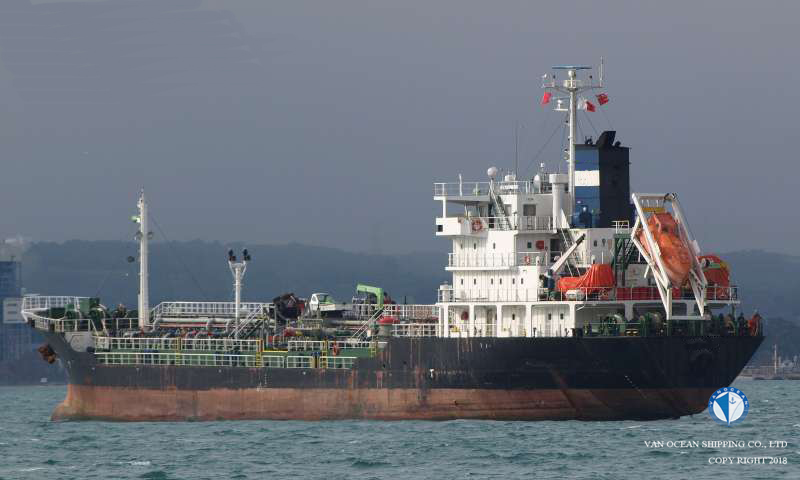

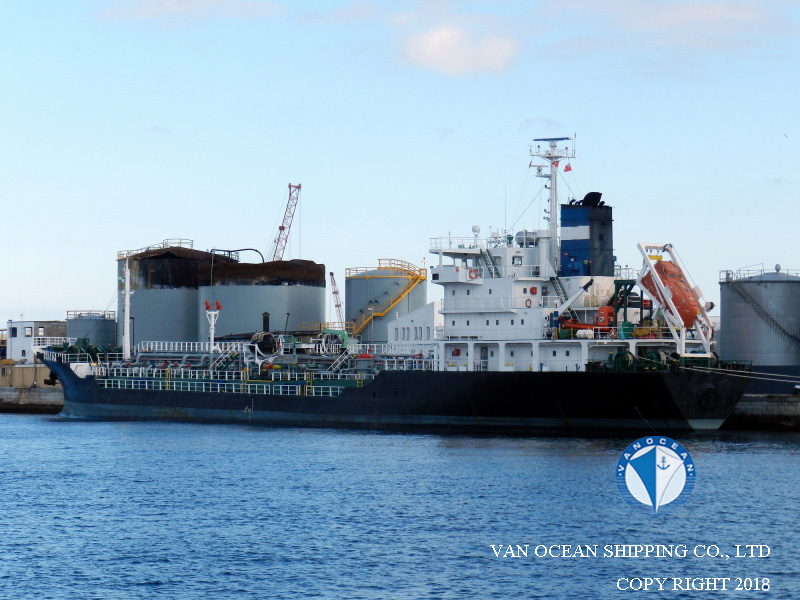

VESSEL NAME
TNK397
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MALTA
PORT OF REGISTRY
-
BUILT YEAR
1993
BUILT PLACE
KURINOURA DOCKYARD YARD, JAPAN
CLASSIFICATION
BV
CLASS NOTATION
-
SS
2019-07-12
DD
2019-07-12
LOA (M)
104.70
LBP (M)
-
BEAM (M)
15.40
DEPTH (M)
8.00
SUMMER DRAFT (M)
6.68
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
3586.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1538.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
5196.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
2250.00
GEAR(S)
CRANE
M/E(S)
AKASAKA A45 4000BHP
M/E POWER (KW)
2985
A/E(S)
-
GENERATOR(S)
YANMAR, 2 x 309KW
SHAFT GENERATOR(S)
YES
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
BALLAST: 12KTS
LADEN: 11.5KTS
FUEL TYPE
180CST
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
2
NUMBER OF CARGO HOLDS
10
CARGO CAPACITY98% (CBFT)
193479
CARGO CAPACITY98% (CBM)
5481
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
MILD STEEL HEATING COILS / THERMAL OIL HEATING
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
CENTRIFUGAL, 2 x 2500CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
NO
SIDE THRUSTER(S)
BOW THRUSTER 480KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
GREECE
DELIVERY
BERTH PORT
PRICE
USD 1.8 MILLION
REMARK(S)
OSMOSIS: 5-6MT/DAY
STERN CRANE, STERN LINE,
FENDERS,
CARGO HOSES
AUTO TENSION SYSTEM ON WINDLASS
SIRE/SHELL APPROVED
TRADING IN MED-BLACK SEA AREA
